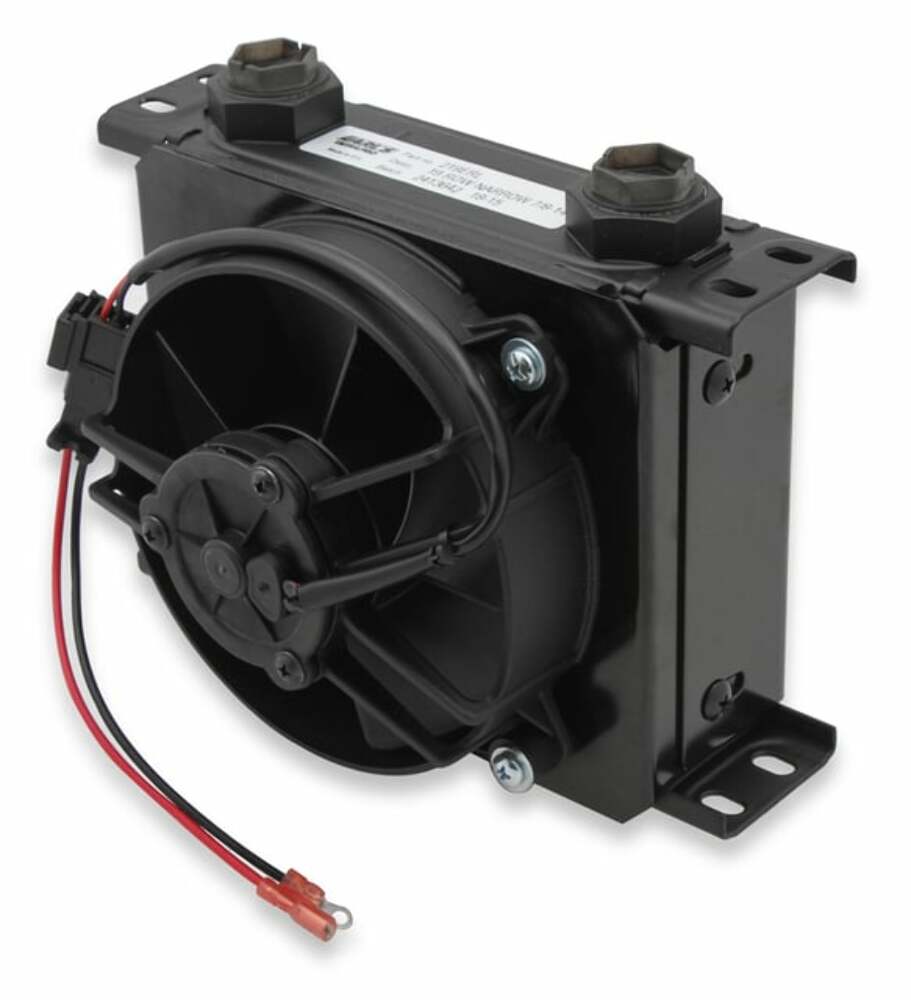

Earls UltraPro Oil Cooler w/Fan 19 Rows Cooler 10 O-Ring BossFemalePort FP219ERL

FP219ERL
Regular price
$327.95
Regular price
Sale price
$327.95
Unit price
per
Availability
Sold out
Payment Forms Accepted at Checkout

Overview:

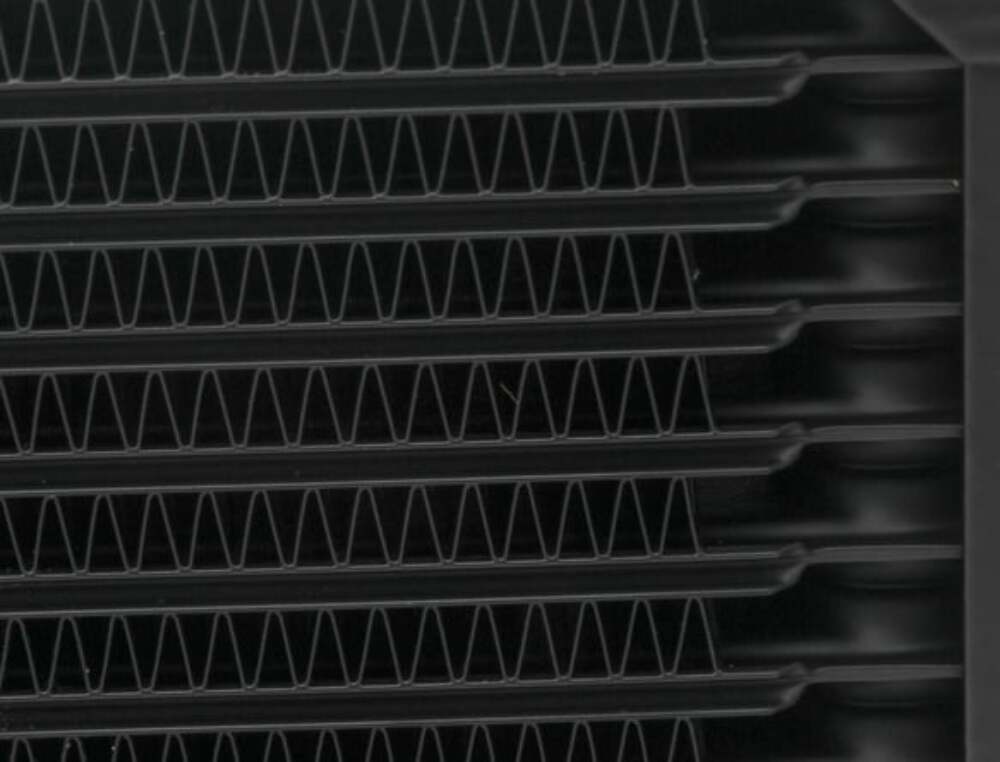

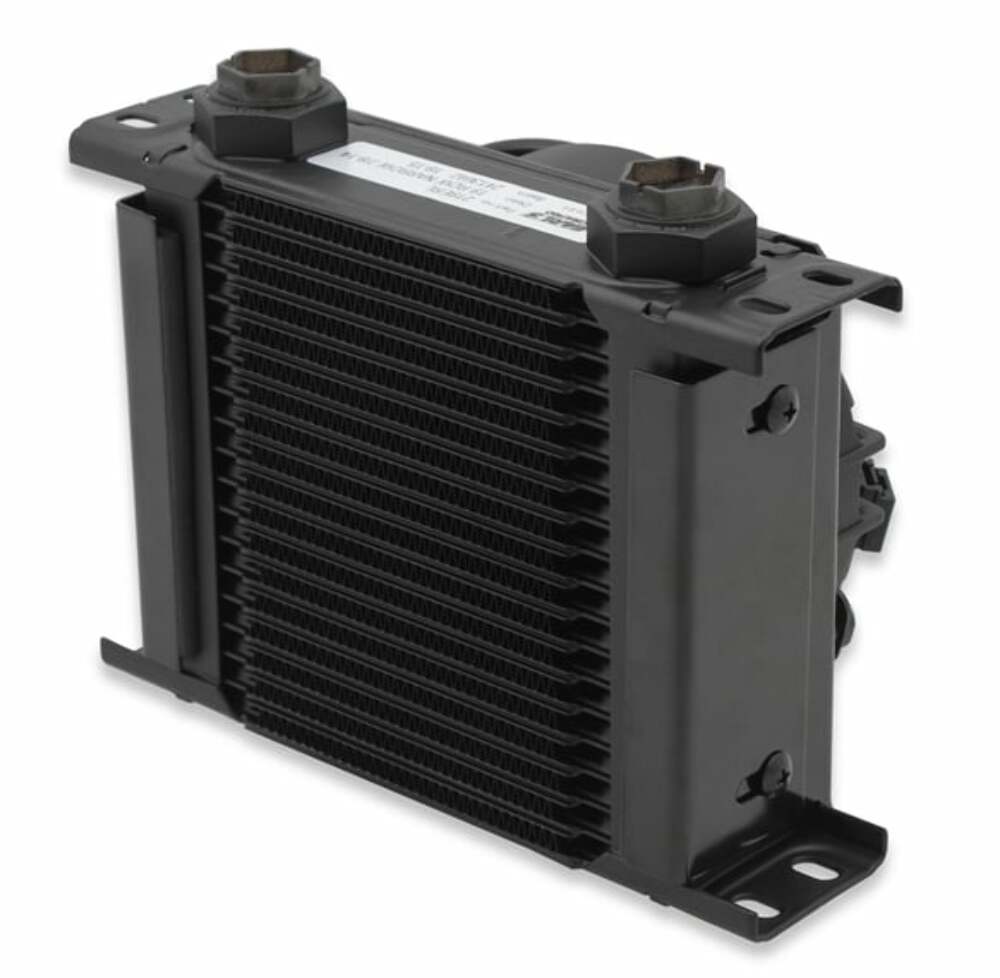

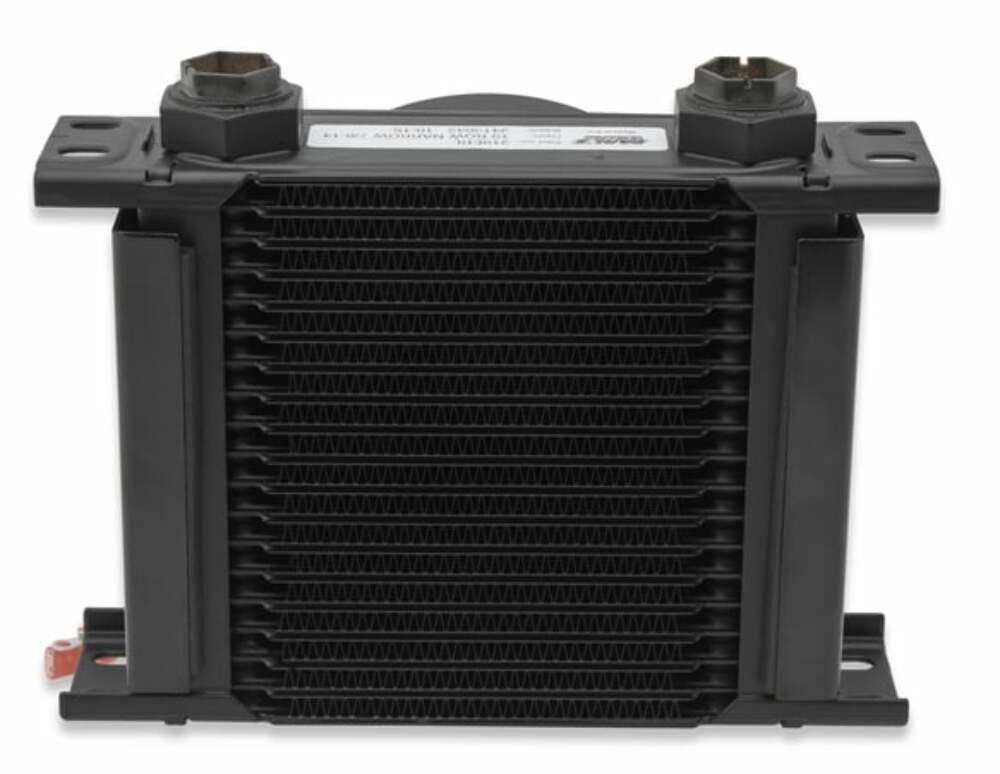

Earls new premium quality UltraPro oil coolers are ideal for all high performance applications. These aluminum stacked plate style coolers are made using state of the art brazing techniques for a durable and long lasting premium cooler that is highly efficient w/ minimal pressure drop. These fan coolers are available in 3 sizes & feature a premium cooling fan & aluminum shroud. These coolers feature -10 AN O-ring female ports and are used with special ORB cooler fittings (-6 AN, -8 AN, -10 AN, or -12 AN) and AN hose ends. Black Finish.

Features:

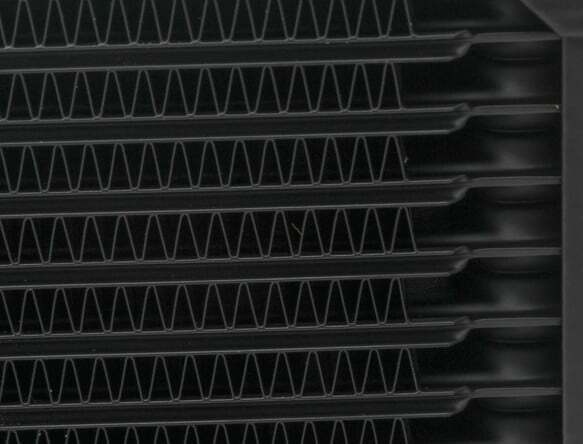

  • Premium Quality High Performance Stacked Plate Style Aluminum Oil Coolers
  • Made Using State of the Art Brazing Technology
  • Highly Efficient Design w/ Minimal Pressure Drop
  • Extremely Durable Lightweight Aluminum Construction w/Black Finish
  • (3) Width Options – Narrow 8.25”, Wide 12.99”, and Extra Wide 15.94” Overall Width

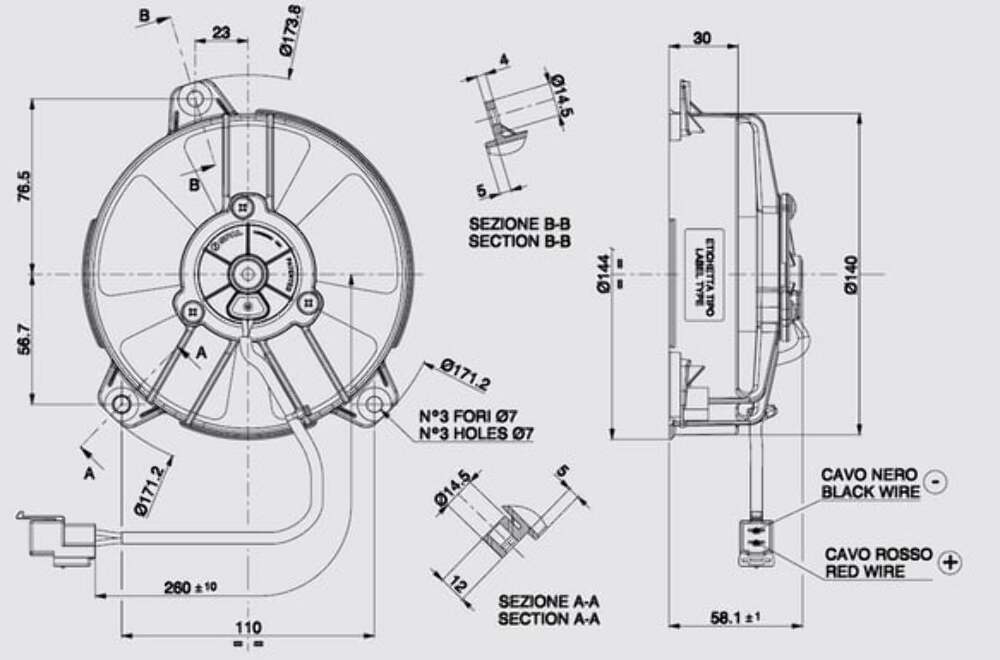

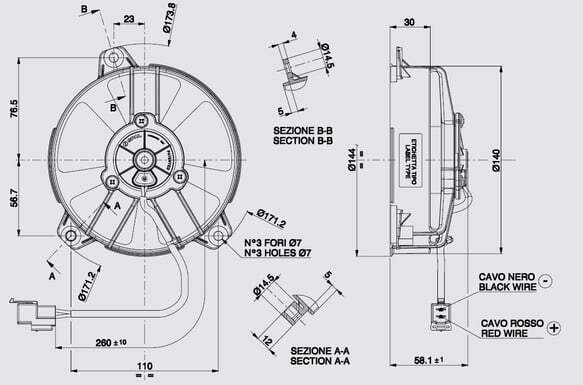

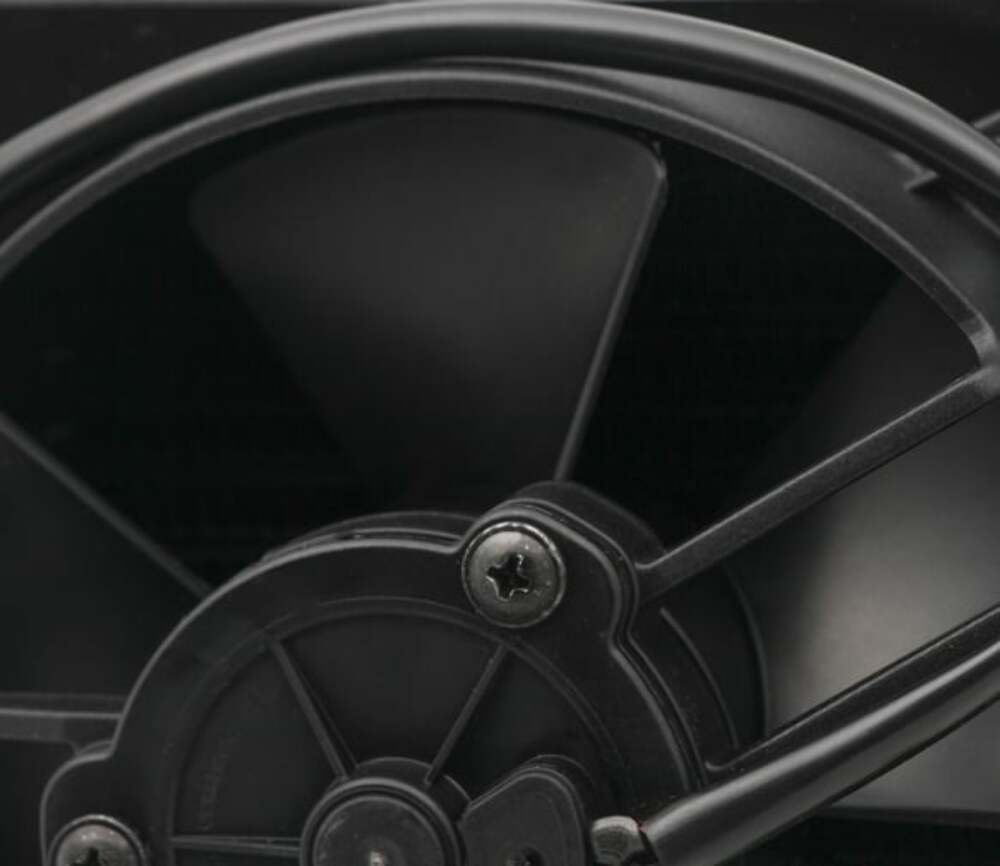

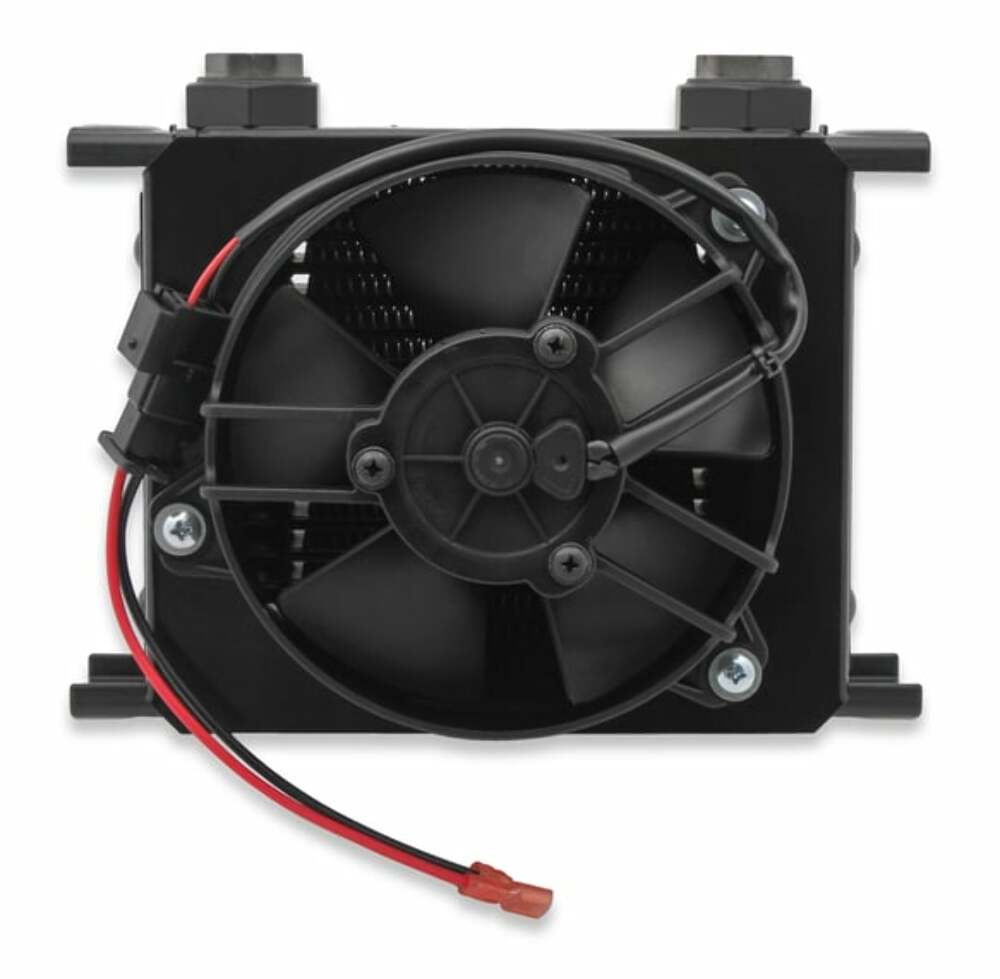

  • (3) Fan Pack Style Coolers Include the Oil Cooler, Spal® Cooling Fan(s) & Shroud

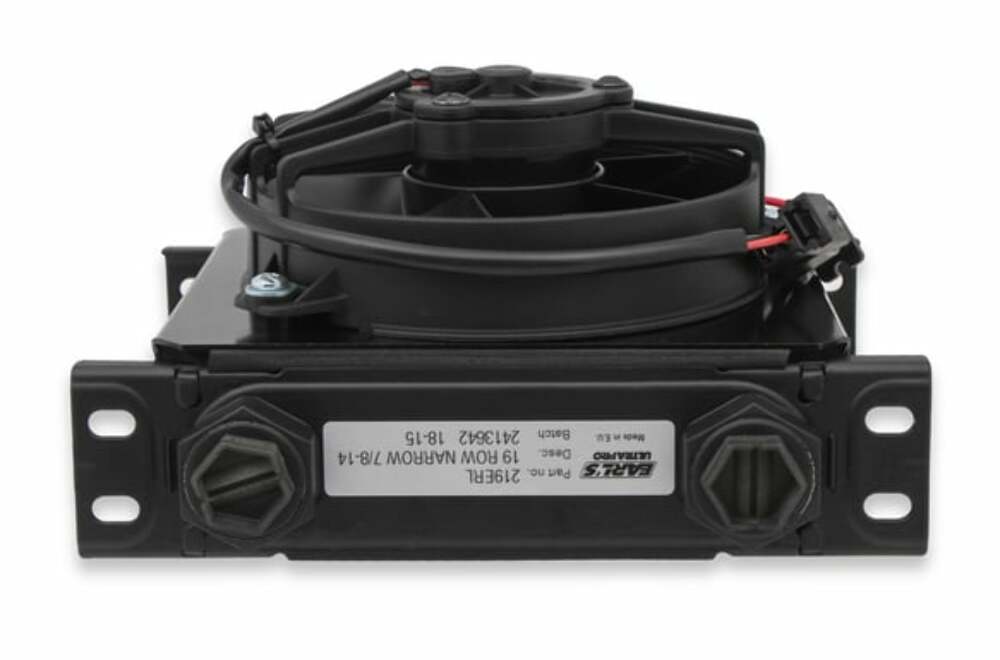

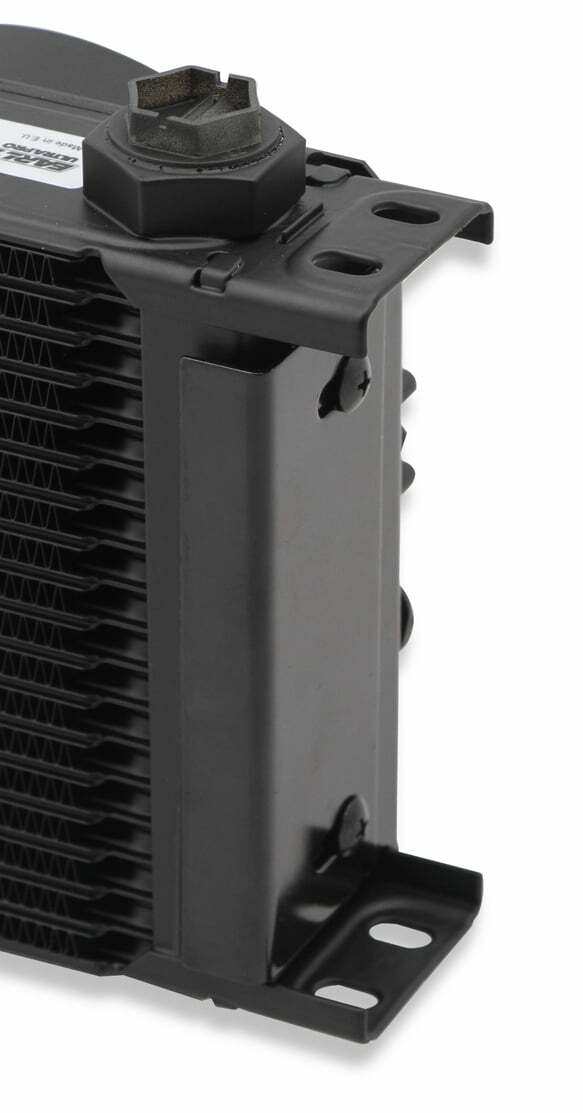

  • Port Sizes: 10 AN Female Ports (Uses Existing Earls Adapter Fittings)
  • Optional Mounting Brackets – Sold Separately

Year Make Model Submodel Engine Size
Universal

Amp Draw 4.8
Application Differential Cooler
Application Engine Oil Cooler
Application Transmission Cooler
Blade Style Paddle
Body Width (Overall) 8.250"
Brackets Included No
Brand Earls
Construction Stacked Plate - Brazed
Cooler Fittings 585106ERL
Cooler Fittings 585108ERL
Cooler Fittings 585110ERL
Cooler Fittings 585112ERL
Cooler Fittings AT585106ERL
Cooler Fittings AT585108ERL
Cooler Fittings AT585110ERL
Cooler Fittings AT585112ERL
Cooler Fittings Included No
Emission Code 5
Engine HP Range 100-150 HP
Engine Oil BTU Range 13,000-17,500
Fan Diameter 4.8
Fan Style Puller
Fan Type Electric
Finish Black
Fitting Centers 4.800"
Height 5.750"
Material Aluminum
Max Fan CFM 342
Mounting Bracket Width 7.500"
Mounting Brackets 200ERL
Number of Blades 5
Port Size 7/8-14 Female (-10 O-Ring Boss)
Product Line UltraPro w/ Fan Pack
Product Type Oil Cooler
Rows 19 Rows
Shroud Material Aluminum
Temperature Range -40° F to 302° F
Thickness 5.500"
Transmission Fluid BTU Range 8,400-13,000
Voltage 12V
Volume .22 Quarts
Warning California Proposition 65
Weight 3.55 Lbs
Width Narrow Cooler
Width (Less Mounting Ears) 6.438"
