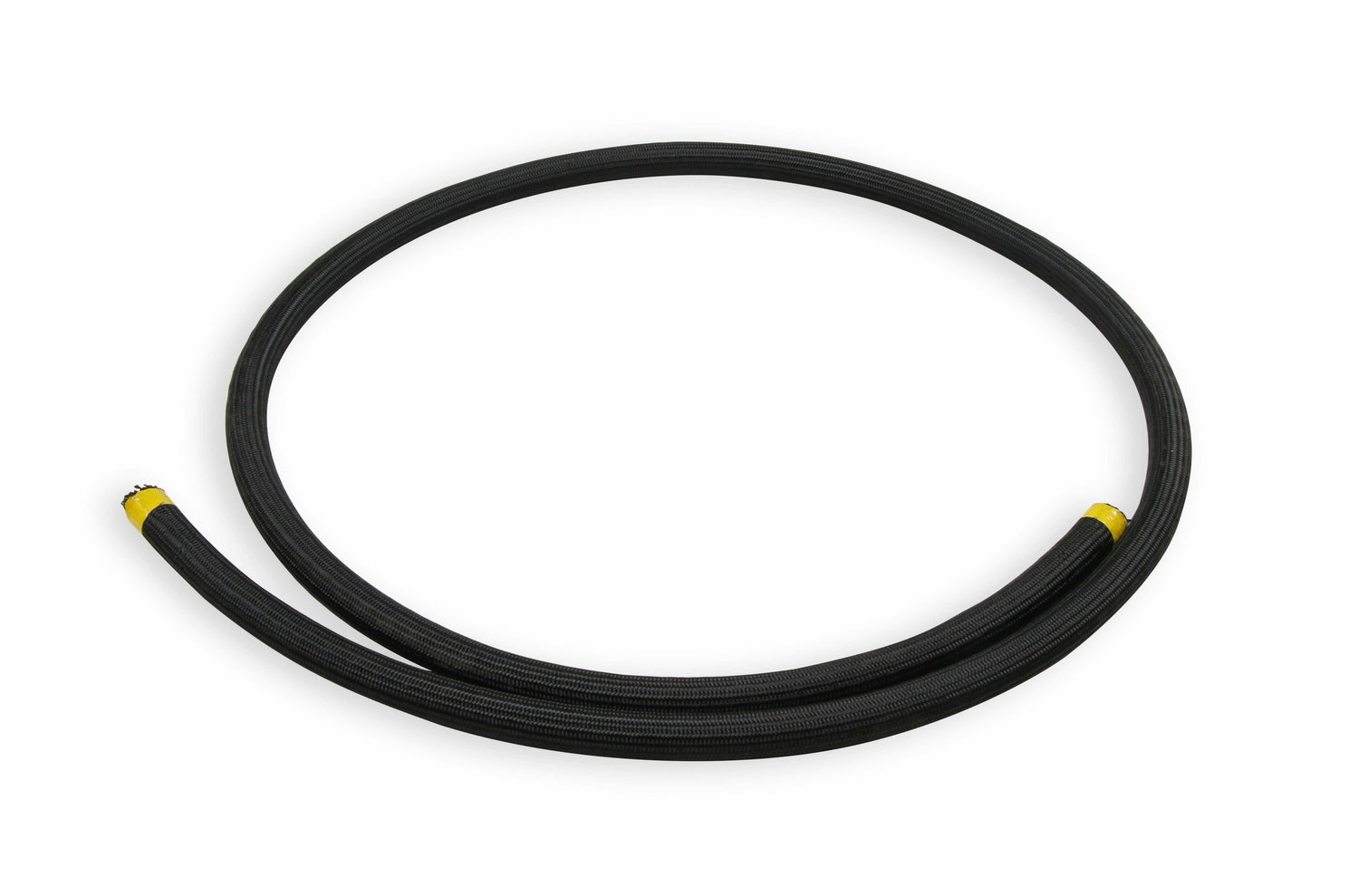

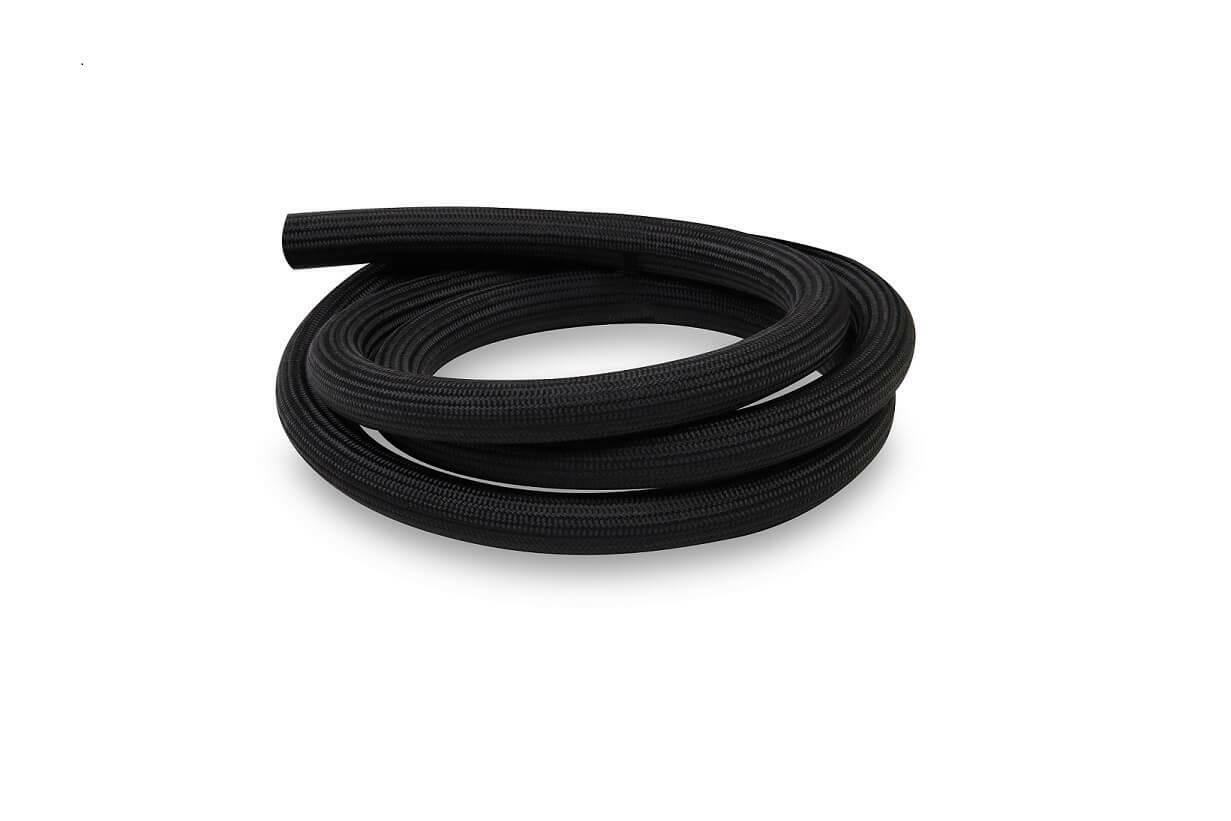

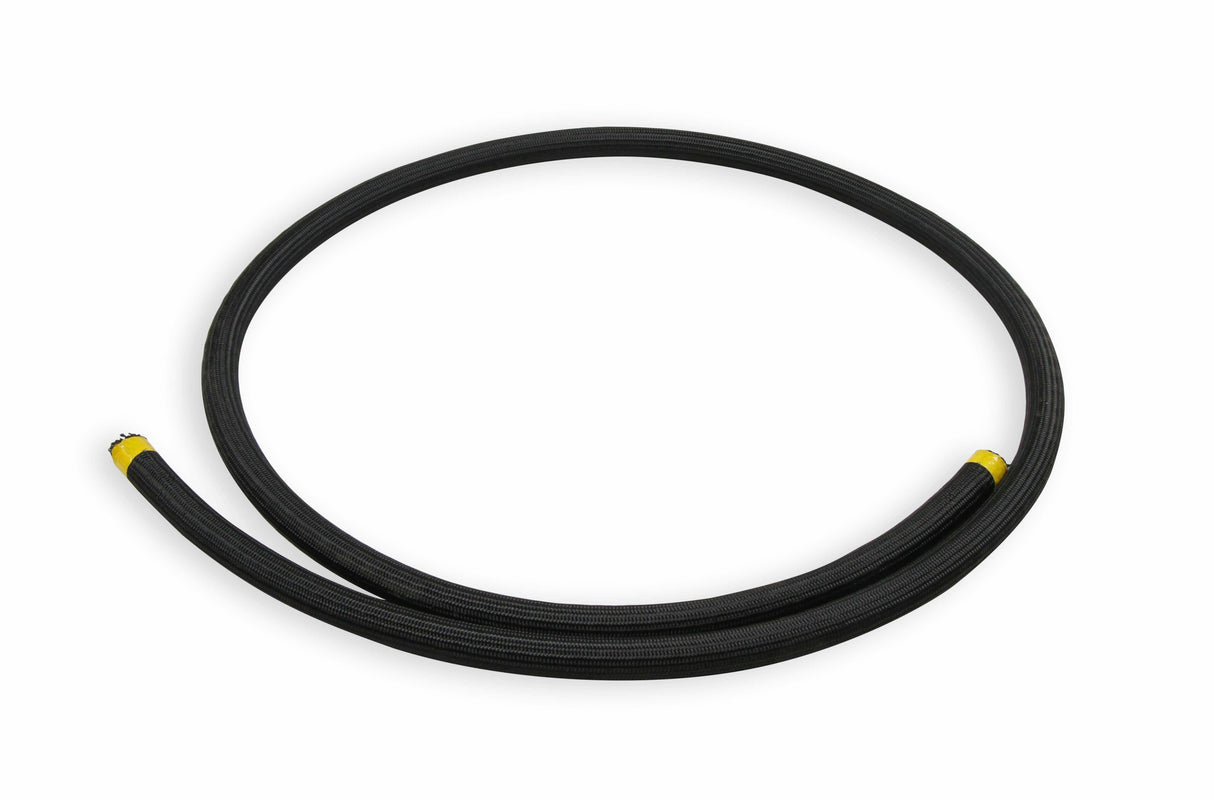

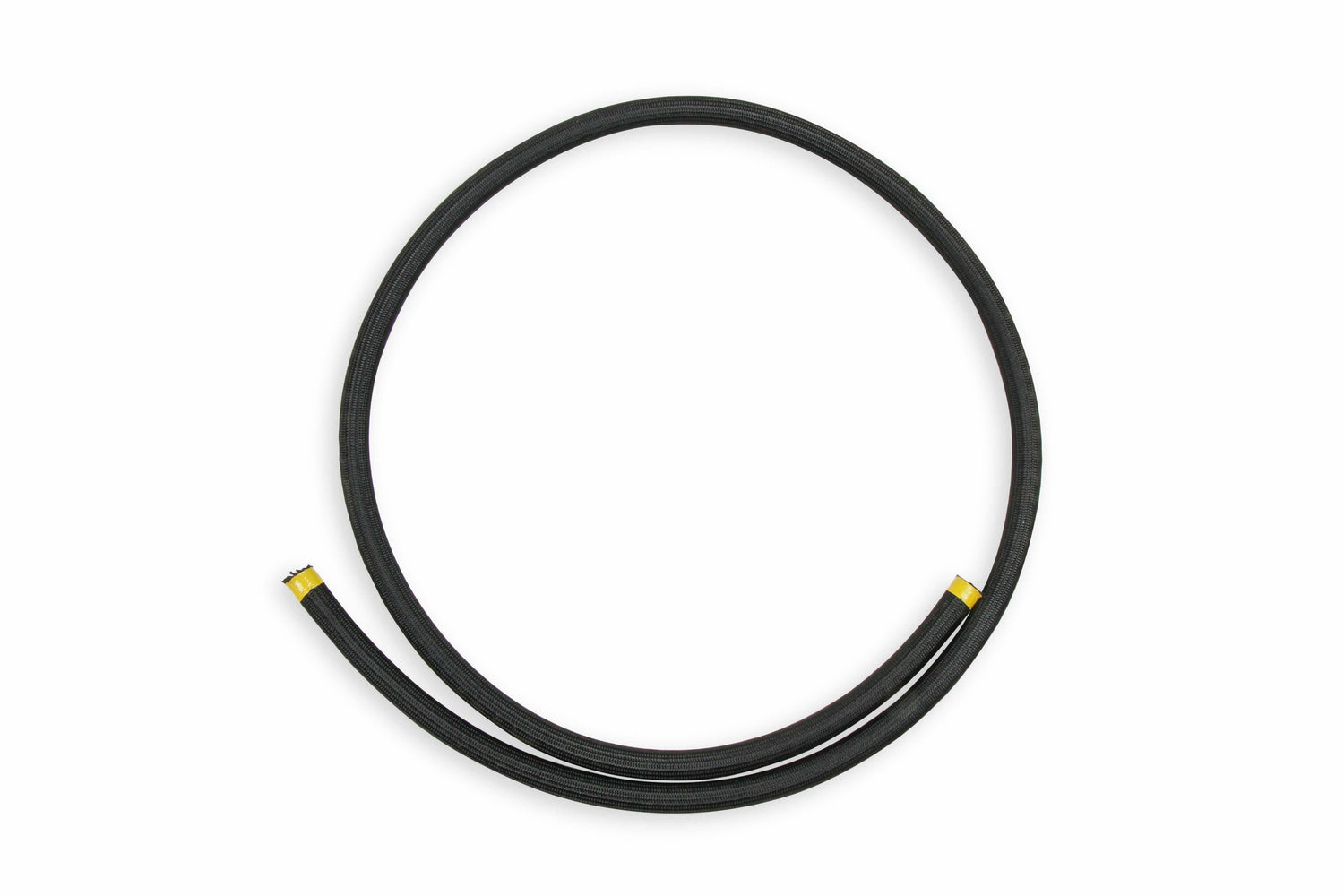

Earls UltraPro Series Hose - Size 12 - 33 Ft - 683312ERL
Earls UltraPro Series Hose - Size 12 - 33 Ft - 683312ERL is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Delivery and Shipping
Delivery and Shipping
Same day shipping, if ordered by 9:00 AM ET M-F
*Select products are made to order and ship within 4 business days.
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
Modern day high performance vehicles require a plumbing system designed to withstand today's fuids, harsh environments, brutal vibration, ?ow requirements & extreme pressures. UltraPro from Earl's was engineered as a system to exceed the rigorous demands of even the most extreme forms of racing. Don't settle for good enough. Go UltraPro!
Features:
- PTFE inner liner impervious to all known fuels, oils and coolants used in automotive applications
- Designed to withstand harsh environments, brutal vibrations, high flow requirements and extreme pressures
- Double-helix ribbed inner hose liner offers extreme ?exibility and full ?ow making tough plumbing jobs a snap with less hard connections!

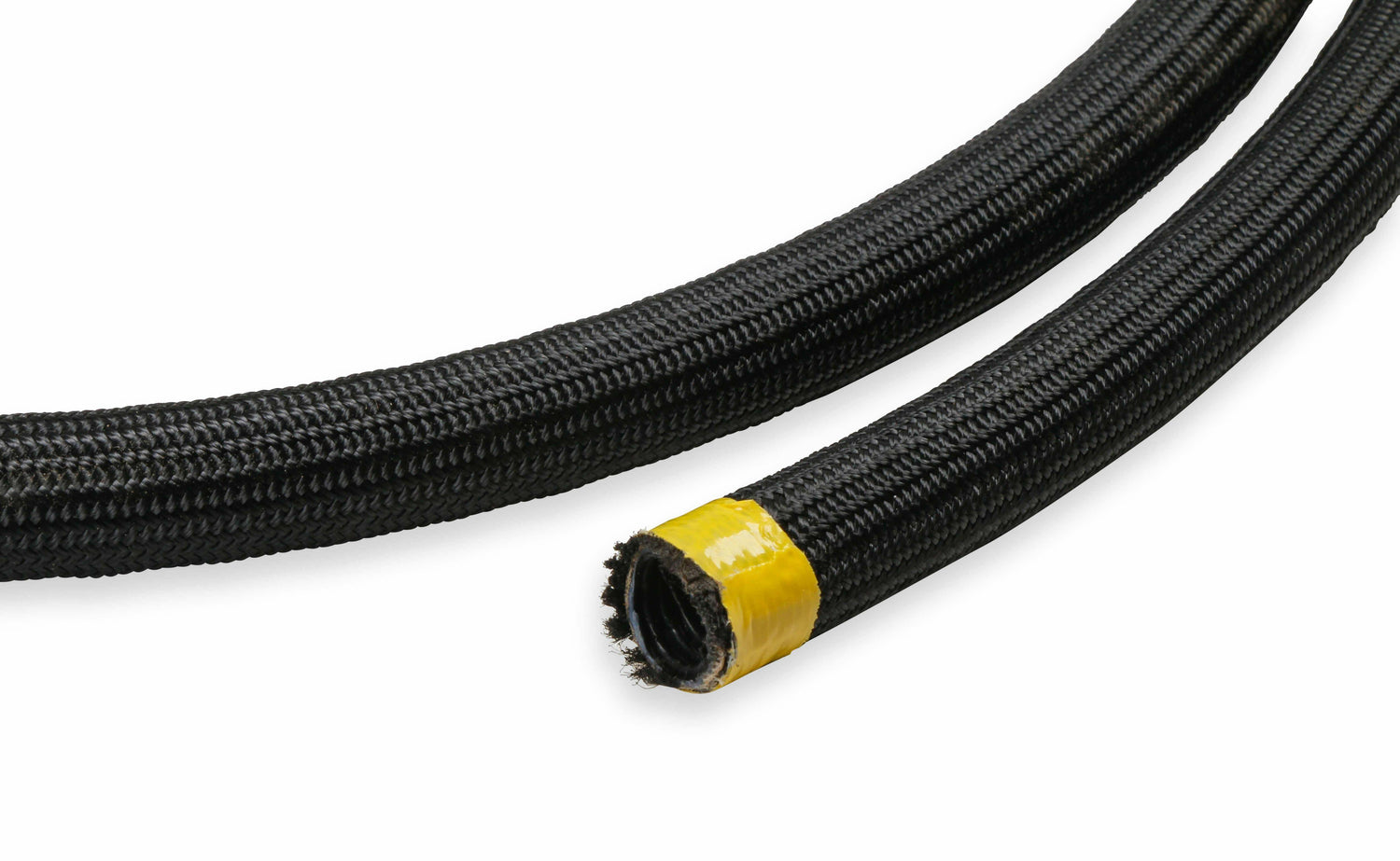

- Liner is reinforced with an outside glass-?ber wrap for additional strength and integrity!
- PTFE inner liner is carbon infused for static dissipation
- PTFE inner liner has ultra low coef?cient of friction to promote maximum ?ow
- Assembled with an olive that threads onto the double-helix ribbed inner liner of the hose for positive engagement and retention of the hose-ends
- Available in popular -6, -8, -10, -12, -16, and -20 sizes in both woven polyester braid and stainless steel braid
- UltraPro Polyester Braid hose is up to 67% lighter than traditional rubber hose with stainless steel braid
- UltraPro Stainless Steel Braid is up to 37% lighter than traditional rubber hose with stainless steel braid
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Brand | Earls |
|---|---|
| Carbon Lined | Yes |
| Compatible Hose Ends | UltraPro - Crimp On |
| Compatible Hose Ends | UltraPro - Twist On |
| Crimping Die | 22MM - D10022BERL |
| Emission Code | 5 |
| Final Crimp O.D. Range | .982"-.986" |
| Fluid Type | Automatic Transmission Fluid |
| Fluid Type | Bio-Fuels |
| Fluid Type | Coolant |
| Fluid Type | Diesel |
| Fluid Type | E85 |
| Fluid Type | Methanol/Alcohol |
| Fluid Type | Oil |
| Fluid Type | Pump Gas |
| Fluid Type | Race Gas |
| Fluid Type Rating - Automatic Transmission Fluid | 5 out of 5 Rating |
| Fluid Type Rating - Bio-Fuels | 5 out of 5 Rating |
| Fluid Type Rating - Coolant | 5 out of 5 Rating |
| Fluid Type Rating - Diesel | 5 out of 5 Rating |
| Fluid Type Rating - E85 | 5 out of 5 Rating |
| Fluid Type Rating - Methanol/Alcohol | 5 out of 5 Rating |
| Fluid Type Rating - Oil | 5 out of 5 Rating |
| Fluid Type Rating - Pump Gas | 5 out of 5 Rating |
| Fluid Type Rating - Race Gas | 5 out of 5 Rating |
| Hose Family | UltraPro |
| Hose Length | 33 Feet |
| Hose Outer Material | Black Polyester |
| Hose Size | 12 AN |
| Inside Diameter | .646" |
| Max Vacuum | 20 in Hg |
| Max Working PSI | 250 PSI |
| Min. Bend Radius | 2.5" |
| Outside Diameter | .905" |
| Product Type | UltraPro Black Polyester Braided |
| Submersible in Fuel | No |
| Temperature Range | -67° F to 257° F |
| Warning | California Proposition 65 |
