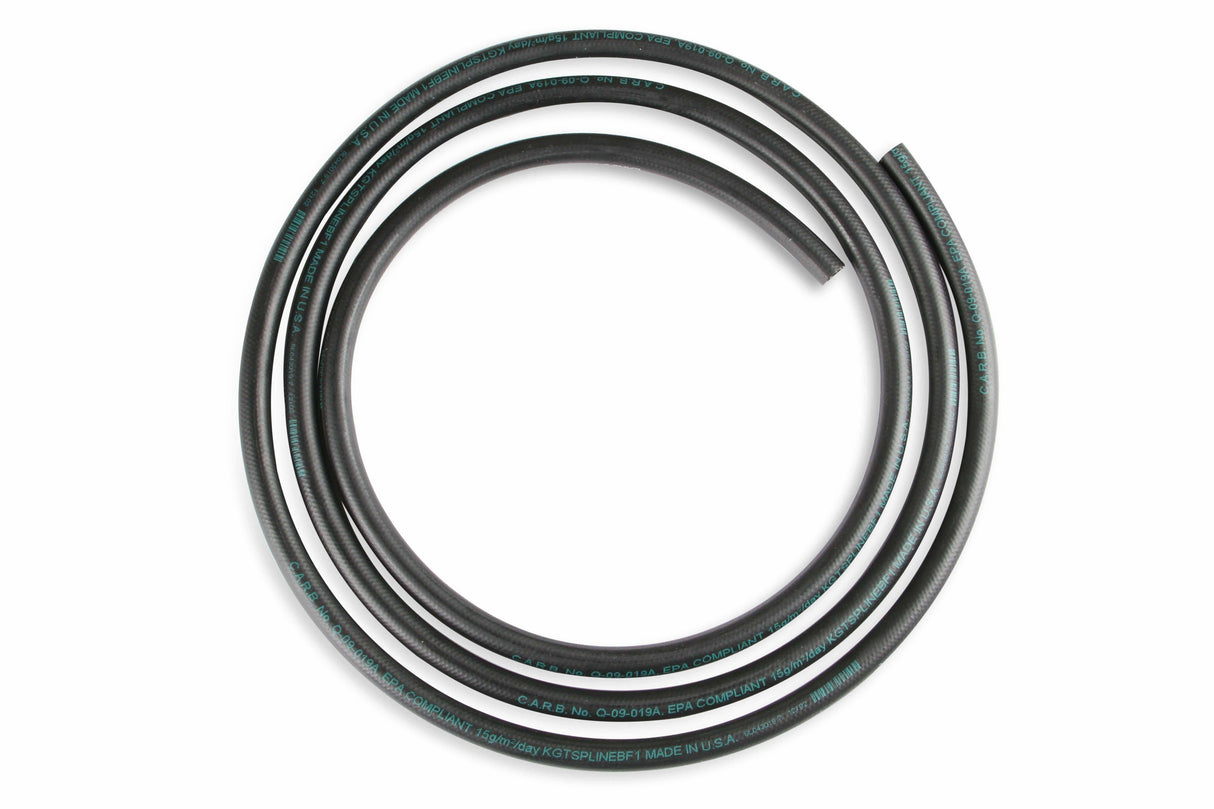

Earl's Vapor Guard™ Hose - 750055ERL

750055ERL
Regular price
$4.79
Regular price
Sale price
$4.79
Unit price
per
Availability
Sold out
Payment Forms Accepted at Checkout

Overview:

Modern fuels are at war with your fuel system. Modern fuels (more than 40 EPA-approved fuel blends in the US alone) include additives that break down traditional rubber hose. This breakdown leads to potentially dangerous leaks & weeping as well as vapors that waste fuel and leave unwanted odors in your shop. Once fuel lines are degraded, hose particles can contaminate and obstruct fuel injectors and carburetor passages. Earl's Vapor Guard hose and hose ends provide a complete, economical solution that virtually eliminates these fuel permeation issues common with most rubber fuel lines. The secret to Earl's Vapor Guard hose is in its layers. The innermost Primary Barrier Layer offers high resistance to heat and aggressive fuels. The middle Earl's Vapor Guard™ Barrier is a Thermoplastic layer that provides superior fuel isolation and virtually eliminates vapors from escaping through the hose. The Exterior Cover Barrier provides extreme tolerance to heat and ozone giving Earl's Vapor Guard a three way shield against hose deterioration.

Features:

  • Multi-layer rubber hose designed to withstand to the corrosive properties of modern fuels
  • Multi-fuel compatible: Approved for use with leaded and unleaded Gasoline, Diesel, Biodiesel, E-85, 100% Methanol, ETHANOL and Gasohol fuels
  • A two foot section of Earl’s Vapor Guard saves one gallon of gas each year as compared to traditional rubber hose from permeation alone
  • Primary Barrier Liner – initial layer offers high resistance to heat and aggressive fuels
  • Vapor Guard Barrier – Thermoplastic layer provides superior fuel isolation significantly reducing vapors from escaping through the hose
  • Reinforcement braid-aramid material – (EFI hose only) is used to provide the higher pressure rating that is required with fuel injection
  • Exterior cover – provides extreme tolerance of heat and ozone
  • Choose from carburetor or higher pressure EFI hose
  • Hose available in 5/16” and 3/8” sizes
  • Not for use in applications where the hose is submersed in fuel
  • Fuel Injection Hose – Rated Maximum 225 PSI

Year Make Model Submodel Engine Size
Universal

Brand Earls
Compatible Hose Ends Vapor Guard
Emission Code 5
Fluid Type Bio-Fuels
Fluid Type Coolant
Fluid Type Diesel
Fluid Type E85
Fluid Type Pump Gas
Fluid Type Race Gas
Fluid Type Rating - Bio-Fuels 4 out of 5 Rating
Fluid Type Rating - Coolant 5 out of 5 Rating
Fluid Type Rating - Diesel 4 out of 5 Rating
Fluid Type Rating - E85 3 out of 5 Rating
Fluid Type Rating - Methanol/Alcohol 2 out of 5 Rating
Fluid Type Rating - Pump Gas 4 out of 5 Rating
Fluid Type Rating - Race Gas 4 out of 5 Rating
Fuel System Type EFI
Hose Family Vapor Guard
Hose Length BULK
Hose Size 44332
Max PSI 225
Max Vacuum 10 inHg
Maximum Continuous Length 50 Feet
Min. Bend Radius 2.5 in.
Outside Diameter .585 in.
Product Type Hose
Submersible in Fuel No
Temperature Range -40°F to 275°f
Warning California Proposition 65
