EFI Crank Trigger Kit - 556-113
EFI Crank Trigger Kit - 556-113 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

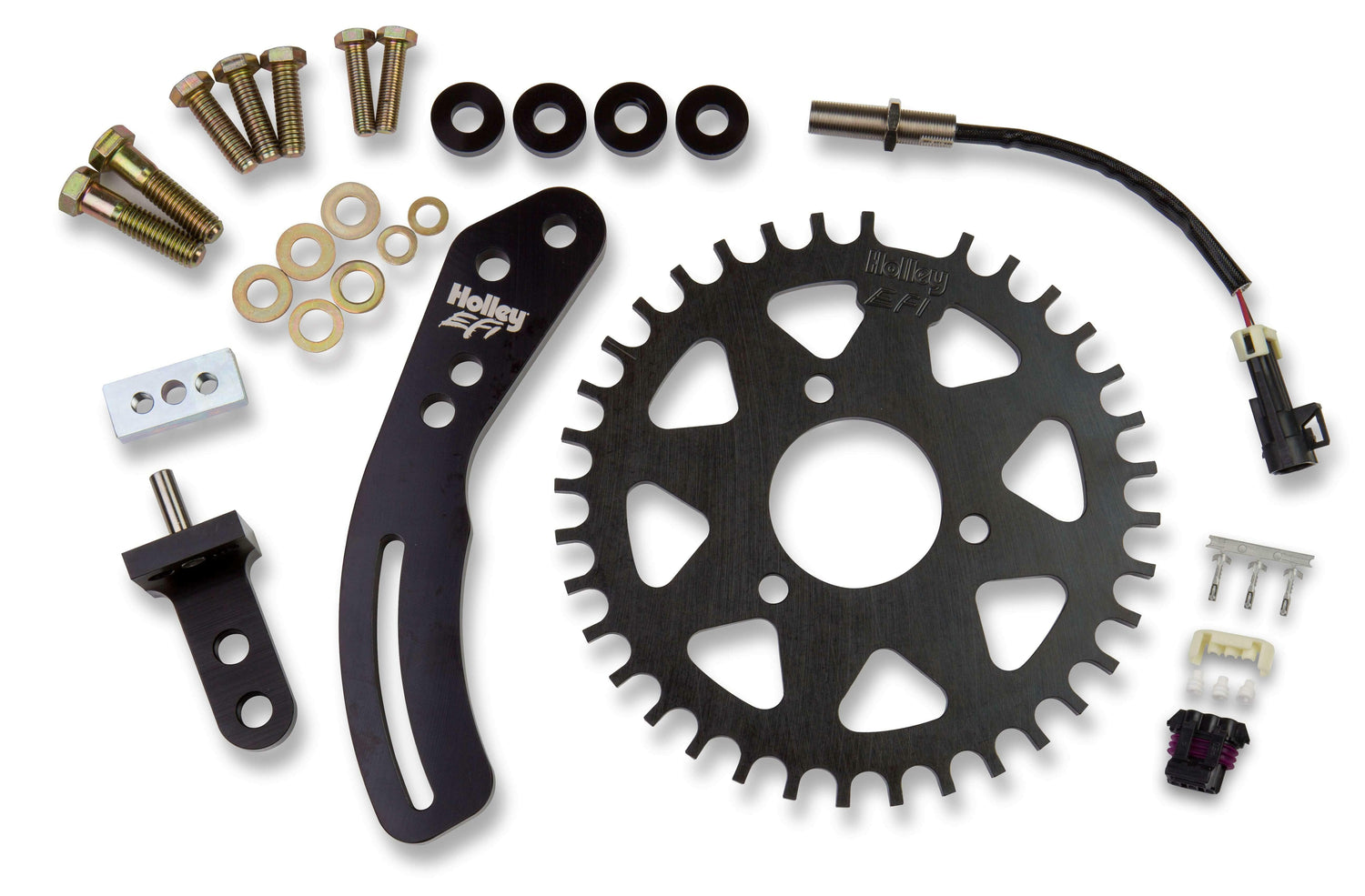

Holley's EFI Crank Trigger Kit is engineered to provide an accurate crank speed & position signal to Holley EFI systems in the most-demanding, high horsepower, racing applications. Crank position is measured every 10 degrees as opposed to every 45 degrees for a standard 4-Magnet, MSD "style" Crank trigger. It is designed for use on early model BBC Chevy applications using a standard ATI or Fluidamper "style" balancer up to 7-1/4" in diameter.
Features:
- 8” diameter, 1/4” thick, billet steel, 36-1 tooth, crank wheel with Black Zinc Oxide finish for superior corrosion resistance & striking good looks.
- Crank wheel centers off of the balancer’s hub, eliminating the need for a centering ring
- All billet, 6061-T6 aluminum sensor mounting brackets with “bright-dipped” black anodized finish & Laser etched Holley EFI logo
- Custom 3-wire, ferrous-target, Hall-effect sensor with M12X1mm threads for finer gap adjustment
- All Grade 8 & Mil. Spec mounting hardware
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| 1970 - 1972 | GMC | K25/K2500 Pickup | 402/6.6 V8 | |
| 1973 - 1974 | GMC | K25/K2500 Pickup | 454/7.4 V8 | |
| 1968 - 1969 | GMC | K25/K2500 Suburban | 396/6.5 V8 | |
| 1970 - 1972 | GMC | K25/K2500 Suburban | 402/6.6 V8 | |
| 1973 - 1974 | GMC | K25/K2500 Suburban | 454/7.4 V8 | |
| 1968 - 1969 | GMC | K35/K3500 Pickup | 396/6.5 V8 | |
| 1970 - 1972 | GMC | K35/K3500 Pickup | 402/6.6 V8 | |
| 1973 - 1974 | GMC | K35/K3500 Pickup | 454/7.4 V8 | |
| 1970 - 1971 | GMC | P25/P2500 Van | 454/7.4 V8 | |
| 1970 - 1974 | GMC | P35/P3500 Van | 454/7.4 V8 | |
| 1971 - 1975 | GMC | Sprint | 454/7.4 V8 | |
| 1971 - 1975 | GMC | Sprint | 402/6.6 V8 | |
| 1970 - 1972 | Chevrolet | Brookwood | 402/6.6 V8 | |
| 1970 - 1972 | Chevrolet | Brookwood | 454/7.4 V8 | |
| 1965 - 1969 | Chevrolet | Biscayne | 396/6.5 V8 | |
| 1963 - 1969 | Chevrolet | Biscayne | 427/7 V8 | |
| 1970 - 1972 | Chevrolet | Biscayne | 454/7.4 V8 | |
| 1970 - 1972 | Chevrolet | Biscayne | 402/6.6 V8 | |
| 1973 - 1974 | Chevrolet | Blazer | 454/7.4 V8 | |
| 1969 | Chevrolet | Brookwood | 396/6.5 V8 | |
| 1969 | Chevrolet | Brookwood | 427/7 V8 | |
| 1968 - 1969 | Chevrolet | C10 Pickup | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | C10 Pickup | 402/6.6 V8 | |
| 1973 - 1974 | Chevrolet | C10 Pickup | 454/7.4 V8 | |
| 1968 - 1969 | Chevrolet | C10 Suburban | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | C10 Suburban | 402/6.6 V8 | |
| 1973 - 1980 | Chevrolet | C10 Suburban | 454/7.4 V8 | |
| 1968 - 1969 | Chevrolet | C20 Pickup | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | C20 Pickup | 402/6.6 V8 | |
| 1973 - 1974 | Chevrolet | C20 Pickup | 454/7.4 V8 | |
| 1968 - 1969 | Chevrolet | C20 Suburban | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | C20 Suburban | 402/6.6 V8 | |
| 1973 - 1985 | Chevrolet | C20 Suburban | 454/7.4 V8 | |
| 1968 - 1969 | Chevrolet | C30 Pickup | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | C30 Pickup | 402/6.6 V8 | |
| 1973 - 1974 | Chevrolet | C30 Pickup | 454/7.4 V8 | |
| 1980 - 1985 | GMC | B6000 | 427/7 V8 | |
| 1965 - 1969 | Pontiac | Beaumont | 396/6.5 V8 | |
| 1965 - 1969 | Pontiac | Strato-Chief | 396/6.5 V8 | |
| 1966 - 1969 | Pontiac | Laurentian | 396/6.5 V8 | |
| 1966 - 1969 | Pontiac | Parisienne | 396/6.5 V8 | |
| 1969 | Chevrolet | Estate | 396/6.5 V8 | |
| 1969 | Chevrolet | Estate | 427/7 V8 | |
| 1970 | Chevrolet | Estate | 402/6.6 V8 | |
| 1970 | Chevrolet | Estate | 454/7.4 V8 | |
| 1970 | Pontiac | Laurentian | 454/7.4 V8 | |
| 1970 | Pontiac | Parisienne | 454/7.4 V8 | |
| 1970 | Pontiac | Strato-Chief | 454/7.4 V8 | |
| 1975 - 1980 | Chevrolet | C10 | 454/7.4 V8 | |
| 1970 - 1972 | Chevrolet | Kingswood | 454/7.4 V8 | |
| 1970 - 1972 | Chevrolet | Kingswood | 402/6.6 V8 | |
| 1973 - 1975 | Chevrolet | Laguna | 454/7.4 V8 | |
| 1975 - 1985 | Chevrolet | C20 | 454/7.4 V8 | |
| 1975 - 1985 | Chevrolet | C30 | 454/7.4 V8 | |
| 1970 - 1976 | Chevrolet | Caprice | 454/7.4 V8 | |
| 1970 - 1975 | Chevrolet | El Camino | 454/7.4 V8 | |
| 1976 | Chevrolet | G20 | 454/7.4 V8 | |
| 1975 - 1976 | Chevrolet | G30 | 454/7.4 V8 | |
| 1970 - 1976 | Chevrolet | Impala | 454/7.4 V8 | |
| 1976 - 1980 | Chevrolet | K10 | 454/7.4 V8 | |
| 1976 - 1978 | Chevrolet | K20 | 454/7.4 V8 | |
| 1973 - 1985 | Chevrolet | K20 Suburban | 454/7.4 V8 | |
| 1977 - 1985 | Chevrolet | K30 | 454/7.4 V8 | |
| 1973 - 1975 | Chevrolet | Malibu | 454/7.4 V8 | |
| 1970 - 1975 | Chevrolet | Monte Carlo | 454/7.4 V8 | |
| 1976 - 1979 | Chevrolet | P20 | 454/7.4 V8 | |
| 1975 - 1985 | Chevrolet | P30 | 454/7.4 V8 | |
| 1975 - 1978 | GMC | C15 | 454/7.4 V8 | |
| 1979 - 1980 | GMC | C1500 | 454/7.4 V8 | |
| 1975 - 1978 | GMC | C15 Suburban | 454/7.4 V8 | |
| 1979 - 1980 | GMC | C1500 Suburban | 454/7.4 V8 | |
| 1975 - 1978 | GMC | C25 | 454/7.4 V8 | |
| 1979 - 1985 | GMC | C2500 | 454/7.4 V8 | |
| 1973 - 1974 | Chevrolet | K20 Pickup | 454/7.4 V8 | |
| 1968 - 1969 | Chevrolet | K20 Suburban | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | K20 Suburban | 402/6.6 V8 | |
| 1968 - 1969 | Chevrolet | K30 Pickup | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | K30 Pickup | 402/6.6 V8 | |
| 1973 - 1974 | Chevrolet | K30 Pickup | 454/7.4 V8 | |
| 1969 | Chevrolet | Kingswood | 396/6.5 V8 | |
| 1969 | Chevrolet | Kingswood | 427/7 V8 | |
| 1965 - 1967 | Chevrolet | Malibu | 396/6.5 V8 | |
| 1970 - 1972 | Chevrolet | Monte Carlo | 402/6.6 V8 | |
| 1969 - 1970 |
