EFI Throttle Body Intake Elbow - 300-240F
Description
Description
Overview:

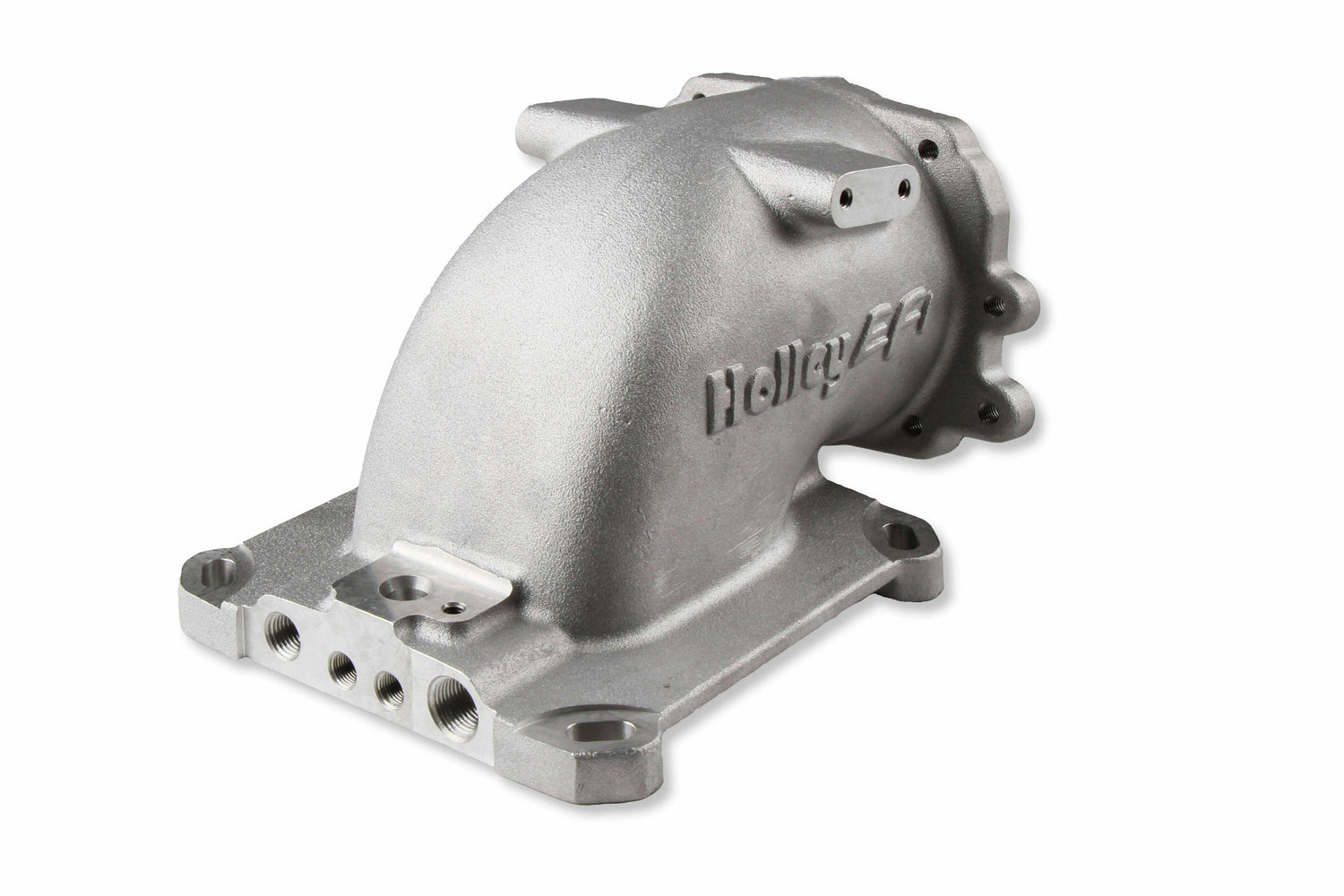

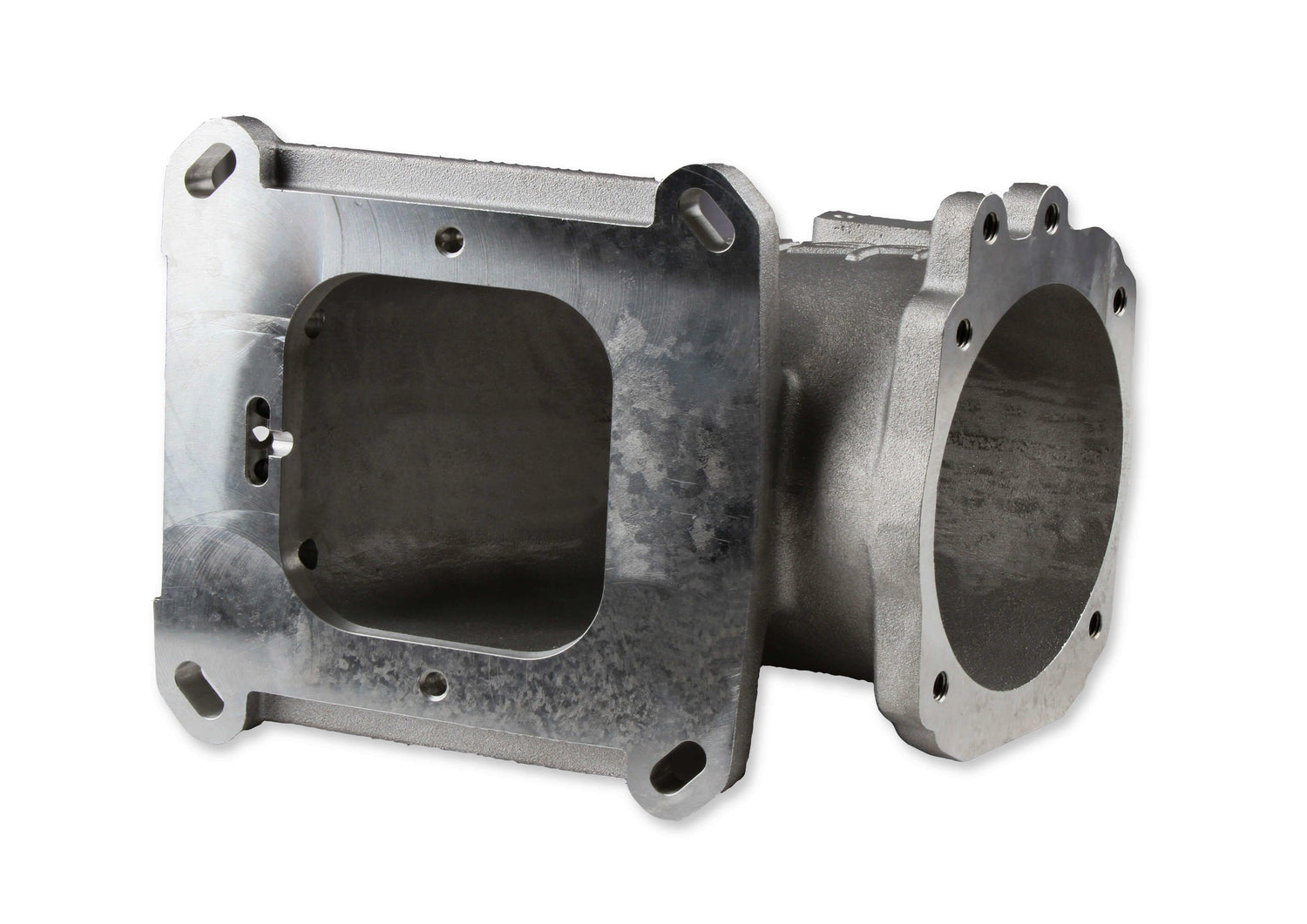

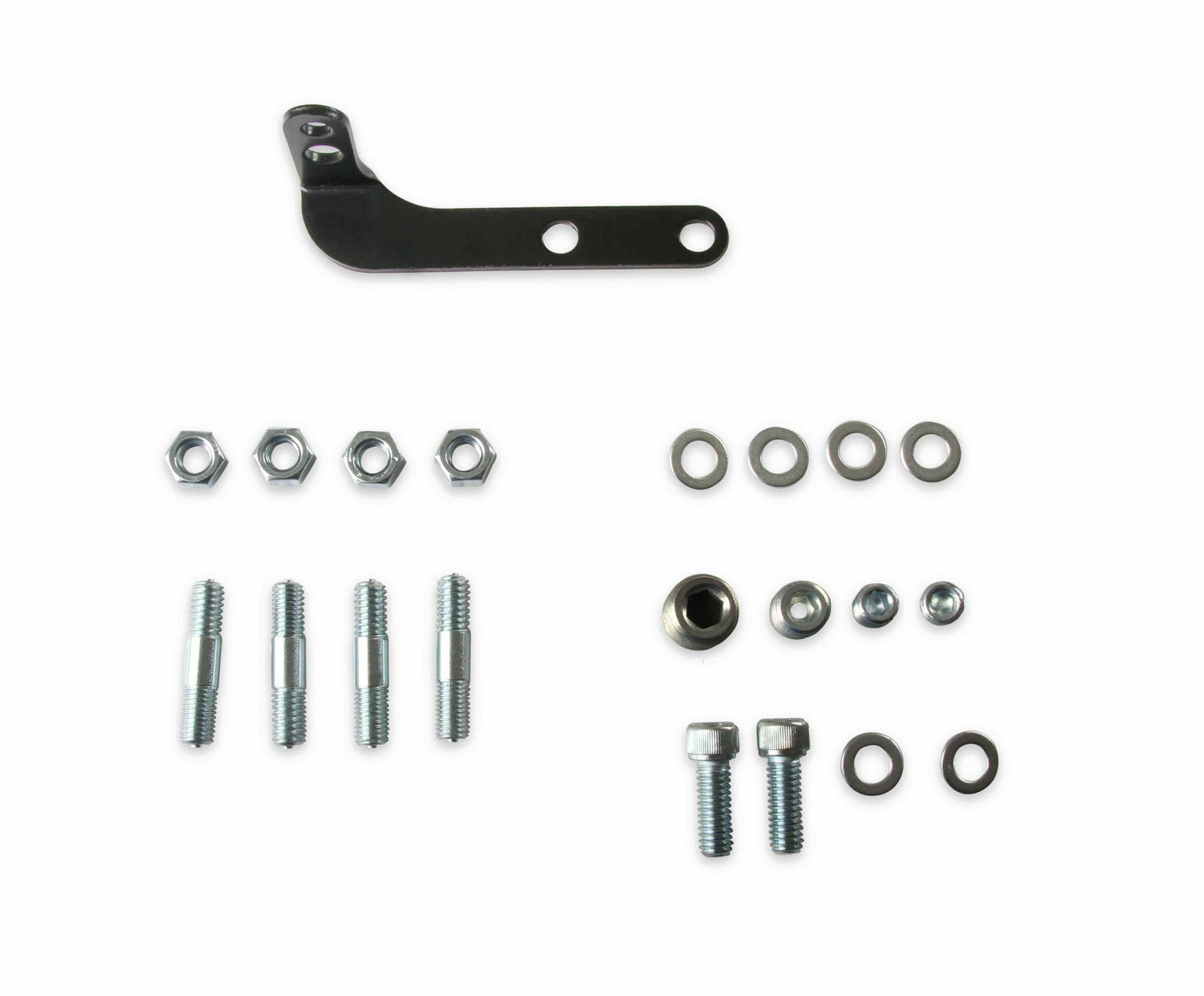

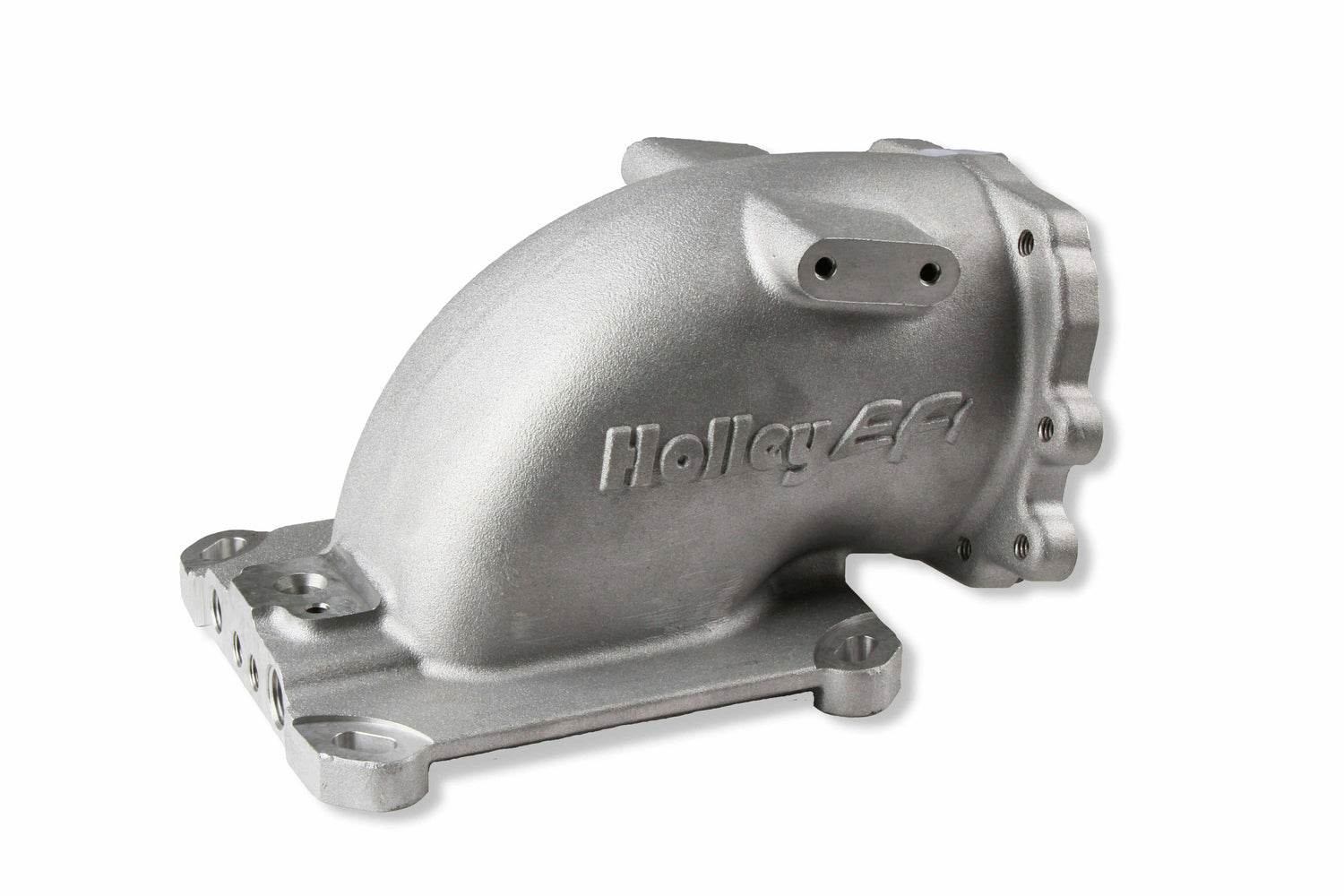

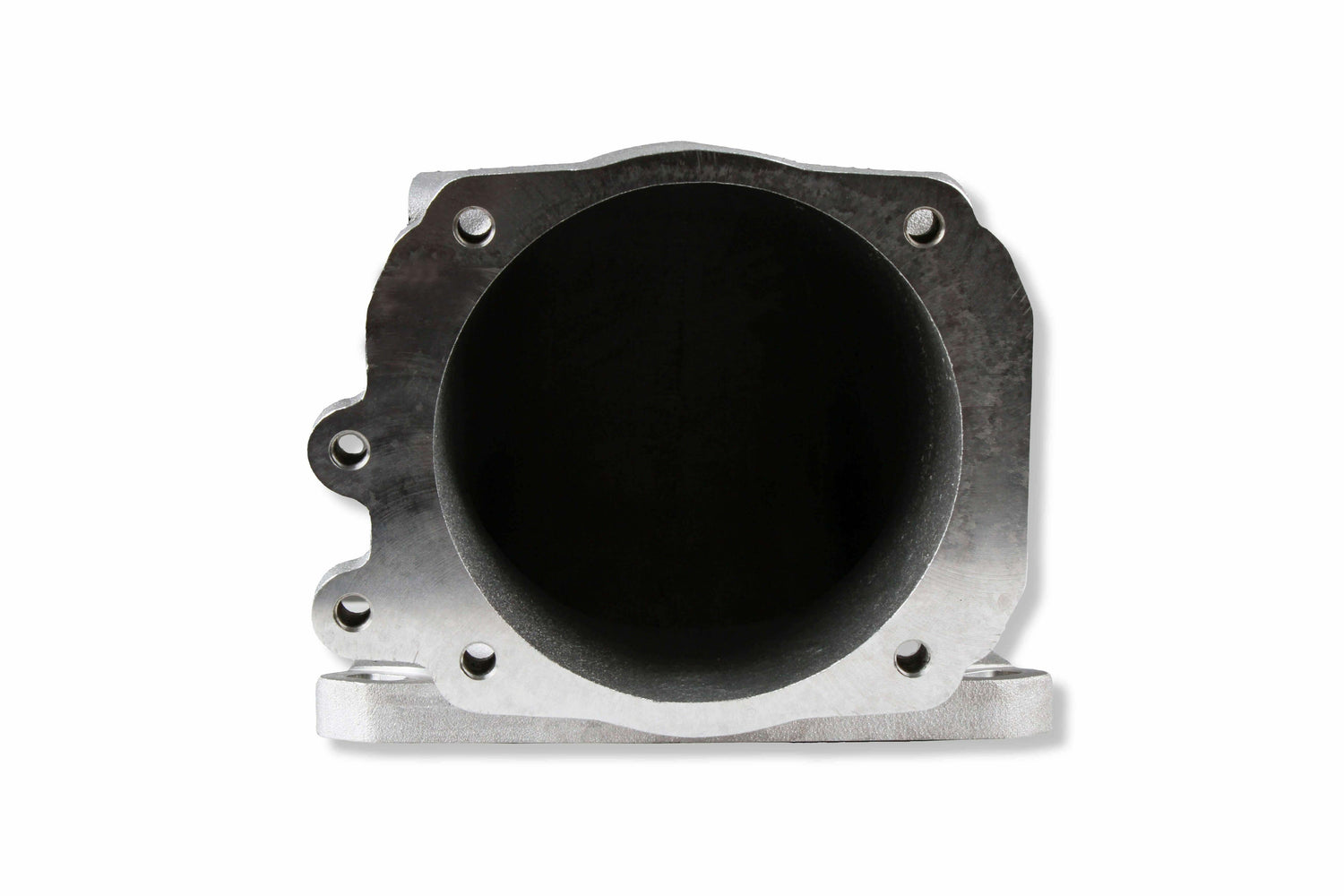

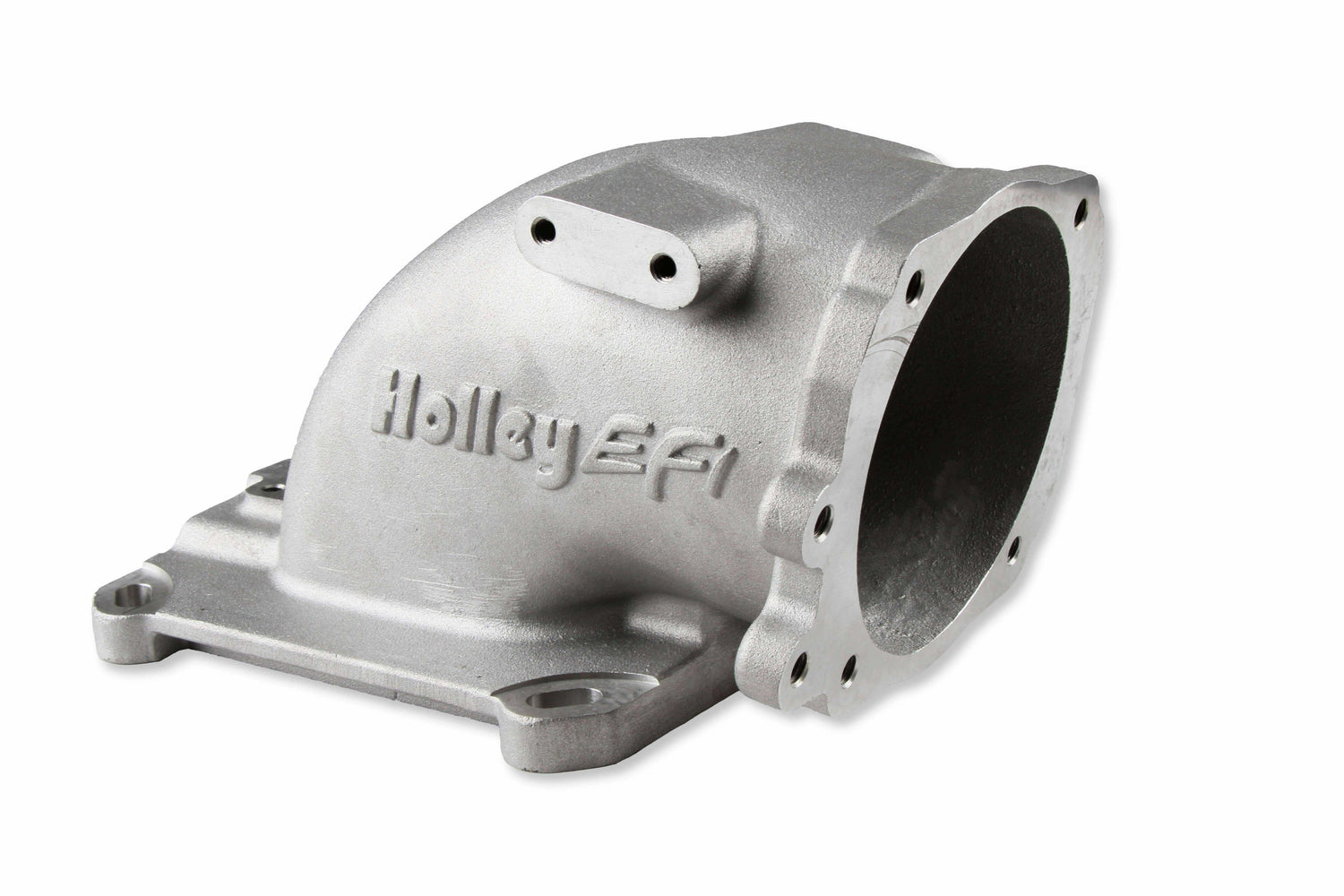

This cast EFI intake elbow allows the use of Ford throttle bodies on any intake manifold w/ the 4150 mounting flange. Slotted mounting holes & dual throttle cable mounting bracket bosses allow the elbow & throttle body to be mounted forward, sideways, or rearward. Features (4) vacuum ports, MAP sensor port, machined / port matched to 4150 gasket, and 100° throttle body angle for extra hood clearance. Includes MAP sensor port cover, gaskets, throttle cable bracket, and hardware.
Features:
- Fits Ford Throttle Bodies
- 105mm Throttle Body Opening - 100° Mounting Angle
- Fits Intakes w/ 4150 Flange
- Slotted Mounting Holes Allow Forward, Sideways or Rearward Throttle Body Mounting
- LS3 Style MAP Sensor Mounting
- (4) Vacuum Ports – (1) Each 1/4” NPT & 3/8” NPT & (2) 1/8” NPT w/ Indirect Baffled Signal
- (2) Throttle Linkage Mounting Bosses
- Sand Cast w/ Satin Finish
- Overall Height 5.12”
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Brand | Holley EFI |
|---|---|
| Construction | Cast |
| Emission Code | 3 |
| Finish | Satin |
| Fuel System Type | EFI |
| Height | 5.12" |
| Product Type | Intake Elbow |
| Throttle Bore | 105mm |
| Warranty | Limited 90 Day |
