1968-1974 Chevrolet Nova Classic Front Disc Brake Conversion 4301550R
1968-1974 Chevrolet Nova Classic Front Disc Brake Conversion 4301550R is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

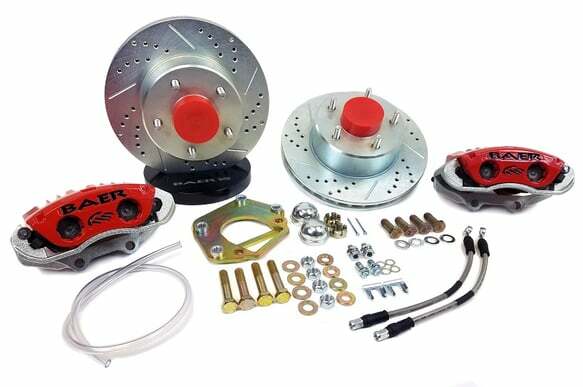

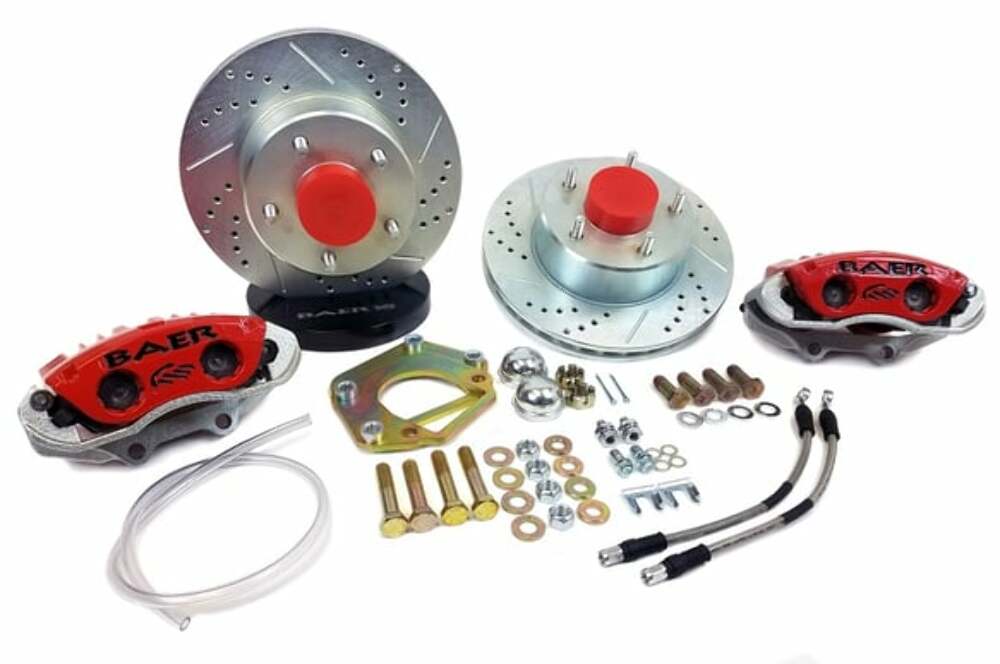

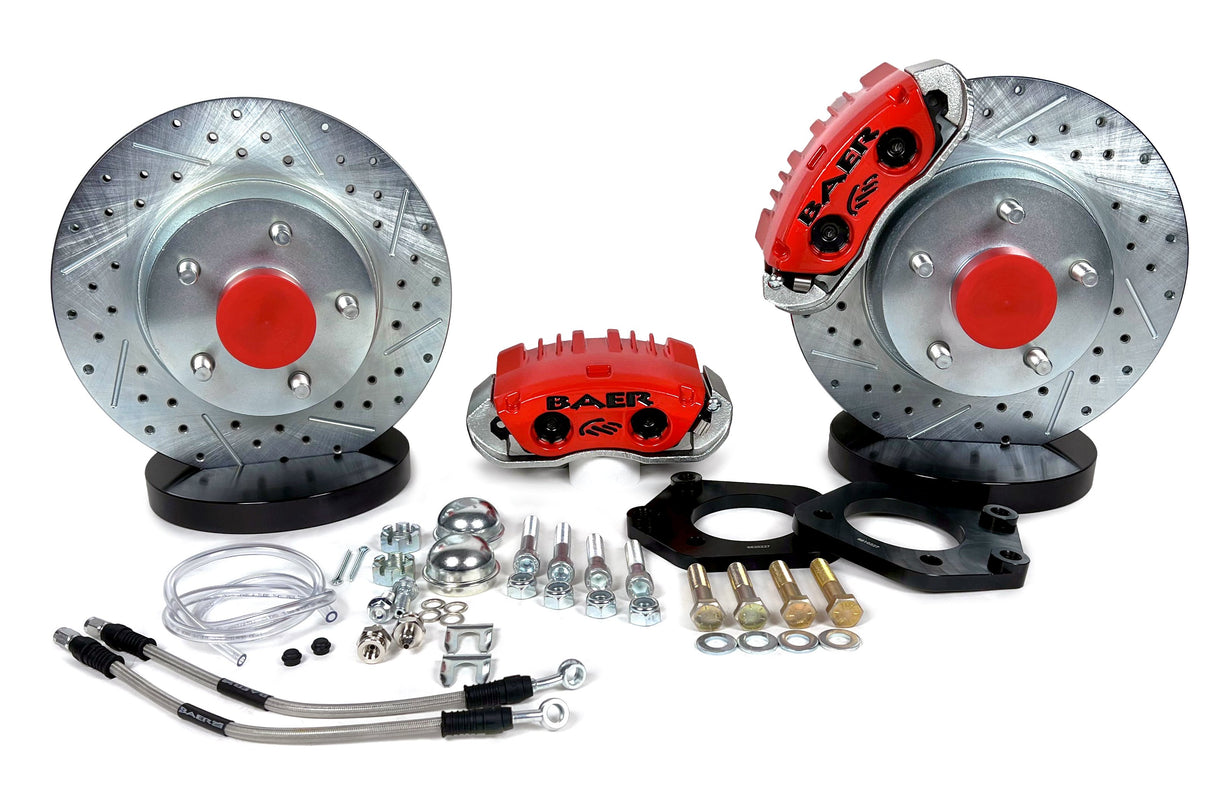

The quintessential classic-disc upgrade: original Baer 2-piston pad-guided calipers (red, D412 pads) over 11" one-piece slotted, drilled, zinc-plated rotors with integral hubs. Comes complete with premium bearings (races installed), dust caps, brackets, stainless braided hoses, and hardware. Fits select 15"+ wheels. Use a 15/16" master (or 7/8" for manual); larger bores reduce line pressure and increase pedal effort.
Features:

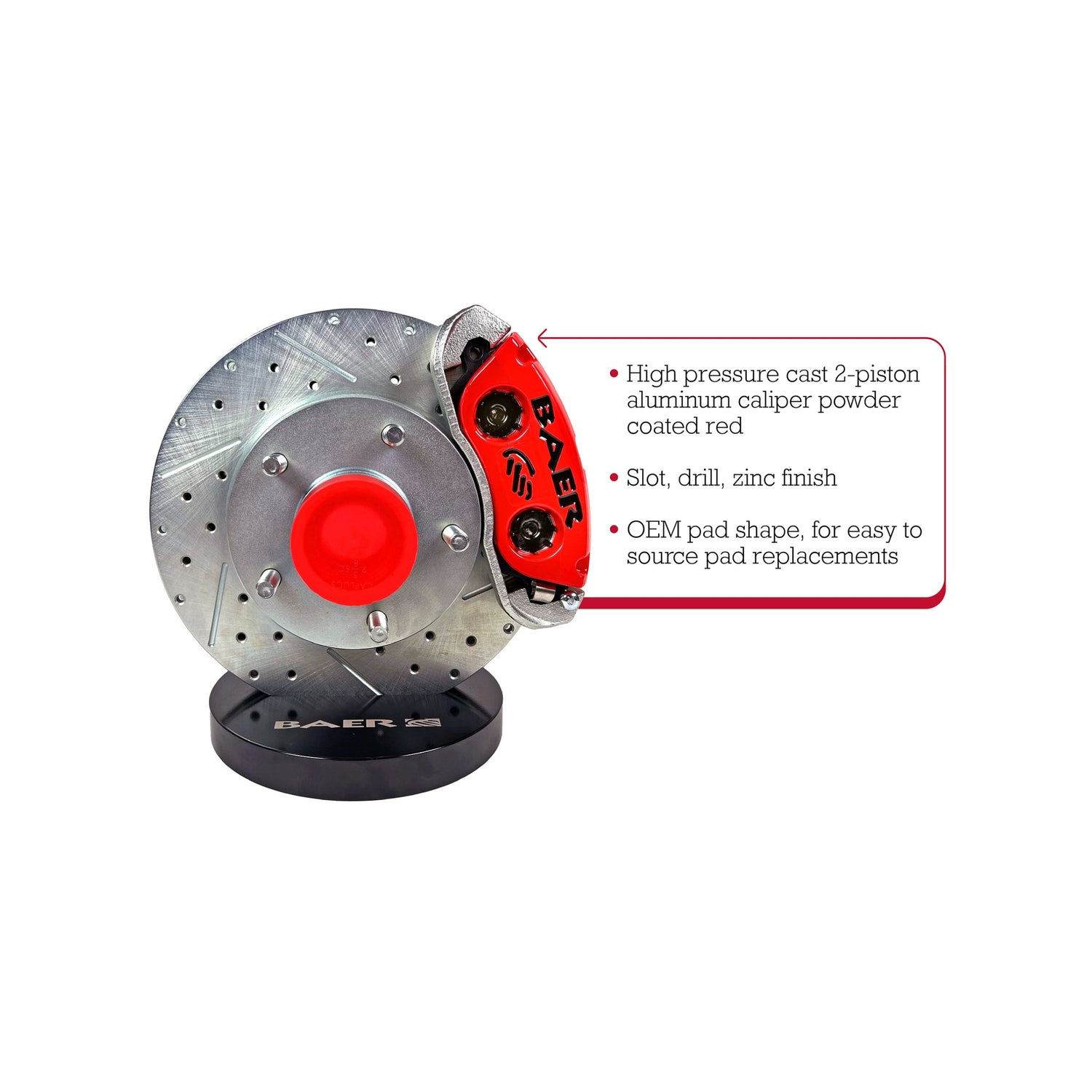

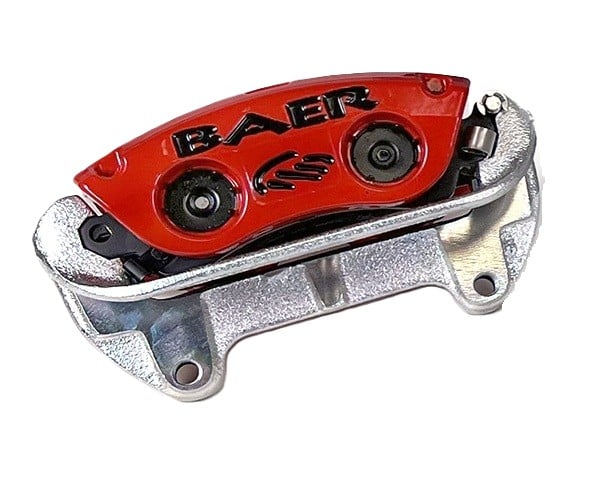

- Aluminum, 2-Piston, Pad Guided Caliper
- Red Powder Coated Caliper w/Black Baer Logo
- Slot, Drill, Zinc Plated Rotor Finish
- Stainless Braided Brake Hoses
- Uses Common FMSI D0412 Brake Pad
- Modern Brakes for Small Wheels at an Economical Price
Specs:
- Axle: Front
- Box Count: 2
- Brake Hose DOT Approved: Yes
- Brand: Baer Brakes
- Caliper: 2 PGC
- Caliper Color: Red
- Disc Brake Caliper (Front) Piston Quantity: 2
- Disc Brake Caliper (Front) Type: Floating
- Disc Brake Pad FMSI Number: D0412
- Disc Brake Rotor (Front) Construction: Vented
- Disc Brake Rotor (Front) Outside Diameter: 11.000 IN
- Emission Code: 6
- Fitment Notes: w/OE Spindles or DSE, Heidt's, Fatman, Ridetech, L&H or Speedway Motors G-Comp Drop Spindles
- Friction Material: Composition Ceramic
- Grade Type: Performance
- Hose Material: Stainless Steel Braided
- Lug Count: 5 Lug
- Minimum Wheel Diameter (verify using template): 15 IN
- Part Type: Disc Brake Upgrade Kit
- Prop 65 - Long Label: WARNING: This product can expose you to chemicals including Toluene Diisocyanate, and Nickel which are known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov
- Prop 65 Yes/No: Yes
- Rotor Thickness: 1.020 IN
- Rotor Type: 1-Piece Integral Hub
- Solid Or Vented Type Rotor: Vented
- Surface Type: Slotted, Drilled & Zinc Plated
- System Notes: GM AFX (also fits DSE, Heidt's, Fatman, Ridetech, L&H or Speedway Motors G-Comp 2" drop spindles)
- Template: D194A
- Wheel Lug/Bolt Pattern: 5x4.75
- Wheel Stud Size: 7/16-20 in
- Part Number: 4301550R
Applications:
- 1973-1974 Buick Apollo
- 1964-1972 Buick Skylark
- 1964-1969 Buick Special
- 1964-1972 Buick Sportwagon
- 1967-1969 Chevrolet Camaro
- 1964-1972 Chevrolet Chevelle
- 1964-1968 Chevrolet Chevy II
- 1964-1972 Chevrolet El Camino
- 1970-1972 Chevrolet Monte Carlo
- 1969-1974 Chevrolet Nova
- 1971-1972 GMC Sprint
- 1964-1971 Oldsmobile 442
- 1964-1972 Oldsmobile Cutlass
- 1966-1972 Oldsmobile Cutlass Supreme
- 1964-1972 Oldsmobile F85
- 1973-1974 Oldsmobile Omega
- 1964-1972 Oldsmobile Vista Cruiser
- 1967-1969 Pontiac Firebird
- 1964-1972 Pontiac GTO
- 1964-1972 Pontiac LeMans
- 1964-1970 Pontiac Tempest
- 1971-1974 Pontiac Ventura
- Must use 15" or larger wheels!
- Fits OE Disc/Drum Spindles or DSE, Heidt's, Fatman, Ridetech, L&H or Speedway Motors G-Comp Drop Spindles
- IMPORTANT: This system is designed for vehicles with a 15/16” master cylinder and proper pedal ratio. For manual brake setups, a 7/8” master cylinder can be used so less effort is required to apply the brakes. Any master larger than 15/16” will require too much pedal input to generate proper line pressure for your brake system
- Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are interested in and compare it to the wheel of choice.
Instructions:
Service Parts:
- Brake Pads - Part Number D0412R
