Fits 1970-1974 GM LS 2nd Gen Tube Size 1-7/8, Long Tube Header-Painted 2298HKR
Fits 1970-1974 GM LS 2nd Gen Tube Size 1-7/8, Long Tube Header-Painted 2298HKR is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description

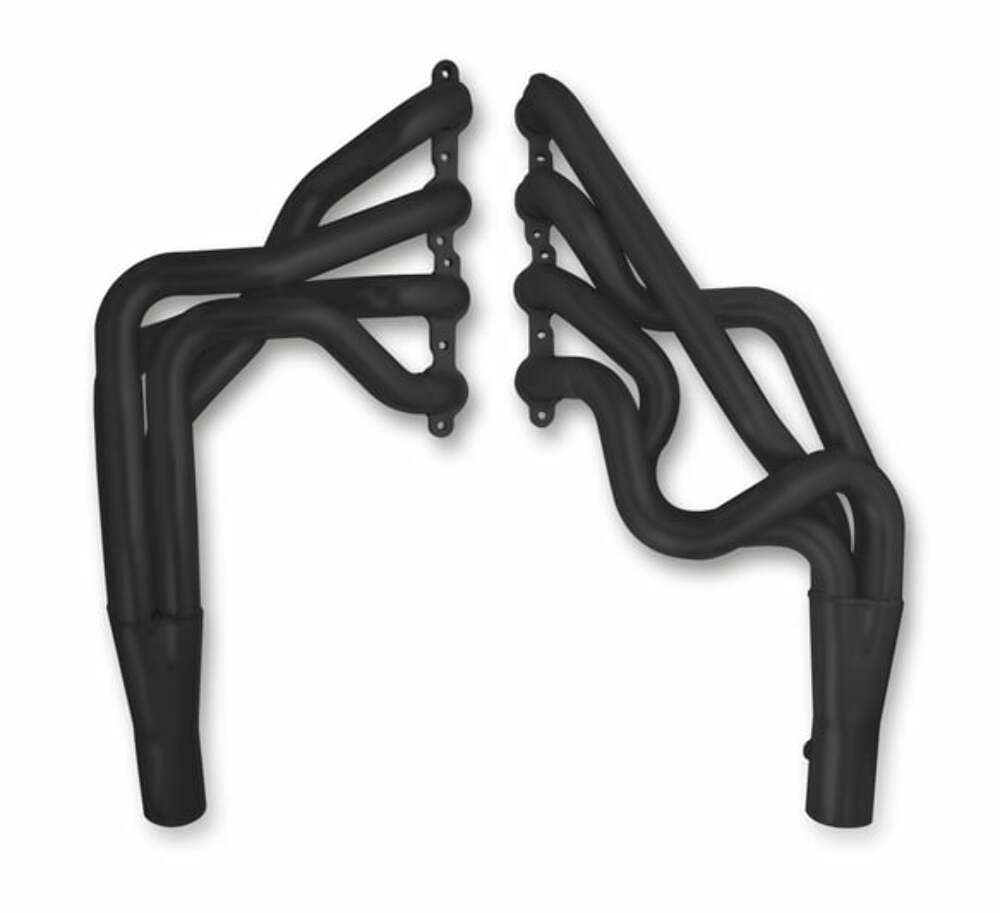

1970-74 GM F-body Full Length LS Engine Swap Headers for Hot LS1/LS6/LS2 (cam, heads, nitrous), 6.2L (L92) Vortec truck, LS3 or all supercharged LS/Vortec engine swaps
Features:
- Premium fitment with optimized ground clearance. The only 1970-74? specific header design in the marketplace
- Laser cut 3/8? flanges with flat-finished TIG welded port sealing
- 1-7/8? primaries/3" collectors
- Designed and intended for installation only with Hooker LS swap engine mounting brackets and transmission crossmembers for this application. Will not install with any other brand of mounts
- Compatible with Quick Time™ bellhousings, mechanical clutch linkage (requires custom Z-bar/pivot ball assembly), stock A/C evaporator case on firewall, straight boot spark plug wires and Holley LS swap oil pan and accessory drive brackets
- Connects directly to Hooker 3? 2nd-gen F-body exhaust system.Connection to 2-1/2? Hooker 2nd-gen F-body exhaust system requires the use of an available mid-pipe kit
- Compatible only with stock height subframe/body mounts. Installation with half-height mounts will require modification to vehicle floor panels
- Automatic and manual transmission compatible
- Will not install with factory column shift linkage, Lokar or similar aftermarket shift cable or linkage required for column shift applications
Specs:
| Application | 1970-1974 Camaro/Firebird |
|---|---|
| Bolt Size | M8 x 1.25 x 25mm |
| Brand | Hooker BlackHeart |
| CARB (California) Compliant | No |
| Clearance Category | Exhaust |
| Collector Diameter | 3.00 inch |
| Discount Percentage | 26-50% |
| Emission Code | 4 |
| Engine | GM Gen III/IV (LS) |
| Exhaust Series | Hooker BlackHeart |
| Header Finish | Black Paint |
| Header Style | Long Tube |
| Material | Mild Steel |
| Primary Tube Dia. | 1-7/8 inch |
| Product Type | Headers |
| Subframe | Stock |
| Tube Material | Mild Steel |
| Type of Component | Headers |
Application:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1970-1974 | Chevrolet | Camaro | Base |
| 1973-1974 | Chevrolet | Camaro | LT |
| 1970-1974 | Chevrolet | Camaro | Z28 |
| 1970-1974 | Pontiac | Firebird | Base |
| 1970-1974 | Pontiac | Firebird | Esprit |
| 1970-1974 | Pontiac | Firebird | Formula |
| 1970-1974 | Pontiac | Firebird | Trans Am |
| 1970-1973 | Chevrolet | Camaro | RS |
| 1970-1972 | Chevrolet | Camaro | SS |
