Fits 1988-2000 GMC C2500 Holley Gm Lt Swap Oil Pan-4Wd / Truck / Off-Road 302-24
Fits 1988-2000 GMC C2500 Holley Gm Lt Swap Oil Pan-4Wd / Truck / Off-Road 302-24 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Fits 1973-1987 GM K10 LT Swapped Trucks and Other 4WD LT Swap Projects

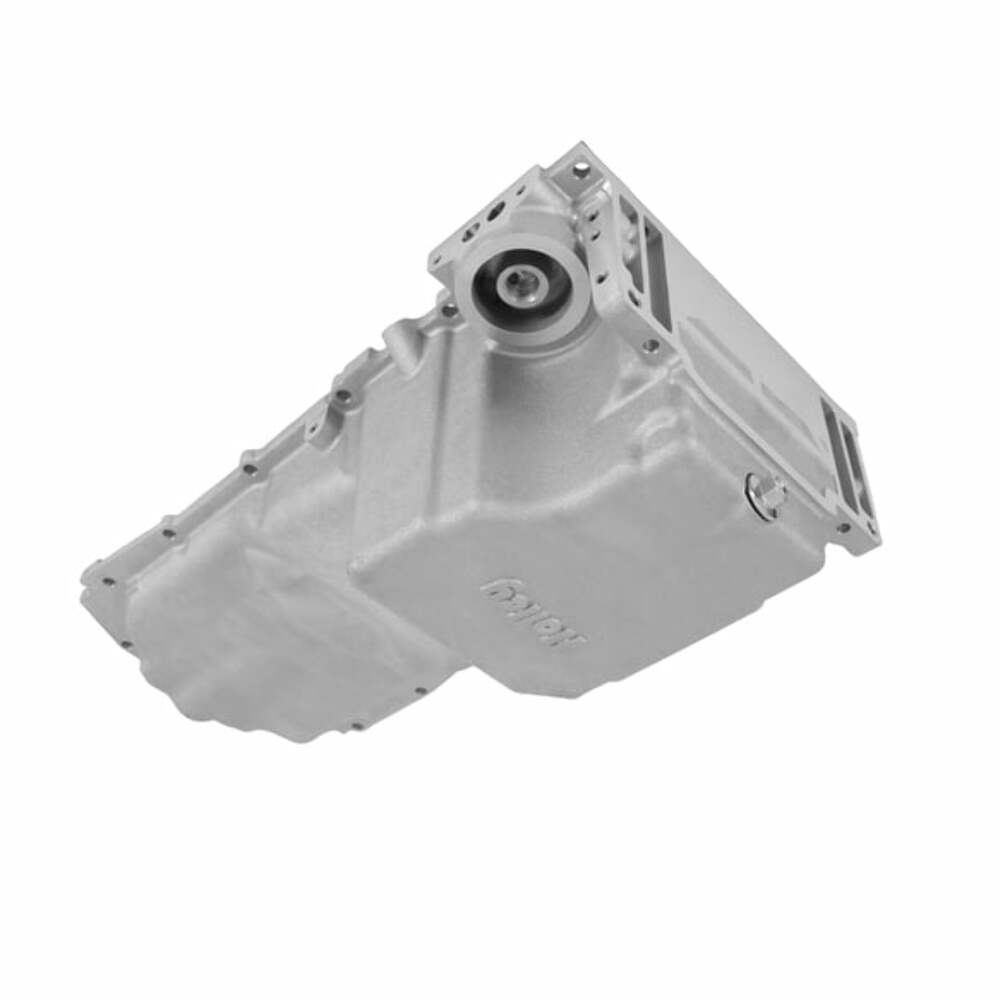

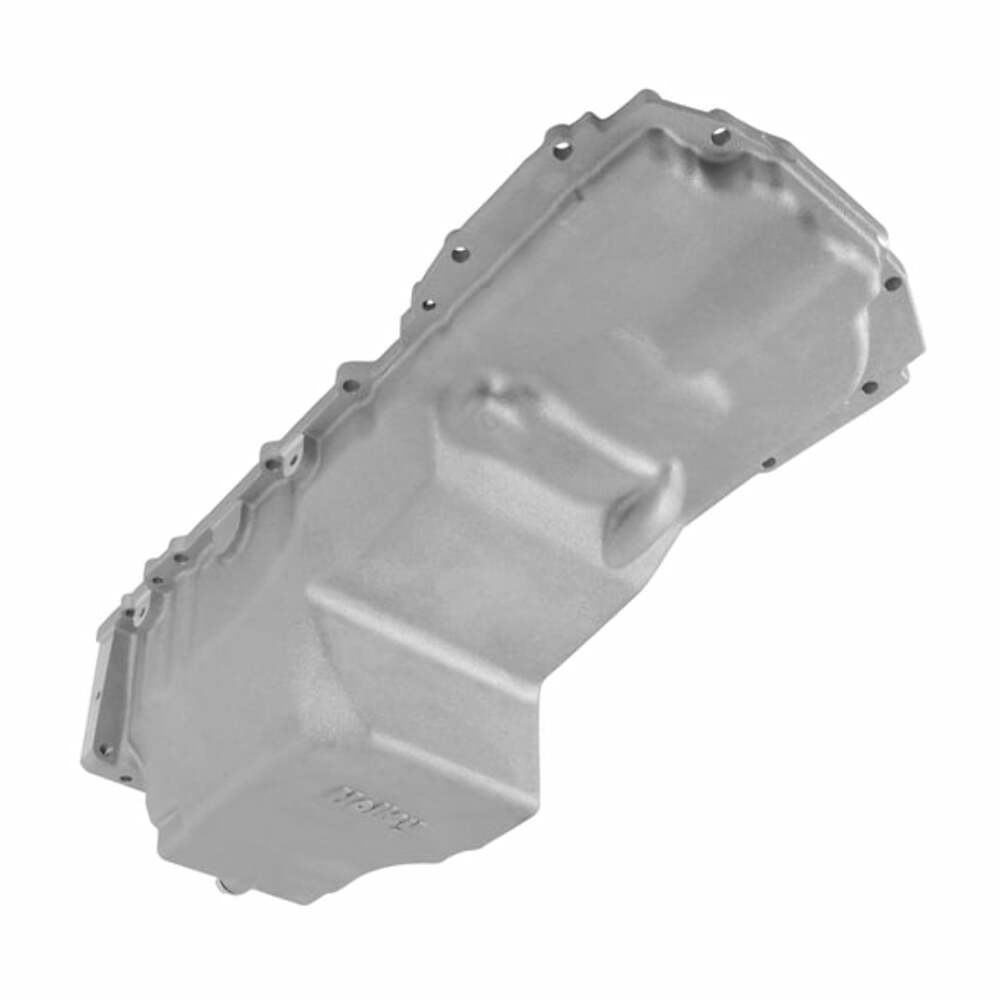

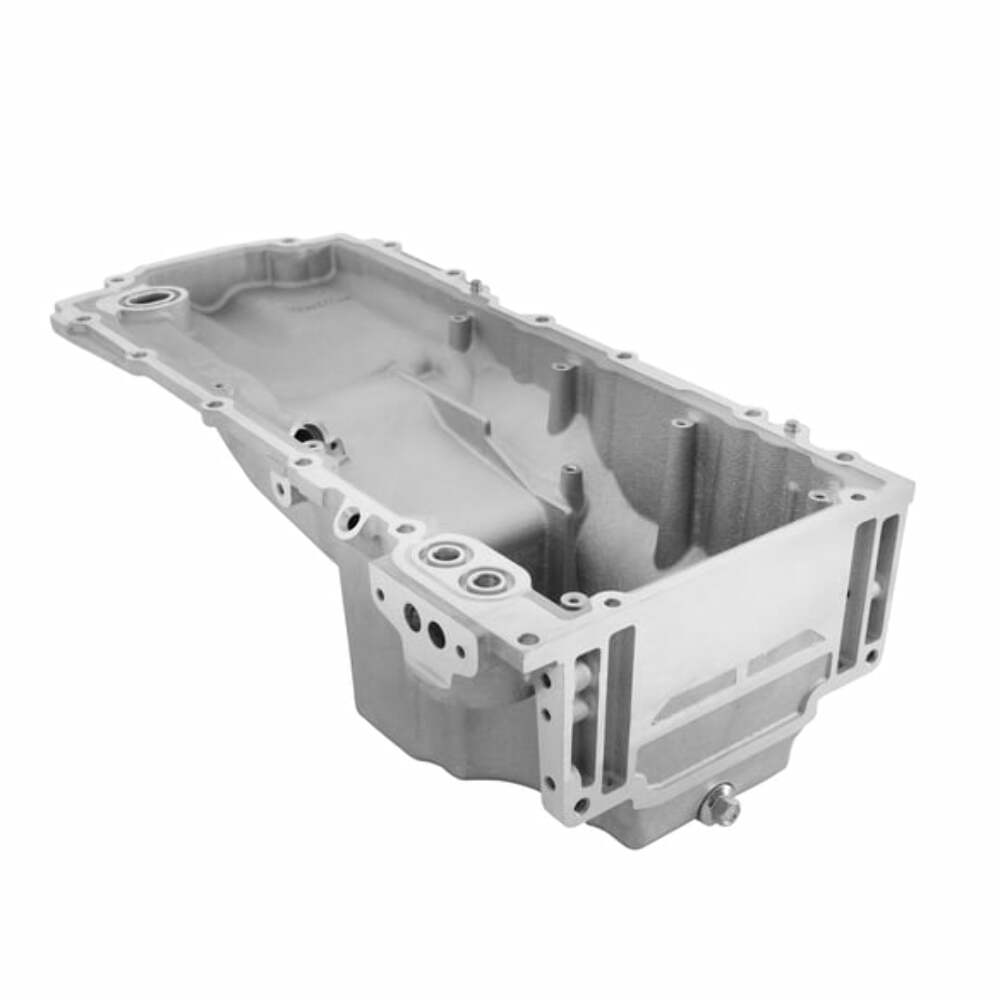

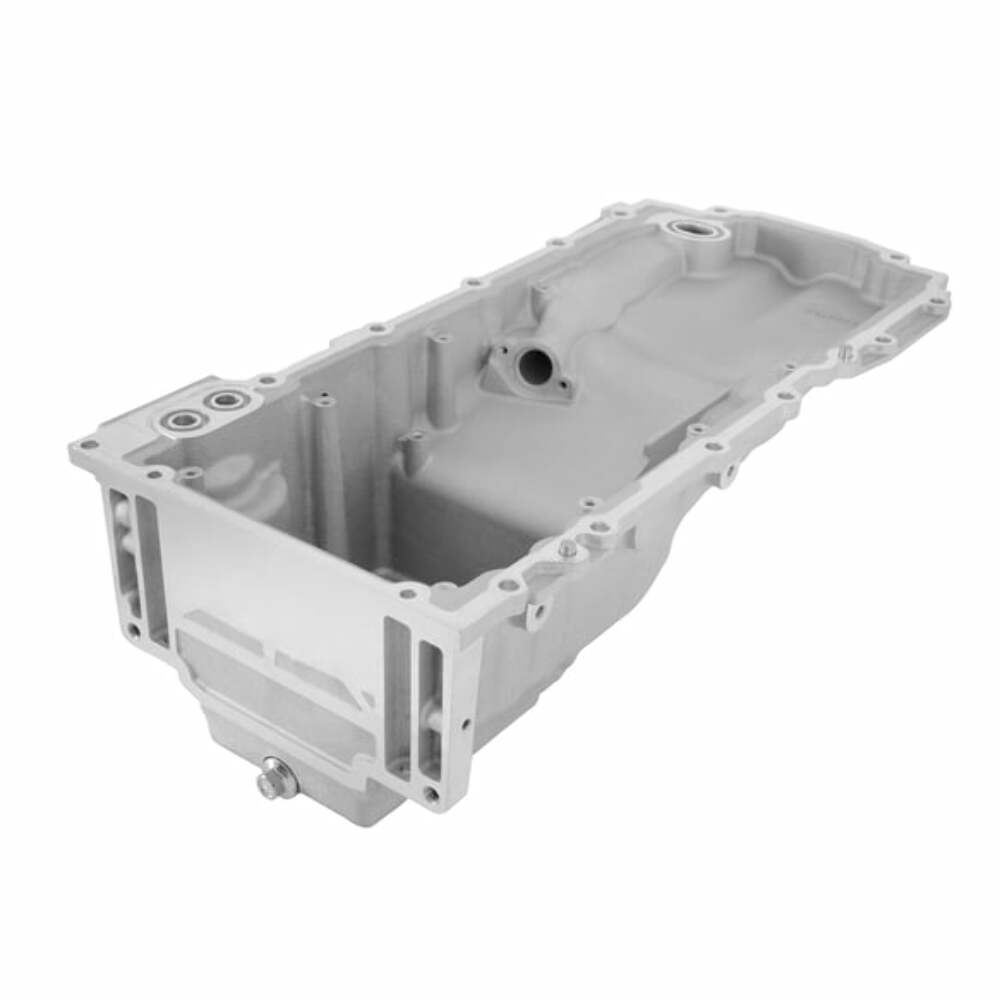

GM's popular LT engines find their way into a huge variety of vehicles. Unfortunately, the factory LT pans don't always fit in the vehicles we would like. Holley's new LS 4WD Off-Road Engine Swap Oil Pan is designed to help. It provides maximum clearance to the chassis and drivetrain for the K10 chassis and other LT swapped 4WD applications, plus provides an OE (Original Equipment) Style fitment for durability and proper sealing. In addition, the 302-24 and 302-24BK are compatible with all popular transmissions (SM465, NV4500, TH350, TH400, 700R4, 4L60-4L70, 4L80, 6L80 and 6L90).
NOTES: Maximum crankshaft stroke = 4.00" Sump Oil Capacity - 5.6 Quarts Total Oil Capacity with stock oil filter - 6.1 Quarts Parts Needed: LT Dipstick - GM Part # 12658475 LT Dipstick Tube - GM Part # 12661062 Oil Pan Gasket (Mr. Gasket P/N 6665G, GM? 12612350, or equivalent) Mr. Gasket 78080G, GM 12378521, or equivalent high-quality RTV sealer (as there is not a gasket like on the Gen III/IV LS) Thread sealant (Loctite? brand 567 or equivalent) Oil Filter (AC Delco® PF64, Wix WL10255 family, or equivalent) Compatible with all popular transmissions (SM465, NV4500, TH350, TH400, 700R4, 4L60-4L70, 4L80, 6L80 and 6L90). *These pans are not intended to be used with engines that originally utilized a dry sump system.
Features:
- Fits GM K10 and other LT Swapped 4-wheel drive applications

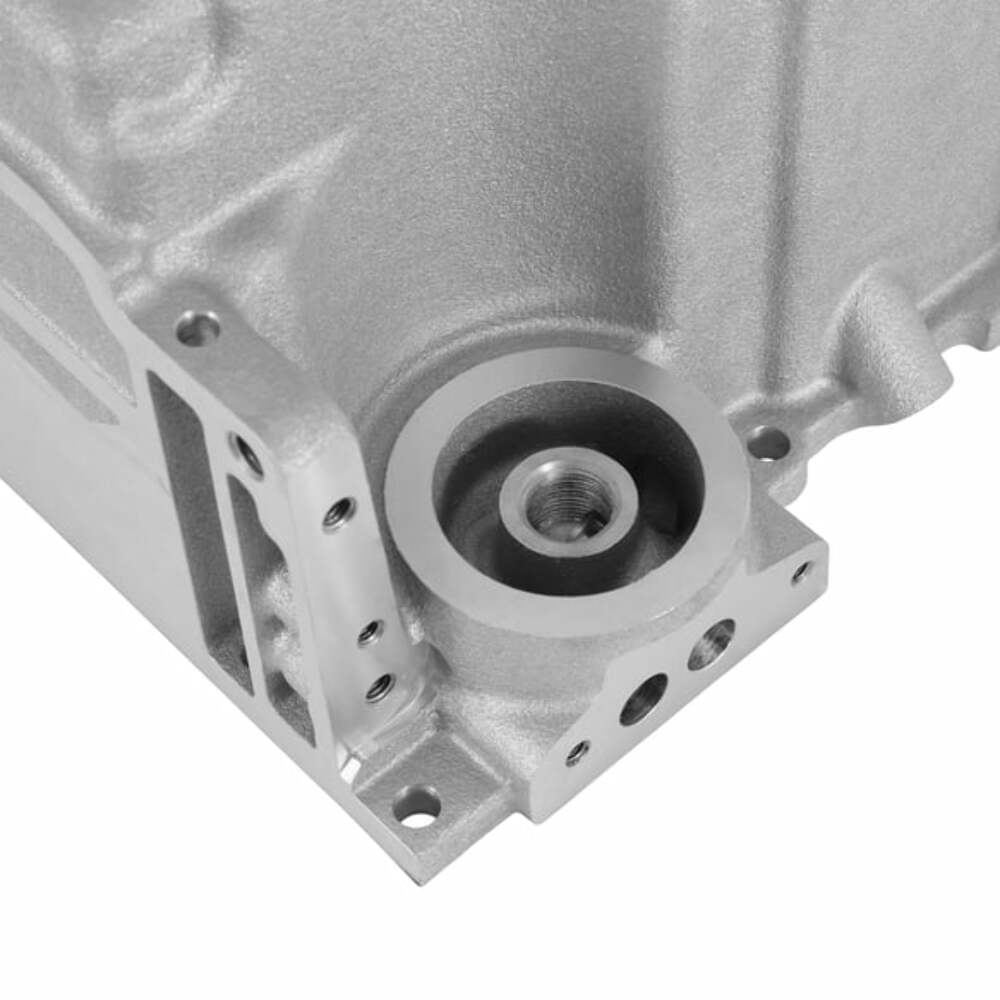

- Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE flange gasket and sealing, proper structural rigidity, and OE bell-housing attachments
- Compatible with hinged-door baffle #302-34 and rock shield #302-35 which can be added at any time
- Traditional high-quality cast aluminum appearance with clean exterior styling

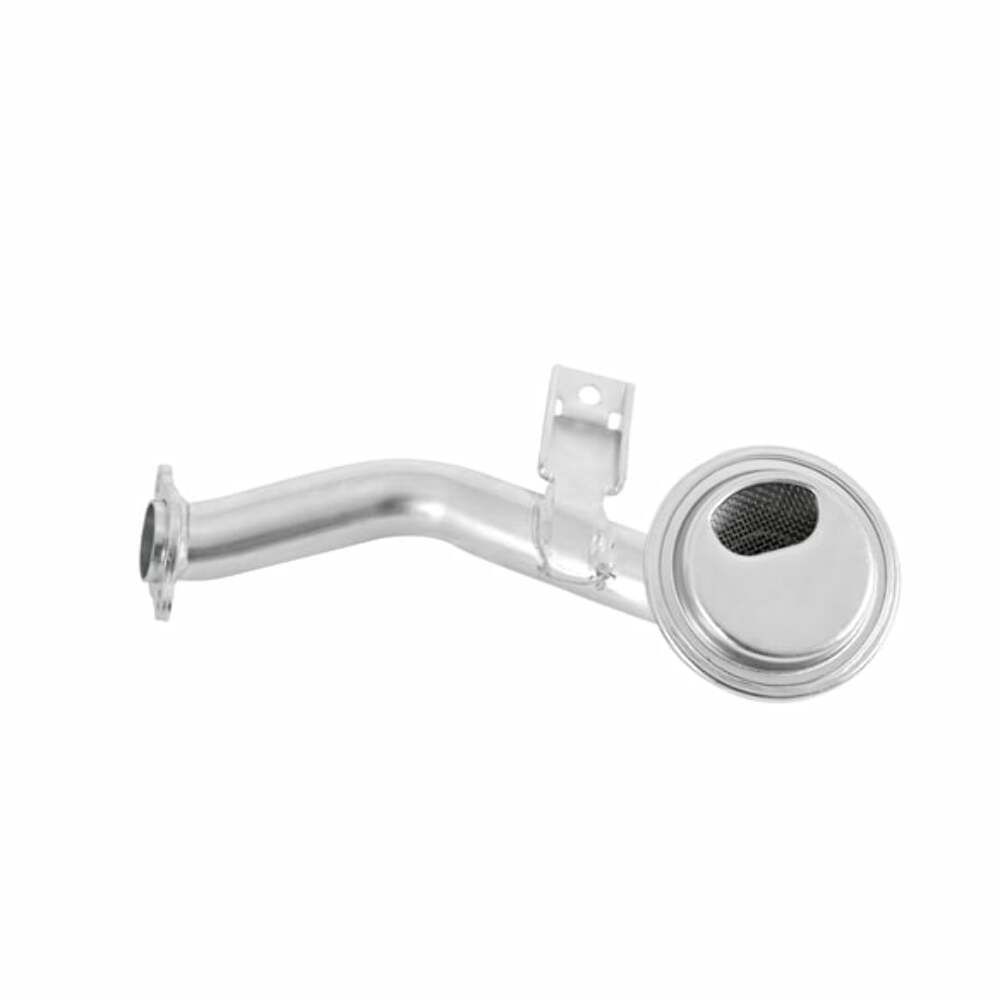

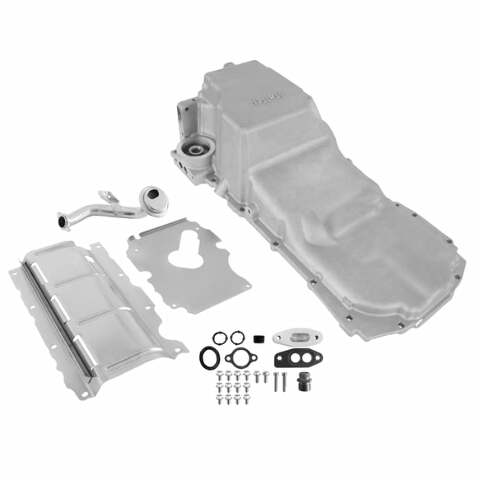

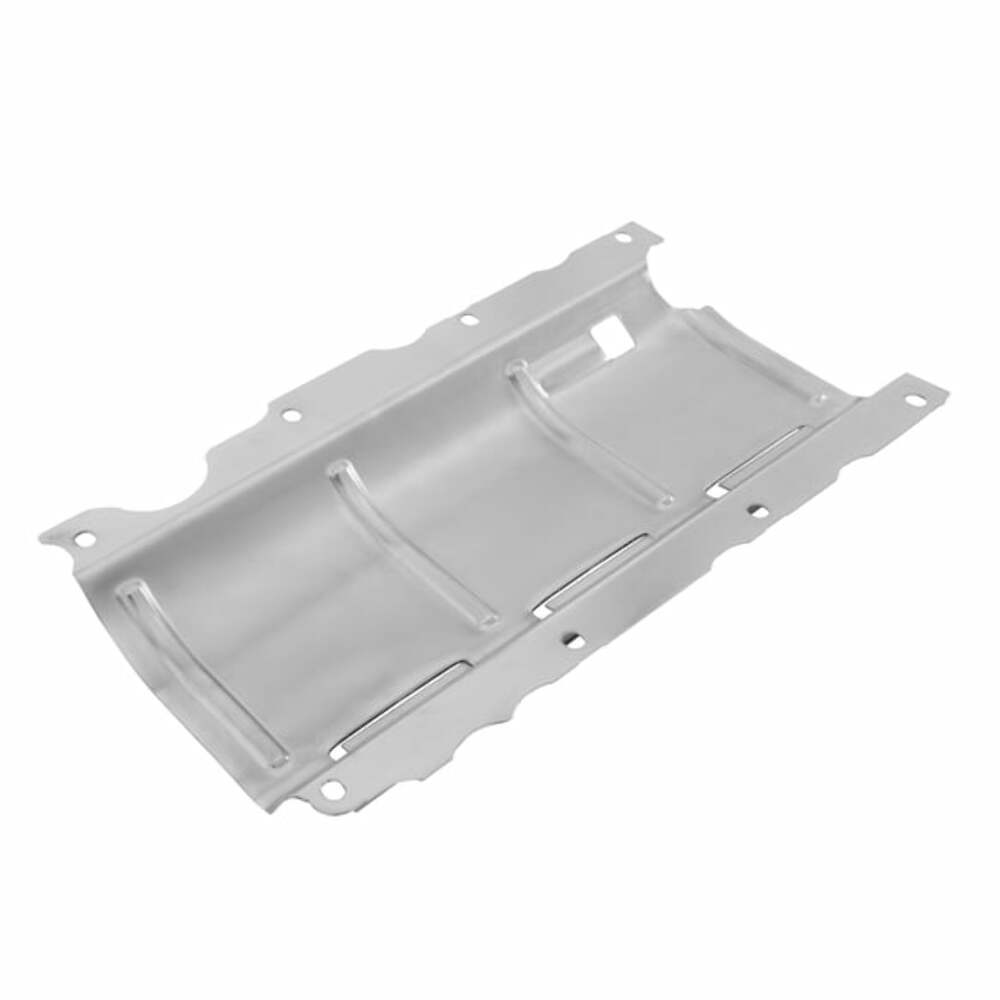

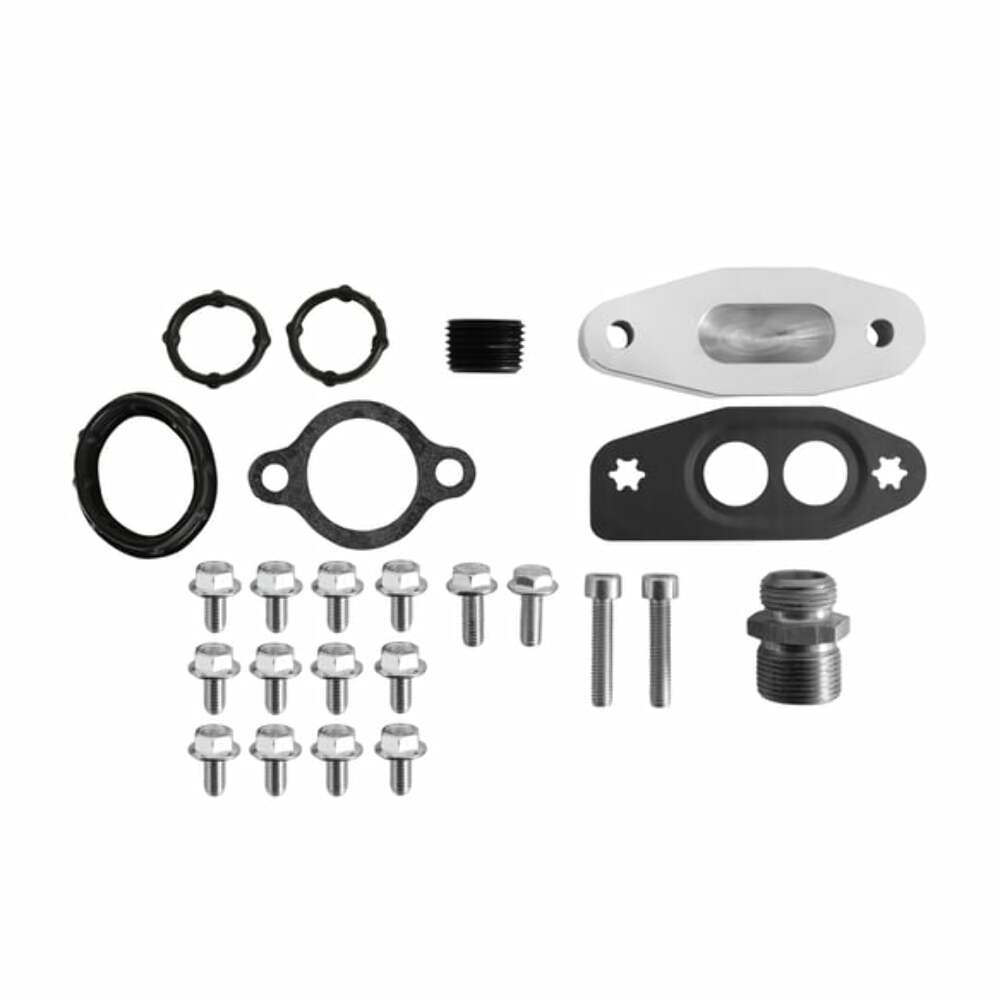

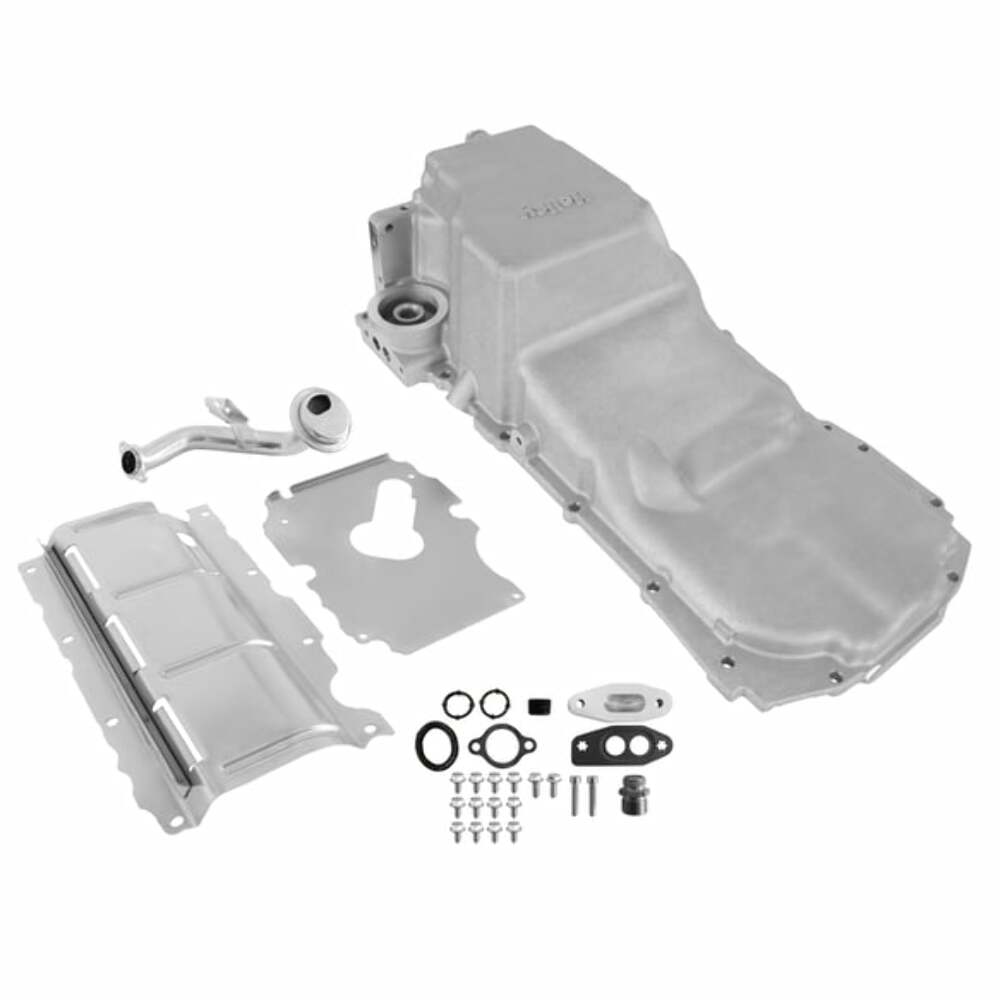

- Complete kit including sump baffle, pick-up tube, pick-up o-ring, oil filter stud, & oil passage cover
- Maximum crankshaft stroke - 4.00-inches
Specs:
| Application | GM Gen V LT |
|---|---|
| Baffled | No |
| Brand | Holley |
| Capacity | 5.6U.S Quart |
| Choose Your Part | Oil Pan Kit |
| Color | Silver |
| Crank Shaft Wiper Included | No |
| Dipstick Port | No |
| Drain Plug Included | Yes |
| Emission Code | 5 |
| Engine | GM Gen V (LT) |
| Finish | Natural Cast |
| Grade Type | Performance |
| Material | Cast Aluminum |
| Maximum Stroke | 4.00" |
| Oil Pan Capacity | 5.6 Quarts |
| Oil Pan Type | Off-Road / 4WD |
| Oil System Capacity (w/ filter) | 6.1 Quarts |
| Pickup Included | Yes |
| Product Type | Oil Pan Kit |
| Sump Location | Rear |
| Sump Type | Wet |
| Turbo Oil Drainback | No |
| Warranty | Limited 90 Day |
| Windage Tray Included | No |
Application:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1988-1998 | Chevrolet | C1500 | Cheyenne |
| 1988-1998 | Chevrolet | C1500 | Silverado |
| 1988-1992 | Chevrolet | C1500 | Scottsdale |
| 1989-1991 | Chevrolet | C1500 | Base |
| 1994-2000 | Chevrolet | C1500 | Base |
| 1990-1998 | Chevrolet | C1500 | WT |
| 1990-1993 | Chevrolet | C1500 | 454 SS |
| 1999 | Chevrolet | C1500 | LS |
| 2001-2002 | Chevrolet | C1500 | Custom |
| 1992-1999 | Chevrolet | C1500 Suburban | Base |
| 1992-1994 | Chevrolet | C1500 Suburban | Silverado |
| 1995-1999 | Chevrolet | C1500 Suburban | LS |
| 1995-1997 | Chevrolet | C1500 Suburban | LT |
| 1999 | Chevrolet | C1500 Suburban | LT |
| 1988-1999 | Chevrolet | C2500 | Cheyenne |
| 1988-1998 | Chevrolet | C2500 | Silverado |
| 1988-1992 | Chevrolet | C2500 | Base |
| 1994-2000 | Chevrolet | C2500 | Base |
| 1988-1992 | Chevrolet | C2500 | Scottsdale |
| 1993 | Chevrolet | C2500 | 400 SS |
| 1995-1999 | Chevrolet | C2500 | 400 SS |
| 1993 | Chevrolet | C2500 | Custom |
| 1995-1999 | Chevrolet | C2500 | Custom |
| 1994-1995 | Chevrolet | C2500 | WT |
| 1998 | Chevrolet | C2500 | WT |
| 1995 | Chevrolet | C2500 | 60th Anniversary |
| 1999-2000 | Chevrolet | C2500 | LS |
| 1999 | Chevrolet | C2500 | Austera |
| 1992-1999 | Chevrolet | C2500 Suburban | Base |
| 1992-1994 | Chevrolet | C2500 Suburban | Silverado |
| 1995-1999 | Chevrolet | C2500 Suburban | LS |
| 1995-1997 | Chevrolet | C2500 Suburban | LT |
| 1988-1998 | Chevrolet | C3500 | Silverado |
| 1988-1998 | Chevrolet | C3500 | Cheyenne |
| 1988-1992 | Chevrolet | C3500 | Scottsdale |
| 1994-1997 | Chevrolet | C3500 | Base |
| 1999-2000 | Chevrolet | C3500 | Base |
| 1999-2000 | Chevrolet | C3500 | LS |
| 1988-1998 | Chevrolet | K1500 | Cheyenne |
| 1988-1998 | Chevrolet | K1500 | Silverado |
| 1988-1992 | Chevrolet | K1500 | Scottsdale |
| 1990-1998 | Chevrolet | K1500 | WT |
| 1991 | Chevrolet | K1500 | Sport |
| 1994-1997 | Chevrolet | K1500 | Base |
| 1999 | Chevrolet | K1500 | LS |
| 1988-1998 | Chevrolet | K2500 | Cheyenne |
| 1988-1998 | Chevrolet | K2500 | Silverado |
| 1988-1992 | Chevrolet | K2500 | Scottsdale |
| 1994-1997 | Chevrolet | K2500 | Base |
| 1999-2000 | Chevrolet | K2500 | Base |
| 1994-1995 | Chevrolet | K2500 | WT |
| 1998 | Chevrolet | K2500 | WT |
| 1999-2000 | Chevrolet | K2500 | LS |
| 1988-1998 | Chevrolet | K3500 | Cheyenne |
| 1988-1998 | Chevrolet | K3500 | Silverado |
| 1988-1992 | Chevrolet | K3500 | Scottsdale |
| 1994-1997 | Chevrolet | K3500 | Base |
| 1999-2000 | Chevrolet | K3500 | Base |
| 1999-2000 | Chevrolet | K3500 | LS |
| 1995-2002 | Chevrolet | Tahoe | LS |
| 1995-2002 | Chevrolet | Tahoe | LT |
| 1995-2001 | Chevrolet | Tahoe | Base |
| 2000 | Chevrolet | Tahoe | Z71 |
| 2002 | Chevrolet | Tahoe | Z71 |
| 2000 | Chevrolet | Tahoe | Limited |
| 1988-1999 | GMC | C1500 | Sierra SLE |
| 1988-1993 | GMC | C1500 | Sierra SLX |
| 1988-1993 | GMC | C1500 | Sierra |
| 1994-1999 | GMC | C1500 | Sierra SLT |
| 1994-1999 | GMC | C1500 | Sierra SL |
| 1994-1998 | GMC | C1500 | Sierra Special |
| 1997 | GMC | C1500 | Sierra GT |
| 1992-1999 | GMC | C1500 Suburban | SLE |
| 1992-1999 | GMC | C1500 Suburban | Base |
| 1995-1999 | GMC | C1500 Suburban | SLT |
| 1988-2000 | GMC | C2500 | Sierra SLE |
| 1988-1993 | GMC | C2500 | Sierra SLX |
| 1988-1993 | GMC | C2500 | Sierra |
| 1994-2000 | GMC | C2500 | Sierra SLT |
| 1994-2000 | GMC | C2500 | Sierra SL |
| 1992-1999 | GMC | C2500 Suburban | SLE |
| 1992-1999 | GMC | C2500 Suburban | Base |
| 1995-1999 | GMC | C2500 Suburban | SLT |
| 1988-2000 | GMC | C3500 | Sierra SLE |
| 1988-1993 | GMC | C3500 | Sierra |
| 1988-1993 | GMC | C3500 | Sierra SLX |
| 1994-2000 | GMC | C3500 | Sierra SLT |
| 1994-2000 | GMC | C3500 | Sierra SL |
| 1988-1999 | GMC | K1500 | Sierra SLE |
| 1988-1993 | GMC | K1500 | Sierra |
| 1988-1993 | GMC | K1500 | Sierra SLX |
| 1993 | GMC | K1500 | Sierra Sport |
| 1994-1999 | GMC | K1500 | Sierra SL |
| 1994-1999 | GMC | K1500 | Sierra SLT |
| 1994-1998 | GMC | K1500 | Sierra Special |
| 1995 | GMC | K1500 | Sierra SLS |
| 1988-2000 | GMC | K2500 | Sierra SLE |
| 1988-1993 | GMC | K2500 | Sierra SLX |
| 1988-1993 | GMC | K2500 | Sierra |
| 1994-2000 | GMC | K2500 | Sierra SL |
| 1994-2000 | GMC | K2500 | Sierra SLT |
| 1988-2000 | GMC | K3500 | Sierra SLE |
| 1988-1993 | GMC | K3500 | Sierra |
| 1988-1993 | GMC | K3500 | Sierra SLX |
| 1994-2000 | GMC | K3500 | Sierra SLT |
| 1994-2000 | GMC | K3500 | Sierra SL |
