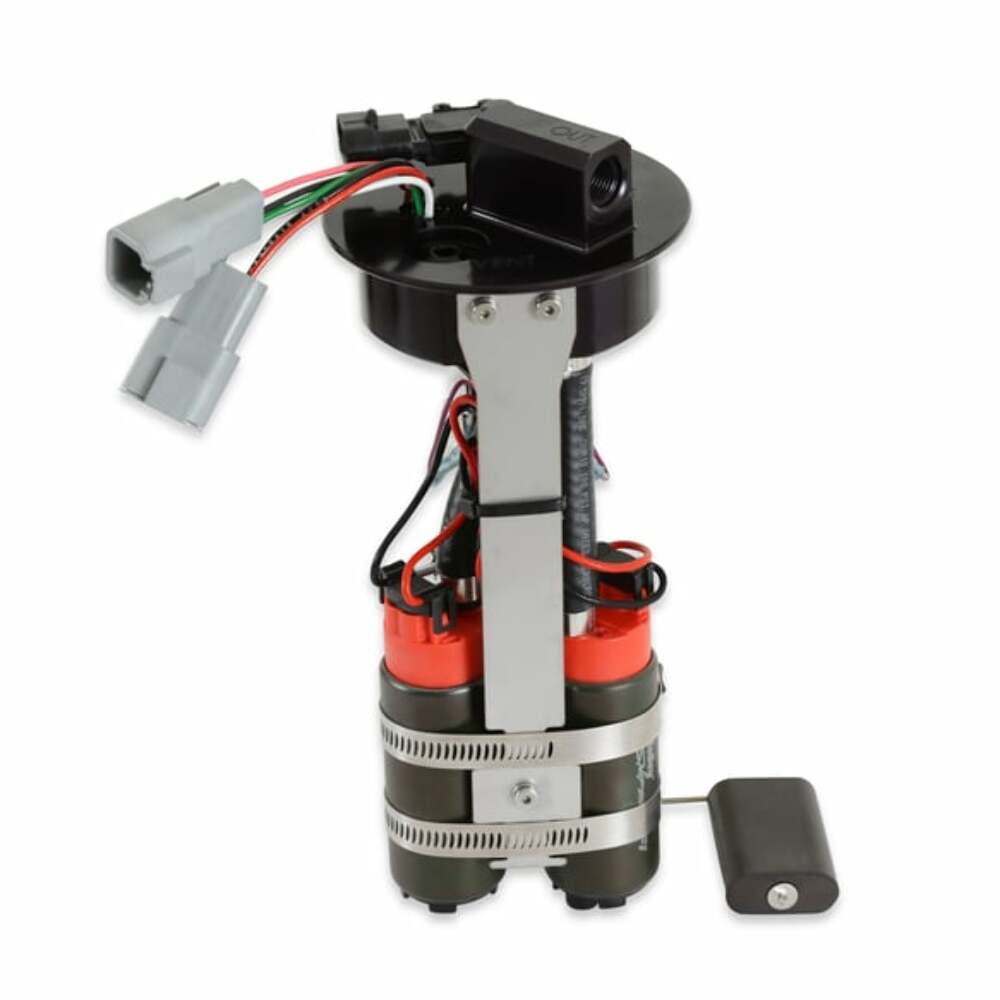

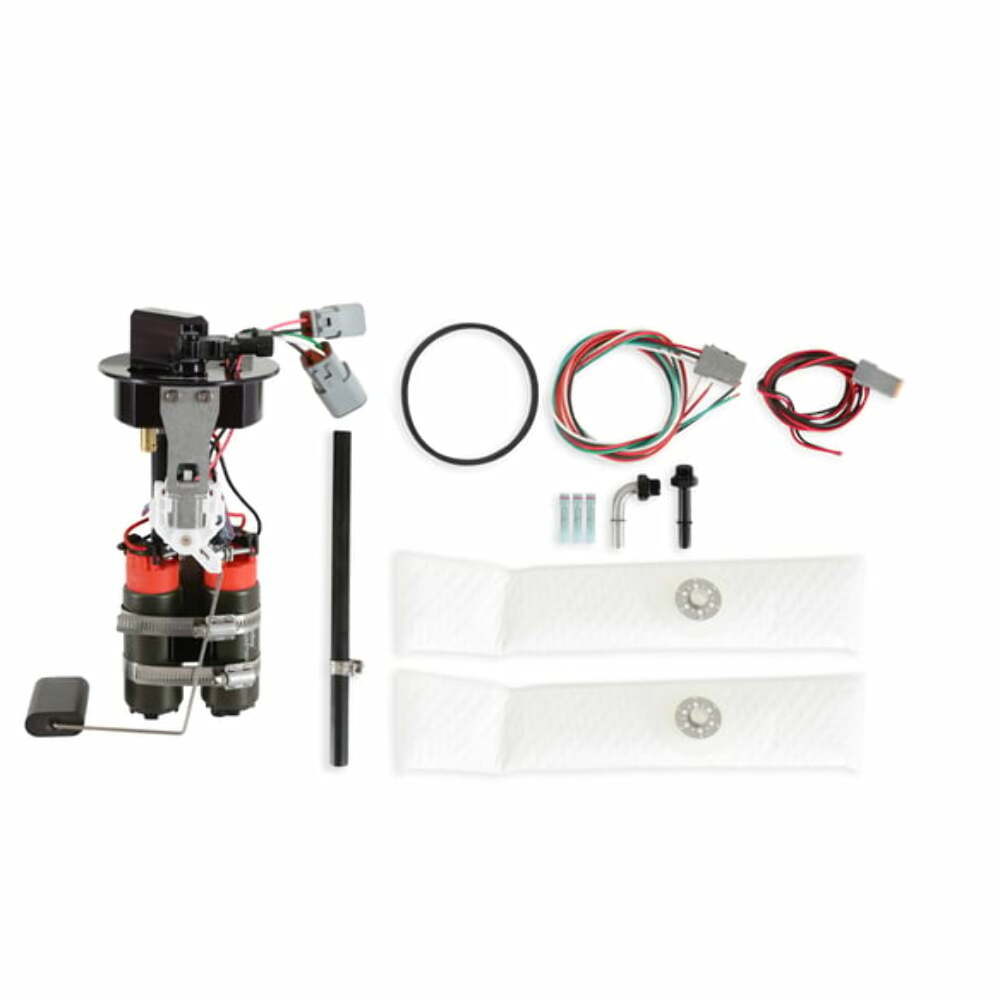

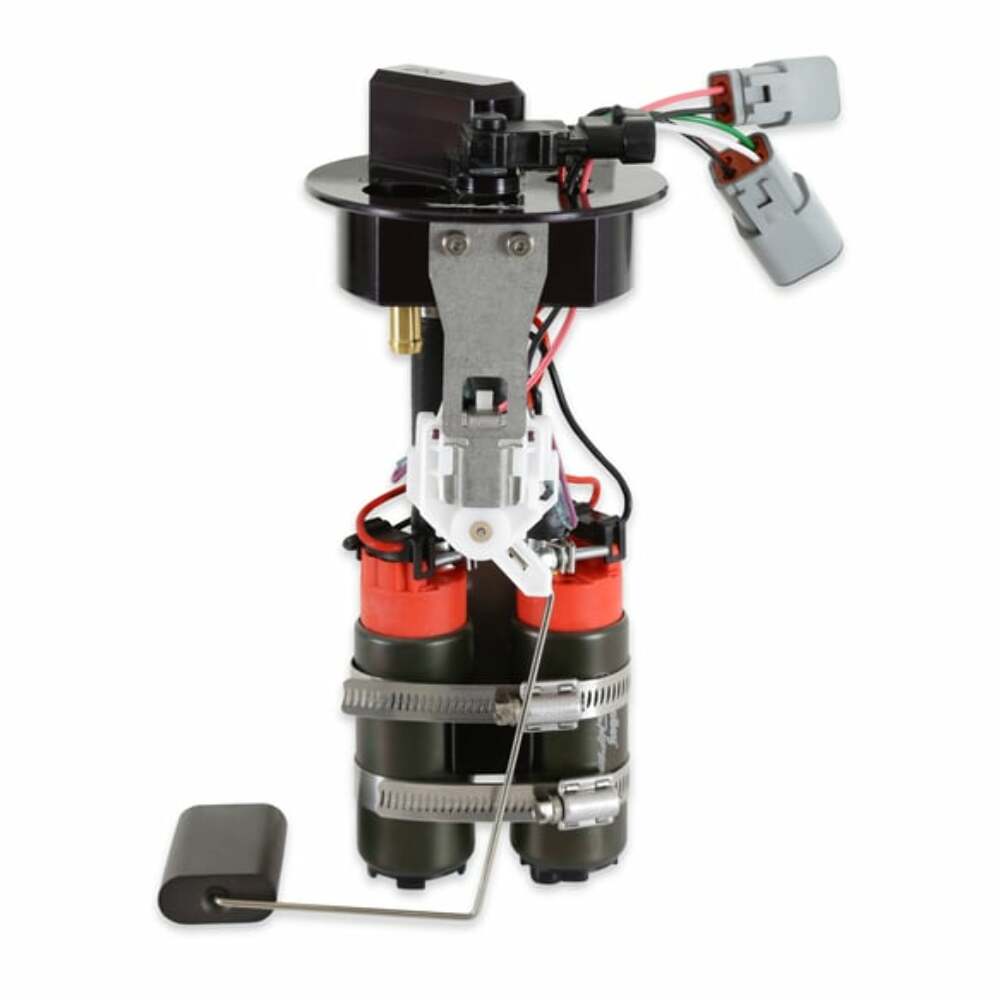

Fits 1998-2002 Camaro / Firebird - Twin 340 LPH Pump Module
If you are looking to make some serious power with your 1998-2002 4th Gen F-body, the Holley modules feature billet pump flanges that connect to either single or dual 340 or 450 LPH pumps. All four of these options are compatible with gasoline and E85 and come pre-installed with new level and tank pressure sensors as well as provisions to connect to the factory EVAP system for EPA compliance.
NOTES: Drive the vehicle until the level in the tank is at or below 1/8 of a tank. To make tank removal and reinstall as easy as possible, the lower the fuel level the better.

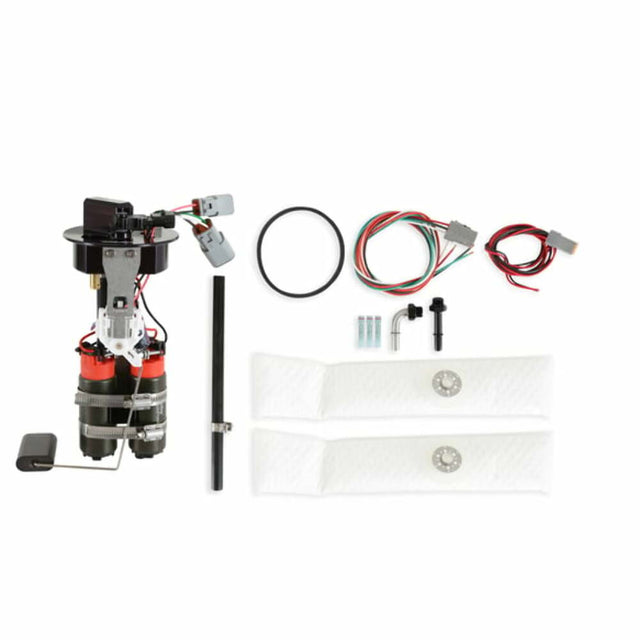

Features:

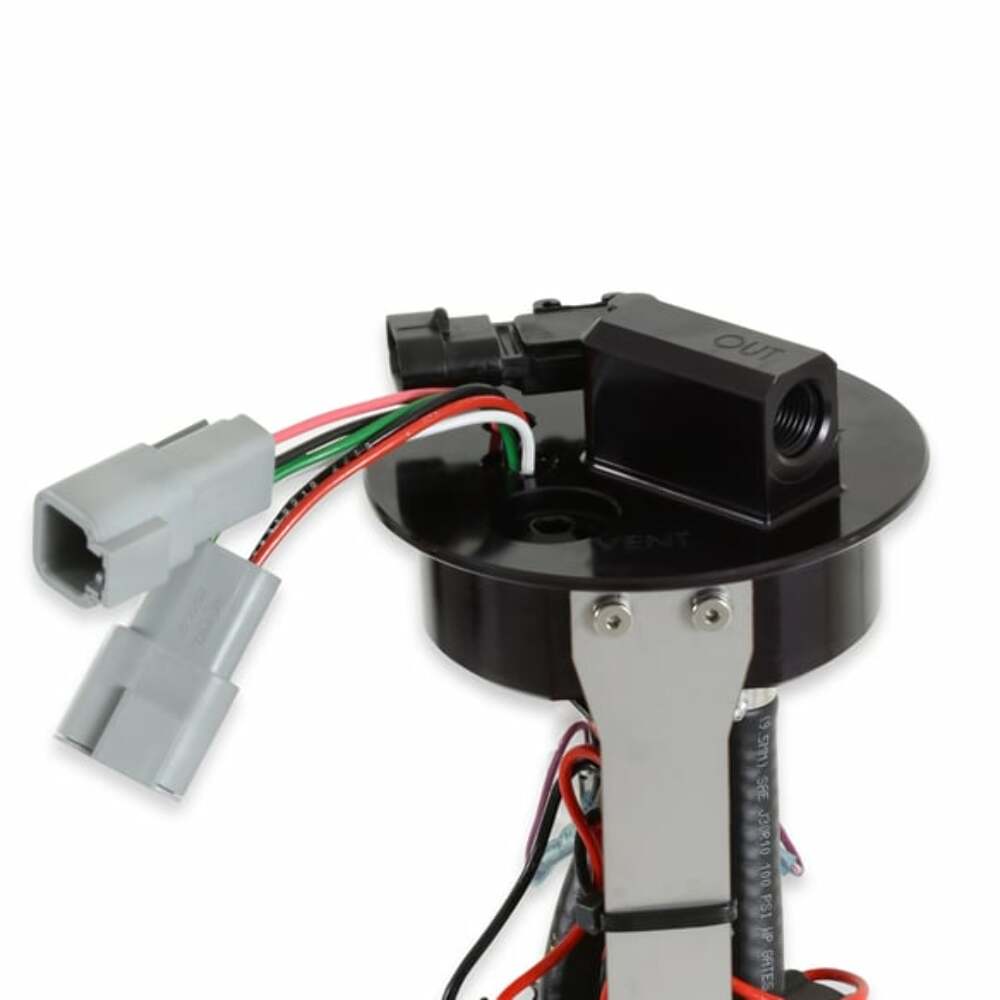

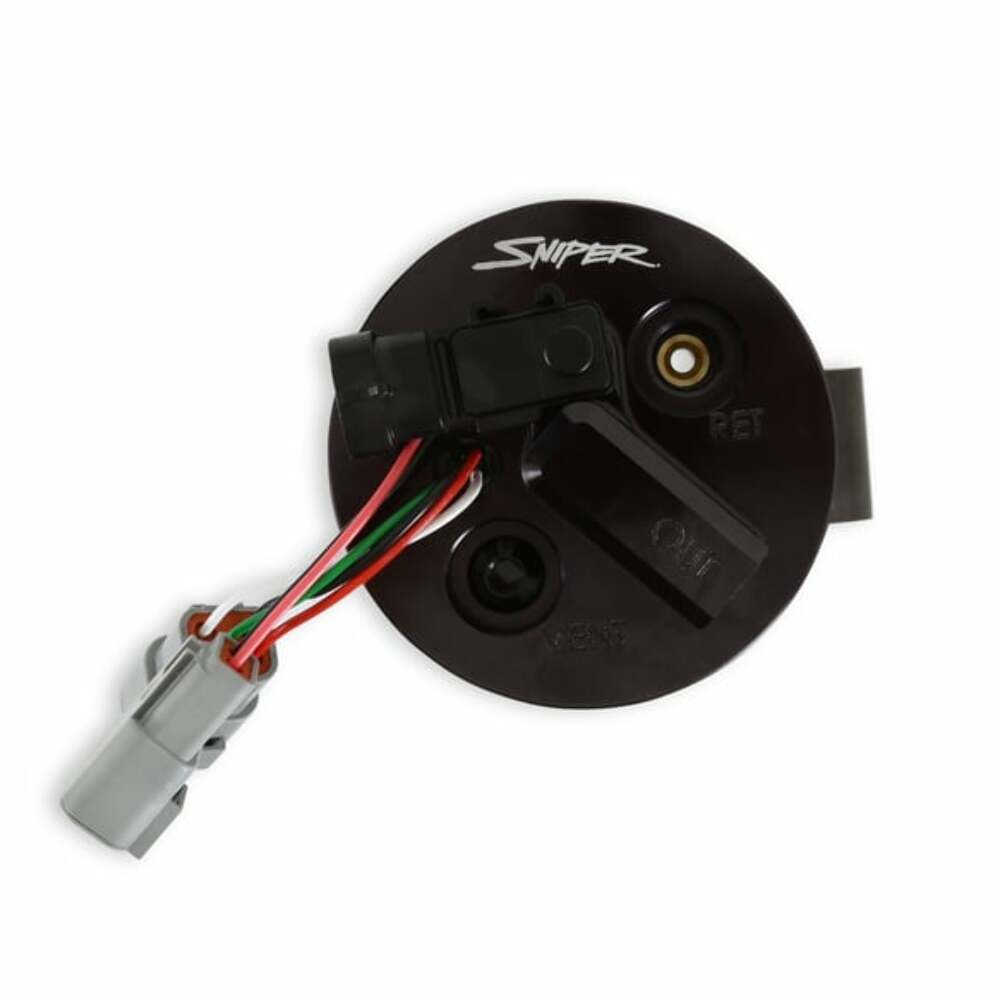

- Anodized and laser-etched billet 6061-T6 flange with 6AN ORB ports for feed, return, and vent
- All SKUs compatible with Gasoline AND E85
- Comes pre-installed with new pre-calibrated fuel level (33 ? 240 ?) and tank pressure sensors

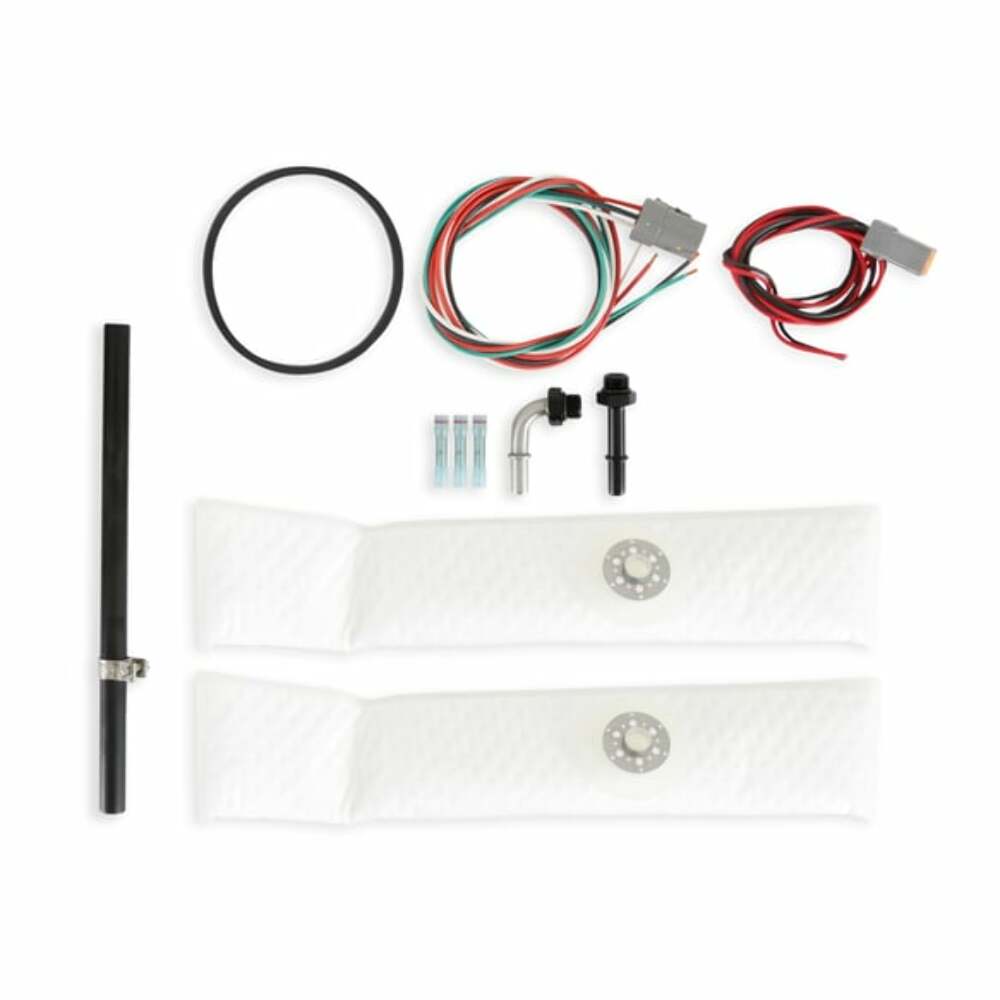

- Includes new gasket to complete installation

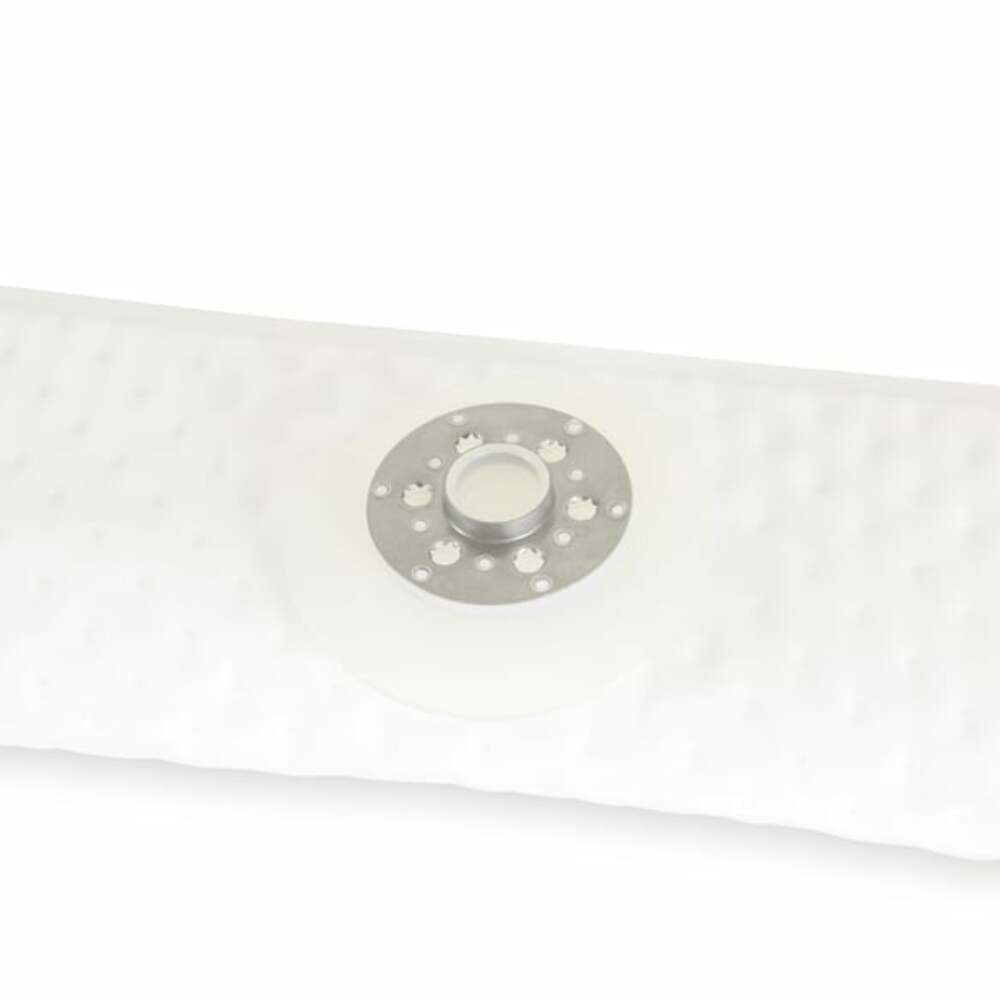

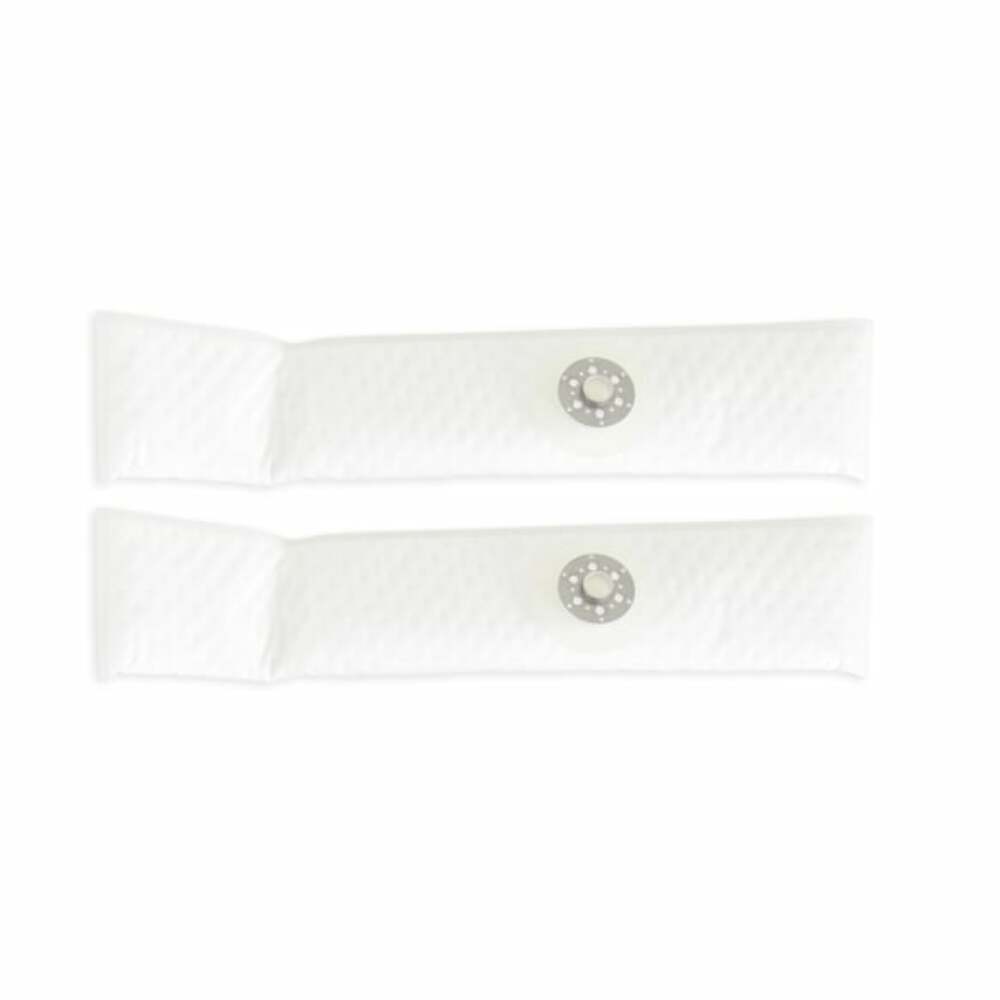

- A 3 x 11-inch HydraMat is included for each pump
- Fits factory plastic tank used in LS1 98-02 Camaro / Firebird or an earlier 4th Gen F-body with fuel tank upgrade
- Fittings included allowing connection to the factory 3/8 quick connect feed and return lines
- Flanges have been designed to be compatible with feed and return line sizes up to -8AN
- Step-down butt connectors included to wire level sensor
- Can be connected to factory EVAP system (w/ use of 12-874 and 935056ERL - sold separately)
- Kit includes vehicle pigtail harness - All connectors used are DTM style
Specs:
| Average Current Draw | 29Ampere |
|---|---|
| Average Flow Rating | 680Liters per Hour |
| Brand | Holley |
| Connector Color | Gray |
| Connector Gender | Female |
| Connector Quantity | 2 |
| Emission Code | 5 |
| Finish | Anodized Black |
| Free Flow GPH | 216 |
| Free Flow LPH | 820 |
| Fuel Filter Included | Yes |
| Fuel Sending Unit Included | Yes |
| Fuel System | EFI |
| Fuel Tank Pressure Sensor Included | Yes |
| Fuel Type | Gasoline/E85 Compatible |
| Gasket Or Seal Included | Yes |
| Gasket Or Seal Material | Rubber |
| Grade Type | Performance |
| Height | Standard |
| Housing Material | Aluminum |
| In Tank or External | In Tank |
| Inlet Quantity | One |
| Inlet Size | 6 AN ORB |
| Inlet Type | 6 AN ORB |
| Internal Or External Strainer | External |
| Lock Ring Included | No |
| Material | Billet Alluminum 6061-T6 |
| Maximum Pressure | 60Pounds per Square Inch |
| Mounting Hardware Included | Yes |
| Negative Ground | Yes |
| Outlet Quantity | One |
| Outlet Size | 6 AN ORB |
| Outlet Type | 6 AN ORB |
| Product Type | Fuel Pump Module |
| Pump Type | Electric |
| Regulator Included | No |
| Resistance Ohms Empty | 33Ohm |
| Resistance Ohms Full | 240Ohm |
| Single Or Dual Pump | Dual |
| Universal Or Specific Fit | Specific |
| Voltage | 12Volts DC |
| Warranty | Limited 90 Day |
| Wire Quantity | 4 |
Application:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1998-2002 | Chevrolet | Camaro | Base |
| 1998-2002 | Chevrolet | Camaro | Z28 |
| 1998-2002 | Chevrolet | Camaro | Z28 SS |
| 1998-2002 | Pontiac | Firebird | Base |
| 1998-2002 | Pontiac | Firebird | Formula |
| 1998-2002 | Pontiac | Firebird | Trans Am |
