Fits 2018-2024 SQ5 Audi APR Intercooler System - B9 SQ5 3.0 TFSI IC100026
Fits 2018-2024 SQ5 Audi APR Intercooler System - B9 SQ5 3.0 TFSI IC100026 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Delivery and Shipping
Delivery and Shipping
Same day shipping, if ordered by 9:00 AM ET M-F
*Select products are made to order and ship within 4 business days.
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description

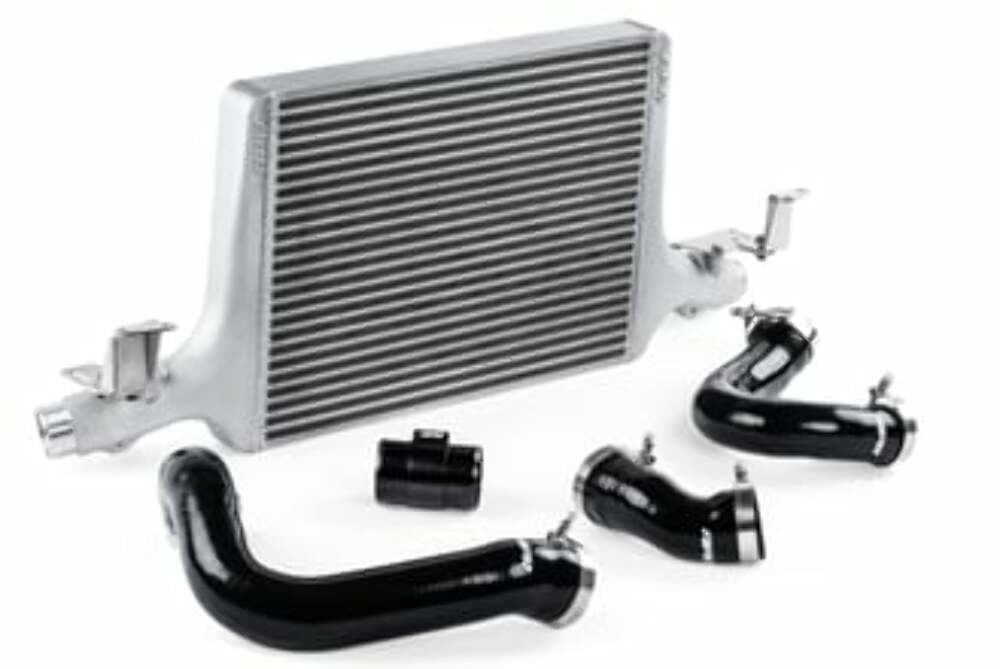

Fits Audi SQ5 & SQ5 Sportback 18-24
Features:
- Dramatically lowers intake air temp (IAT)
- Smooth cast end tanks Engineered for low turbulence/restriction and maximum flow.
- Organically shaped to promote airflow across entire core.
- Pressure tested to prevent power robbing boost leaks.
- Easy to install
- Simple plug-and-play design with no trimming or drilling necessary!
- Designed by engineers with lasers
- With the best equipment and smartest engineers, it just works!
- The factory intercooler reaches dangerously high IAT levels, even on the stock ECU!
- Massive frontal surface area and core volume
- 3.125" x 5.75" x 28.25" - 162.4 in? front. & 507.62 in? volume - OEM
- 2.250" x 16.2" x 22.00" - 356.4 in? front. & 801.90 in? volume - APR
- Highly effective core design
- Bar-and-plate core with staggered and louvered fins.
- Rigorous testing determined core style, fin density, and size.
- Low pressure drop + highly effective cooling = high performance!
Specs:
| Brand | APR |
|---|---|
| Color | Silver / Natural |
| Cooler Type | Air to Air |
| Core Frontal Area | 357.50 |
| Core Height | 16.25 |
| Core Type | Bar and Plate |
| Core Volume | 804.38 |
| Core Width | 2.25, 22 |
| Direct Fit | Yes |
| Emission Code | 7 |
| End tank Construction | Cast |
| End tank Material | 356-F Aluminum |
| Hose Clamp Type | T-Bolt |
| Hose Type | Silicon |
| Product Type | Charge Air Cooler |
| Version | B9 3.0T (SQ5) |
| Warning | California Proposition 65 |
| Welding Type | TIG |
Application:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2018-2024 | Audi | SQ5 | |
| 2021-2024 | Audi | SQ5 Sportback |
