Fits Ford 7.3L Godzilla Engine

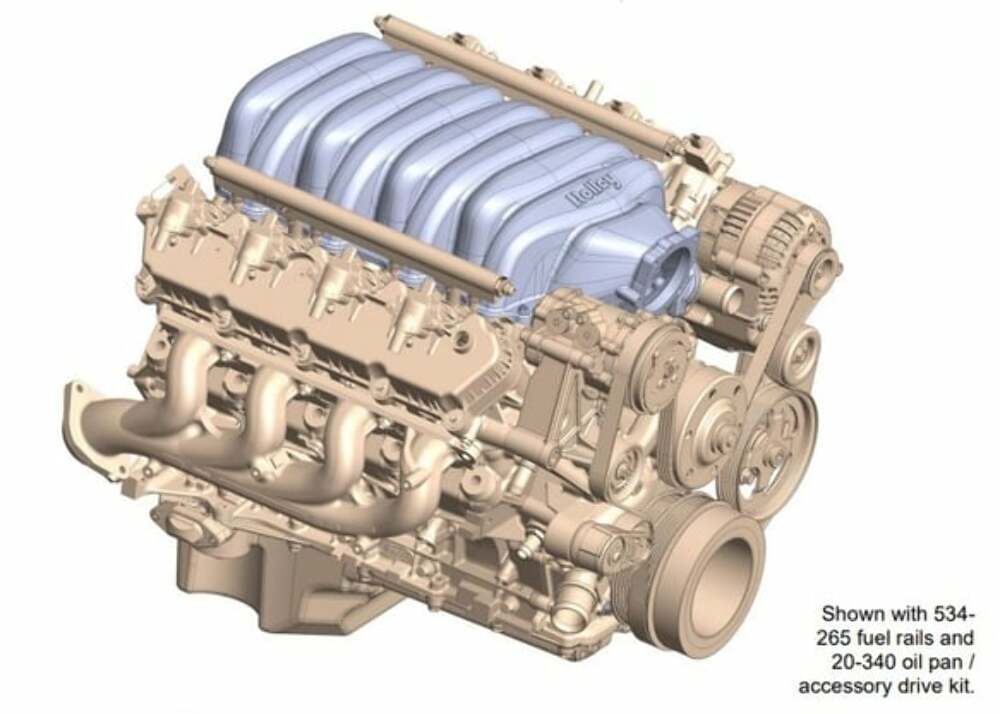

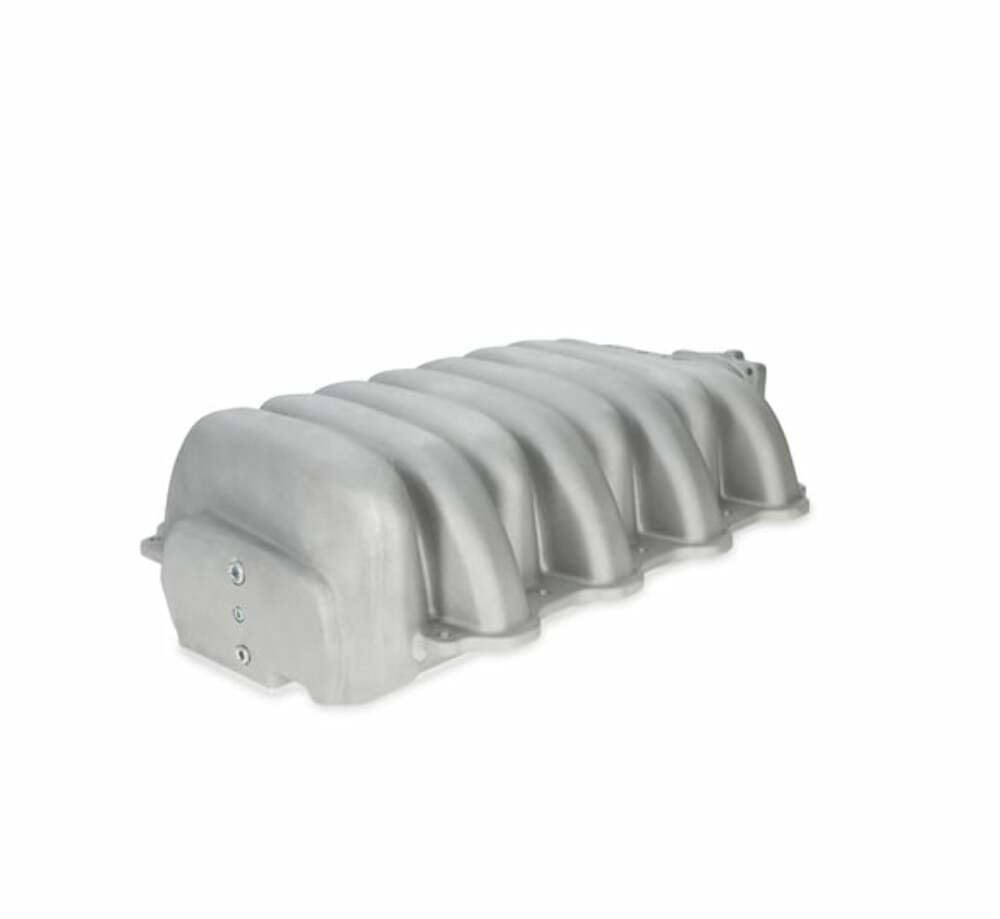

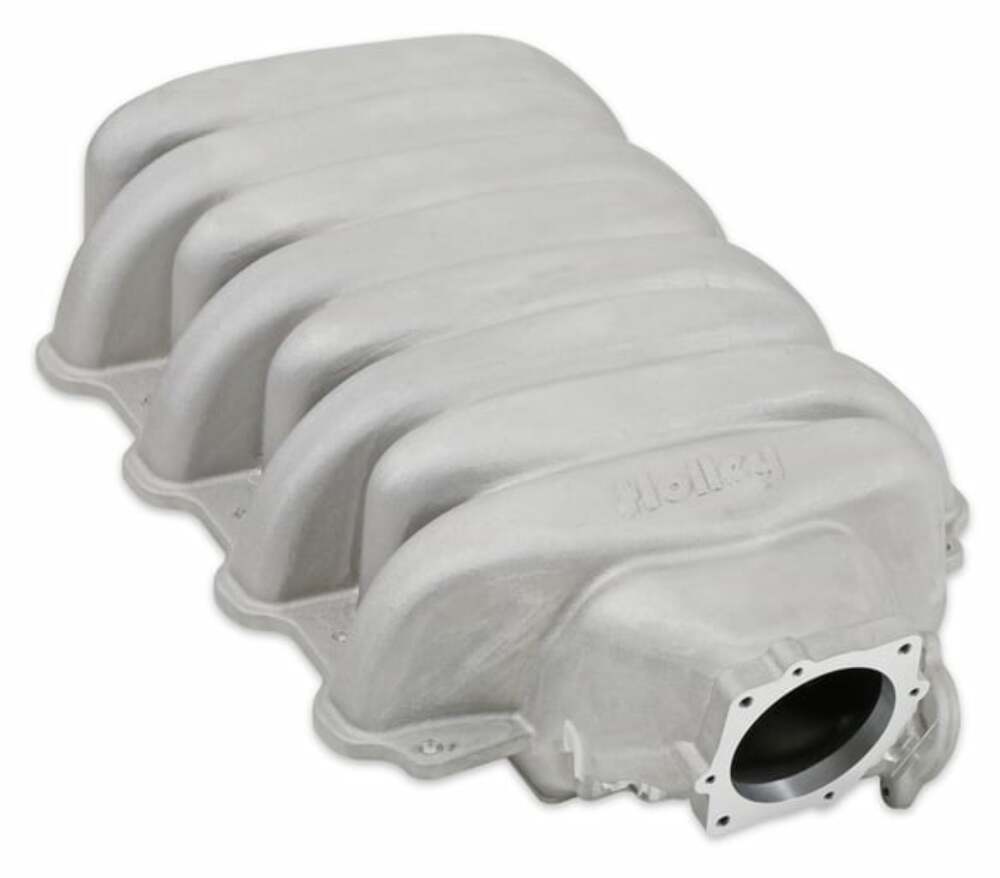

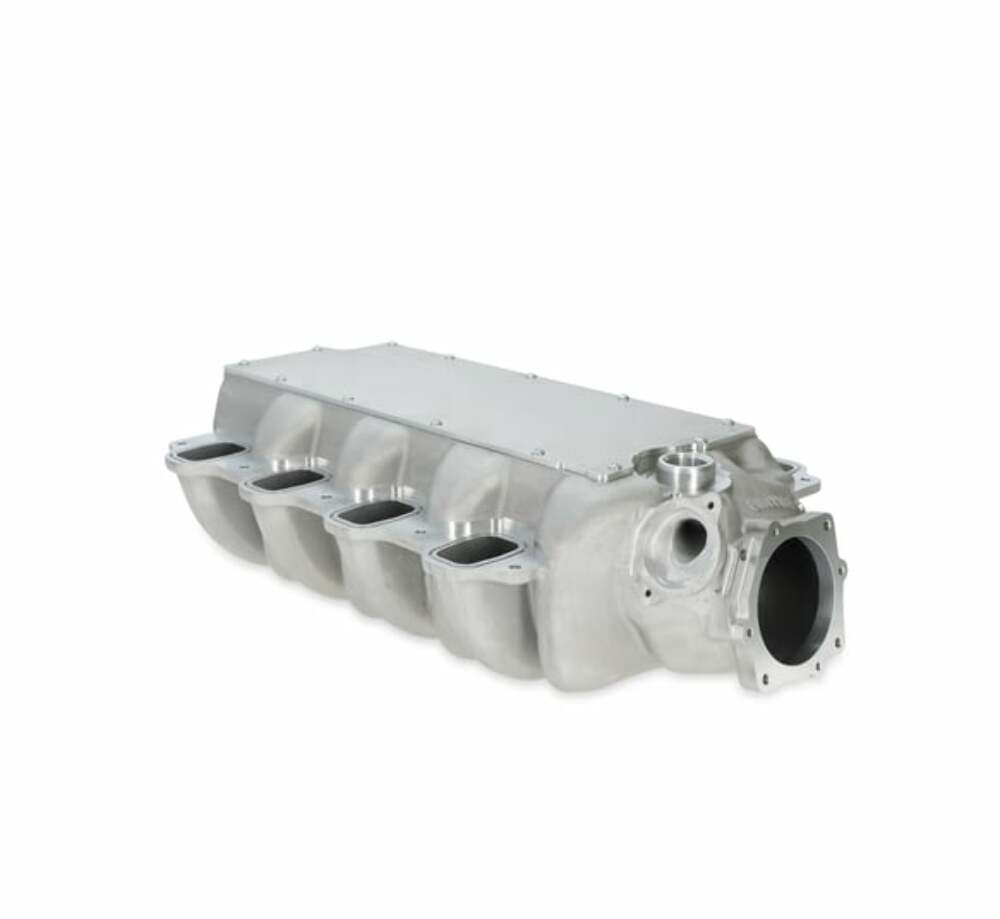

Holley's low-profile intake manifold for Ford's 7.3L "Godzilla" engine, when paired with a 20-340/20-340BK oil pan and accessory drive kit, allows for easy installation into vintage vehicles, kit cars, and other space-restricted applications while retaining the factory hood. The design focus for this manifold was equal cylinder distribution and great street manners. This low-profile intake manifold offers a much cleaner alternative to the original plastic intake, provides anywhere from 2 to 3.5-inches of additional clearance, corrects the OE throttle body angle by 55 degrees, and increases the opening to 92mm. With three throttle body options, sturdy cast aluminum construction, a removable lower panel, and long runners to maintain the 7.3-liter's already substantial torque offering, this is a must-have for any "Godzilla" project.
NOTES: Heater applications - Use 300-901 heater line adapter. This adapter will work with either the original Ford or Holley intakes and is required for A/C applications and the Holley low intake.
Features:

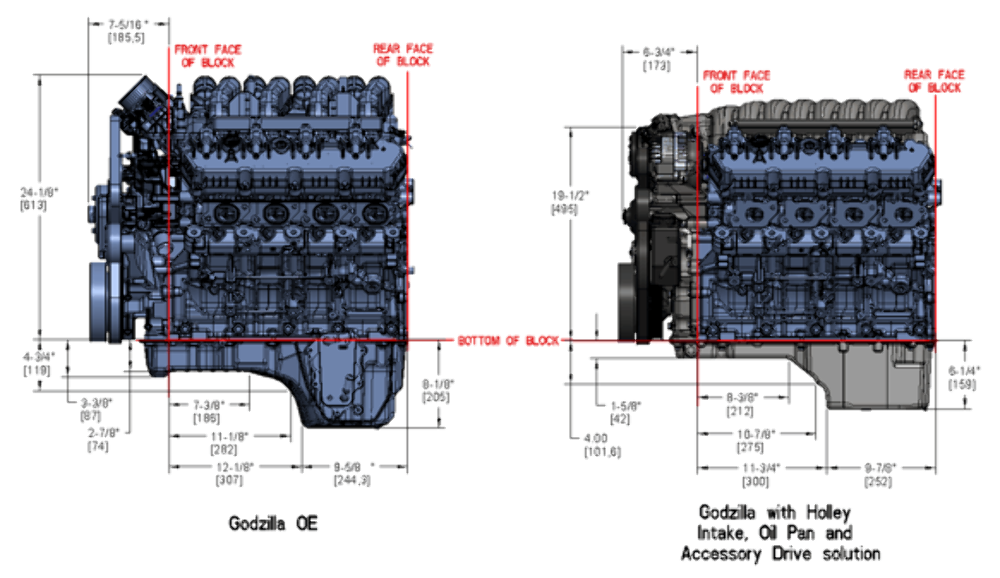

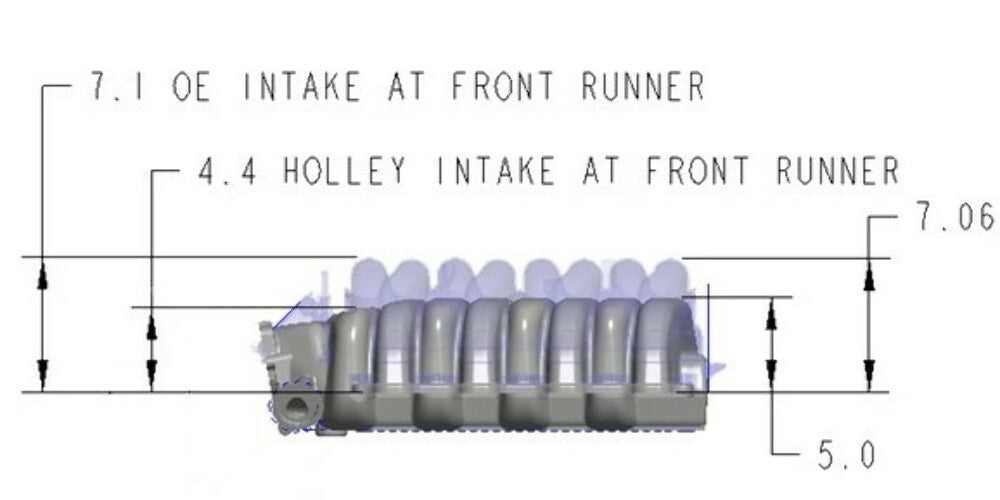

- Patent-pending design optimizes hood clearance for engine swap applications with gains ranging from 2 to 3.5-inches
- Robust cast aluminum construction that will withstand high-boost turbocharger and supercharger applications
- Three throttle body options to choose from: OE 7.3L DBW, Fox Body cable driven style, 2020-2023 GT500 (requires part # 300-903)
- Perfect complement to Holley?s Godzilla Accessory Drive and Oiling System (20-320 / 20-320BK / 20-340 / 20-340BK) for fitment into tight engine bays

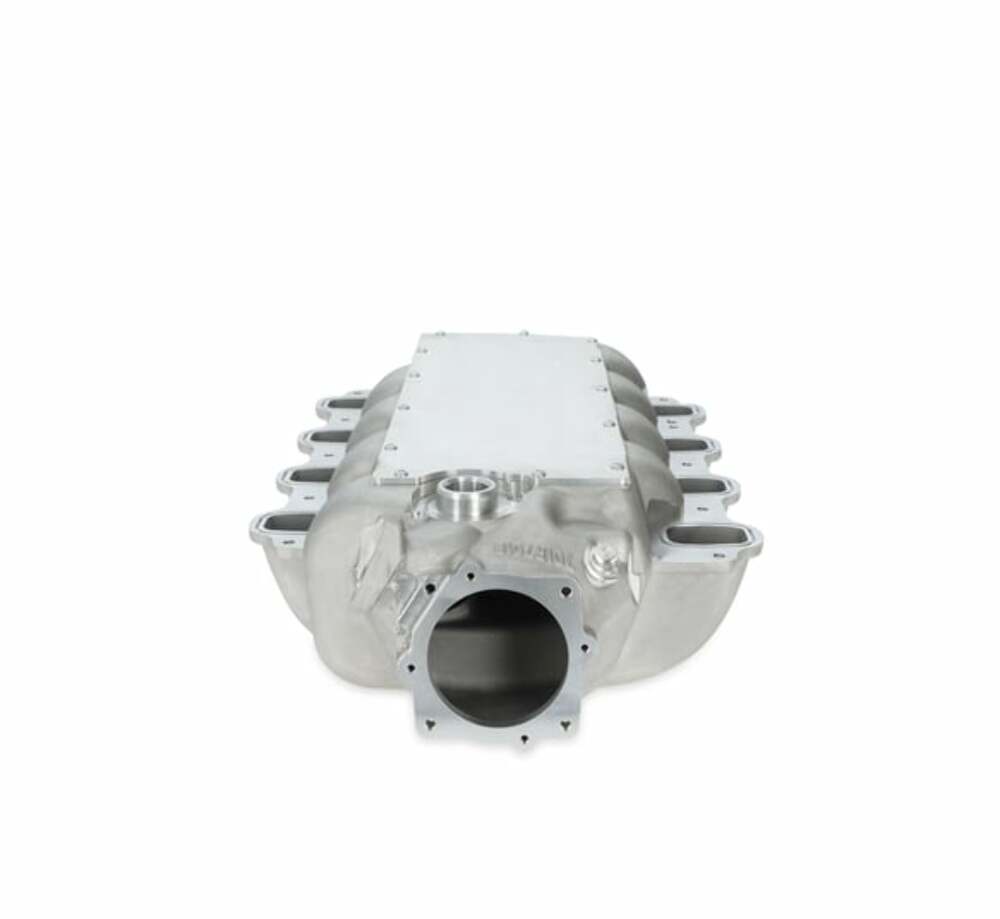

- Removable lower intake panel that can be removed for additional porting, nitrous, etc
- Runner design optimizes horsepower and torque in upper RPM range, especially when engine is allowed to breathe with better components (throttle body, cam, etc.)
- Includes throttle body gasket and all necessary o-rings and adapters to mount to the engine
- Compatible with OE or Holley accesory drives and OE or Holley Fuel Rails

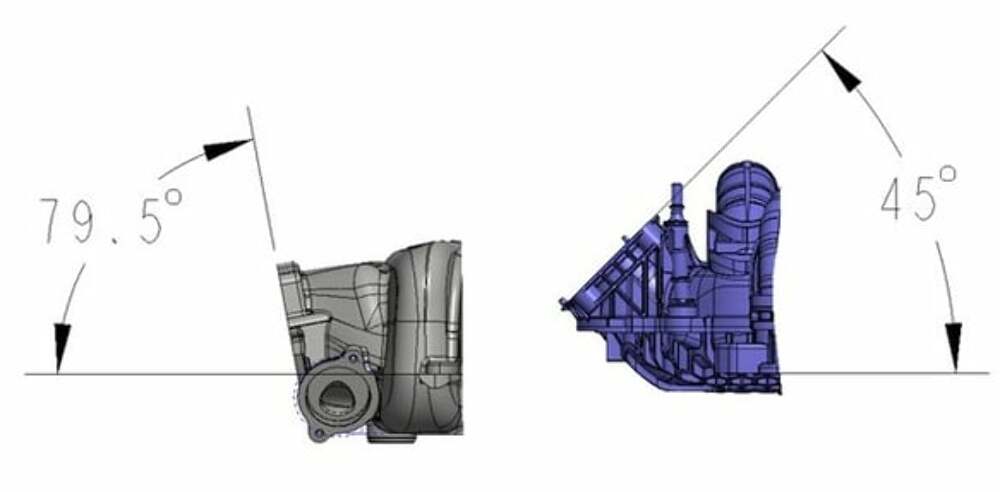

- Corrects OE throttle body flange angle by 55 degrees for significantly improved clearance and intake pipe routing
- Includes 3/8 NPT, 1/4 NPT and 1/8 NPT vacuum ports at rear of manifold
Specs:
| Basic Operating RPM Range | 2000-6500Revolutions per Minute |
|---|---|
| Brand | Holley |
| Carburetor Studs Included | No |
| Construction | Cast |
| EGR Port | No |
| Emission Code | 3 |
| Engine | Ford 7.3L Godzilla |
| Finish | Natural Cast |
| Front Height | 3.625 inch |
| Front Maximum Height | 3.625Inch |
| Fuel Injectors Included | No |
| Fuel Rail(s) Included | No |
| Fuel System Type | EFI |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Intake Port Gasket(s) Included | No |
| Manifold Type | Low-Profile |
| Material | Aluminum |
| Nitrous Bung(s) Included | No |
| Plenum Finish | Natural |
| Product Type | Intake Manifold |
| Rear Height | 5.00 inch |
| Rear Maximum Height | 5Inch |
| Removable Runners | No |
| RPM Power Band | 2000-6500 |
| Single Or Dual Plane Type | Single Plane |
| Throttle Body Included | No |

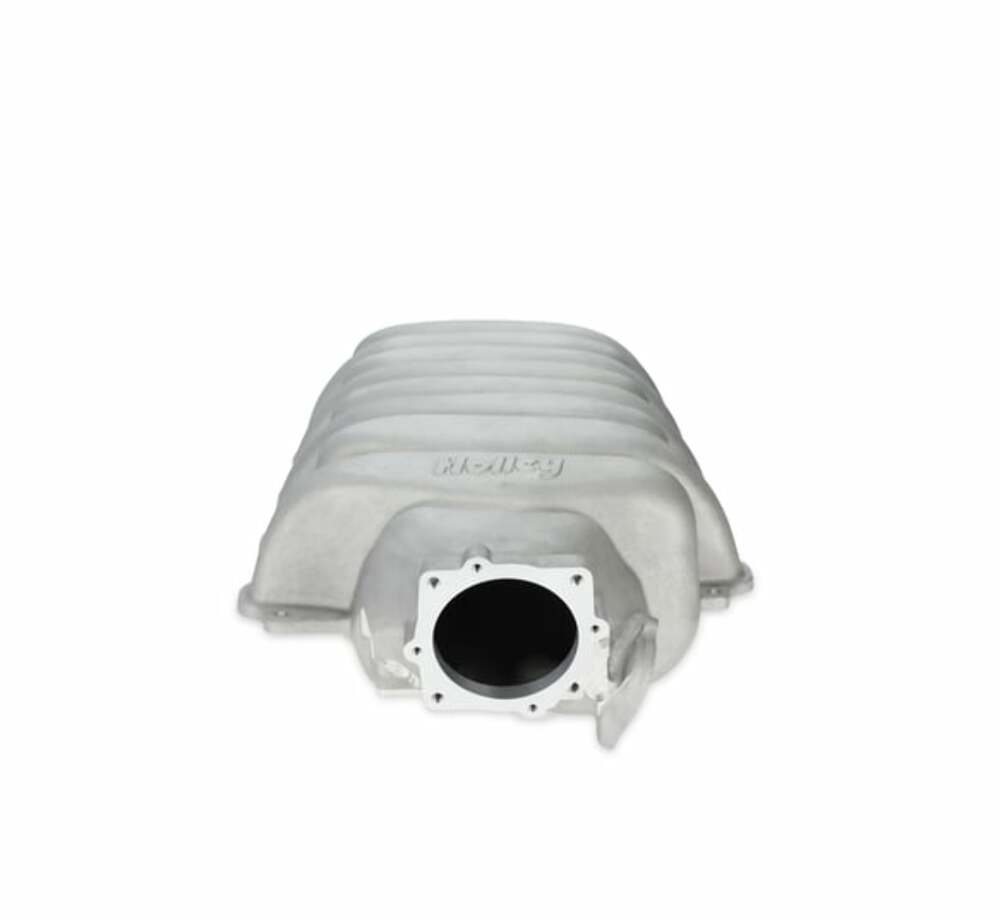

| Throttle Bore | 92mm |
| Warranty | Limited 90 Day |
