Fits most GM Gen V LT Engines with OE-type LT Cylinder Heads

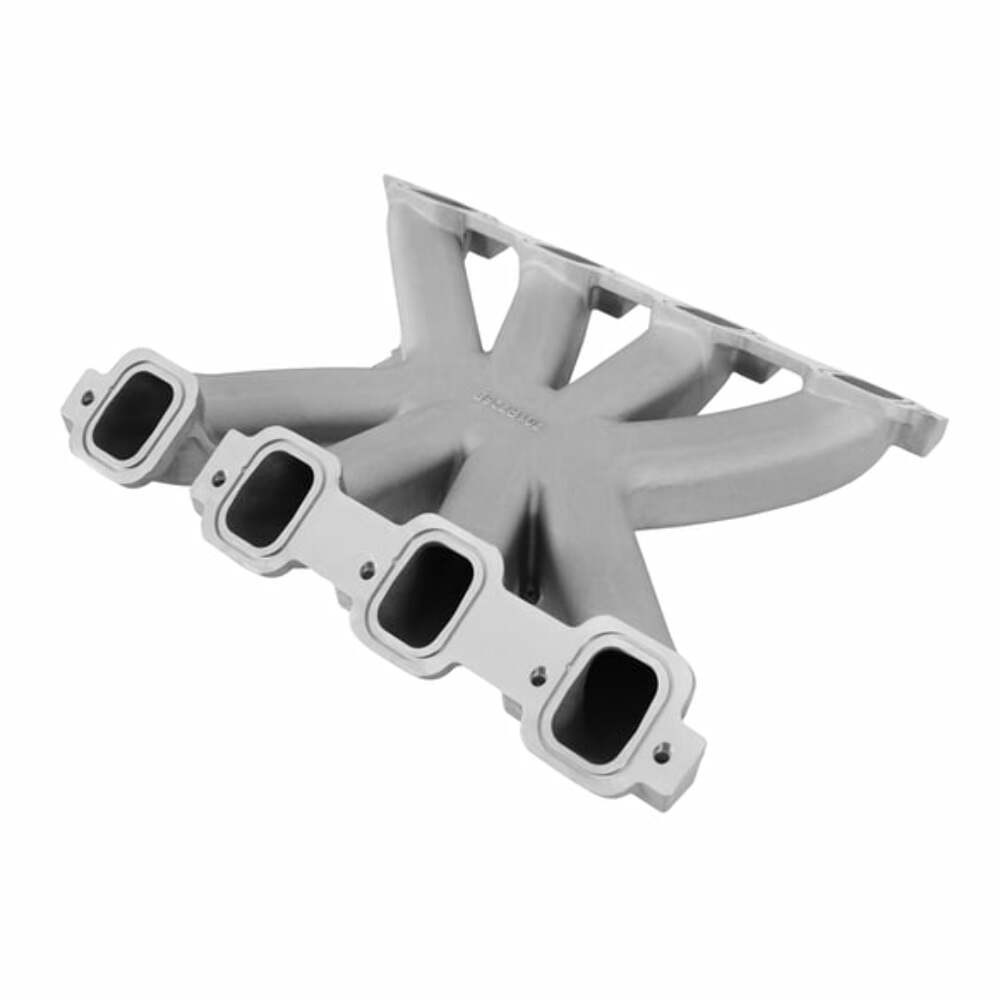

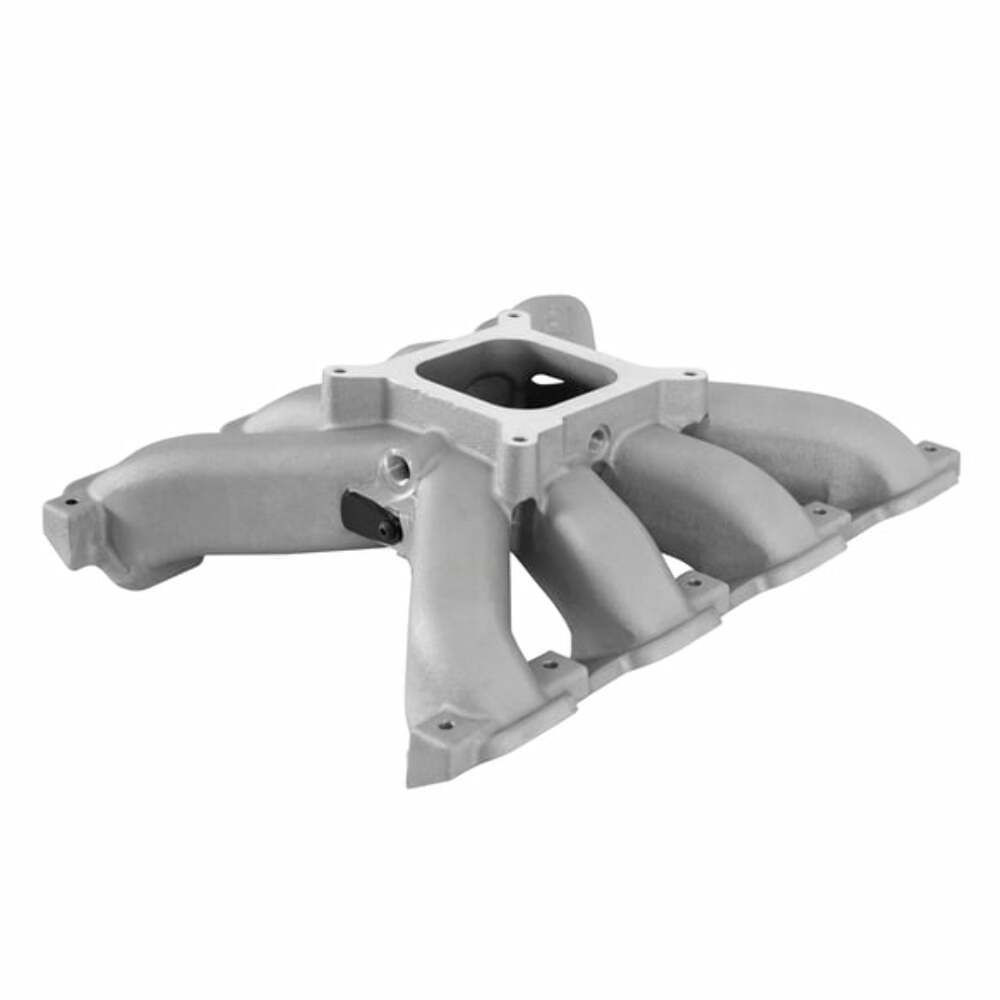

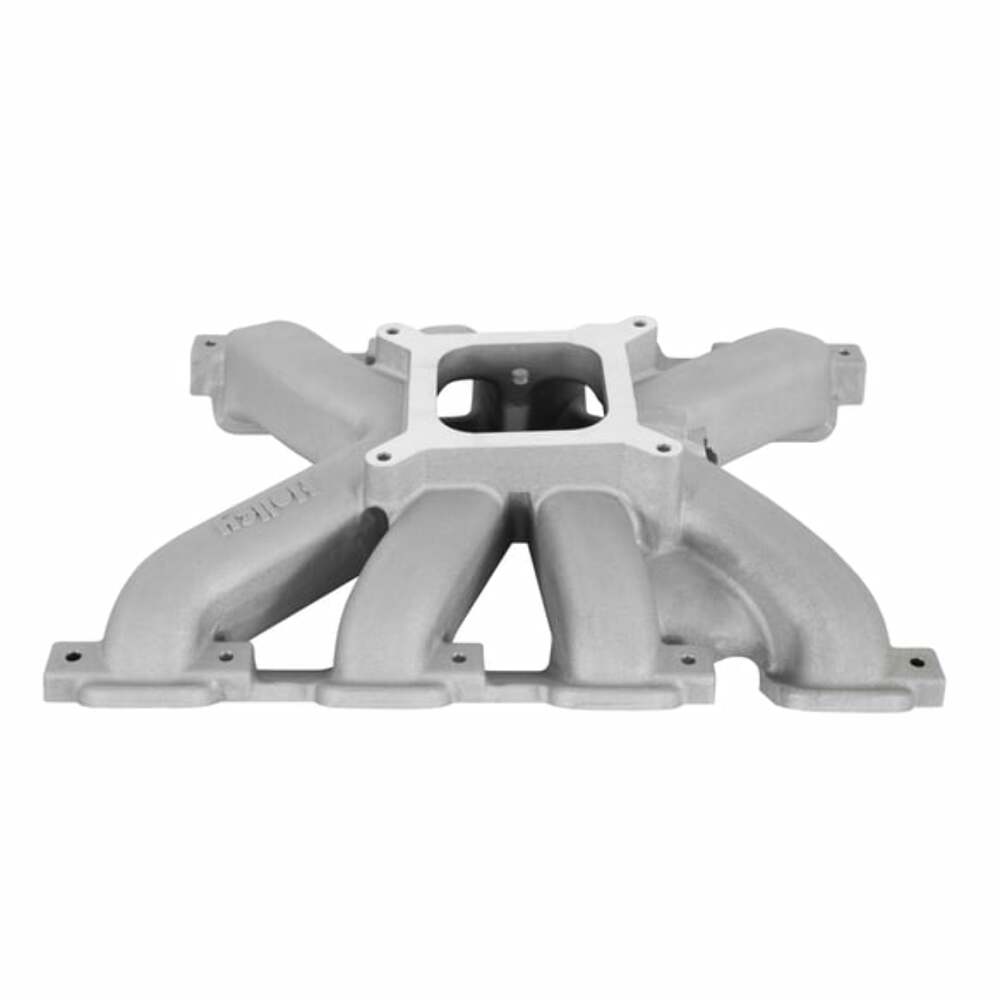

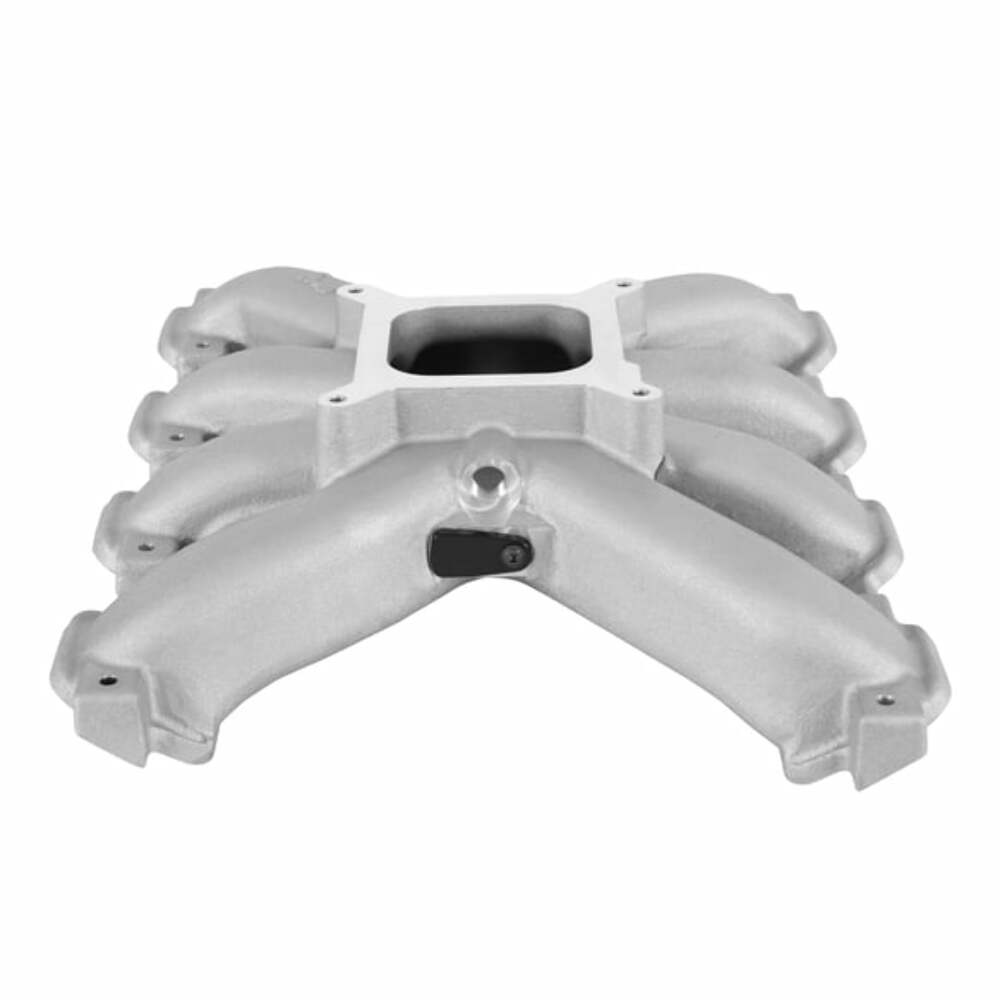

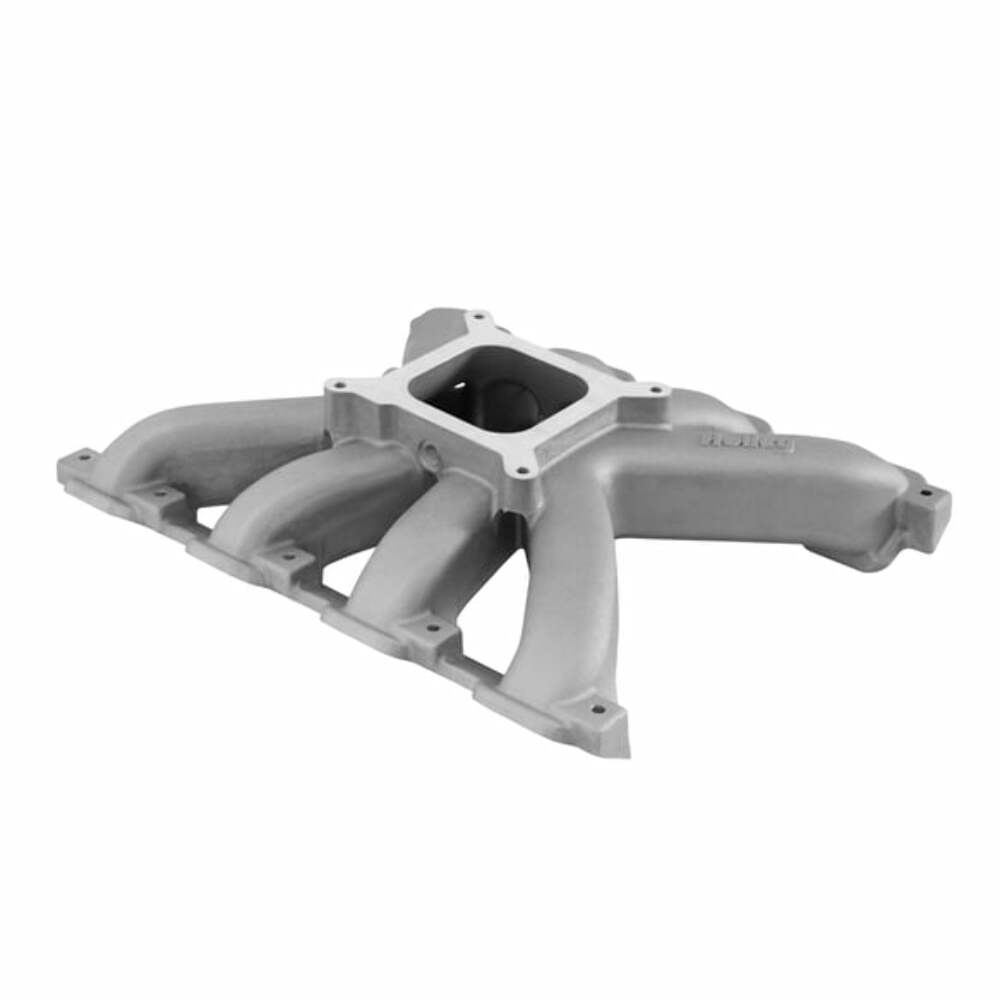

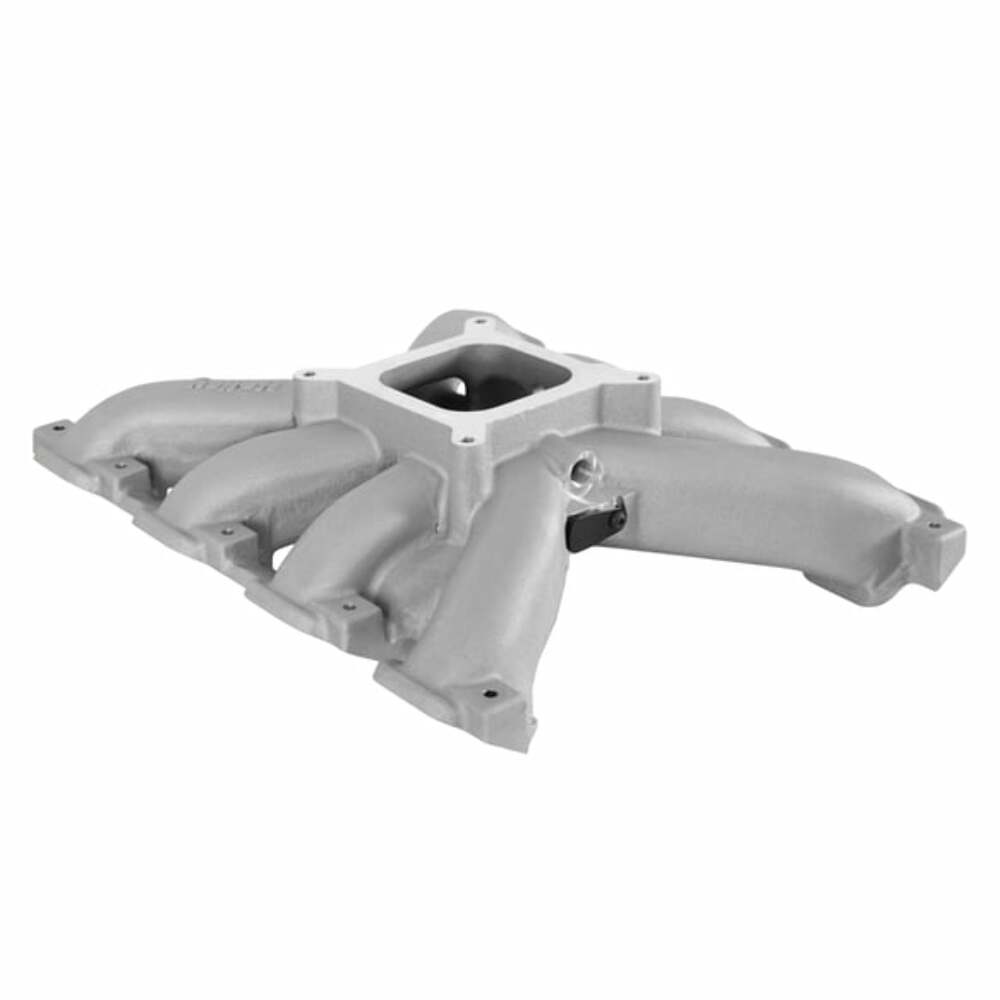

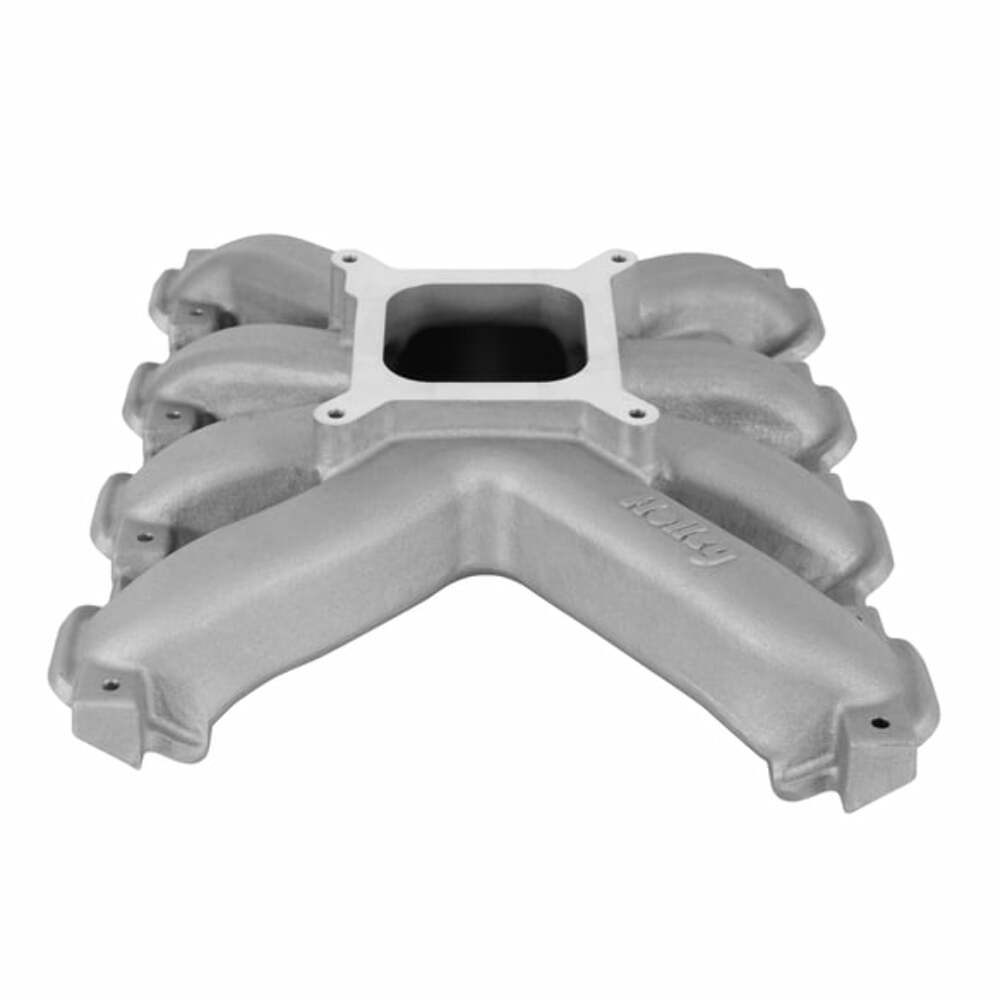

Holley's new single-plane Gen V LT intake manifold was designed with an optimized runner layout and constant cross-sectional area, resulting in a broad torque curve with the best vehicle performance from 2500-7000 RPM.

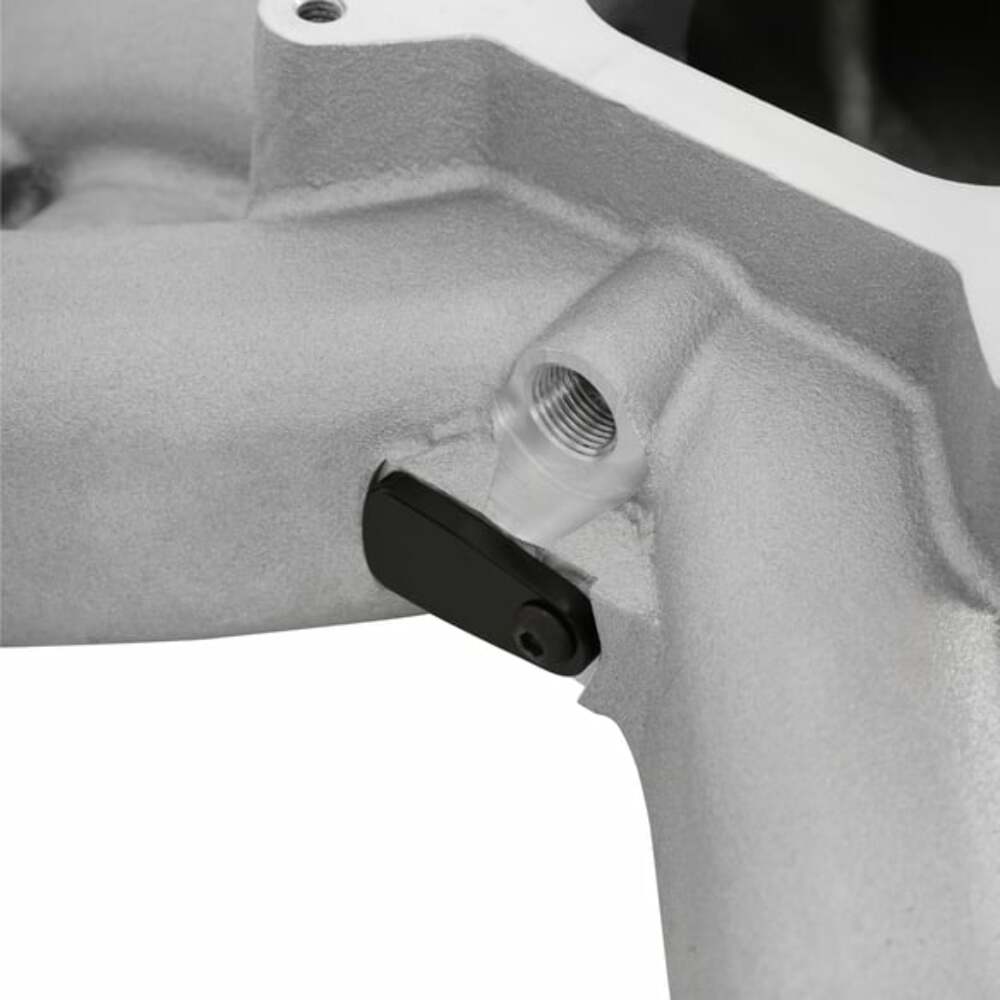

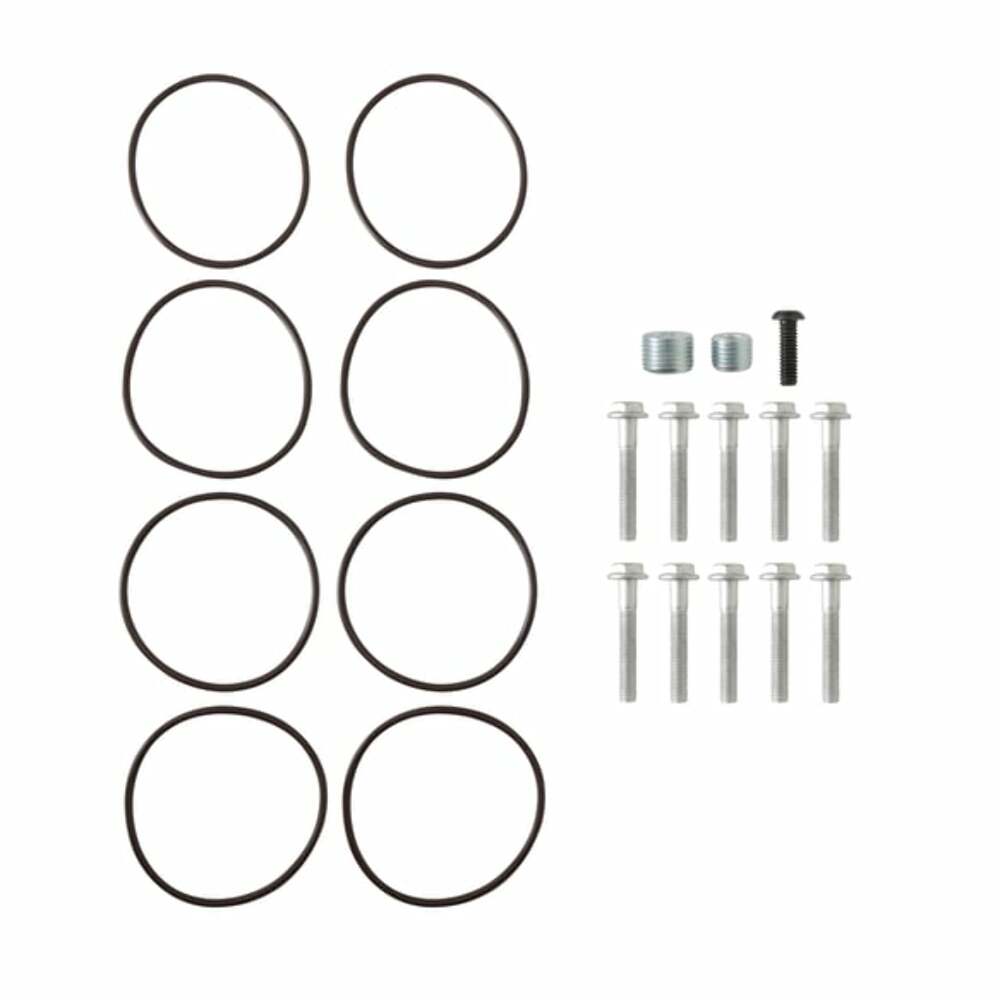

NOTES: Includes mounting hardware, O-ring cylinder head mounting flange gaskets, MAP Sensor port cover, and vacuum port plugs.
Features:
- 2500-7000 RPM power band
- 4150 / 4160 Square bore flange
- Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM
- Minimum carb flange height - fit in vehicles with minimum hood modifications
- Provides classic engine bay look of carb style intake
- Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS mild power adder applications
- Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality
- Weight - 11.5 lbs.
- Height (front) - 5.417" to the lifter valley cover flange at the engine block front flange and bellhousing flange
- Port size - 2.33" height x 1.27" wide
- Includes FKM o-ring intake to cylinder head gaskets
Specs:
| Basic Operating RPM Range | 2500-7000Revolutions per Minute |
|---|---|
| Brand | Holley |
| Carburetor Flange | Square/4150 |
| Carburetor Studs Included | No |
| Color | Natural |
| Construction | Cast |
| EGR Port | No |
| Emission Code | 3 |
| Finish | Satin |
| Flange Style | 4150 |
| Front Height | 5.417 inch |
| Front Maximum Height | 5.417Inch |
| Fuel Injectors Included | No |
| Fuel Rail(s) Included | No |
| Fuel System Type | EFI |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Intake Port Gasket(s) Included | No |
| Manifold Type | Single Plane |
| Material | Aluminum |
| Nitrous Bung(s) Included | No |
| PI: vehicleapps_notes_enabled | Will ship today. |
| Plenum Finish | Natural |
| Product Type | Intake Manifold |
| Rear Height | 5.417 inch |
| Rear Maximum Height | 5.417Inch |
| Recommended Use | Forced Induction |
| Removable Runners | No |
| RPM Power Band | 2500-7000 RPM |
| Single Or Dual Plane Type | Single Plane |
| Throttle Body Included | No |
| Warranty | Limited 90 Day |
