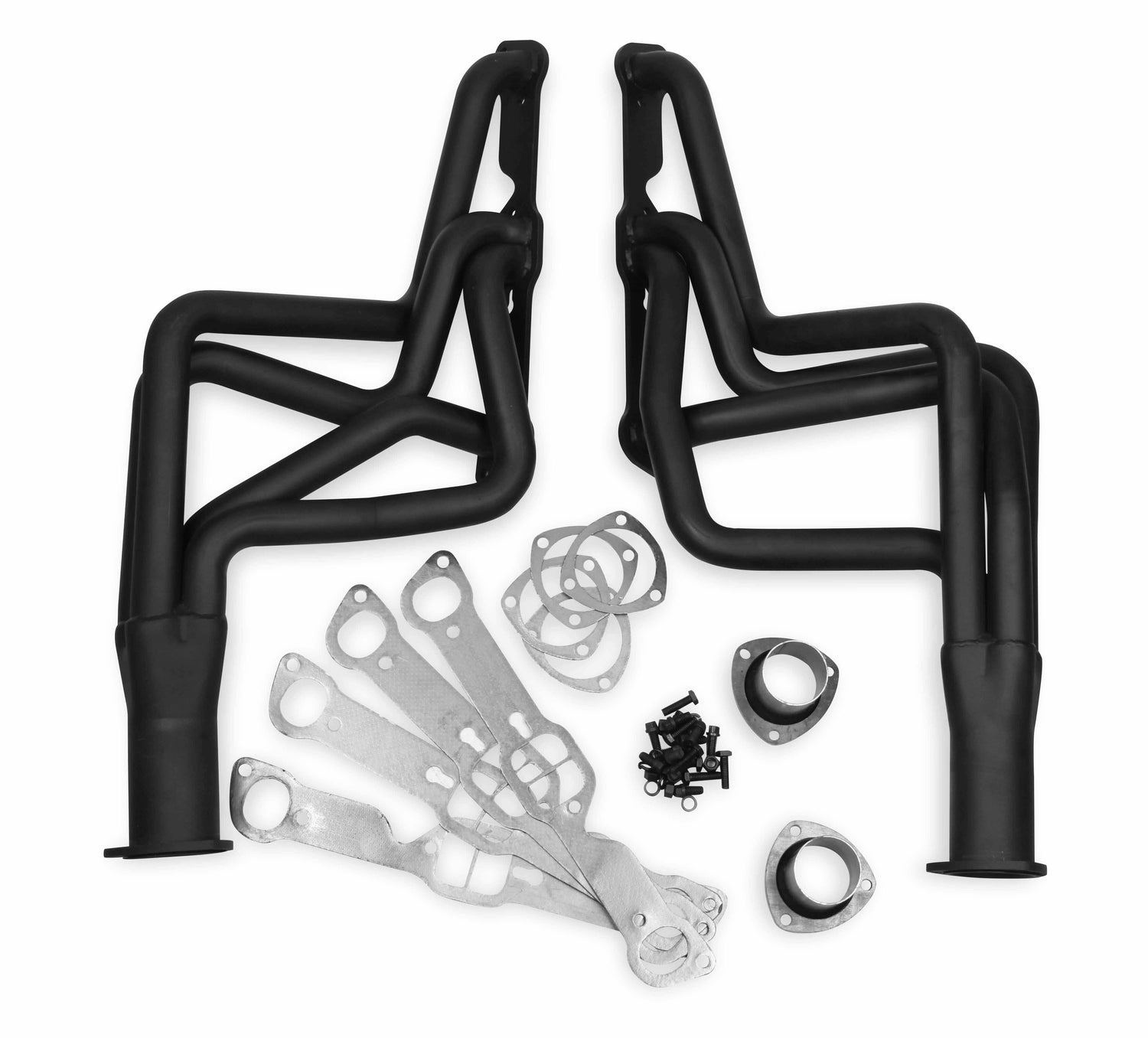

1964-1974 Pontiac LeMans Long Tube Headers V8 Black Paint Flowtech 11170FLT

Overview:

Flowtech headers are the perfect combination of performance and value. Flowtech long tube headers are precision engineered using mandrel bent tubing, formed collectors and 5/16" flanges with sealing rings for a leak-free seal. All mounting hardware and gaskets are included for a simple installation. This header is coated in a high heat resistant black paint for a stealthy appearance.

Features:

• Fuel Economy From The Engine
• Leak Test For Max Performance
• Mandrel-Formed Power Plenum

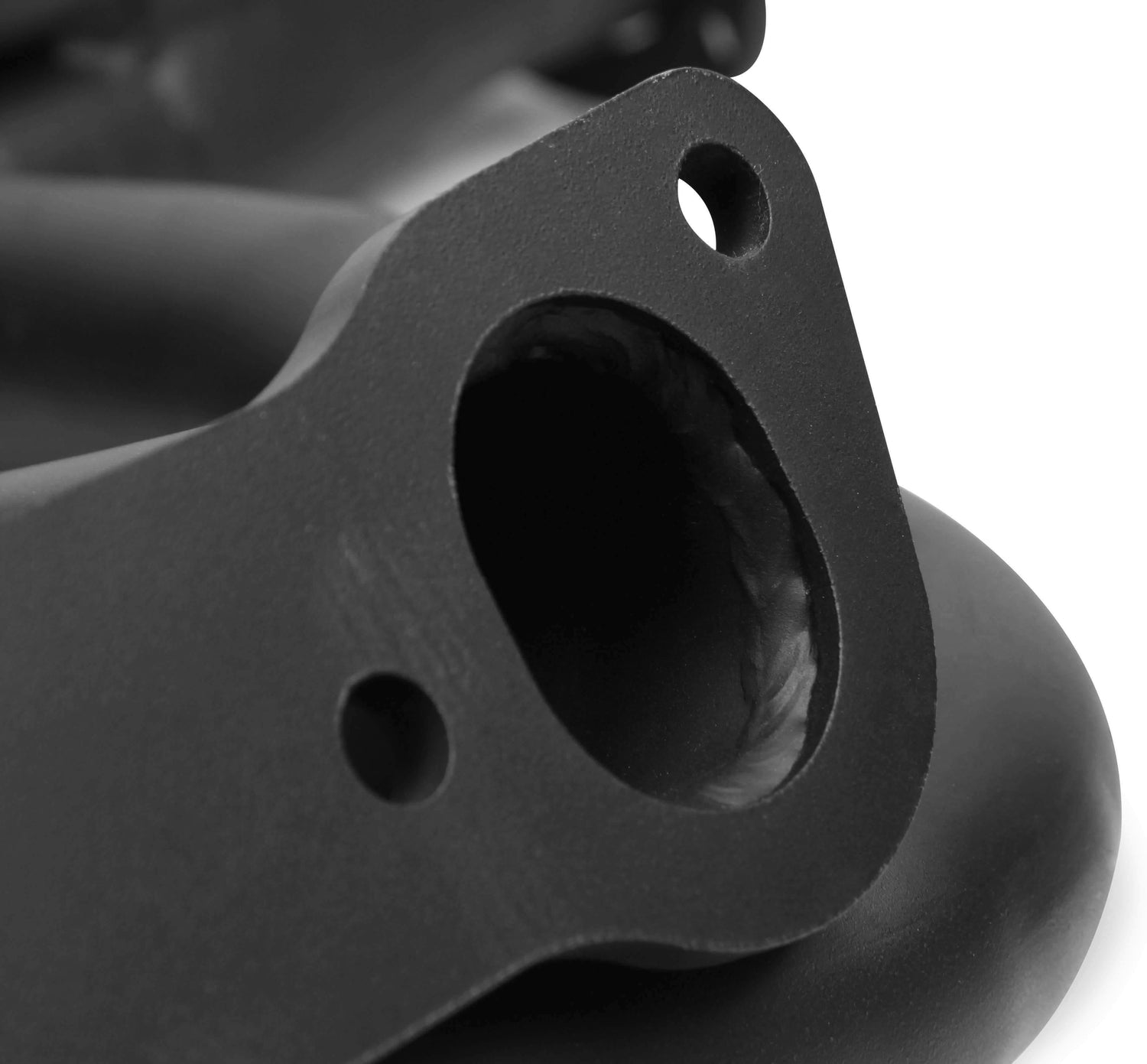

• Leakproof O-Ringed Port Seals
• Include All Mounting Hardware
• Constructed of .049 cold roll flash mild steel tubing
• Precision engineered for fit, performance and economy

Applications:

• 1970-1974 Pontiac Firebird with 5.7L V8 350 CID Engine
• 1970-1974 Pontiac Firebird with 6.6L V8 400 CID Engine
• 1971-1974 Pontiac Firebird with 7.5L V8 455 CID Engine
• 1973 Pontiac Grand Am with 5.7L V8 350 CID Engine
• 1973-1974 Pontiac Grand Am with 6.6L V8 400 CID Engine
• 1973-1974 Pontiac Grand Am with 7.5L V8 455 CID Engine
• 1964-1966 Pontiac GTO with 6.4L V8 389 CID Engine
• 1968-1973 Pontiac GTO with 6.6L V8 400 CID Engine
• 1970-1973 Pontiac GTO with 7.5L V8 455 CID Engine
• 1964-1967 Pontiac LeMans with 5.3L V8 326 CID Engine
• 1968-1974 Pontiac LeMans with 5.7L V8 350 CID Engine
• 1968-1974 Pontiac LeMans with 6.6L V8 400 CID Engine
• 1970-1974 Pontiac LeMans with 7.5L V8 455 CID Engine

Fitment Notes:

• Pontiac V8 Engines Only!
• Will not fit Firebird/Trans Ams with column shifted standard transmission.
• Must modify stock exhaust to retain catalytic converters.
• Will not fit Ram Air vehicles.
• End holes on head must be drilled and tapped to ensure proper seal.
• Breaking in an engine with ceramic coated headers WILL result in damage to the coating and will VOID all warranties. Ceramic coated headers require several heat cycles to fully cure before they will withstand extreme heat. Flowtech recommend using cast iron exhaust manifolds or old headers to break in new engines to avoid coating damage. The use of header wraps can cause the header tubes to crack or rust due to excessive heat and moisture build-up. Flowtech does not recommend the use of header wraps as this will void the warranty.

Specs:

• Bolt Size: 3/8-16 x 3/4
• Bolts Included: Yes
• Brand: Flowmaster
• CARB (California) Compliant: No
• Catalytic Converter Quantity: 0

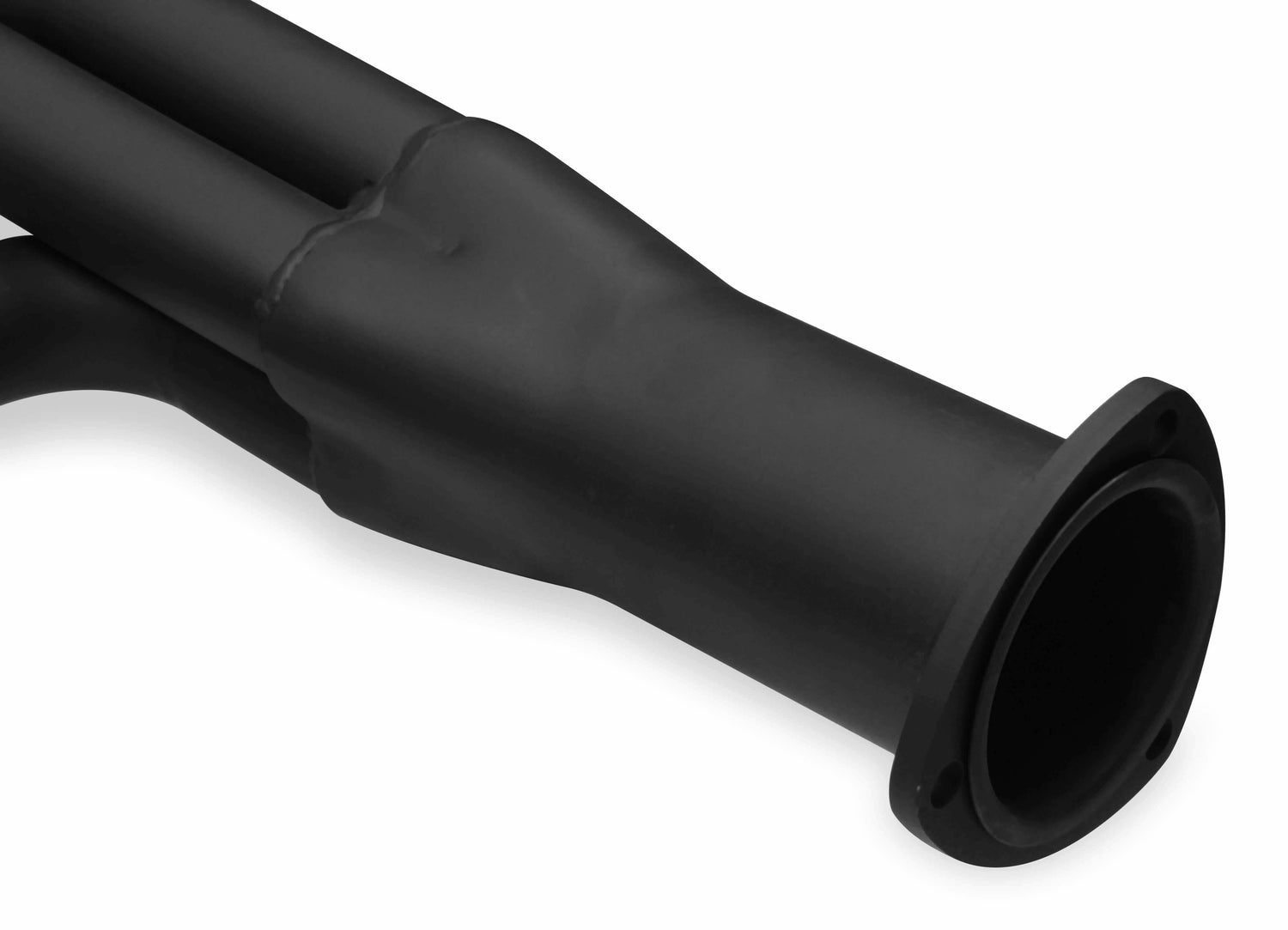

• Collector Attachment: 3-Bolt Flange
• Collector Diameter: 3 in
• Collector Port Diameter: 3 in
• Collector Reducer Included: Yes
• Collector Reducer Outlet Diameter: 2.5 in
• Color: Black

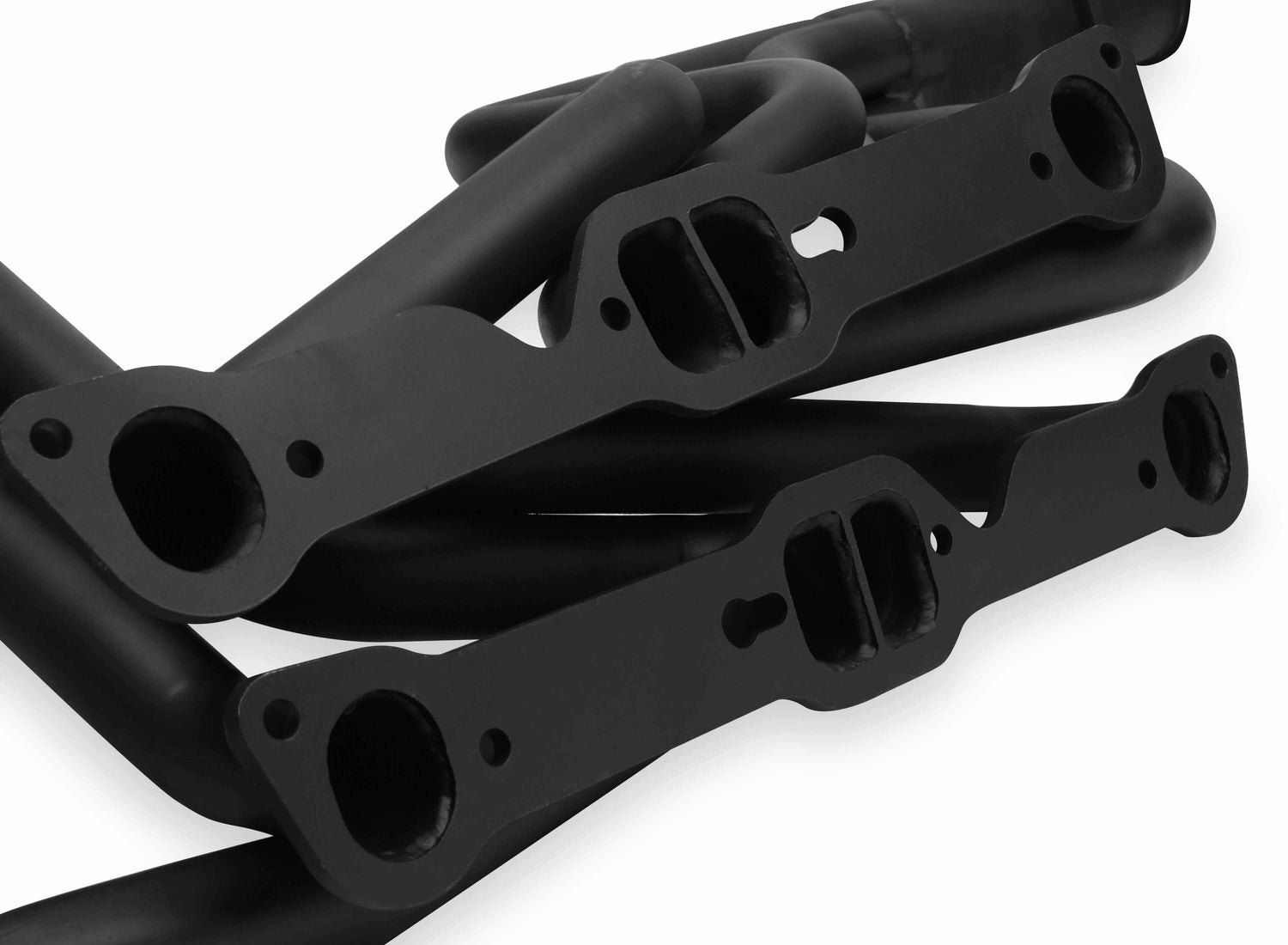

• Cylinder Head Flange Thickness: 5/16 in
• Design: Long Tube
• Drive: 2WD
• EGT (Exhaust Gas Temperature) Port: No
• Engine: Pontiac V8
• Finish: Painted
• Flange Thickness: 5/16 in
• Gasket Or Seal Included: Yes
• Grade Type: Performance
• Header Finish: Black Paint
• Header Style: Long Tube
• Main Piping Diameter: 1-5/8 in
• Material: Mild Steel
• Mounting Hardware Included: Yes
• Oxygen Sensor Port: No
• Port Shape: Oval / D Port
• Quantity: Sold as Pair
• Sheen Level: Satin
• Tube Material: Mild Steel
• Part Number: 11170FLT

Emissions:

• This part is legal for sale or use on Racing Use Only Vehicles
• The following vehicles are considered Racing Use Only Vehicles:

  • Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street.
• WARNING: It is against the law to install this part on an Emissions Controlled Vehicle
