For Chevy Camaro 1984-1992 Lakewood Bellhousing
Description
Description
Overview:

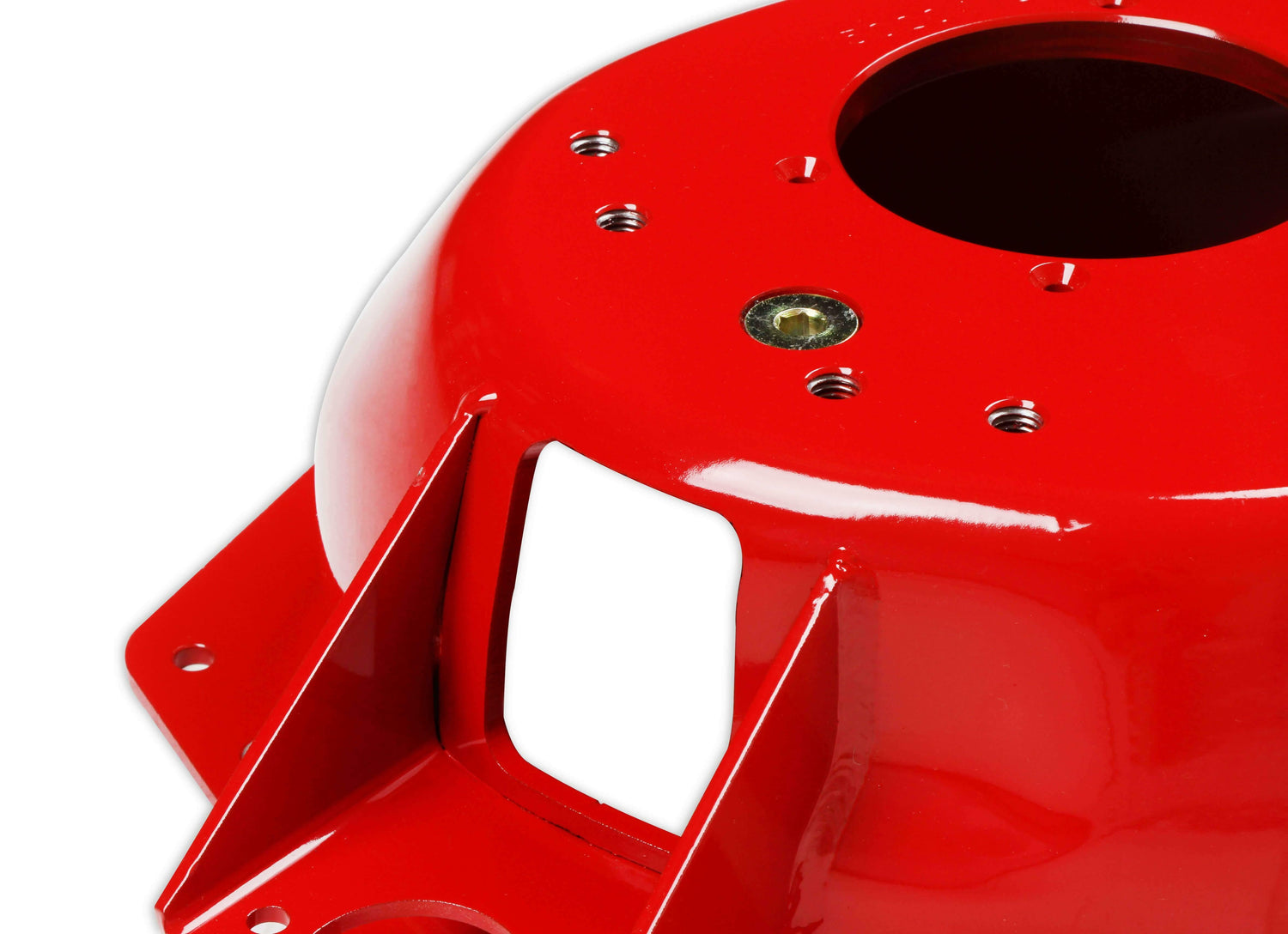

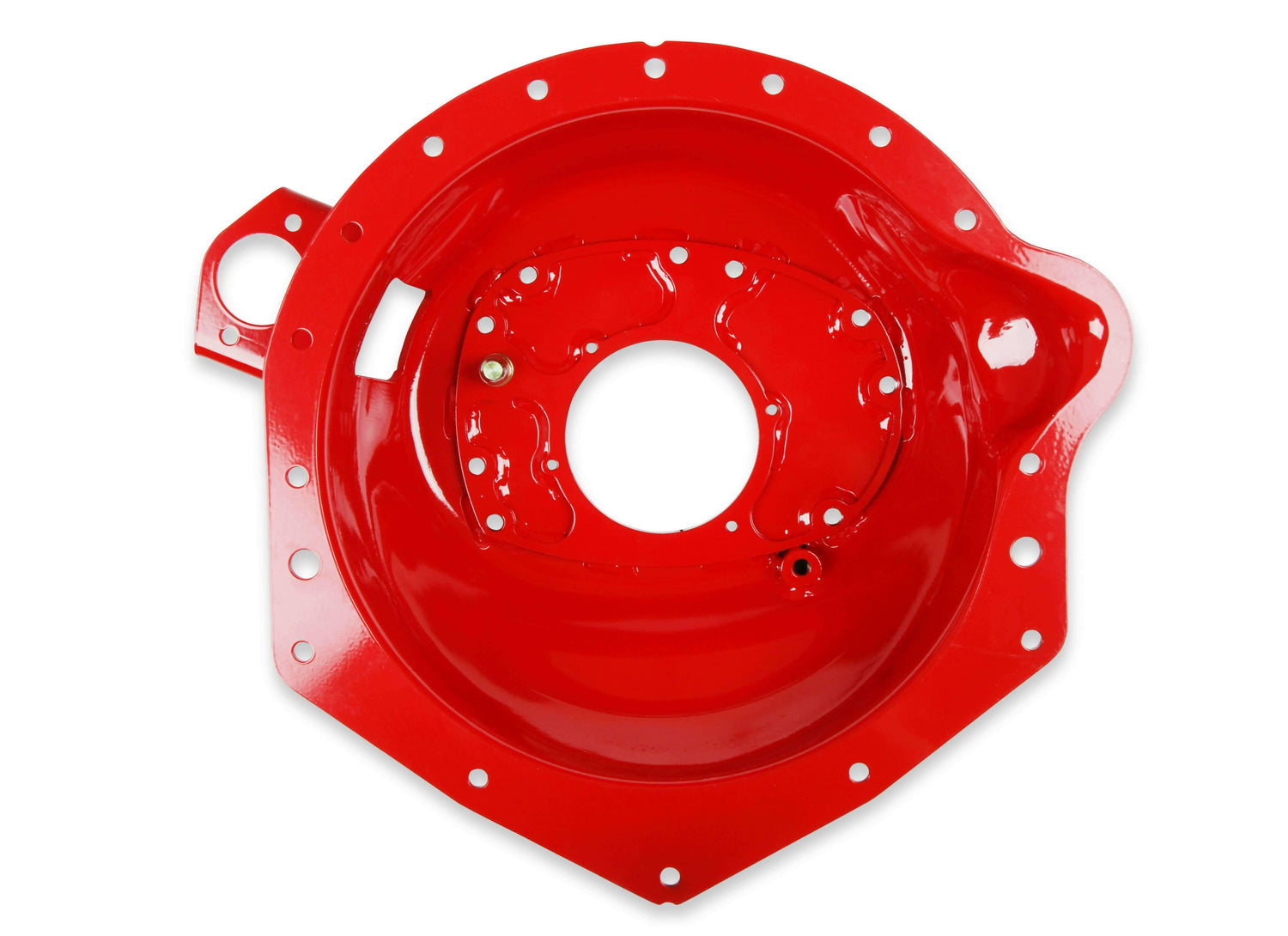

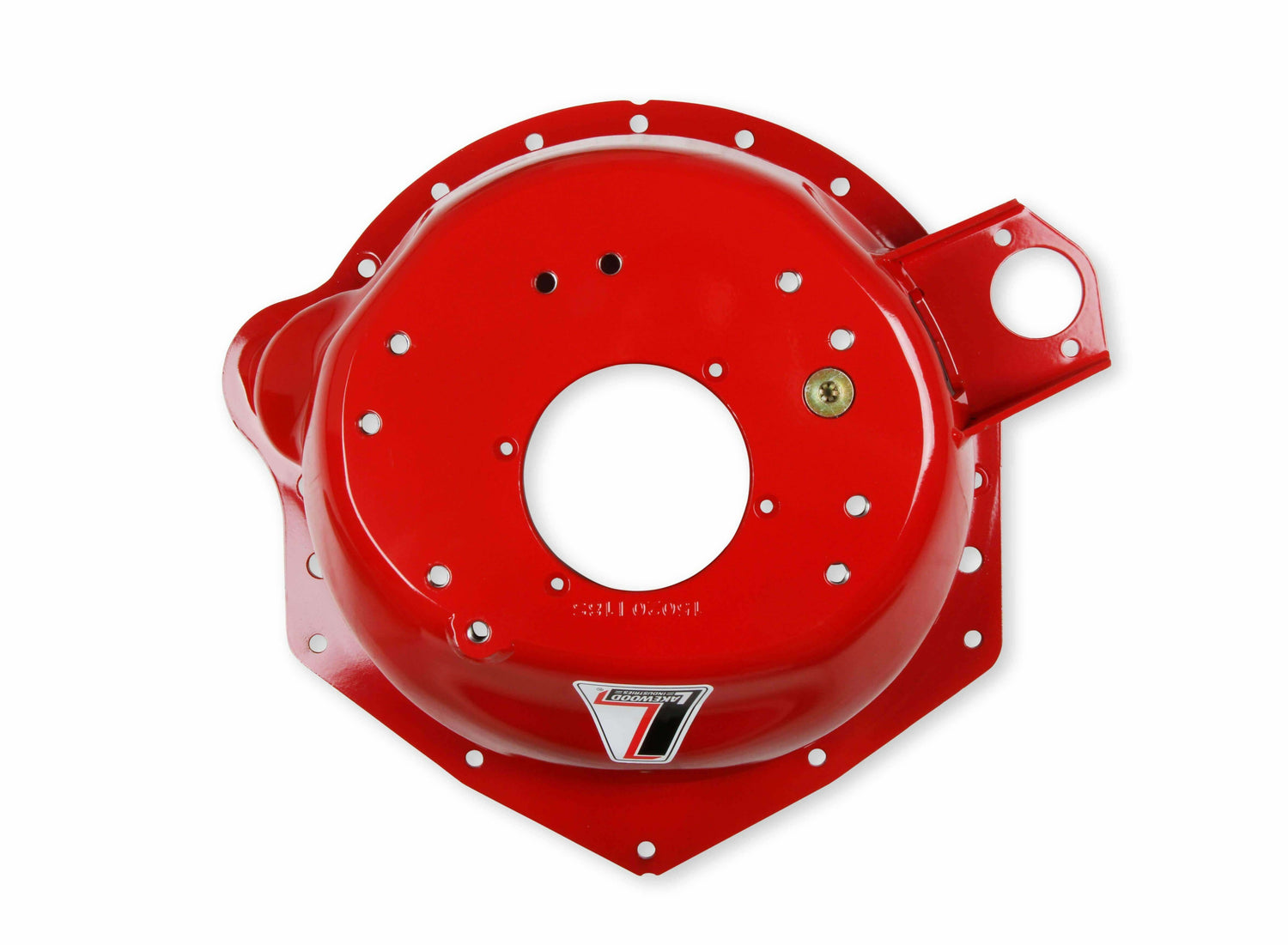

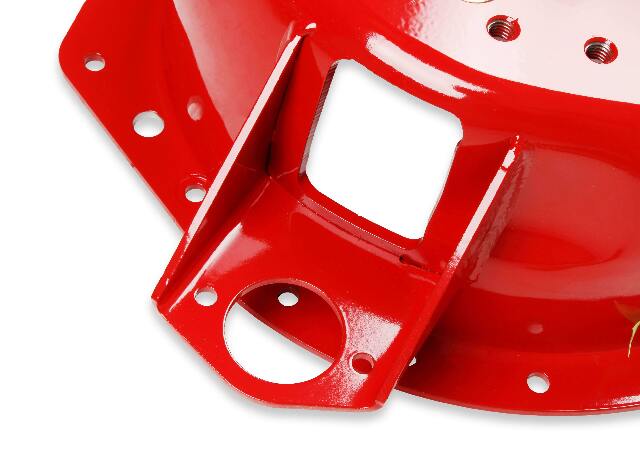

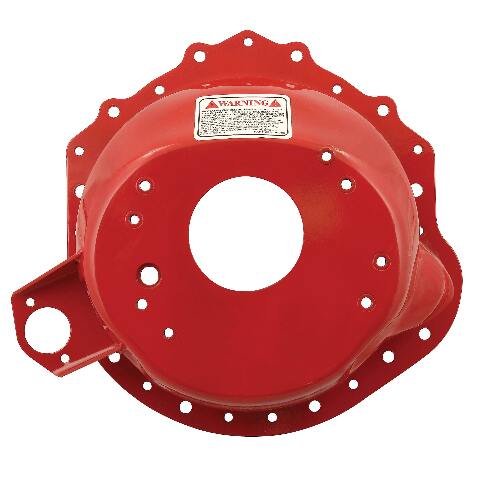

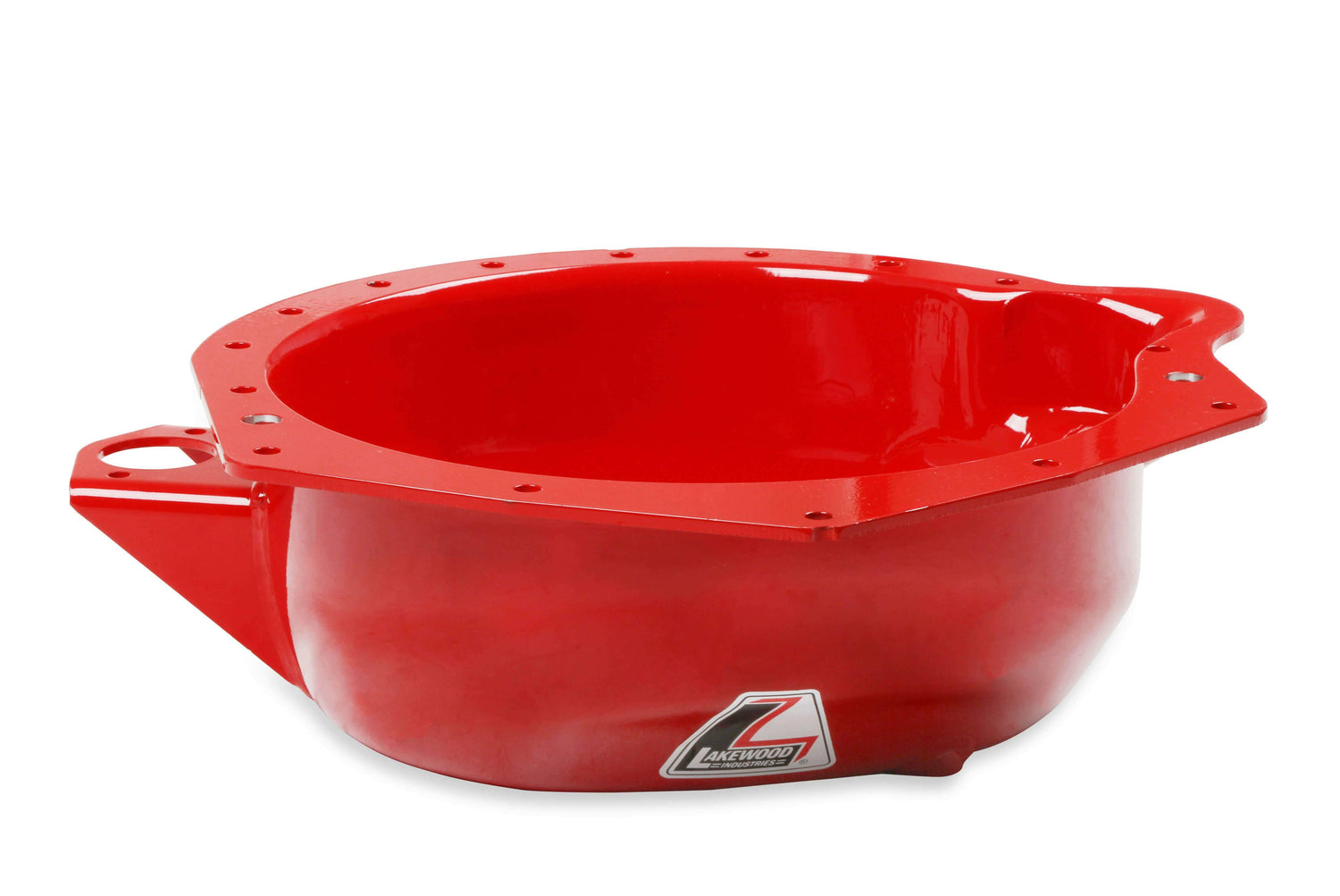

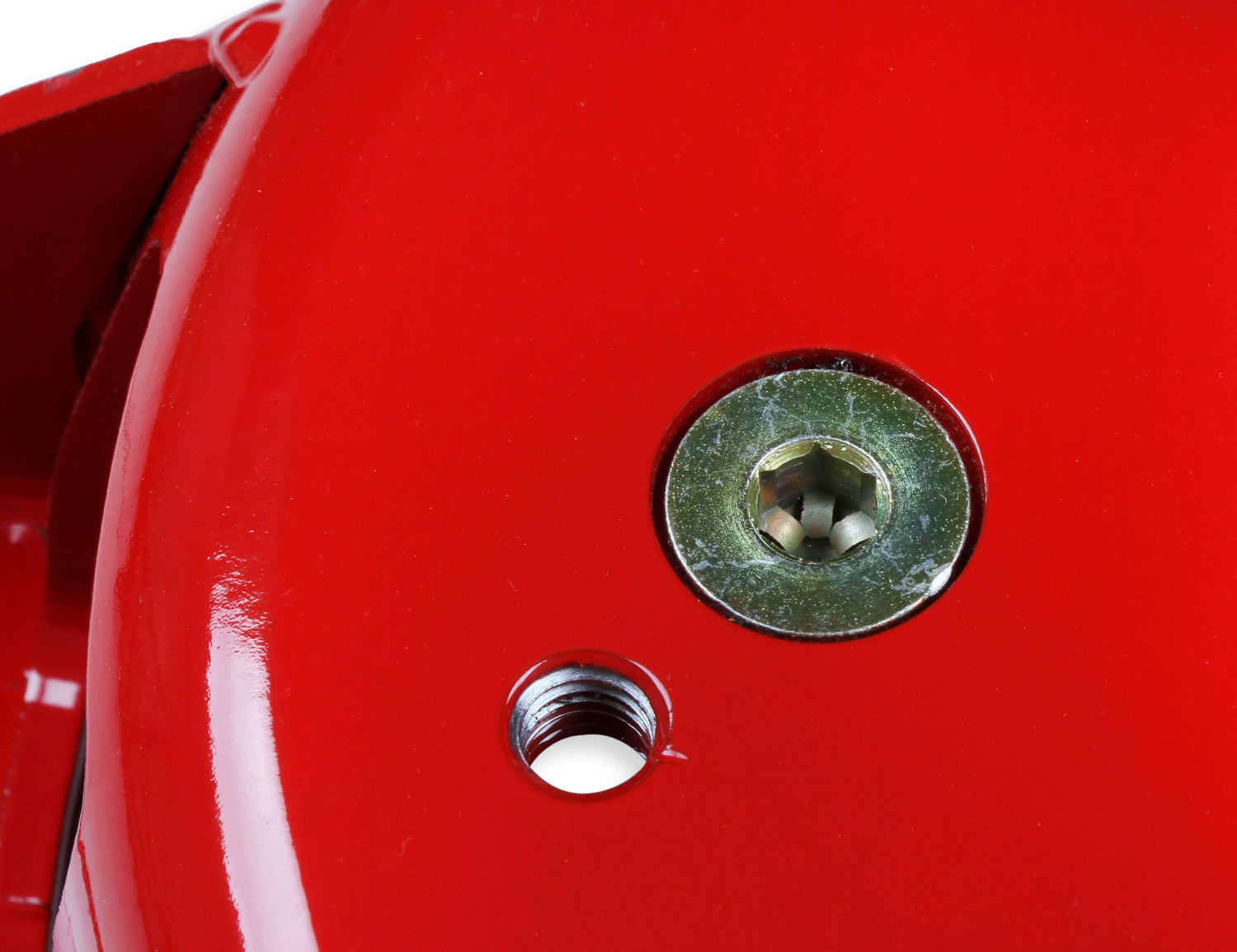

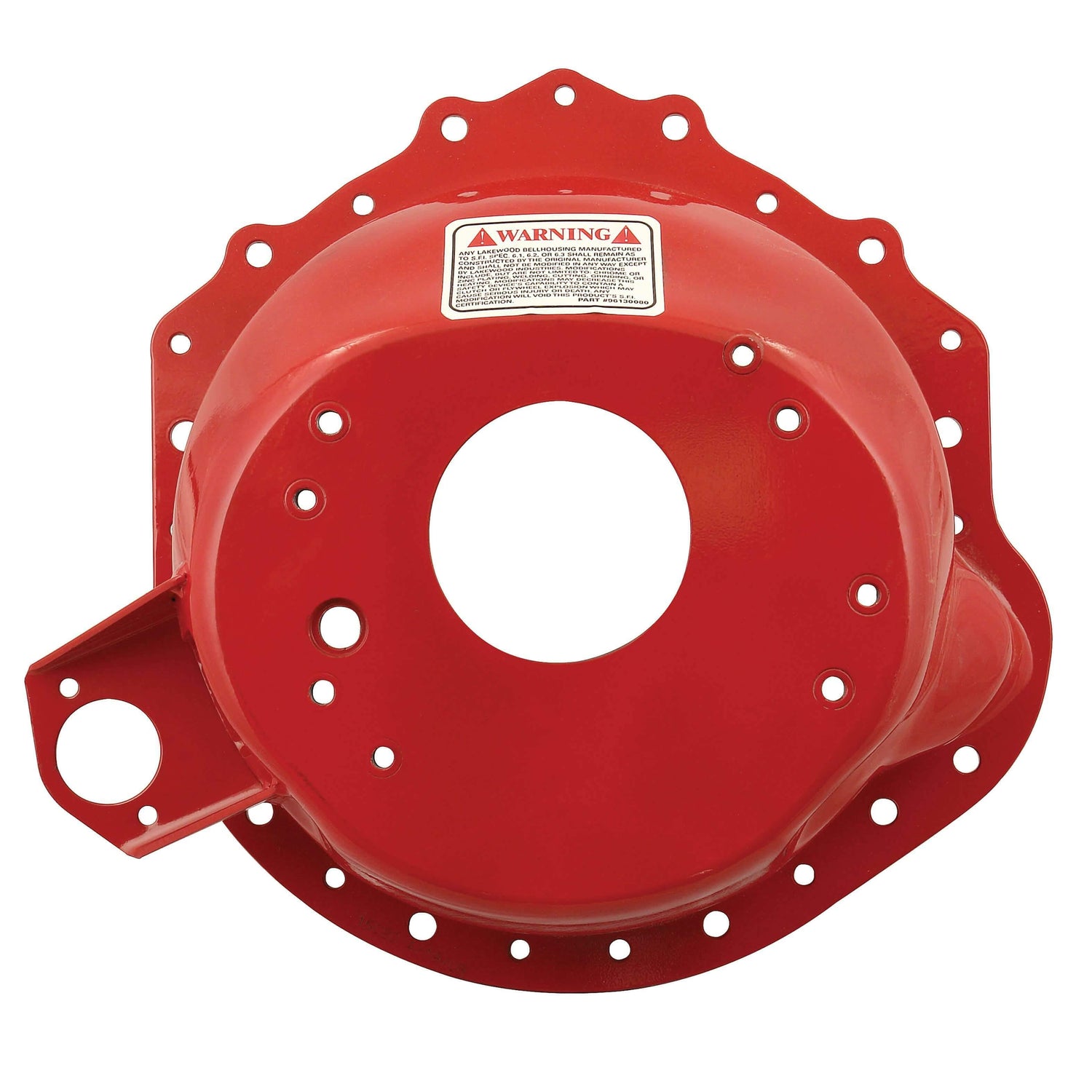

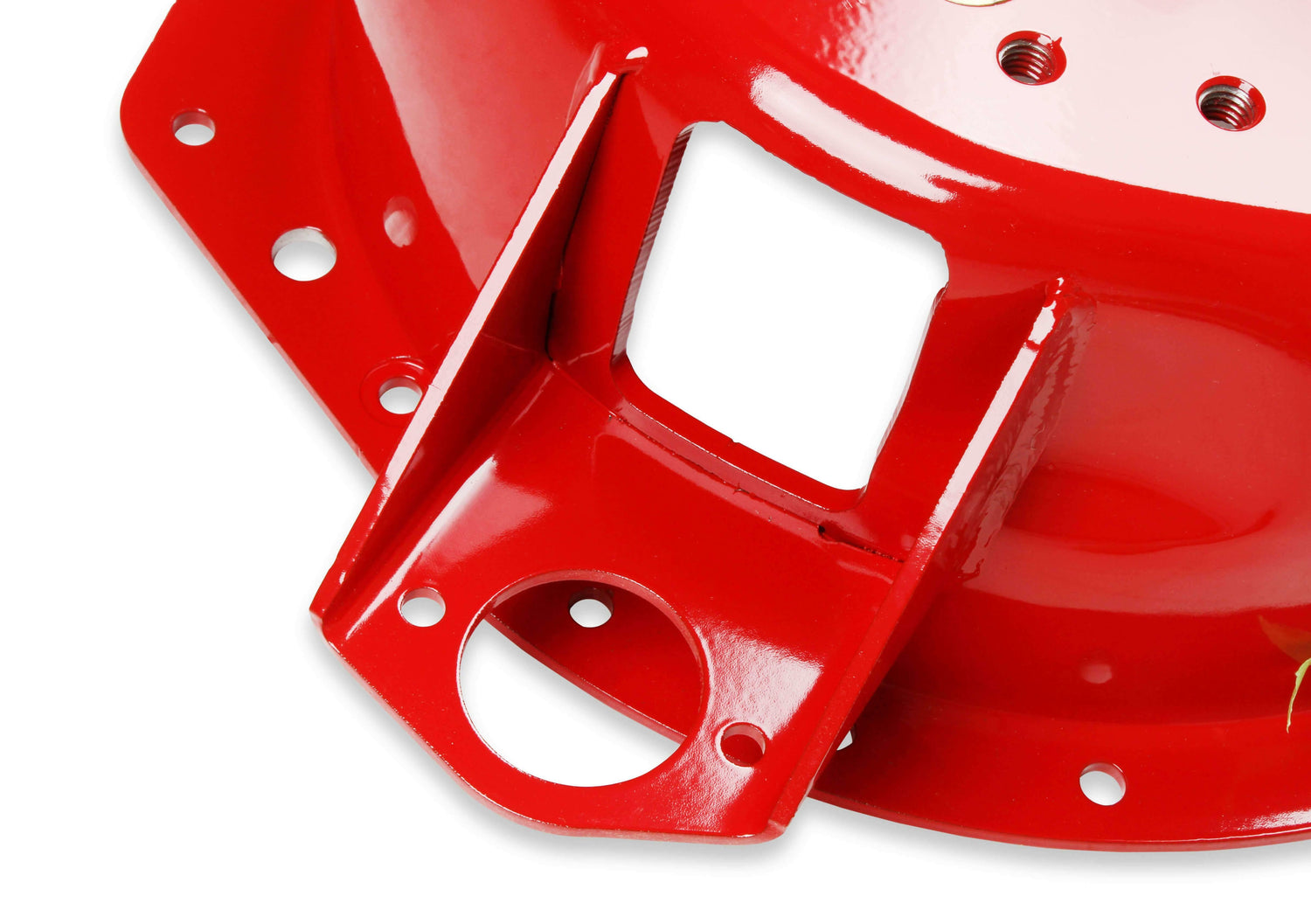

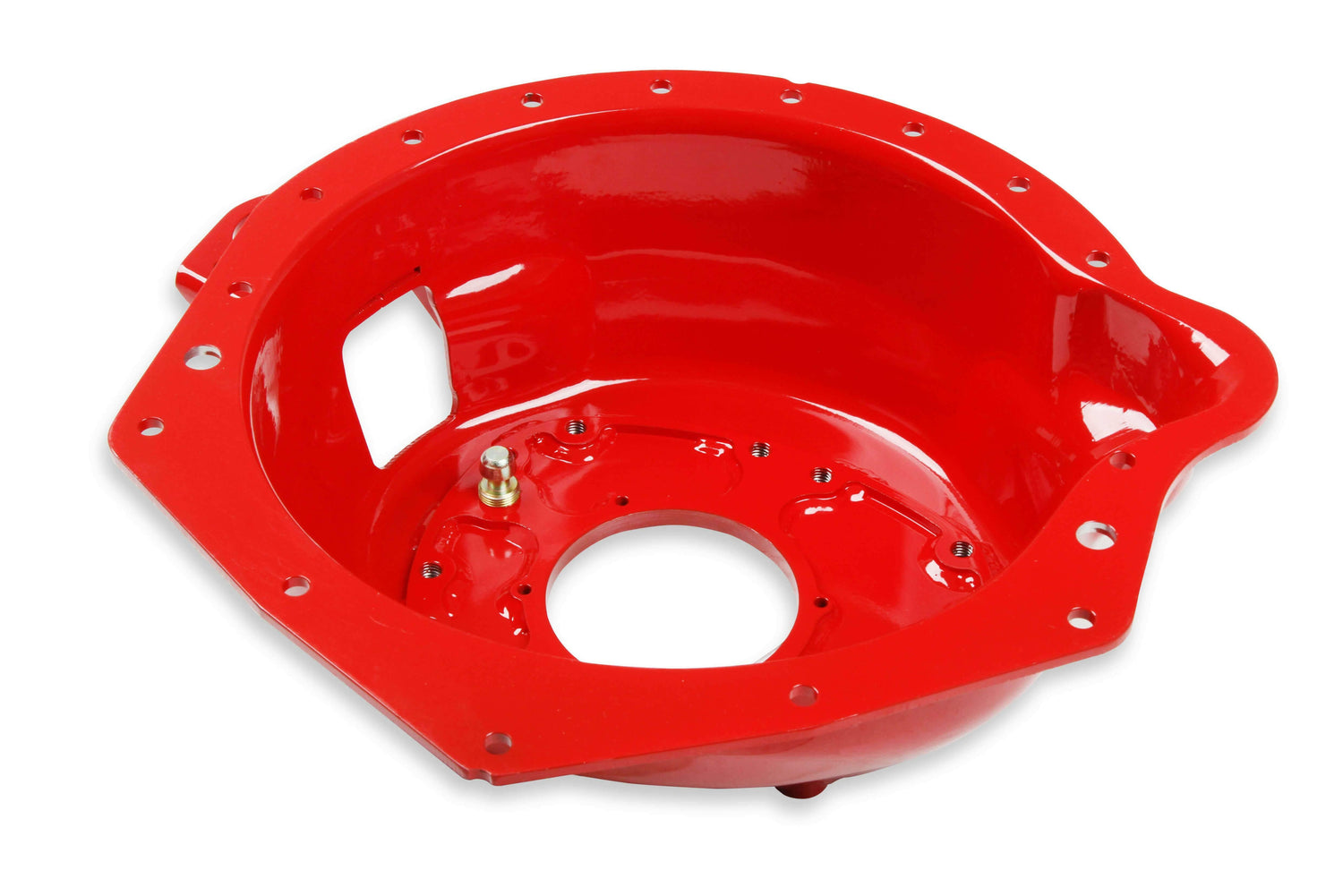

Designed for use with factory hydraulic clutch linkage and pull-style cable with external slave cylinder found on third generation F-body cars. This Lakewood bellhousing is laser cut to improve speed and accuracy of manufacturing, then roto-brated after welding and hydro-formed to relieve any stress created during manufacturing. S.F.I. 6.1 certified. Features a durable red powder coated finish for years of corrosion free service. Mig welded thread inserts for transmission mounting, pivot ball mounting, and linkage brackets where needed.
Features:
- For 1984-1992 Camaro And Firebird Chassis
- Designed for use with Factory Hydraulic Clutch Linkage and Pull Cable with External Slave Cylinder
- S.F.I. 6.1 Approved
- Fits 153 And 168 Tooth Flywheel
- Bellhousing is 6.45 inches Deep

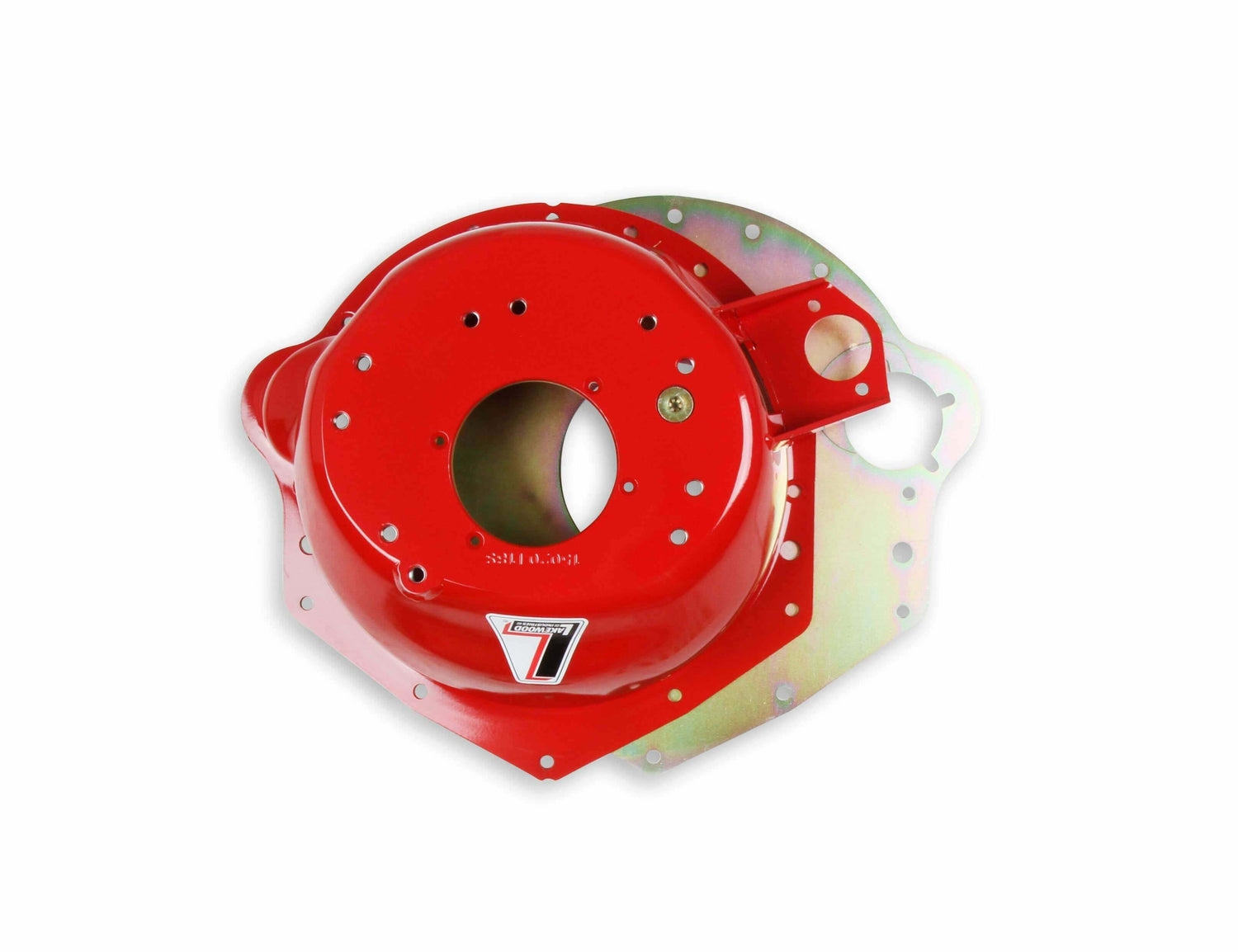

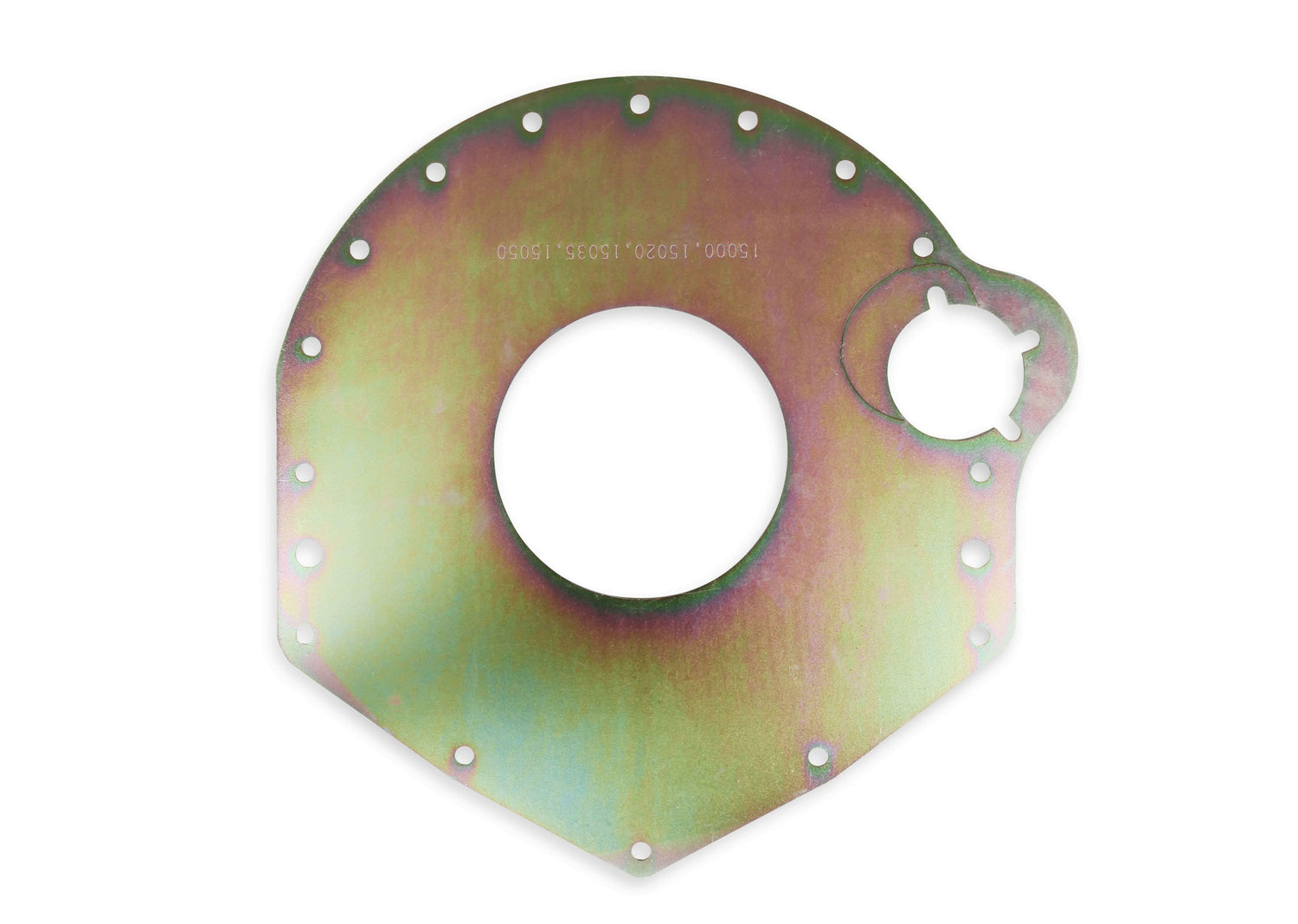

- Block Plate And Grade 8 Hardware Included
- Hydro-formed Designed Bellhousing is Roto-brated After Welding
- Red Powder Coated Finish
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| 1984 - 1992 | Chevrolet | Camaro | 3.74/8 V | |
| 1984 - 1992 | Pontiac | Firebird | 3.74/8 V | |
| 1985 - 1987 | Pontiac | Firebird | 3.74/8 CARBV | |
| 1987 - 1992 | Chevrolet | Camaro | 4/8 V | |
| 1988 - 1992 | Pontiac | Firebird | 4/8 V | |
| 1989 | Pontiac | Firebird | Base | 3.74/8 V |
| 1989 | Pontiac | Firebird | Formula | 3.74/8 V |
| 1989 | Pontiac | Firebird | Formula | 4/8 V |
| 1989 | Pontiac | Firebird | Trans Am GTA | 3.74/8 V |
| 1989 | Pontiac | Firebird | Trans Am GTA | 4/8 V |
| 1989 | Pontiac | Firebird | Trans Am | 3.74/8 V |
| 1989 | Pontiac | Firebird | Trans Am | 4/8 V |
Specs:
| Brand | Lakewood |
|---|---|
| Clutch | 11" |
| Clutch Operation | Mechanical Fork with External Slave |
| Color | Red |
| Emission Code | 5 |
| Engine | Chevrolet Small Block Gen I |
| Engine | Chevy Big Block V8 |
| Engine | Pontiac |
| Engine Make | Chevrolet |
| Engine Make | Pontiac |
| Flywheel | 153 or 168 |
| Height | 6.45 |
| Make | Chevrolet |
| Material | Steel |
| Product Type | Bellhousing |
| SFI Approved | Yes |
| SFI Certification | 6.1 |
| Trans. Bore Diameter | 4.685 |
| Transmission | Bert Racing |
| Transmission | BorgWarner |
| Transmission | Brinn Racing |
| Transmission | Jerico |
| Transmission | Muncie |
| Transmission | Richmond |
| Transmission | Saginaw |
| Transmission | T10 |
| Transmission | T5 |
| Transmission | TKO |
| Transmission | TKX |
| Weight | 36 |
