For GM TKO/TKX - Fits 1986-1993 Externally Balanced Small Block Chevrolet Engines

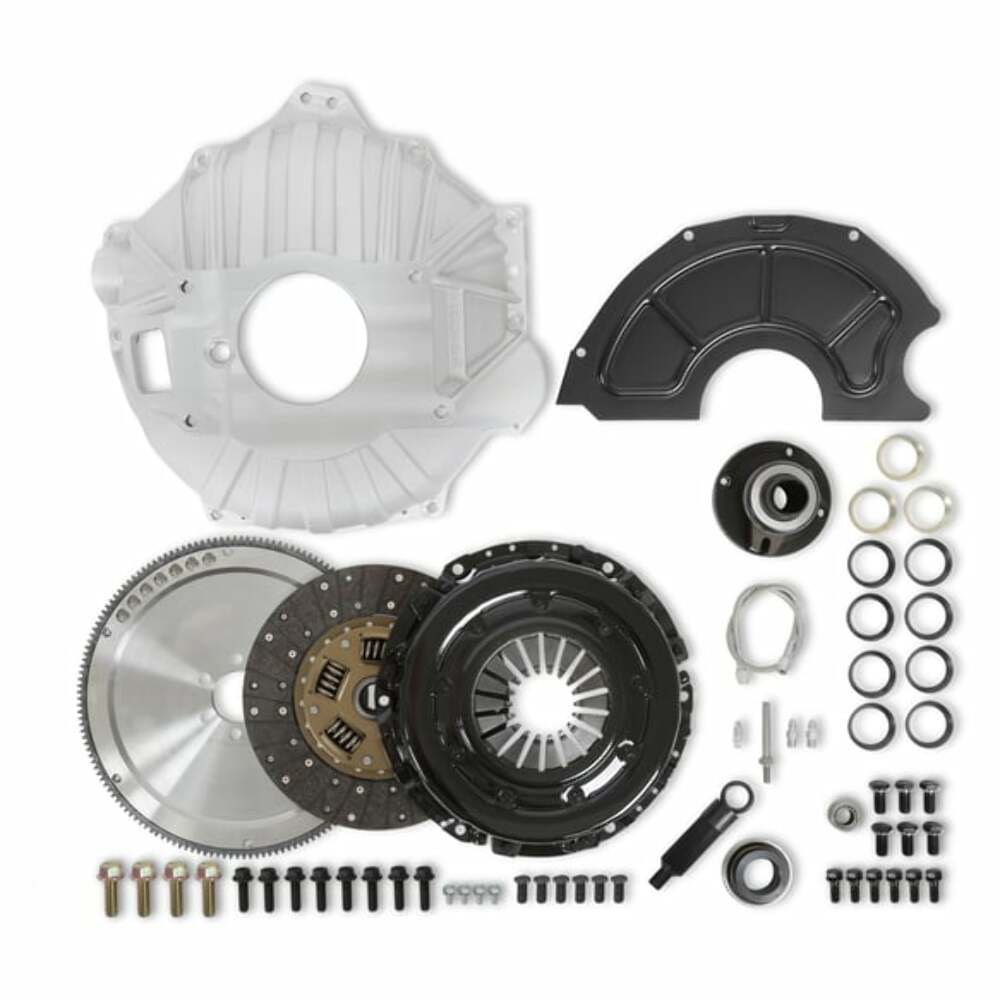

These Holley Transmission Installation Kits come complete with everything you need to bolt a TKX or TKO transmission to a 1986-1993 small-block Chevrolet engine. Built with a mixture of our best brands including Lakewood, Hays, and Mr. Gasket. Kit includes a roller pilot bearing, bellhousing with dust shield, billet steel flywheel, clutch and pressure plate, hydraulic release bearing, and all hardware needed to install these components.
NOTES: Designed for externally balanced small block Chevy engines with 1-pc rear main seal and a 2.067-inch crank register diameter.
Features:
- Designed for 1986-1993 Small-Block Chevrolet Engines using a TKX or TKO transmission

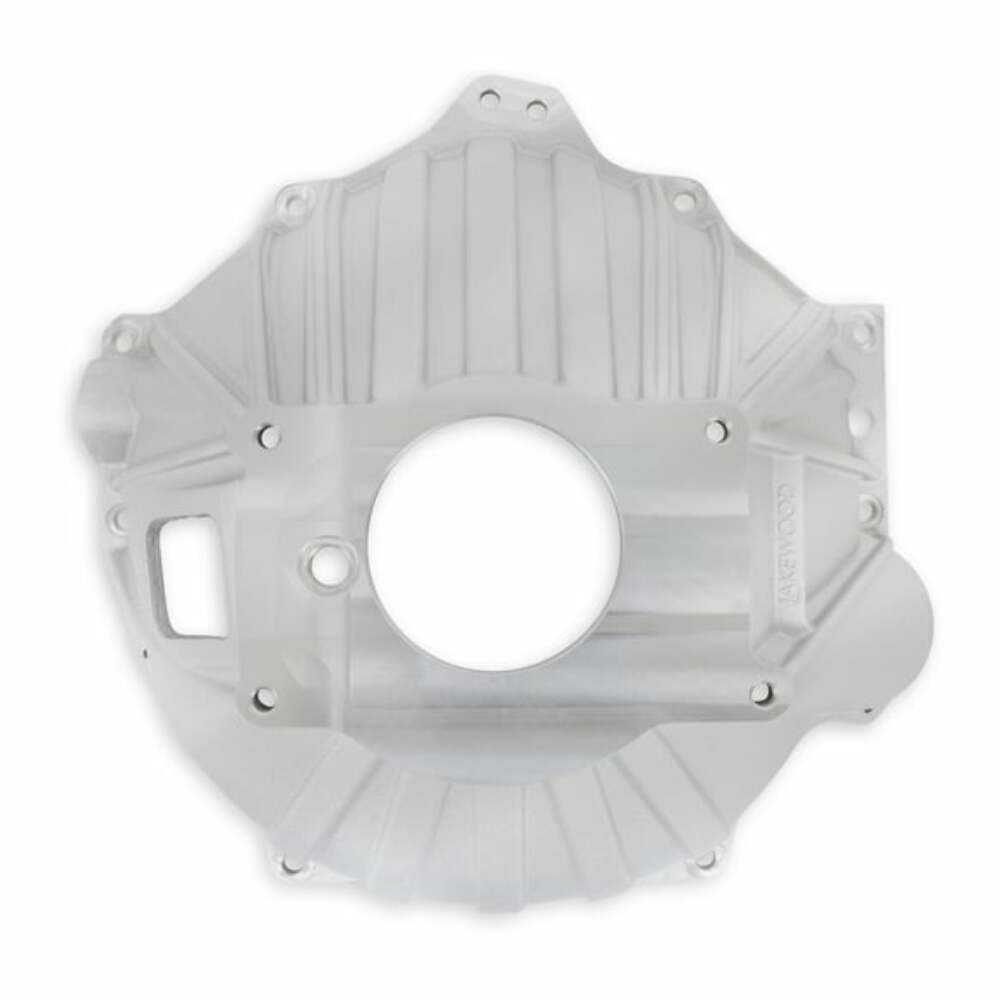

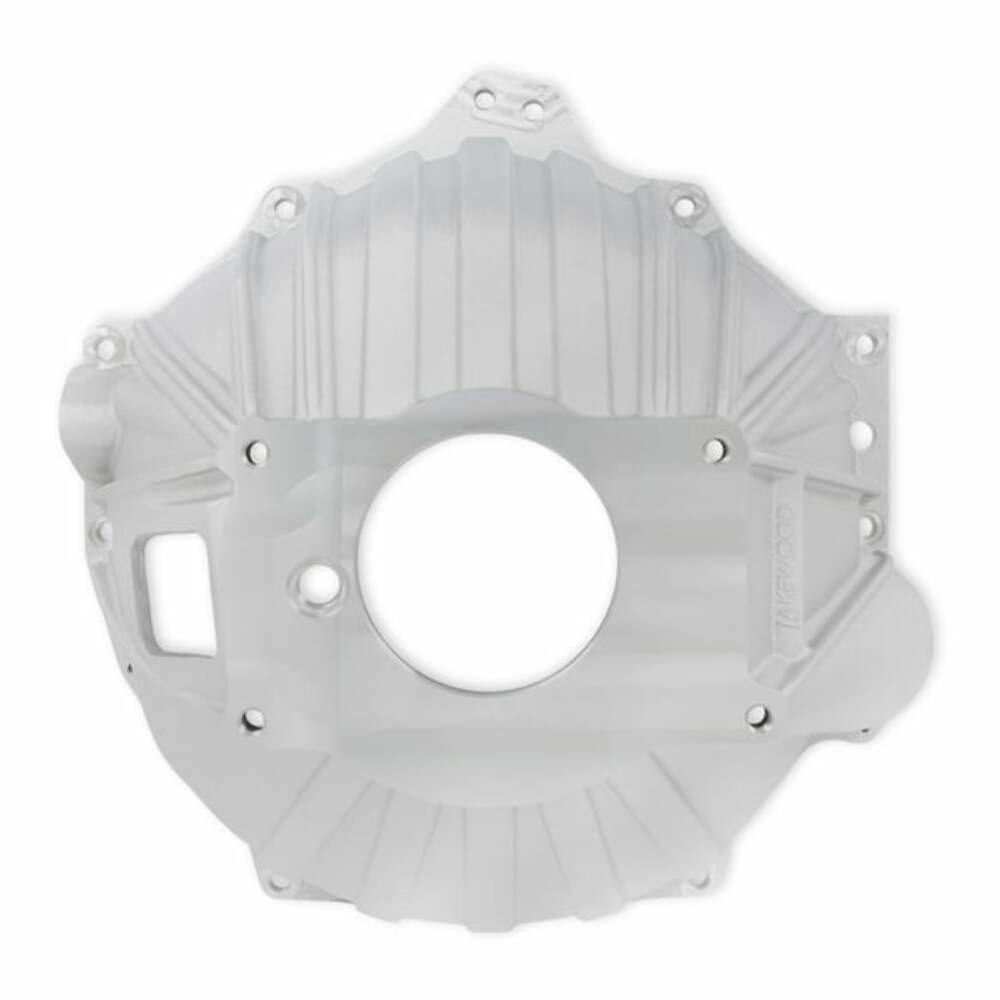

- Light weight cast aluminum bellhousing and stamped steel dust cover provides factory-like installation and appearance

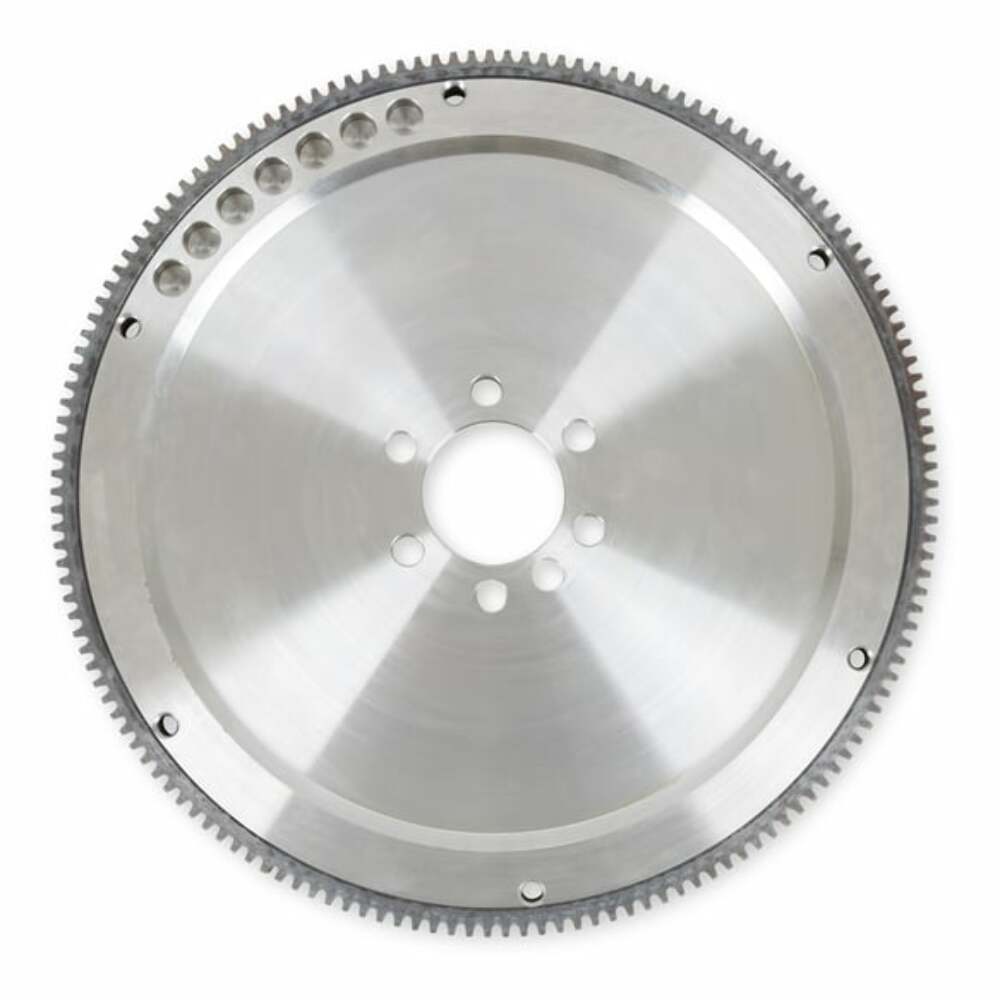

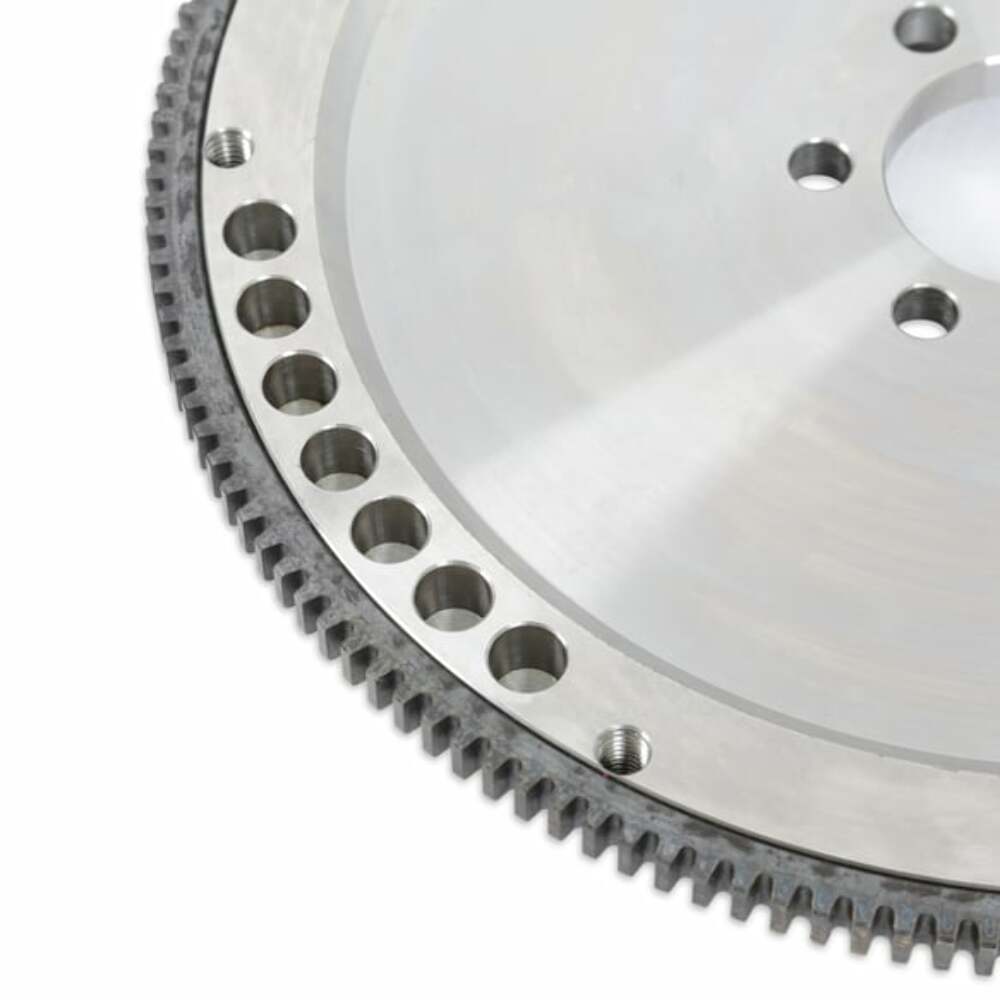

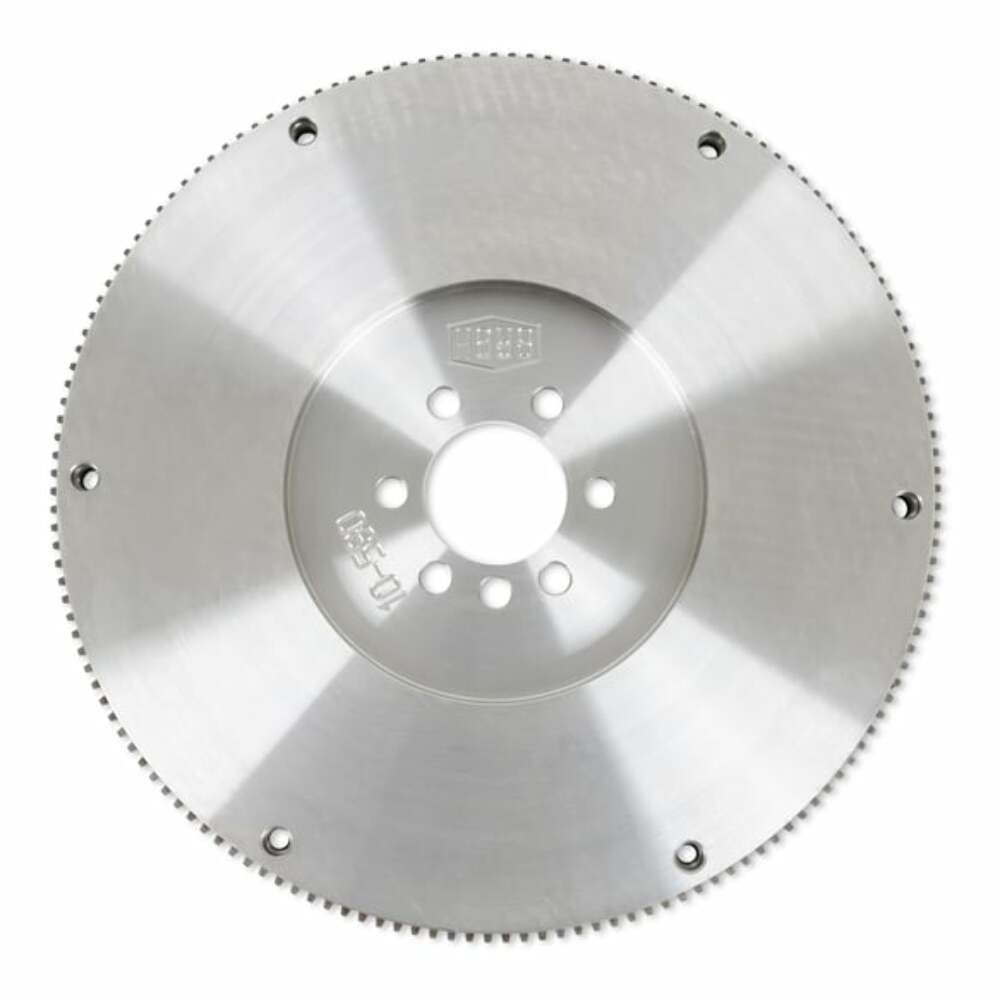

- Billet steel 30 lb, 153 tooth externally balanced flywheel for light weight and strength
- Roller style pilot bearing offers improved shifting by reducing parasitic drag and transmission wear

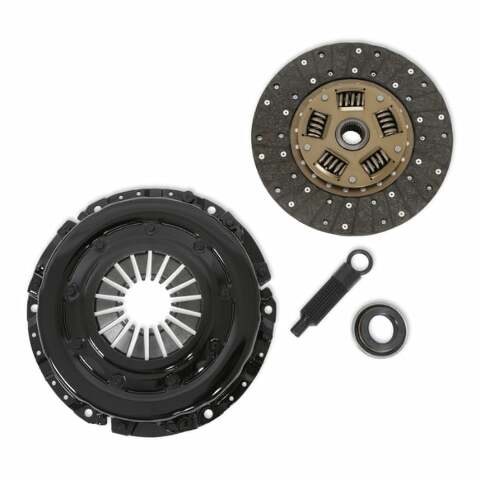

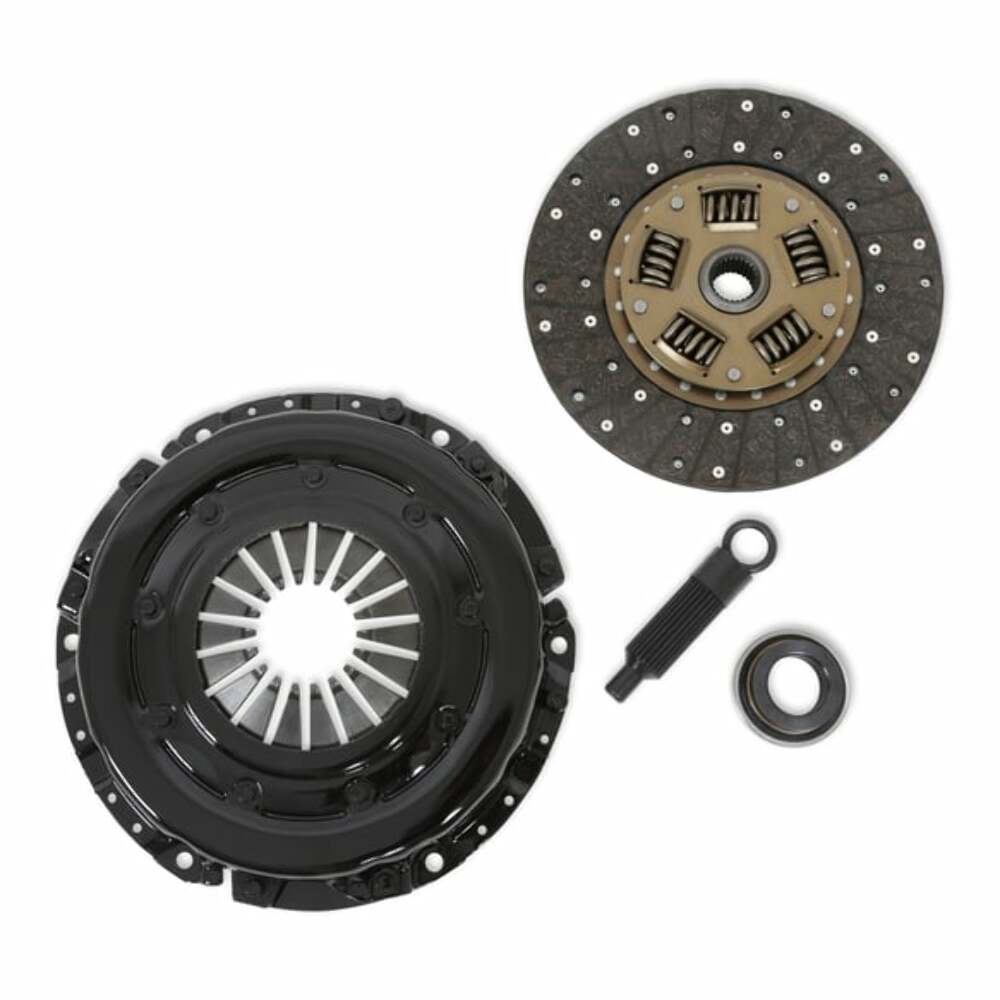

- 26 spline, 10.50-inch clutch disk offers superior clamping force for engines up to 500 hp
- Adjustable Hydraulic Release Bearing offers reduced pedal effort and easy installation

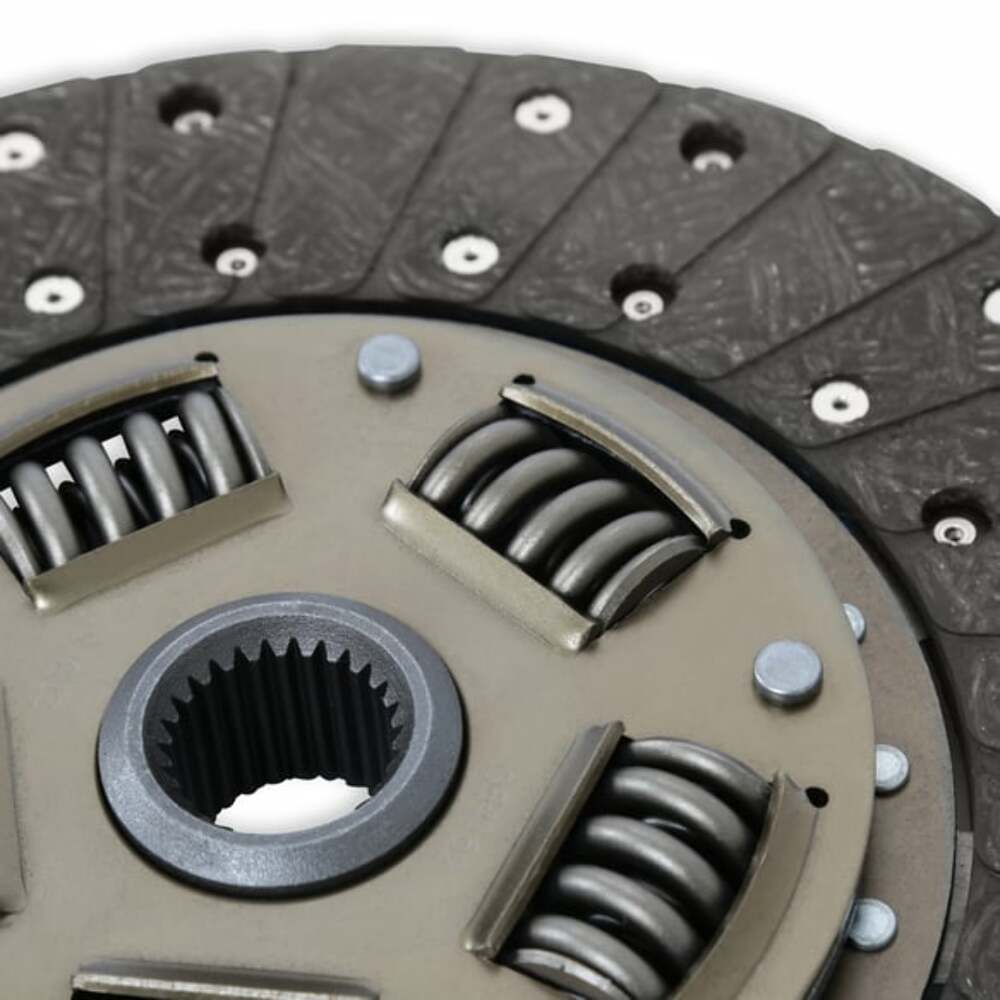

- Organic clutch disc features heavy-duty hub spring assembly for increased load capacity
- Works with OE (original equipment) or MSD High Torque starters
- All hardware included
Specs:
| Bellhousing Material | Aluminum |
|---|---|
| Brand | Holley |
| Disc Diameter | 10.5 |
| Disc Material | Organic |
| Disc Style | Spring Hub |
| Emission Code | 6 |
| Engine | Chevrolet Small Block Gen I |
| Engine Balance | External |
| Engine Make | GM |
| Flywheel Balance | External |
| Flywheel Material | Billet Steel |
| Grade Type | Performance |
| Hardware | Steel |
| Input Shaft Diameter | 1-1/8 in. |
| Input Spline | 26 |
| PILOT BEARING | Roller |

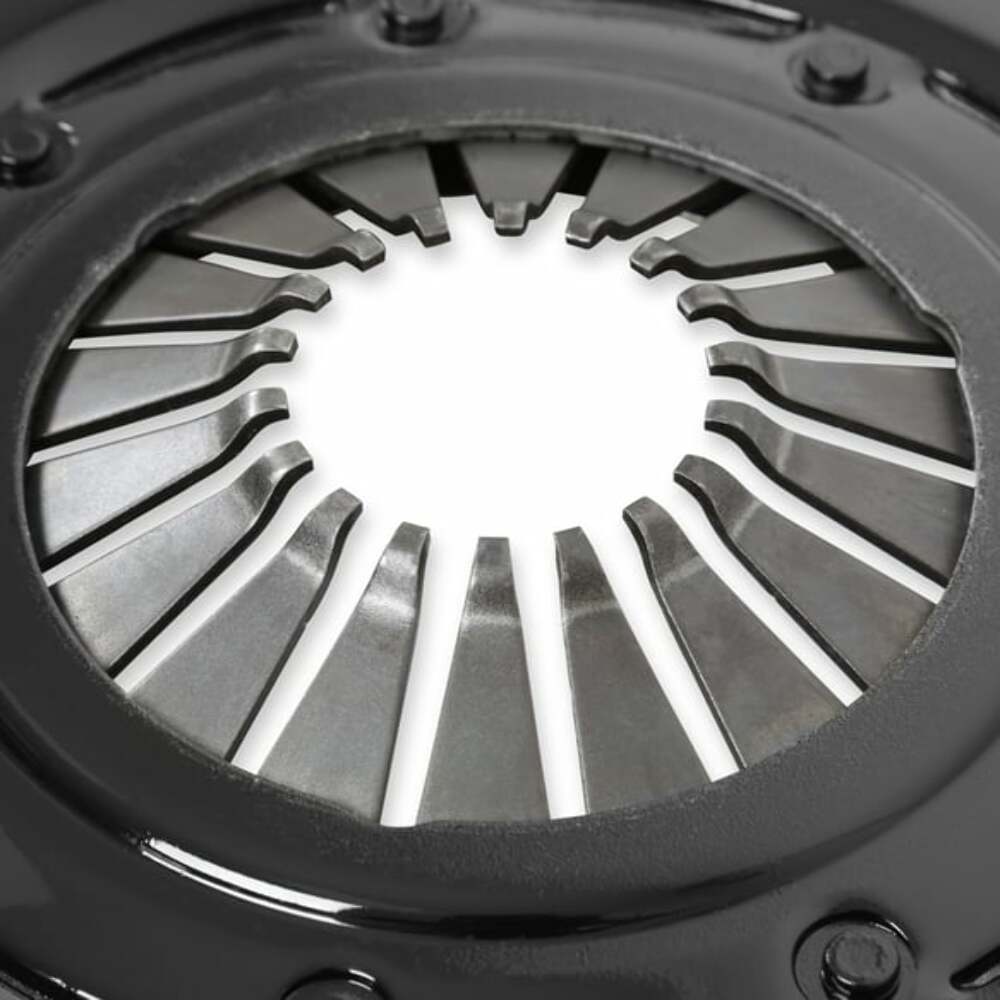

| Pressure Plate Style | Diaphragm |
| Product Type | Installation Kit |
| RELEASE BEARING | Hydraulic |
| Transmission | TKO GM, TKX GM |
