GM TKO/TKX Install kit for 1970-1990 balanced 454 Big Block Chevy Engine 319-502
GM TKO/TKX Install kit for 1970-1990 balanced 454 Big Block Chevy Engine 319-502 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
GM TKO/TKX Installation kit for 1970-1990 externally balanced 454 Big Block Chevrolet Engines

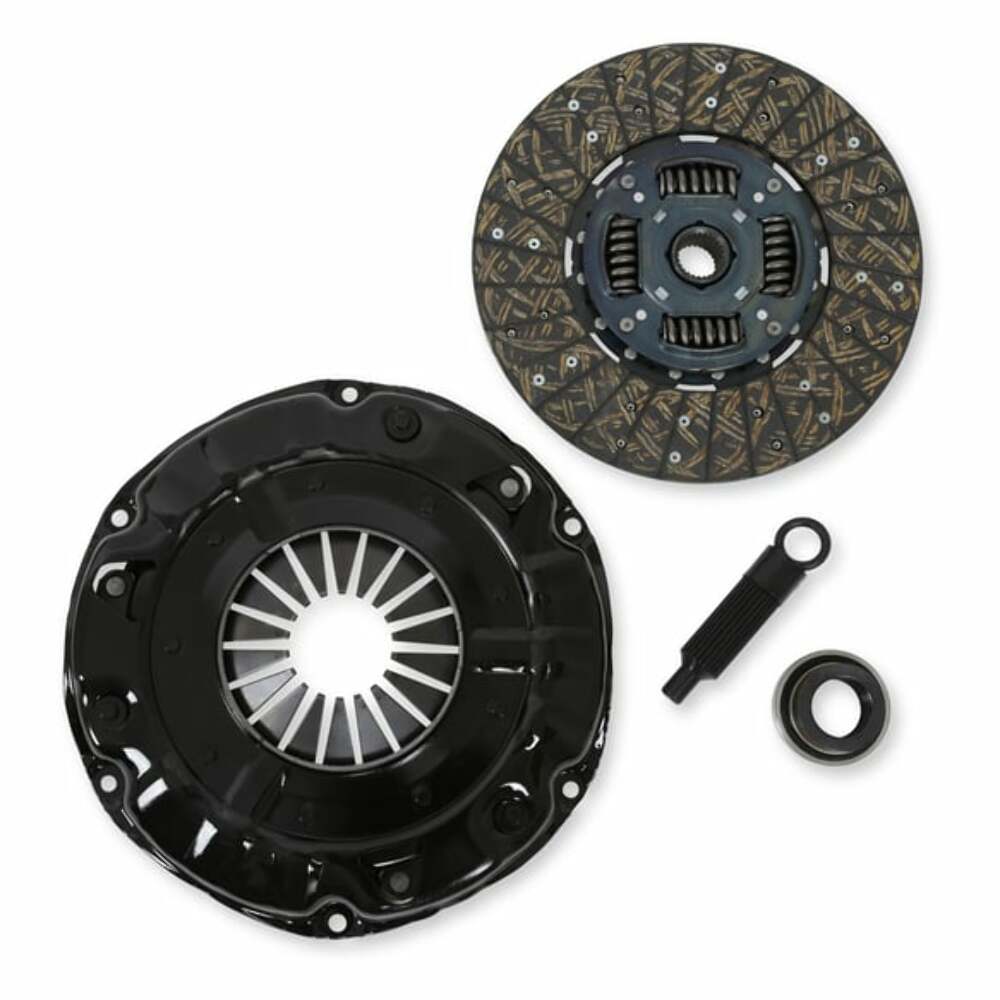

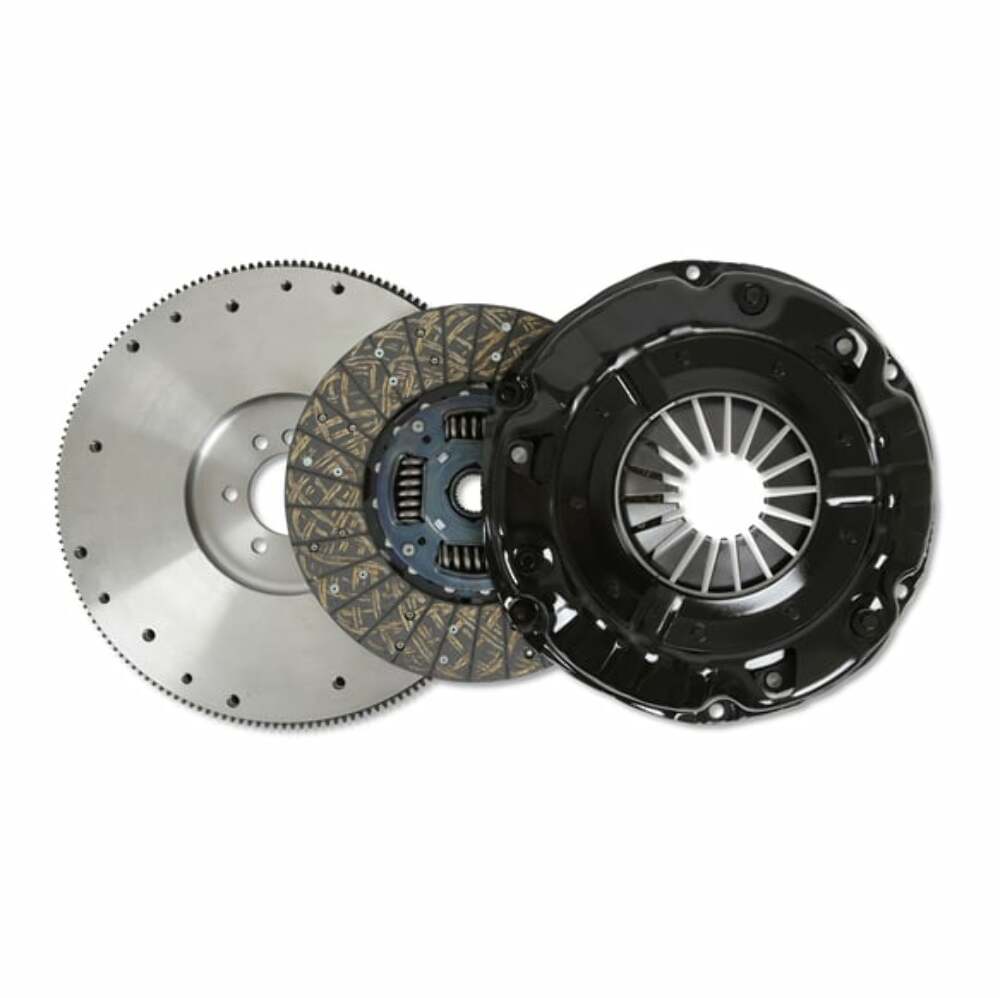

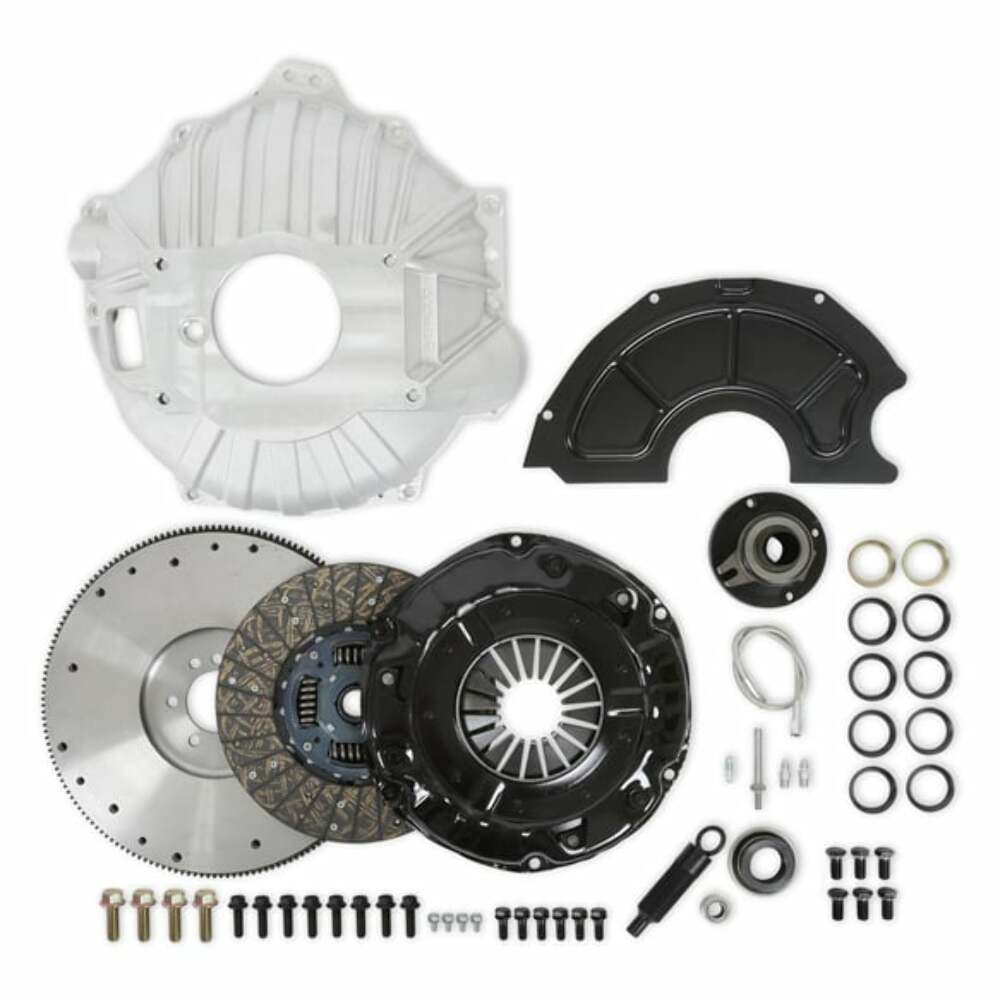

These Holley Transmission Installation Kits come complete with everything you need to bolt a TKX or TKO transmission to a 1970-1990 454 big-block Chevrolet engine. Built with a mixture of our best brands including Lakewood, Hays and Mr. Gasket. Kit includes: A roller pilot bearing, bellhousing with dust shield, billet steel flywheel, clutch and pressure plate, hydraulic release bearing, and all hardware needed to install these components.
NOTES: Designed for externally balanced big block 454 Chevy engines with 2-pc rear main seal and a 2.485-inch crank register diameter.
Features:
- Designed for 1970-1990 454 Big Block Chevrolet Engines using a TKX or TKO transmission

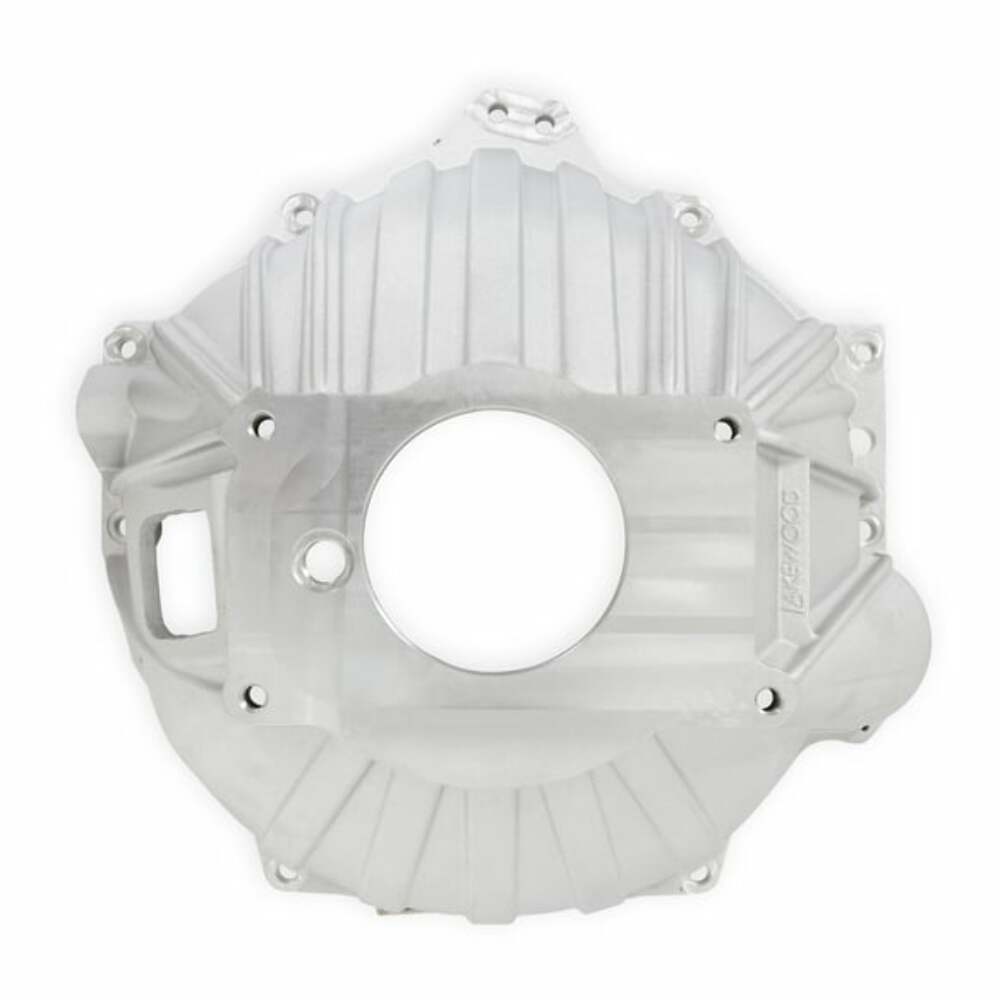

- Light weight cast aluminum bellhousing and stamped steel dust cover provides factory-like installation and appearance

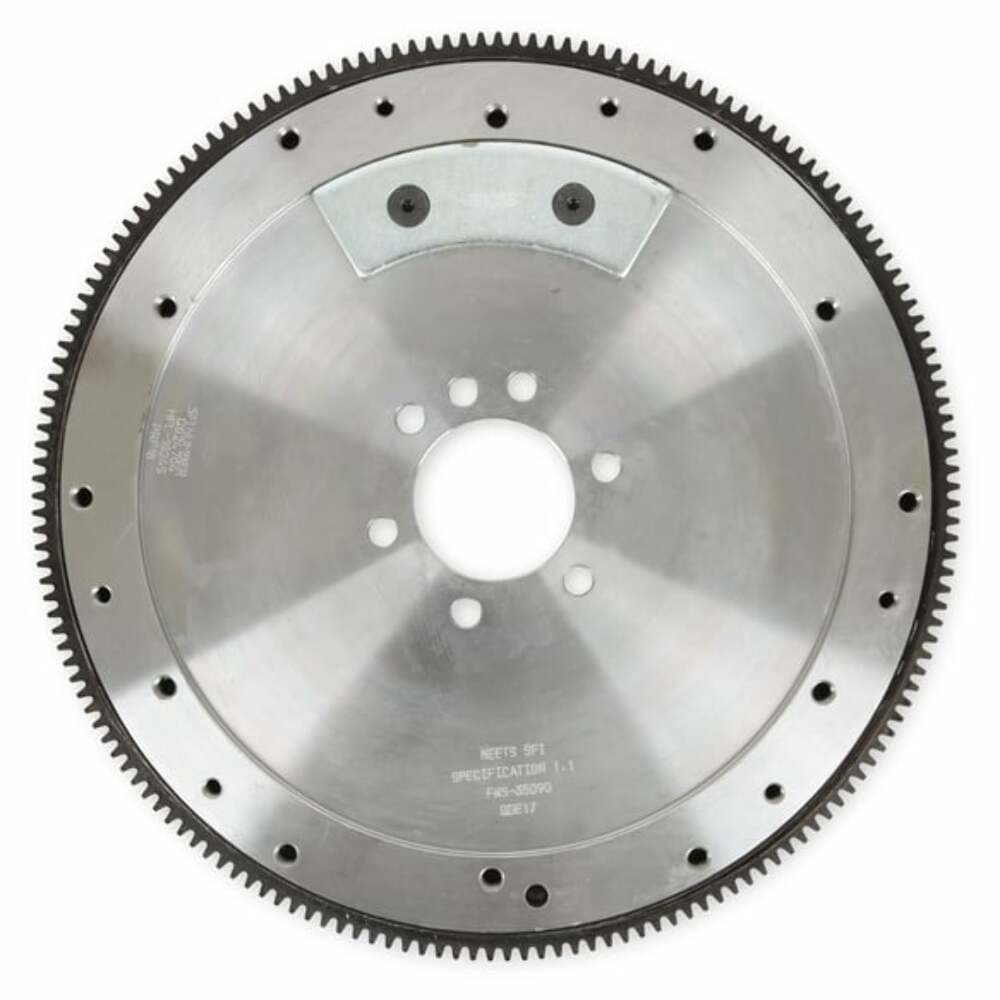

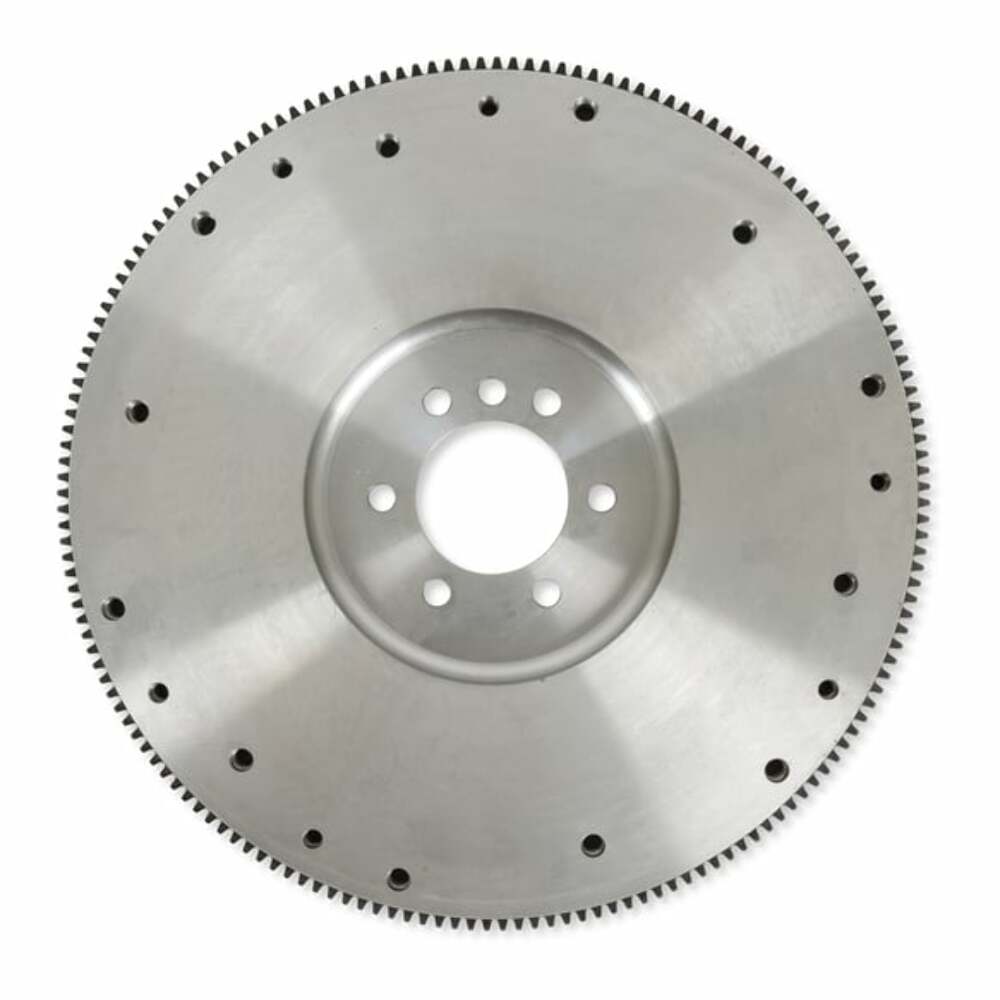

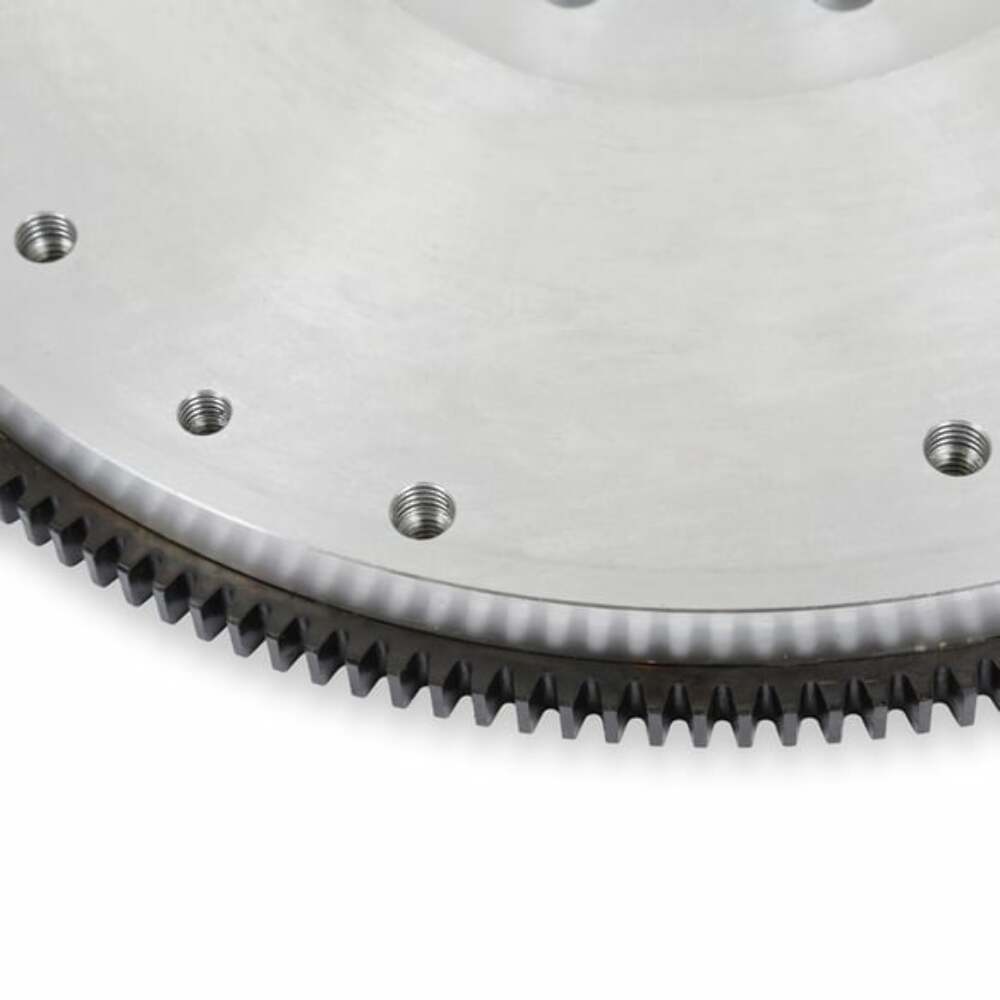

- Billet steel 36 lb, 168 tooth externally balanced flywheel for light weight and strength
- Roller style pilot bearing offers improved shifting by reducing parasitic drag and transmission wear
- 26 spline, 11-inch clutch disk offers superior clamping force for engines up to 500 hp
- Adjustable Hydraulic Release Bearing offers reduced pedal effort and easy installation

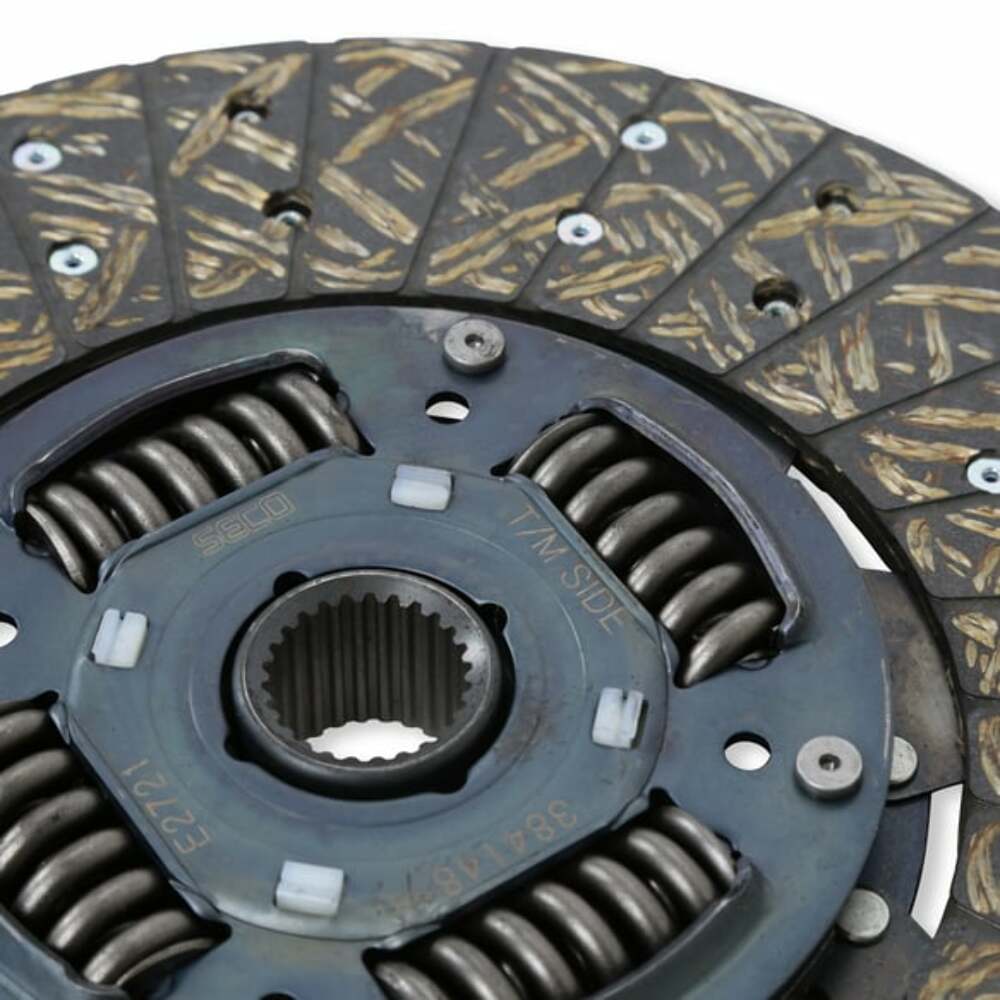

- Organic clutch disc features heavy-duty hub spring assembly for increased load capacity
- Works with OE (original equipment) or MSD High Torque starters
- All hardware included
Specs:
| Bellhousing Material | Aluminum |
|---|---|
| Brand | Holley |
| Disc Diameter | 11 |
| Disc Material | Organic |
| Disc Style | Spring Hub |
| Emission Code | 6 |
| Engine | GM Big Block |
| Engine Balance | External |
| Engine Make | GM |
| Flywheel Balance | External |
| Flywheel Material | Billet Steel |
| Grade Type | Performance |
| Hardware | Steel |
| Input Shaft Diameter | 1-1/8 in. |
| Input Spline | 26 |
| PILOT BEARING | Roller |
| Pressure Plate Style | Diaphragm |
| Product Type | Installation Kit |
| RELEASE BEARING | Hydraulic |
| Transmission | TKO GM, TKX GM |
