Holley | SKU:
300-122

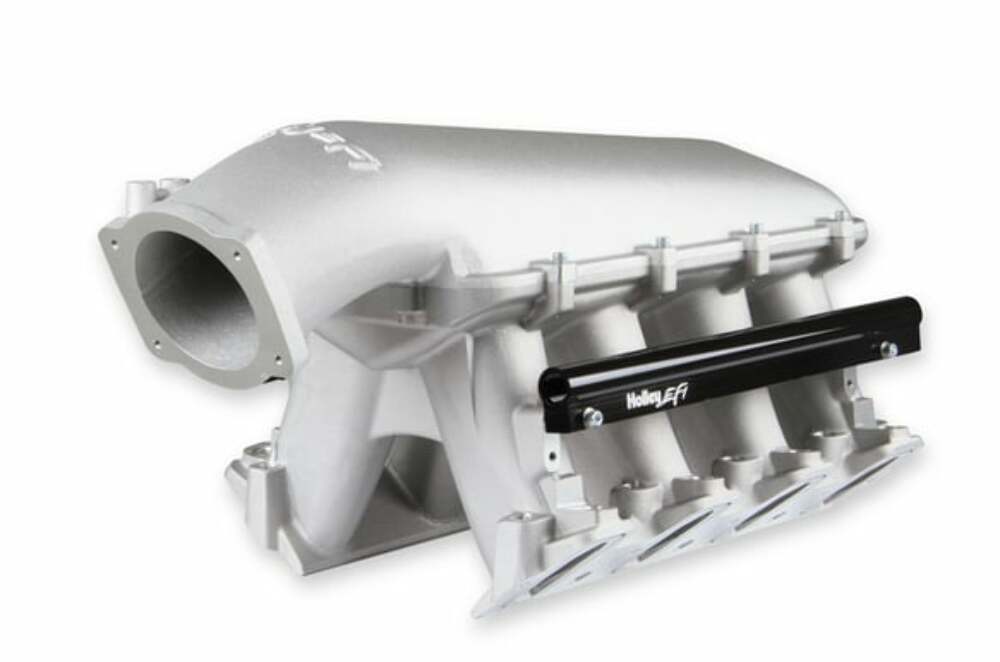

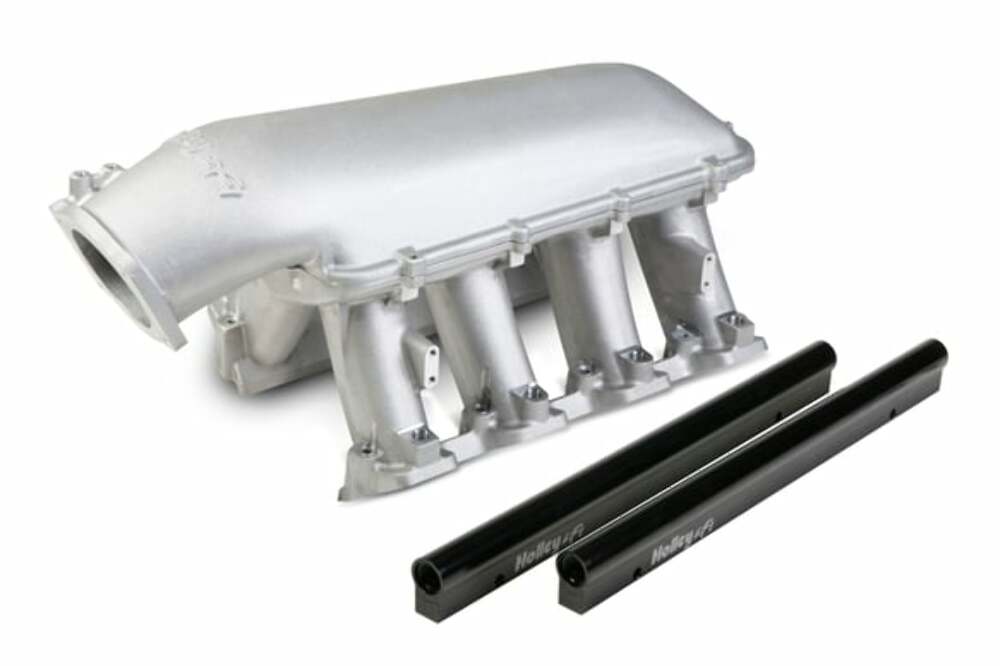

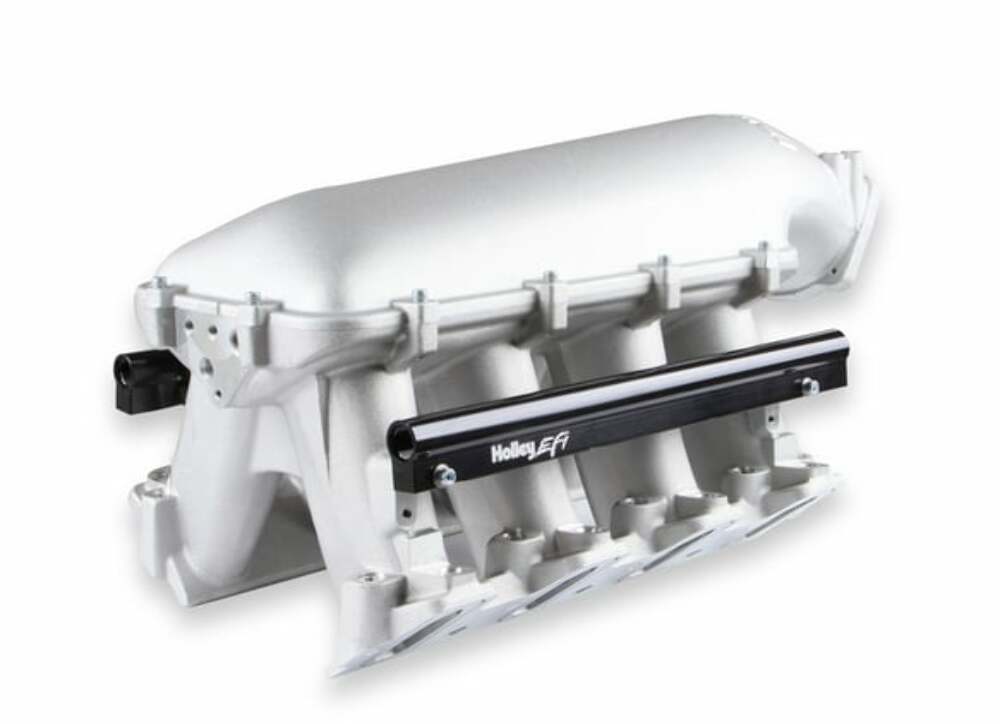

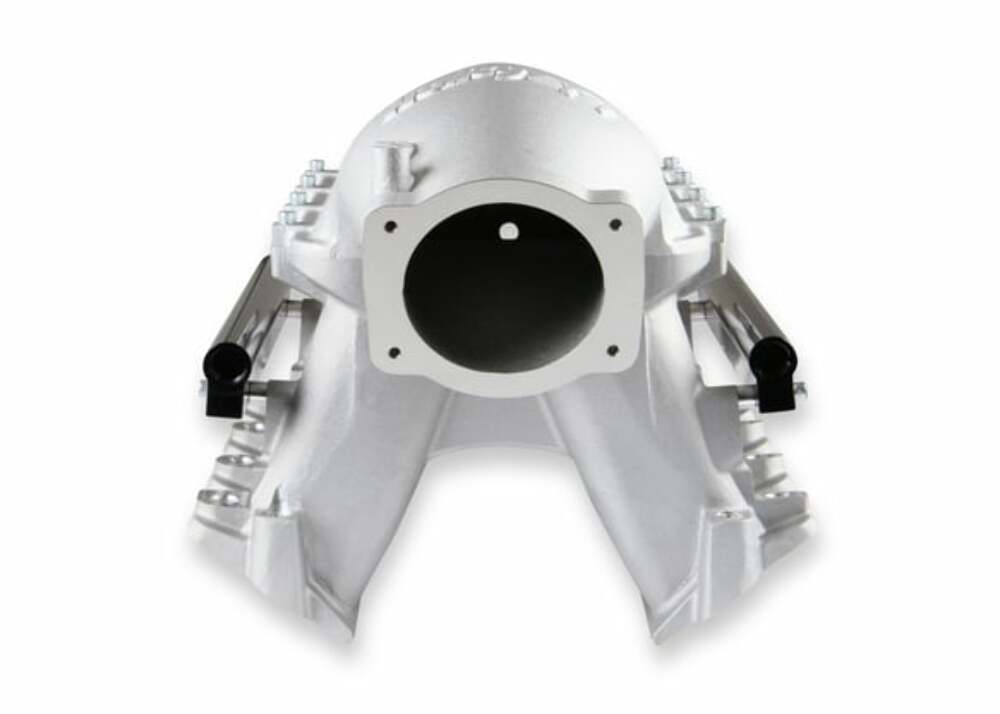

Holley 300-122 LS HI-Ram EFI Manifold
Regular price
$1,059.95 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley 300-122 LS HI-Ram EFI Manifold is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
LS1/2/6 HI-RAM IM, EFI, 92MM LS TB
Overview

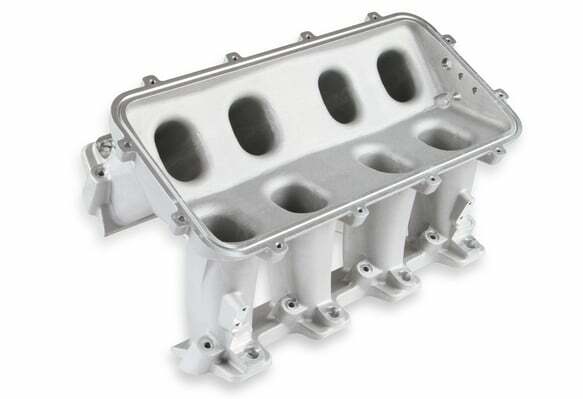

The Holley GM LS1/LS2/LS6 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS1/LS2/LS6 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems. Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. Cast aluminum construction. Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.
Features:

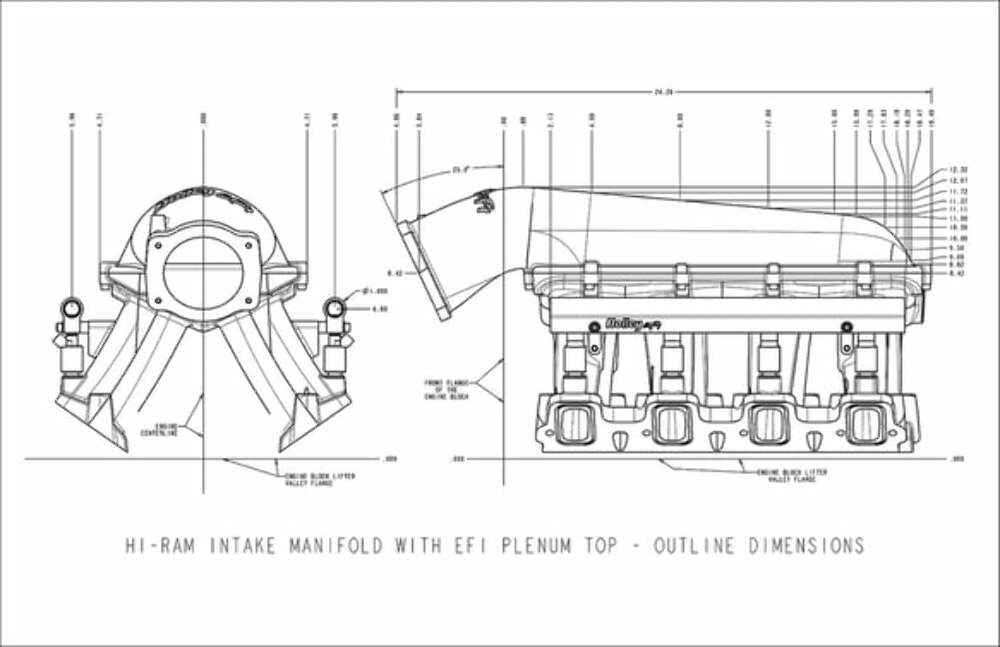

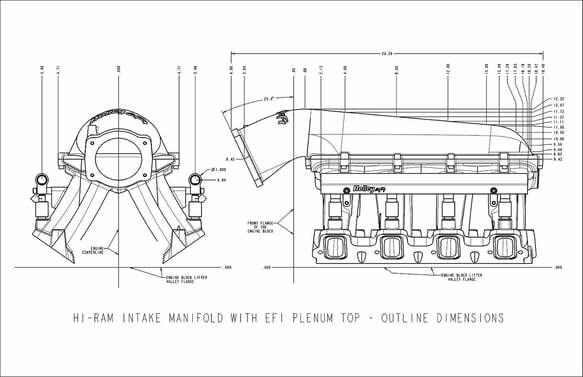

- Base Plenum Top Mounting Flange Height – 8.42” to the lifter valley cover flange on engine block.
- Total Height with 92/102mm EFI Plenum Top – 12.32” to the lifter valley cover flange on engine block.
- Port Size – 2.49” Height x 1.21” Wide
- Mounting Flange Gasket Type – Standard LS3 Molded O-Ring

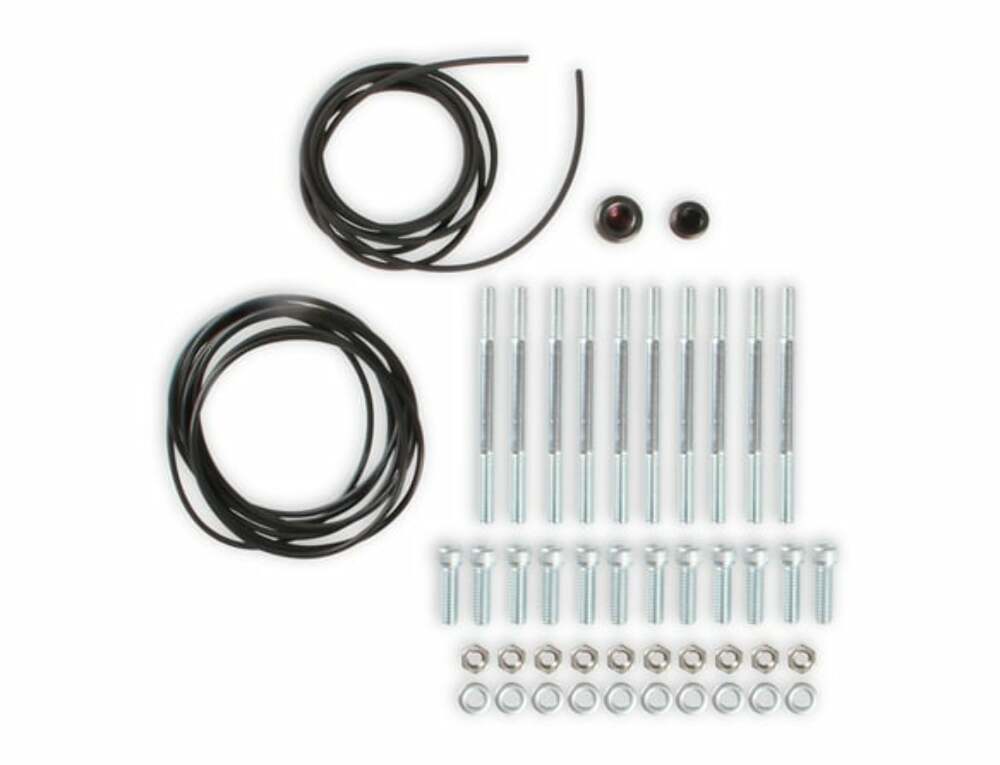

- Plenum Top Gasket Type – 3/32” Round O-ring Cord
- Throttle Body Flange Location, with 92mm EFI Plenum Top : Height – 8.42” (from engine block lifter valley cover flange), Longitudinal Location – 3.84” (forward from engine block front flange), Angle – 25 deg. (down from vertical)
- Runner Length – 6.58”, As-Cast Runner Cross-Sectional Area – Tapered 4.25 in² to 2.53 in²
Application
- 1953-2019 Chevrolet Corvette
- 1964-2019 Pontiac GTO
- 1966-2019 Chevrolet Camarro
Specs
| Brand | Holley EFI |
|---|---|
| Color | Aluminum |
| Construction | Cast |
| Emission Code | 3 |
| Engine | GM LS1/LS2/LS6 |
| Finish | Satin |
| Flange Style | EFI |
| Front Height | 12.32 inch |
| Fuel System Type | EFI |
| Manifold Type | Hi-Ram |
| Product Type | Manifold |
| Rear Height | 11.00 inch |
| RPM Power Band | 1500-7000 |
| Warranty | Limited 90 Day |
| Part Number | 300-122 |
