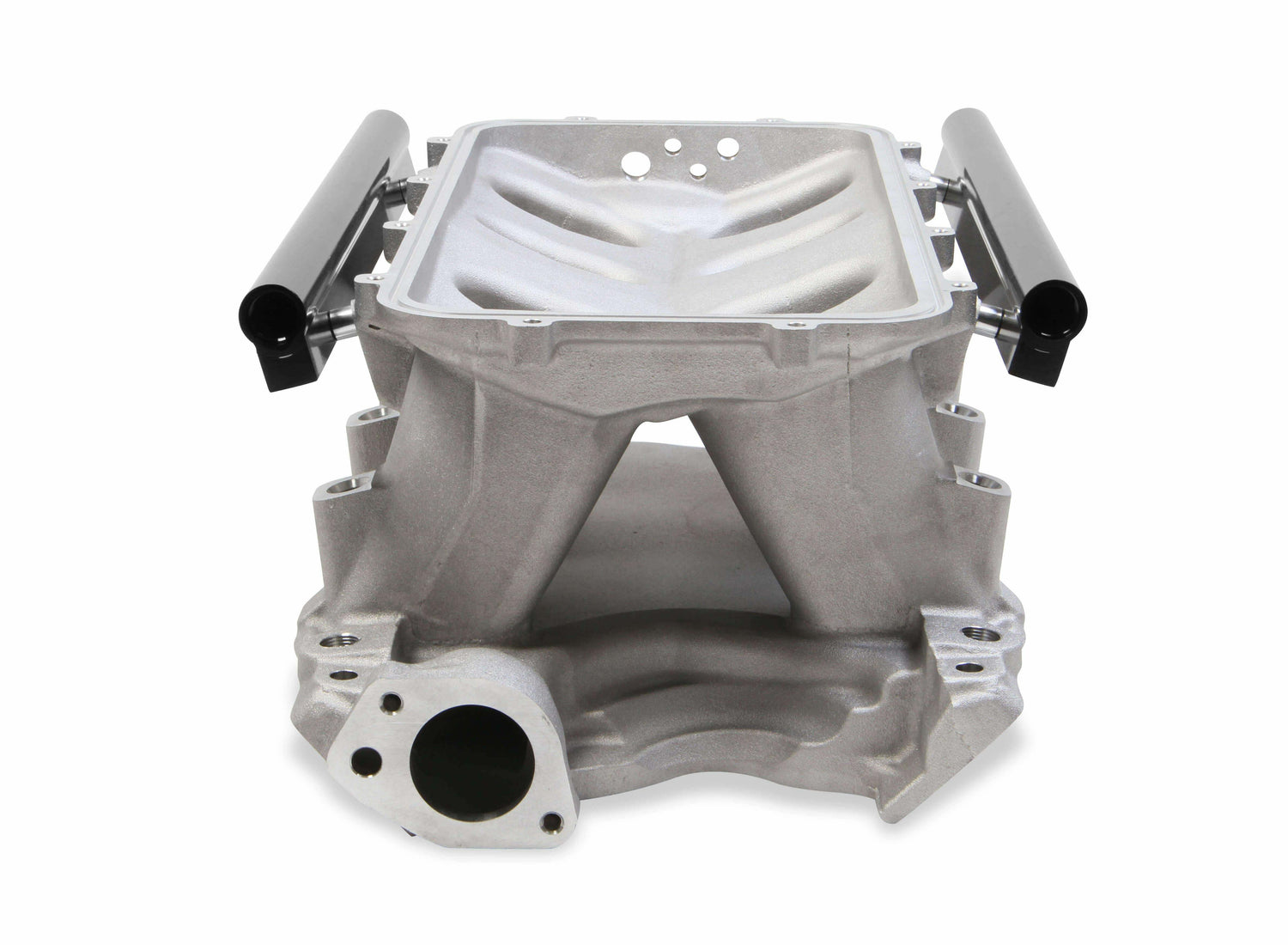

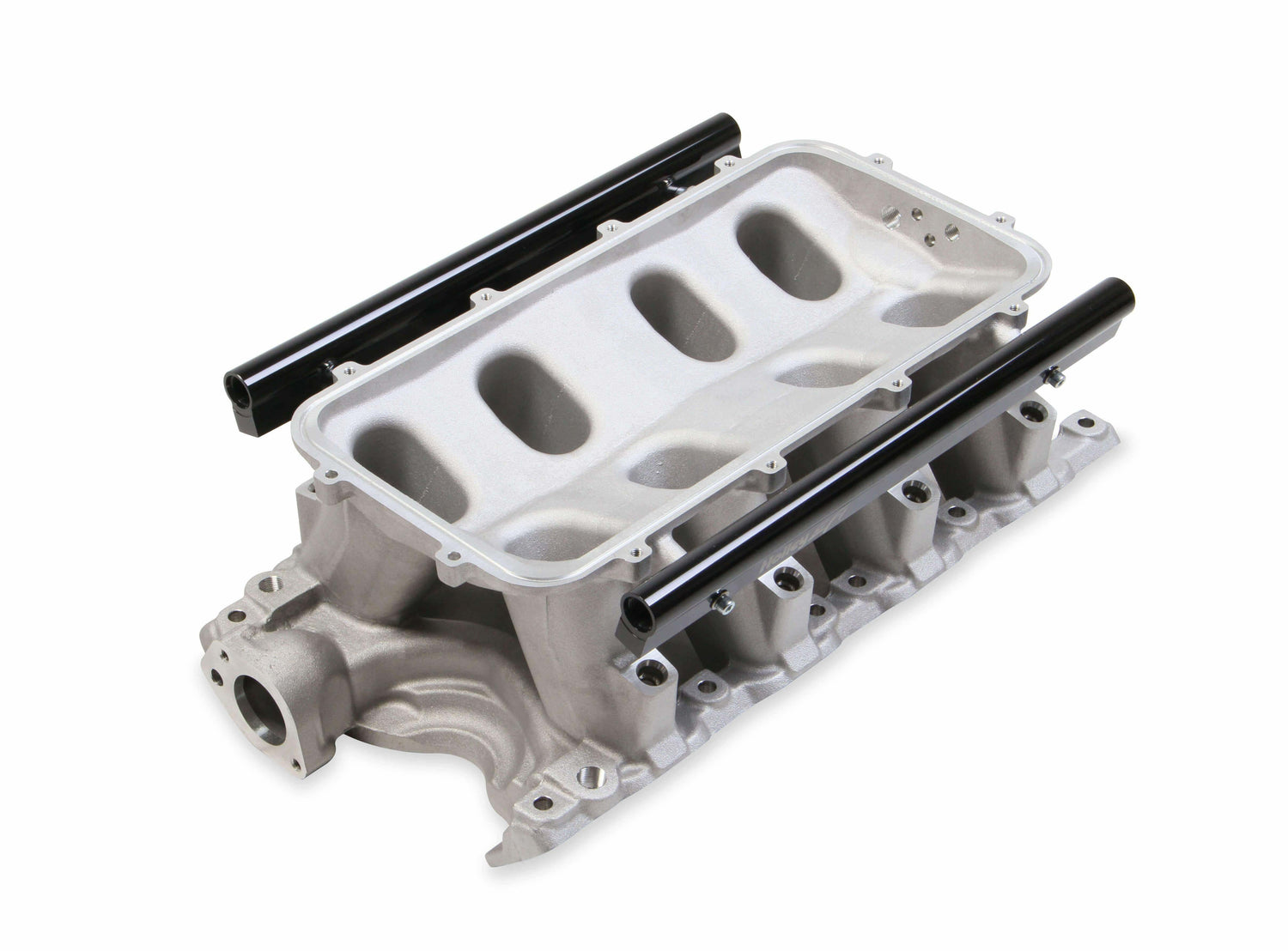

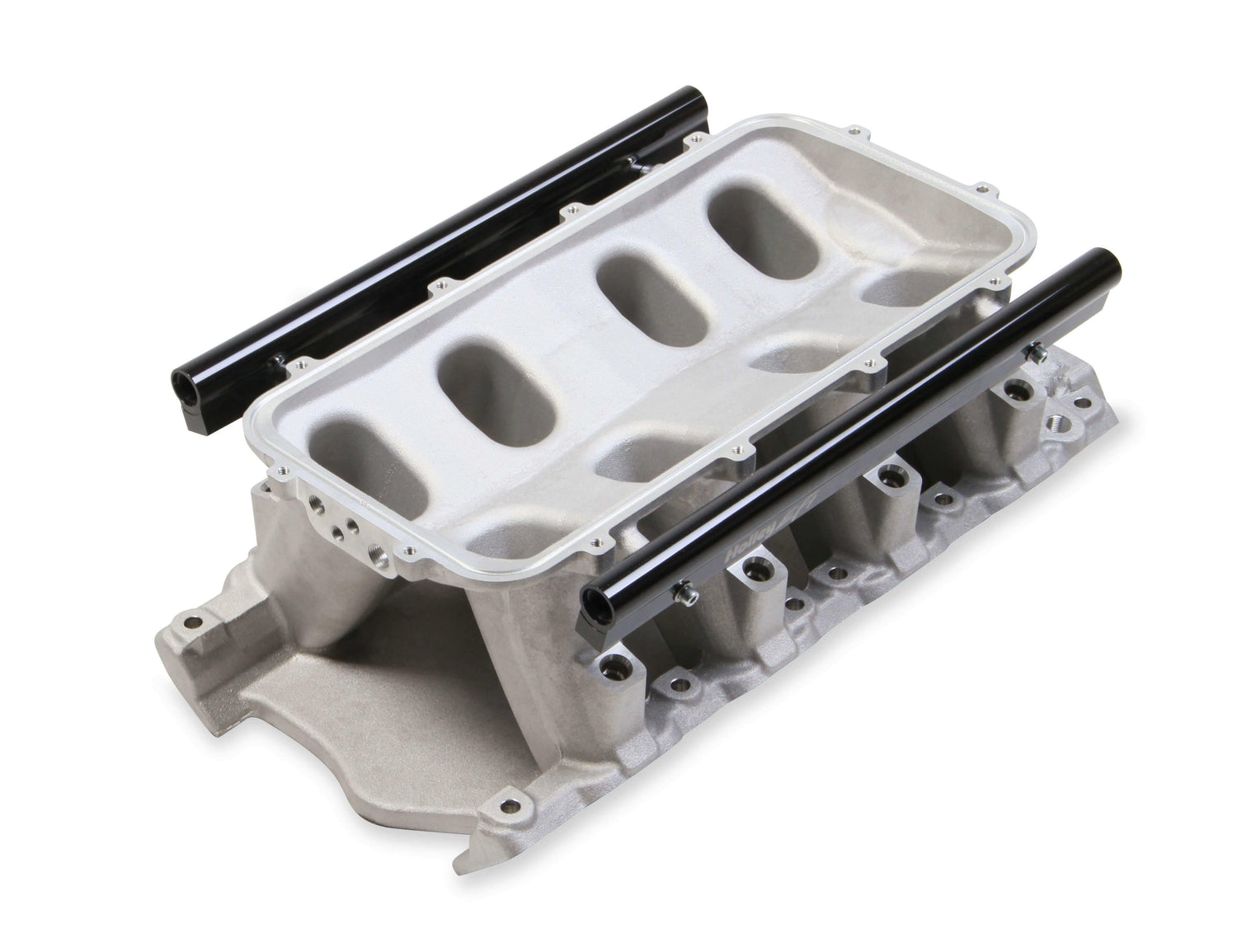

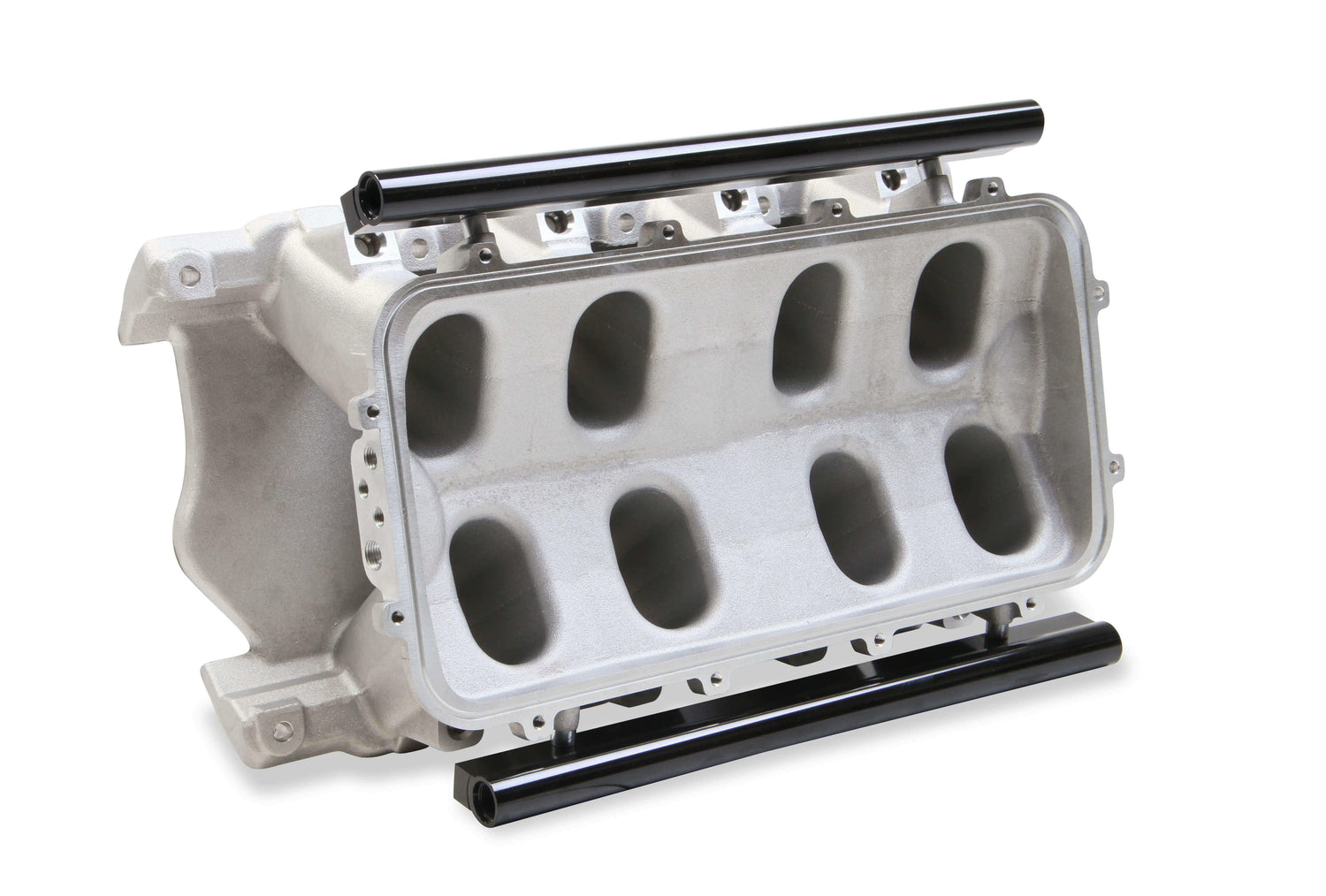

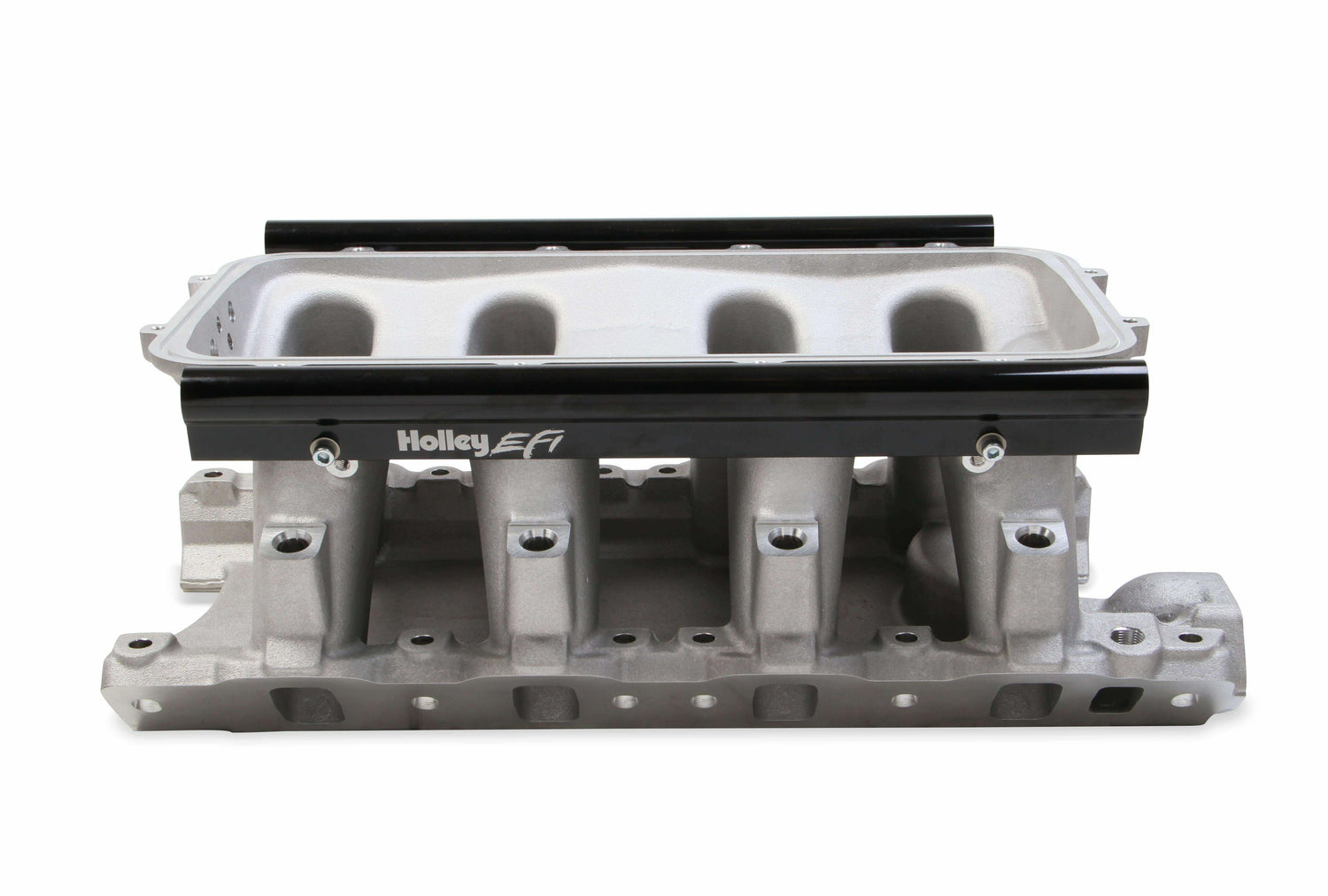

Holley 351W Ford Hi-Ram EFI Manifold Base - 300-244

Overview:

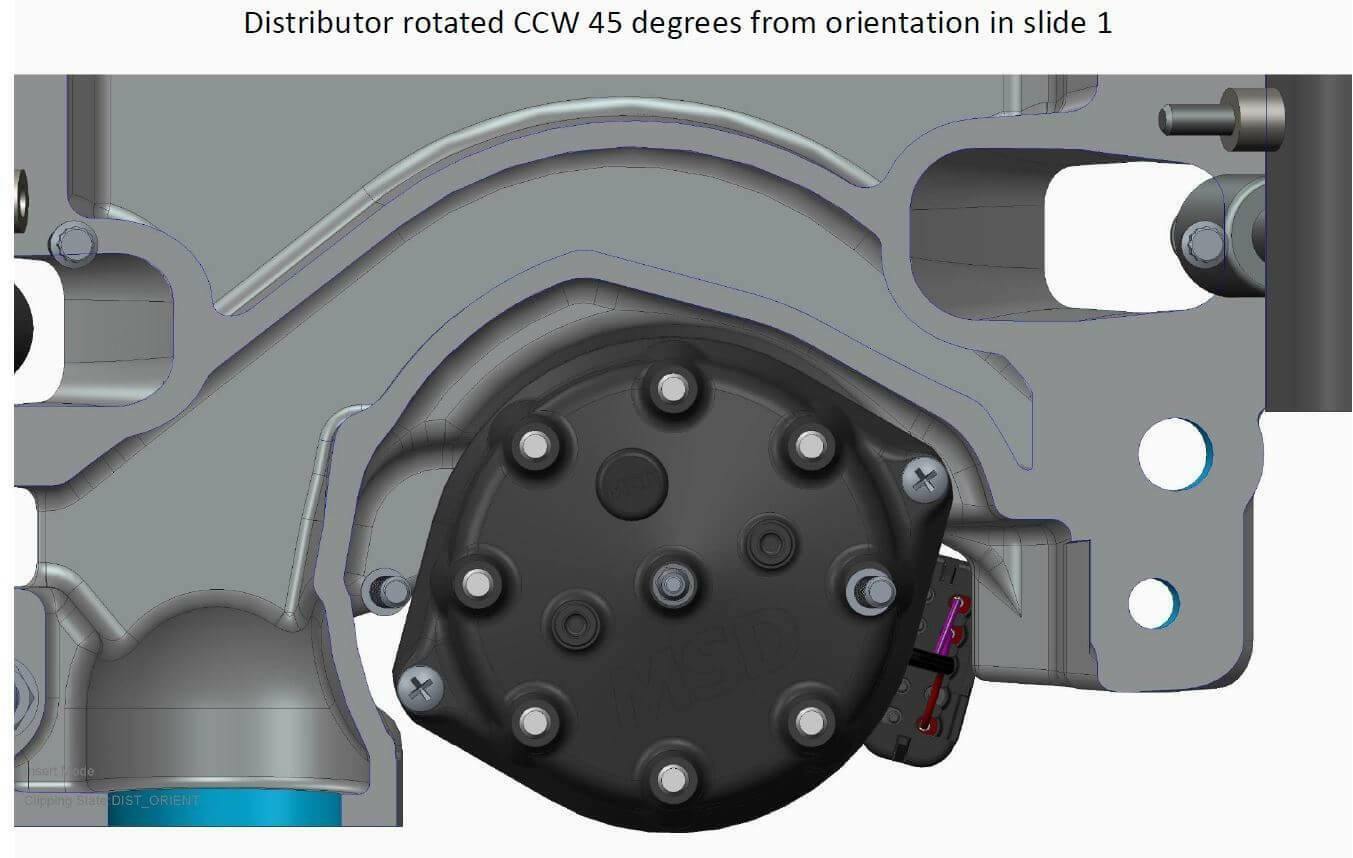

The EFI Hi-Ram manifold line has a new addition for the 351W Ford application. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! Manifold is designed for a 9.5" deck height. Manifold width is 11.32".  Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations  EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.  Cast aluminum construction.

Features:

• The 351W manifold is available to work with 95MM or 105MM GM LS throttle bodies
• EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
• Plenum Top Gasket Type – 3/32” Round O-ring Cord
• Manifold is designed for a 9.5" deck height.
• Requires the Use of Holley EFI Dual Sync Distributor - 565-111
