Holley 550-870K Sniper Stealth 4150 Self-Tuning Fuel Injection System Master Kit
Holley 550-870K Sniper Stealth 4150 Self-Tuning Fuel Injection System Master Kit is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Same day shipping, if ordered by 9:00 AM ET M-F
*Select products are made to order and ship within 4 business days.
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
The Sniper Stealth 4150 EFI system from Holley features 4, 100LB/HR Fuel Injectors capable of supporting up to 650 HP naturally aspirated or 600 HP on forced induction applications. The Sniper Stealth 4150 ECU is capable of fuel map self-learning and ignition timing control, improving idle stability, drivability, and wide-open throttle horsepower! Did we mention that the Stealth 4150 also includes transmission kick down provisions for GM TH350/400, 200R4/700R4 and Ford C4/C6 applications. Part # 34-42 is required for a bolt-in installation.
Features:
- Bolt on 4150 Flange Carburetor Replacement
- Throttle body mounted ECU - no extra boxes to mount
- Supports up to 650hp with Four 100 Lb/Hr Injectors!
- All of the wiring exits below the rear fuel injector cover, for a completely stealth installation.
- Timed spark part for vacuum advanced distributors located under the front fuel bowl, for easy access to the distributor.
- Air entry is machined to fit most stock style air cleaners with air cleaner locator provisions.
- Only 4 Wiring Connections Required! (Battery +, Battery - , Switched Ignition & RPM)
- External fuel pressure regulator required, set to a base pressure of 58.5 PSI, such as 12-886.
- Integrated ignition timing control

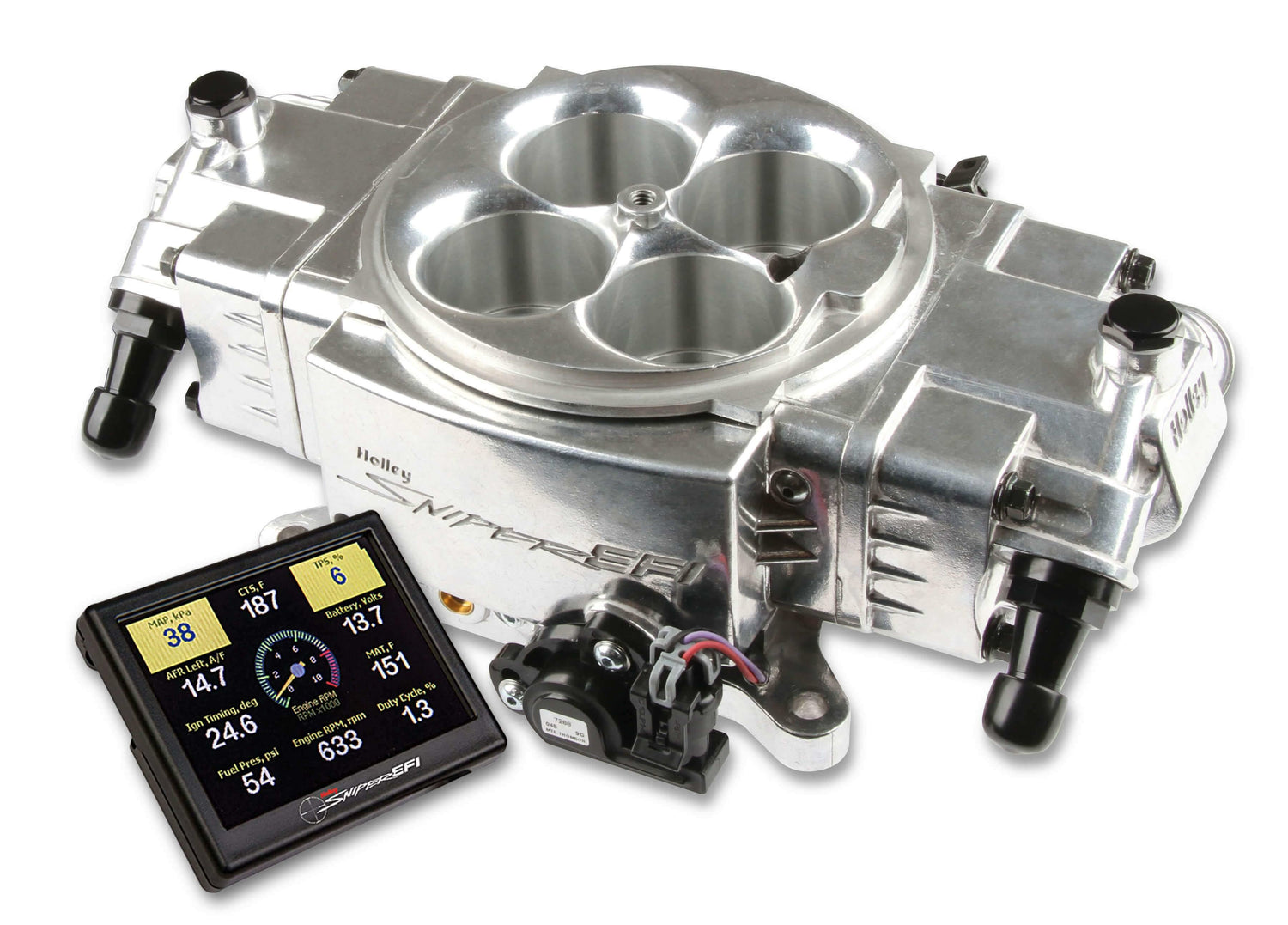

- High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
- Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
- Self-tuning ECU means you don't have to be a computer/tuning wiz to have EFI!
- The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn!
- OEM Style TPS/IAC and Fuel Pressure regulator, for years of dependable service.
- Included clamp-on oxygen sensor kit for 2.25" exhaust ensures a leak free oxygen sensor installation, with Stainless Steel T-Bolt clamps and a Stainless Steel (Weldable) oxygen sensor flange
- Available in 3 finishes: Shiny, Black and coming soon, Gold
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Brand | Holley Sniper EFI |
|---|---|
| CFM | 870 |
| Emission Code | 3 |
| Finish | Shiny |
| Flange Style | 4150 |
| Fuel Pressure | 58.5 PSI |
| Height | 3.28" |
| Injector Size | 100 lb/hr @ 58.5 PSI |
| Inlet / Outlet Size | 3/4-16 Female O-Ring (AN 8) |
| MAP Sensor | 2Bar |
| Max Horsepower Rating | 650 Naturally Aspirated |
| Model | 4150 EFI Conversion Throttle Body |
| Product Type | Sniper Stealth EFI |
| Transmission | 700R4/200R4 |
| Transmission | Ford C4/C6 |
| Transmission | TH350 |
| Warning | California Proposition 65 |
