Holley EFI 12.3" Pro Dash 553-111
Holley EFI 12.3" Pro Dash 553-111 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
The Holley EFI 12.3" Pro Dash is customizable with a variety of gauge and indicator screens that can be programmed to display any parameter you need from a Holley EFI system.
Features:
- Plug-and-play display support for Dominator, HP, Terminator X & Sniper EFI (Not compatible with Sniper 2)1
- Real-time ECU tuning allows you to make quick tune changes without needing to hook up a laptop2
- Capable of monitoring up to 238 real-time values such as RPM/TPS/Boost3
- 16 default background skins pre-loaded with unlimited options for importing custom layouts4
- Quickly swipe between multiple active screens (tune, warm-up, race, drive, etc.)5
- Virtual switch panel eliminates the need for external toggle switches6
- Manual or auto-brightness features for easy viewing day or night7
- Built-in GPS with odometer function (antenna included)8
- On-screen datalog playback features allows you to review vital run information9
- Expandable storage via USB10
- No stylus required - utilizes capacitive touch just like your smart phone11
- User definable channel alarms and warnings12
- 6x 1/4-28 mounting holes for surface or flush mounting, with high quality hardware included13

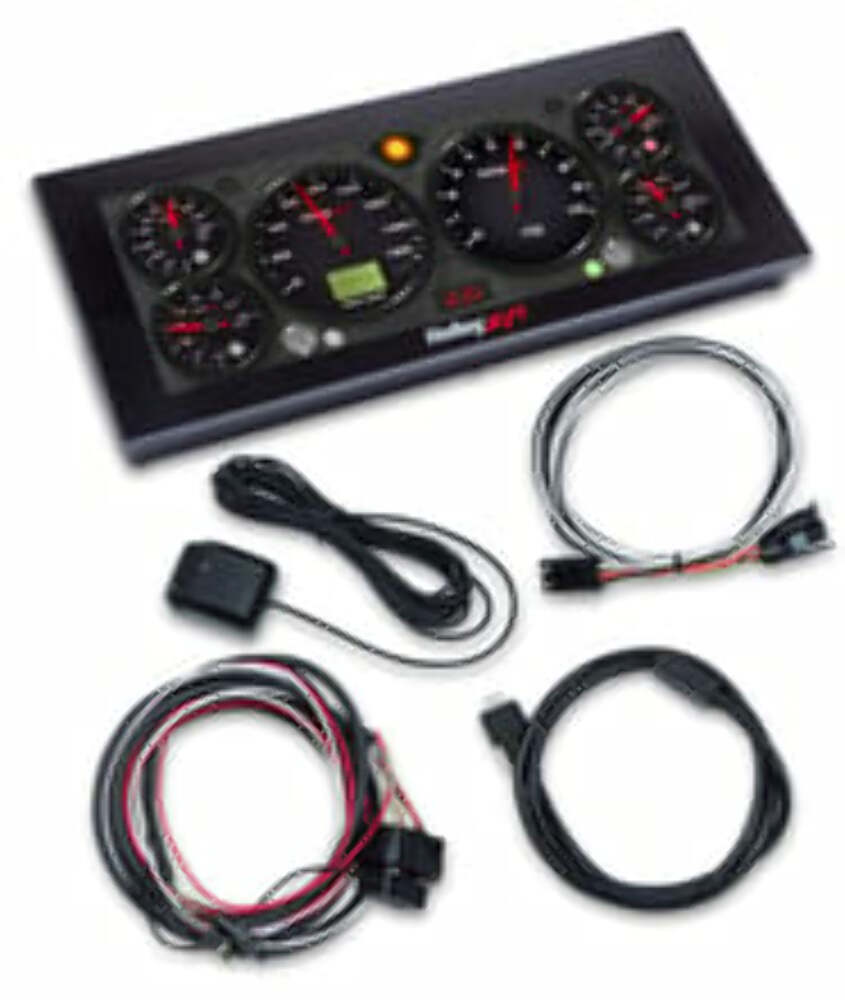

- Includes everything needed for installation14
- USB keyboard and mouse functionality makes it quick and easy to setup new layouts15
- Includes 34 Pin Wiring Harness contains Power, Ground and CANbus connections16
- Input and output functionality for 13 multi-configurable inputs and 4 ground switched outputs17
- User defined alarms for any input18
- Upgradable with future software enhancements19
- Viewing area is 12.3" on the diagonal, 11.5" wide by 4.25" tall20
- Dash weight - 3.29lbs21
- Compatible with our Plug-and-Play Programmable Shift Light - Part Number 553-10722
Specs:
| Analog Or Digital | Digital |
|---|---|
| Bezel Color | Black |
| Brand | Holley EFI |
| Depth | 1.25" |
| Emission Code | 5 |
| Face Color | Programmable |
| Font Color | Programmable |
| Grade Type | Performance |
| Height | 5.81" |
| Illuminated | Yes |
| Maximum Gauge Diameter | Programmable |
| Minimum Gauge Diameter | Programmable |
| Pointer Color | Programmable |
| Product Type | 12.3" Digital Dash |
| Sale Category | Gauges and Gauge Accessories |
| Screen Size | 12.3" Viewing Area |
| Screen Type | Capacitive Touch Screen |
| Terminal Gender | Female |
| Universal Or Specific Fit | Universal |
| Warning | California Proposition 65 |
| Width | 13.44" |
| Wiring Harness Included | Yes |
