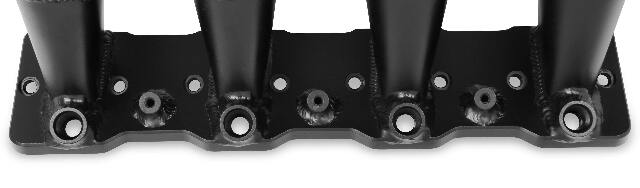

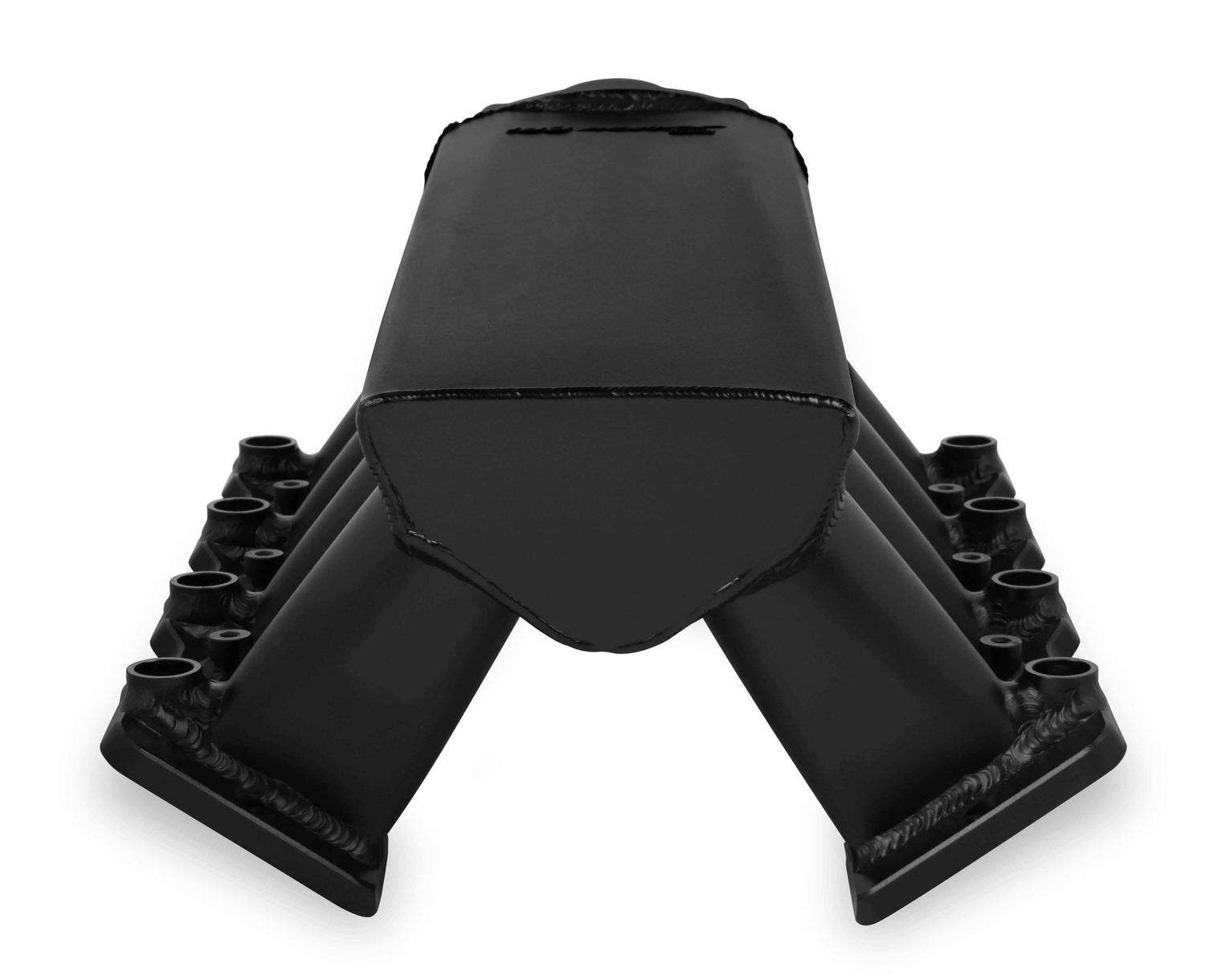

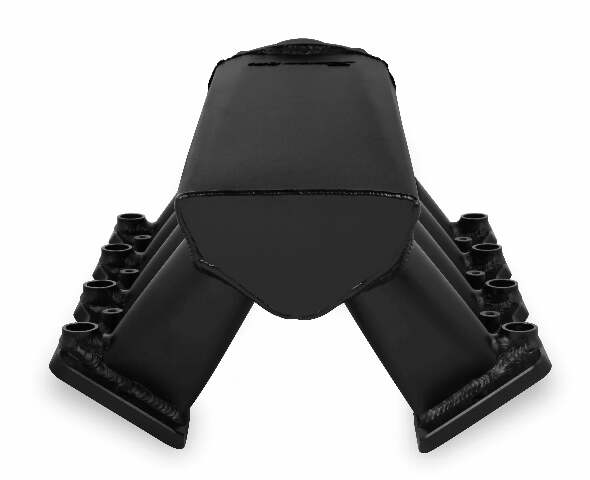

Holley EFI 820032-1 Sniper Hi-Ram Fabricated Intake Manifold
Holley EFI 820032-1 Sniper Hi-Ram Fabricated Intake Manifold is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions!
Features:
- Black Finish creates stealthy under-hood styling
- 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability

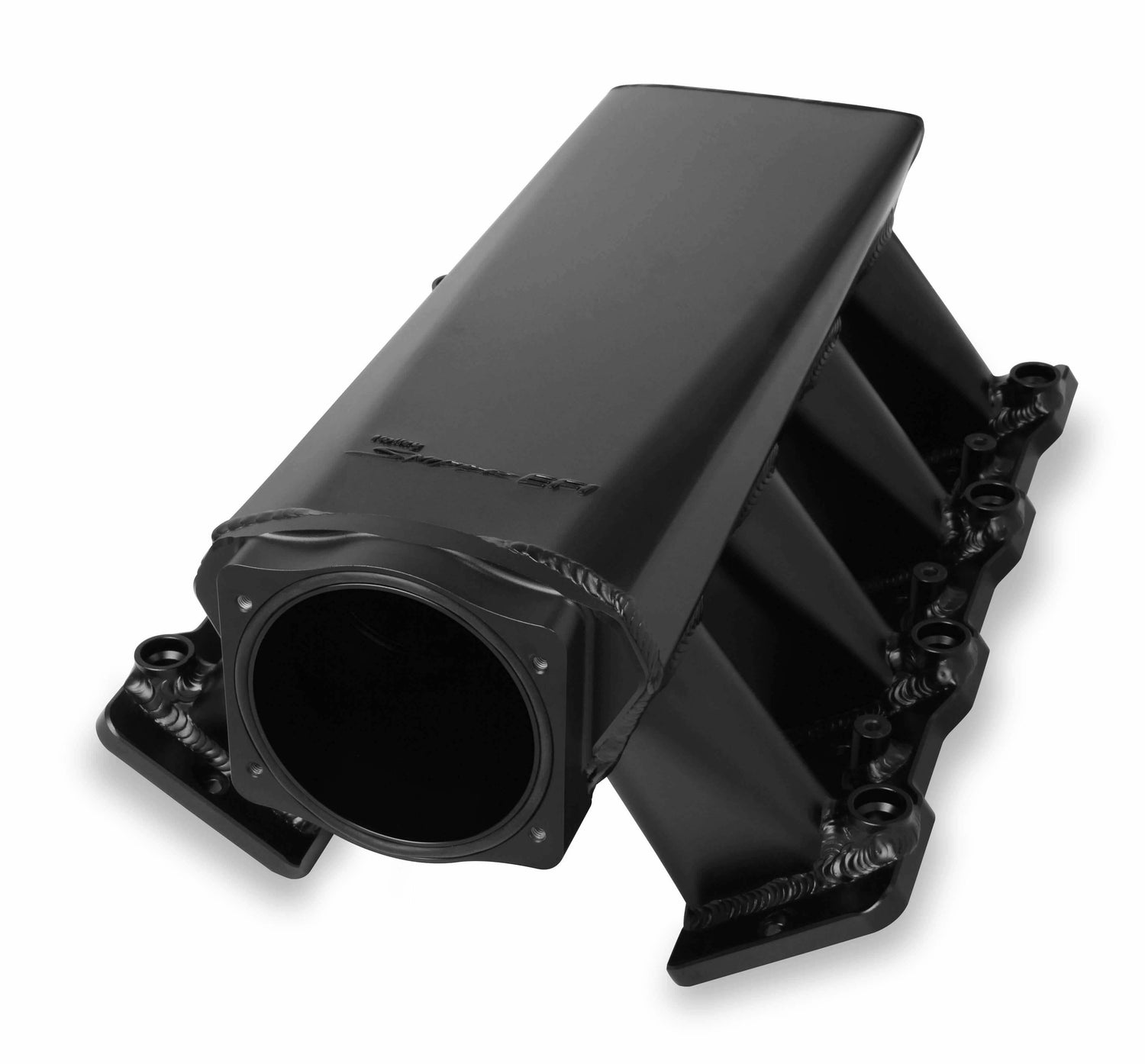

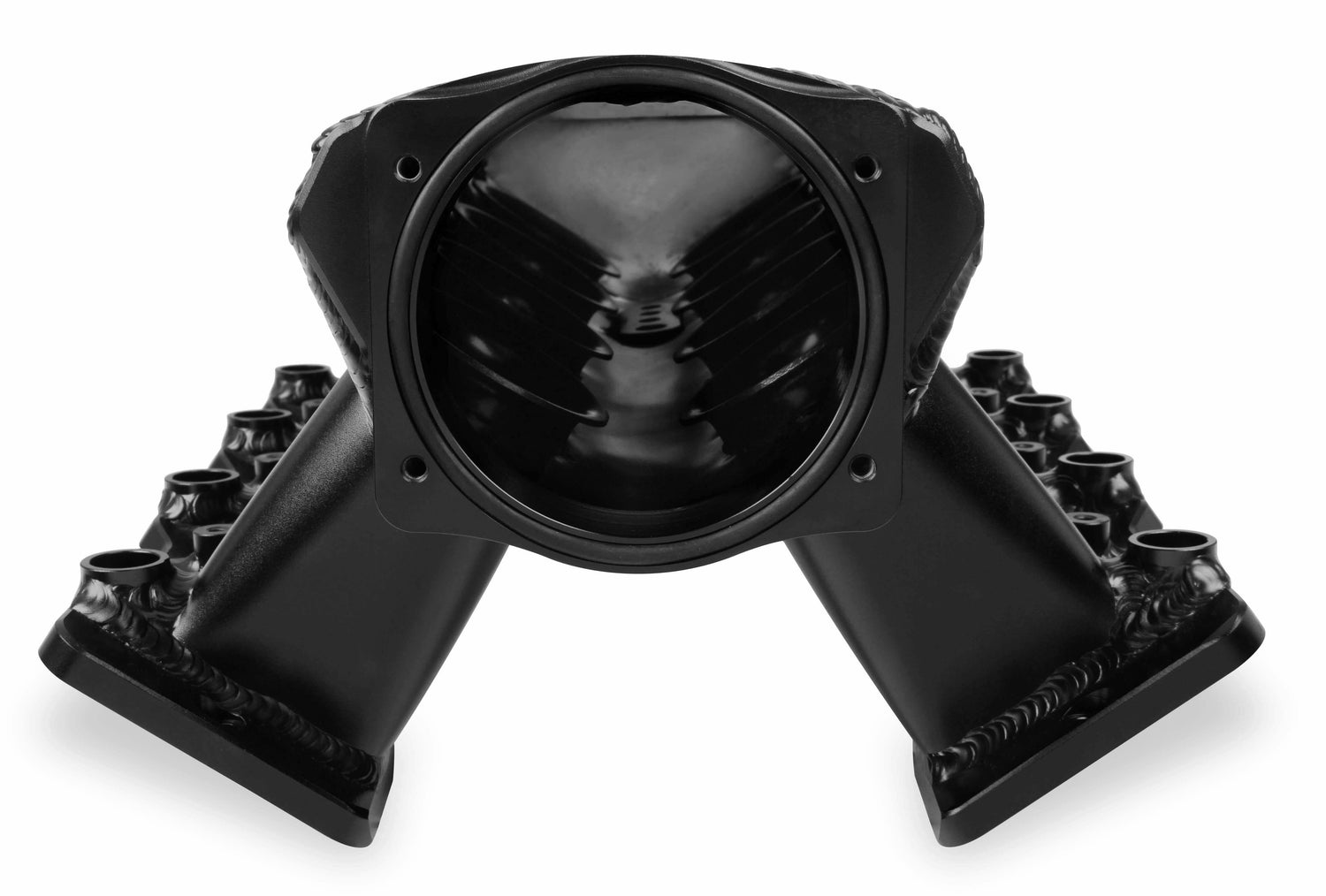

- 92mm throttle bore opening for increased air flow

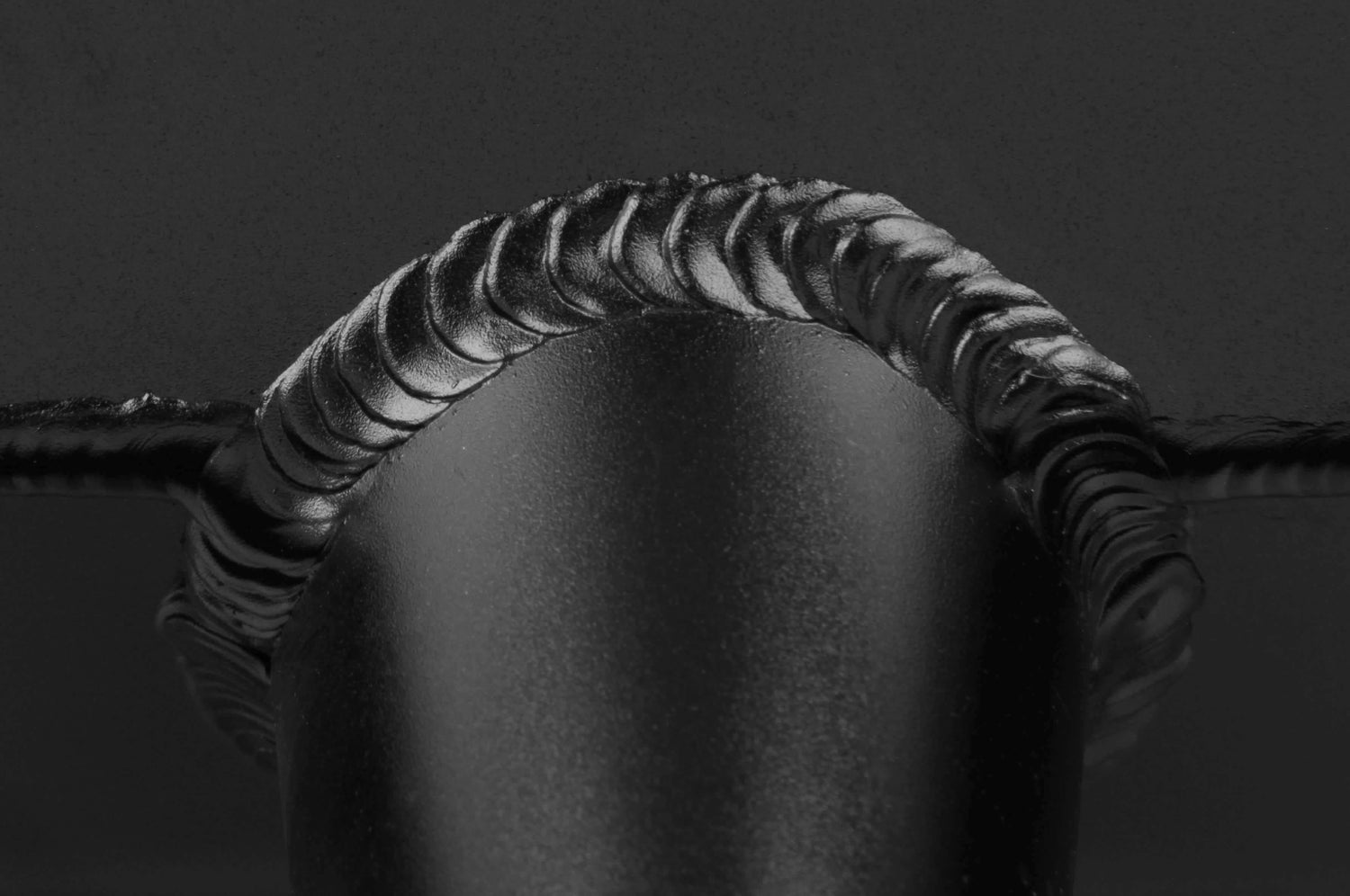

- 100% TIG welded for strength and durability

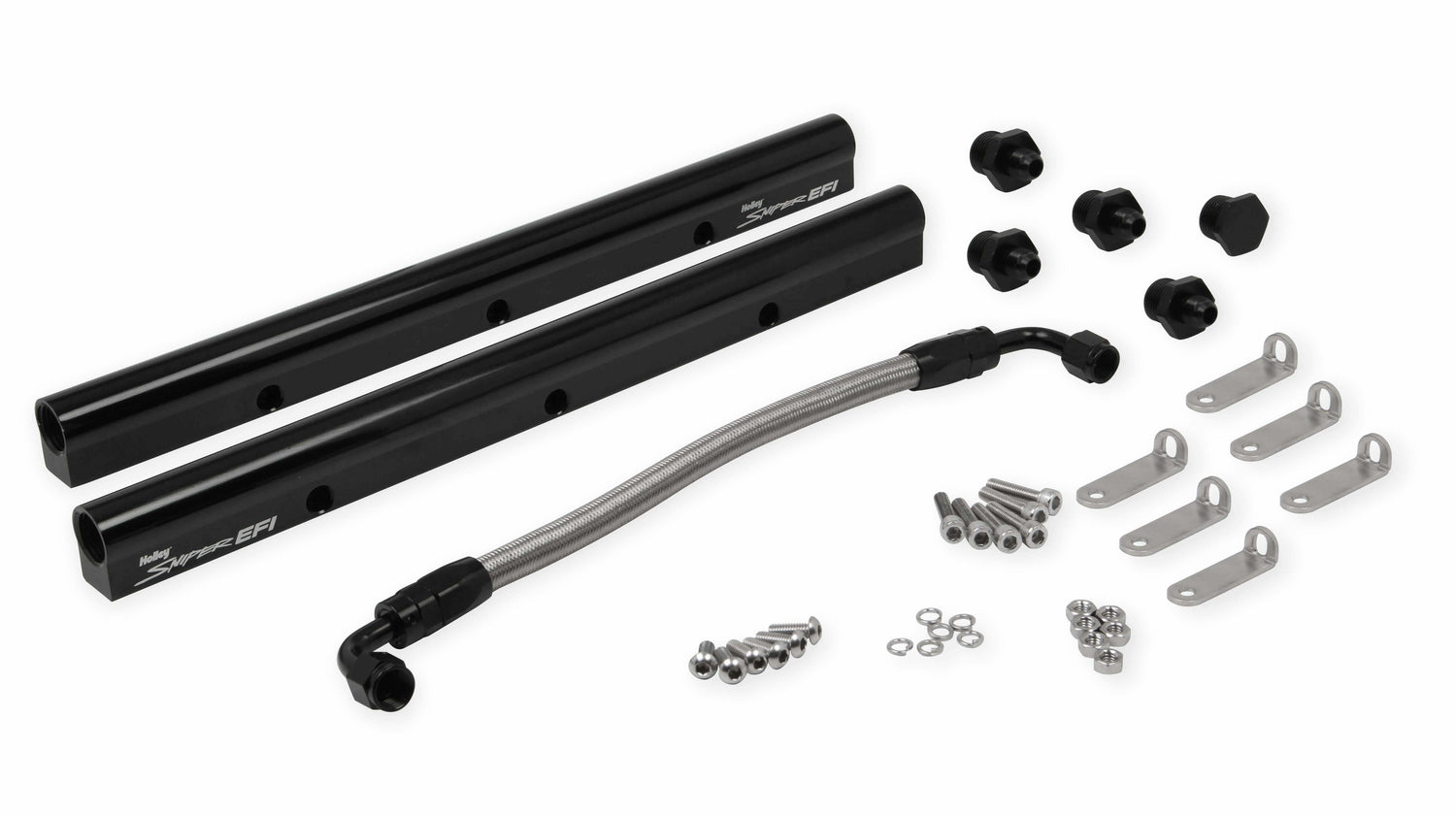

- Includes 3/8" Fuel rail kits (Sniper logo laser engraved)

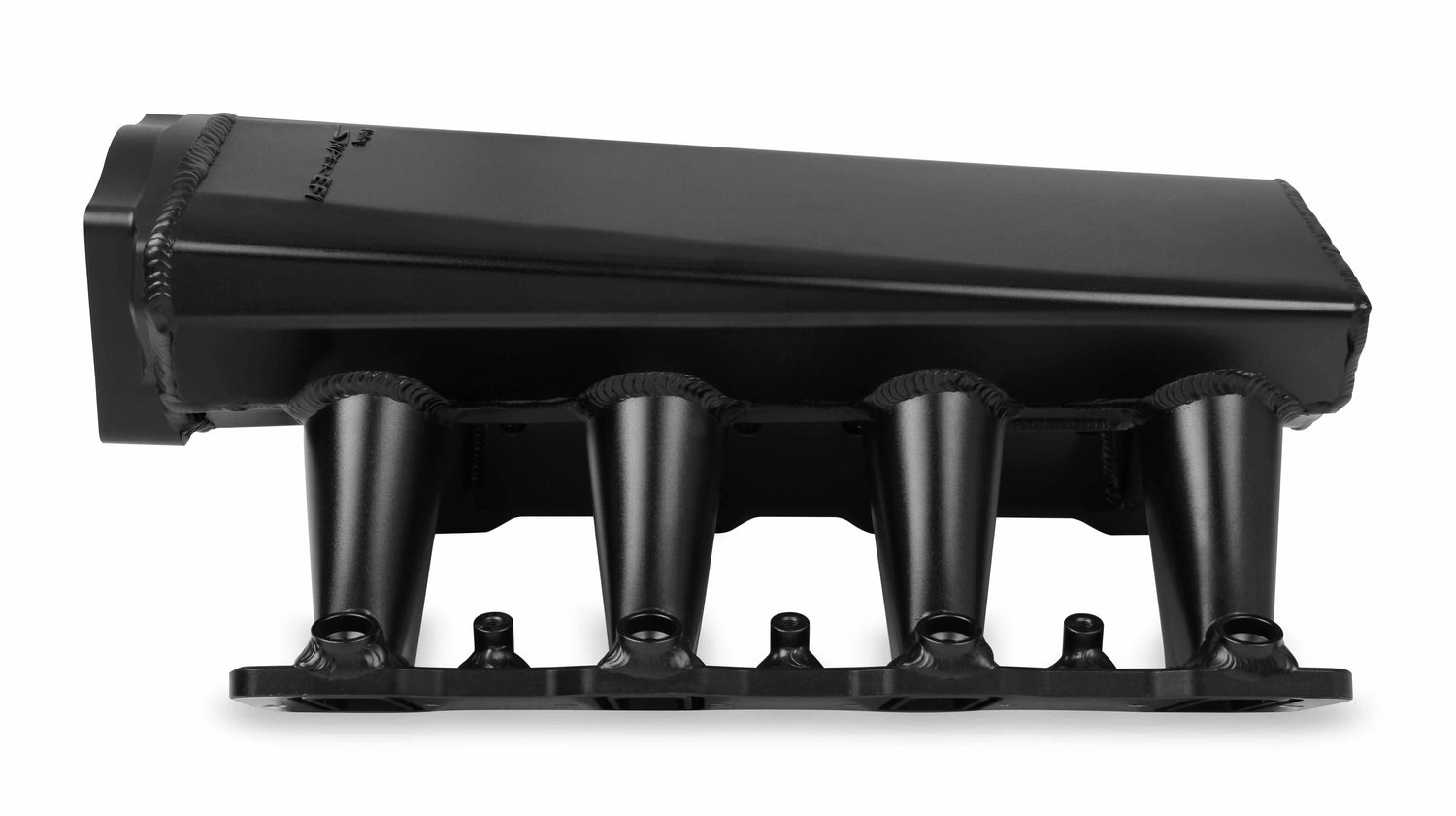

- Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
- Provision for MAP sensor located on rear of plenum
- Product includes all gaskets and hardware for a hassle-free installation
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Brand | Holley Sniper EFI |
|---|---|
| Color | Black |
| Construction | Fabricated |
| Emission Code | 4 |
| Engine | GM Small Block Gen III/IV (LS Based) |
| Finish | Black |
| Front Height | 8.267 inch |
| Fuel System Type | EFI |
| Injector Style Provision | LS1/LS6 EV1 Jetronic |
| Injector Style Provision | LS2 EV6 USCAR |
| Manifold Type | Fabricated |
| Product Type | Intake Manifold |
| Rear Height | 7.559 inch |
| RPM Power Band | 2200-6800 RPM |
| Runner Length | 4.921" (125mm) |
| Style | EFI |
| Throttle Bore | 92mm |

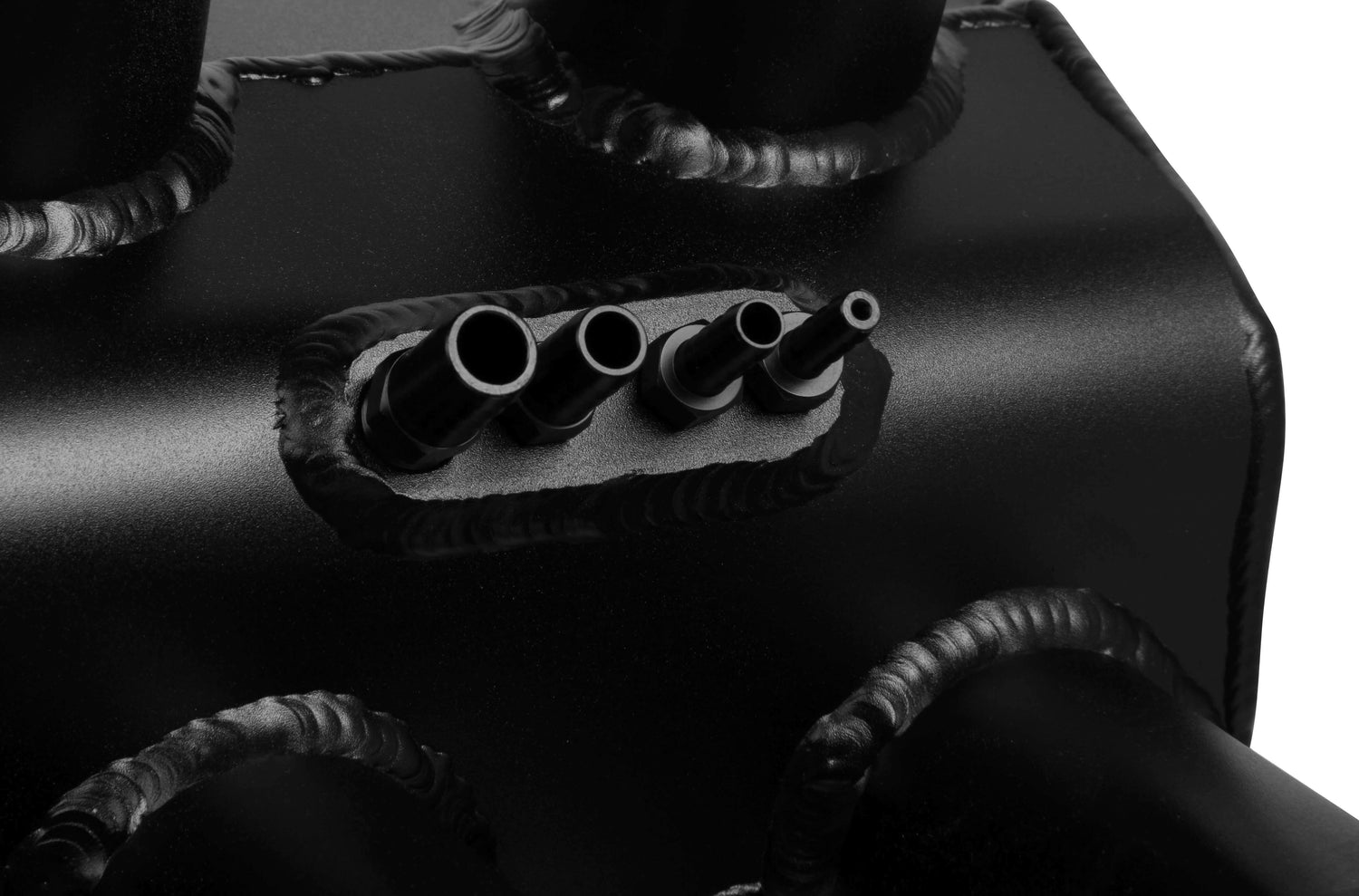

| Vacuum Ports | (3) 1/8"-28BSPT & (1) 1/4"-19BSPT |
| Warranty | Limited 90 Day |
