Holley | SKU:
553-106
Holley EFI Digital Dash Gauges 553-106
Regular price
$921.95 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley EFI Digital Dash Gauges 553-106 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description

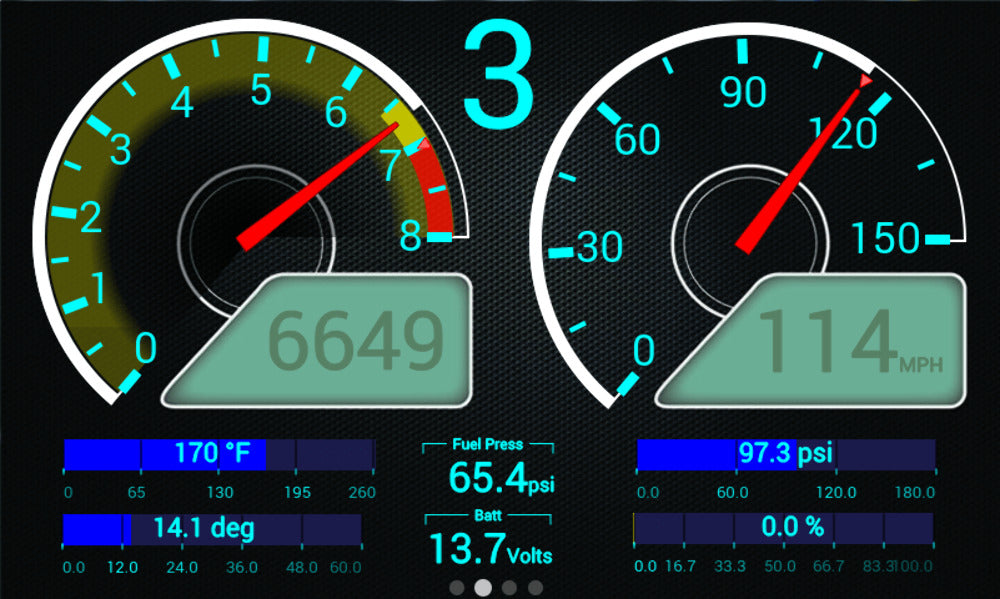

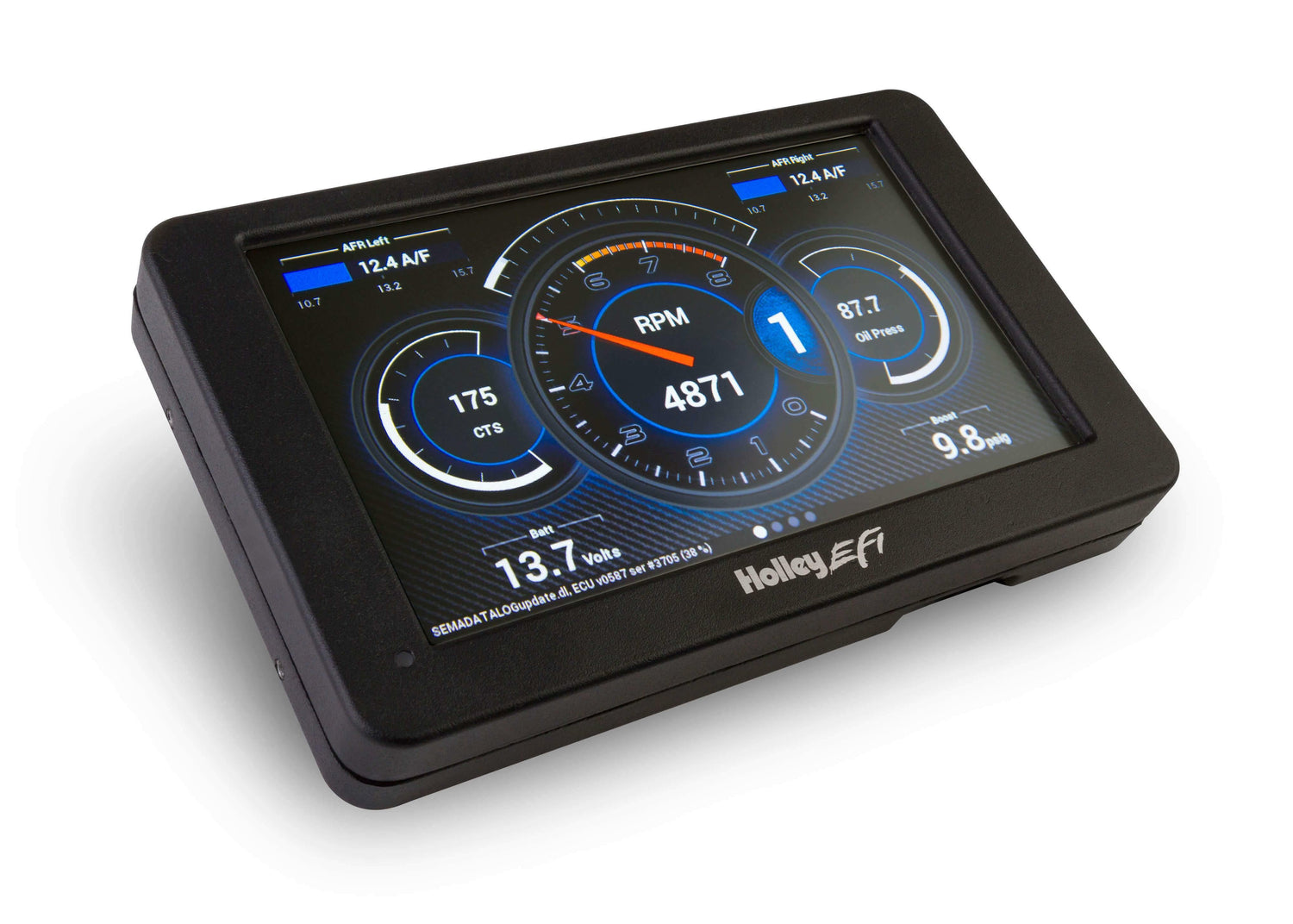

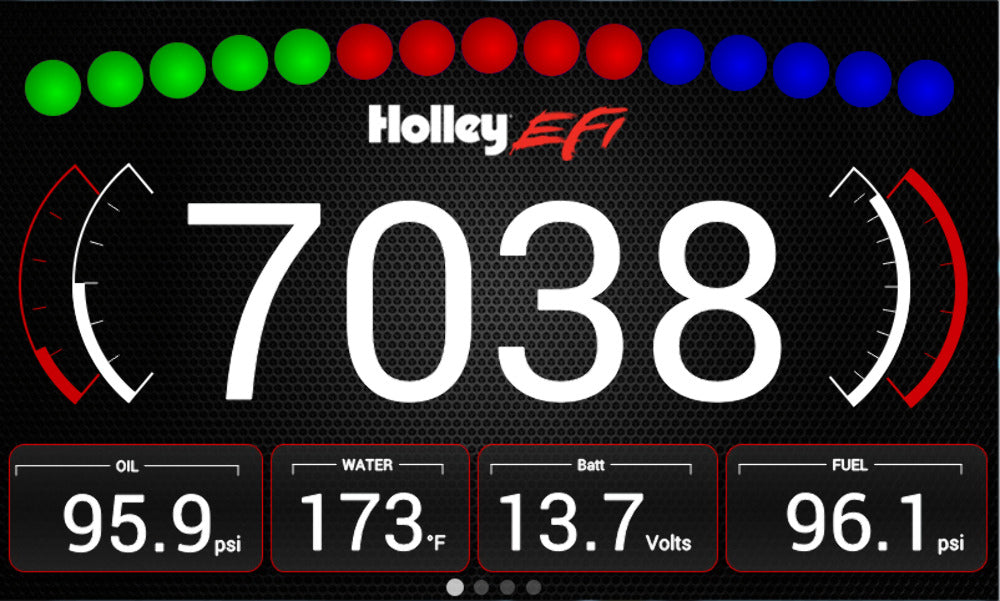

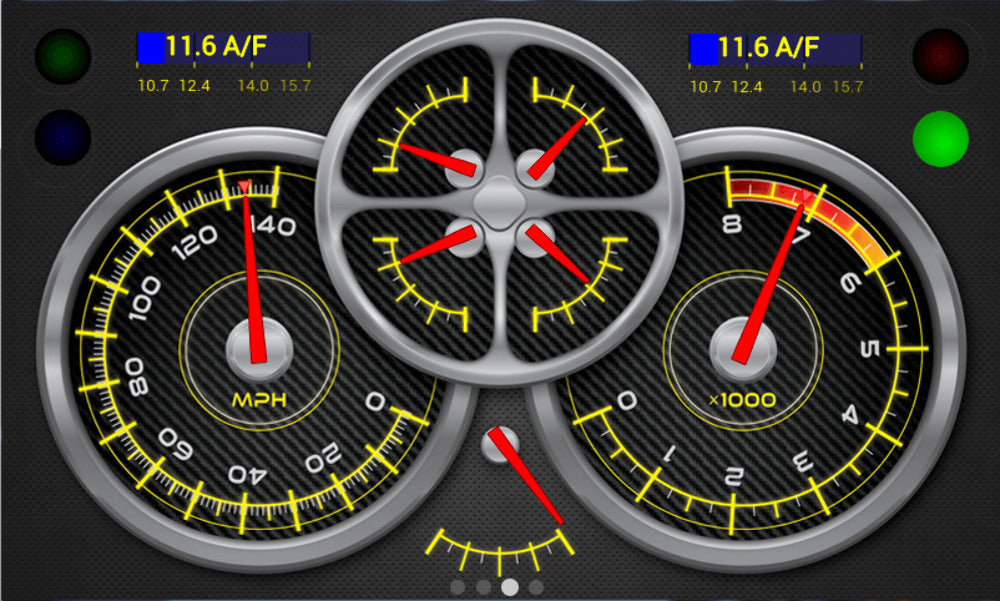

HOLLEY EFI DIGITAL DASH
The Holley EFI Digital Dash is completely customizable with a variety of gauge and indicator screens that can be programmed to display any parameter you need. The dash also offers a virtual switch panel, user defined alarms, configurable shift lights and can control on screen playback of your EFI data logs. The Holley EFI Digital Dash measures 7.5" wide, 4.625" tall and 1" deep which makes it a compact, customizable dash for use in a variety of motorsports applications. The Dash features a 7" low glare, high brightness, high contrast, full color touch screen for easy viewing even in full sun, plug and play connection to all Holley EFI systems as well as a weather proof aluminum housing featuring flexible mounting options. Monitor the power of your Holley EFI system at a glance!
Features:
- Plug and play connection to all Holley EFI systems via CAN bus
- Compact, customizable dash for use in a variety of motorsports applications
- 7" low glare, high brightness, high contrast, full color touch screen for easy viewing even in full sun
- 800x480 resolution with auto brightness
- Operating voltage min 8V - 20V
- Weather proof aluminum housing featuring flexible mounting options
- Completely customizable display of all EFI parameters including every user configurable input and output available
- Multiple gauge and indicator types with limitless customization options
- Quickly toggle between multiple active screens (tune, warm-up, race, drive, etc.)
- Virtual Switch Panel (replaces the need for physical switches)
- User defined alarms for any input
- Configurable progressive shift lights and light bar
- Control and on screen playback of EFI data logs
- Download and save Holley EFI data logs to external USB memory stick
- Expandable internal storage on micro SD card
- Support for future USB devices
- Upgradable with future software enhancements
- Optional harness available to add physical inputs and outputs to the dash that can be used to perform multiple operations
- Integrated 3 Axis Accelerometer
Specs
| Brand | Holley EFI |
|---|---|
| Depth | 1" |
| Emission Code | 5 |
| Height | 4.625" |
| Product Type | EFI Part |
| Screen Size | 7" Diagonal |
| Screen Type | Resistive touch screen |
| Width | 7.5" |
| Part Number | 553-106 |
