Holley EFI | SKU:
550-1212

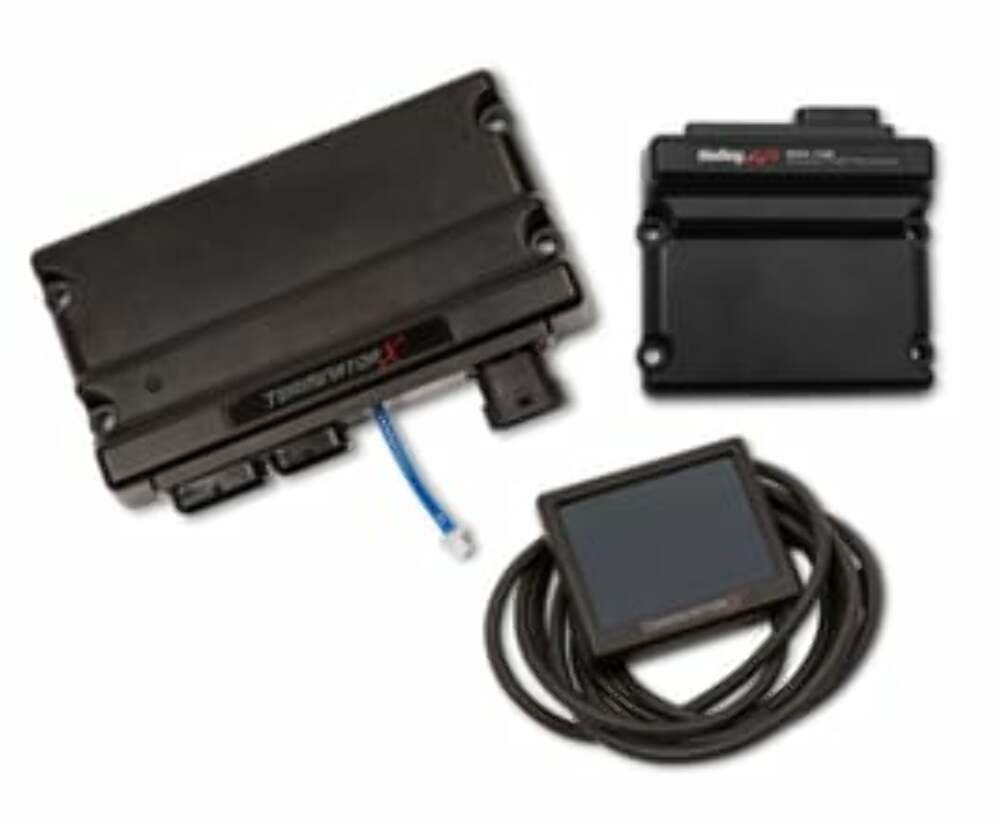

Holley EFI Terminator X - 2013-2015 Ford Coyote w/ Ti-VCT 550-1212
Regular price
$3,019.95 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley EFI Terminator X - 2013-2015 Ford Coyote w/ Ti-VCT 550-1212 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description

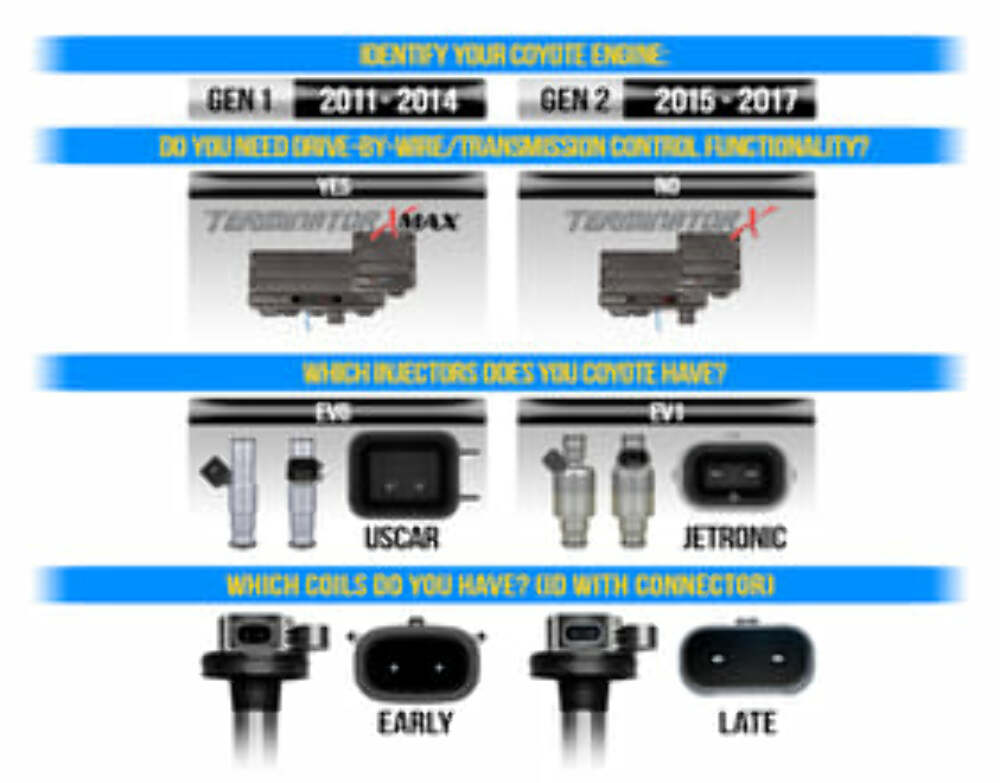

2013-2015 Ford Coyote Engines with Ti-VCT and EV1 injectors, for Early Coils
Features:
- Plug and play engine control (for Ford 5.0L Coyote with Ti-VCT (Twin Independent Variable Camshaft timing)1
- Plug and Play compatible with Holley EFI accessories ? Analog gauges, shift lights, modules, and both 6.86? and 12.3? Pro Dash2

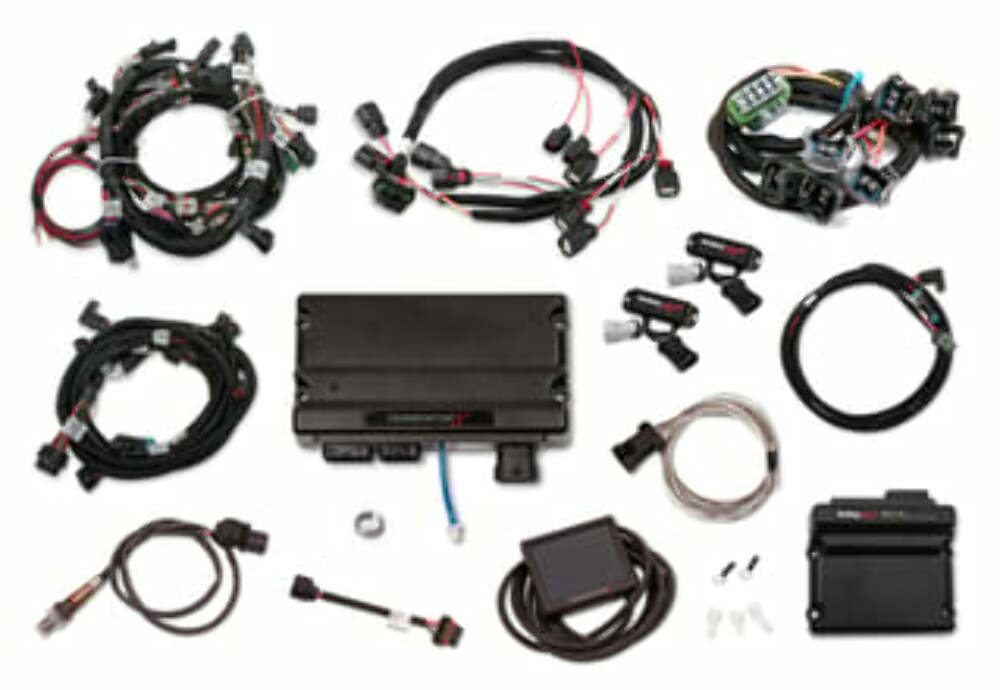

- EV1 or EV6 injector harness included (depending on your injector configuration)3
- High Impedance Injector drivers power Holley EFI and most stock injectors -Injector support chart found in instructions (will not support low impedance injectors)4
- Included Bosch LSU 4.9 wideband O2 sensors for accurate readings and precise tuning control5
- Built in 1bar MAP (manifold absolute pressure) sensor included - For Boosted applications ? internal MAP sensor can be disabled and utilize external MAP sensor harness (kit includes a terminated connector for seamless installation)6
- Vacuum hose adapters included - (1/8?, ??, and 3/16? sizes)7
- 4 inputs ? 12v, Ground, 5v, and frequency for items like pressure sensors, activation triggers, nitrous activation, or trans brake8
- Boost Control ? boost vs. time, boost vs. gear, boost vs. RPM, boost vs. speed, and boost safeties9
- Nitrous Control ? channels for wet or dry, progressive or non-progressive, rich/lean safeties, and target closed loop AFR (Air/Fuel Ratio)10
- Advanced Tables ? ( 4x 1D tables, 1x 1D gear table, 4x 2D table, and 1x 2D gear tables) for nearly unlimited table configuration options11
- On-board diagnostic LEDS - ECU power, engine run, TPS calibration, cam signal, and more! Identify critical engine parameters at a glance12
- 3.5? touchscreen handheld included - Internal data-logging, custom gauge display, and calibration wizard allow quick building bases tunes for any Domestic V8 engine13
- Compact ECU (Engine Control Unit) ? At only 7.45? x 4.1? x 1.66? the compact packaging allows mounting virtually anywhere (XMAX ECU = 9.6? x 4.1? x 1.66?). REMINDER: diagnostic LED?s must face up!14
- FREE EFI Tuning software ? For compete control of your Terminator X power plant15
Specs:
| Accelerometer Support | Yes |
|---|---|
| Boost Control | Yes |
| Brand | Holley EFI |
| CAN-BUS Support | Yes |
| Category Filter | Fuel Injection - EFI |
| Clearance Category | Fuel Injection - EFI |
| Coil Per Cylinder Ignition Support | Yes |
| Datalogging Support | Yes |
| Distributor Included | No |
| Drive-By-Wire | No |
| Dry Nitrous Control | Yes |
| e85 Support | Yes |
| EGT Support | Yes |
| Emission Code | 3 |
| Engine | Coyote |
| Forced Induction Support | Yes |
| Fuel Filter Included | No |
| Fuel Hose Included | No |
| Fuel Injectors Included | Yes |
| Fuel Pressure Regulator Included | No |
| Grade Type | Performance |
| Handheld Included | Yes |
| Ignition Coil Type | Early |
| Ignition Timing Control | Yes |
| Individual Cylinder Fuel Corrections | Yes |
| Injector Connector | Jetronic/Minitimer (Bosch EV1) |
| Intake Manifold Included | No |
| Knock Retard Support | Yes |
| Multi-Stage Nitrous Control | Yes |
| Product Type | EFI System |
| Progressive Nitrous Control | Yes |
| Self-Tuning | Yes |
| Throttle Position Sensor Included | No |
| Transmission | None |
| User-Tuneable | Yes |
| Warning | California Proposition 65 |
| Year Range | 2013-2015 |
Application:
| Year | Make | Model | Submodel |
|---|---|---|---|
