Holley EFI | SKU:
550-1080

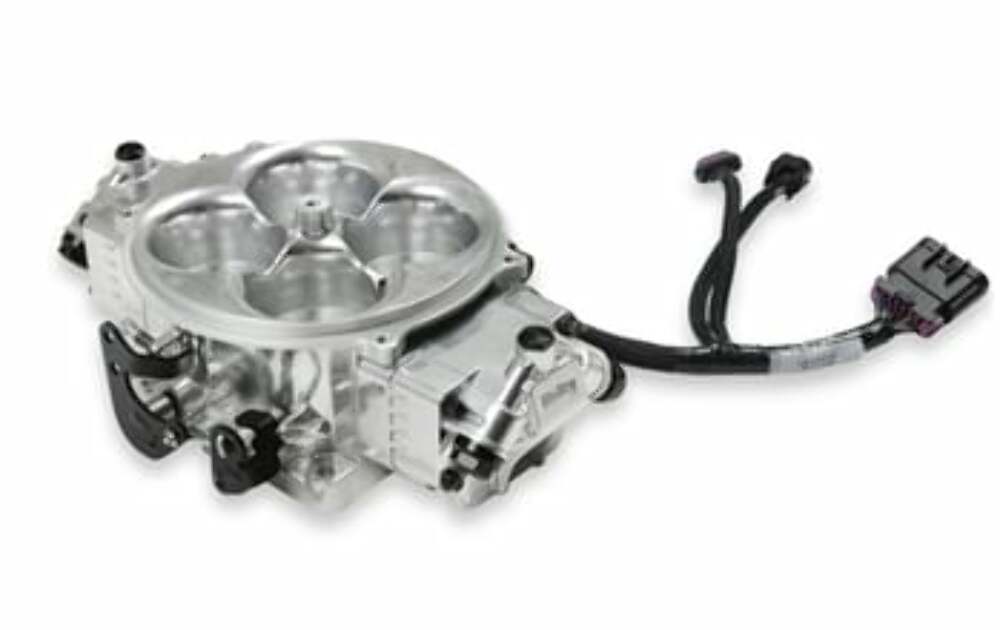

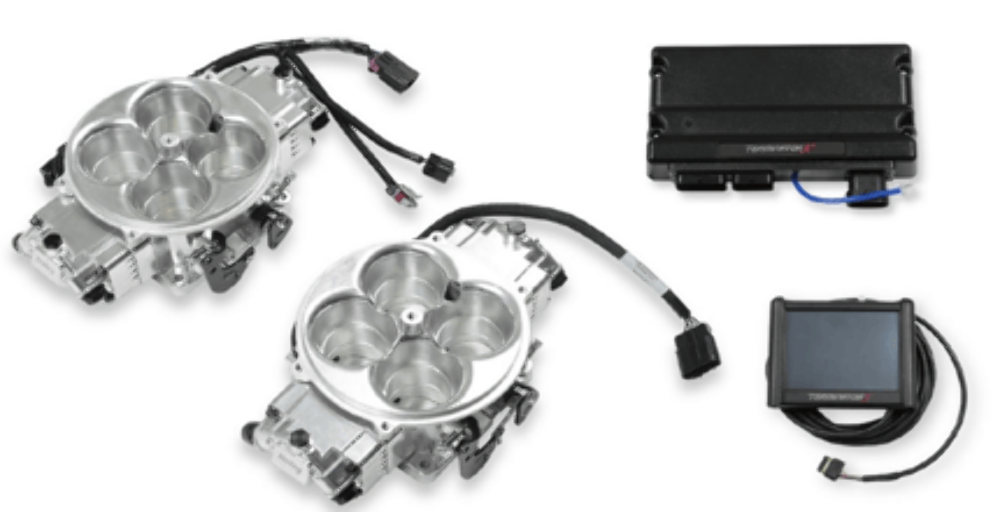

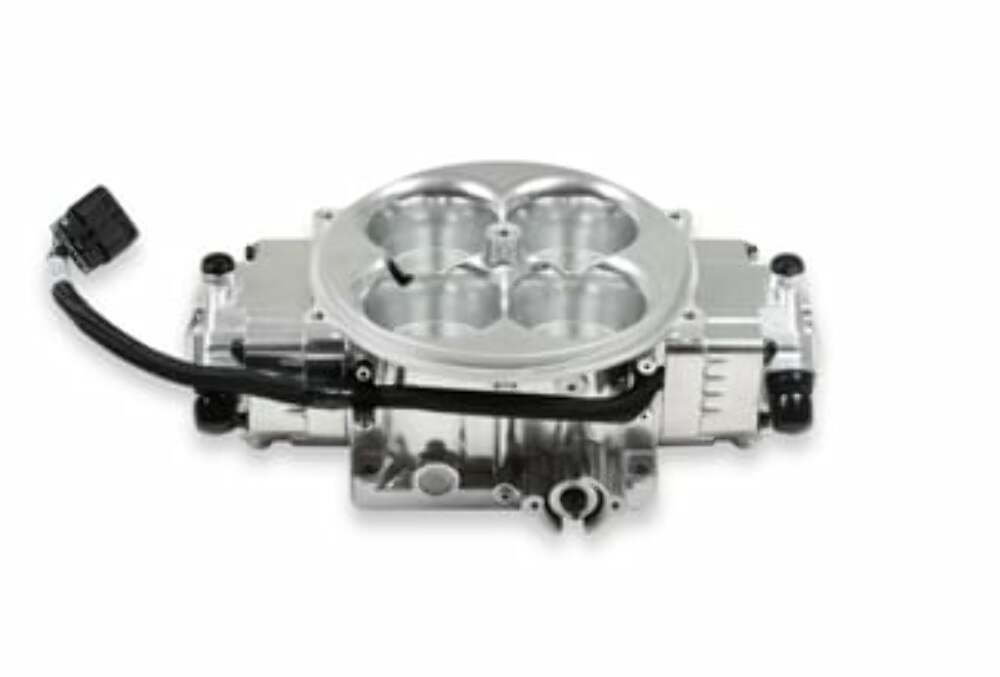

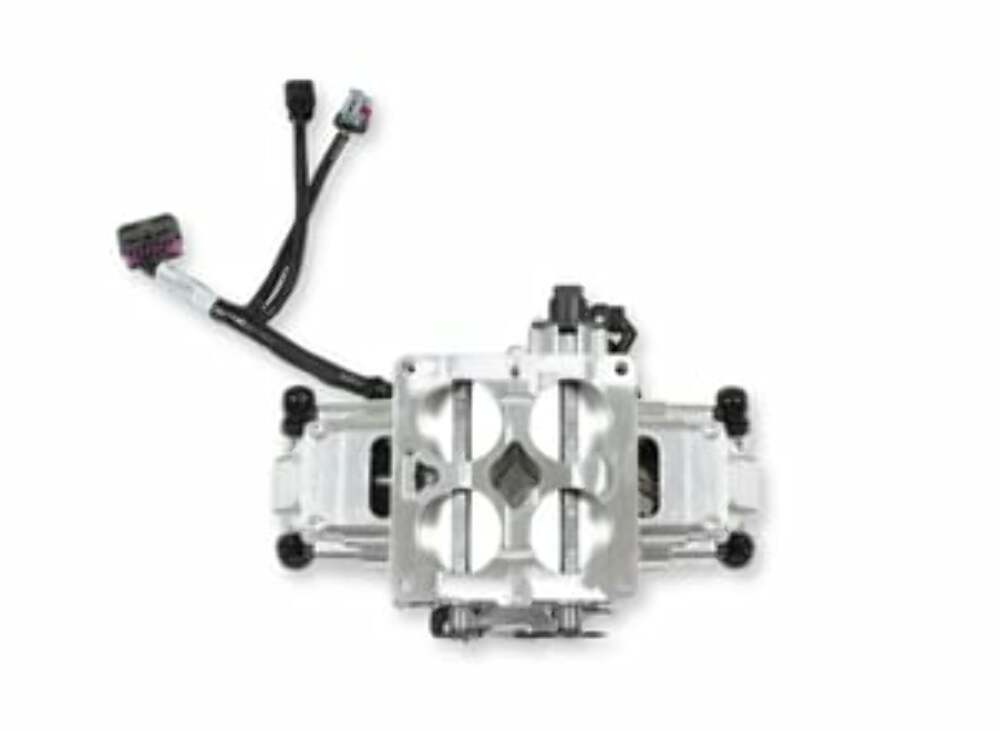

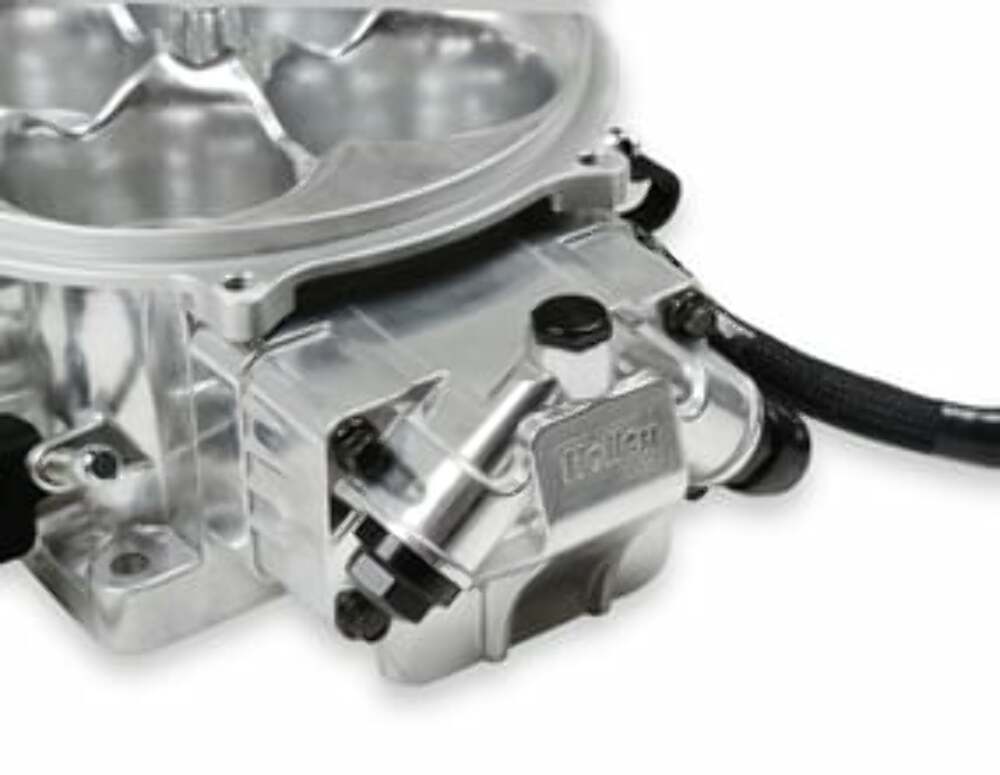

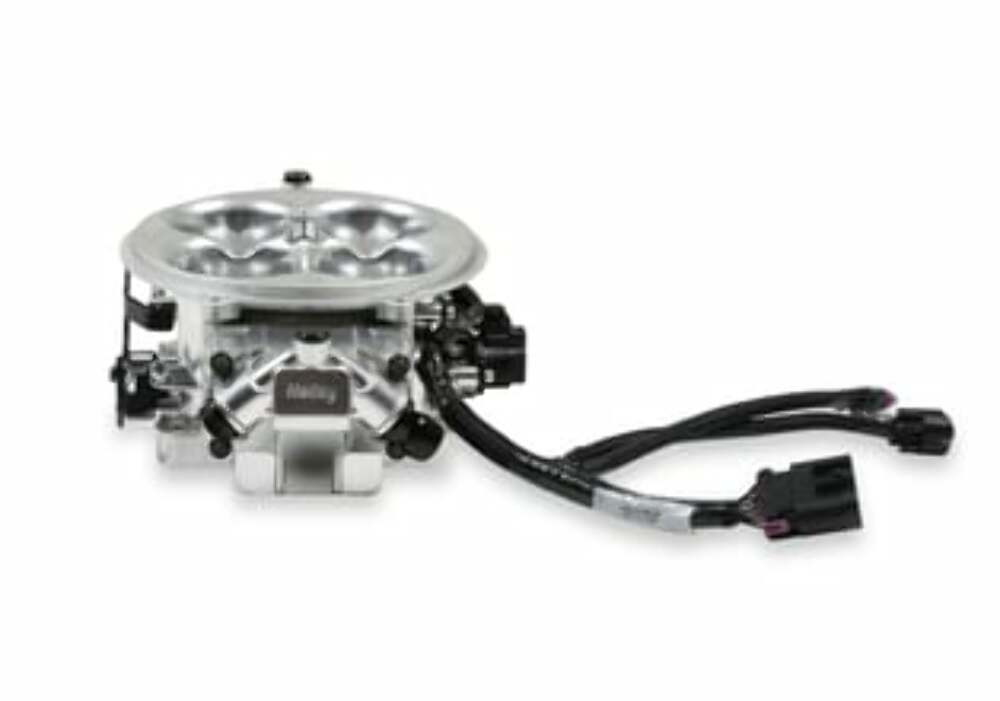

Holley EFI Terminator X Stealth 2x4 4500 Kit - Shiny 550-1080
Regular price
$3,749.95 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley EFI Terminator X Stealth 2x4 4500 Kit - Shiny 550-1080 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
8 Injectors - 800-1500 HP
Features:
- Bolt on 4500 Flange Carburetor Replacement for 2x4 intake manifolds
- 2.125" Throttle Plates, Flow 1440 CFM each for large cubic inch engines

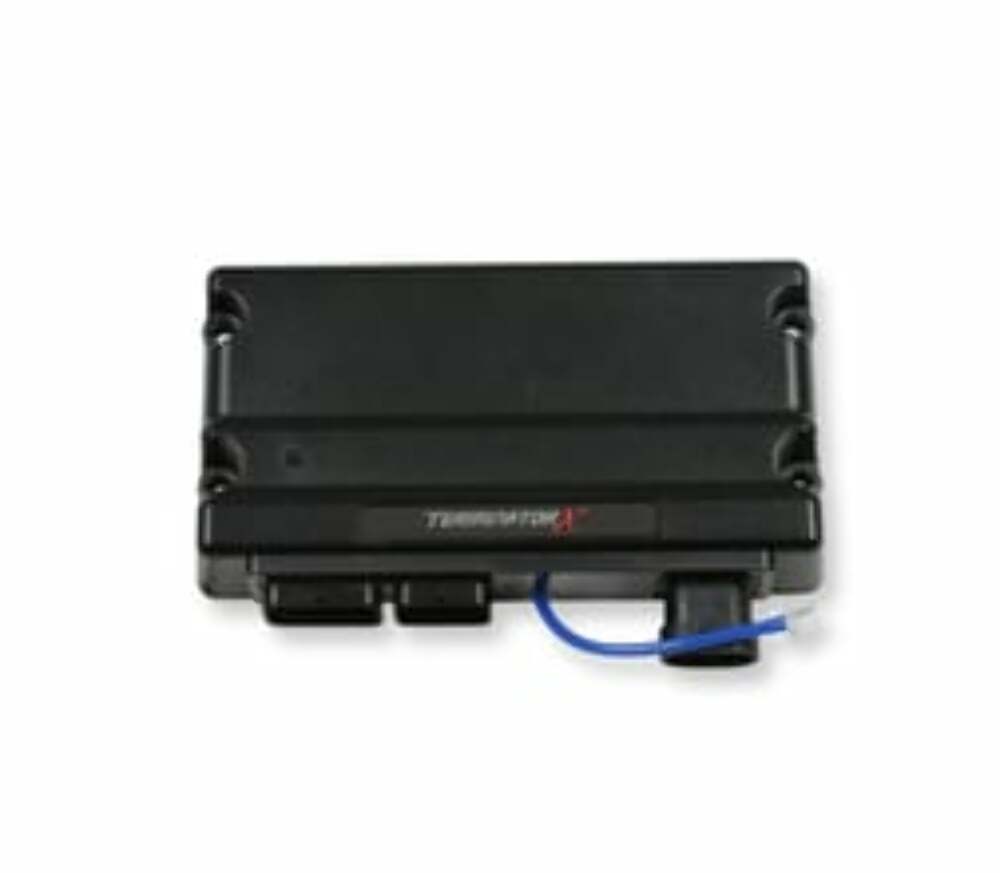

- Timing Control support integrated within the ECU using supporting components (distributor, ignition box, or crank trigger)
- Self-tuning ECU means you don’t have to be a computer/tuning wiz to have EFI!
- Plug and play with Holley EFI Accessories, such as the 12.3" and 6.86" Pro Dash; CAN EGT; and Digital Analog style EFI gauges
- Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
- The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn!
- Supports up to 1500 HP Naturally Aspirated or 1250 HP Forced Induction with Eight 100 Lb/Hr Injectors
- Gen 3 Ultra Dominator Style 4 Bolt Air Cleaner Flange offering a variety of air cleaner options
- Each throttle body contains 4x 100lb/hr fuel injectors

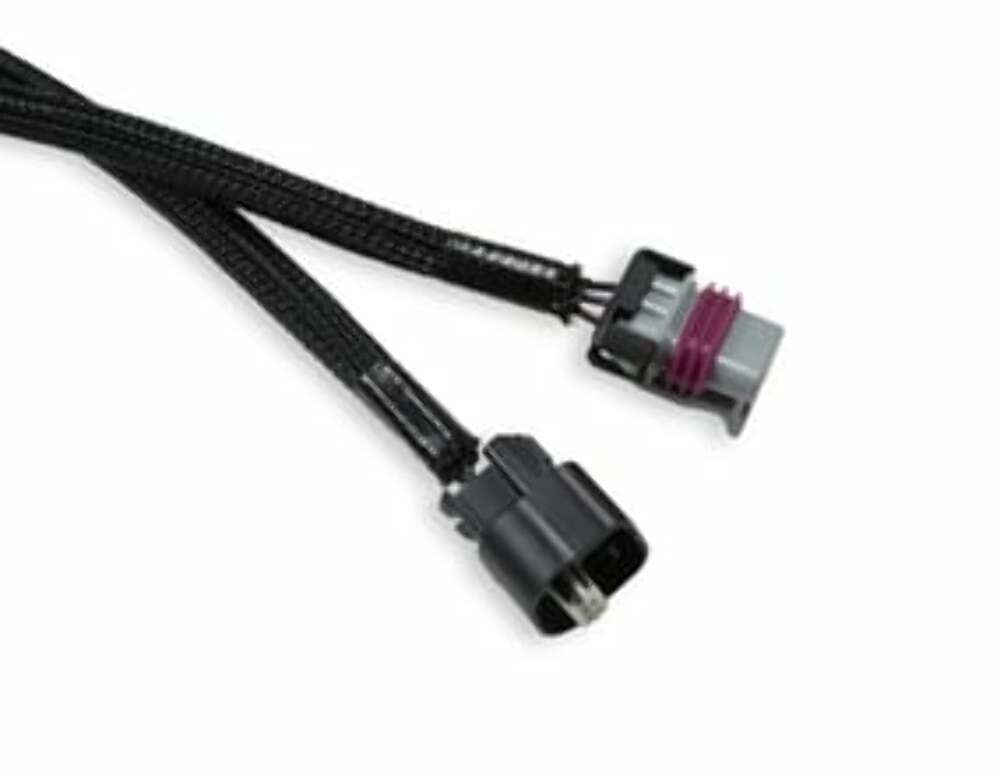

- Universal engine harness allows you to easily install the Terminator X 2x4 4500 system on a wide variety of engine combinations

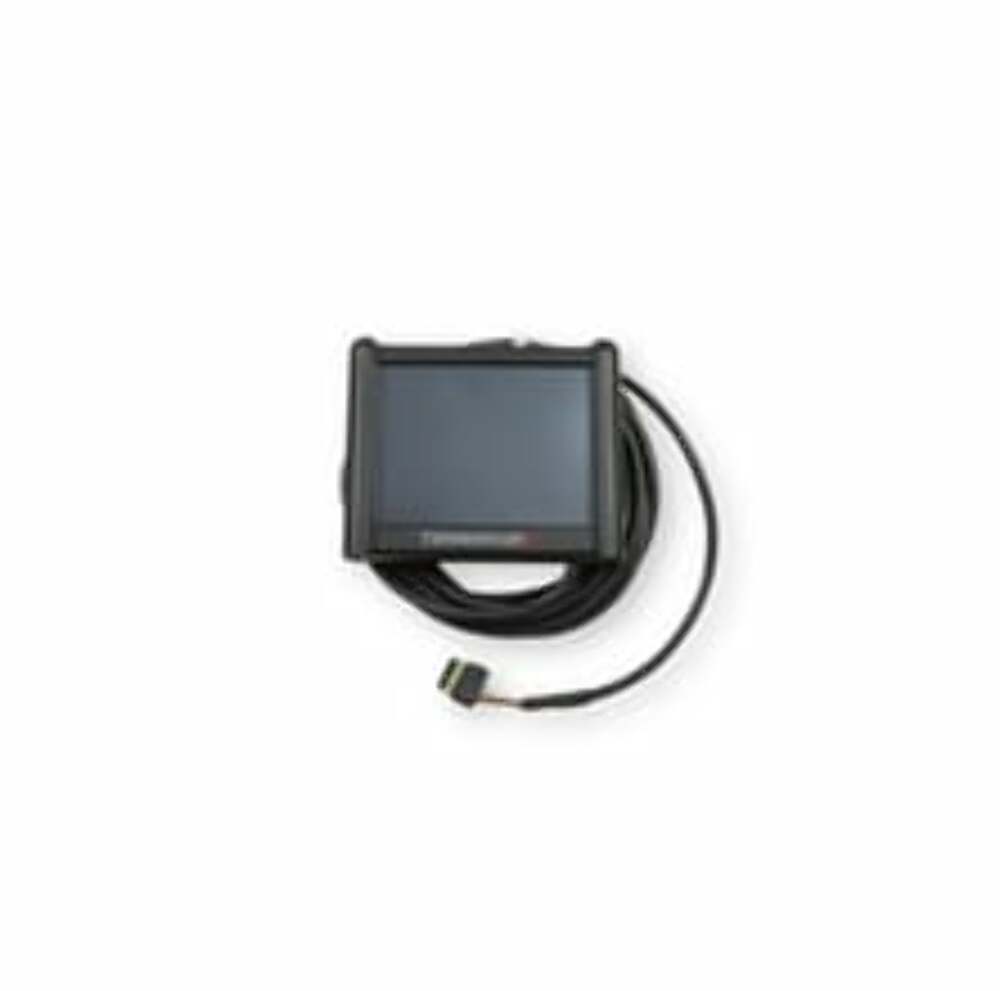

- High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
- Available in 2 finishes, Shiny and Black
- External fuel pressure regulator required, such as 12-848
- Included weld-in O2 sensor bung for the exhaust ensures a leak free oxygen sensor installation
- Throttle Linkage not included
Specs:
| Accelerometer Support | Yes |
|---|---|
| Boost Control | Yes |
| Brand | Holley EFI |
| CAN-BUS Support | Yes |
| CFM | 2880 |
| Coast Guard Approved | No |
| Coil Per Cylinder Ignition Support | Yes |
| Color | Shiny |
| Datalogging Support | Yes |
| Distributor Included | No |
| Dry Nitrous Control | Yes |
| e85 Support | No |
| EGT Support | Yes |
| Emission Code | 3 |
| Finish | Shiny |
| Flange Size | 4500 |
| Flange Style | Dominator |
| Forced Induction HP@60PSI | 1250 |
| Forced Induction Support | Yes |
| Fuel Filter Included | No |
| Fuel Hose Included | No |
| Fuel Injectors Included | Yes |
| Fuel Pressure | 58.5 PSI |
| Fuel Pressure Regulator Included | No |
| Fuel Pump Included | No |
| Fuel System | Not Included |
| Fuel System Type | Not Included |
| Grade Type | Performance |
| Handheld Included | Yes |
| Height | 3.85" |
| Horsepower Rating (HP) | 1500 |
| Ignition Timing Control | Yes |
| Ignition Type | Universal |
| Individual Cylinder Fuel Corrections | No |
| Injector Size | 100 lb/hr @ 58.5 PSI |
| Inlet / Outlet Size | 8AN |
| Intake Manifold Included | No |
| Knock Retard Support | Yes |
| MAP Sensor | 1bar |
| Max Horsepower Rating | 1500+ |
| Multi-Stage Nitrous Control | Yes |
| Naturally Aspirated HP@60PSI | 1500 |
| PDM | No |
| Power Distribution Module | No |
| Product Type | EFI System |
| Progressive Nitrous Control | Yes |
| Sale Category | Air and Fuel Delivery |
| Self-Tuning | Yes |
| Terminator LS Options | Fuel, Spark |
| Throttle Bore | 2.125 in. |
| Throttle Position Sensor Included | Yes |
| Traction Control Support | Yes |
| Transmission | N/A |
| User-Tuneable | Yes |
| Warning | California Proposition 65 |
| Wet Nitrous Control | Yes |
Application:
| Year | Make | Model | Submodel |
|---|---|---|---|
