Holley EFI | SKU:
550-1074

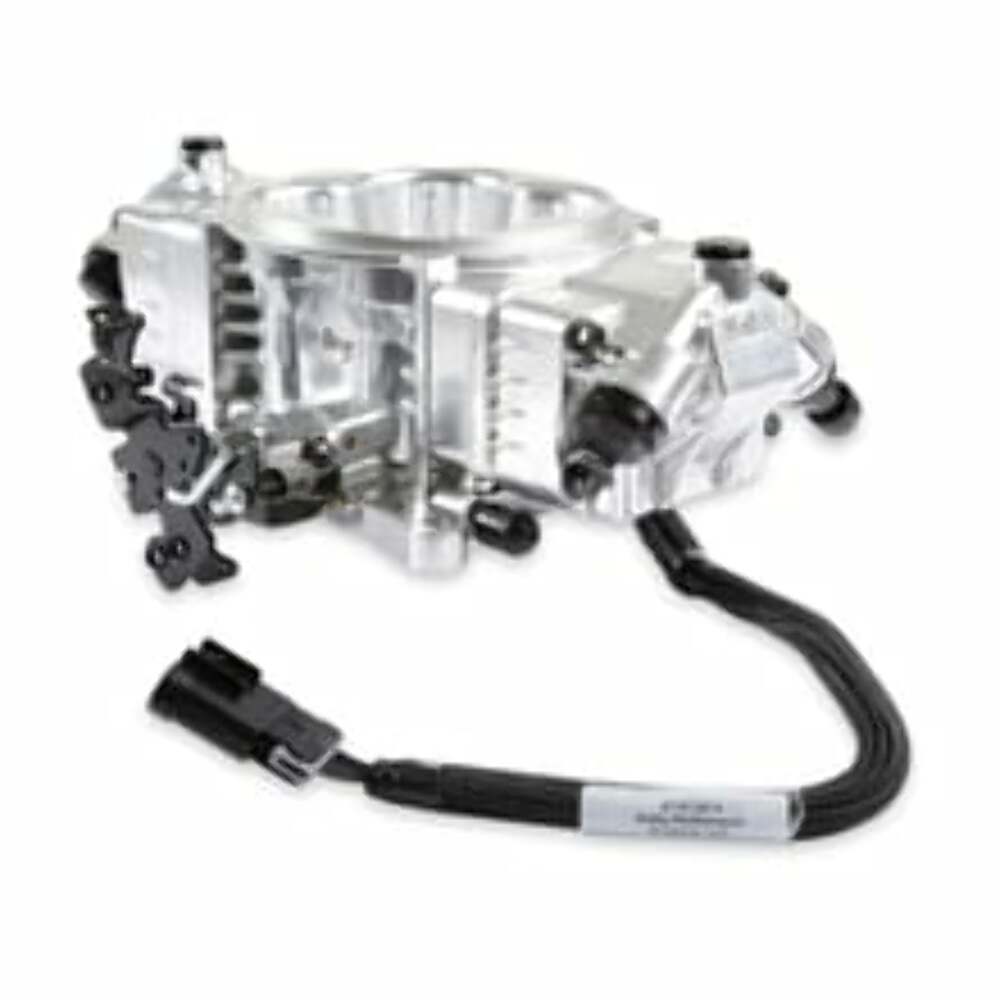

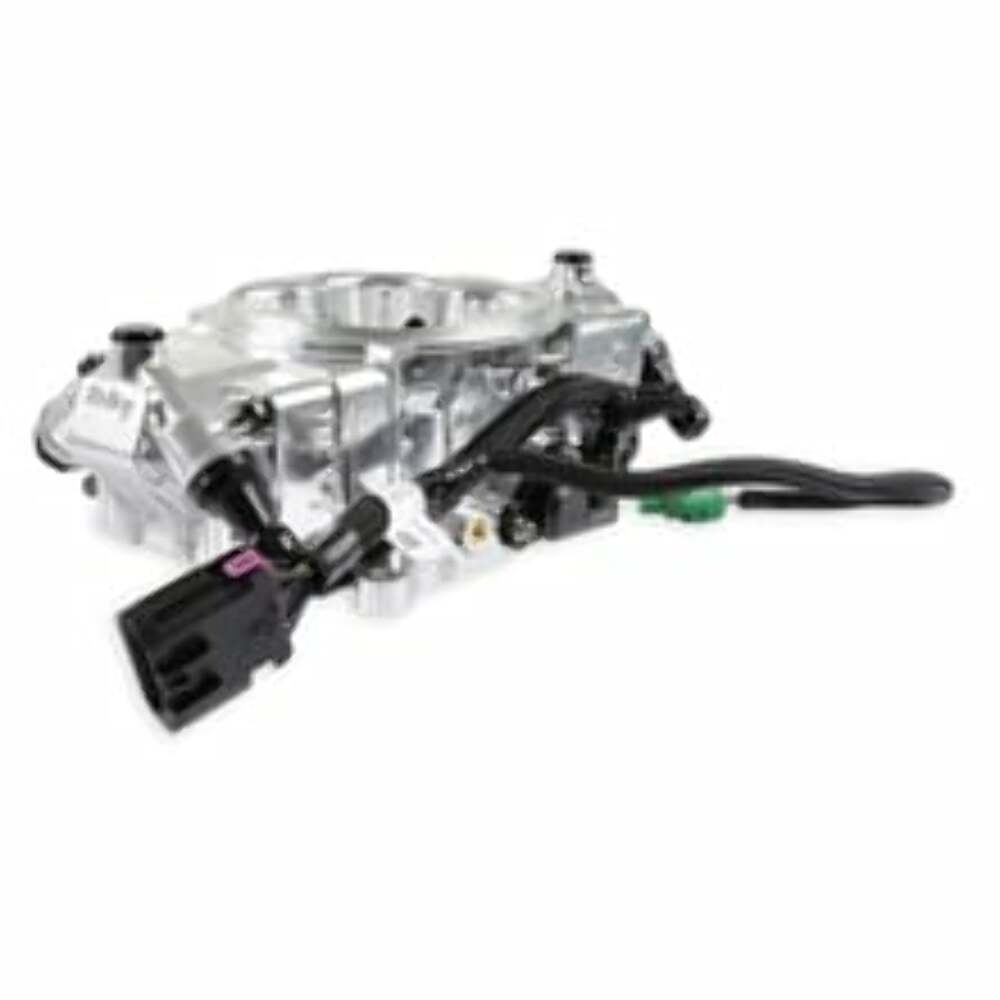

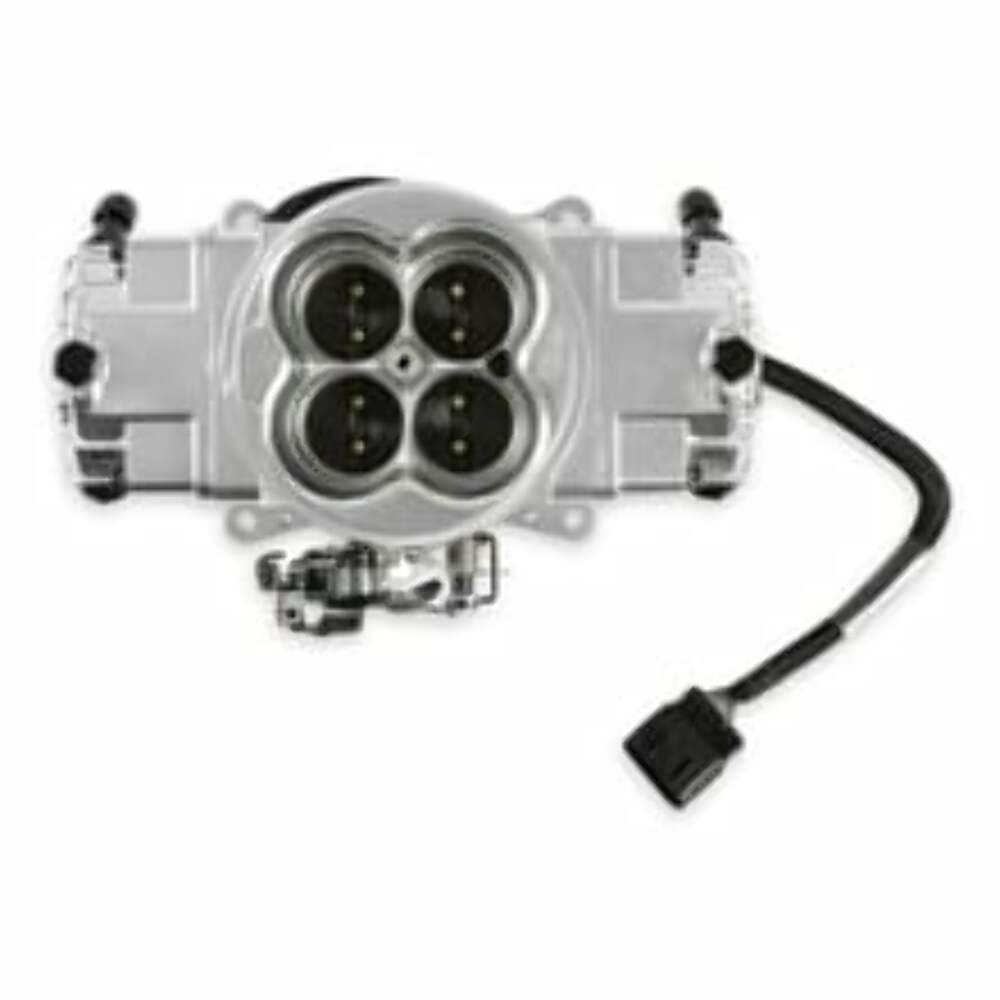

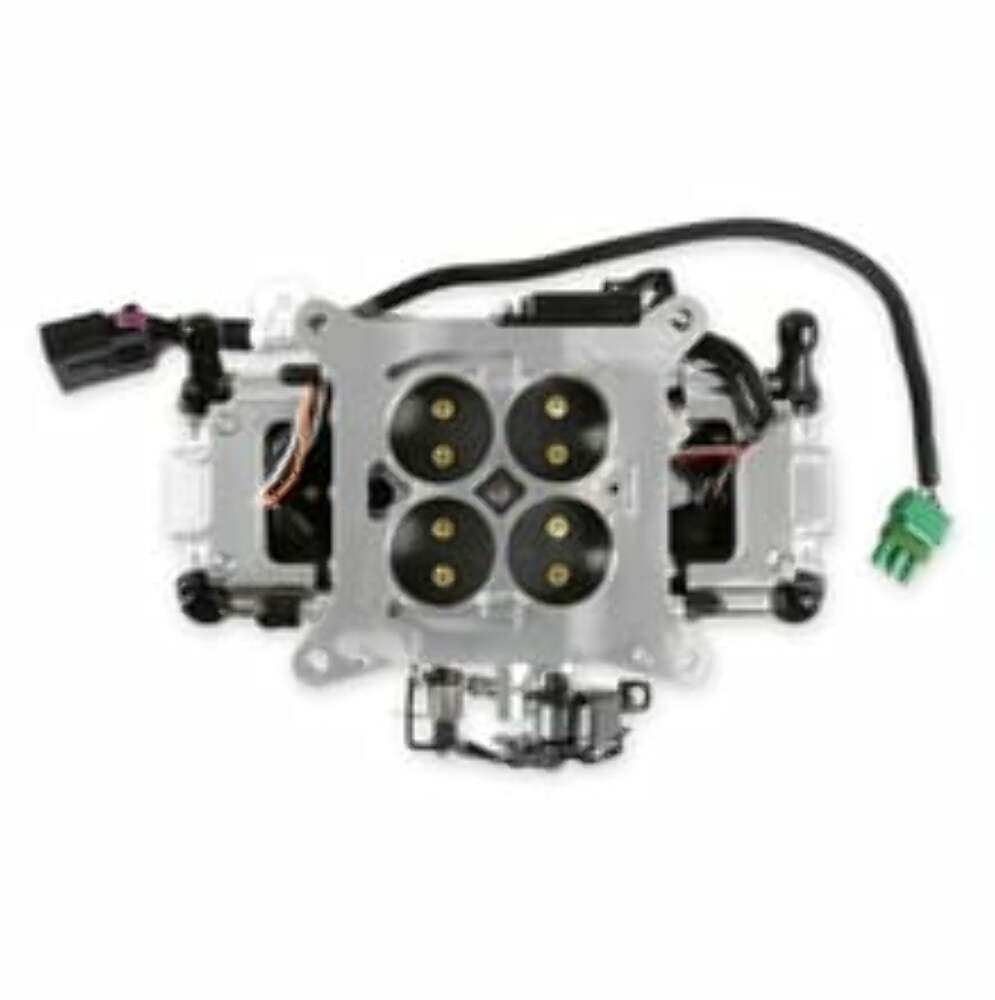

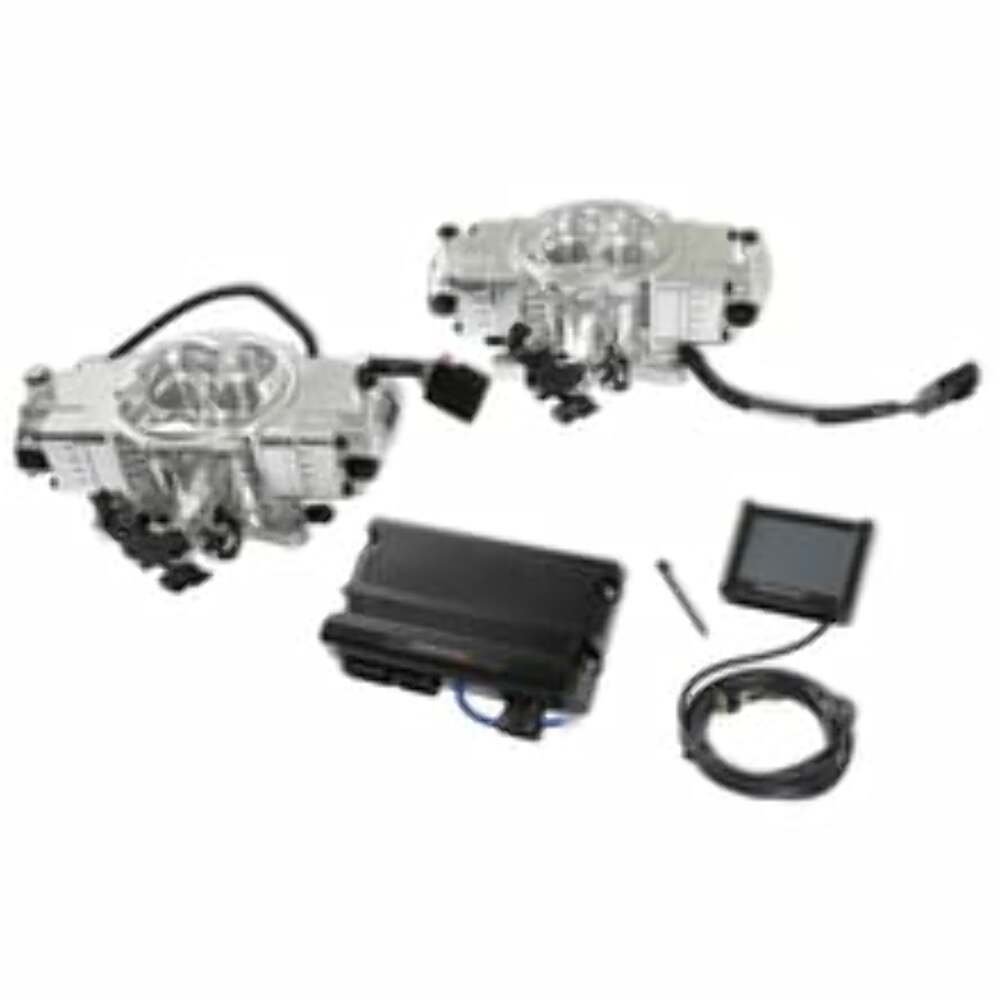

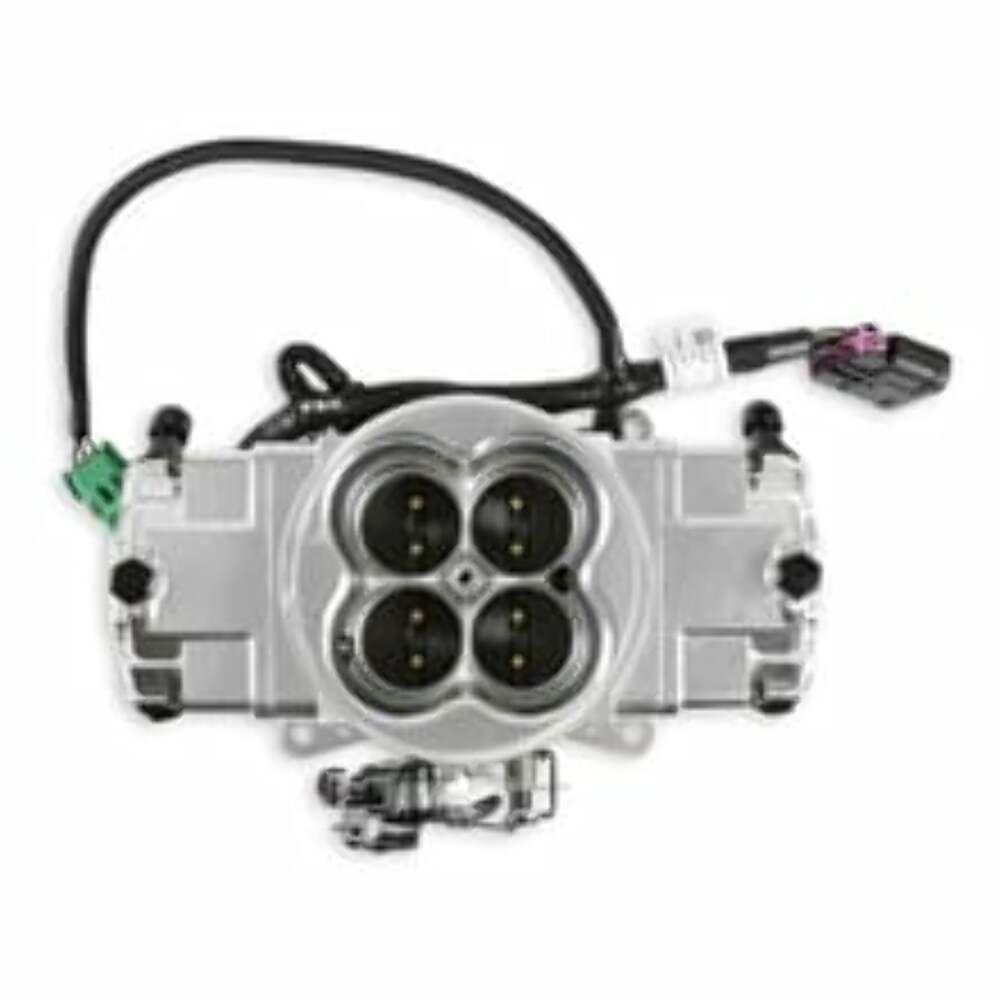

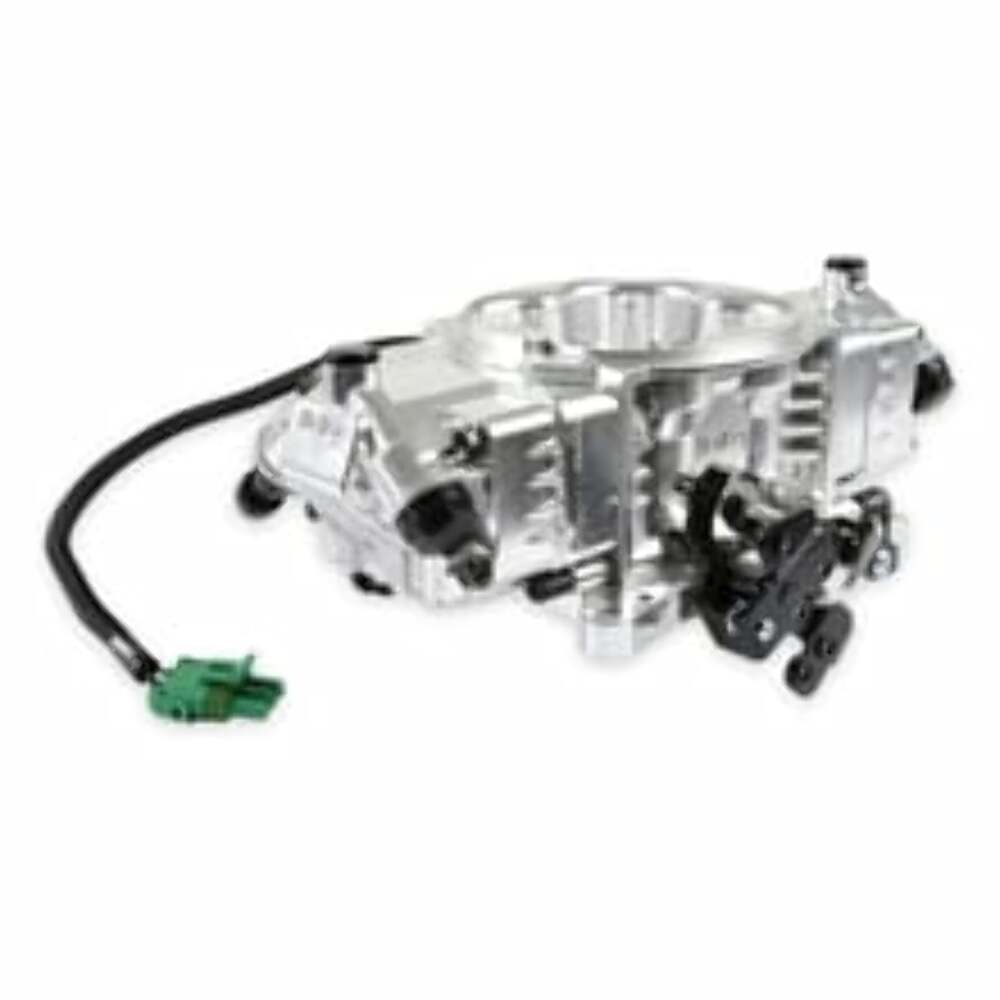

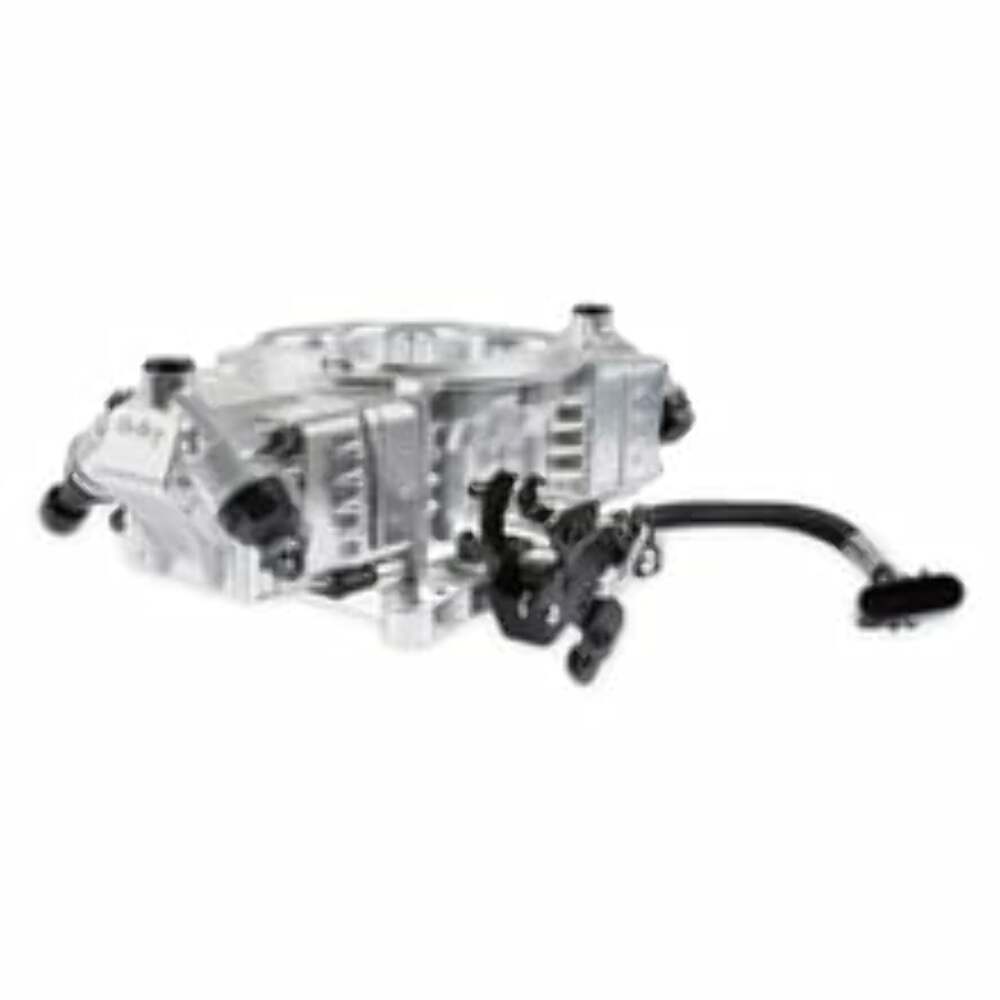

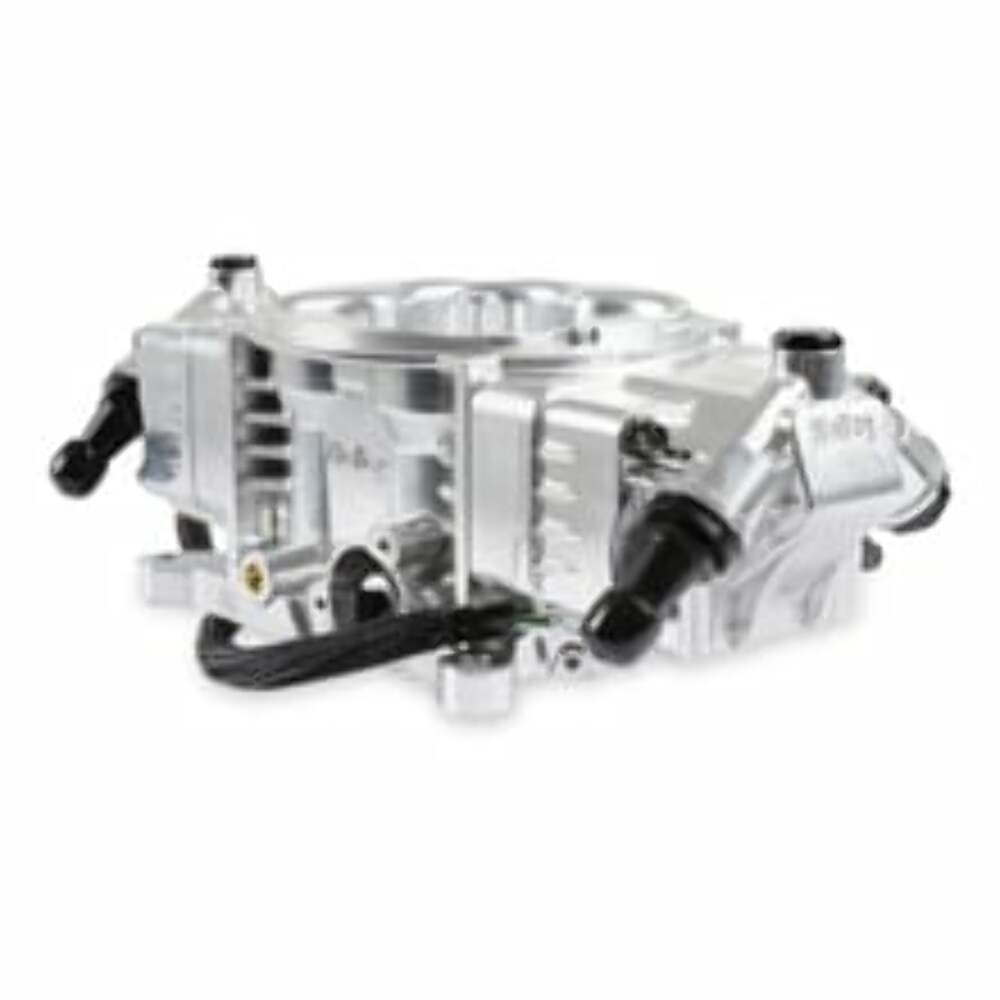

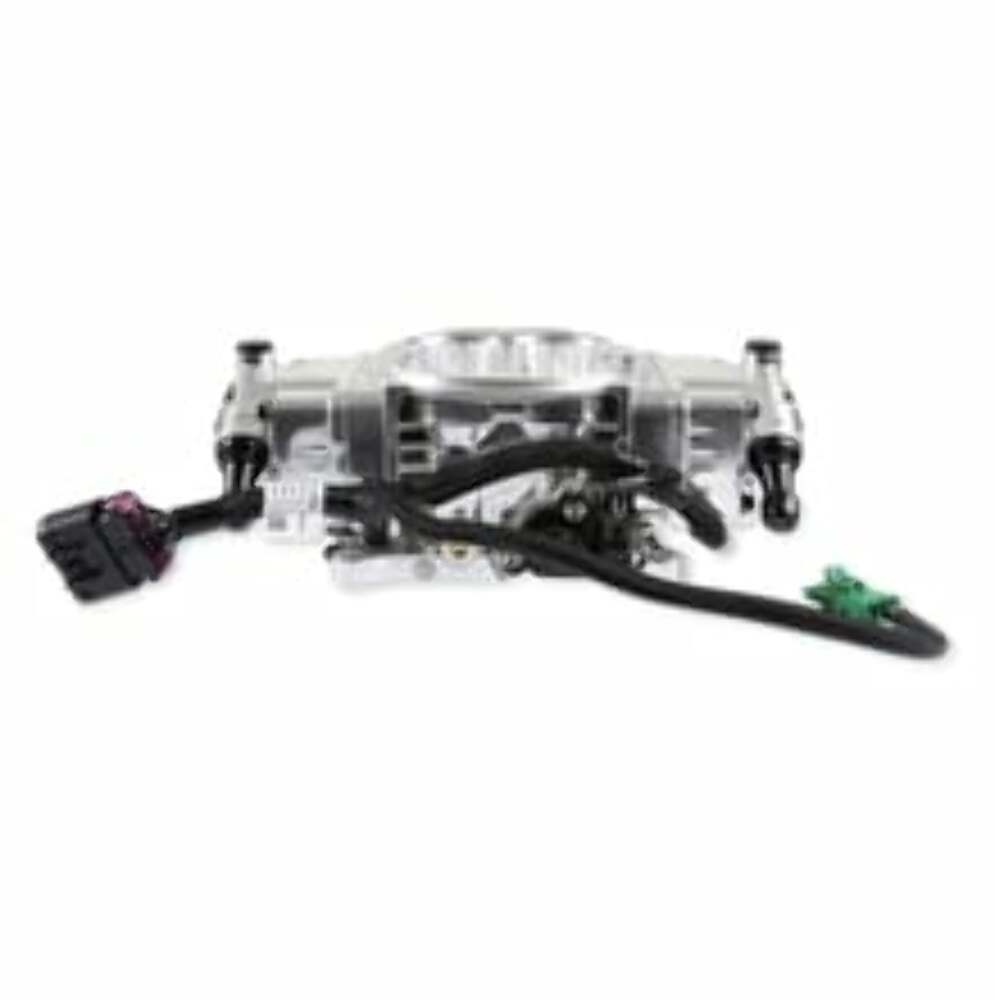

Holley EFI Terminator X Stealth 4150 2x4 - Shiny 550-1074
Regular price
$3,149.95 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Holley EFI Terminator X Stealth 4150 2x4 - Shiny 550-1074 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
8 Injectors - 800-1500 HP
Features:
- Bolt on 2x4 4150 Flange Carburetor Replacement
- Supports up to 1500 HP Naturally Aspirated or 1250 HP Forced Induction with Eight 100 Lb/Hr Injectors
- Internal 1bar MAP sensor, built into the Terminator X ECU
- External fuel pressure regulator required, set to a base pressure of 58.5 PSI, such as Holley part # 12-886
- Integrated ignition timing control
- High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
- Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
- Self-tuning ECU means you don?t have to be a computer/tuning wiz to have EFI!
- The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn!
- OEM Style TPS/IAC and Fuel Pressure regulator, for years of dependable service
- Included weld-in O2 sensor bung for the exhaust ensures a leak free oxygen sensor installation
- Plug and play with Holley EFI Accessories, such as the 12.3? and 6.86? Pro Dash; CAN EGT; and Digital Analog style EFI gauges
- Available in 3 finishes: Shiny, Black, and Gold
Specs:
| Accelerometer Support | Yes |
|---|---|
| Boost Control | Yes |
| Brand | Holley EFI |
| CAN-BUS Support | Yes |
| CFM | 950 |
| Coil Per Cylinder Ignition Support | Yes |
| Color | Shiny |
| Datalogging Support | Yes |
| Distributor Included | No |
| Dry Nitrous Control | Yes |
| e85 Support | No |
| EGT Support | Yes |
| Emission Code | 3 |
| Finish | Shiny |
| Flange Size | 4150 |
| Flange Style | Squarebore |
| Forced Induction Support | Yes |
| Fuel Filter Included | No |
| Fuel Hose Included | No |
| Fuel Injectors Included | Yes |
| Fuel Pressure | 58.5 PSI |
| Fuel Pressure Regulator Included | No |
| Fuel Pump Included | No |
| Grade Type | Performance |
| Handheld Included | Yes |
| Ignition Timing Control | Yes |
| Ignition Type | Universal |
| Individual Cylinder Fuel Corrections | No |
| Injector Size | 100 lb/hr @ 58.5 PSI |
| Inlet / Outlet Size | 6AN |
| Intake Manifold Included | No |
| Knock Retard Support | Yes |
| MAP Sensor | 1bar |
| Max Horsepower Rating | 1500+ |
| Multi-Stage Nitrous Control | Yes |
| Product Type | EFI System |
| Progressive Nitrous Control | Yes |
| Sale Category | Air and Fuel Delivery |
| Self-Tuning | Yes |
| Terminator LS Options | Fuel, Spark |
| Throttle Bore | 1.75 in. |
| Throttle Position Sensor Included | Yes |
| Traction Control Support | Yes |
| Transmission | N/A |
| User-Tuneable | Yes |
| Warning | California Proposition 65 |
| Wet Nitrous Control | Yes |
Application:
| Year | Make | Model | Submodel |
|---|---|---|---|
