Holley Hi-Ram Base, Big Block Chevy 300-961
Holley Hi-Ram Base, Big Block Chevy 300-961 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description

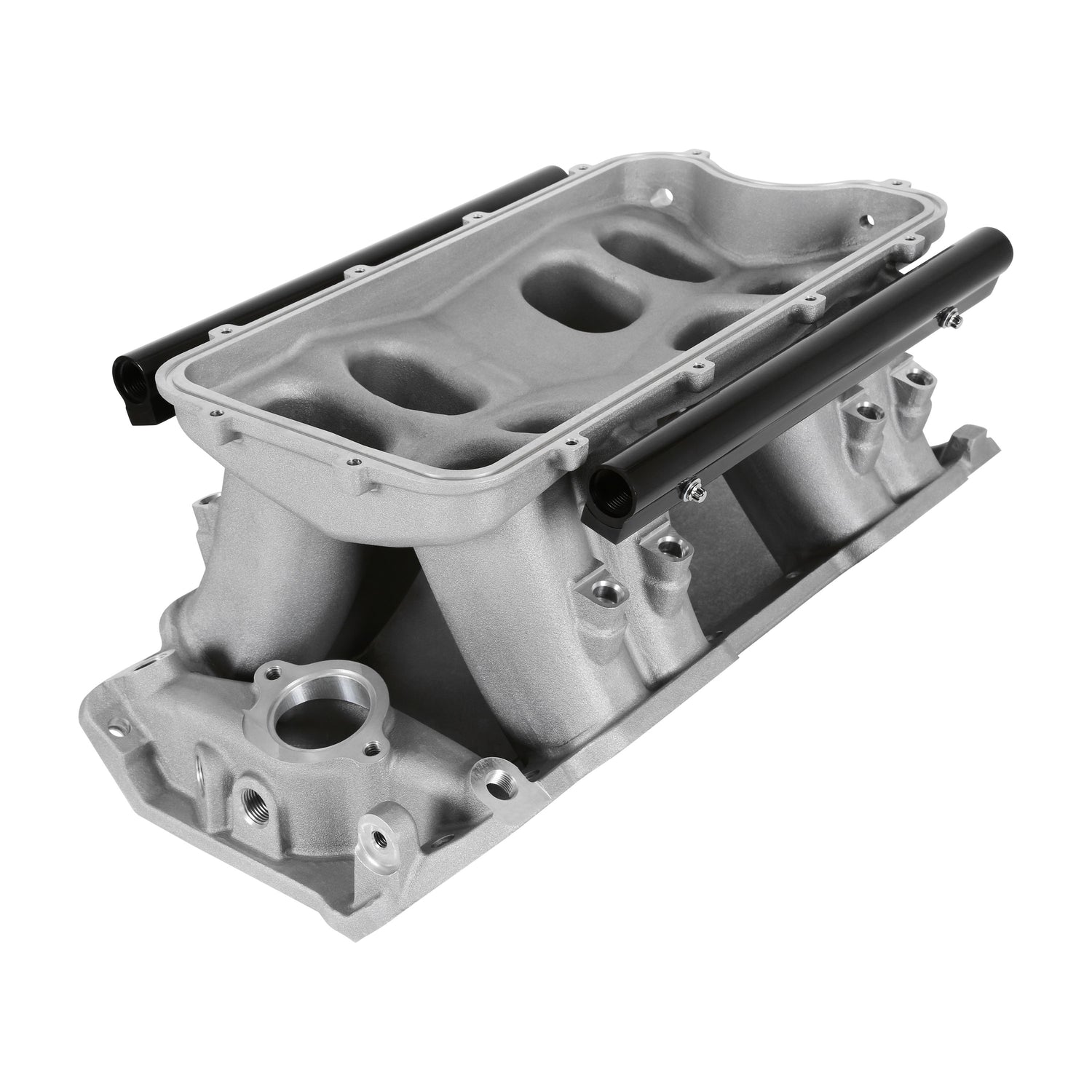

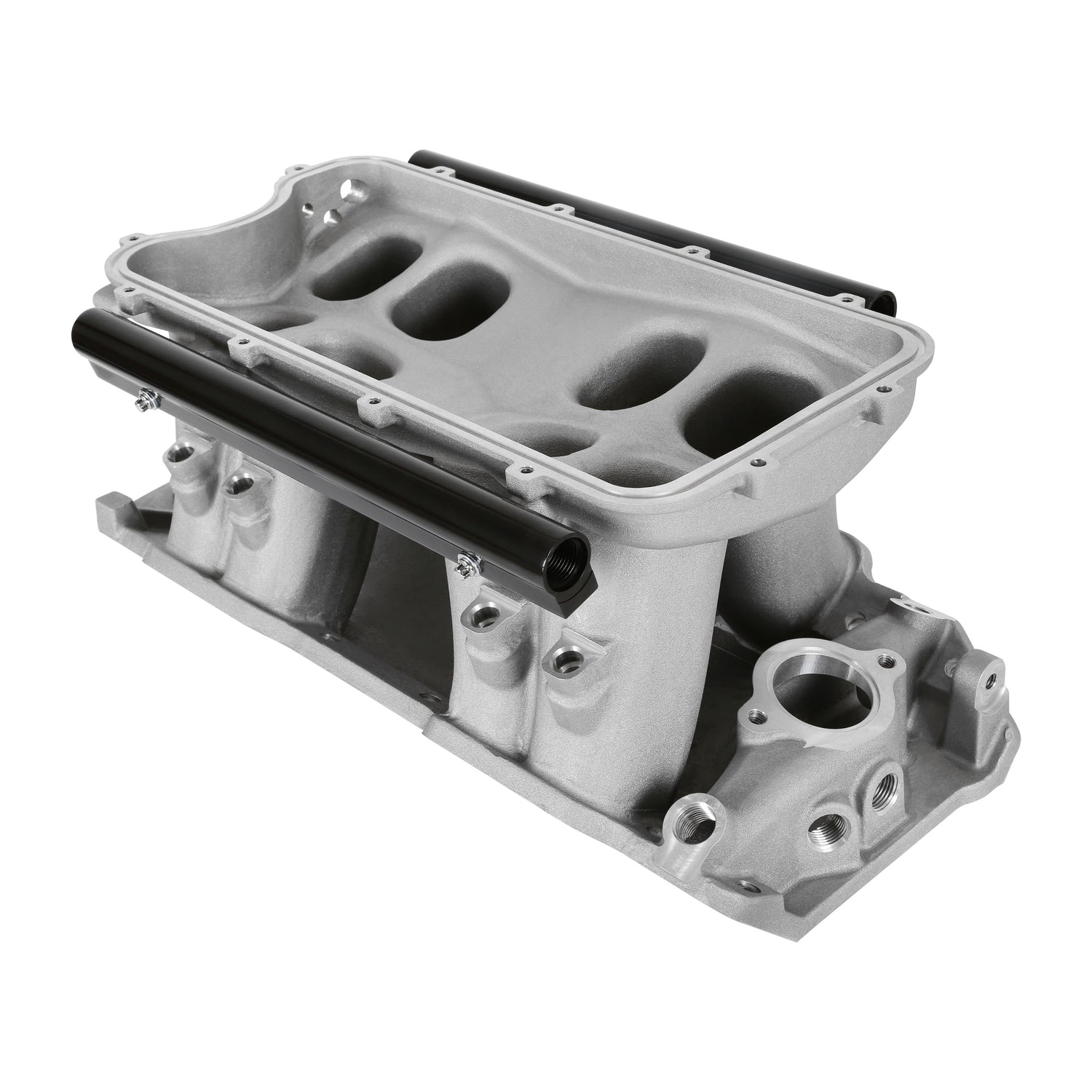

Hi-Ram EFI Base for 1965 & later 396-502+ MKIV-MKVI Big Block Chevy engines with standard intake flange rectangle-port cylinder heads
Holley Hi-Ram EFI intake manifolds are now available for 1965 & later 396-502+ MKIV-MKVI Big Block Chevy engines with standard intake flange rectangle-port cylinder heads. Traditional Big Block Chevy engines can now also be fitted with the Holley Brand Hi-Ram type EFI intake manifolds that have so well served GM LS & LT, Gen 3 Hemi, SBF Ford, and Ford Coyote engine platforms. The iconic Chevy SBC & BBC platforms are primed for 21st century induction systems, Holley EFI engine management, and Holley fuel systems.
Features:
- Designed for 1965 & later 396-502+ MKIV-MKVI standard 9.80? deck height Big Block Chevy engines with standard intake flange rectangle-port cylinder heads.
- MAP sensor port is for a GM Gen IV LS MAP sensor, manifold also has provisions for (1) 1/8 NPT, (1) 1/4 NPT, (1) 3/8 NPT fittings to the plenum
- The coolant outlet is a standard Chevy thermostat housing flange. and (2) 1/2 NPT and (1) 3/8 NPT coolant ports are provided.
- Power Band: 1500-8000 RPM
- Black anodized EFI fuel rails are machined for -10AN O-ring fittings and come included with these EFI Hi-Ram kits.
- Cast 356-T6 Aluminum Construction, Natural, Satin As-Cast Aluminum Finish
- Requires the use of early type GM or small cap MSD or Holley Distributors. Not compatible with HEI distributors
- 2.40? tall x 1.60? wide port flange openings, uses Mr. Gasket intake manifold gasket #5817
Specs:
| Basic Operating RPM Range | 1500-8000 |
|---|---|
| Brand | Holley |
| Carburetor Studs Included | No |
| Category | Intake Manifolds |
| CNC Ported | No |
| Color | Natural |
| Construction | Cast |
| Cylinder Head Port Shape | Rectangle |
| EGR Port | No |
| Emission Code | 3 |
| Engine | Chevy Big Block V8 |
| Finish | Natural |
| Fuel Injectors Included | No |
| Fuel Rail(s) Included | Yes |
| Fuel System Type | EFI |
| Gasket Or Seal Included | Yes |
| Grade Type | Performance |
| Manifold Type | Hi-Ram |
| Material | Aluminum |
| Nitrous Bung(s) Included | No |
| Plenum Finish | Natural |
| Product Type | Intake Manifold Base |
| Removable Runners | No |
| Removable Top/Lid | Yes |
| RPM Power Band | 1500-8000 |
| Single Or Dual Plane Type | Single Plane |
| Throttle Body Included | No |
| Type of Component | Lower Manifold |
| Warning | California Proposition 65 |
| Warranty | Limited 90 Day |
