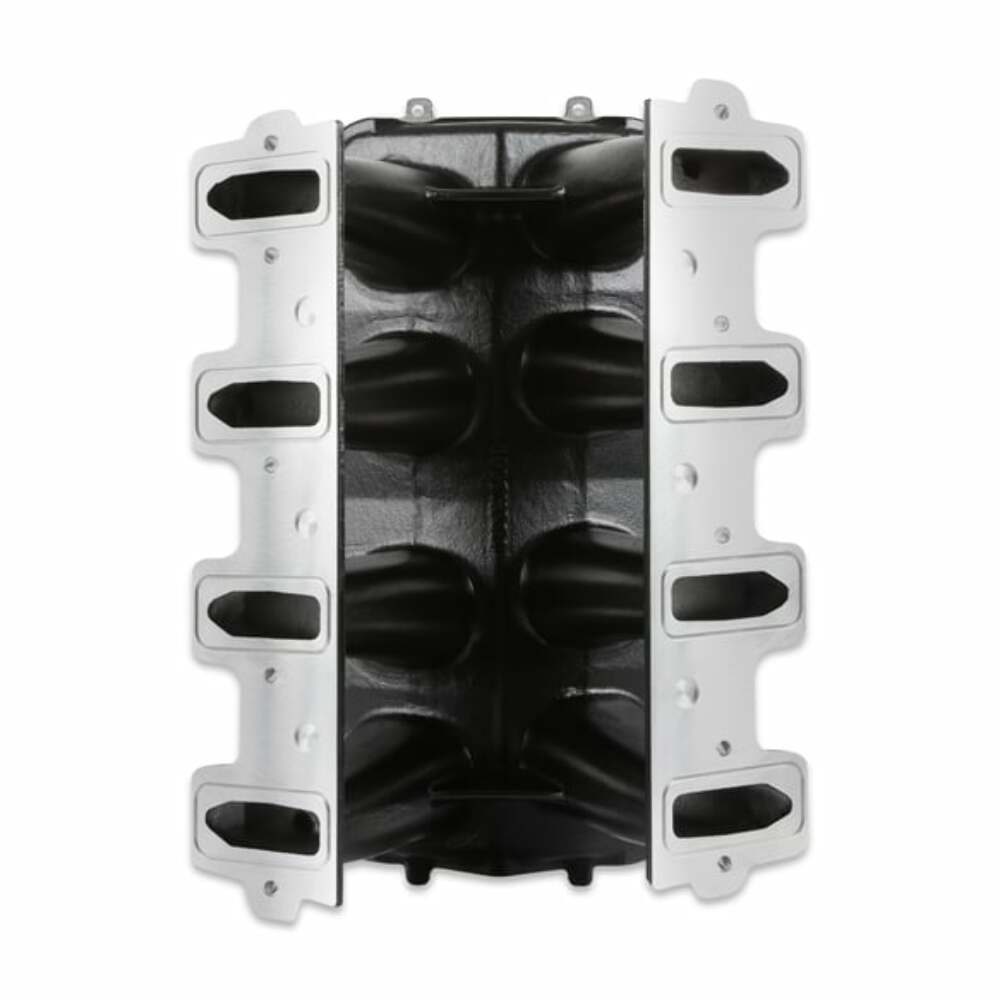

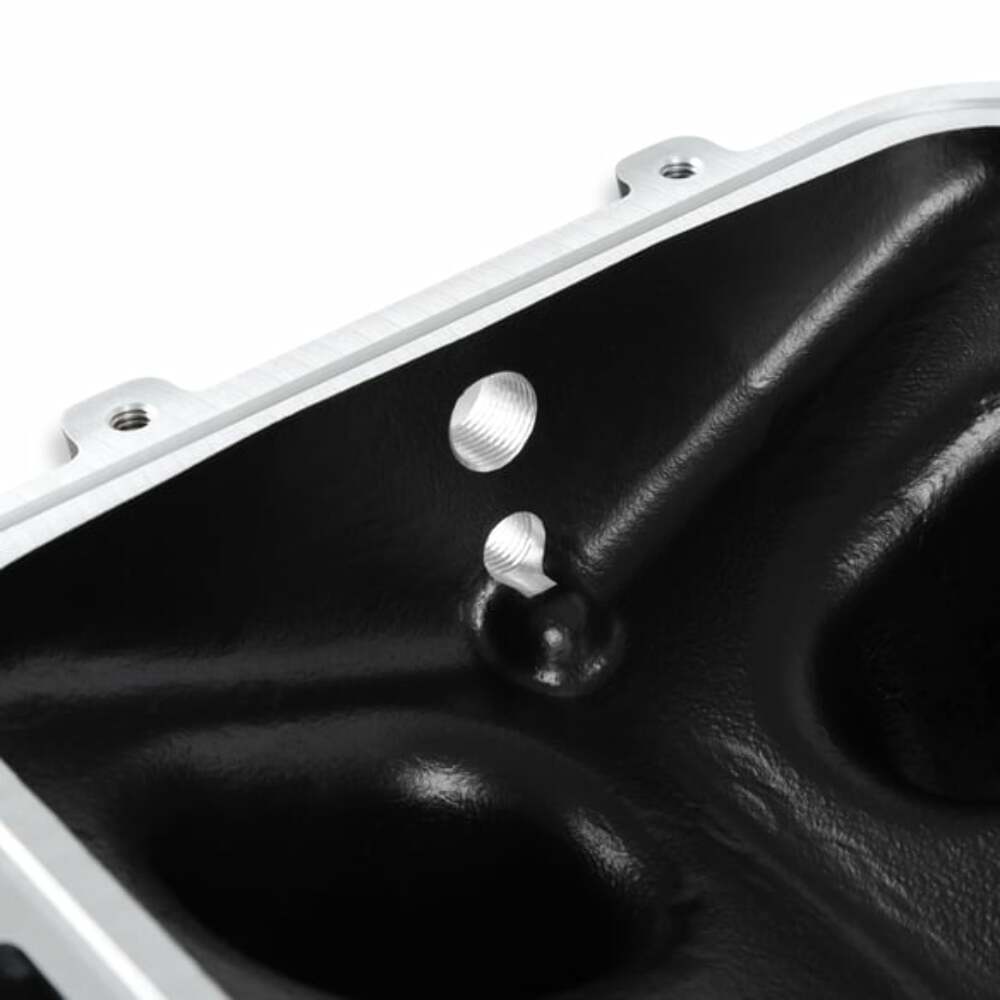

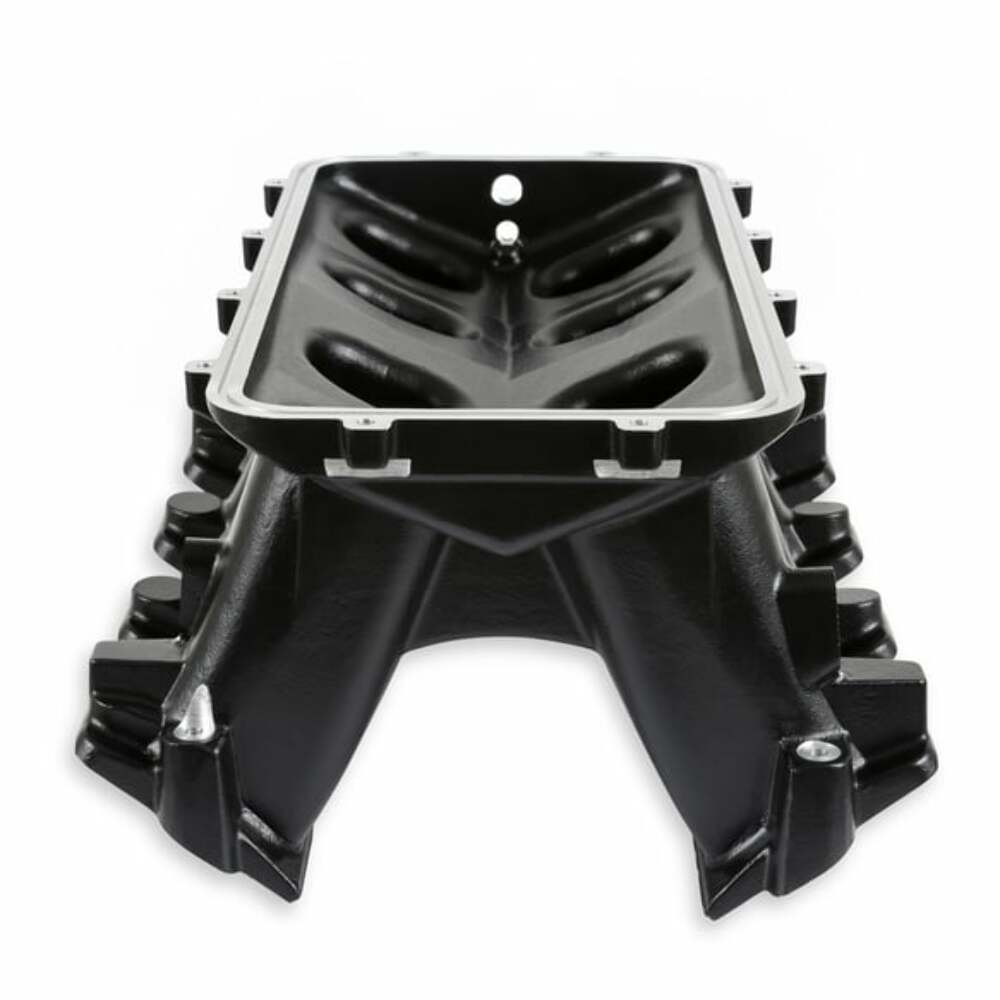

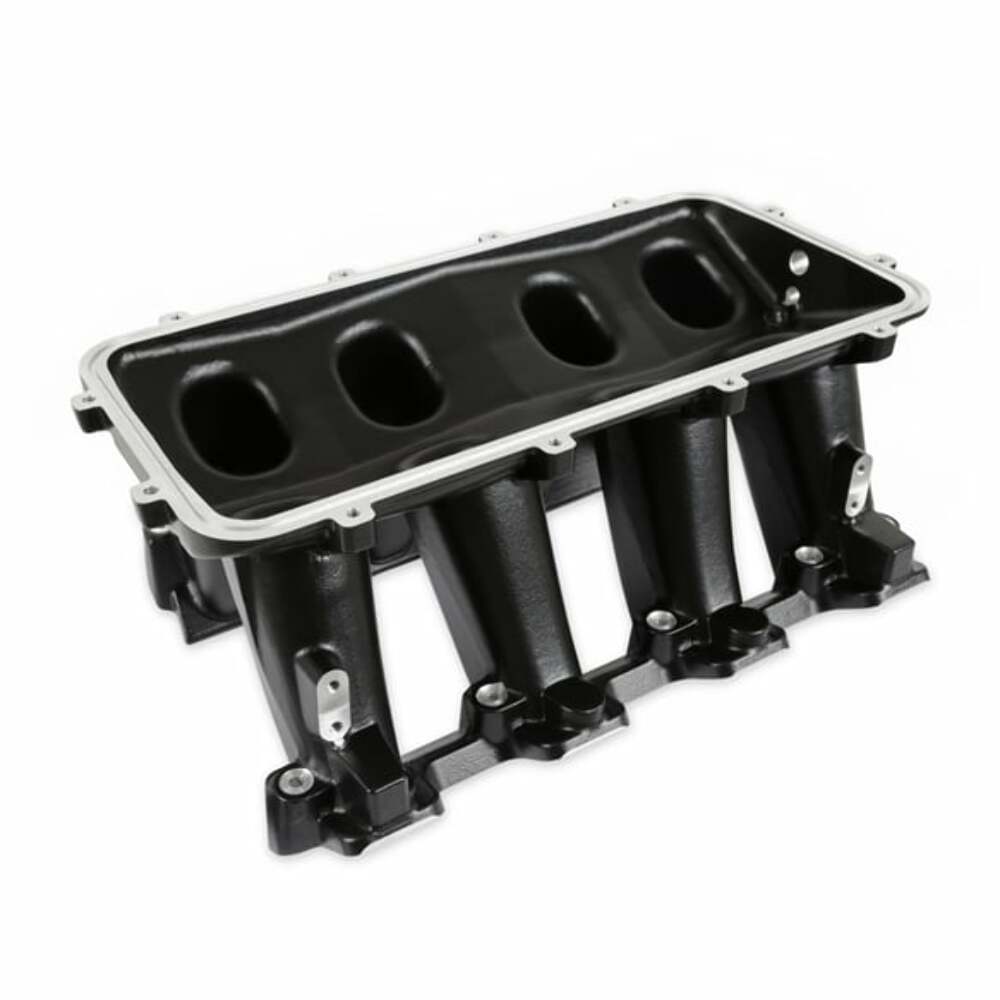

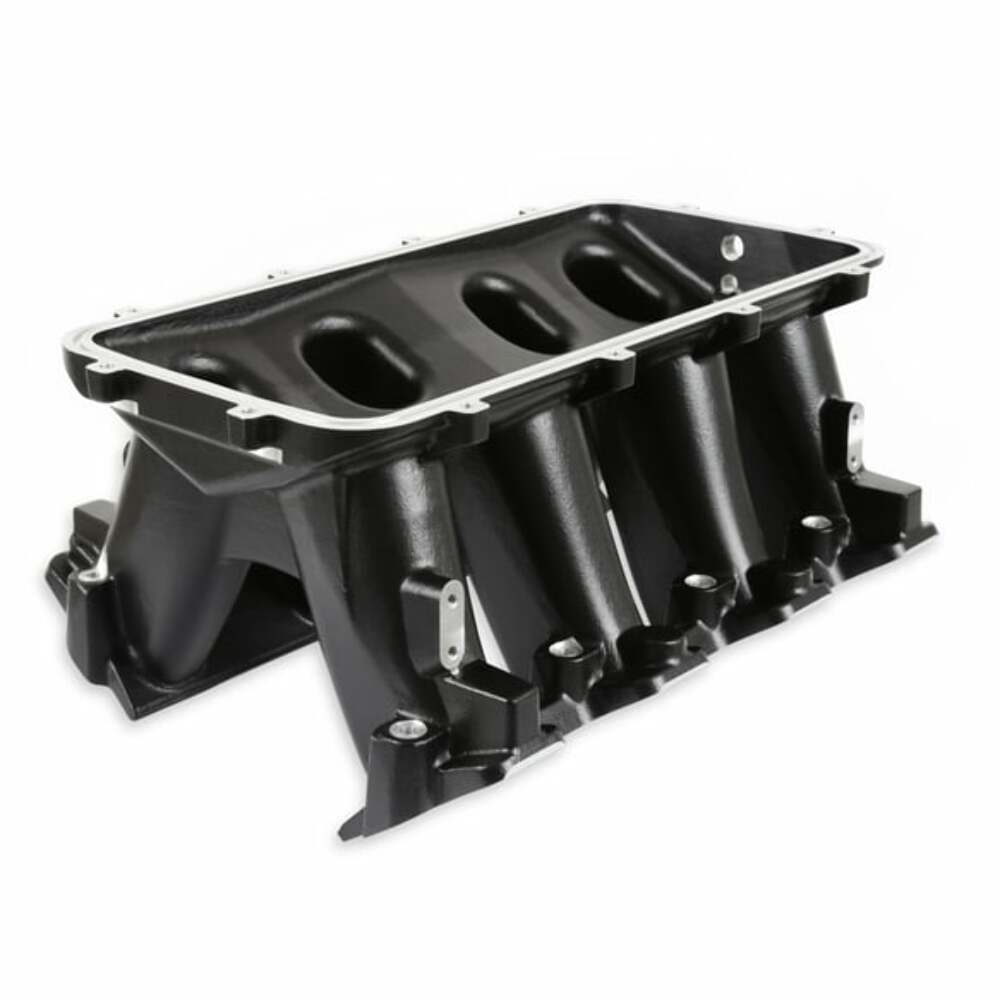

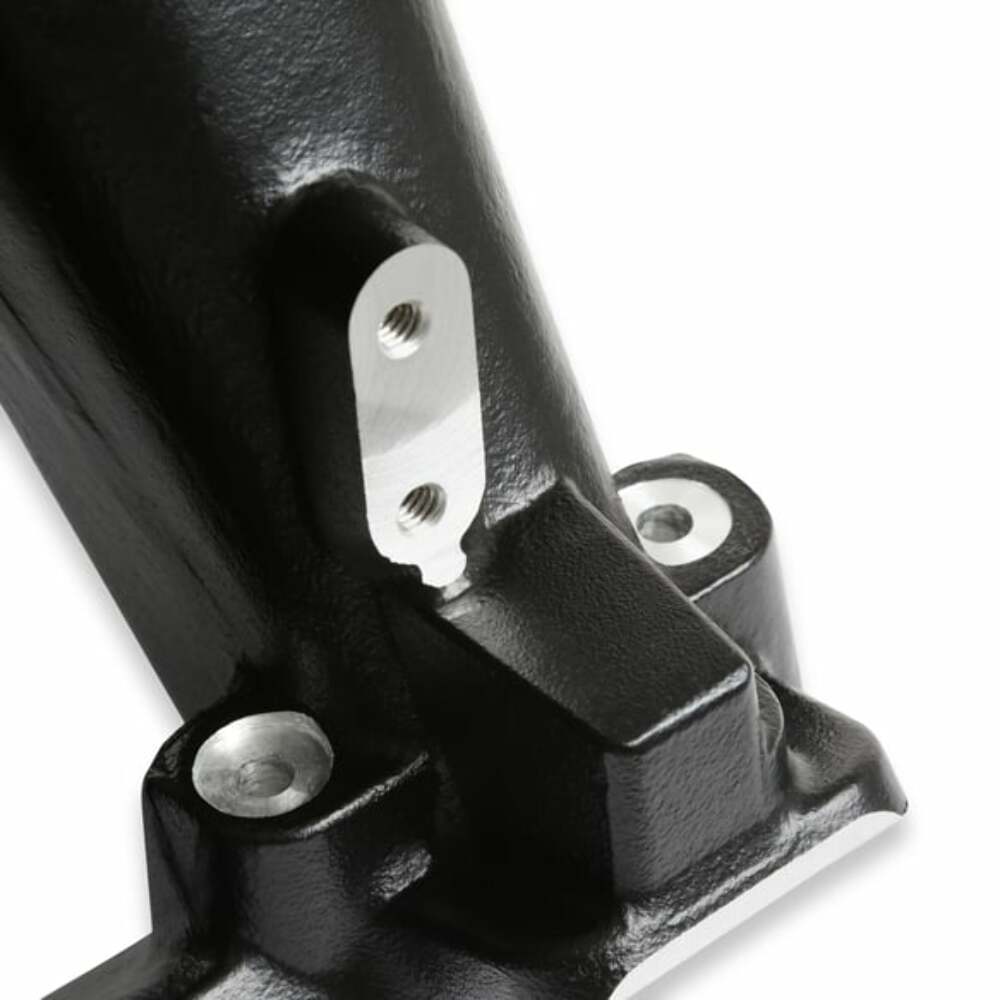

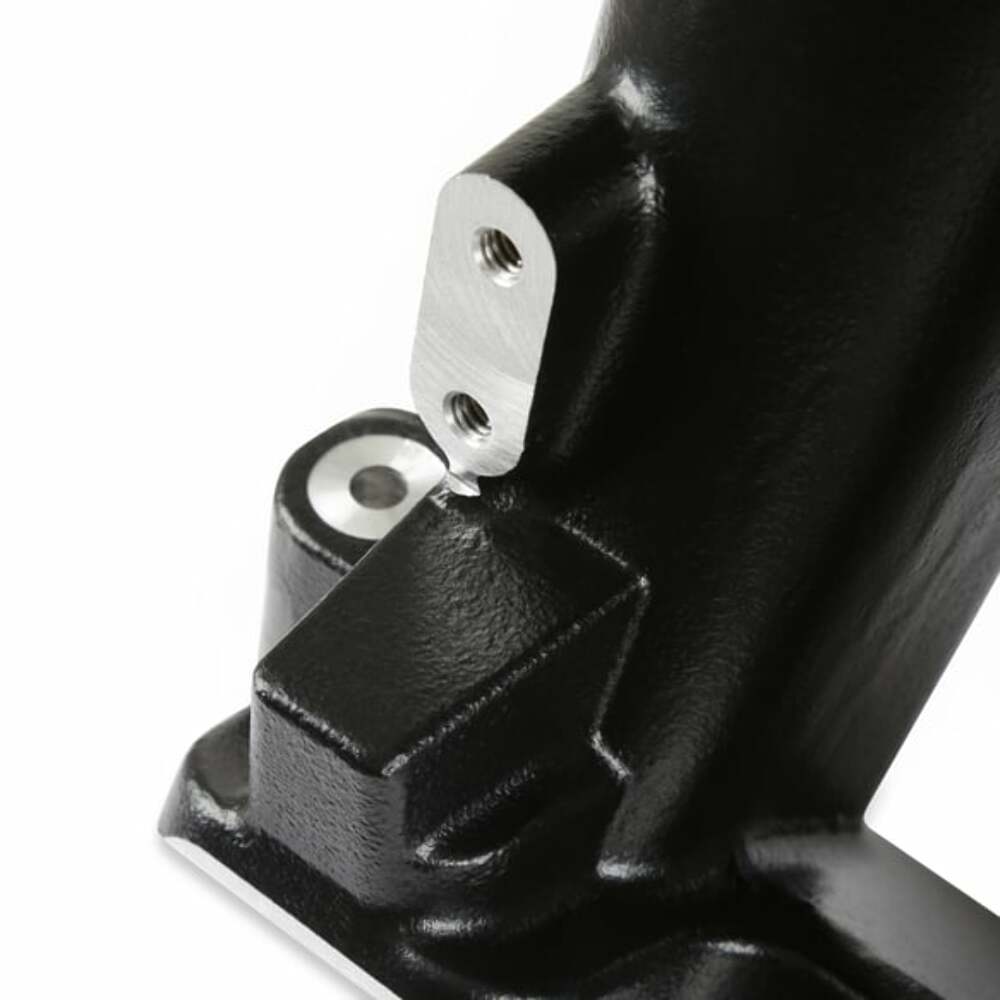

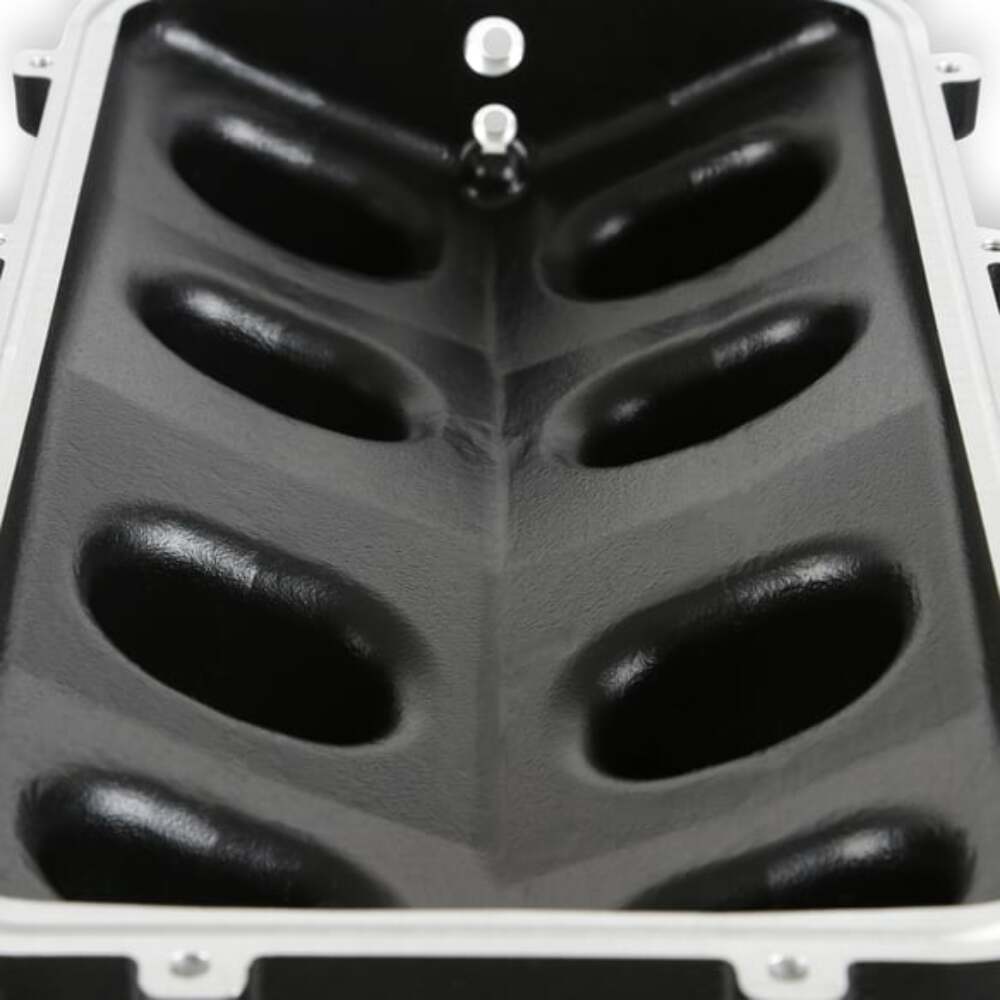

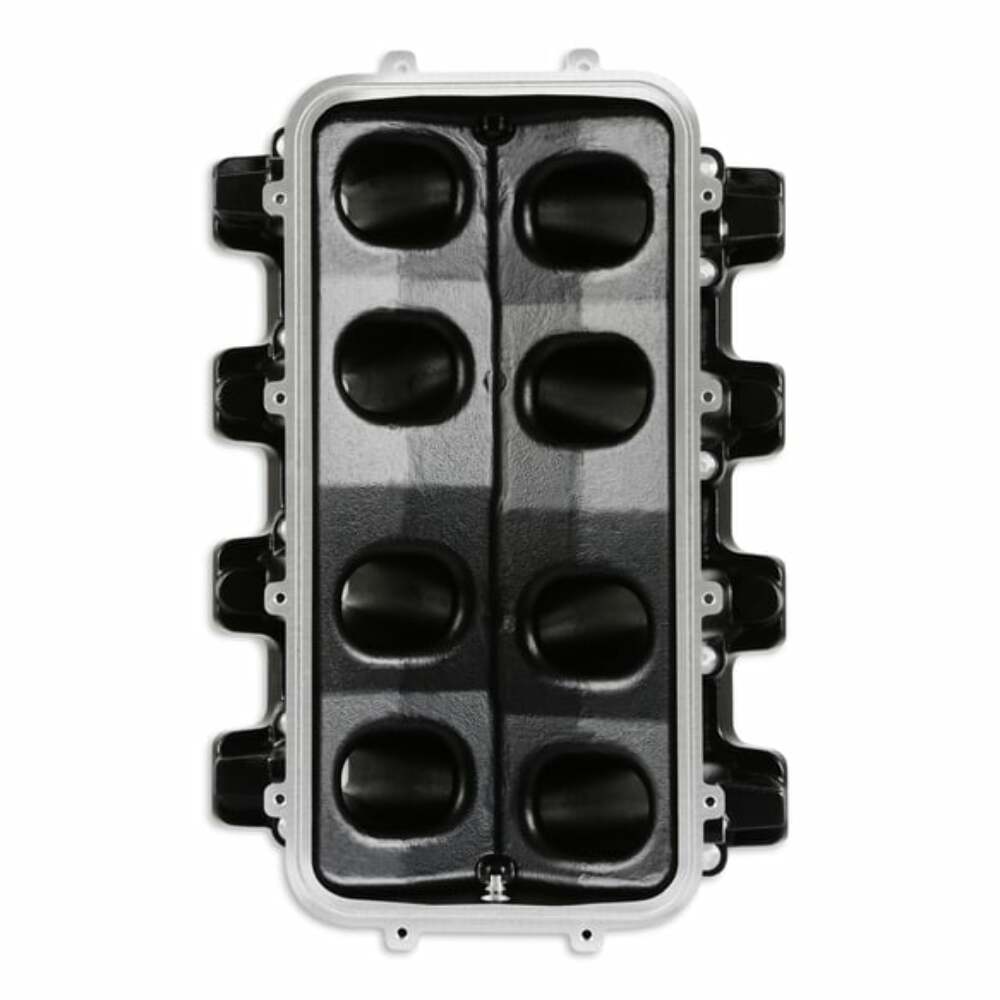

Holley Hi-Ram Lower Manifold - GM LS1/LS2/LS6-Black 300-226BK
Holley Hi-Ram Lower Manifold - GM LS1/LS2/LS6-Black 300-226BK is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
LS1/LS2/LS6 Cathedral Port Carbureted Base Only (Plenum-Top-Mounting Fabrication Flange Available)
The Holley GM LS1/LS2/LS6 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS1/LS2/LS6 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!
NOTES: These parts should be used for the following applications: Racing/Performance/Street Rodder where hood restrictions are NOT a consideration.
Features:
- Port Size ? 2.49? Height x 1.21? Wide
- Mounting Flange Gasket Type ? Standard LS3 Molded O-Ring
- Plenum Top Gasket Type ? 3/32? Round O-ring Cord
- Runner Length ? 6.58?, As-Cast Runner Cross-Sectional Area ? Tapered 4.25 in? to 2.53 in?
Specs:
| Basic Operating RPM Range | 3500-8000Revolutions per Minute |
|---|---|
| Brand | Holley |
| Carburetor Studs Included | No |
| Color | Black |
| Construction | Cast |
| EGR Port | No |
| Emission Code | 4 |
| Engine | GM LS1/LS2/LS6 |
| Finish | Black |
| Fuel Injectors Included | No |
| Fuel Rail(s) Included | No |
| Fuel System Type | Carb |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Intake Port Gasket(s) Included | No |
| Material | Aluminum |
| Nitrous Bung(s) Included | No |
| Plenum Finish | Black |
| Product Type | Intake Manifold Base |
| Removable Runners | No |
| RPM Power Band | 3500-8000 RPM |
| Single Or Dual Plane Type | Single Plane |
| Throttle Body Included | No |
| Type of Component | Lower Manifold |
| Warranty | Limited 90 Day |
