12-134
Regular price
$662.95
Regular price
Sale price
$662.95
Unit price
per
Availability
Sold out

Overview:

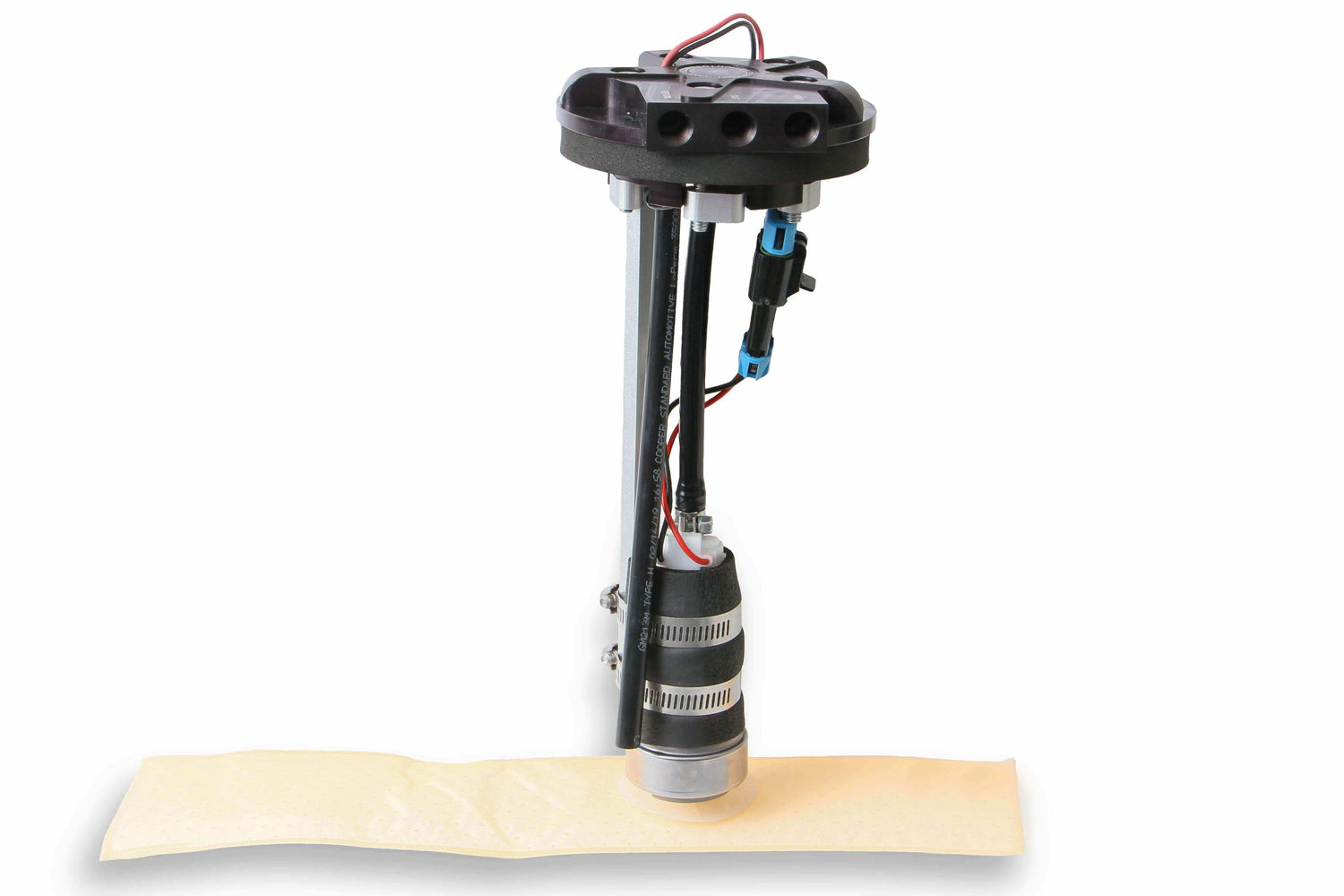

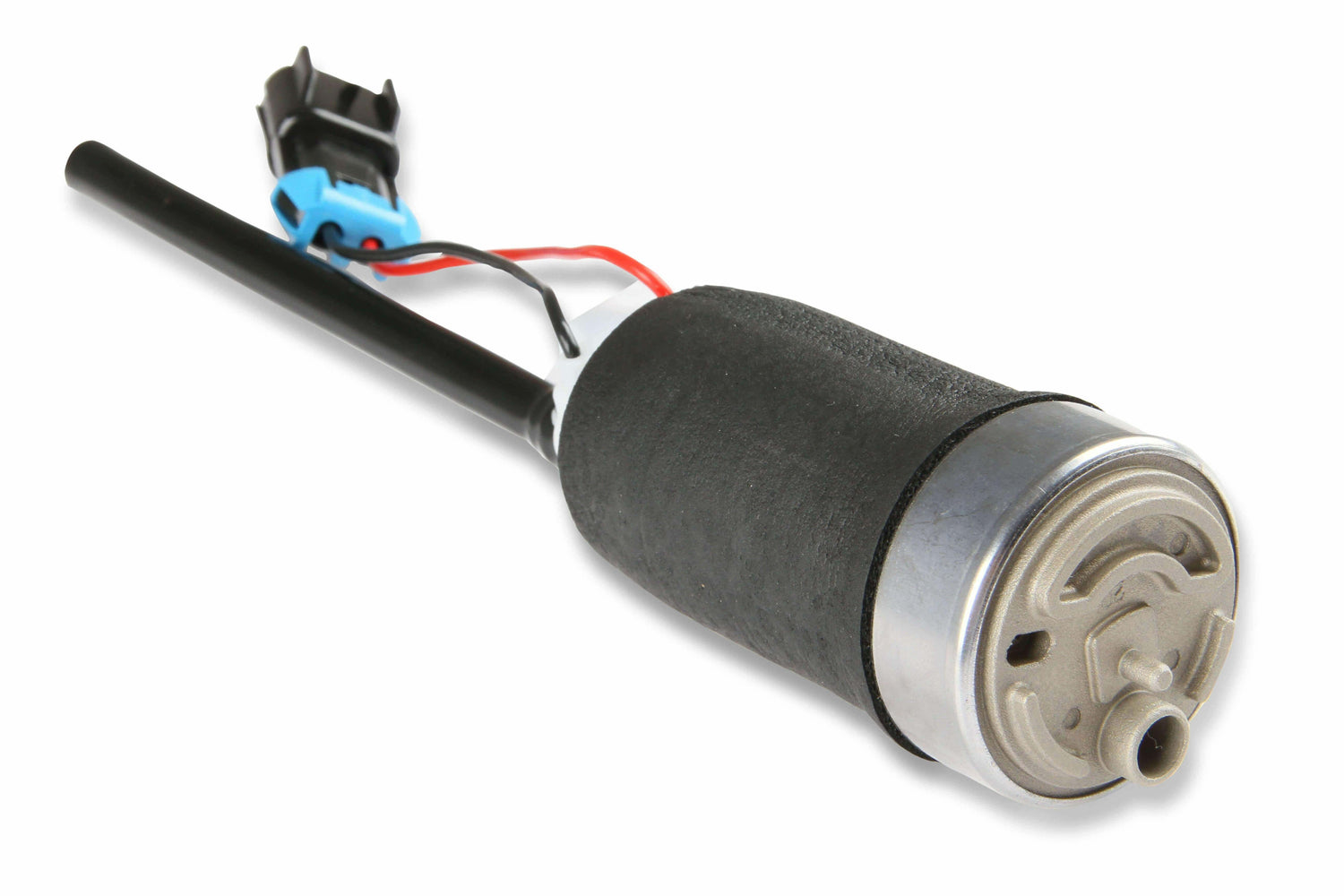

The Holley In-tank RetroFit Fuel Modules are now available with a 525 LPH Pump. Convert your factory tank or fuel cell to an in-tank EFI fuel system quickly and easily! And- add the benefits of a Holley Hydramat in the process! The conversion is easily accomplished with basic tools and requires no welding or fabrication. The billet aluminum module design includes a billet pump hanger bracket to control pump vibration while also providing a low profile design to fit where space is at a premium. Holley's innovative clamping system and integrated fuel pump makes it easy. Supports up to 1200 EFI or 1450 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw) Of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, regulator type, fuel cell location, etc...

Features:

  • Retrofit Fuel Module 525 LPH- Return Style
  • Installs in any fuel tank from 7.5” to 12” deep to fit a wide variety of applications

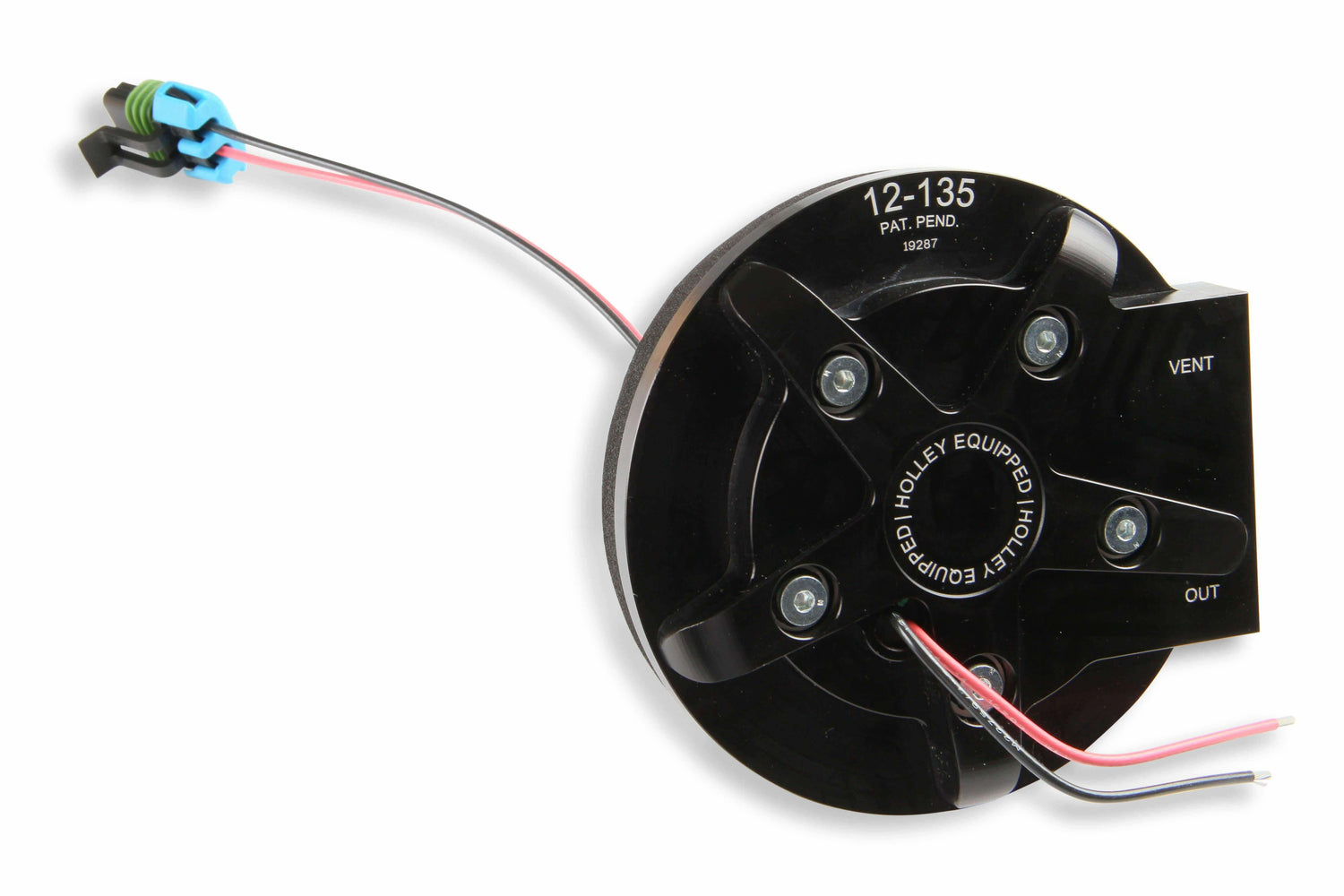

  • The low profile design is only 1.275" thick above the tank mounting surface for added clearance when needed

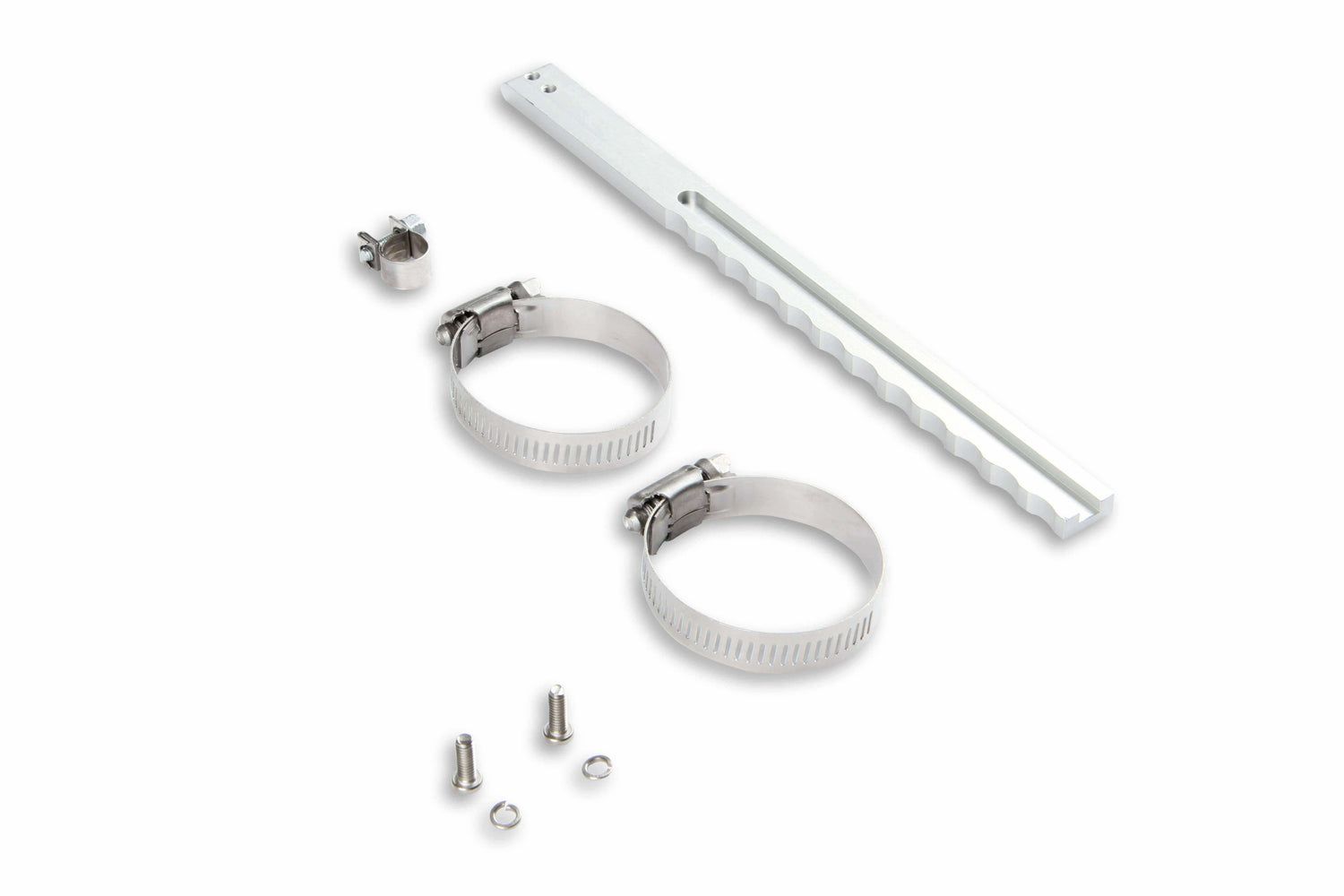

  • The innovative clamping system allows you to locate the module anywhere in the tank beside your existing sending unit
  • The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride

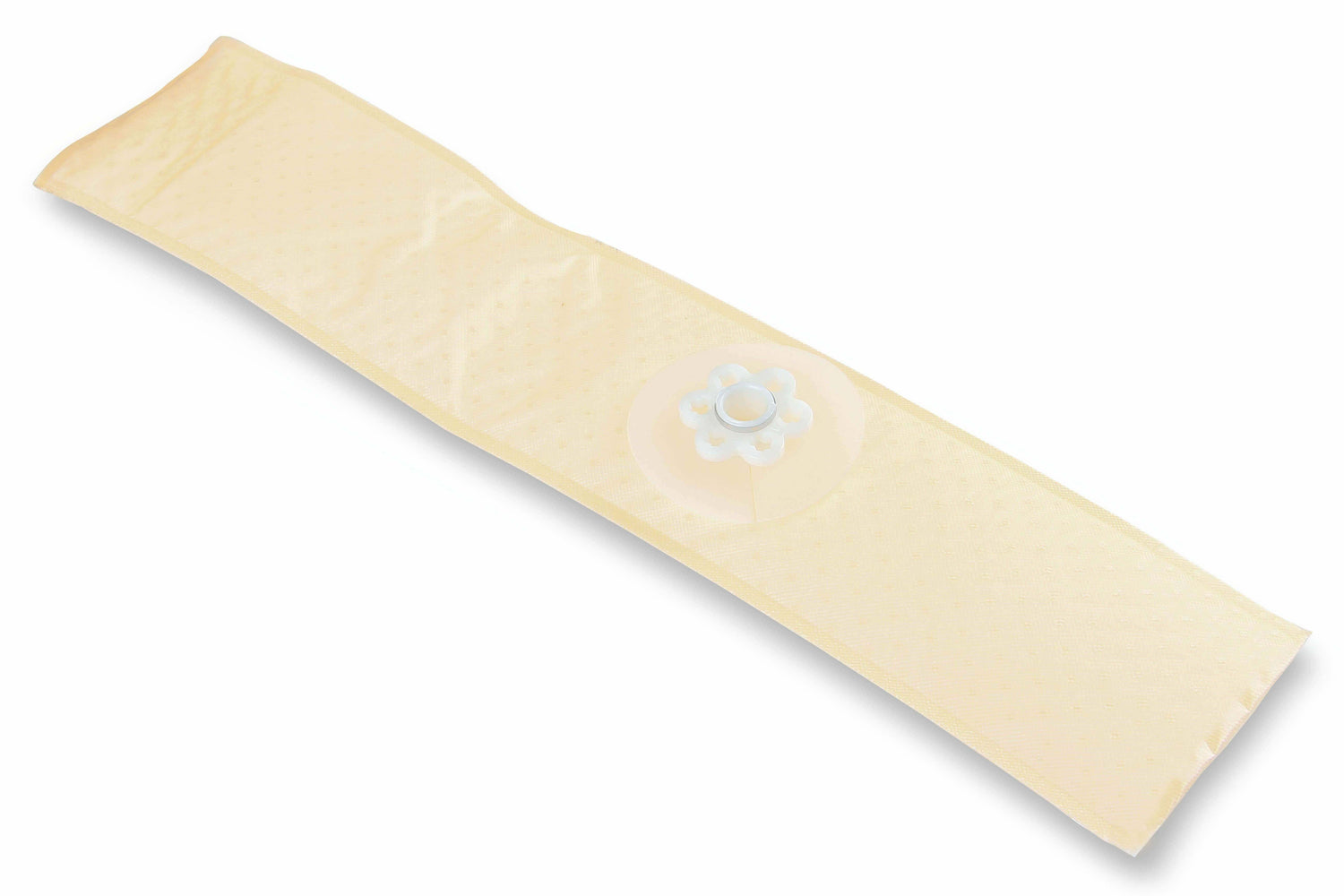

  • Includes innovative Holley Hydramat to ensure consistent fuel supply. The 3” x 15” HydraMat mounting flange has 6 clocking pin locations to allow for 360 degree adjustment to clear sending unit levels or any tank floor restrictions that you might encoun
  • Black anodized aluminum construction for corrosion resistance and long lasting good looks
  • ¼” NPT ports for a wide variety of plumbing options
  • Optional roll over valve available

Year Make Model Submodel Engine Size
Universal

Application Universal
Brand Holley
Diameter 4.8"
Emission Code 3
Free Flow LPH 525
Fuel Type E85
Fuel Type Gasoline
Material Billet Aluminum
NPT Thread 1/4 NPT
Product Type Fuel Pump Module
Warranty Limited 90 Day
