Holley In-Tank RetroFit Fuel Module 525 LPH Returnless Style 12-135
Holley In-Tank RetroFit Fuel Module 525 LPH Returnless Style 12-135 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description

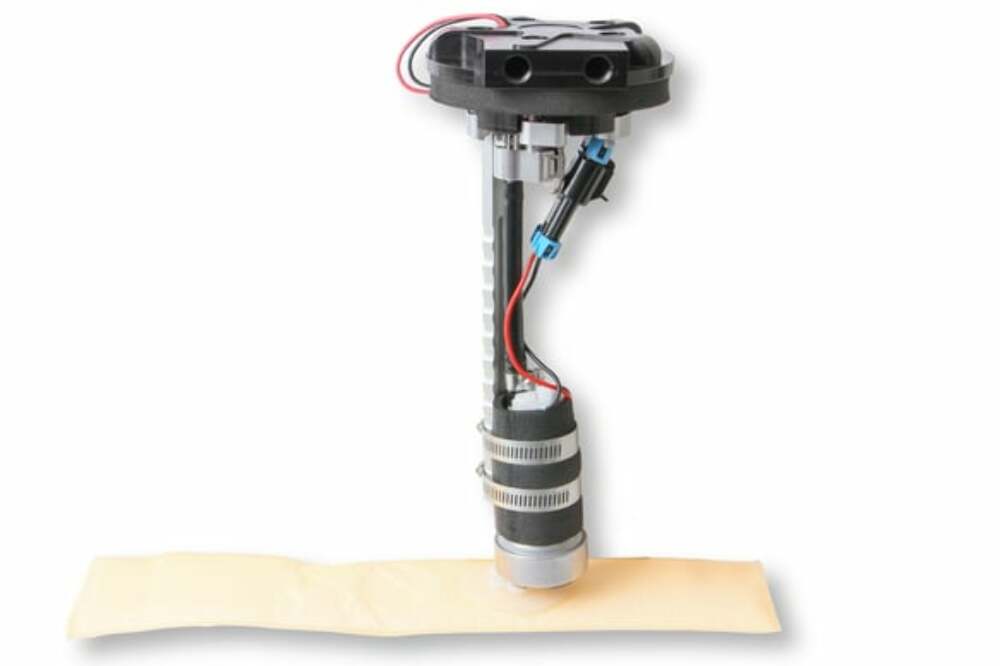

525 LPH Drop-In Retrofit EFI Fuel System w/Hydramat Supports up to 1200 EFI or 1450 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw)

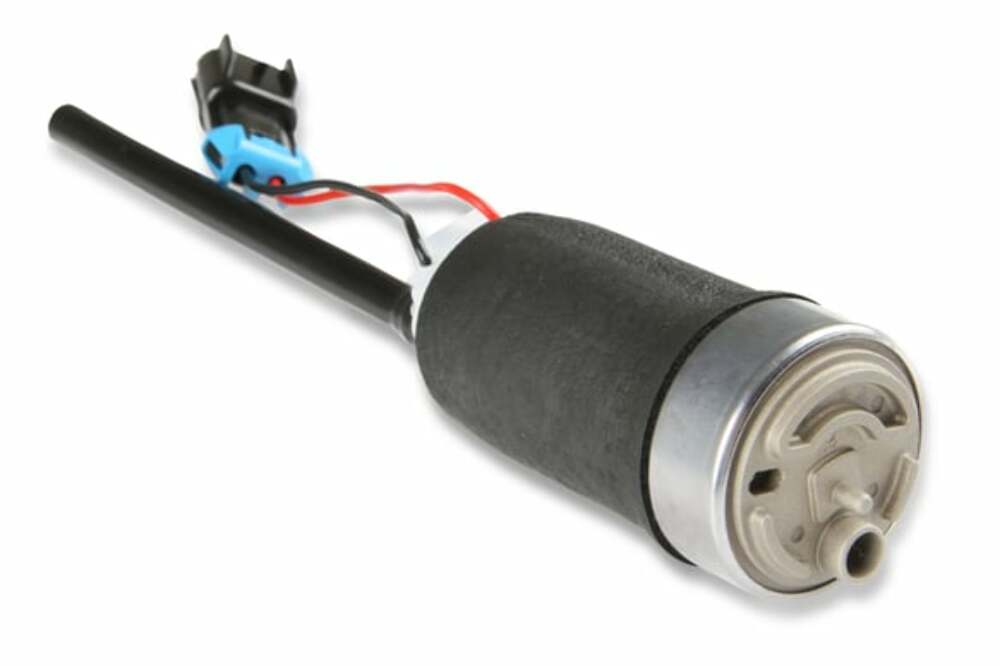

The Holley In-tank RetroFit Fuel Modules are now available with a 525 LPH Pump.
NOTES: It is recommended to use a Holley 12-753 30 Amp Fuel Pump Relay along with a minimum size of 12 Gauge wire for your installation. *** Maximum 6AN line and fitting size due to space limitations between unit and fuel tank.
Features:
- Retrofit Fuel Module 525 LPH-Returnless Style
- Installs in any fuel tank from 8? to 12? deep to fit a wide variety of applications

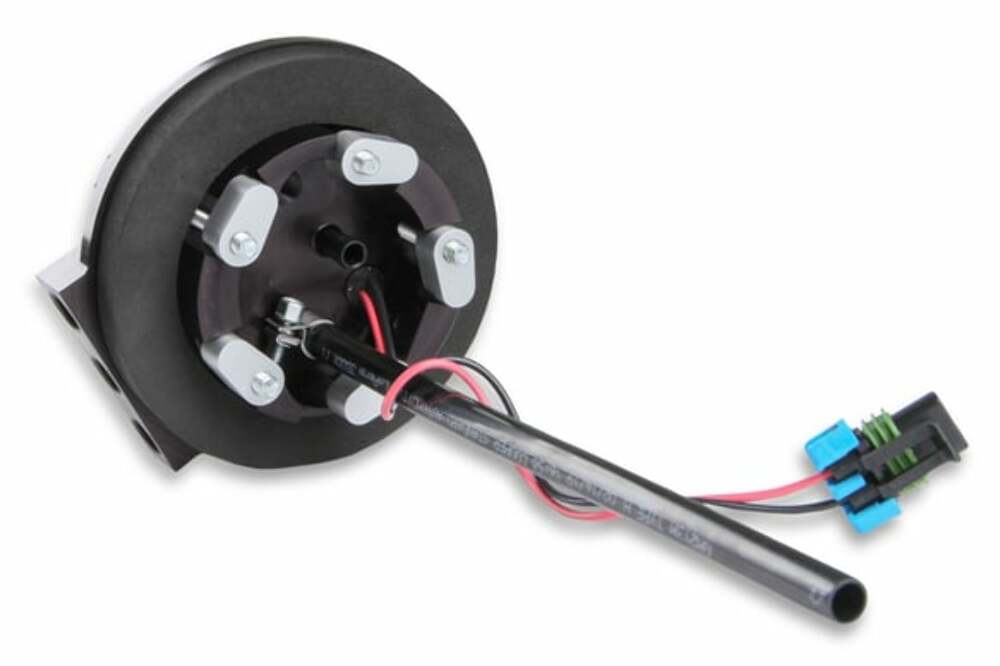

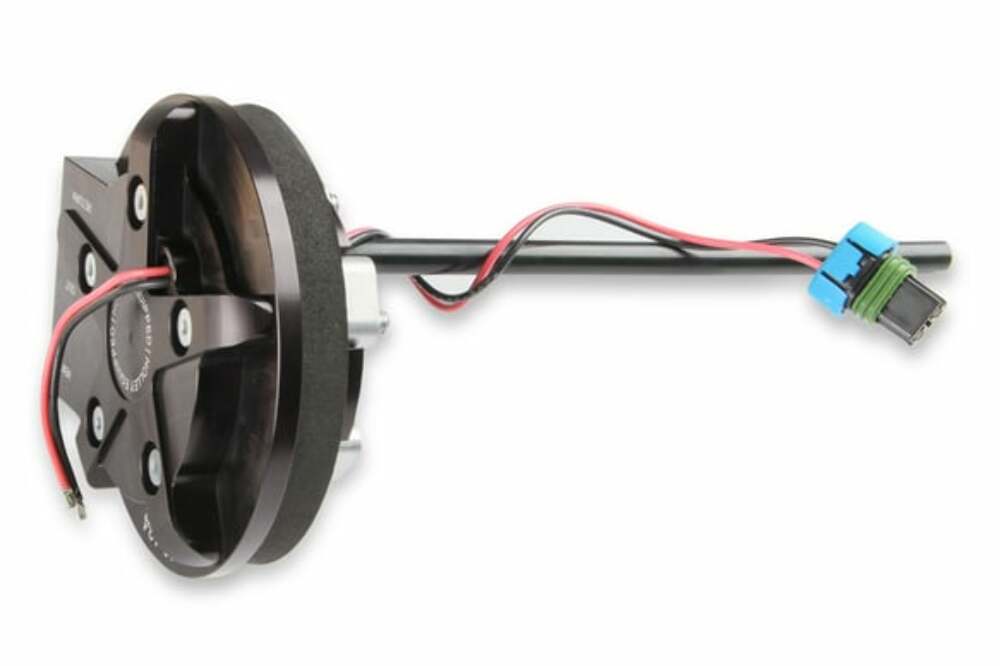

- The low profile 5 inch diameter design is only 1.275 inches thick above the tank mounting surface for added clearance when needed
- The innovative clamping system allows you to locate the module anywhere in the tank beside your existing sending unit
- The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride
- Includes innovative Holley Hydramat to ensure consistent fuel supply. The 3? x 15? HydraMat mounting flange has 6 clocking pin locations to allow for 360 degree adjustment to clear sending unit levels or any tank floor restrictions
- Black anodized aluminum construction for corrosion resistance and long lasting good looks
- ?? NPT ports for a wide variety of plumbing options
- Optional roll over valve available
Specs:
| Application | Universal |
|---|---|
| Average Current Draw | 16.9Ampere |
| Average Flow Rating | 525Liters per Hour |
| Brand | Holley |
| Clearance Category | Air and Fuel Delivery |
| Connector Color | Black |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Discount Percentage | 26-50% |
| Emission Code | 5 |
| Free Flow LPH | 525 |
| Fuel Filter Included | Yes |
| Fuel Sending Unit Included | No |
| Fuel Tank Pressure Sensor Included | No |
| Fuel Type | E85, Gasoline |
| Gasket Or Seal Included | Yes |
| Gasket Or Seal Material | Foam |
| Grade Type | Performance |
| Height | Adjustable |
| Housing Material | Aluminum |
| In Tank or External | In Tank |
| Inlet Fitting Thread Size | 1/4Inch |
| Inlet Quantity | None |
| Inlet Type | NPT |
| Internal Or External Strainer | External |
| Lock Ring Included | Yes |
| Material | Billet Aluminum |
| Maximum Pressure | 60Pounds per Square Inch |
| Minimum Fuel Tank Depth | 8 Inches |

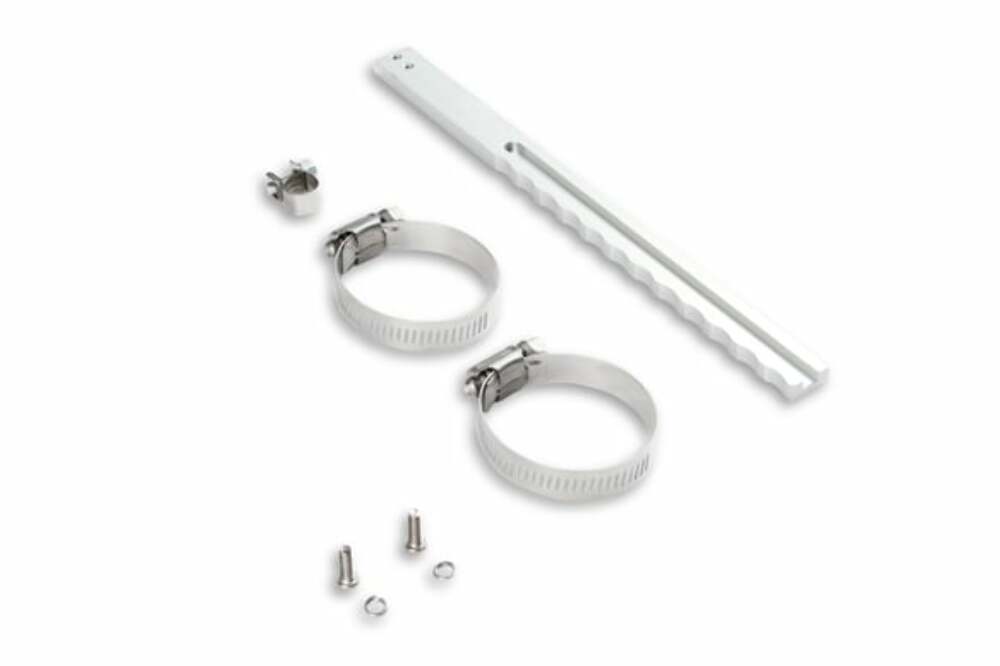

| Mounting Hardware Included | Yes |
| Negative Ground | Yes |
| NPT Thread | 1/4 NPT |
| Outlet Fitting Thread Size | 1/4Inch |
| Outlet Quantity | One |
| Outlet Type | NPT |
| Product Type | Fuel Pump Module |
| Pump Type | Electric |
| Regulator Included | Yes |
| Sale Category | Air and Fuel Delivery |
| Top Mount Diameter | 5Inch |
| Universal Or Specific Fit | Universal |
| Voltage | 12Volts DC |
| Warranty | Limited 90 Day |
| Wire Harness Included | Yes |
| Wire Quantity | 2 |
