Holley Offset Igntion Coil bracket, w/ Holley Valve Covers GM LS, Black 561-132
Holley Offset Igntion Coil bracket, w/ Holley Valve Covers GM LS, Black 561-132 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Delivery and Shipping
Delivery and Shipping
Same day shipping, if ordered by 9:00 AM ET M-F
*Select products are made to order and ship within 4 business days.
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

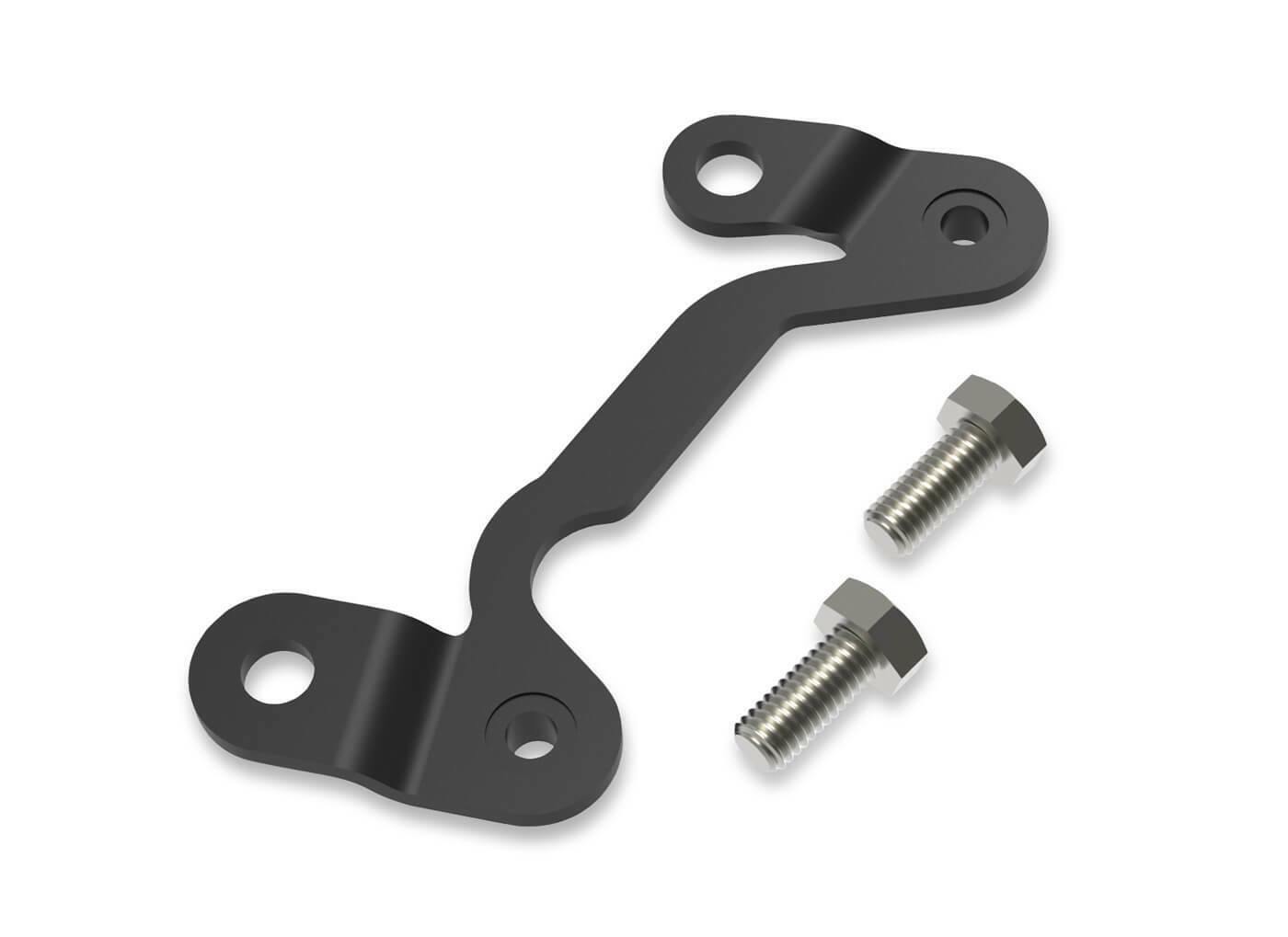

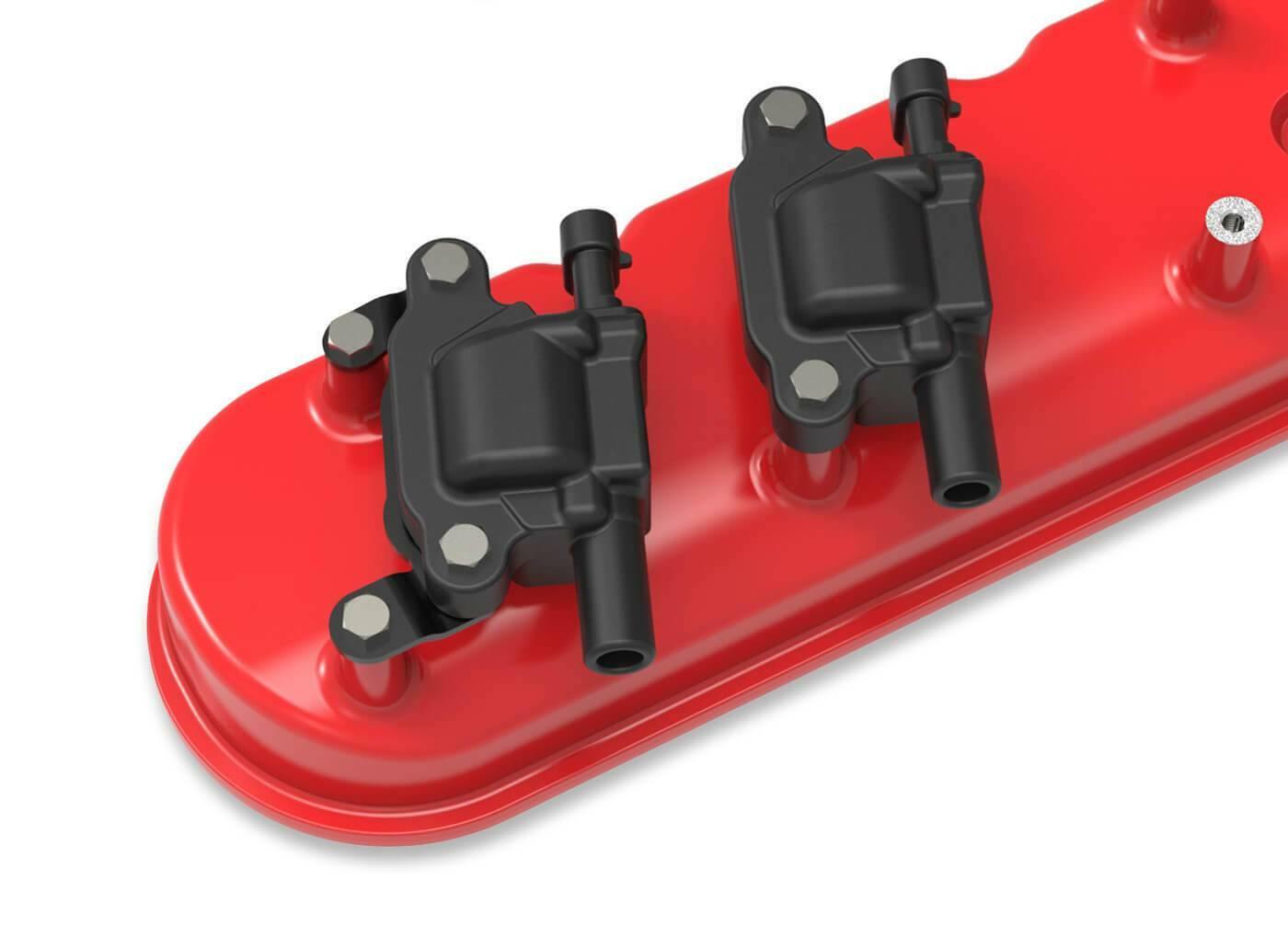

The Holley LS coil offset bracket was designed for use on vehicles equipped with Holley LS valve covers and high-mounted driver's side alternators. The bracket installs directly to the existing coil mounting posts and allows roughly 1" of extra clearance. This assembly was developed for use only with Holley cast aluminum LS valve covers with coil mounting provisions (72mm bolt spacing) and 5th gen LS coil bodies. Each bracket assembly includes one LS coil offset bracket and two mounting bolts.
Features:
- For use on Holley LS valve covers with coil mounting provisions (bolt spacing of 72 mm) and 5th gen LS coil bodies
- Torque mounting bolts to 106 in/lb (9 ft/lb)
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| 1997 - 2004 | Chevrolet | Corvette | 350/5.7L V8 | |
| 2006 - 2013 | Chevrolet | Corvette | 427/7L V8 | |
| 2008 - 2013 | Chevrolet | Corvette | 376/6.2L V8 | |
| 2010 - 2015 | Chevrolet | Camaro | 376/6.2L V8 | |
| 1998 - 2002 | Chevrolet | Camaro | 350/5.7L V8 | |
| 1998 - 2002 | Pontiac | Firebird | 350/5.7L V8 | |
| 2006 - 2009 | Chevrolet | Impala | 325/5.3L V8 | |
| 2005 - 2008 | Pontiac | Grand Prix | 325/5.3L V8 | |
| 2006 - 2009 | Chevrolet | Trailblazer | 364/6L V8 | |
| 2014 - 2017 | Chevrolet | SS | 376/6.2L V8 | |
| 2005 - 2007 | Chevrolet | Corvette | 364/6L V8 | |
| 2006 - 2007 | Chevrolet | Monte Carlo | 325/5.3L V8 | |
| 2008 - 2009 | Buick | LaCrosse | 325/5.3L V8 | |
| 2008 - 2009 | Buick | Allure | 325/5.3L V8 | |
| 2004 - 2005 | Cadillac | CTS | 346/5.7L V8 | |
| 2005 - 2006 | Chevrolet | SSR | 364/6L V8 | |
| 2005 - 2006 | Pontiac | GTO | 364/6L V8 | |
| 2006 - 2007 | Cadillac | CTS | 364/6L V8 | |
| 2014 - 2015 | Chevrolet | Camaro | 427/7L V8 | |
| 2004 | Pontiac | GTO | 350/5.7L V8 | |
| 2009 | Pontiac | G8 | 376/6.2L V8 |
Specs:
| Application | Holley LS Valve Covers |
|---|---|
| Brand | Holley |
| Coil Mounting Studs | n/a |
| Coil Spacing | 72mm |
| Coil Type | Gen V LS Coil / D510C |
| Emission Code | 5 |
| Finish | Black |
| Hardware Included | Yes |
| Height | Standard |
| Logo | None |
| Material | Mixed |
| Product Type | Valve Cover Accessories |
| Style | Components |
| Thread | M6 x 1.0 |
| Warning | California Proposition 65 |
| Warranty | Limited 90 Day |
