Holley Premium Mid-Mount Race Accessory System-Black Finish - 20-181BK20-181BK
Holley's Mid-Mount Accessory Drive System is now offered for the serious racer in mind. If you need a front drive system for your LS engine racecar, they are now available without air conditioning and power steering depending upon your needs!

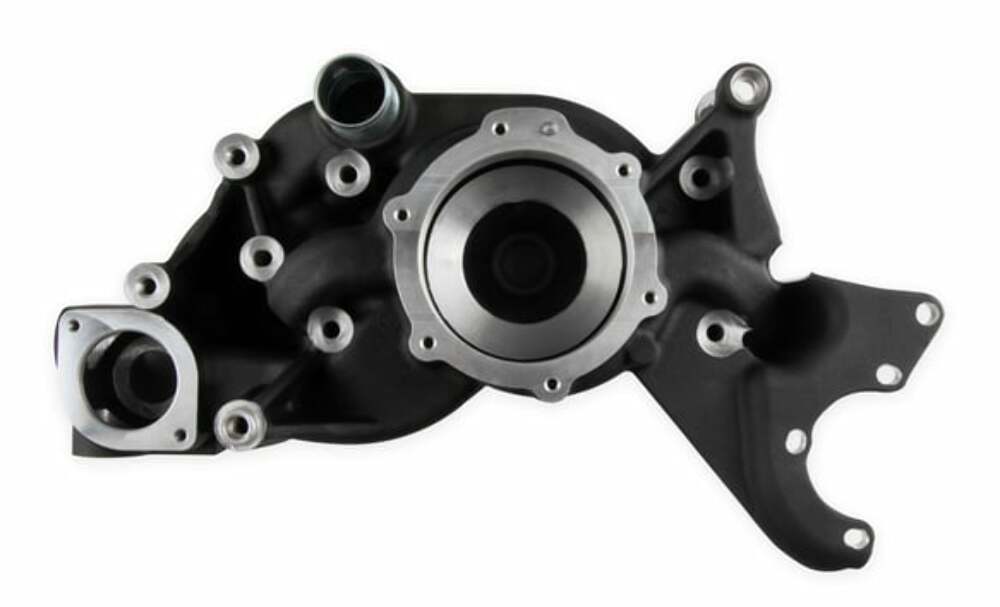

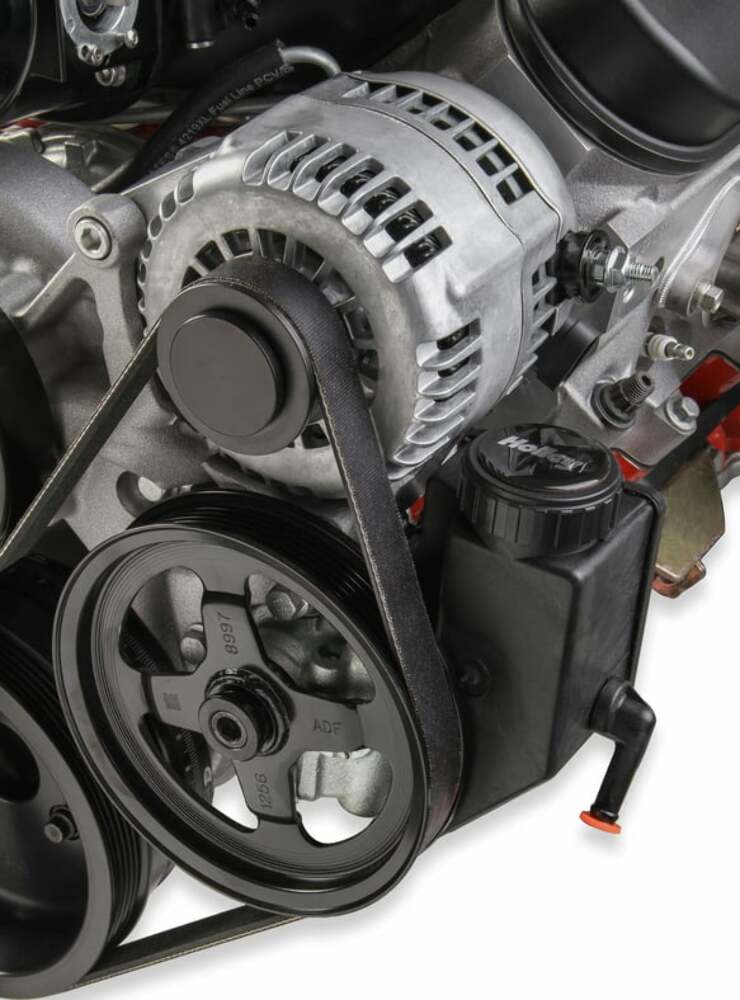

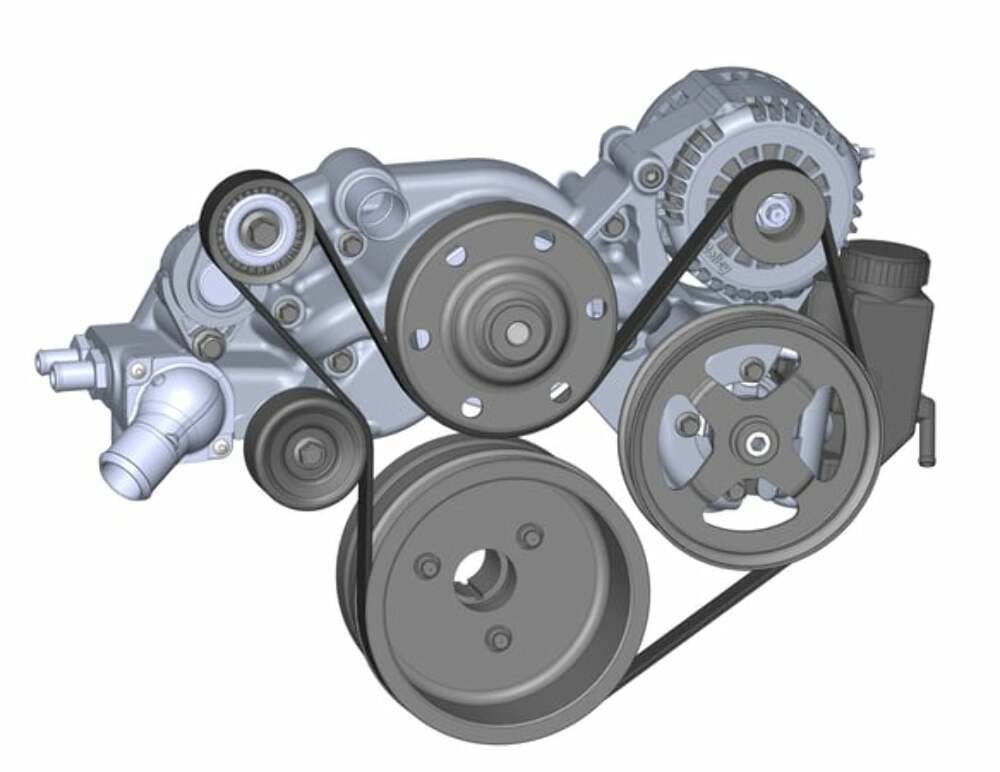

Holley's Premium Mid-Mount complete accessory system has all accessories pulled in tighter than other accessory drives. At the heart of the system is a "bracketless" design (Patent Pending), where the accessories bolt directly to the water pump for a clean, integrated form. The design offers superb engine visibility to show off your horsepower, not your accessories. Among the many swap friendly features are bottom heater outlets for clearance in tight applications. The Holley designed alternator is just as innovative. This premium alternator utilizes 6-phase technology as found on the C7 Corvette. The water pump also shares its design efficiencies with that of the C7 Corvette. The compact and reliable Type II P/S pump with baffled reservoir are also integrated.
The Mid-Mount drive completes Holley's trilogy of accessory solutions giving a third option compared to the High and Low-Mount previously released. All three accessory solutions are for LS engines.

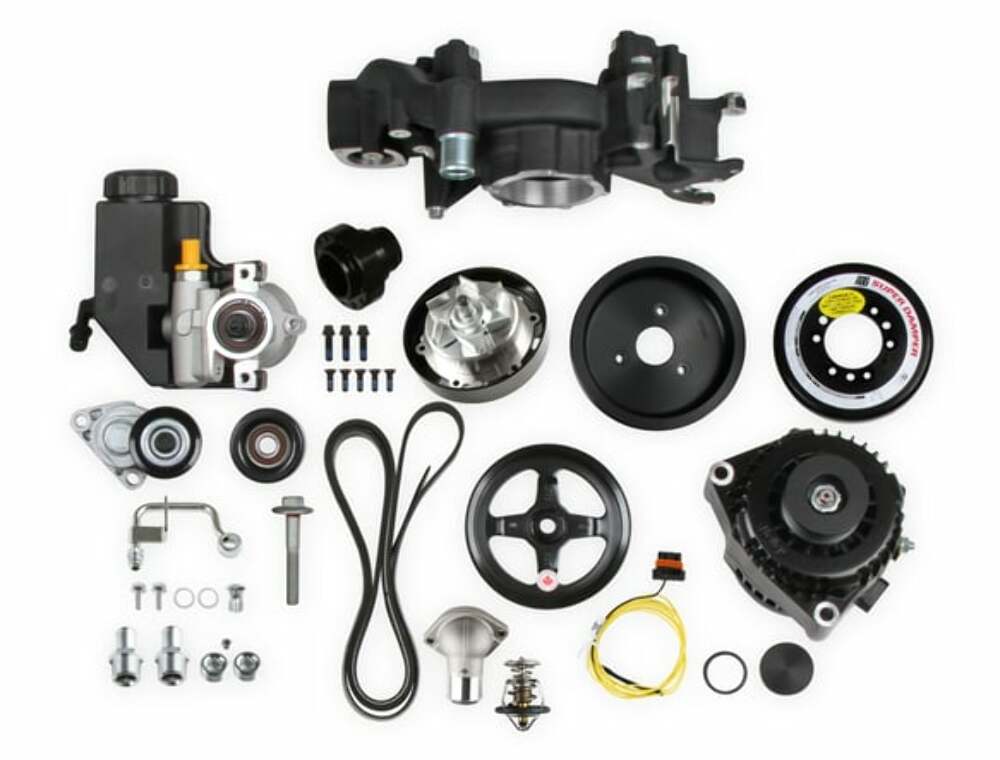

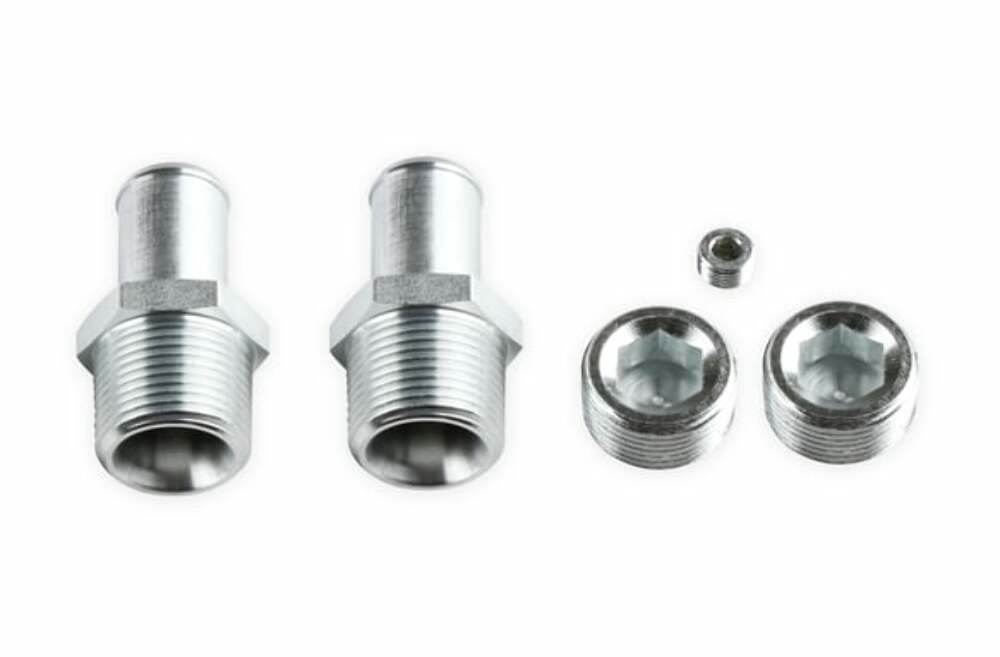

When we say "complete", we mean complete. The Mid-Mount system comes with everything you need. All accessories are included; the water pump, Alternator, P/S pump with reservoir, and an SFI certified damper w/hard anodized billet crank pulley. All pulleys and the belt are supplied. Even heater hose adapters, power steering to -6 AN hardline, and the alternator plug/harness are included. Easy assembly was a priority during the entire development of this accessory solution. Color graphical instructions walk you through every step of the ultra-easy installation.

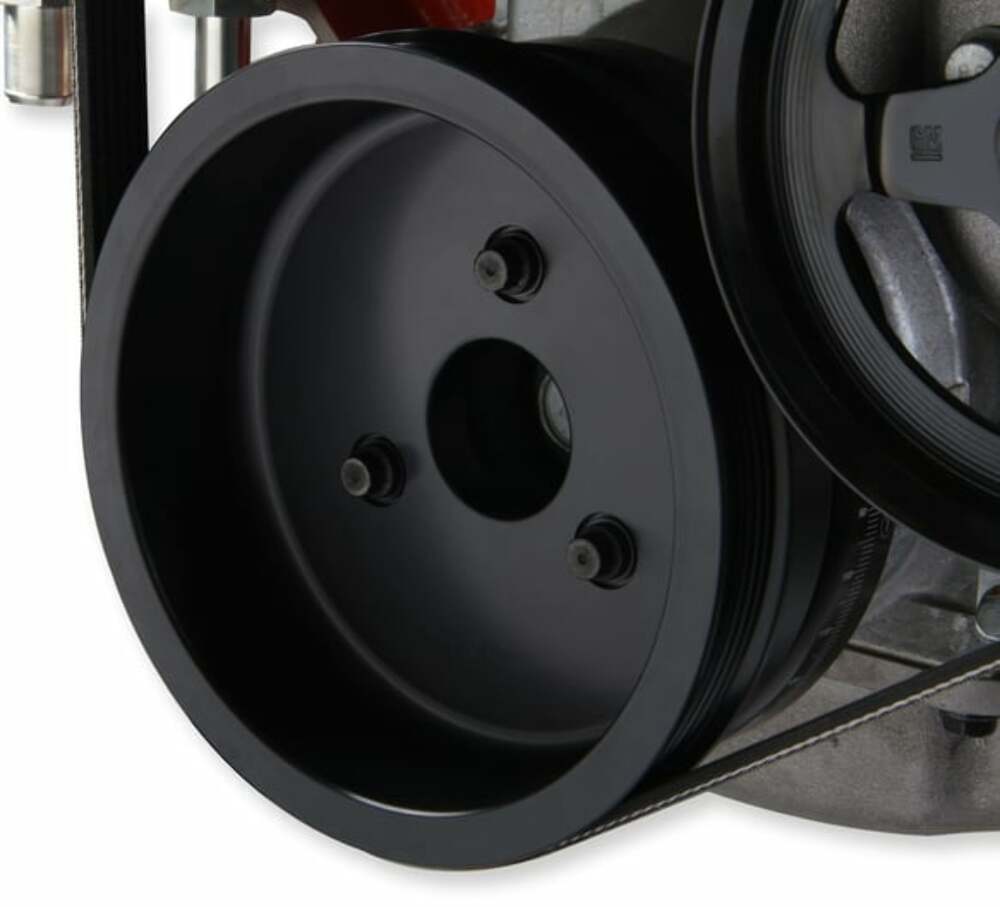

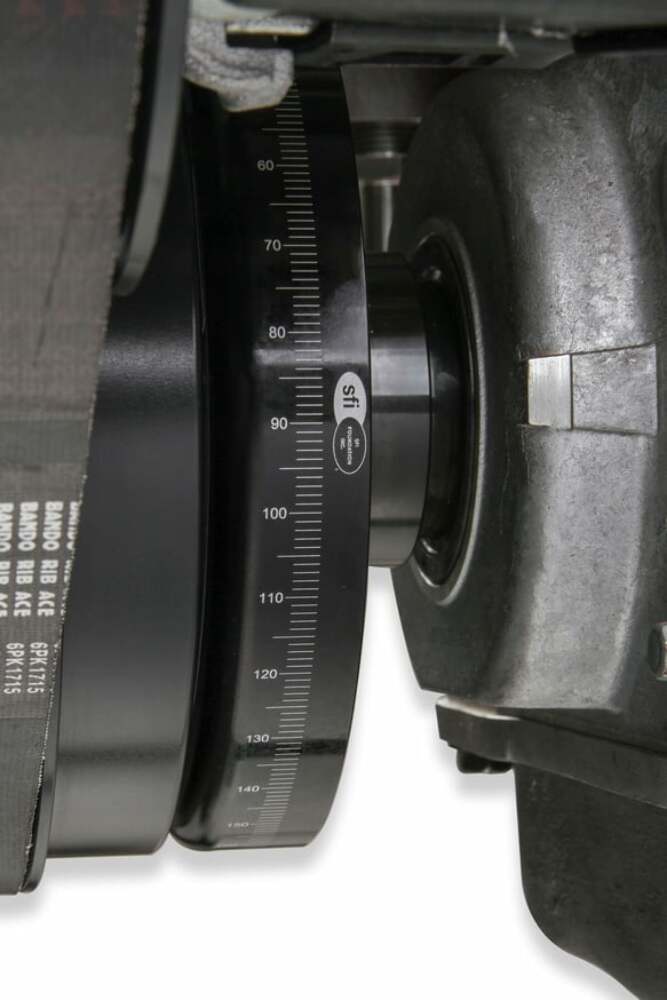

The Premium Mid-Mount system comes with dress up pulley covers and an SFI certified damper. Partnered with this damper is a billet 6061-T6 aluminum hard anodized crank pulley. This system is ready for the racetrack if you want to play or just be ready for anything on the street.
- Bracketless accessory mounting with ultra-easy assembly
- Bottom outlet heater hose options for swap application clearance
- LT1 style premium 150 amp alternator

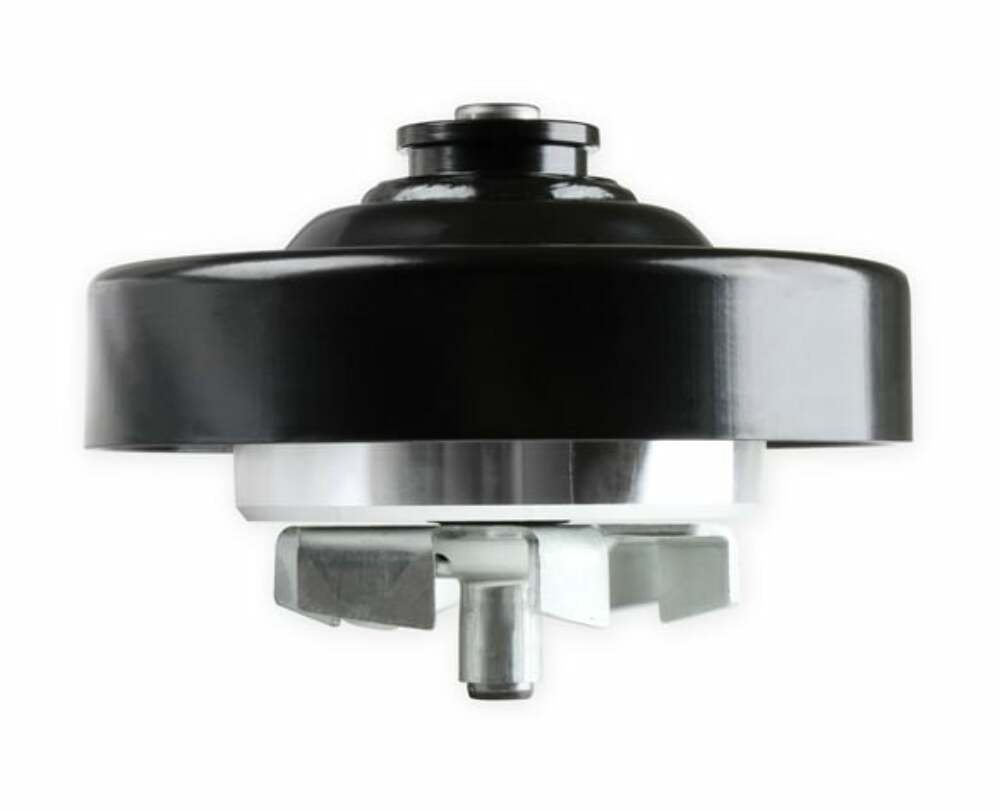

- LT1 style water pump cartridge design

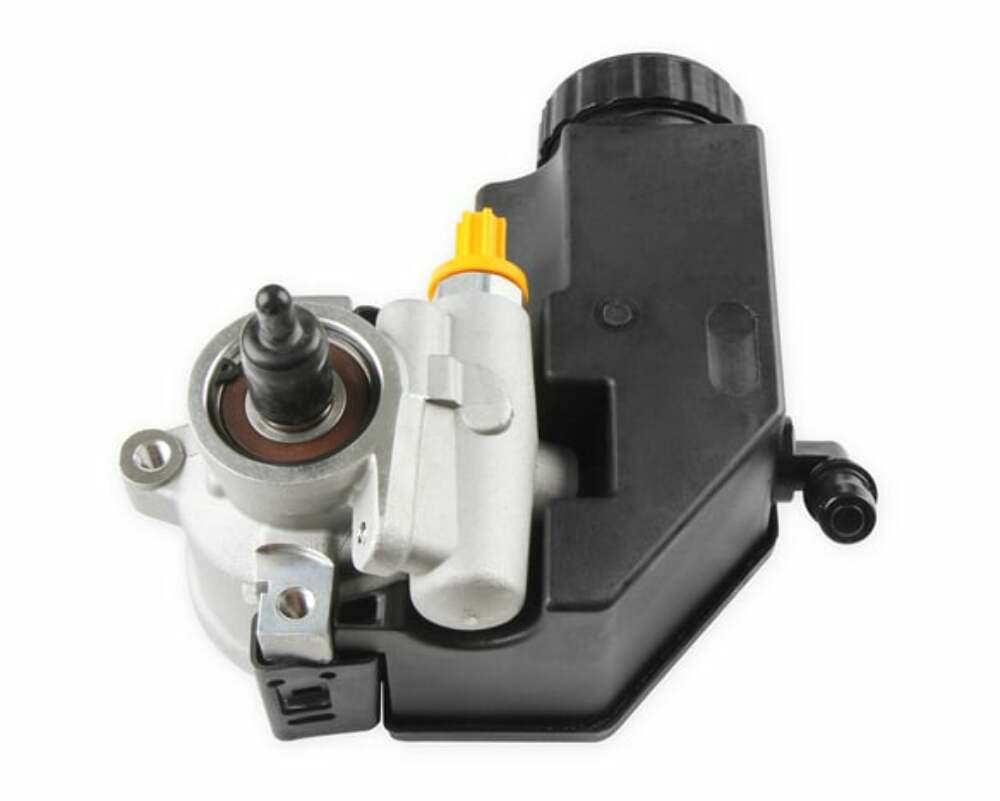

- Type II power steering pump with baffled reservoir
- P/S adapter hardline to AN -6 adapter included
- Steam tube input port
- Shortened top outlet nipple for more radiator hose turns and routing room
- OE pulley ratios for optimal accessory performance
- No adapters/spacers required!
- Billet tensioner cover
- Billet alternator,
- SFI certified damper w/hard anodized billet crank pulley
- Works with all common aftermarket and factory Throttle bodies and intakes.
- Works with VVT applications
- Works with Hooker turbo manifolds.
- Fits ALL LS engines except with dry sump and/or supercharger.
|A/C Compressor Included||No|
|A/C Compressor Type||N/A|
|Accessory Drive Style||Mid Mount|
|Choose Your Part||Accessory Drive Kits|
|Damper Style||SFI Certified|
|Power Steering Hardline Included||Yes|
|Power Steering Pulley Included||Yes|
|Power Steering Pump Included||Yes|
|Power Steering Reservoir Included||Yes|
|Product Type||Accessory Drive Kits|
|Warranty||Limited 90 Day|
|Water Neck Included||Yes|
|Water Pump Included||Yes|
|Water Pump Pulley Included||Yes|
