Holley Premium Polished Mid-Mount LS7 Complete Accessory System-Dry Sump 20-190P
Holley Premium Polished Mid-Mount LS7 Complete Accessory System-Dry Sump 20-190P is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description

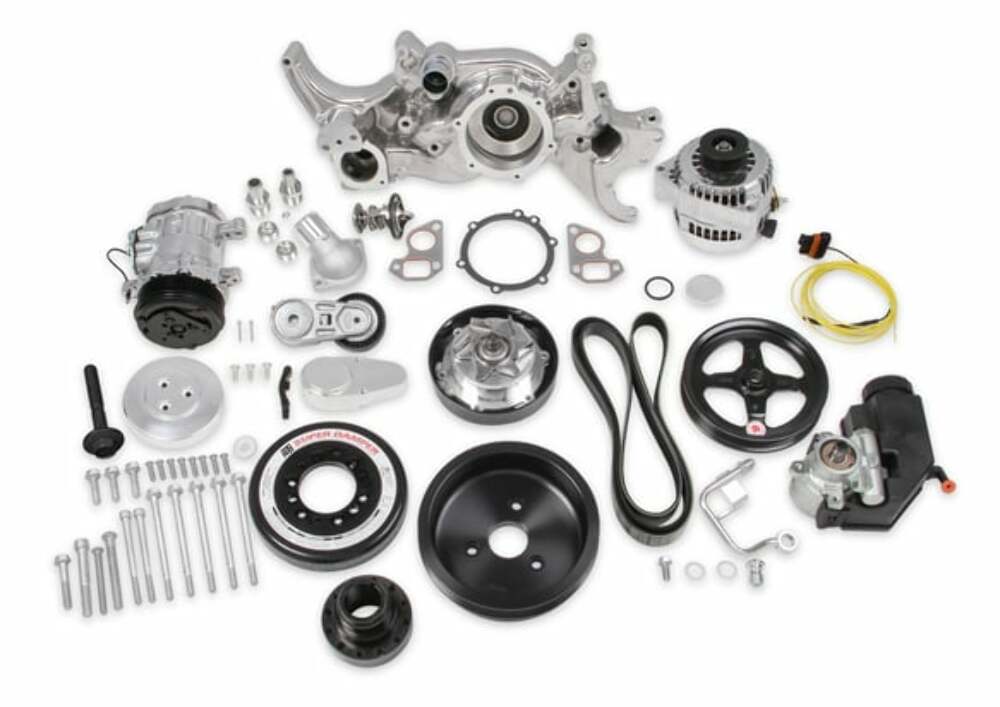

LS7 Engine Drive includes SD7 A/C Compressor, Alternator, P/S Pump, Tensioner, SFI certified damper w/hard anodized billet crank pulley, Belt, & Pulleys - Fits Dry Sump Engines.

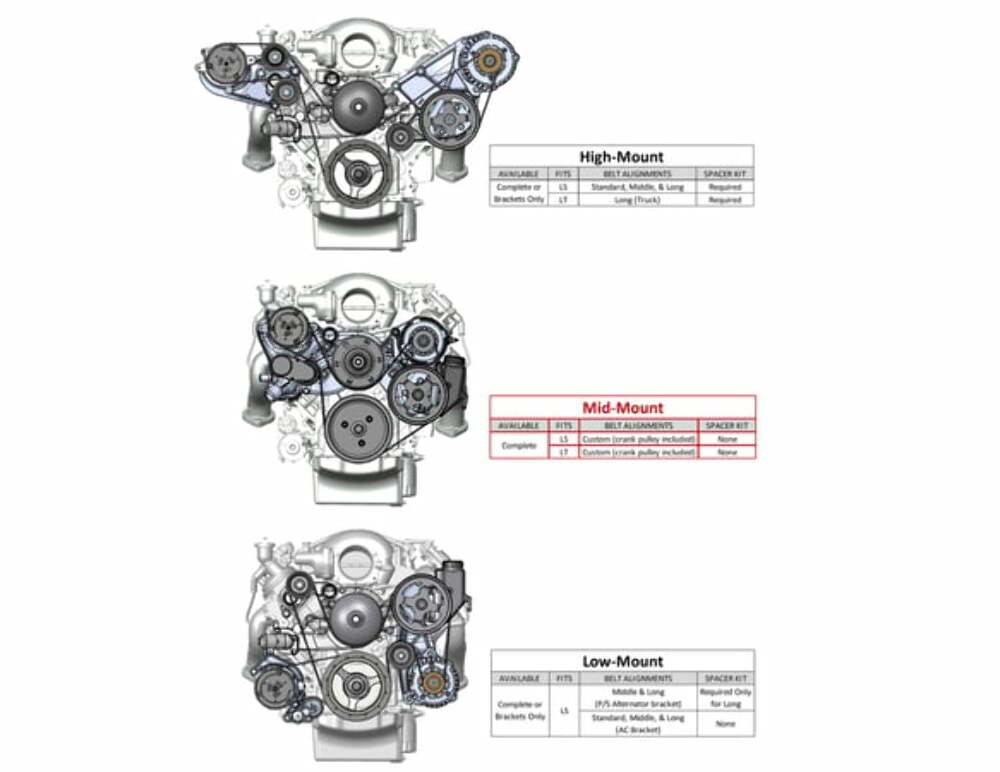

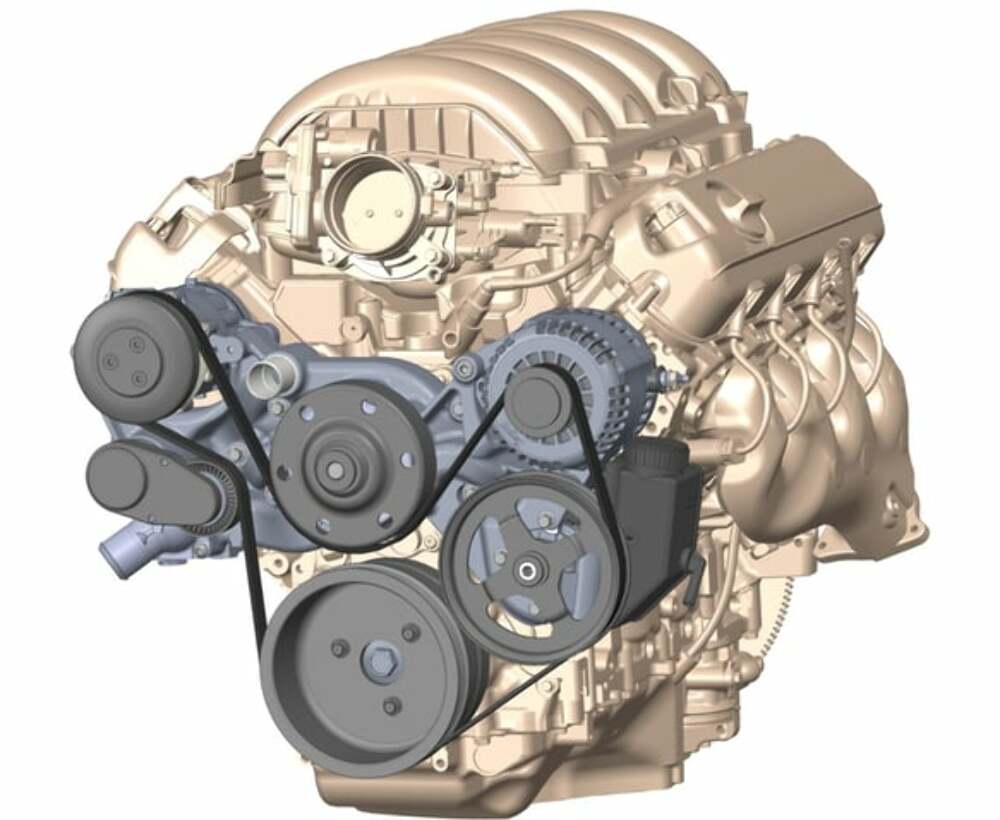

Holley's Premium Mid-Mount complete accessory system has all accessories pulled in tighter than other accessory drives. At the heart of the system is a "bracketless" design, where the accessories bolt directly to the water pump for a clean, integrated form. The design offers superb engine visibility to show off your horsepower, not your accessories. Among the many swap friendly features are bottom heater outlets for clearance in tight applications. The Holley designed alternator is just as innovative. This premium alternator utilizes 6-phase technology as found on the C7 Corvette. The water pump also shares its design efficiencies with that of the C7 Corvette. The compact and reliable SD7 A/C compressor and Type II P/S pump with baffled reservoir are also integrated.
NOTES: "The power steering pump included can be used Hydroboost systems. Please refer to the flow specs on part number 198-101 This accessory drive is for LS7 & LS3 Dry Sump engine applications
Features:
- Bracketless accessory mounting with ultra-easy assembly
- Bottom outlet heater hose options for swap application clearance
- LT1 style premium 150 amp alternator
- LT1 style water pump cartridge design
- Compact SD7 A/C compressor
- Type II power steering pump with baffled reservoir
- P/S adapter hardline to AN -6 adapter included
- Steam tube input port
- Shortened top outlet nipple for more radiator hose turns and routing room
- OE pulley ratios for optimal accessory performance
- No adapters/spacers required!
- Billet tensioner cover
- Billet alternator, and compressor pulley covers
- SFI certified damper w/hard anodized billet crank pulley
- Works with all common aftermarket and factory Throttle bodies and intakes.
- Works with Hooker turbo manifolds.
- Fits LS7 and LS engines with dry sump and without supercharger.
- Polished Finish
Specs:
| A/C Compressor Included | Yes |
|---|---|
| A/C Compressor Type | SD7 |
| Accessory Drive Style | Mid-Mount |
| Alternator Amperage | 150 |
| Alternator Included | Yes |
| Application | GM LS |
| Belt Included | Yes |
| Brand | Holley |
| Choose Your Part | Accessory Drive Kits |
| Clearance Category | Engine |
| Damper Included | Yes |
| Damper Style | SFI Certified |
| Discount Percentage | 26-50% |
| Emission Code | 5 |
| Engine | GM LS7 |
| Finish | Polished |
| Inlet Size | 35.4mm/1.4" |
| Material | Cast Aluminum |
| Output | 150 Amps |
| Power Steering Hardline Included | Yes |
| Power Steering Pulley Included | Yes |
| Power Steering Pump Included | Yes |
| Power Steering Reservoir Included | Yes |
| Product Type | Accessory Drive Kits |
| Pulley Style | Serpentine |
| Sale Category | Engine |
| Tensioner Included | Yes |
| Thermostat Included | Yes |
| Warranty | Limited 90 Day |
| Water Neck Included | Yes |
| Water Pump Included | Yes |
| Water Pump Pulley Included | Yes |
