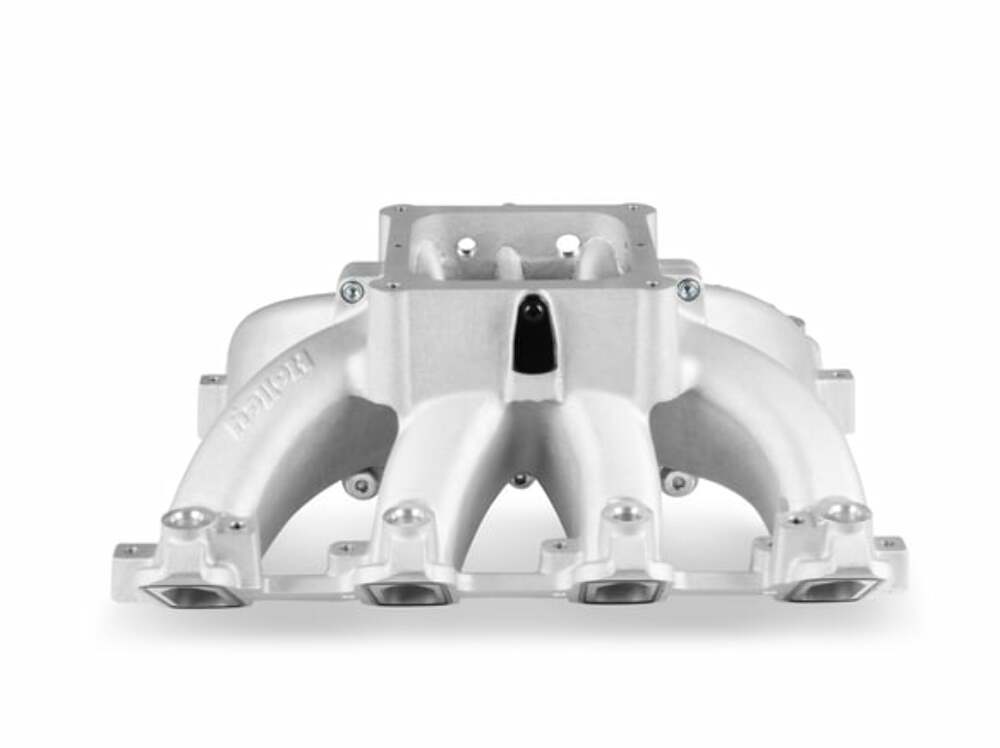

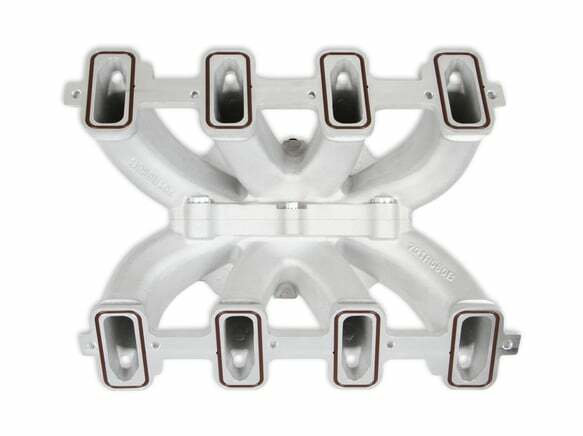

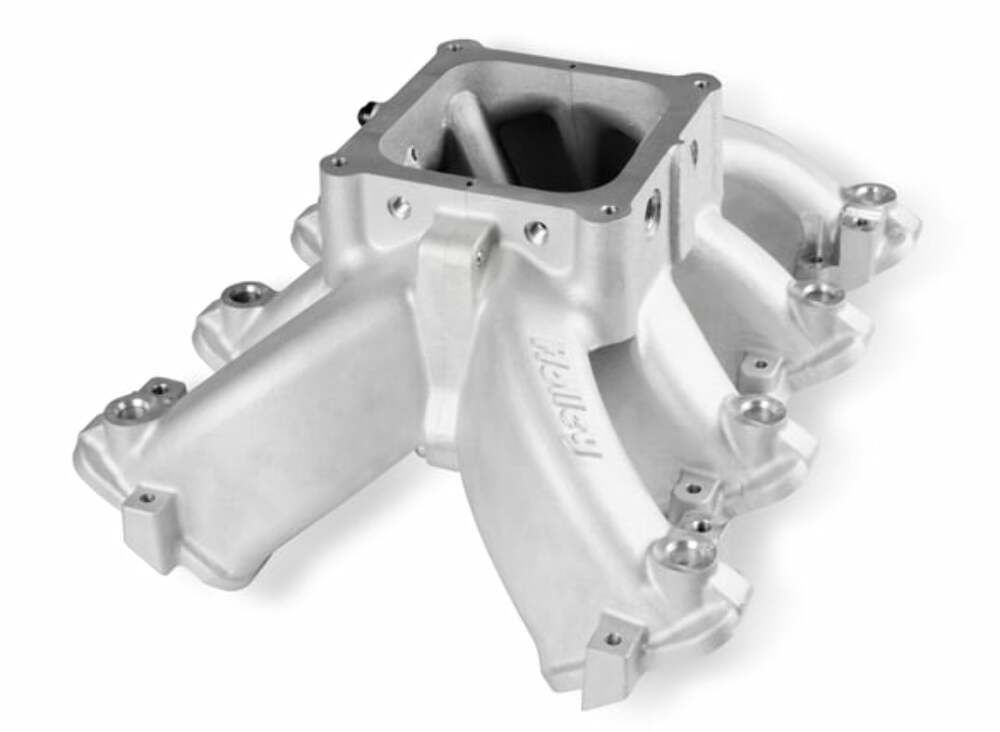

Holley Single Plane EFI 4500 Split-Design Race Intake Manifold 300-294
Holley Single Plane EFI 4500 Split-Design Race Intake Manifold 300-294 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

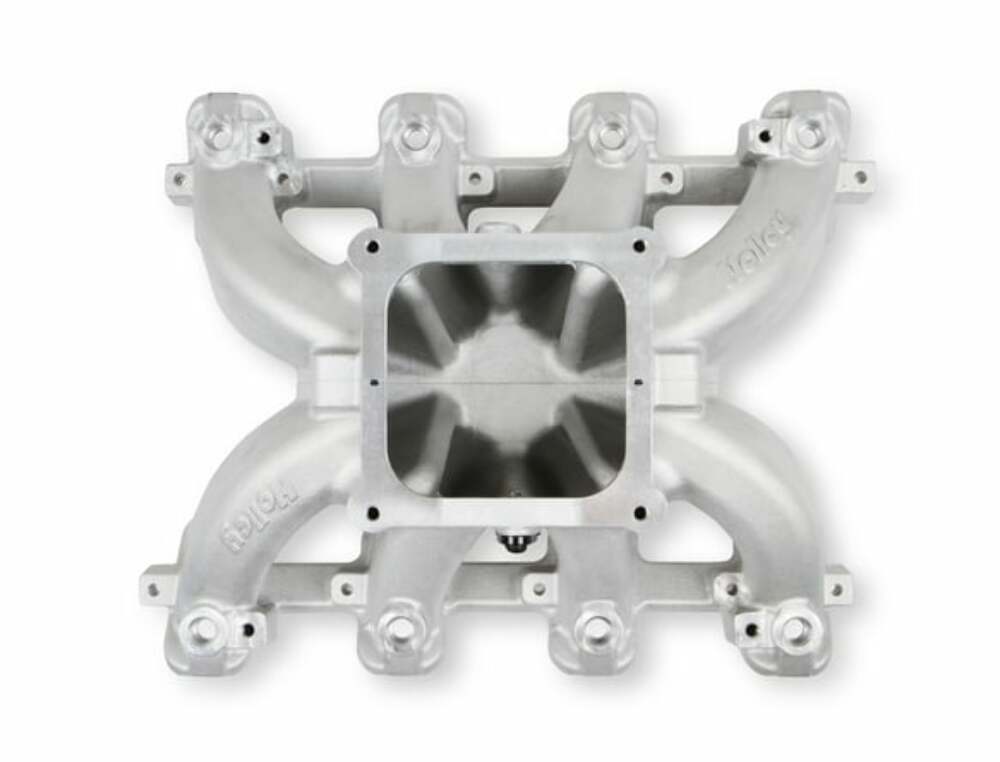

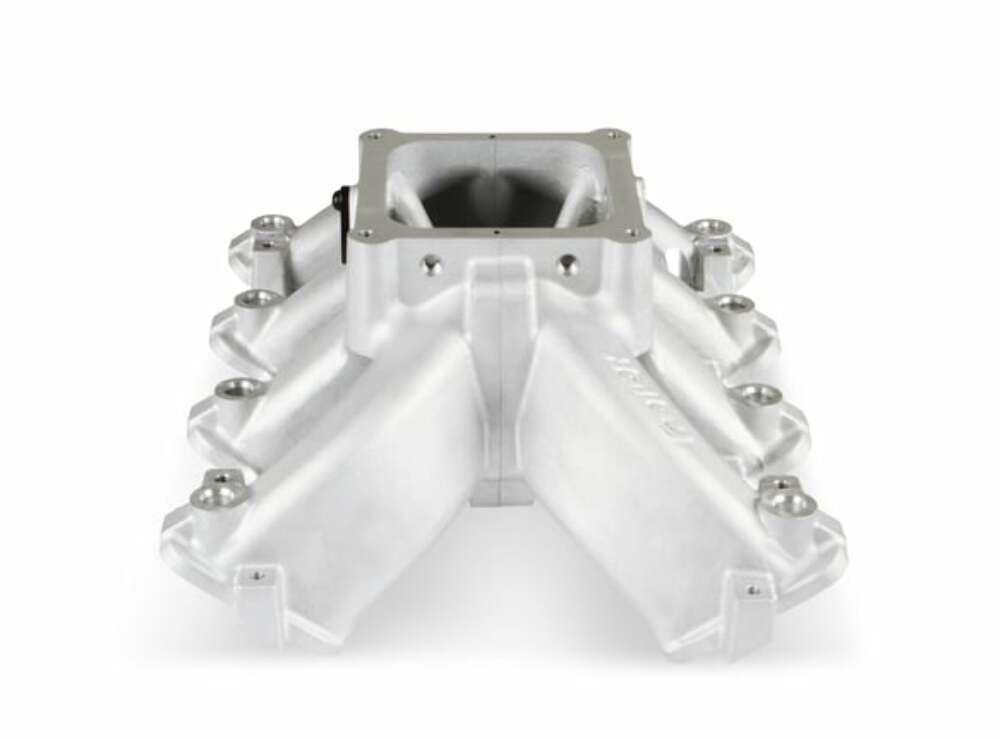

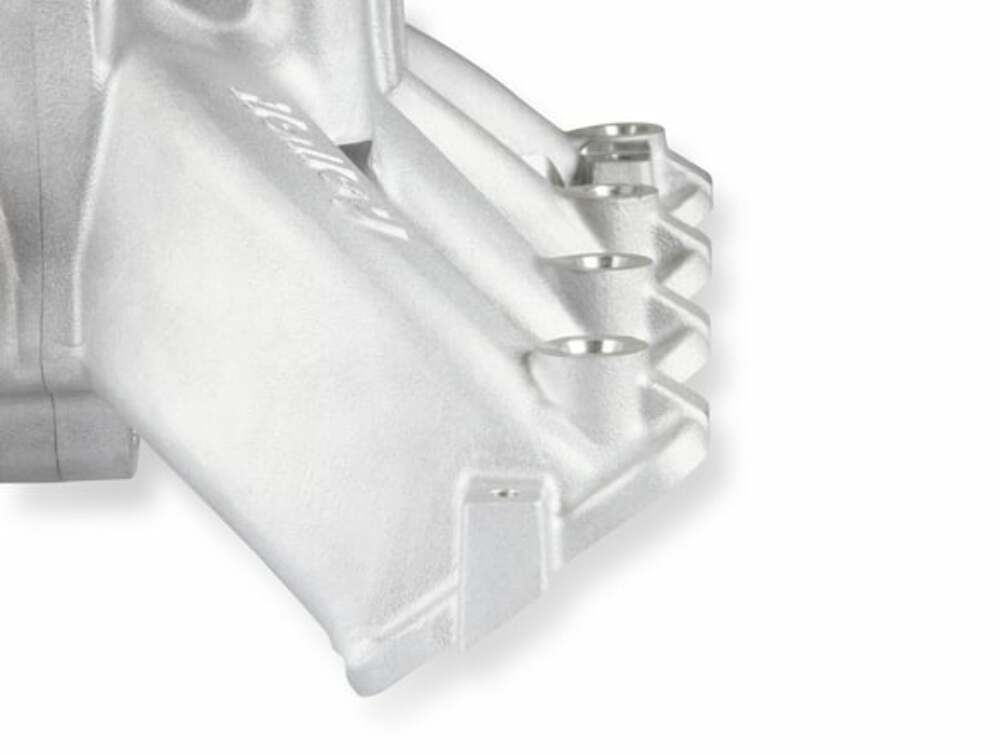

The new Holley Single-Plane Race intake manifold is designed with maximum performance in mind. Featured is a two-piece split design that provides access for all levels of porting and modification. With shoulder bolt locators and O-ring seal, disassembly & reassembly is simple and precise.

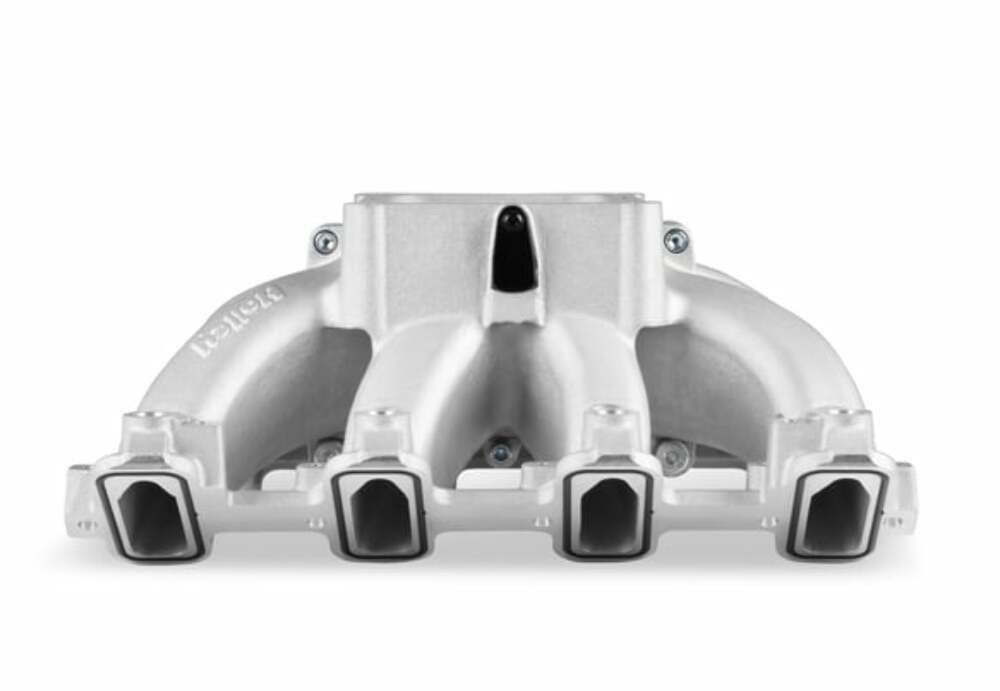

The manifold with AN-8 fuel rails fits GM LS Gen III engines with cathedral port heads and has a 4500 Dominator style carb flange for carburetors, EFI throttle bodies, or EFI throttle body elbows, and is configured with a LS MAP sensor port along with other NPT plenum vacuum or air-temp sensor ports.
The LS Race single-plane intake manifold is designed for hi-performance/racing engine applications, 5.3 to 6.2+ liter displacements, N/A or with power adders. The large volume 4500 plenum and optimized runners provide airflow potential for Hi-RPM engines with max power at 7500-8000+ RPM.
Features:

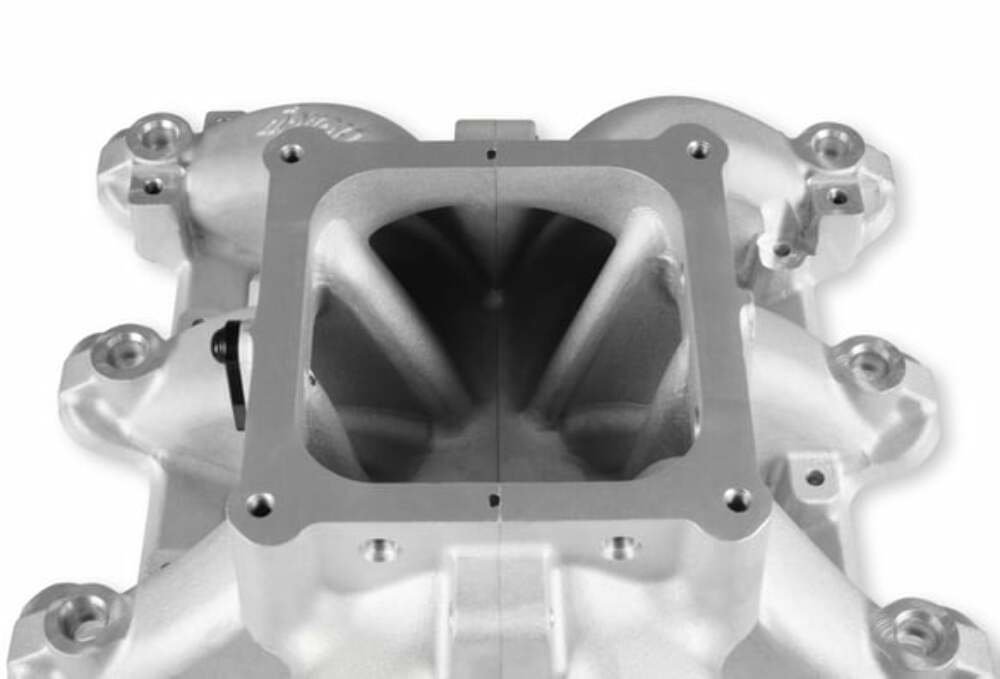

- Maximum performance 4500 Dominator flange race design with hood clearance consideration
- Lighter than other split race intakes
- Split feature making porting efforts easy!
- 33 to 50% the price of other split race intakes

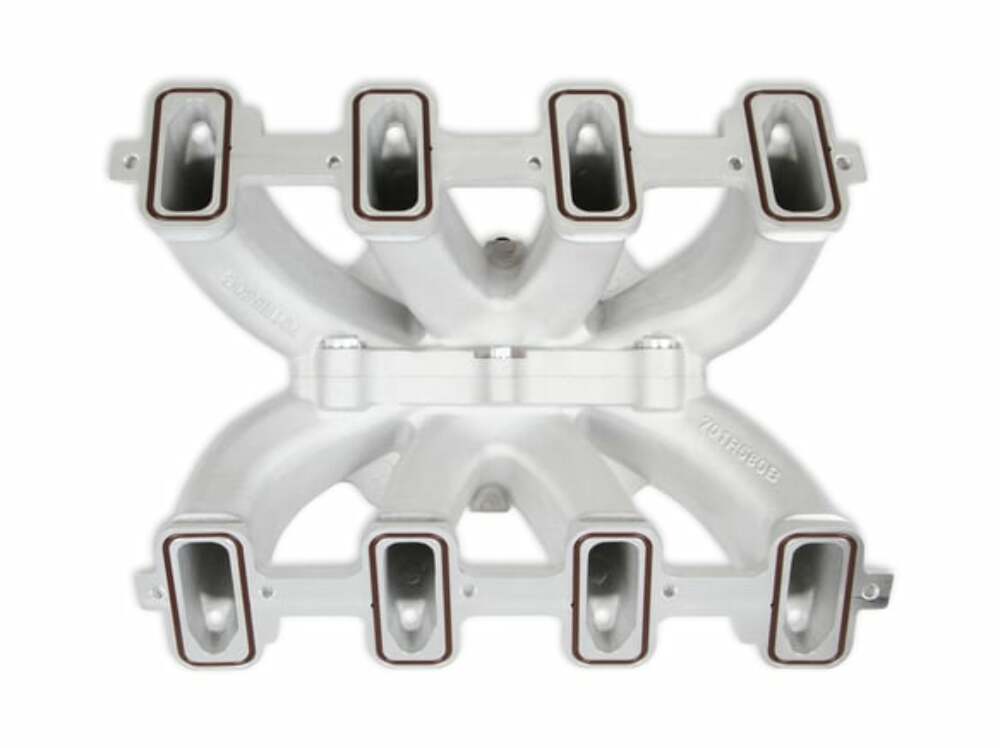

- Captured O-ring seals at head ports and plenum split
- Vacuum Port options include (2) 1/8, (1) 1/4, and (1) 3/8, NPT ports at the carb flange

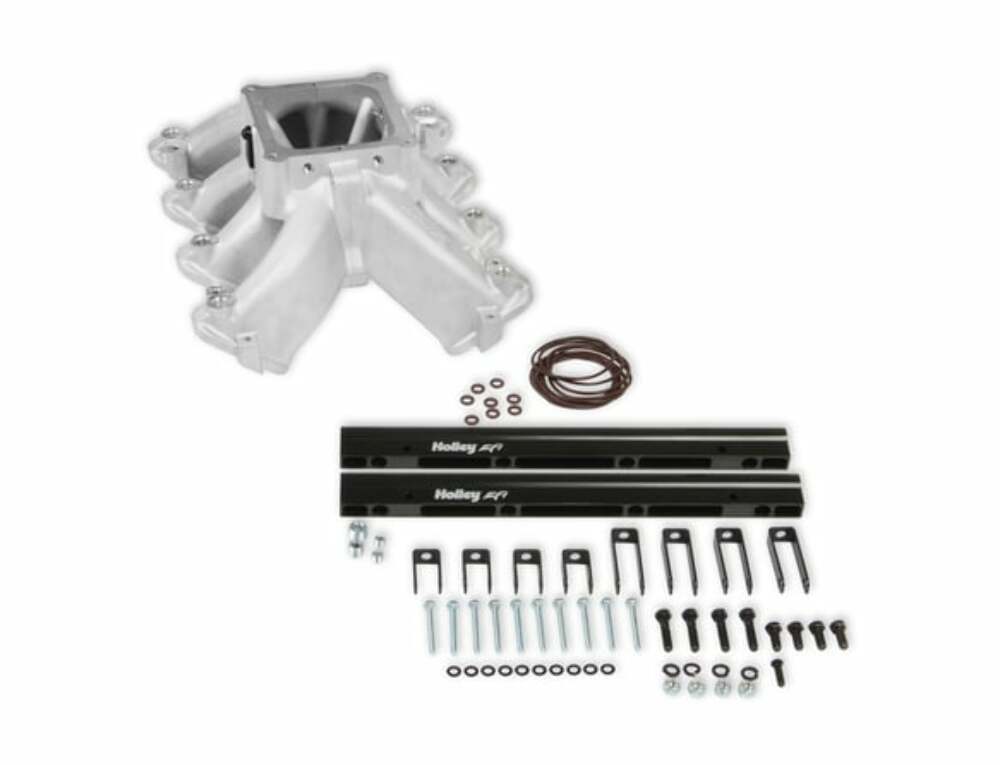

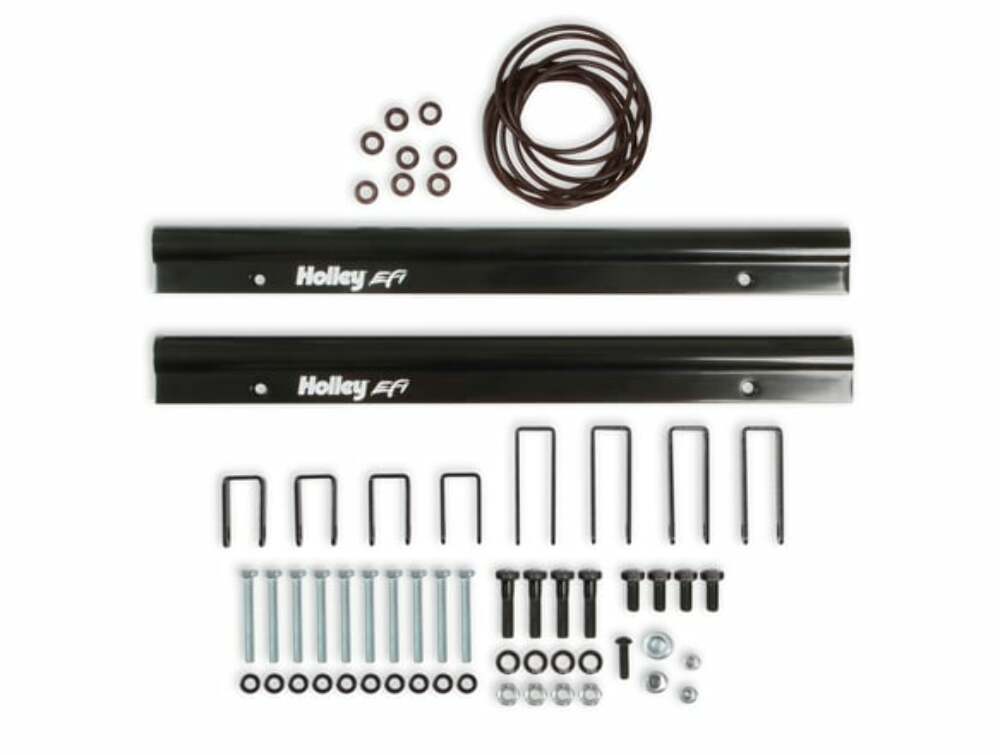

- Two versions available: EFI type - Billet Fuel Rails and rail mounting hardware included, or Carbureted / Sniper EFI 4500 TBI style
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Barrels | 4 |
|---|---|
| Brand | Holley |
| Color | Silver |
| Construction | Cast |
| Emission Code | 3 |
| Engine | GM LS1/LS2/LS6 |
| Finish | Satin |
| Flange Style | 4500 |
| Front Height | 7.32" |
| Fuel System Type | EFI |
| Manifold Type | Split Single Plane |
| Product Type | Manifold |
| Rear Height | 7.32" |
| RPM Power Band | 2500-7000 |
| Warranty | Limited 90 Day |
