Holley Single Plane EFI Intake - GM LS3/L92 - 300-136
Holley Single Plane EFI Intake - GM LS3/L92 - 300-136 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

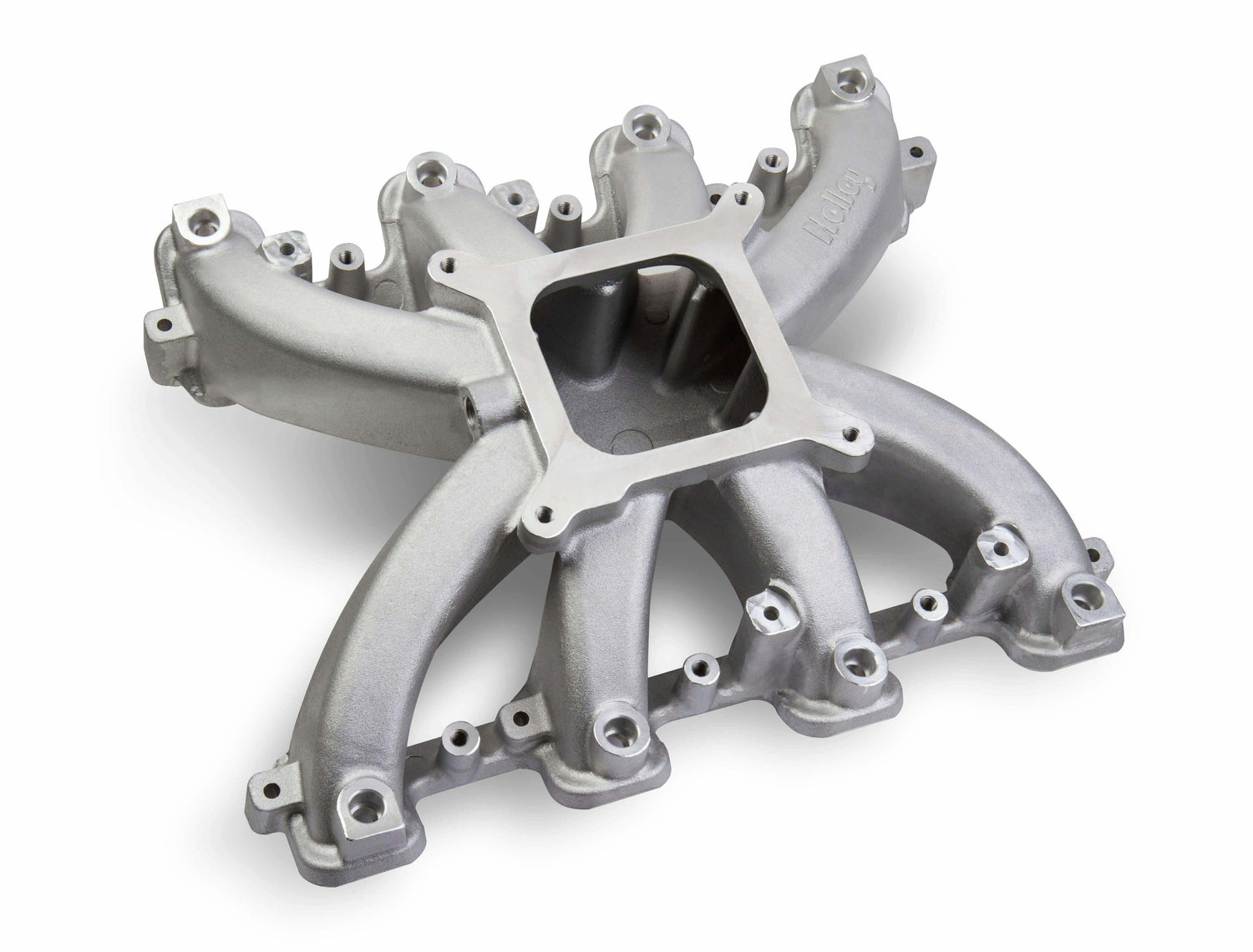

Single Plane EFI LS Intake Manifold. Fits all GM LS Gen III engines equipped with LS3/L92 style rectangular port cylinder heads
Features:
- 2500-7000 RPM power band
- 4150 Square bore flange
- Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM
- Minimum carb flange height - fit in vehicles with minimum hood modifications
- Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS mild power adder applications
- Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality
- Weight - 11.5 lbs.

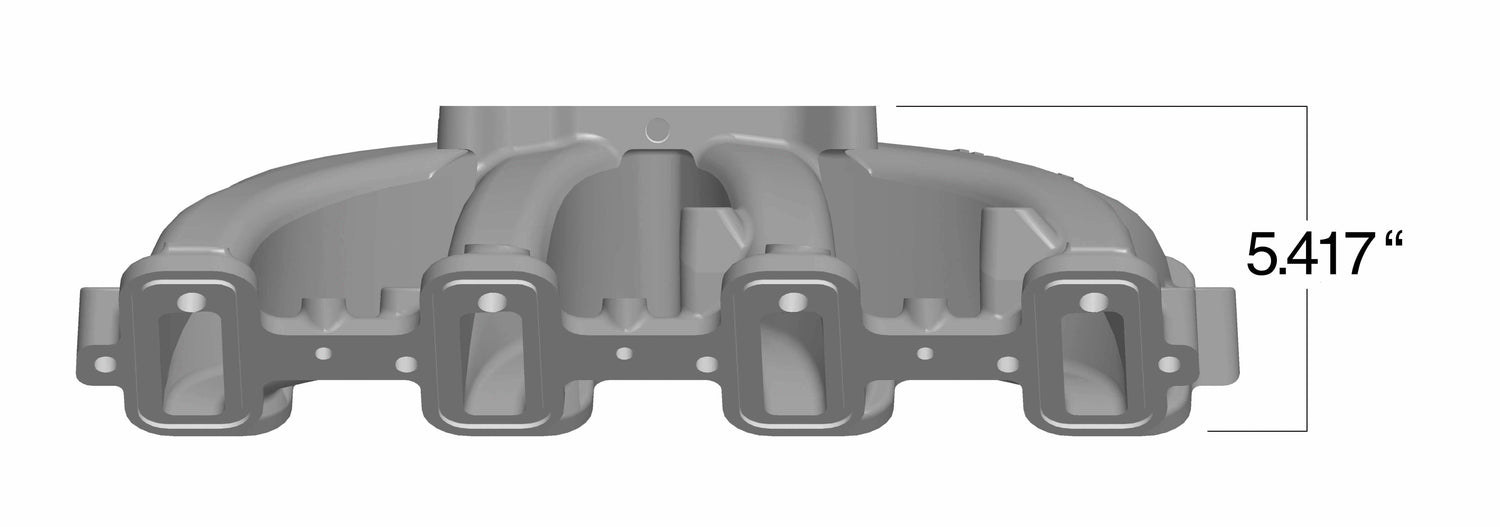

- Height (front) - 5.417" to the lifter valley cover flange at the engine block front flange and bellhousing flange
- Port size - 2.50" height x 1.15" wide
- Includes Viton® O-ring intake to cylinder head gaskets - Viton® is a registered trademark of DuPont Performance Elastomers
- This manifold will not work with factory fuel rails and requires the use of Holley Fuel Rail Kit 534-218
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Brand | Holley EFI |
|---|---|
| Construction | Cast |
| Emission Code | 3 |
| Engine | GM LS3/L92 |
| Finish | Satin |
| Flange Style | 4150 Square Bore |
| Front Height | 5.417 inch |
| Fuel System Type | EFI |
| Manifold Type | Single Plane |
| Product Type | Manifold |
| Rear Height | 5.417 inch |
| RPM Power Band | 2500-7000 |
| Warranty | Limited 90 Day |
