Holley Single Plane Intake - GM LS1/LS2/LS6 - Black - 300-132BK
Holley Single Plane Intake - GM LS1/LS2/LS6 - Black - 300-132BK is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

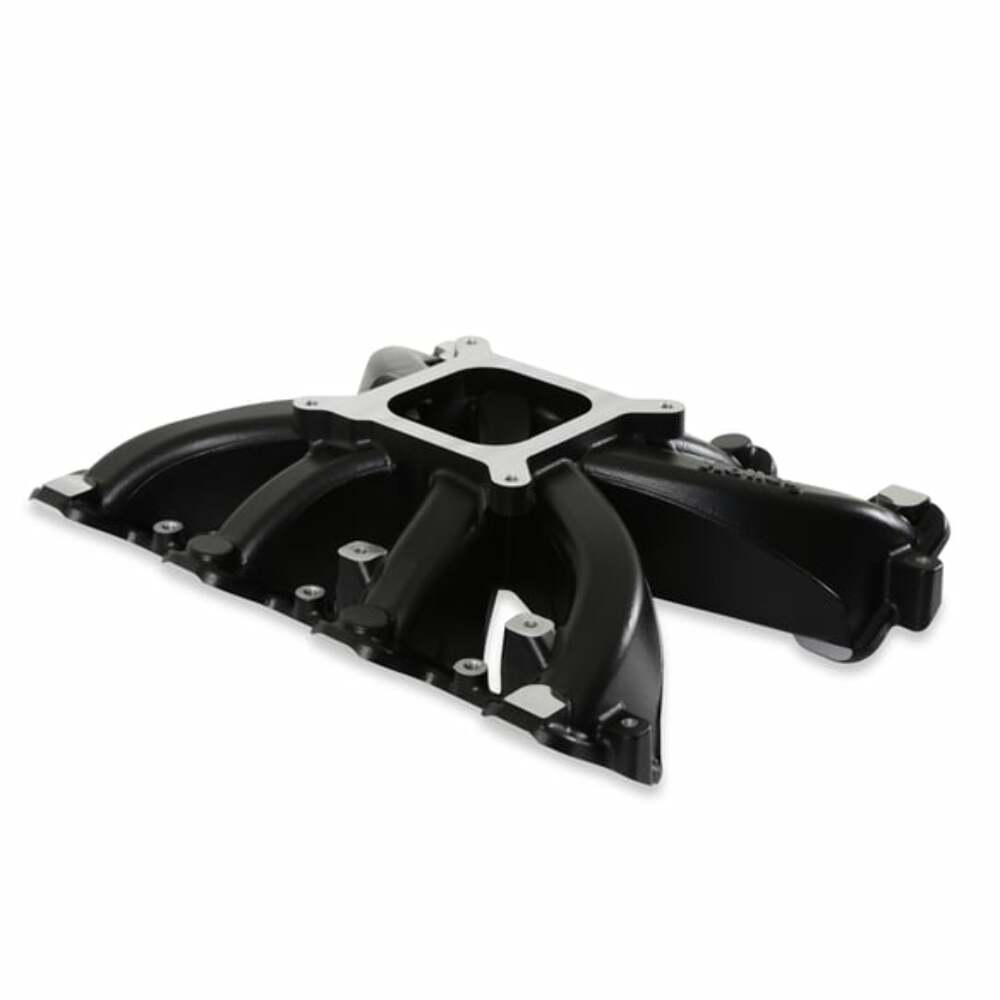

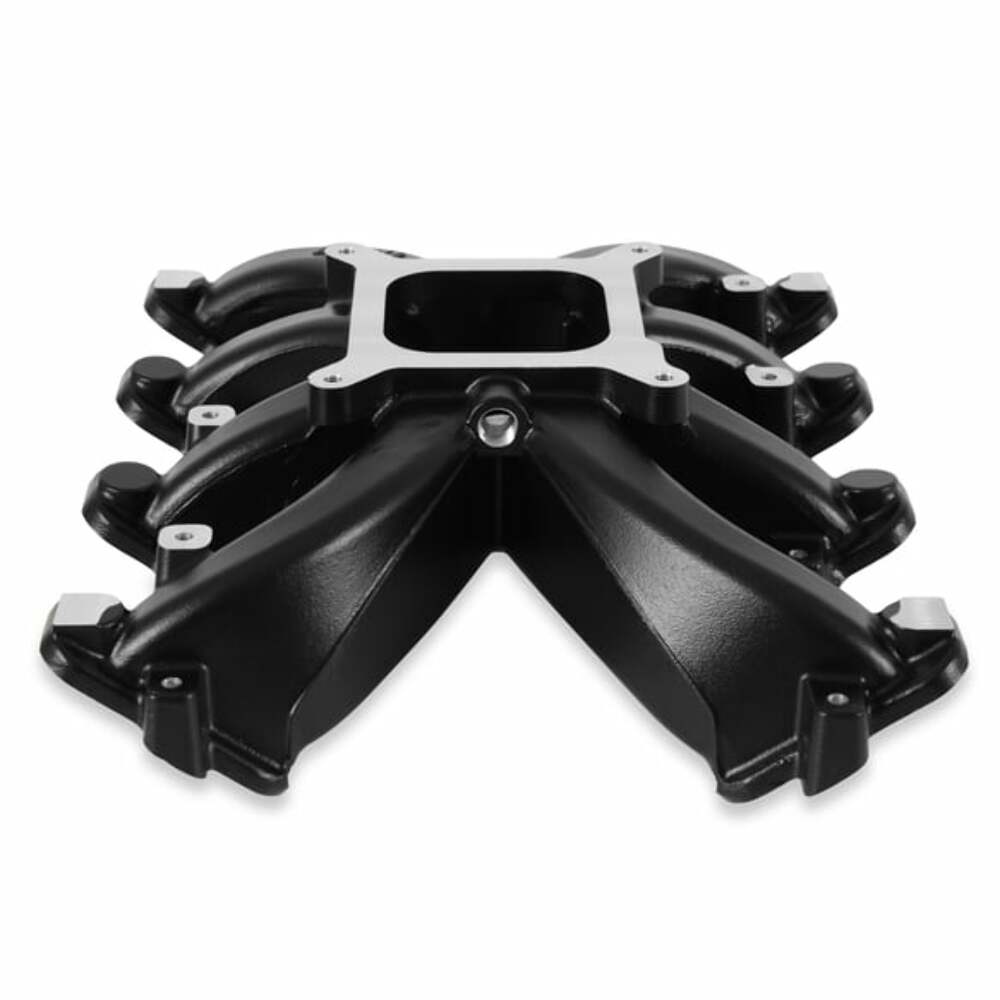

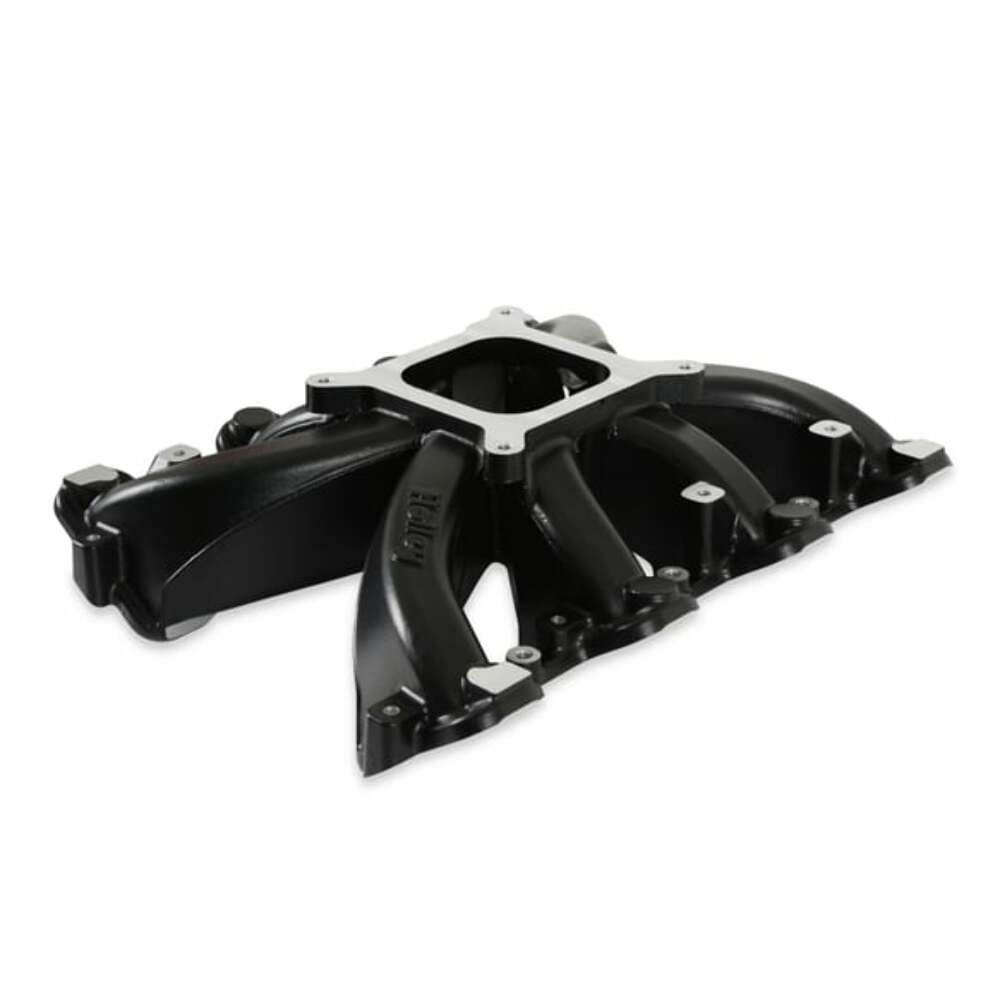

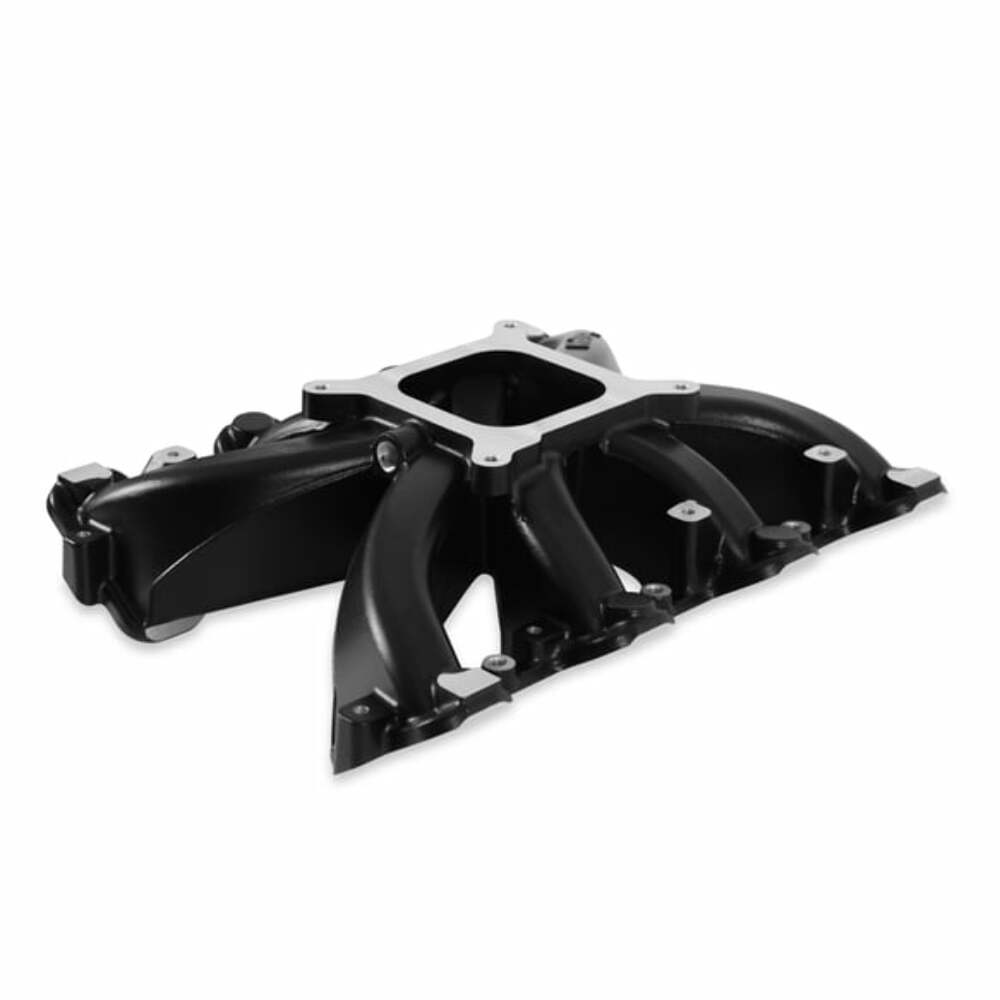

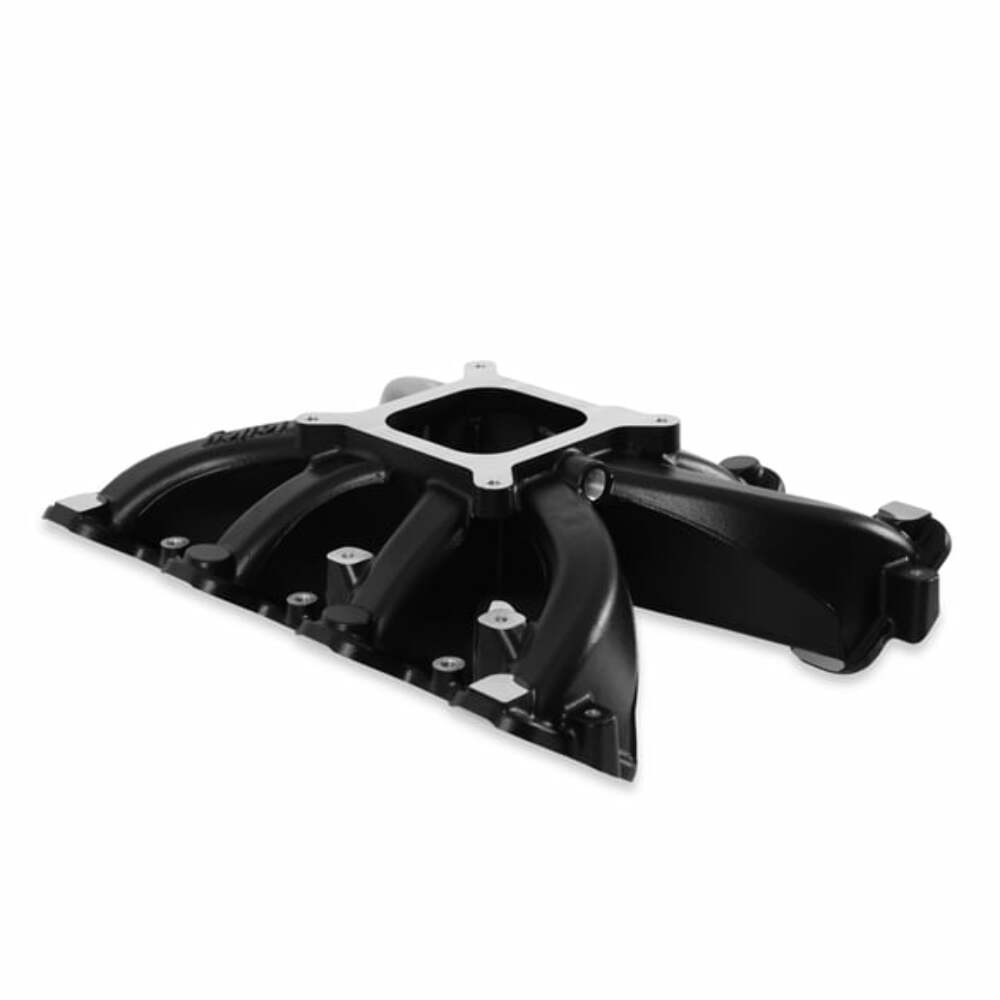

Black Ceramic Coated,Carbureted Single plane intake manifold. Fits all GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads
Features:
- 2500-7000 RPM power band

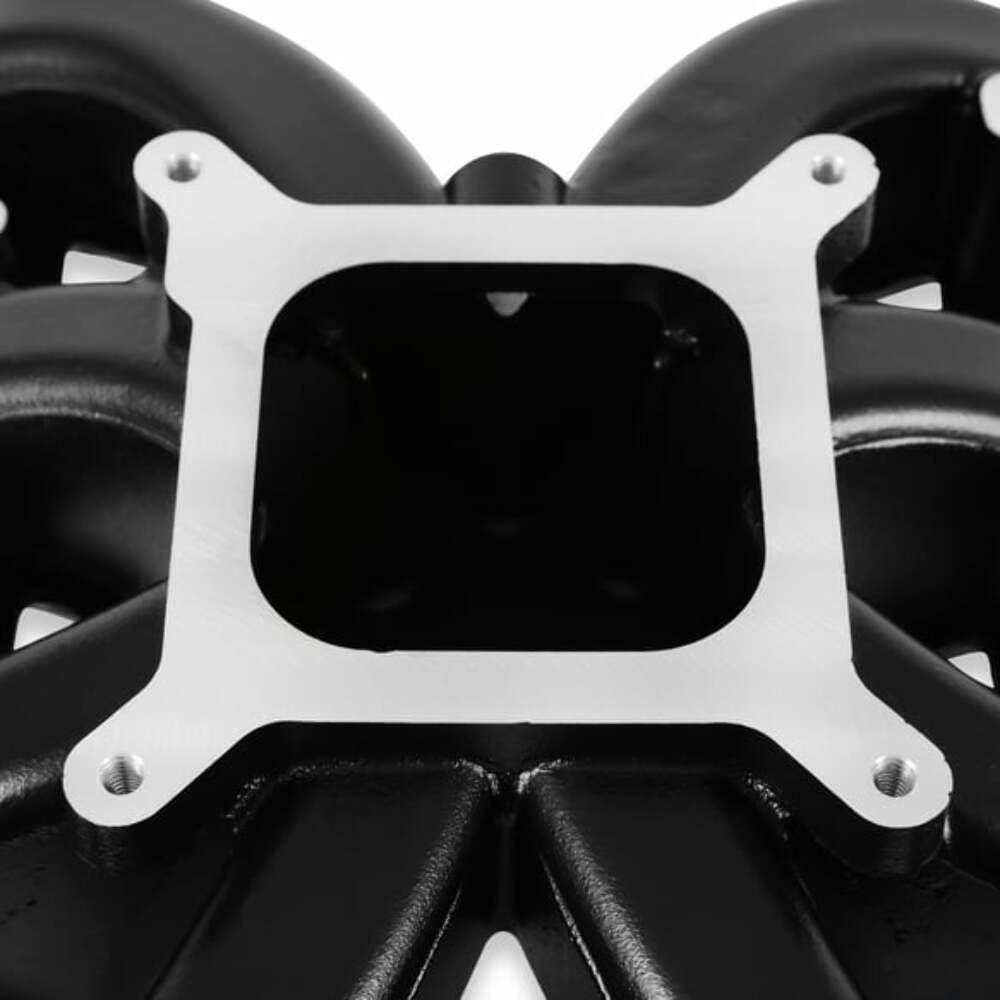

- 4150 Square bore carb mounting flange (accepts up to 1.75" diameter throttle bores)
- Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM
- Minimum carb flange height - fits in vehicles with minimum hood modifications
- Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS power adder applications
- Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality
- Weight - 11.5 lbs.
- Height (front) - 4.95" to the lifter valley cover flange at the engine block front flange

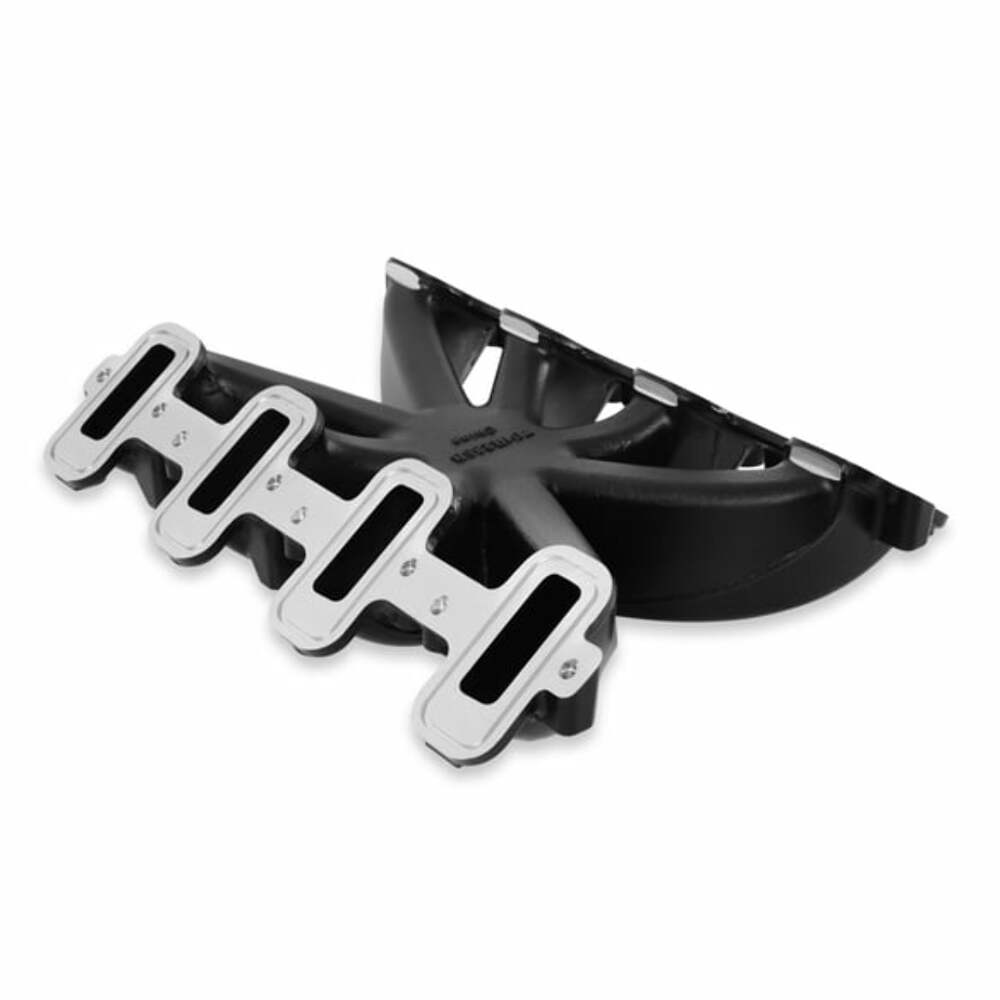

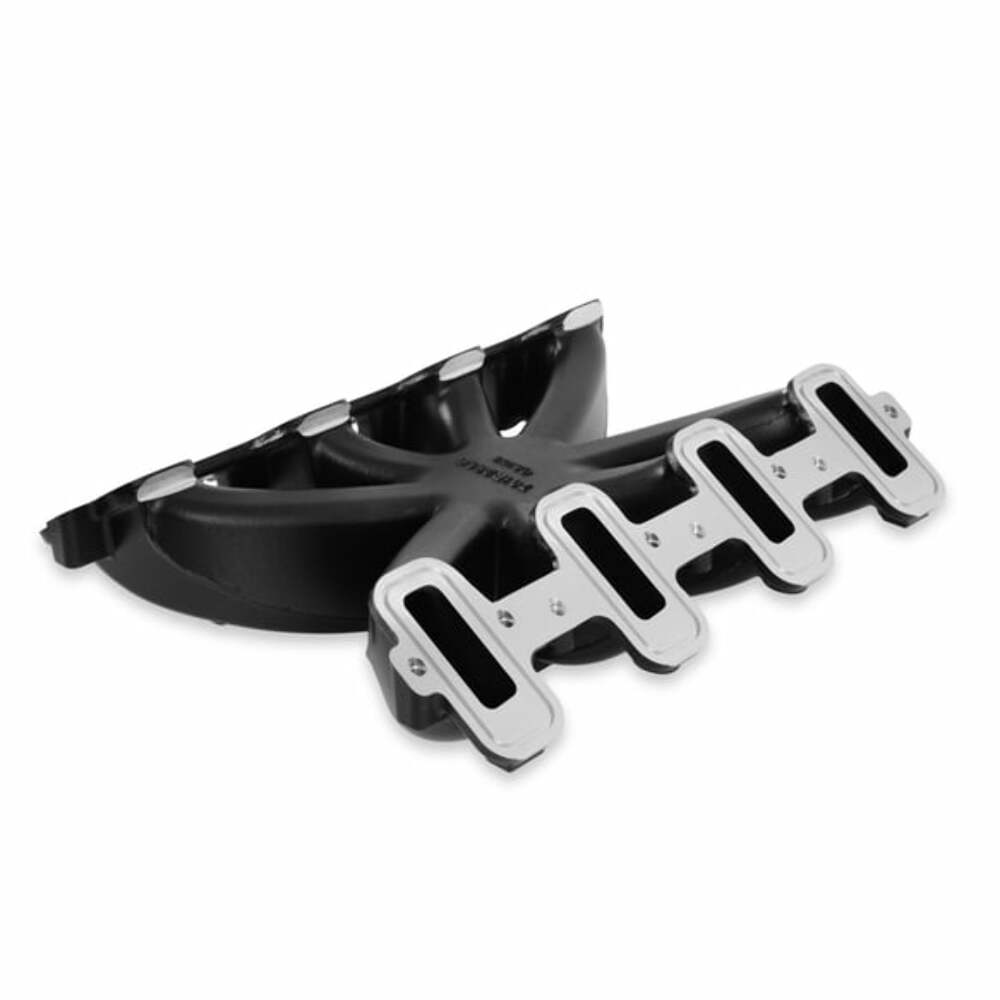

- Port size - 2.659" height x .918" wide

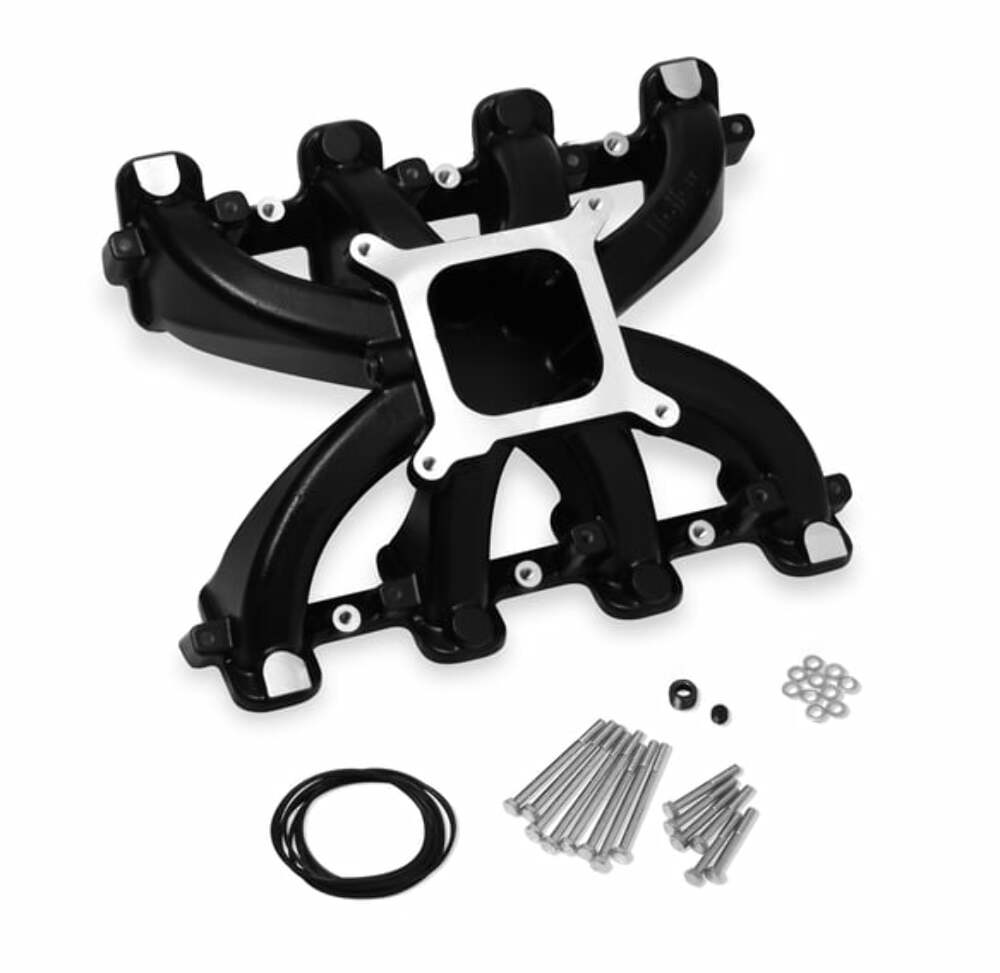

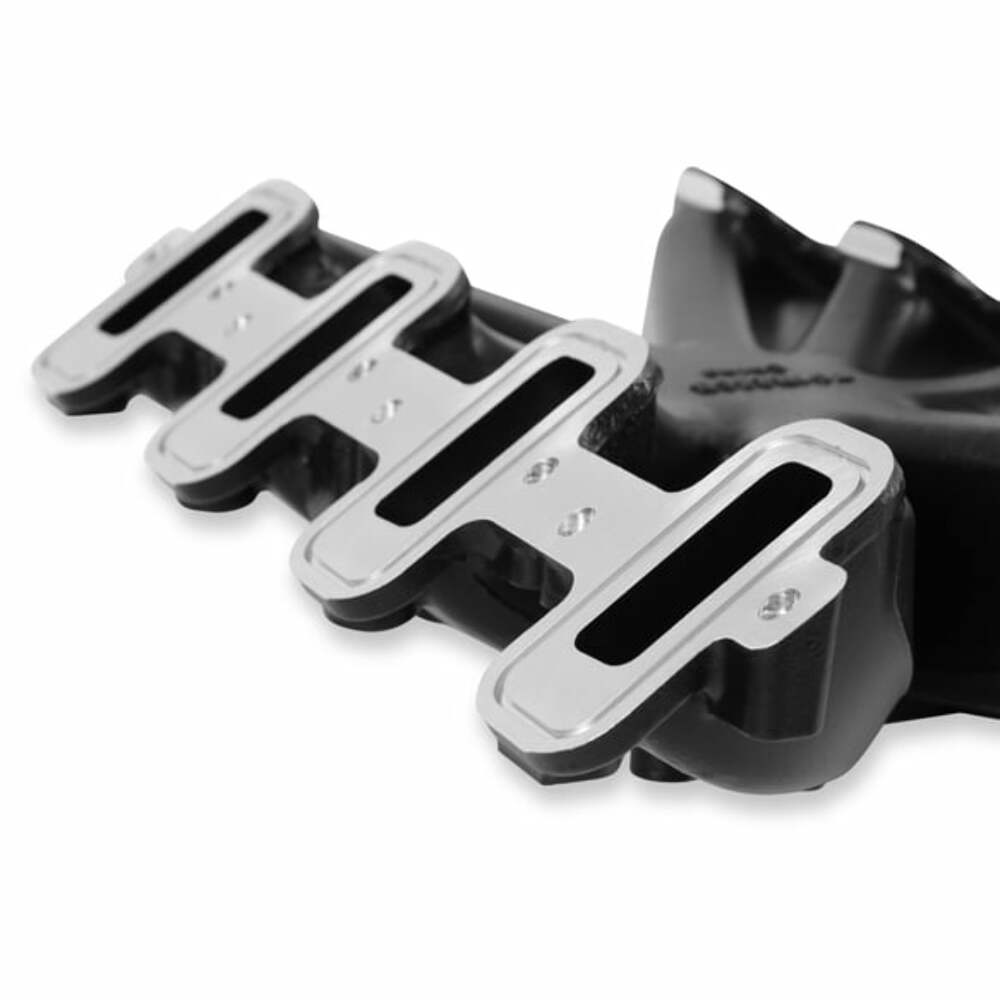

- Includes Viton® intake to cylinder head O-ring gaskets - Viton® is a registered trademark of DuPont Performance Elastomers
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| 1997 - 2004 | Chevrolet | Corvette | 350/5.7L V8 | |
| 1998 - 2002 | Chevrolet | Camaro | 350/5.7L V8 | |
| 2005 - 2007 | Chevrolet | Corvette | 364/6L V8 | |
| 2004 - 2005 | Cadillac | CTS | 346/5.7L V8 |
Specs:
| Barrels | 4 |
|---|---|
| Brand | Holley |
| Construction | Cast |
| Emission Code | 3 |
| Engine | GM LS1/LS2/LS6 |
| Finish | Black |
| Front Height | 4.95 inch |
| Fuel System Type | Carb |
| Manifold Type | Single Plane |
| Product Type | Manifold |
| Rear Height | 4.95 inch |
| RPM Power Band | 2500-7000 |
| Warranty | Limited 90 Day |
