Holley Terminator X Engine Management Systems 550-905
Holley Terminator X Engine Management Systems 550-905 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Delivery and Shipping
Delivery and Shipping
Same day shipping, if ordered by 9:00 AM ET M-F
*Select products are made to order and ship within 4 business days.
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
TERMINATOR X MPFI, LS2/LS3 & LATE TRUCK
Features:

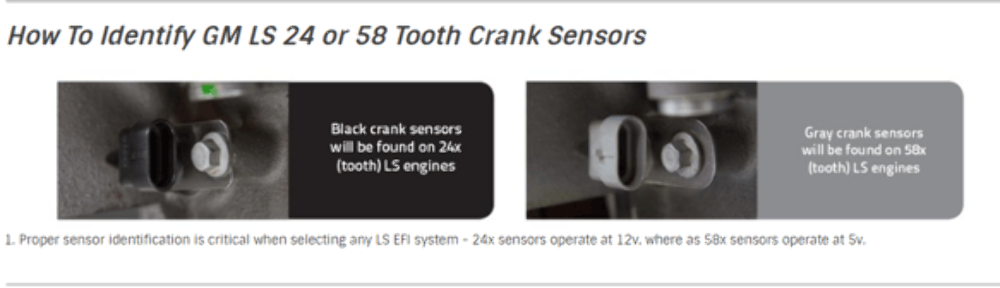

- Designed for GM LS Engines with 58x Crank, 4x Cam - and EV6 Injectors.
- Real-Time fuel map learn, takes the guess work out of tuning your base fuel table.

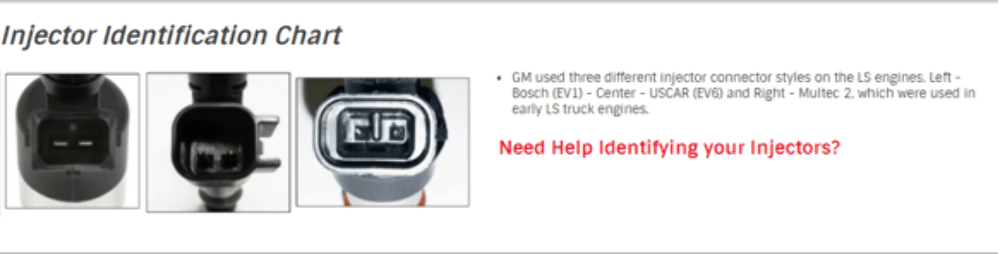

- High Impedance Injector Drivers will safely power most Stock LS injectors, and Holley EFI Injectors. Injector support chart provided in the instructions (Will not control Low Impedance Injectors)

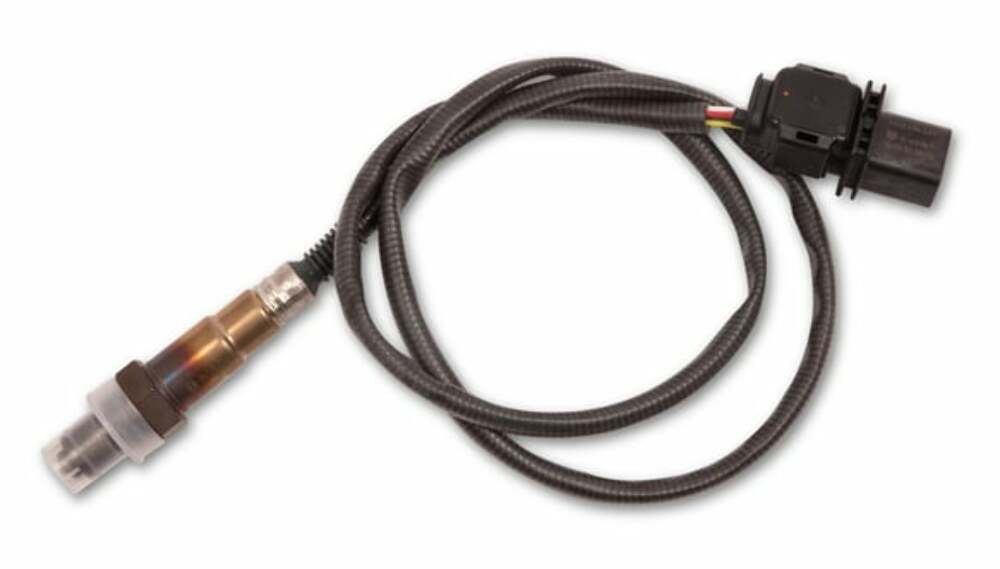

- All of the new Terminator X systems utilize the Bosch LSU 4.9 wideband to relay AFR information to the ECU for accurate reading and precise tuning control.
- MAP Sensor vacuum hose adapters (1/8th – ¼ and 3/16ths)
- 4 Inputs – 12v, Ground, 5v, and Frequency, for things such as additional pressure sensors, or activation triggers for nitrous activation, or a trans brake
- 4 Outputs – Ground, PWM - , for accessories such as; fans, boost control, nitrous control, IAC Kit, and More
- Boost Control – Boost vs Time, Boost vs Gear, Boost vs RPM, Boost vs Speed, Boost Safeties
- Nitrous Control – Single Channel of Wet or Dry, Progressive or Non-Progressive, Rich/Lean Safeties, and target Closed Loop AFR
- On-Board Diagnostic LEDS for: ECU Power – Engine Run – Wideband Status – TPS Calibration – Crank Signal –Cam Signal. Allow you to identify any Critical engine issues at a glance
- Advanced Tables – 4x 1D Tables, 1x 1D per Gear Table, 4x 2D Tables, 1x 2D per Gear Table, can be used for any custom tables you can dream up, such as Flex Fuel Sensor Offset Table, or a custom fuel or oil pressure safety!adjustable through included 3.5” f

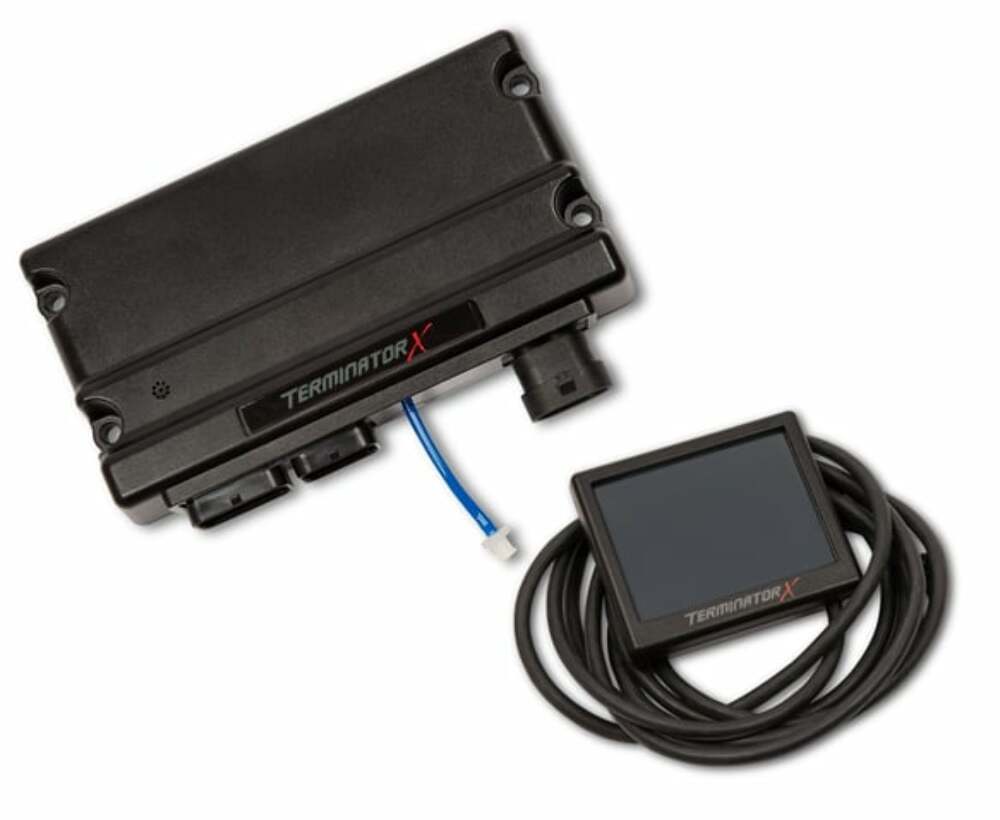

- The included 3.5" Touchscreen Handheld contains a calibration wizard, that allows you to quickly build a base tune for any LS engine. Additionally the handheld provides internal data-logging and a fully customizable gauge display.

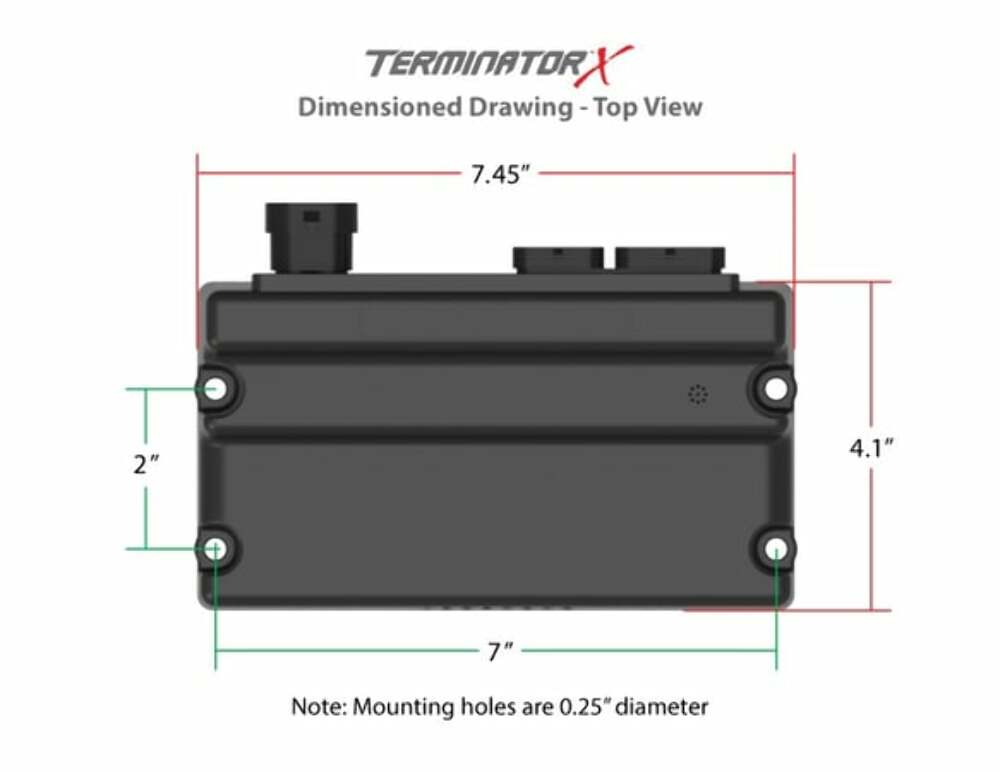

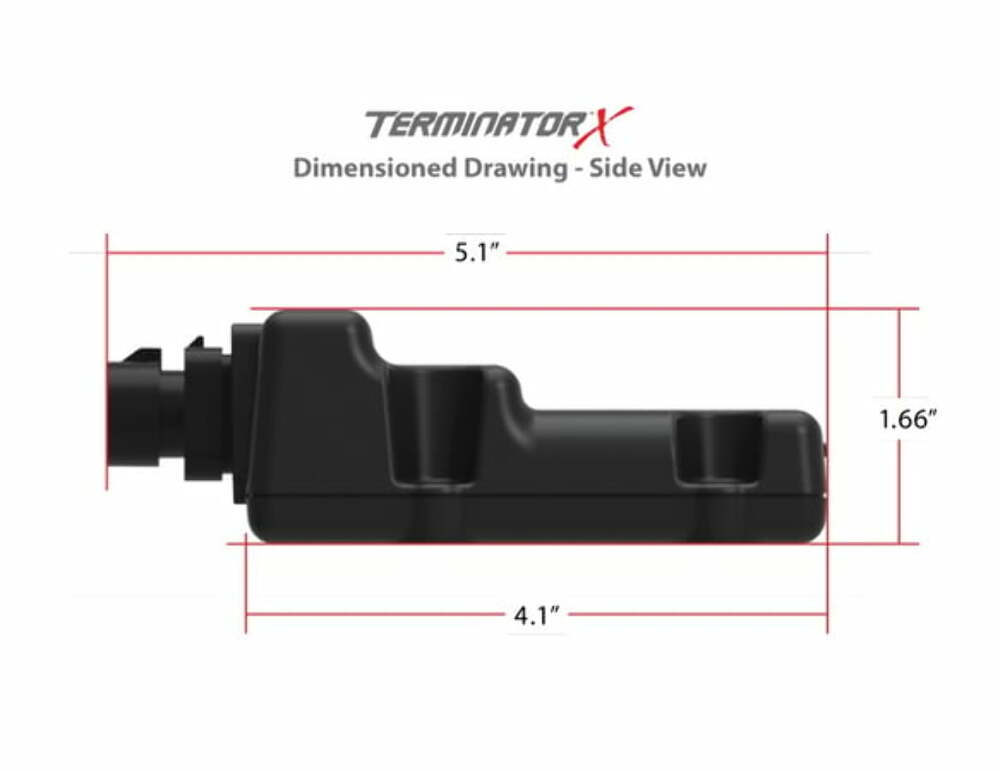

- The compact ECU size allows you to mount it virtually anywhere. Remember, diagnostic LEDS must face up!
- Plug and play compatible with more Holley EFI accessories such as; analog style gauges, shift lights, various modules, and coming soon, 12.3" digital dash support!
- Free EFI Tuning Software for complete control of your Terminator X power plant

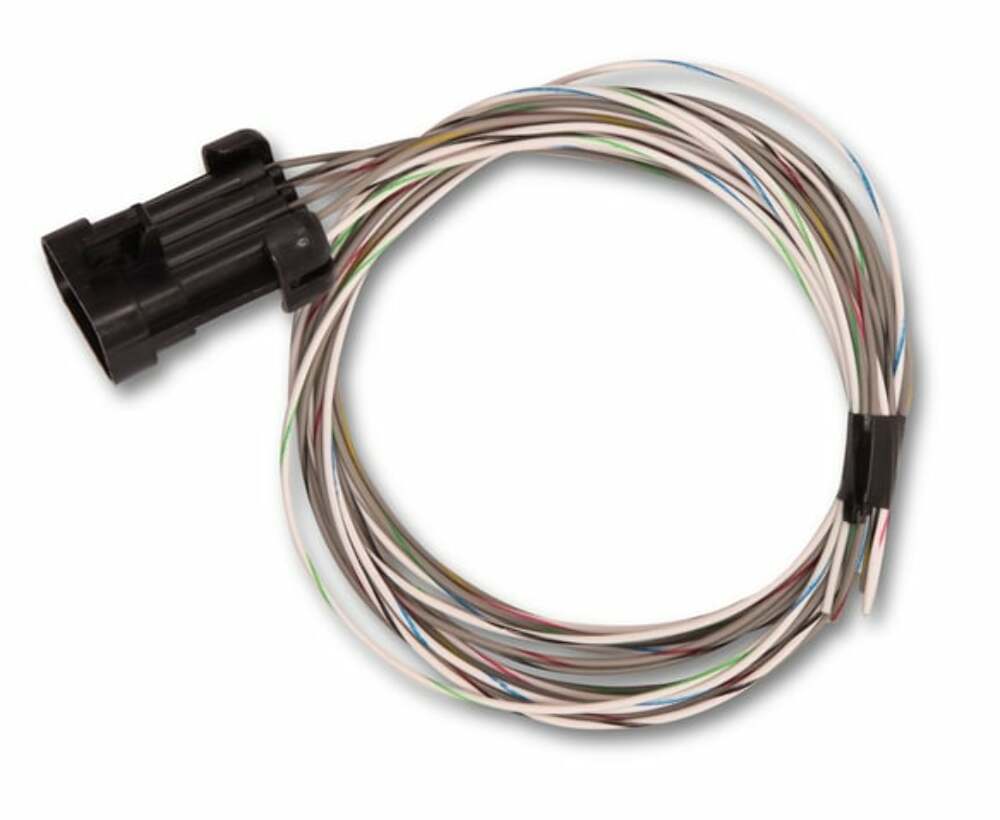

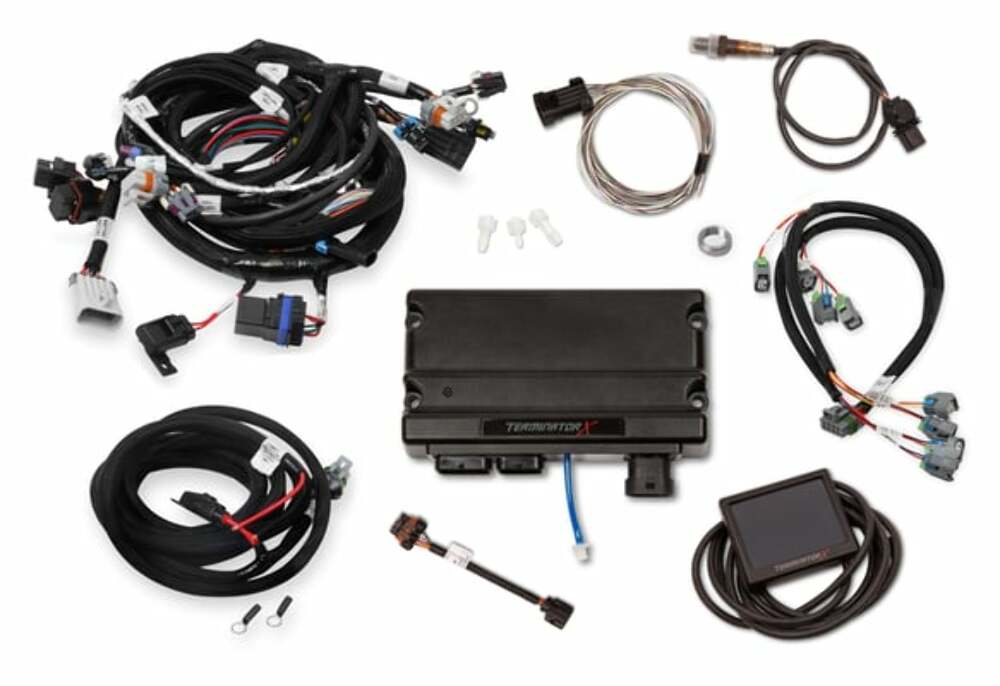

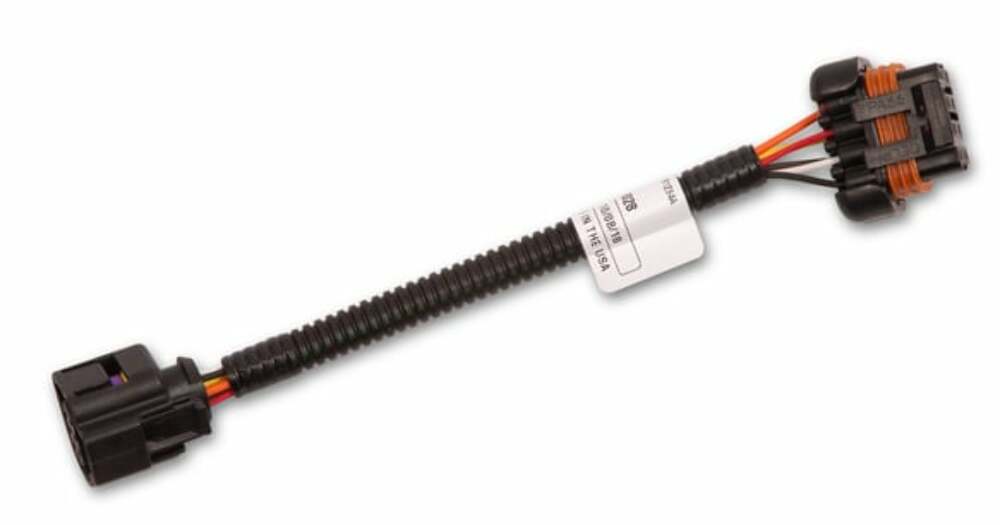

- Includes: 58x/4x LS Engine Main Harness - EV6 Injector Harness - Terminator X ECU - ECU Main Power Harness - Bosch LSU 4.9 Wideband Oxygen Sensor - Input/Output Harness - and assorted vacuum adapters.
Specs
Brand | Holley EFI |
---|---|
Crank Reluctor | 58x |
Emission Code | 3 |
Ignition Type | GM LS 58x |
Injector Connector | USCAR (EV6) |
Product Type | Terminator X LS MPFI |
Terminator LS Options | Fuel, Spark |
Part Number | 550-905 |
