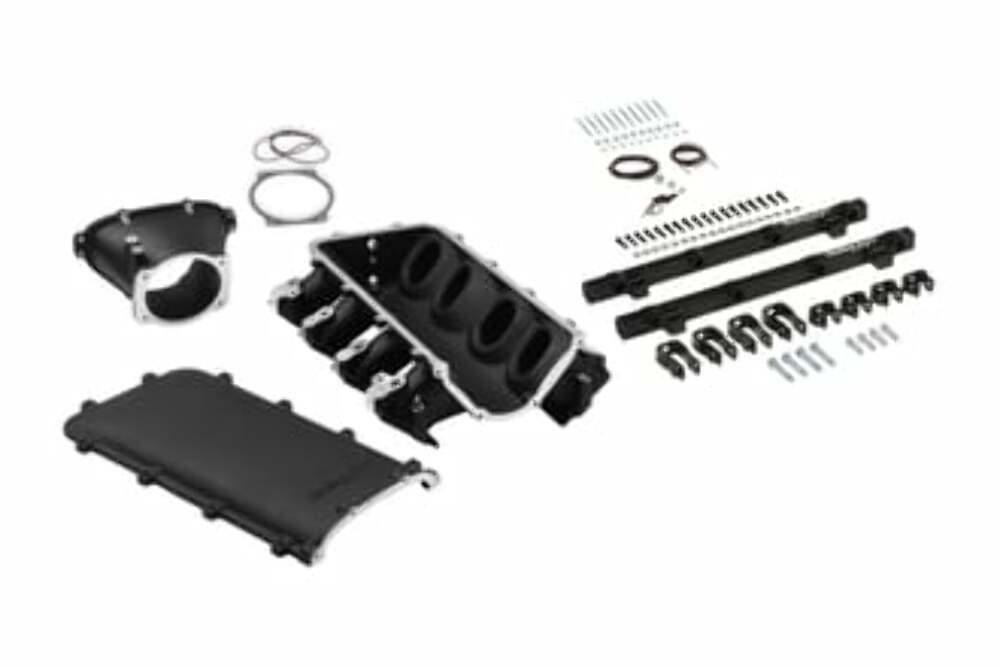

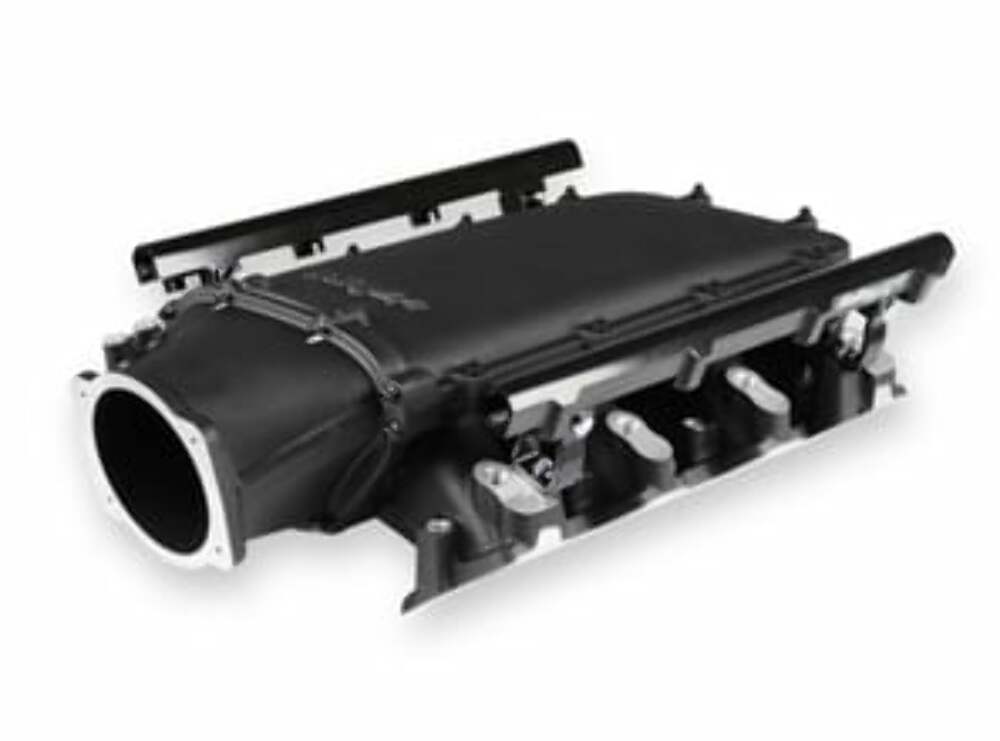

Ultra Lo-Ram Manifold Kit - LS3 Black Finish
Features:
- Designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads?
- Engineered for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm depending on the application.
- Low height to fit under a stock or mildly modified hood in the front configuration
- Front entry plenum flange allows design & fabrication of special throttle body adapters or inlet ducts for custom installations
- Clears C6 Corvette cowls and hoods without modification
- Available with single or dual injector provisions and a burst panel flange.

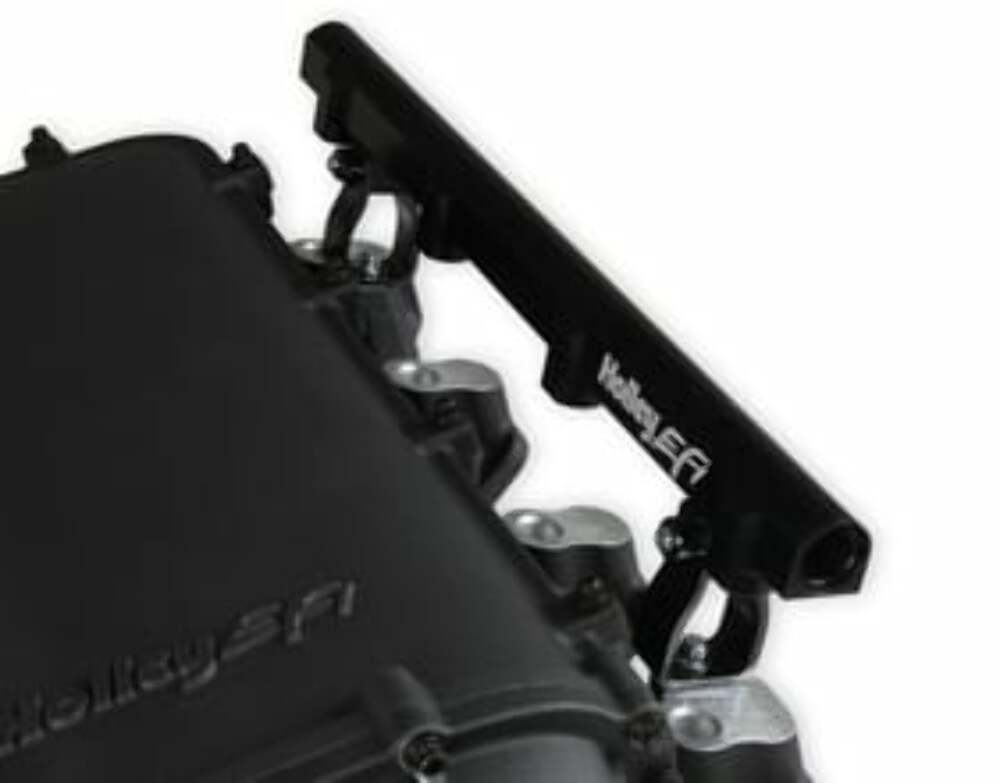

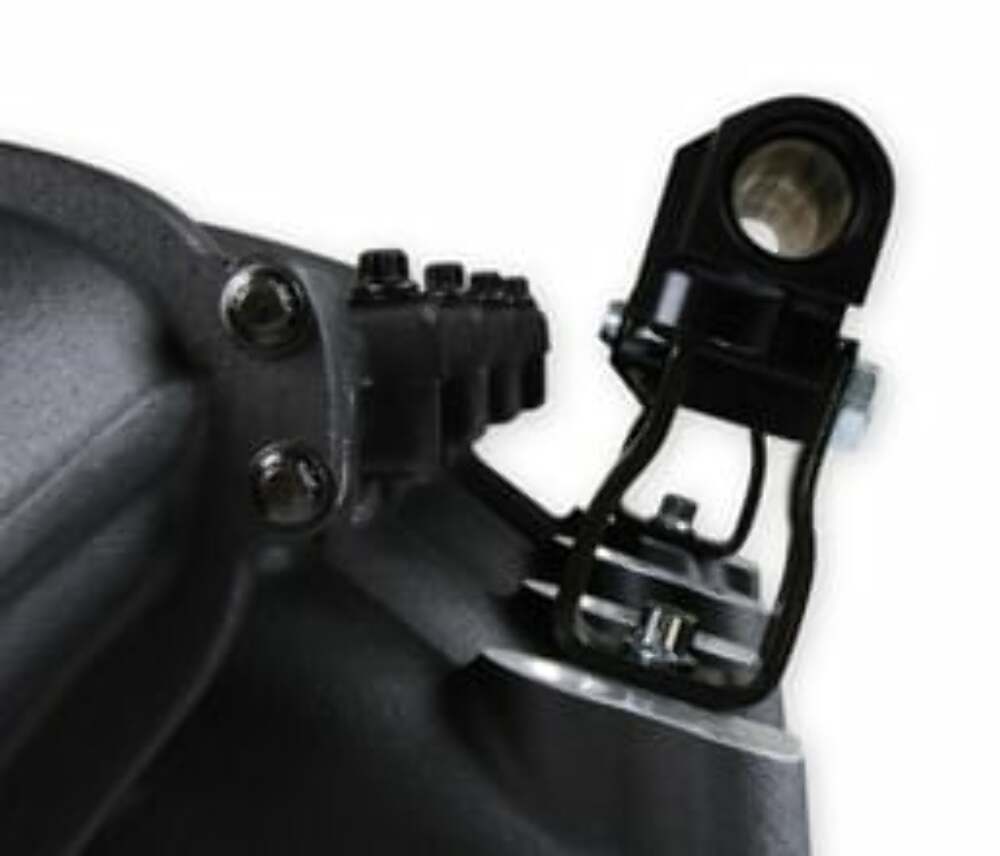

- High volume fuel rails for eight and sixteen injector configurations. Mounting hardware included with 3/4-16 O-ring ports (8 AN)
- Billet options for the top and throttle body adapters are available seperately.
Specs:
| Basic Operating RPM Range | 3500-8000 RPM |
|---|---|
| Brand | Holley EFI |
| Burst Panel Compatible | Yes |
| Category Filter | Intake Manifolds |
| Clearance Category | Intake Manifolds |
| Color | Black |
| Construction | Cast |
| EGR Port | No |
| Emission Code | 3 |
| Engine | GM LS3/L92 |
| Finish | Black |
| Flange Style | EFI |

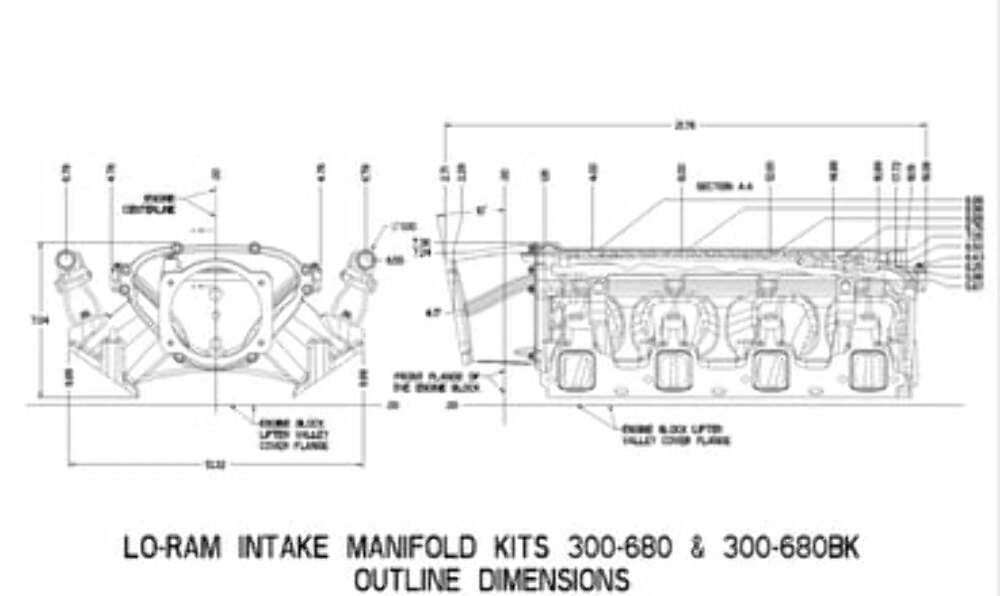

| Front Height | 6.86" height with throttle body adapter |
| Front Maximum Height | 6.86 IN |
| Fuel System Type | EFI |
| Grade Type | Performance |
| Injector Quantity | Single |
| Inlet Location | Front |
| Intake Port Gasket(s) Included | No |
| Manifold Type | Ultra Lo-Ram |
| Material | Aluminum |
| Nitrous Bung(s) Included | No |
| Plenum Finish | Black |
| Product Type | Intake Manifold |
| Recommended Use | Forced Induction |
| Removable Runners | No |
| RPM Power Band | 3500-8000 RPM |
| Sale Category | Air and Fuel Delivery |
| Single Or Dual Plane Type | Single Plane |
| Throttle Body Bore Diameter | 105 MM |
| Throttle Body Included | No |
| Warning | California Proposition 65 |
| Warranty | Limited 90 Day |
Application:
| Year | Make | Model | Submodel |
|---|---|---|---|
