Injector Driver Module - 554-143
Injector Driver Module - 554-143 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

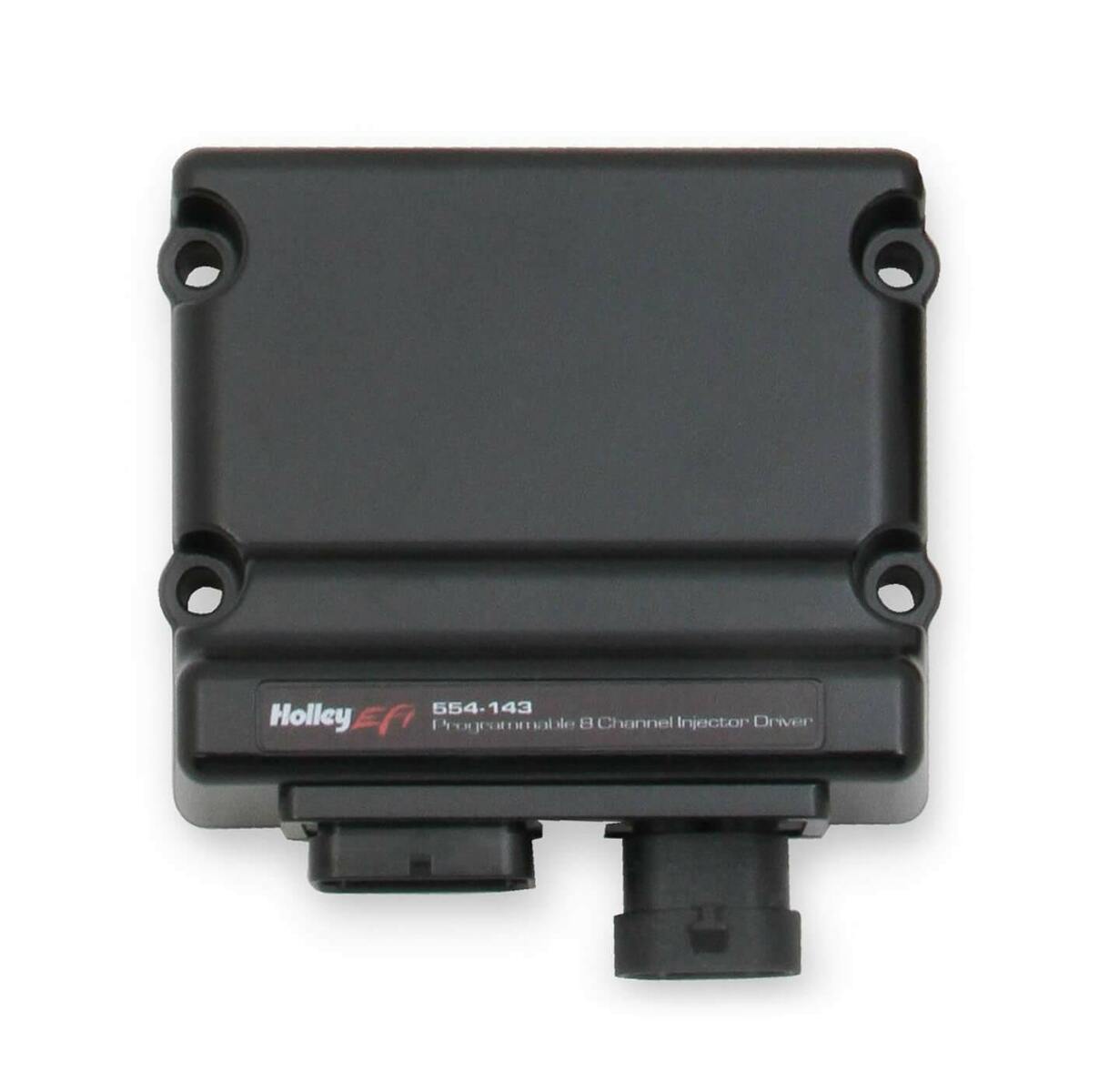

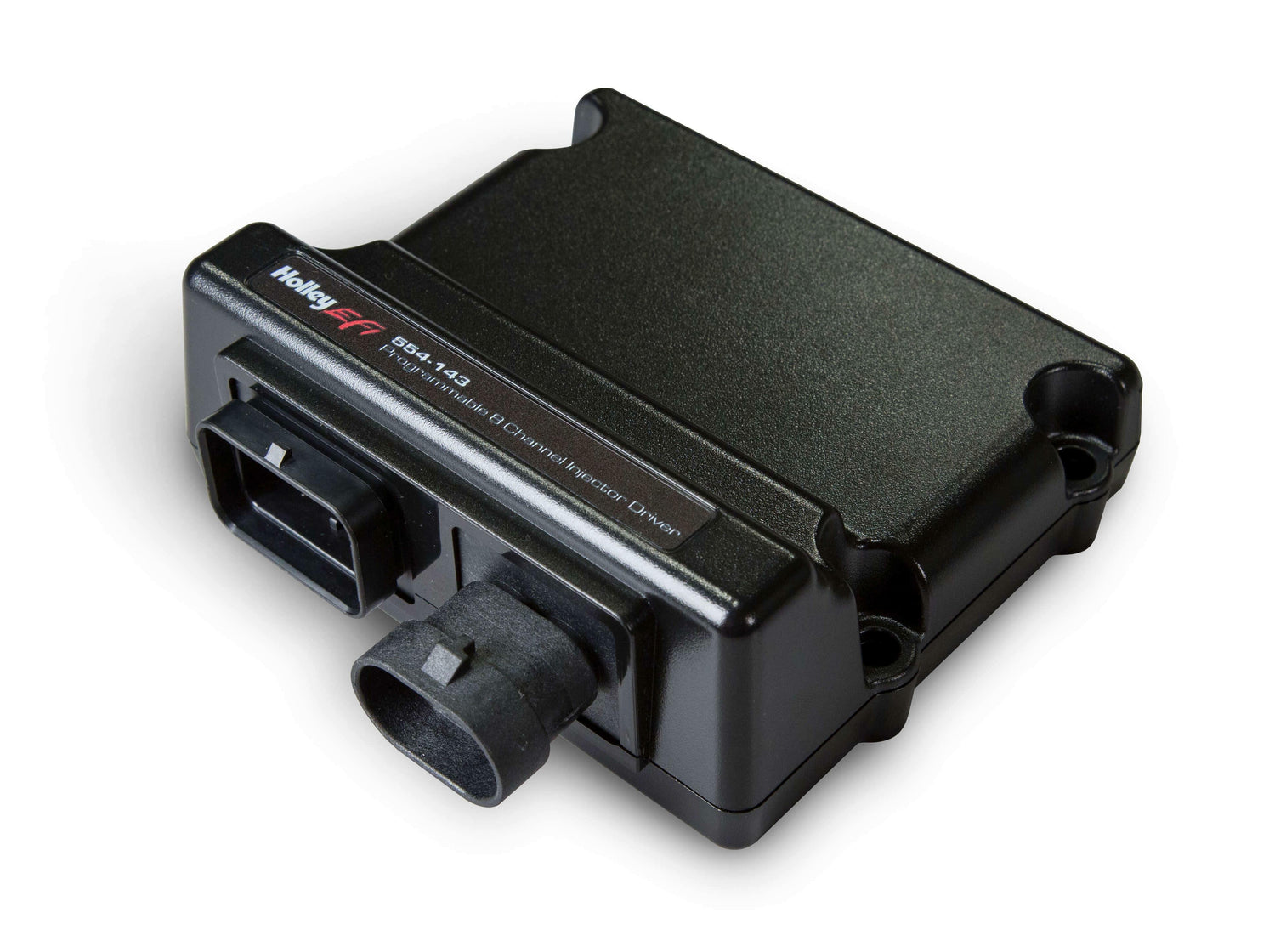

Introducing the Holley EFI Programmable 8 Channel Injector Driver Module. The ultimate solution for methanol burning engines that require a large set of secondary injectors. The Holley EFI Injector Driver Module will have you in complete control of your fuel injected behemoth, featuring easily programmable injector current curves, injector test fire mode, two datalogger outputs, multiple peak and hold current settings and more. This module will allow you to expand the capabilities of your current Electronic Fuel Injected Engine, keeping you at the front of the field!
Features:
- Engineered specifically to add a secondary set of high peak current injectors when utilizing a Holley EFI Dominator ECU
- Can be triggered by either negative or positive trigger to ease install in all EFI applications, be it a stock or aftermarket ECU
- Eight easily programmable channels for precise injector control
- Easy to wire Tyco Super Seal Connector
- Eight pre-programmed injector current curves
- Peak current settings from 4A to 10A
- Hold current settings from 1A to 2.5A
- Peak hold duration settings from .5 to 1.0ms
- Injector test fire program for quick troubleshooting while in the field

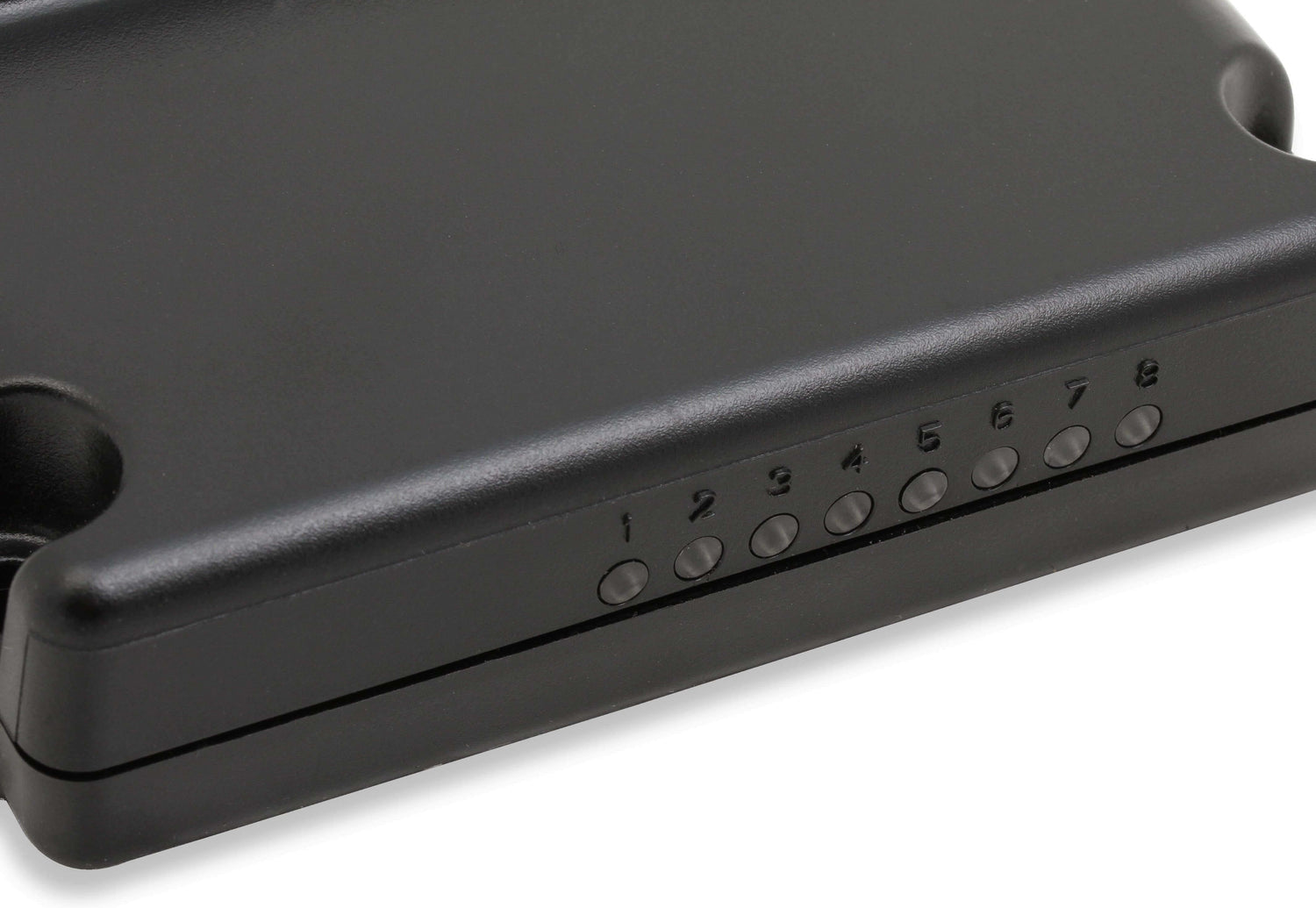

- 8 RGB LEDs indicate proper operation as well as log faults
- Two outputs (Ground and 0-5V) can be run to an ECU to datalog any injector faults
- Pre-Programmed in Position 7 for Billet Atomizer 325-800 or Precision 500 Lb/Hr Injectors
- Connector - Pins - or Harness not included.
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Brand | Holley EFI |
|---|---|
| Emission Code | 4 |
| Product Type | Injector Driver |
