Lakewood LK5000K Cast Aluminum Bellhousings Kit for LS Engines To T10 Tremec TKO
Lakewood LK5000K Cast Aluminum Bellhousings Kit for LS Engines To T10 Tremec TKO is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

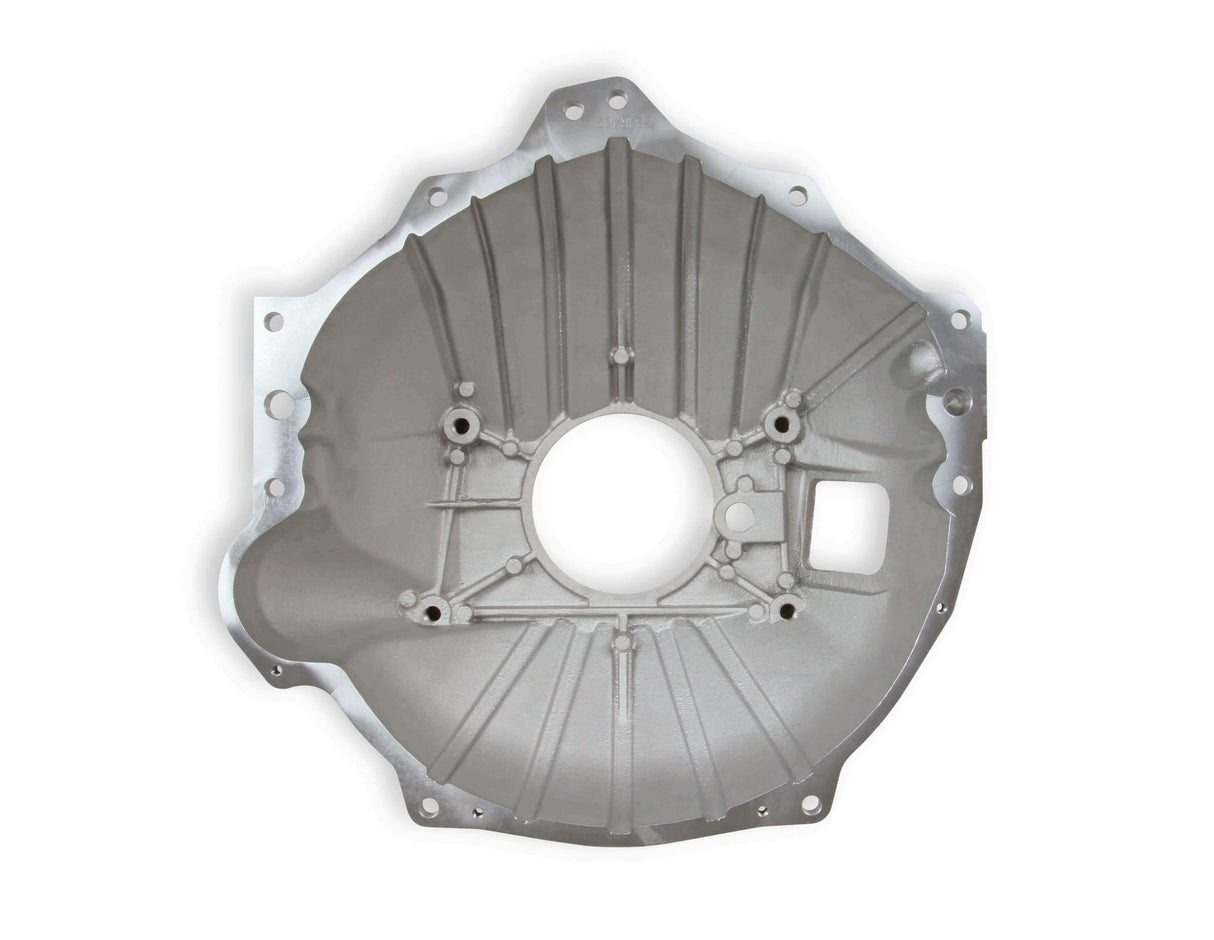

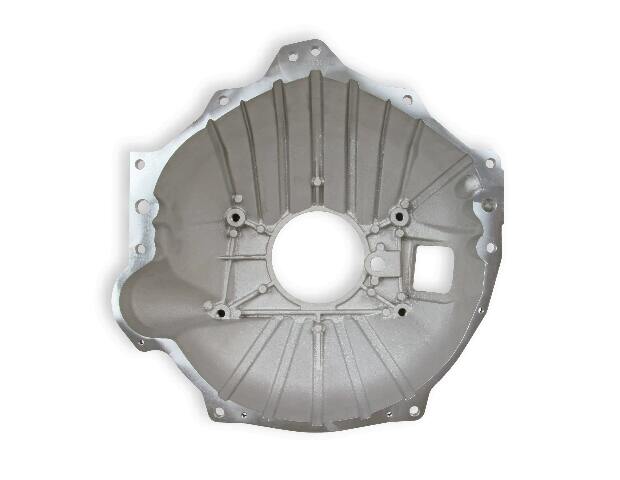

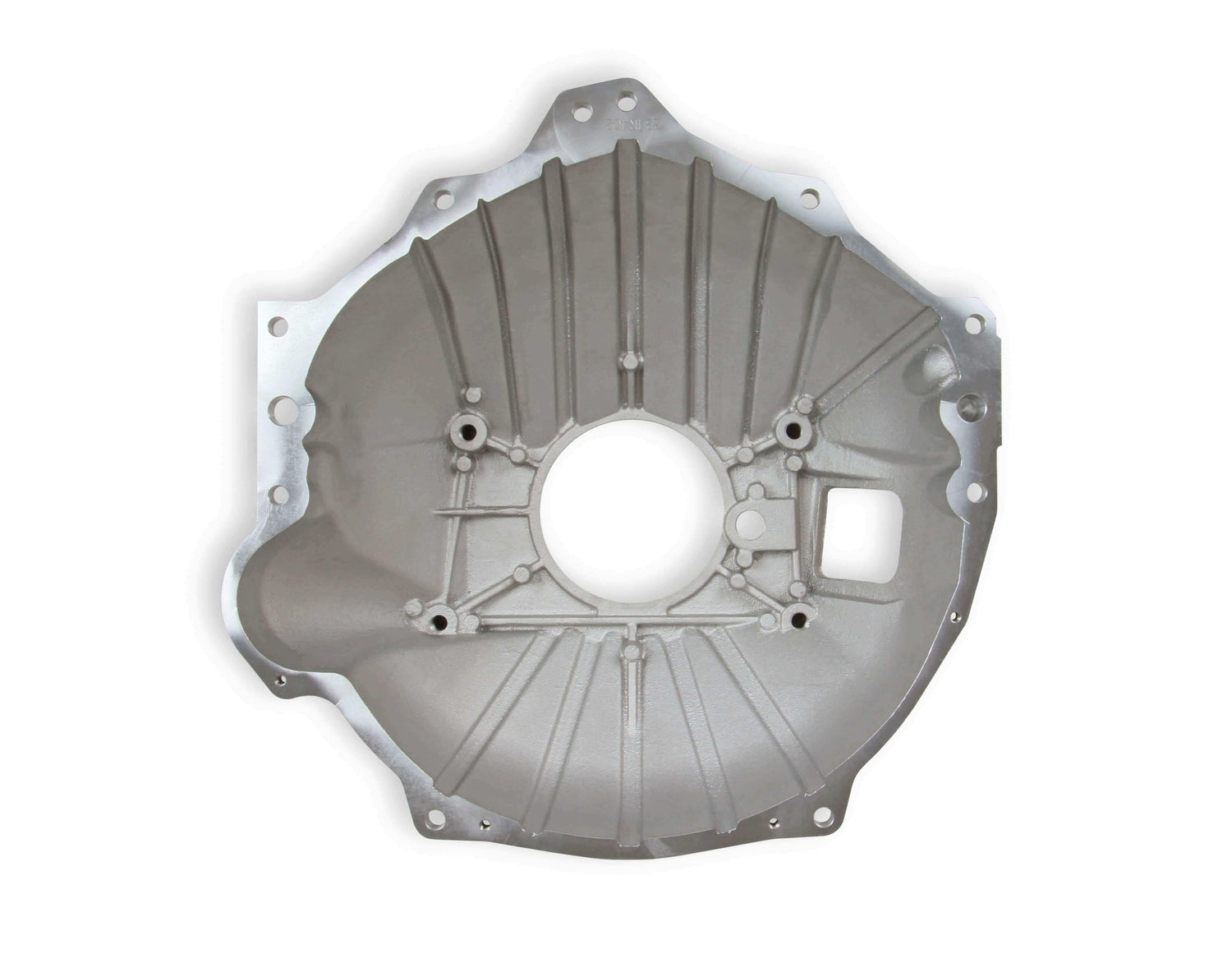

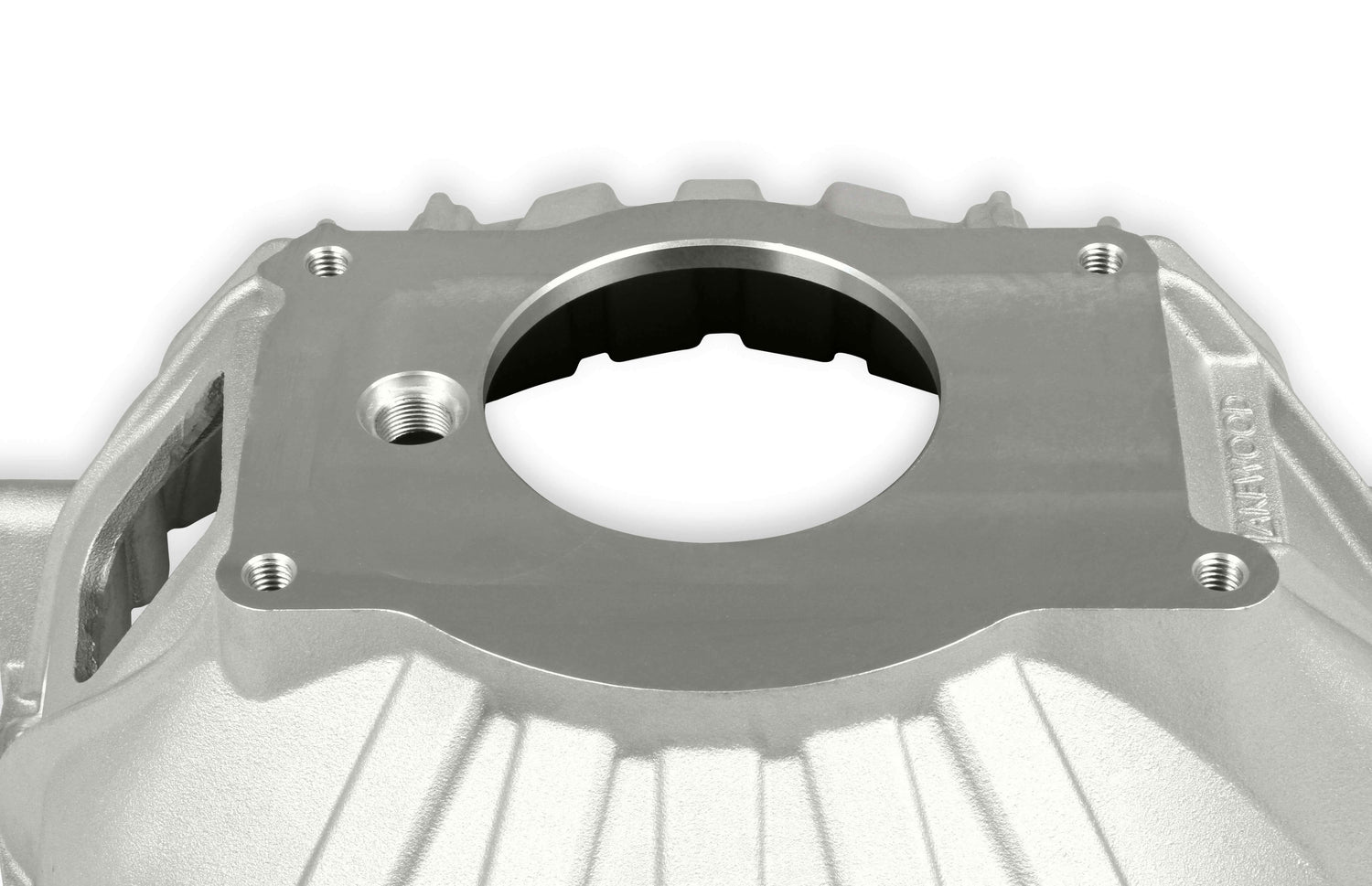

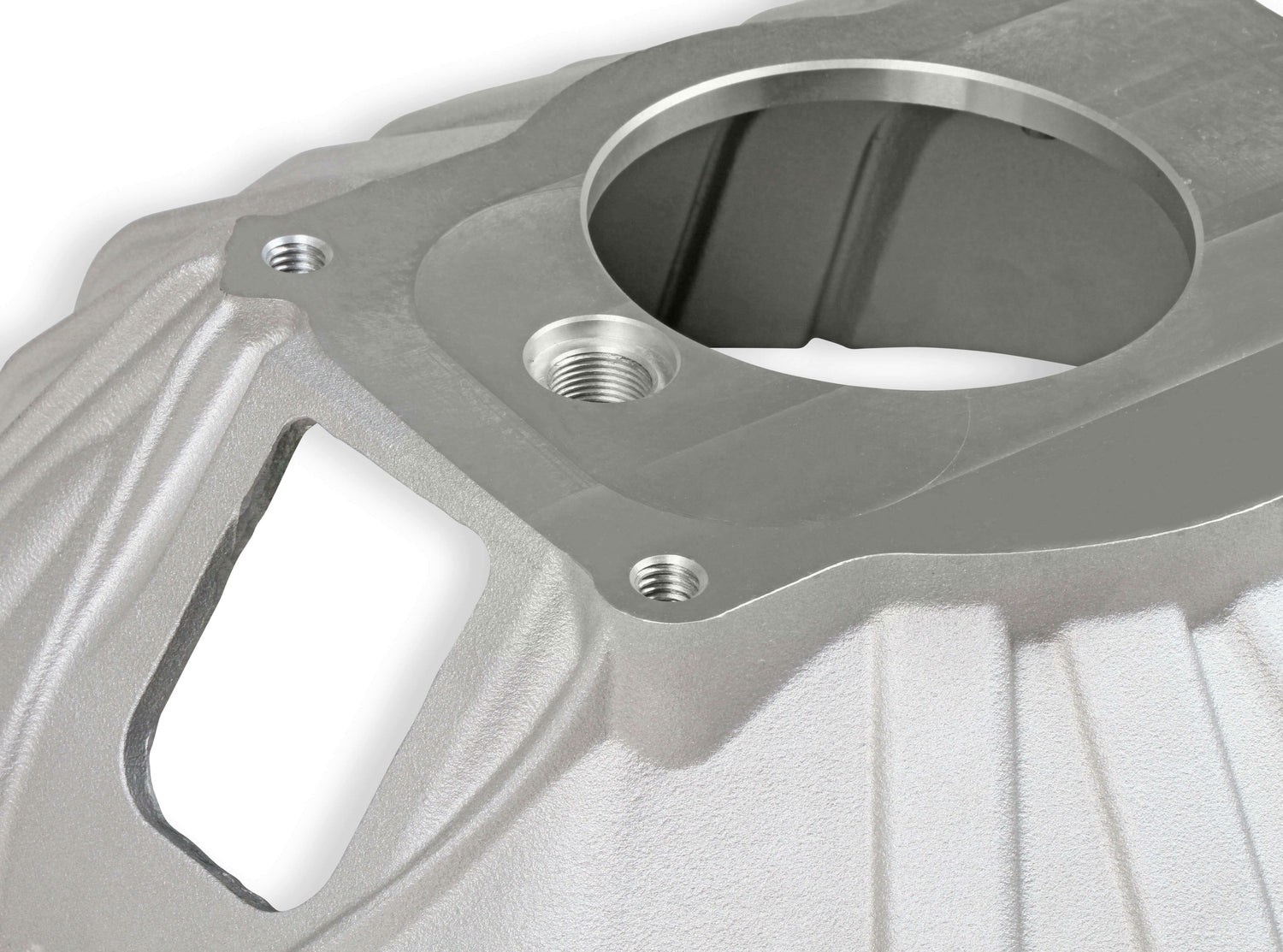

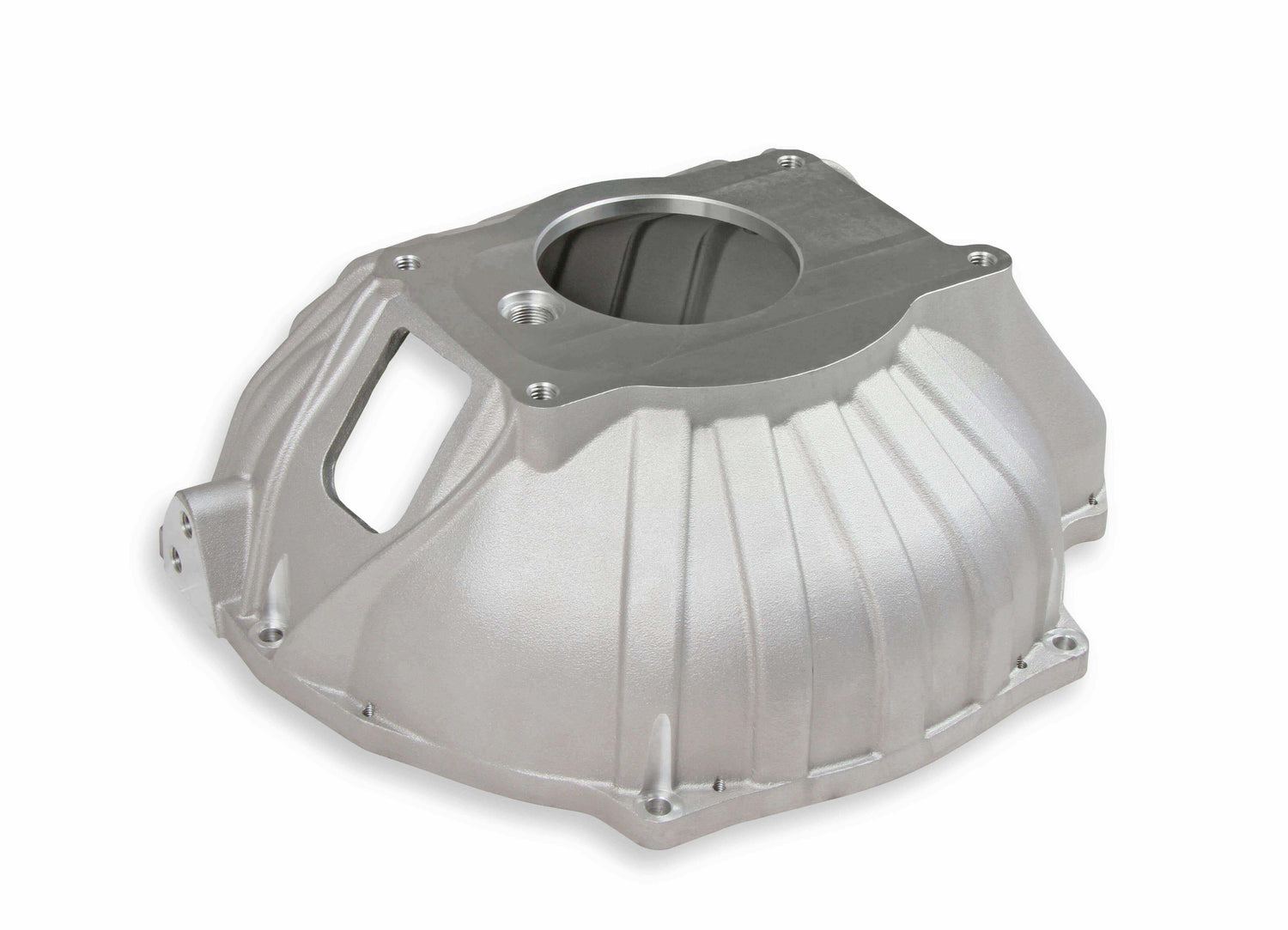

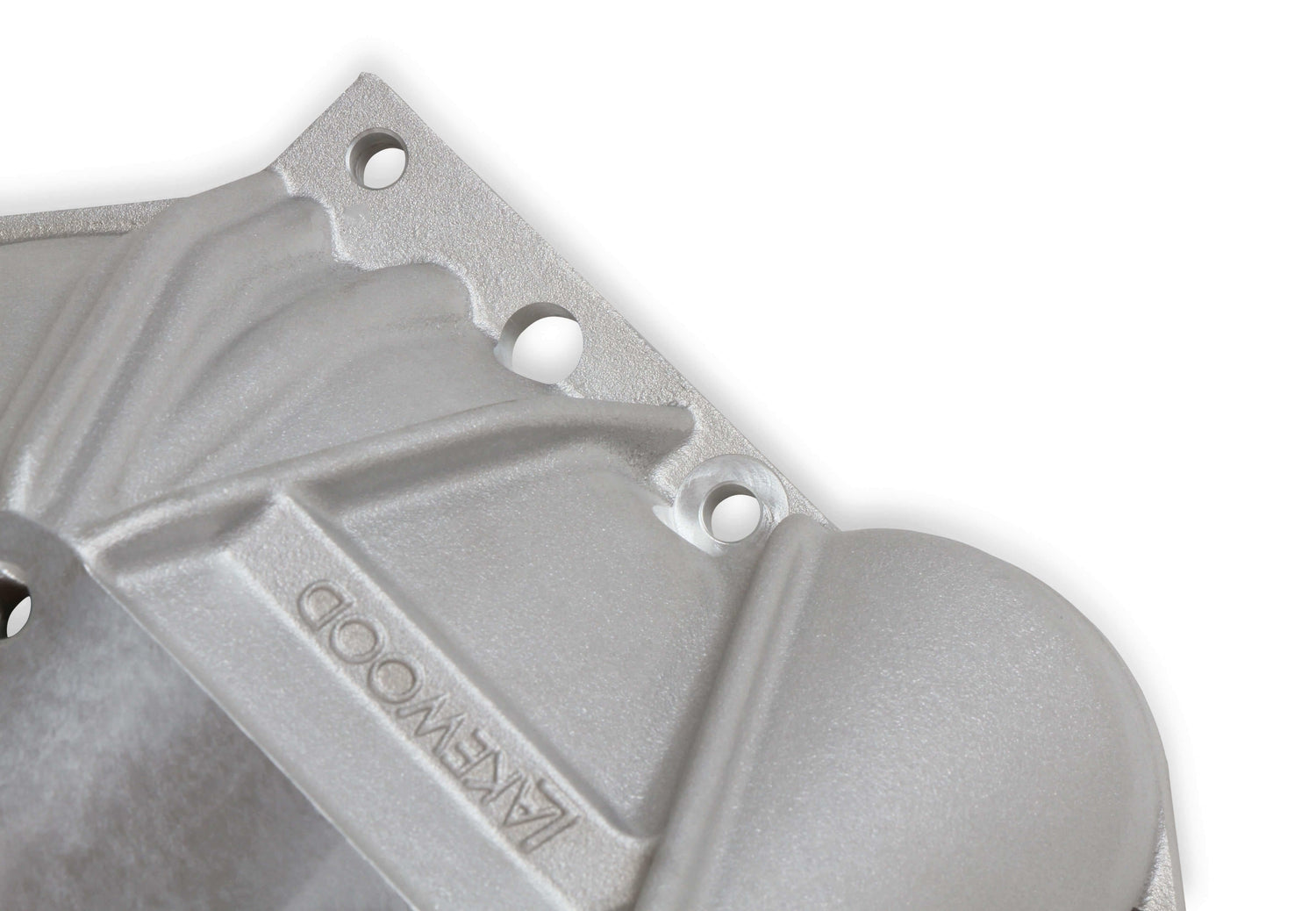

The Lakewood cast aluminum bellhousings connect GM LS engines to transmissions utilizing the standard GM pattern such as the Muncie, Saginaw, Borg Warner T10 and Tremec TKX or TKO transmissions.

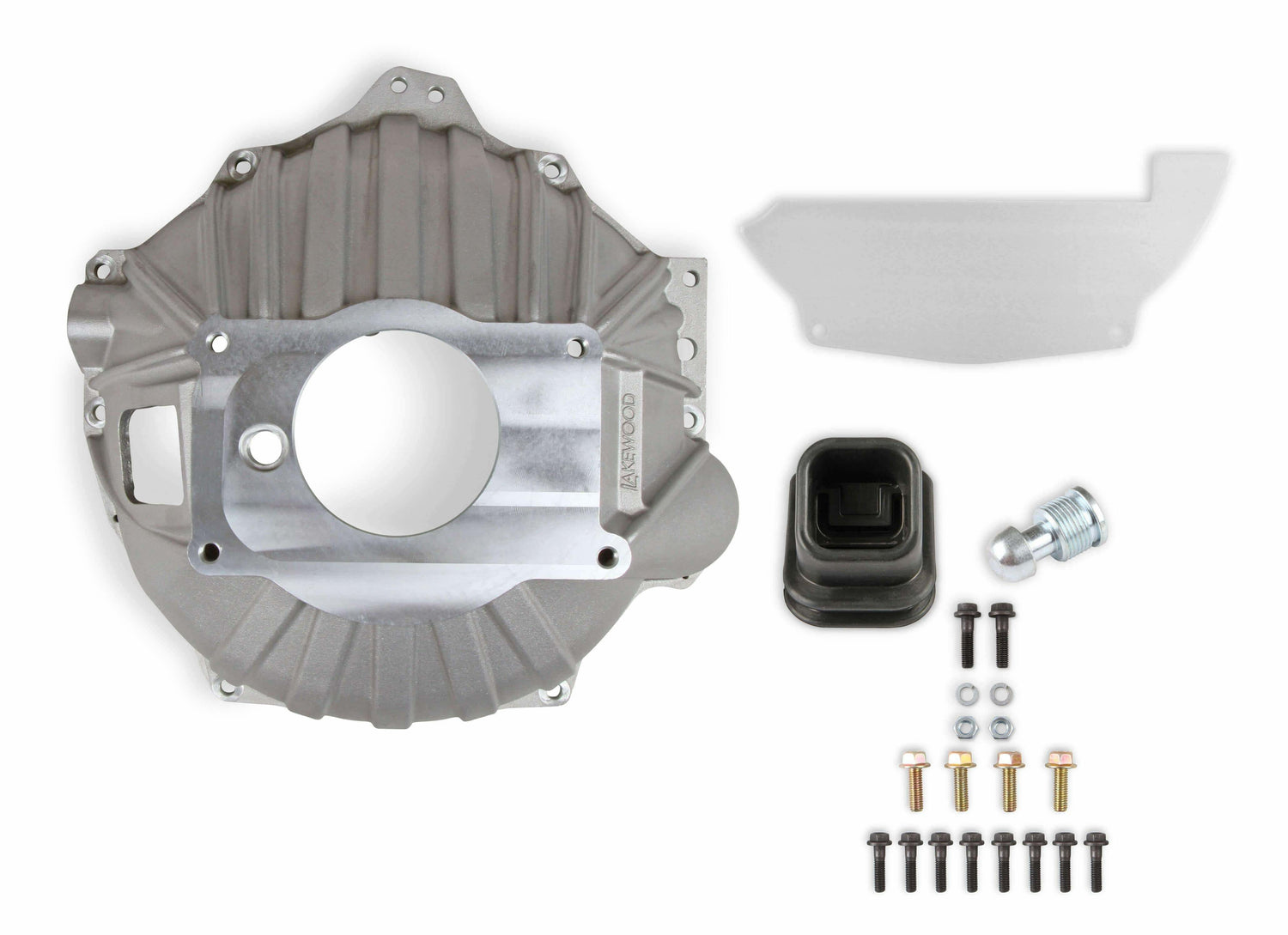

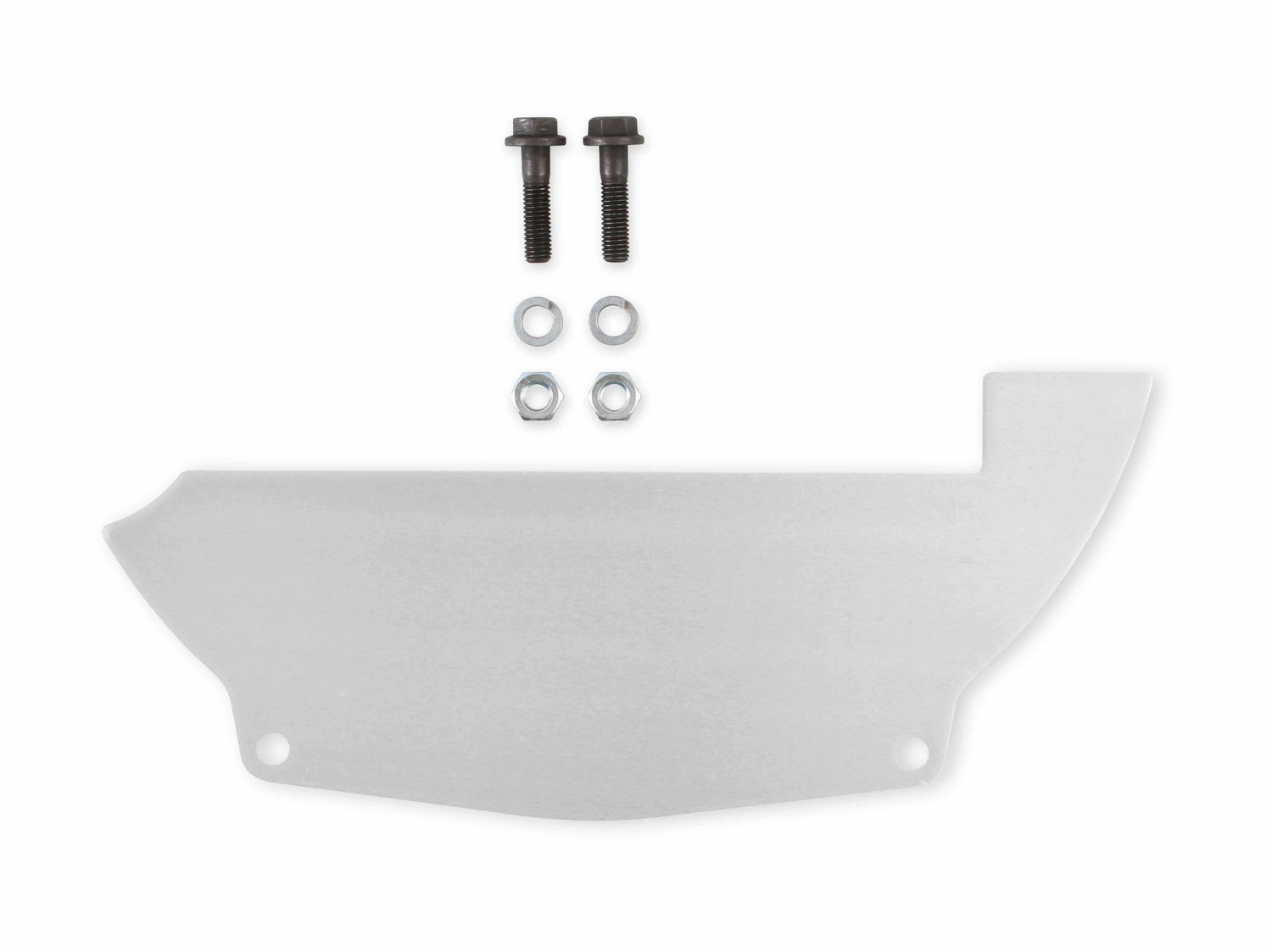

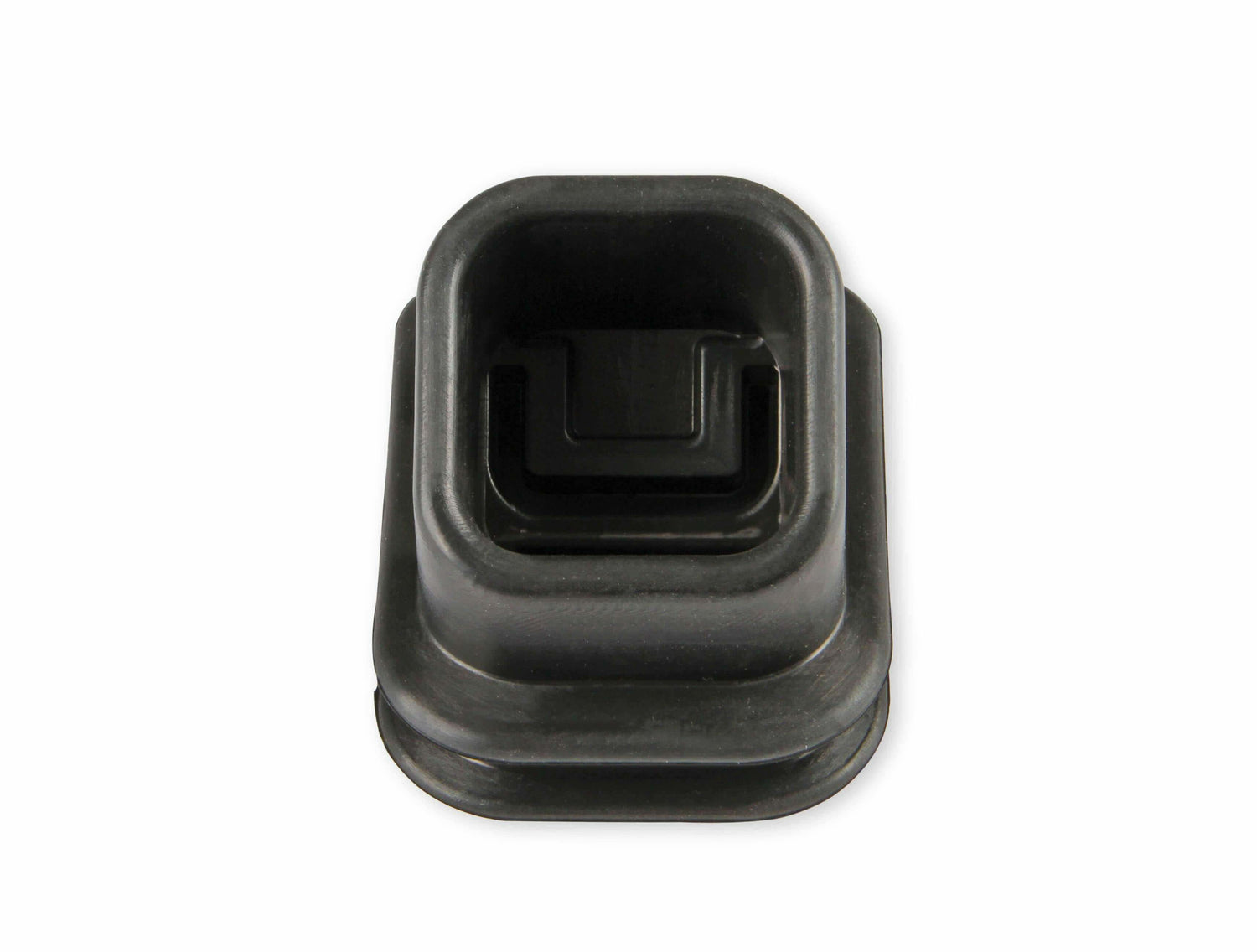

The bellhousings are designed for both GM cars and trucks and other manufacturers where swap applications are being installed. These bellhousing kits come complete with clutch fork boot, inspection cover and Grade 8 mounting hardware. The bellhousing, clutch fork boot, inspection covers and mounting hardware kits are also available individually.
Features:
- Factory-like attachment to stock or Holley oil pans (inspection cover included for use with stamped or fabricated oil pans)

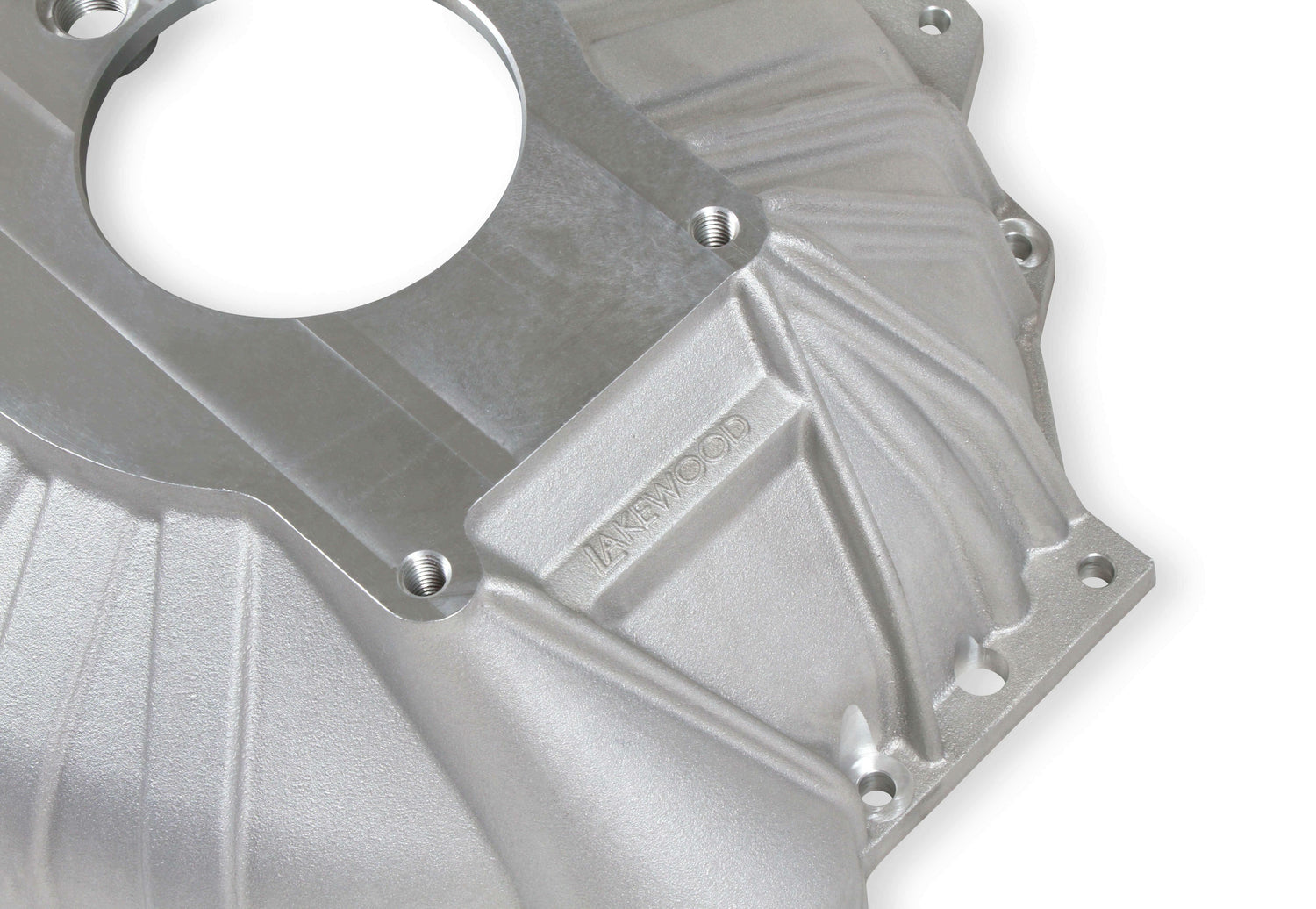

- Lightweight cast aluminum design similar to the original equipment bellhousings
- Lower cost non-SFI rated option for projects that do not require a steel SFI rated unit
- Designed For Hydraulic and Mechanical Fork Throwout Bearing Linkage
- Bellhousing Depth: 6.45 in
- Clutch Fork Opening: 2.125 In X 3.3 In
- Transmission Bore Diameter: 4.684 In

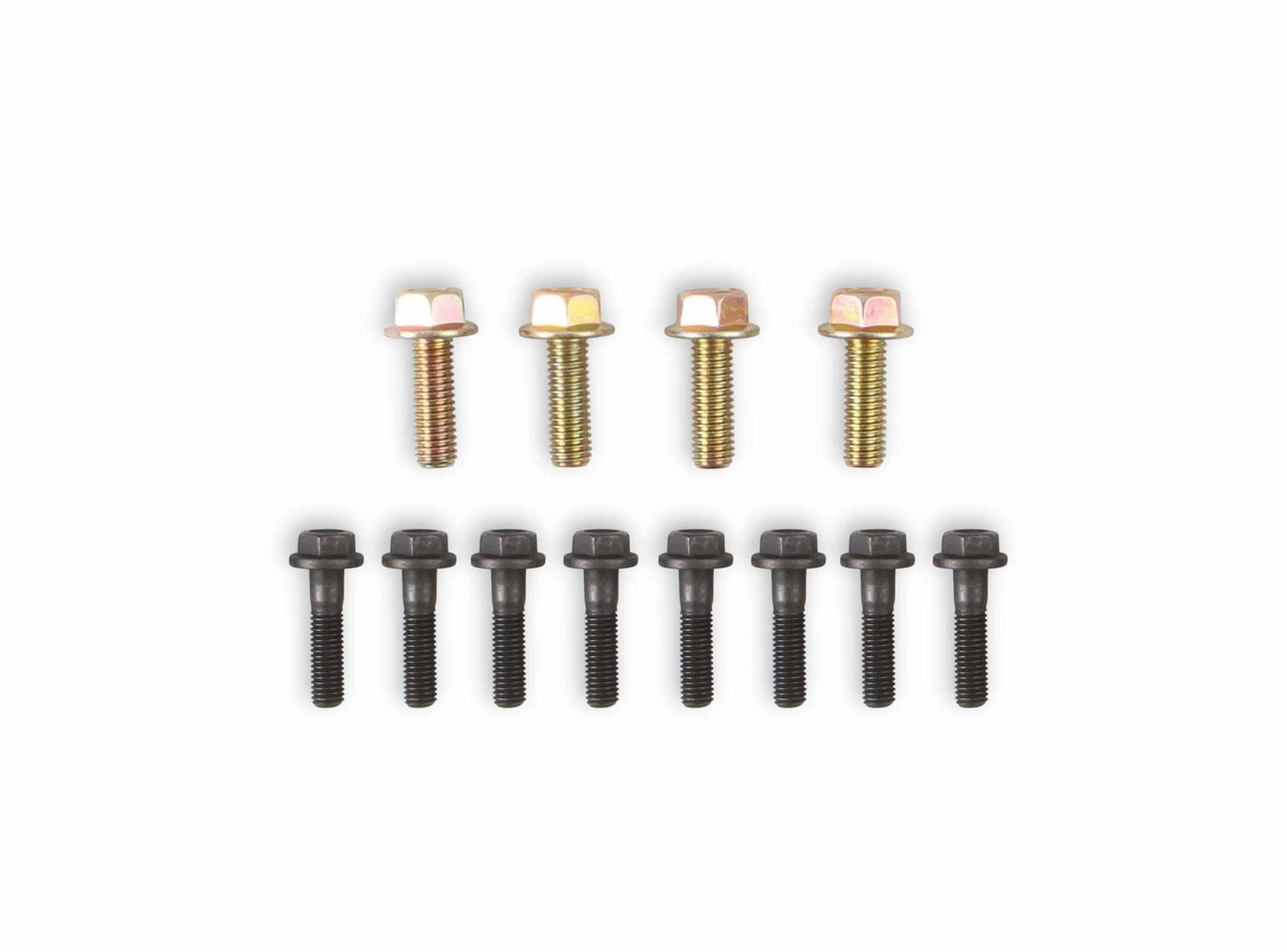

- Includes Grade 8 Hardware
- LK4000 Bellhousing also available separately
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| Universal |
Specs:
| Brand | Lakewood |
|---|---|
| Clutch | 11" |
| Color | Cast |
| Emission Code | 5 |
| Engine | GM Small Block Gen III/IV (LS Based) |
| Engine Make | Chevrolet |
| Flywheel | 153 or 168 Tooth |
| Height | 6.45 |
| Material | Cast Aluminum |
| Product Type | Bellhousing Kit |
| SFI Approved | No |
| Trans. Bore Diameter | 4.685 |
| Transmission | Bert Racing |
| Transmission | BorgWarner |
| Transmission | Brinn Racing |
| Transmission | Falcon |
| Transmission | Jerico |
| Transmission | Muncie |
| Transmission | Richmond |
| Transmission | Saginaw |
| Transmission | T10 |
| Transmission | T5 |
| Transmission | TKO 500/600 |
| Transmission | TKX |
