Long Tube Headers for 304 Stainless 1-3/4in Primary Stainless Steel D317-SS
Long Tube Headers for 304 Stainless 1-3/4in Primary Stainless Steel D317-SS is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

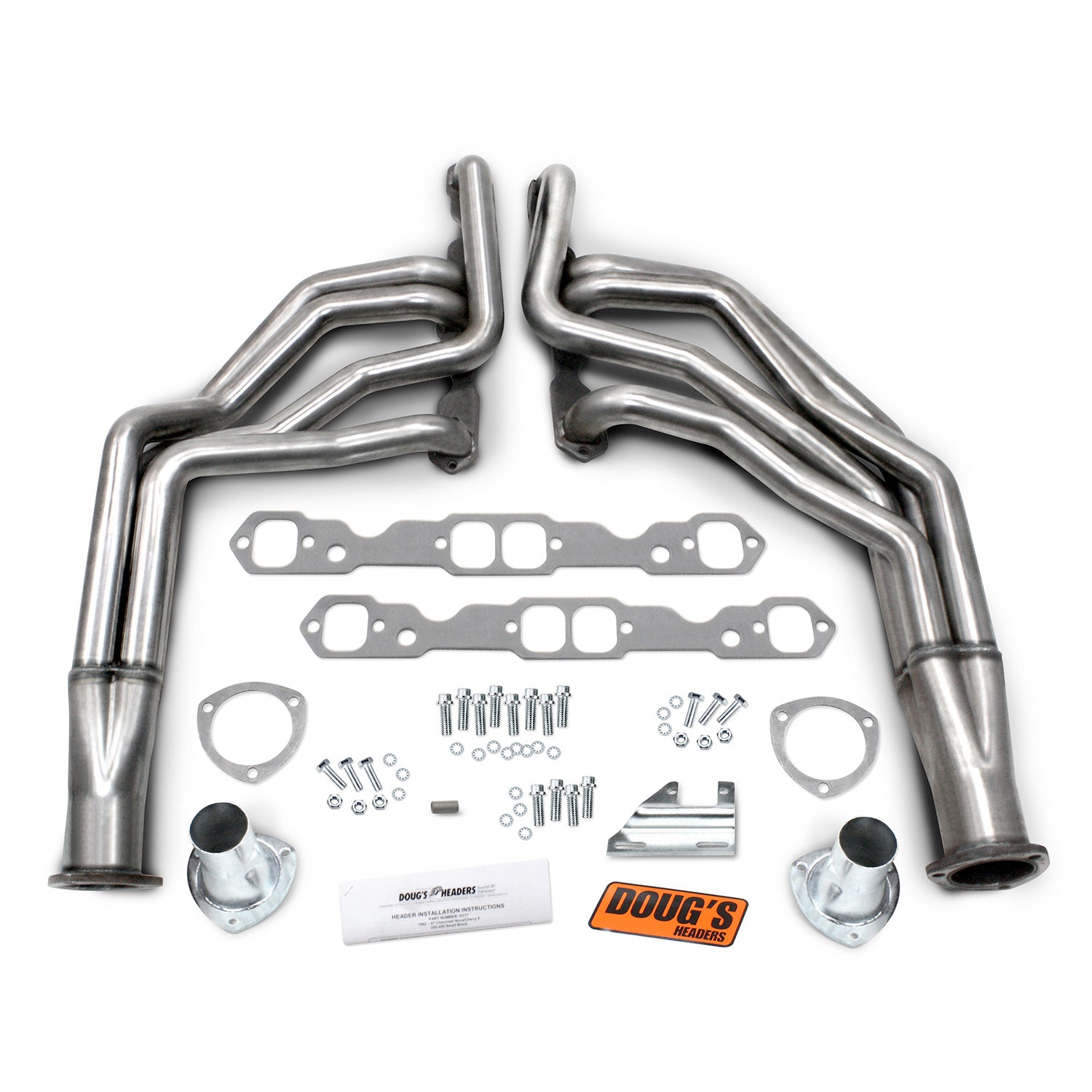

62-67 Nova MII SBC Long Tube 304 Stainless
Long tube headers provide the greatest increases in horsepower and torque across the entire RPM spectrum. The choice of racers worldwide, Doug's long tube headers are designed for the car owner who wants maximum power and the highest quality header on the market.
Features:
- Natural stainless-steel finish offers superior resistance to rust and corrosion
- 3/8" thick 304 stainless machine flanges to prevent warping
- CNC 304 stainless mandrel bent tubes for an accurate fit and improved flow
- Precision formed long transition collectors and long tube design reduce backpressure and increase higher RPM horsepower
Specs:
- Brand: Doug's Headers
- Collector Attachment: 3-Bolt Flange
- Collector Diameter: 3.0 IN
- Collector Port Diameter: 3.0 IN
- Color: Silver
- Cylinder Head Port Shape: SAP
- Design: Full-length
- EGT Port: No
- Finish: 304 Stainless Steel
- Flange Thickness: 0.375 IN
- Gasket Or Seal Included: Yes
- Gaskets Included: Yes
- Grade Type: Performance
- Header Material: 304 Stainless Steel
- Header Style: Full-length
- Material: 304 Stainless Steel
- Mounting Hardware Included: Yes
- Oxygen Sensor Port: No
- Port Shape: SAP
- Primary Tube Outside Diameter: 1.75 IN
- Primary Tubing Diameter: 1.75 IN
- Prop 65 (C, R or CR): CR
- Prop 65 Yes/No: Yes
- Sheen Level: Satin
- Title: Doug's Headers D317-SS 304 Stainless Long Tube Header 62-67 Nova 265-400 SBC Stock or Mustang II style suspension 1 3/4" Primary 3" Collector
- Tube Wall Thickness: 16 GU
- Part Number: D317-SS
Applications:
- 1963-1967 Chevrolet Chevy II 283 CID
- 1965-1967 Chevrolet Chevy II 327 CID
Emissions:
- This product is Legal for use on Pre-Pollution Controlled Vehicles. It is legal for use on all vehicles produced Before Emissions Control Regulations were imposed. These are considered Uncontrolled Vehicles and are defined as follows
- 1965 and Older US Manufactured California Certified Vehicles
- 1967 and Older US Manufactured Federally Certified Vehicles
- 1967 and Older Foreign Manufactured Vehicles
Instructions:
Fitment Notes:
- Fits most angle plug heads.
- Will not fit with 168 tooth flywheels or kickout aftermarket Oil Pans.
- Installation requires left side A/C bracket part number H7608.
- Fit OE Suspension AND Mustang II style conversions.
