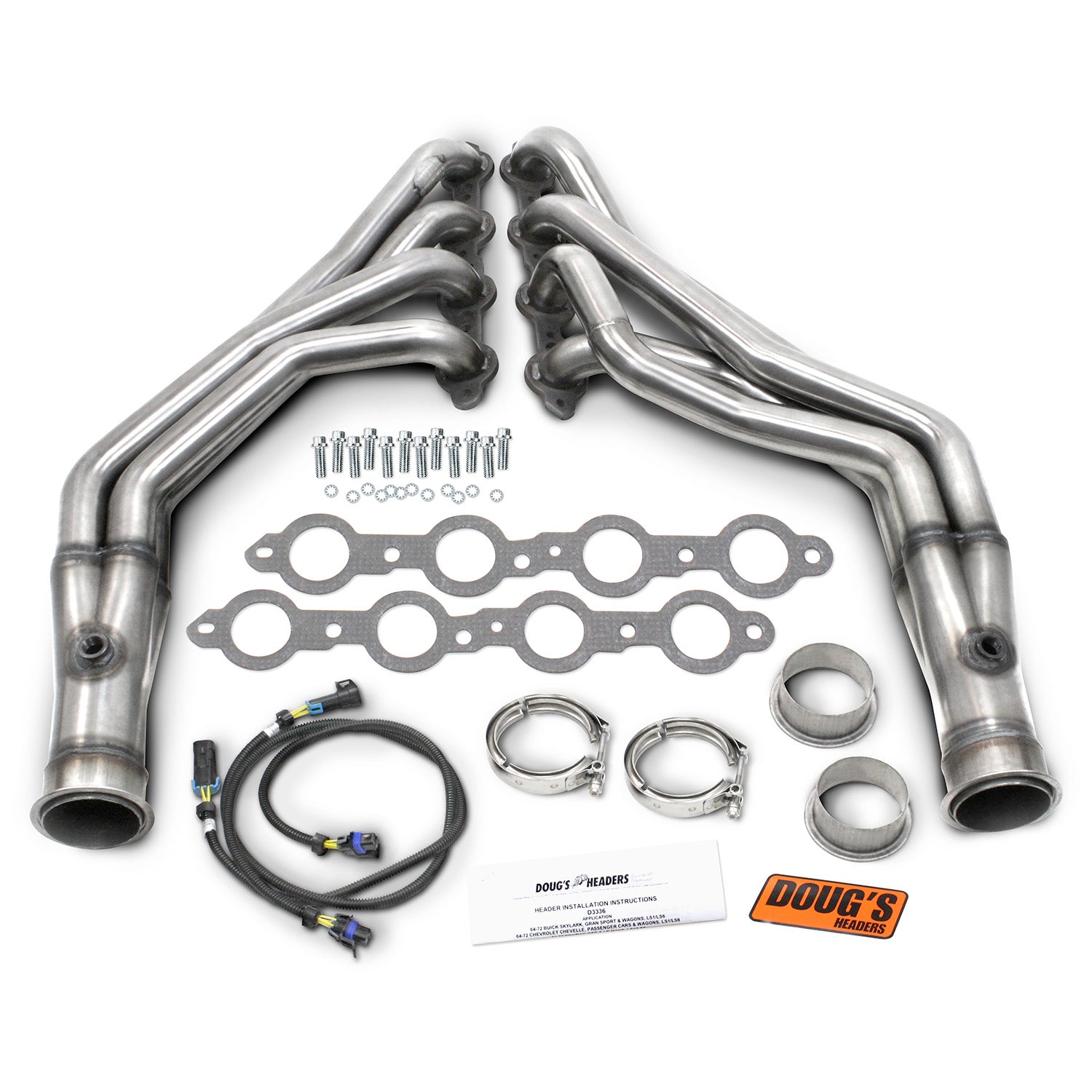

Long Tube Headers for 304 Stainless 1-3/4in Primary Stainless Steel D3336-SS
Long Tube Headers for 304 Stainless 1-3/4in Primary Stainless Steel D3336-SS is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
64-72 GM A Body LS Long Tube 304 Stainless
Long tube headers provide the greatest increases in horsepower and torque across the entire RPM spectrum. The choice of racers worldwide, Doug's long tube headers are designed for the car owner who wants maximum power and the highest quality header on the market. This fitment is tailored for popular aftermarket engine swap kits. Doug's engine swap headers were developed to solve common fitment issues in tight spaces, making your swap process smoother. No more guesswork or modifications needed - just straightforward installations that save you time and frustration.
Features:
- Natural stainless-steel finish offers superior resistance to rust and corrosion
- 3/8" thick 304 stainless machine flanges to prevent warping
- CNC 304 stainless mandrel bent tubes for an accurate fit and improved flow
- Precision formed long transition collectors and long tube design reduce backpressure and increase higher RPM horsepower
Specs:
- Brand: Doug's Headers
- Collector Attachment: V-Band
- Collector Diameter: 3.0 IN
- Collector Port Diameter: 3.0 IN
- Color: Silver
- Cylinder Head Port Shape: Round
- Design: Full-length
- EGT Port: No
- Finish: 304 Stainless Steel
- Flange Thickness: 0.375 IN
- Gasket Or Seal Included: Yes
- Gaskets Included: Yes
- Grade Type: Performance
- Header Material: 304 Stainless Steel
- Header Style: Full-length
- Material: 304 Stainless Steel
- Mounting Hardware Included: Yes
- Oxygen Sensor Port: Yes
- Port Shape: Round
- Primary Tube Outside Diameter: 1.75 IN
- Primary Tubing Diameter: 1.75 IN
- Prop 65 (C, R or CR): CR
- Prop 65 Yes/No: Yes
- Sheen Level: Satin
- Title: Doug's Headers D3336-SS 304 Stainless Long Tube Header 64-72 GM A Body 4.8-6.2L LS Engine Swap 1 3/4" Primary 3" Collector
- Tube Wall Thickness: 16 GU
- Part Number: D3336-SS
Emissions:
- This Product is LEGAL for Closed Course Competition use or Pre-Emissions Controlled Vehicles ONLY. It is Not Legal for use on any Emissions Controlled Vehicle for Street or Off Highway use.
Instructions:
Fitment Notes:
- For use with GM LS Engine Swap only
- Includes O2 sensor extension harness.
- Requires Doug's LS1 adapter plate kit P/N SK100 or equivalent.
- Will not fit manual transmission cars with factory Z bar clutch linkage.
