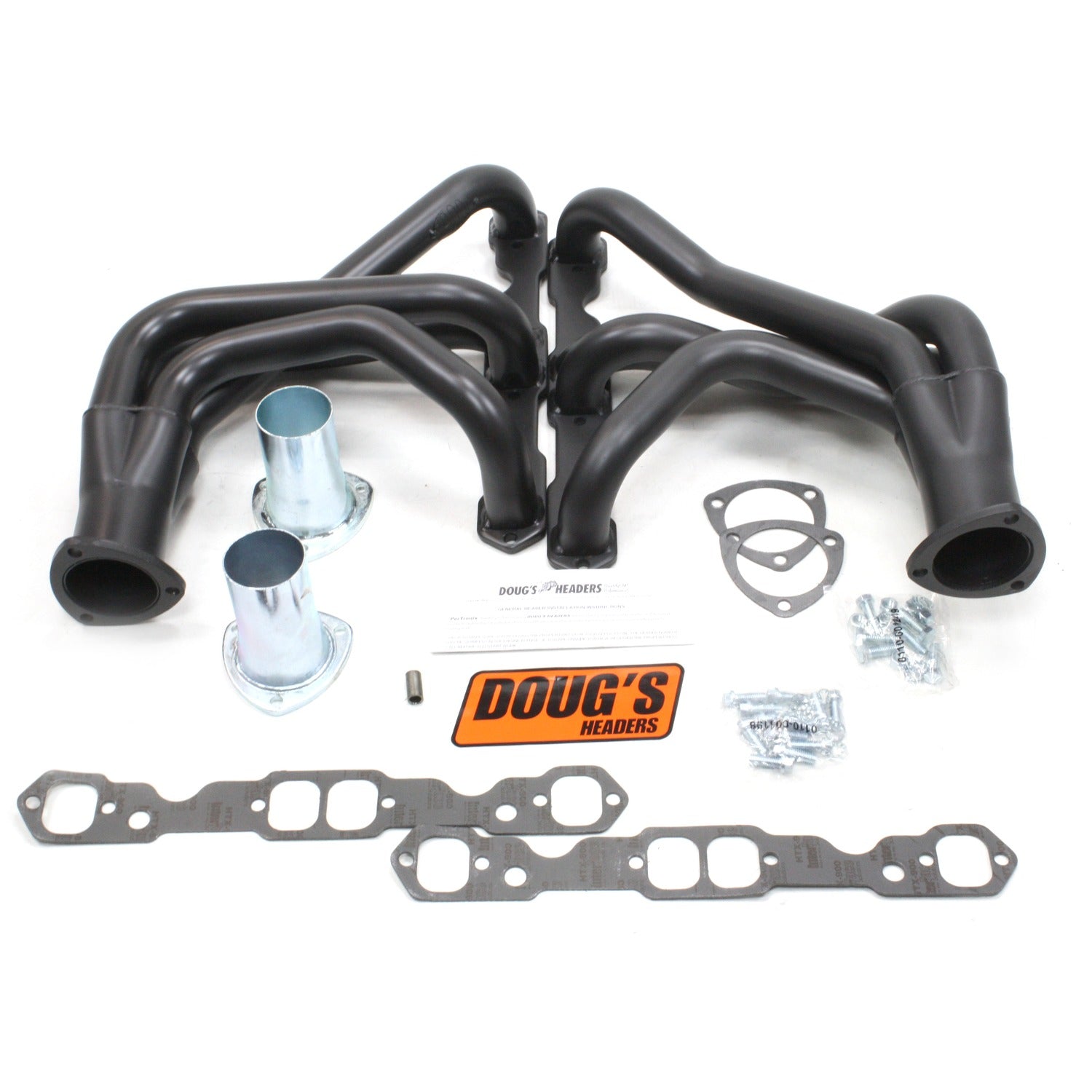

Long Tube Headers for 63-82 Corvette 265-400 SBC Non Cat no EGR or A.I.R. D334-B
Long Tube Headers for 63-82 Corvette 265-400 SBC Non Cat no EGR or A.I.R. D334-B is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
63-82 Corvette SBC Long Tube Black Ctd
Long tube headers provide the greatest increases in horsepower and torque across the entire RPM spectrum. The choice of racers worldwide, Doug's long tube headers are designed for the car owner who wants maximum power and the highest quality header on the market.
Features:
- 3/8" Thick machined flanges to prevent warping
- Precision formed long transition collectors and long tube design reduces backpressure and increases higher RPM horsepower
- Heavy duty 16-gauge tubing for long life
- Tubes are pre-polished to removed scratches before applying metallic ceramic or hi-temp black coating
Specs:
- Brand: Doug's Headers
- Collector Attachment: 3-Bolt Flange
- Collector Diameter: 3.0 IN
- Collector Port Diameter: 3.0 IN
- Color: Black
- Cylinder Head Port Shape: SAP
- Design: Full-length
- EGT Port: No
- Finish: Hi-Temp Black Coating
- Flange Thickness: 0.375 IN
- Gasket Or Seal Included: Yes
- Gaskets Included: Yes
- Grade Type: Performance
- Header Material: Steel
- Header Style: Full-length
- Material: Steel
- Mounting Hardware Included: Yes
- Oxygen Sensor Port: No
- Port Shape: SAP
- Primary Tube Outside Diameter: 1.75 IN
- Primary Tubing Diameter: 1.75 IN
- Prop 65 (C, R or CR): CR
- Prop 65 Yes/No: Yes
- Sheen Level: Matte
- Title: Doug's Long Tube Header 63-82 Corvette 265-400 SBC Non Cat, no EGR or A.I.R. 1 3/4" Primary 3" Collector Black Hi Temp Coated D334-B
- Tube Wall Thickness: 16 GU
- Part Number: D334-B
Applications:
- 1963-1968 Chevrolet Corvette 327 CID
- 1969-1982 Chevrolet Corvette 350 CID
- 1980-1980 Chevrolet Corvette 305 CID
Emissions:
- This Product is LEGAL for Closed Course Competition use or Pre-Emissions Controlled Vehicles ONLY. It is Not Legal for use on any Emissions Controlled Vehicle for Street or Off Highway use.
Instructions:
Fitment Notes:
- Fits most angle plug heads.
- Fits D-Port cylinder heads including ZZ4 crate engines. Will Not fit GM Fast Burn head PN 19300955 or SP350, SP383 and ZZ6 engines.
- Requires removal or modification of locking steering columns if equipped.
- Installation requires left side A/C bracket part number H7608. 1979 and later vehicles with short compressors can use the stock bracket.
