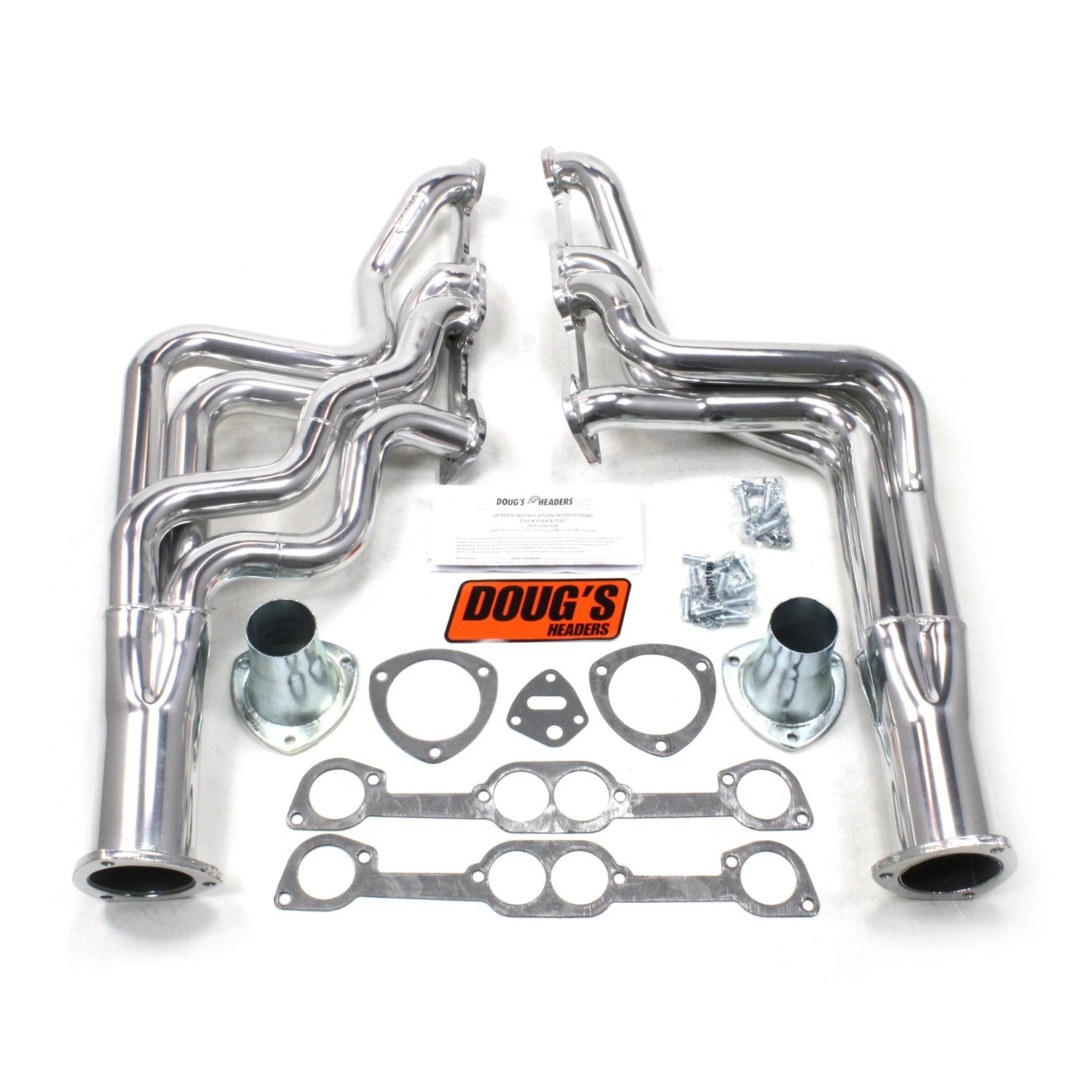

Long Tube Headers for 64-67 GTO 455 W/HO/SD/Ram Air Heads only D567
Long Tube Headers for 64-67 GTO 455 W/HO/SD/Ram Air Heads only D567 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
64-67 GTO 455 HO Long Tube Silver Ctd
Long tube headers provide the greatest increases in horsepower and torque across the entire RPM spectrum. The choice of racers worldwide, Doug's long tube headers are designed for the car owner who wants maximum power and the highest quality header on the market.
Features:
- 3/8" Thick machined flanges to prevent warping
- Precision formed long transition collectors and long tube design reduces backpressure and increases higher RPM horsepower
- Heavy duty 16-gauge tubing for long life
- Tubes are pre-polished to removed scratches before applying metallic ceramic or hi-temp black coating
Specs:
- Brand: Doug's Headers
- Collector Attachment: 3-Bolt Flange
- Collector Diameter: 3.5 IN
- Collector Port Diameter: 3.5 IN
- Color: Silver
- Cylinder Head Port Shape: Round
- Design: Full-length
- EGT Port: No
- Finish: Metallic Ceramic Coated
- Flange Thickness: 0.375 IN
- Gasket Or Seal Included: Yes
- Gaskets Included: Yes
- Grade Type: Performance
- Header Material: Steel
- Header Style: Full-length
- Material: Steel
- Mounting Hardware Included: Yes
- Oxygen Sensor Port: No
- Port Shape: Round
- Primary Tube Outside Diameter: 1.75 IN
- Primary Tubing Diameter: 1.75 IN
- Prop 65 (C, R or CR): CR
- Prop 65 Yes/No: Yes
- Sheen Level: Semi-Gloss
- Title: Doug's Long Tube Header 64-67 GTO 455 W/HO/SD/Ram Air Heads only 1 7/8" Primary 3 1/2" Collector Silver Ceramic Coated D567
- Tube Wall Thickness: 16 GU
- Part Number: D567
Applications:
- 1964-1966 Pontiac GTO 389 CID
- 1967-1972 Pontiac GTO 400 CID
- 1970-1972 Pontiac GTO 455 CID
- 1964-1967 Pontiac LeMans 326 CID
- 1968-1972 Pontiac LeMans 350 CID
- 1968-1972 Pontiac LeMans 400 CID
- 1970-1972 Pontiac LeMans 455 CID
- 1964-1967 Pontiac Tempest 326 CID
- 1968-1970 Pontiac Tempest 350 CID
- 1968-1970 Pontiac Tempest 400 CID
Emissions:
- This product is Legal for use on Pre-Pollution Controlled Vehicles. It is legal for use on all vehicles produced Before Emissions Control Regulations were imposed. These are considered Uncontrolled Vehicles and are defined as follows
- 1965 and Older US Manufactured California Certified Vehicles
- 1967 and Older US Manufactured Federally Certified Vehicles
- 1967 and Older Foreign Manufactured Vehicles
Instructions:
Fitment Notes:
- Fits Edelbrock Performer RPM, RAM-Air, Super Duty and H.O. Round Port Heads only
- Requires removal or modification of locking steering columns if equipped.
- 4 speed applications must modify the Z-Bar to clear the headers.
- Application with scatter shield or factory bell housings with dual starter pockets must use WIX oil filter PN 51522 or equivalent.
