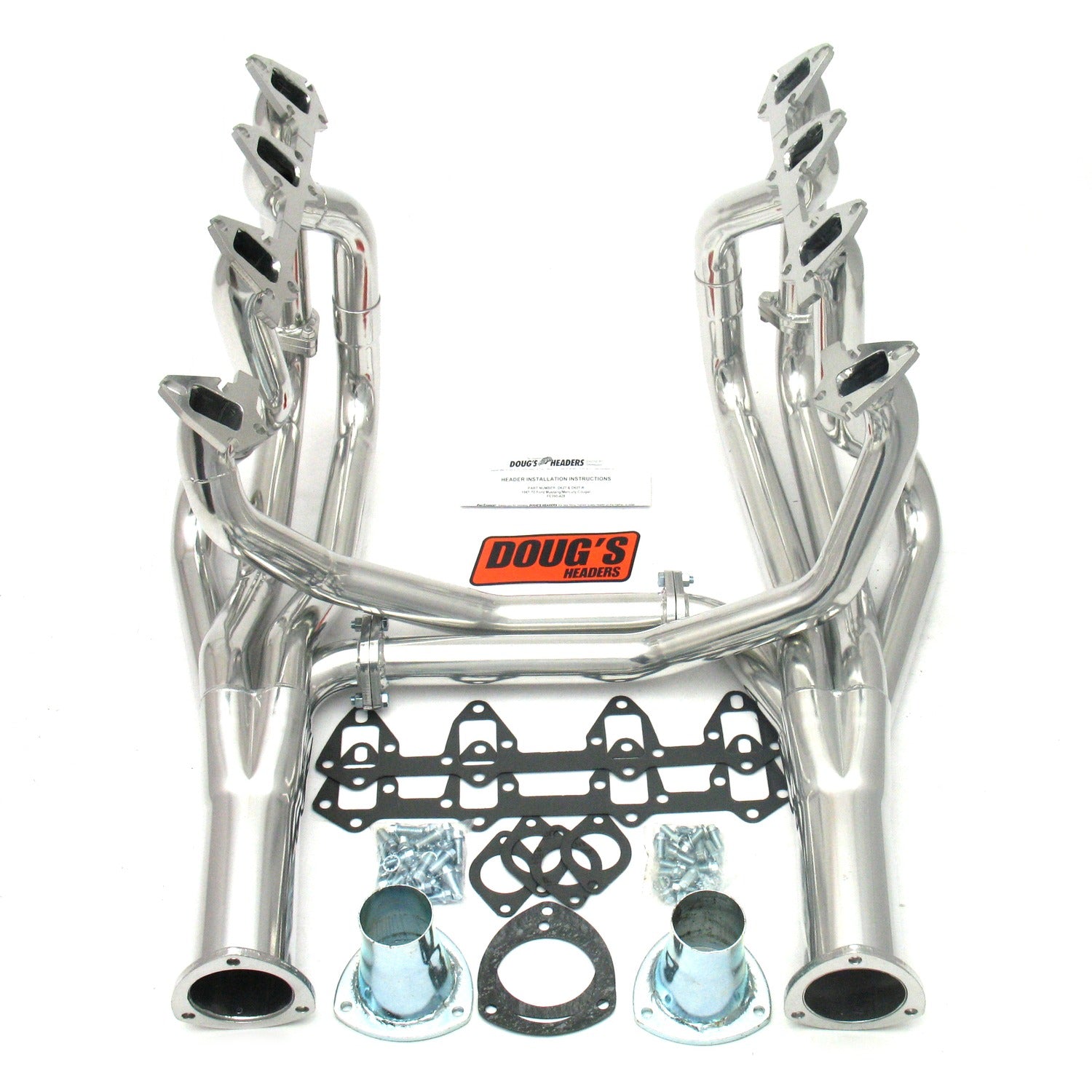

Long Tube Headers for 66-70 Ford 390-428 FE Motor 2in Primary D627
Long Tube Headers for 66-70 Ford 390-428 FE Motor 2in Primary D627 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
66-70 Ford 390-428 Long Tube Silver Ctd
Long tube headers provide the greatest increases in horsepower and torque across the entire RPM spectrum. The choice of racers worldwide, Doug's long tube headers are designed for the car owner who wants maximum power and the highest quality header on the market.
Features:
- 3/8" Thick machined flanges to prevent warping
- Precision formed long transition collectors and long tube design reduces backpressure and increases higher RPM horsepower
- Heavy duty 16-gauge tubing for long life
- Tubes are pre-polished to removed scratches before applying metallic ceramic or hi-temp black coating
Specs:
- Brand: Doug's Headers
- Collector Attachment: 3-Bolt Flange
- Collector Diameter: 3.5 IN
- Collector Port Diameter: 3.5 IN
- Color: Silver
- Cylinder Head Port Shape: Rectangular
- Design: Full-length
- EGT Port: No
- Finish: Metallic Ceramic Coated
- Flange Thickness: 0.375 IN
- Gasket Or Seal Included: Yes
- Gaskets Included: Yes
- Grade Type: Performance
- Header Material: Steel
- Header Style: Full-length
- Material: Steel
- Mounting Hardware Included: Yes
- Oxygen Sensor Port: No
- Port Shape: Rectangular
- Primary Tube Outside Diameter: 2.0 IN
- Primary Tubing Diameter: 2.0 IN
- Prop 65 (C, R or CR): CR
- Prop 65 Yes/No: Yes
- Sheen Level: Semi-Gloss
- Title: Doug's Long Tube Header 66-70 Ford 390-428 FE Motor 2" Primary 3 1/2" Collector Silver Ceramic Coated D627
- Tube Wall Thickness: 16 GU
- Part Number: D627
Applications:
- 1966-1969 Ford Fairlane 390 CID
- 1966-1969 Ford Fairlane 427 CID
- 1968-1969 Ford Fairlane 428 CID
- 1967-1970 Ford Mustang 428 CID
- 1967-1969 Ford Mustang 390 CID
- 1968-1968 Ford Mustang 427 CID
- 1967-1970 Mercury Cougar 390 CID
- 1968-1970 Mercury Cougar 428 CID
- 1968-1968 Mercury Cougar 427 CID
Emissions:
- This Product is considered а Replacement Part per CARB and EPA regulations for emissions compliance and is legal for sale and use on specified vehicles in all 50 states as stated in Manufacturer's Application Guide and lnstallation Instructions.
Instructions:
Fitment Notes:
- Header design features two primary pipes crossing behind oil pan for improved fit. Originally designed on factory Cobra Jet Super Stock Cars.
- Extremely tight fit between shock towers. Fits better when shock towers are boxed.
- Clutch linkage may need to be modified.
- with Floor Shifter
- 66-69 Fairlane 427/428 with Air Conditioning
