2014-2018 Ram ProMaster 1500 Direct-Fit Catalytic Converter 22-192 Magnaflow
2014-2018 Ram ProMaster 1500 Direct-Fit Catalytic Converter 22-192 Magnaflow is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

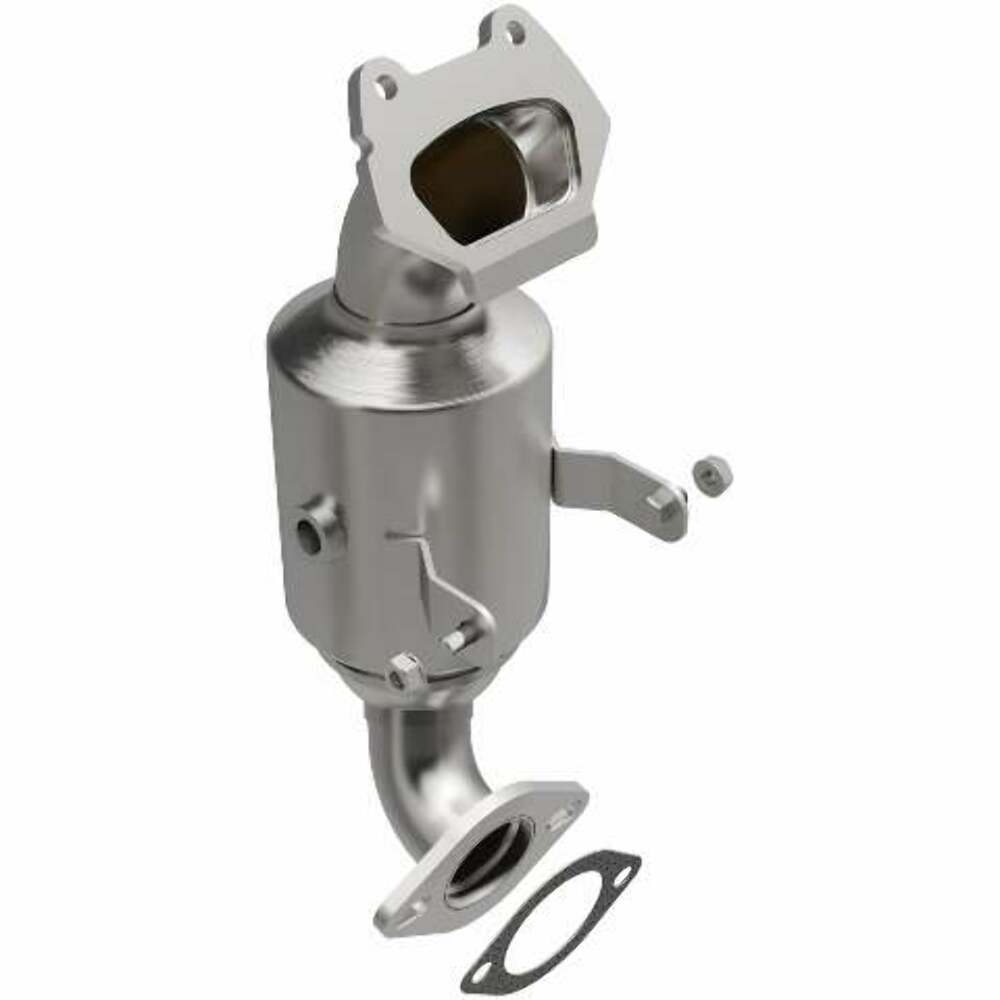

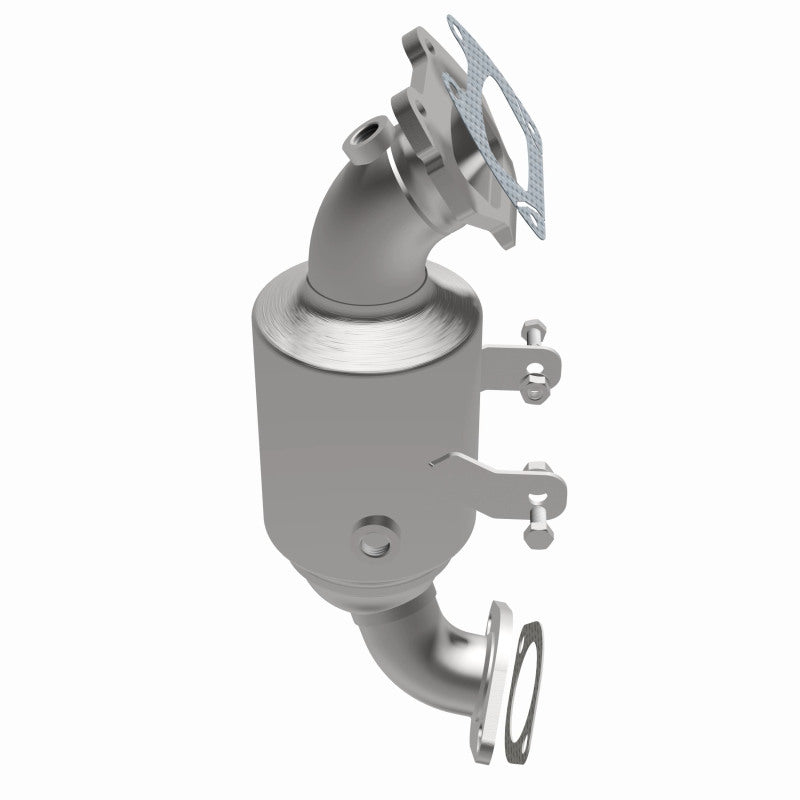

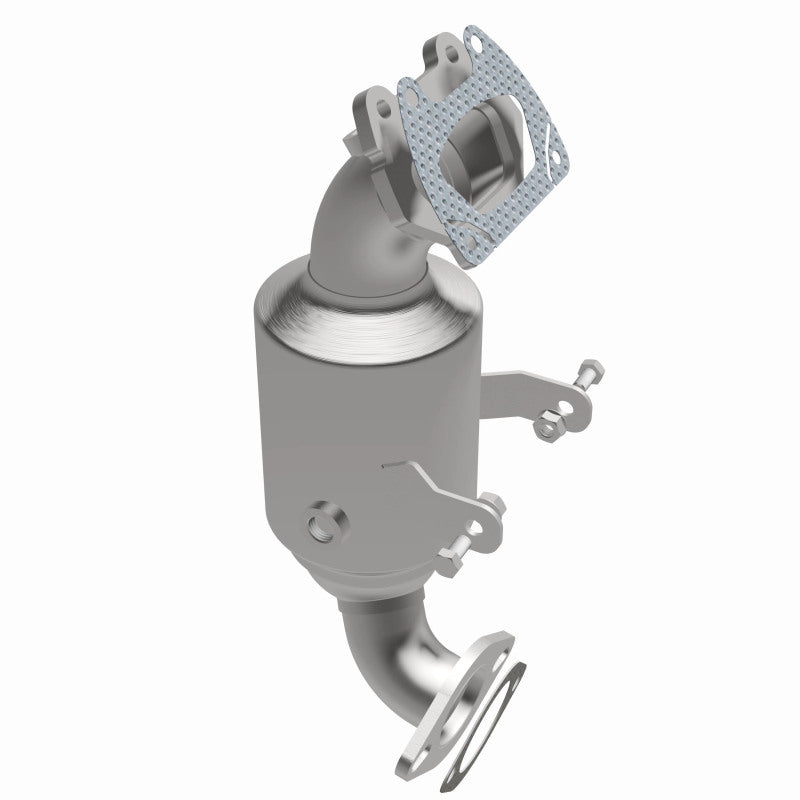

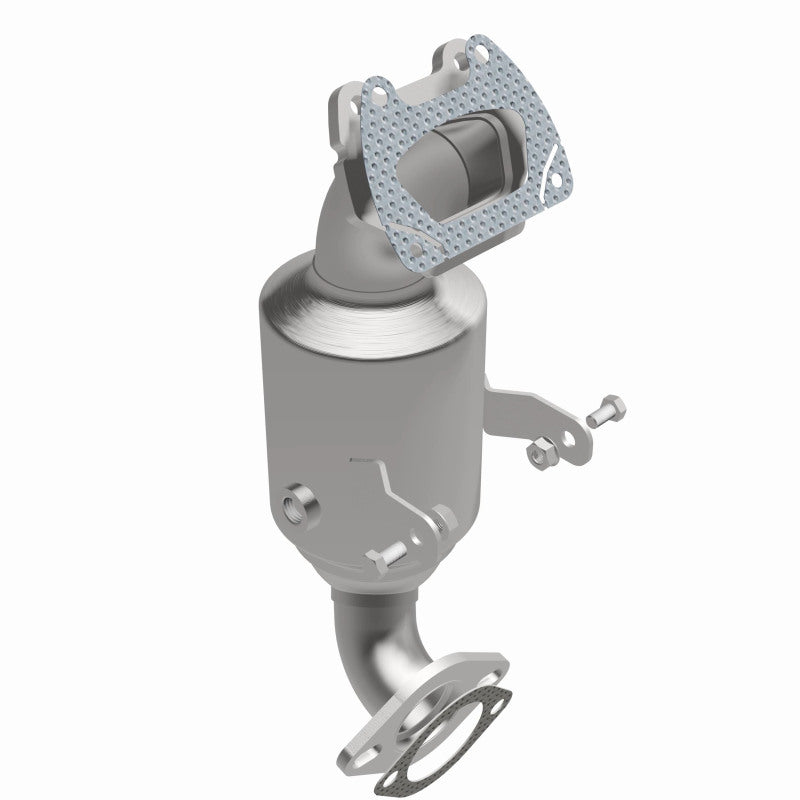

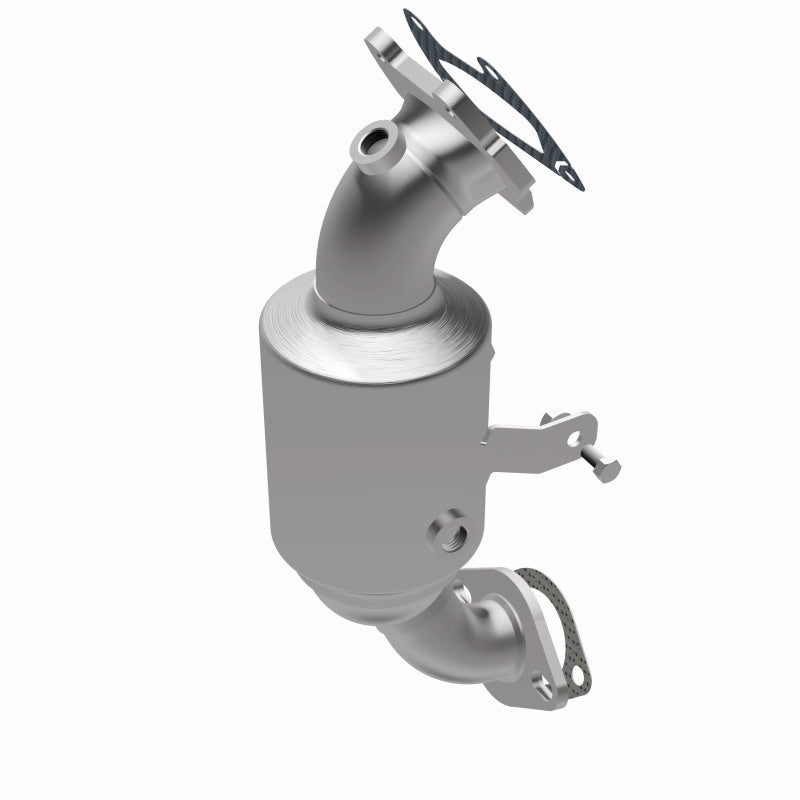

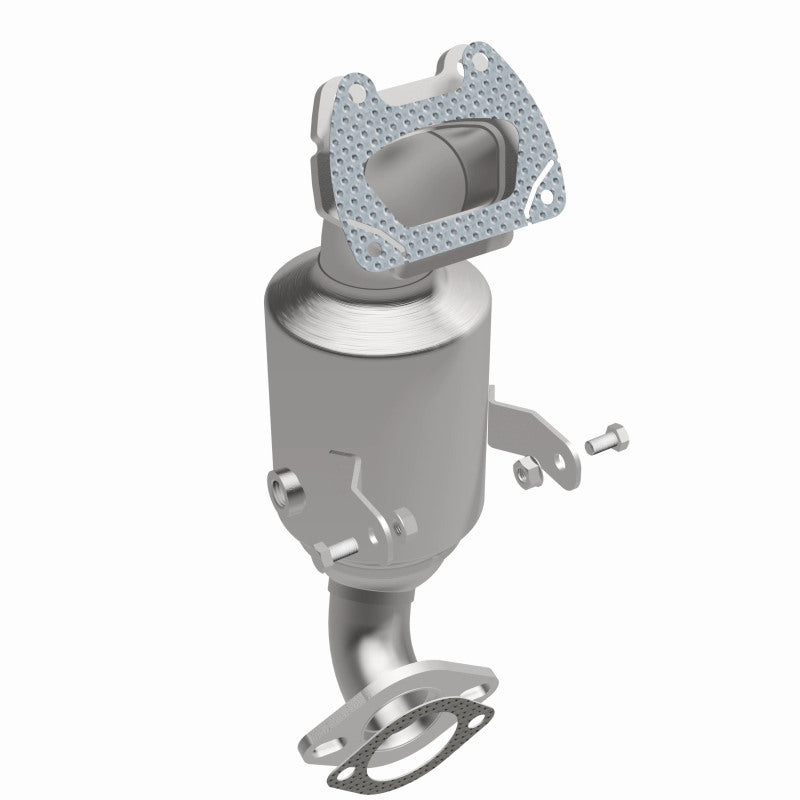

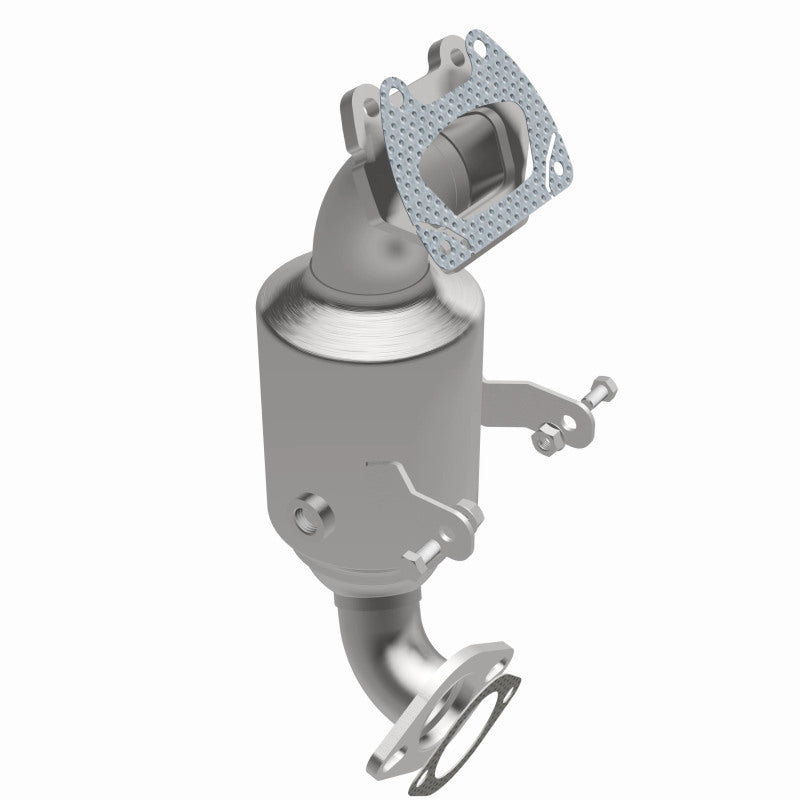

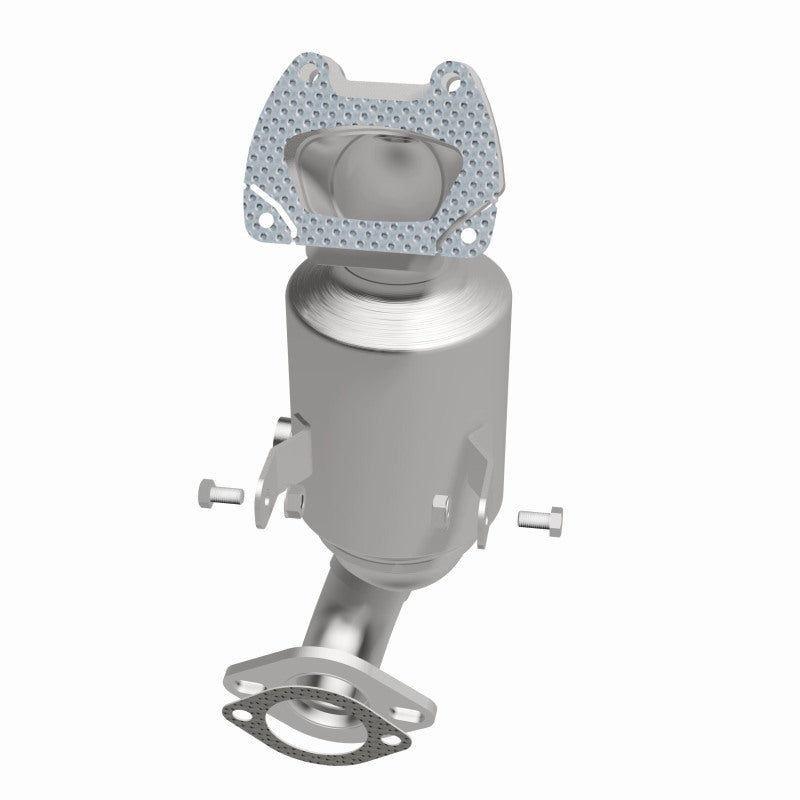

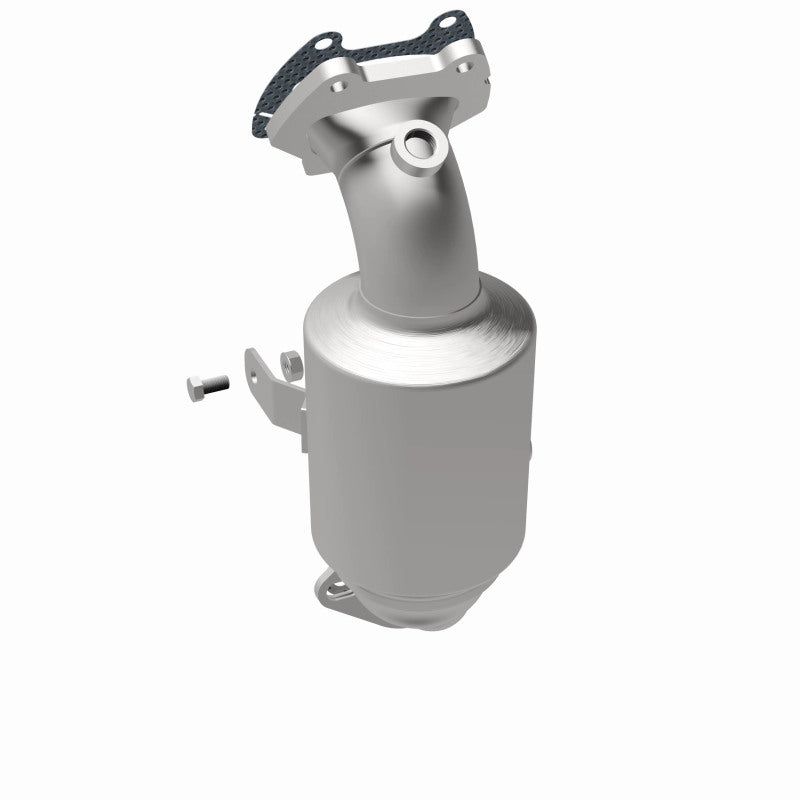

Keep the check engine light off with MagnaFlow OEM Grade Federal/EPA Compliant Direct-Fit Catalytic Converter 22-192. With features including free-flowing mandrel-bent tubing and highly corrosion resistant, stainless steel construction, easily install this spun body converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE spun body design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency.
Designed to fit the 2014-2018 Ram ProMaster 1500, 2014-2018 Ram ProMaster 2500, and more, this direct-fit catalytic converter also interchanges with OE part 6819 0013AB. The included gaskets & hardware reduce the possibility of a leaking seal while avoiding the need to reuse corroded factory parts for installation.
Note : Not For Sale in California
| Brand | Interchange Part Number |
|---|---|
| Ram Trucks | 6819 0013AB |
| Ram Trucks | 68190013AB |
| Ram Trucks | 6819 0013AB |
| Ram Trucks | 68190013AB |
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| 2014 - 2018 | Ram | ProMaster 1500 | 3.6L/V6 | |
| 2014 - 2018 | Ram | ProMaster 2500 | 3.6L/V6 | |
| 2014 - 2018 | Ram | ProMaster 3500 | 3.6L/V6 |
Specs:
| Air Tube Adaptable | No |
|---|---|
| Outlet Attachment | Bolt-On |
| Overall Length (In.) | 17.5 |
| Outlet Quantity | 1 |
| Inlet Quantity | 1 |
| Finish | Stainless Steel |
| Type | Direct-Fit |
| Title | OEM Grade Manifold |
| Subtitle | Federal / EPA Compliant |
| Substrate | Ceramic |
| Series | OEM Grade |
| Oxygen Sensor Location | Pre Converter and Midbed |
| Outlet Diameter (In.) | 2 |
| Mounting Hardware Included | Yes |
| Body Height (In.) | 5 |
| Material | Stainless Steel |
| Main Piping Diameter (In.) | 2.5 |
| Inlet Diameter (In.) | 2.5 |
| Inlet Attachment | Bolt-On |
| Heat Shield Attached | No |
| Gasket Included | Yes |
| Converter Quantity | 1 |
| Clamp Included | No |
| Body Width (In.) | 5 |
| Body Type | Spun |
| Body Shape | Round |
| Body Length (In.) | 7.375 |
| Sensor Port Count | 2 |
