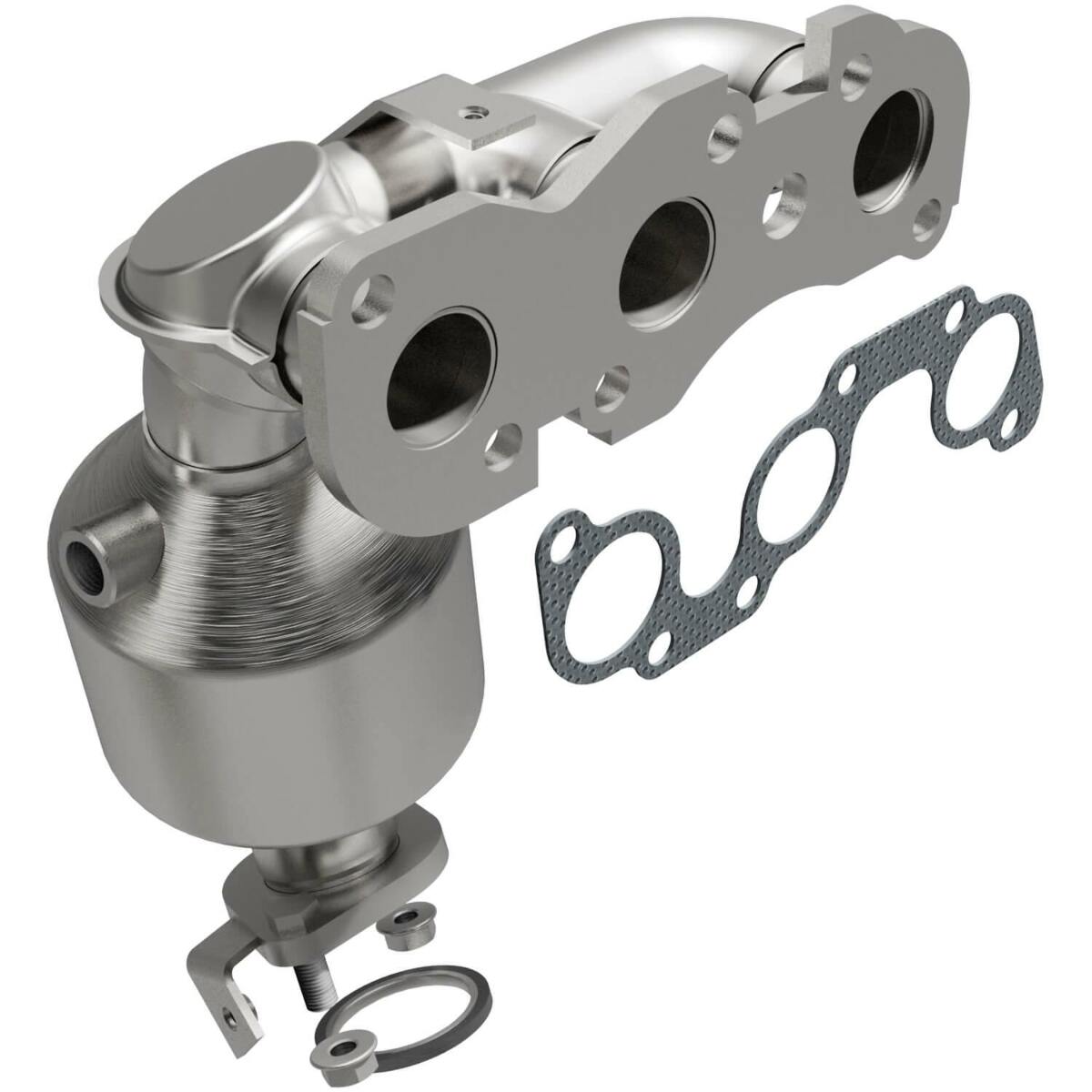

MagnaFlow 452136 Direct-Fit Catalytic Converter 2002 Toyota Avalon 3.0L

MagnaFlow 452136 Direct-Fit Catalytic Converter 2002 Toyota Avalon 3.0L

452136-FBHB
Regular price
$838.00
Regular price
Sale price
$838.00
Unit price
per
Availability
Sold out

Overview:

Keep the check engine light off with MagnaFlow California Grade CARB Compliant Direct-Fit Catalytic Converter 452136. With features including free-flowing mandrel-bent tubing and highly corrosion resistant, stainless steel construction, easily install this spun body converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE spun body design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This direct-fit catalytic converter is designed specifically for the 2000-2004 Toyota Avalon and interchanges with OE parts 17410-0A220 and 17410-0A310. The included gaskets & hardware reduce the possibility of a leaking seal while avoiding the need to reuse corroded factory parts for installation. This replacement part is designed to meet or exceed California Air Resource Board requirements, and has undergone additional testing to be certified by CARB for legal use in CA/CARB restricted states for the listed vehicles.

Brand  Interchange Part Number
Toyota 17410-0A220
Toyota 17410-0A310
Toyota 174100A220
Toyota 174100A310
Toyota 17410-0A220
Toyota 17410-0A310
Toyota 174100A220
Toyota 174100A310

Year Make Model Submodel Engine Size
2000 - 2004 Toyota Avalon 3L/V6

Air Tube Adaptable No
Outlet Attachment Bolt-On
Overall Length (In.) 12.875
Outlet Quantity 1
Inlet Quantity 3
Finish Stainless Steel
Type Direct-Fit
Title California Manifold
Subtitle California / CARB Compliant
Substrate Ceramic
Series California
Oxygen Sensor Location Pre Converter
Outlet Diameter (In.) 2
Mounting Hardware Included Yes
Body Height (In.) 5
Material Stainless Steel
Main Piping Diameter (In.) 2
Inlet Diameter (In.) 1.75
Inlet Attachment Bolt-On
Heat Shield Attached No
Gasket Included Yes
Converter Quantity 1
Clamp Included No
Body Width (In.) 5
Body Type Spun
Body Shape Round
Body Length (In.) 6.75
Sensor Port Count 1
