10-12 Santa Fe 3.5 Manifold Direct-Fit Catalytic Converter 52743 Magnaflow
10-12 Santa Fe 3.5 Manifold Direct-Fit Catalytic Converter 52743 Magnaflow is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

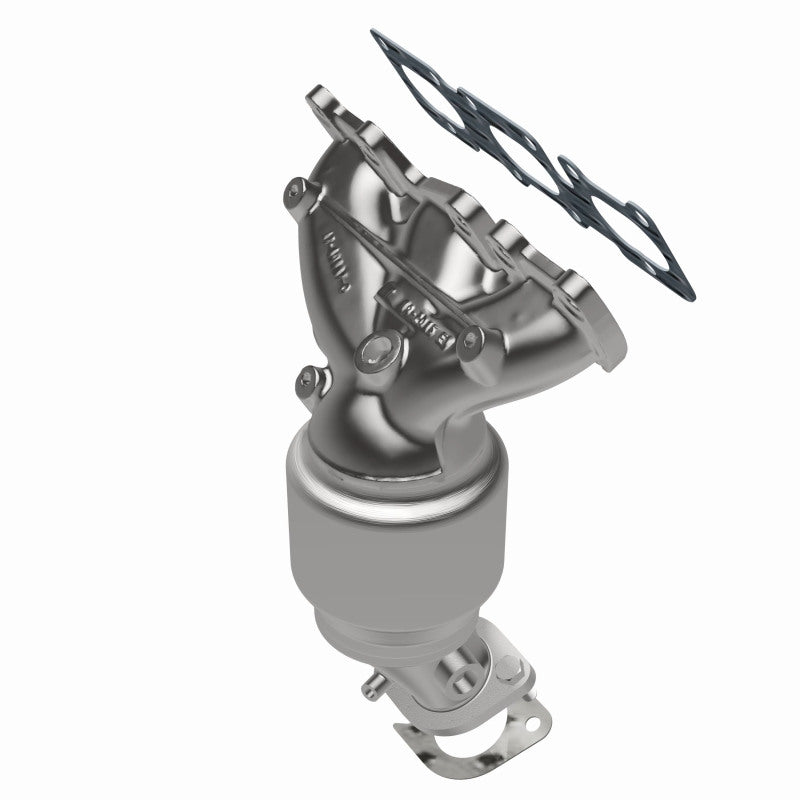

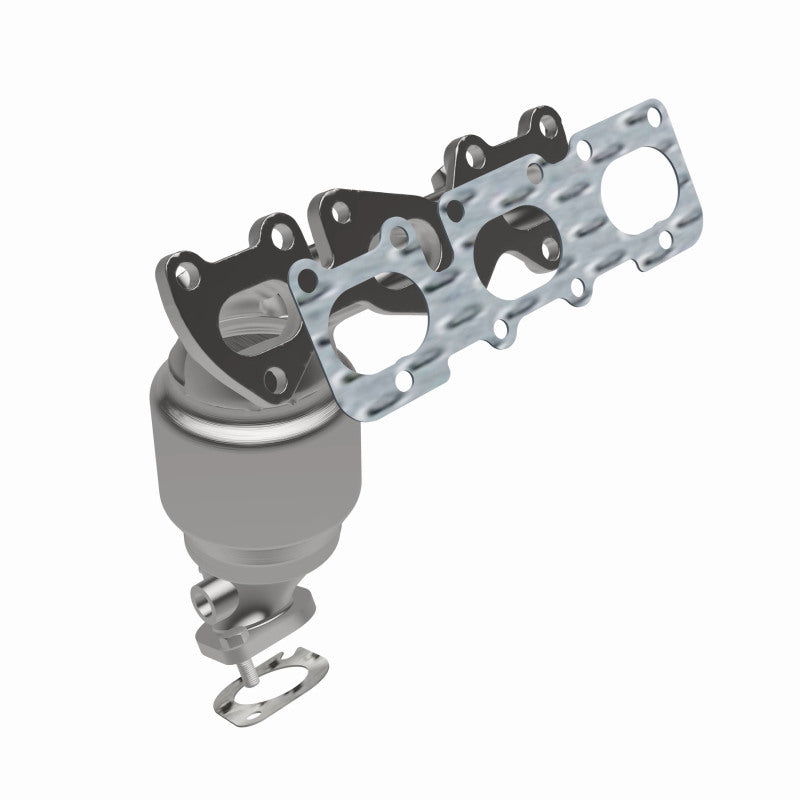

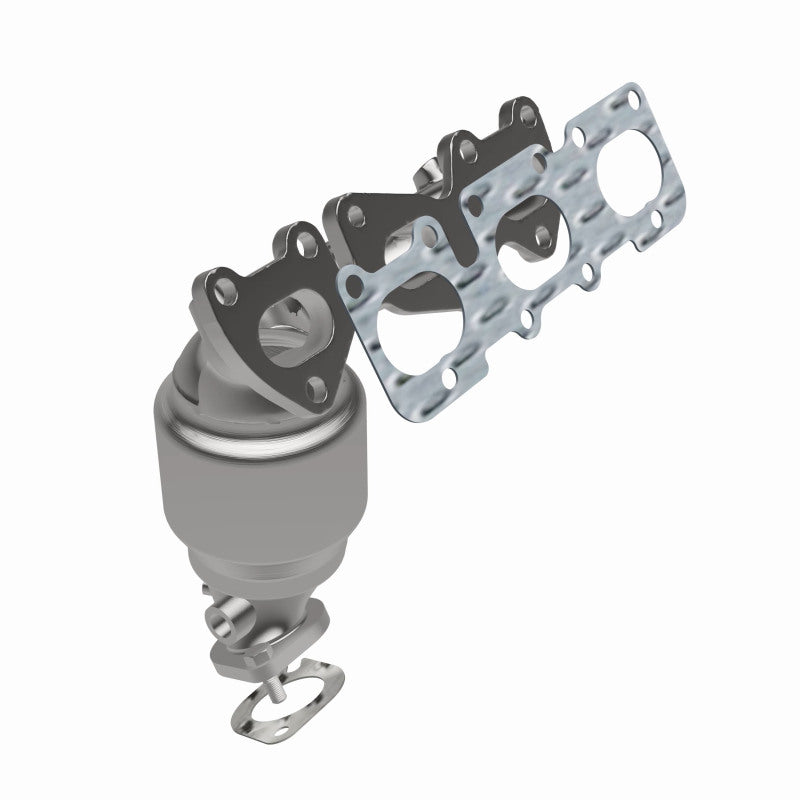

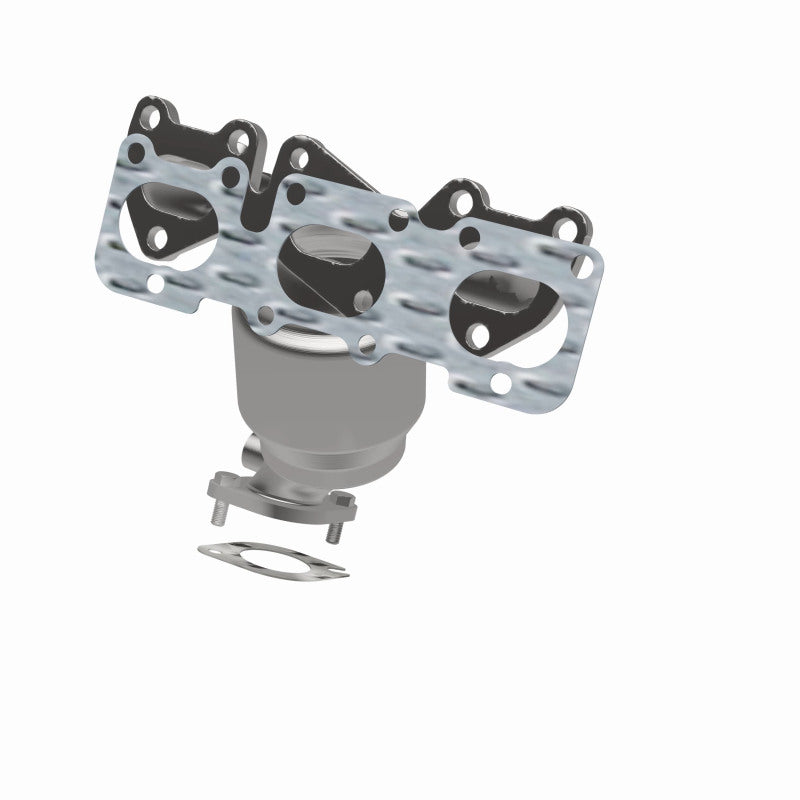

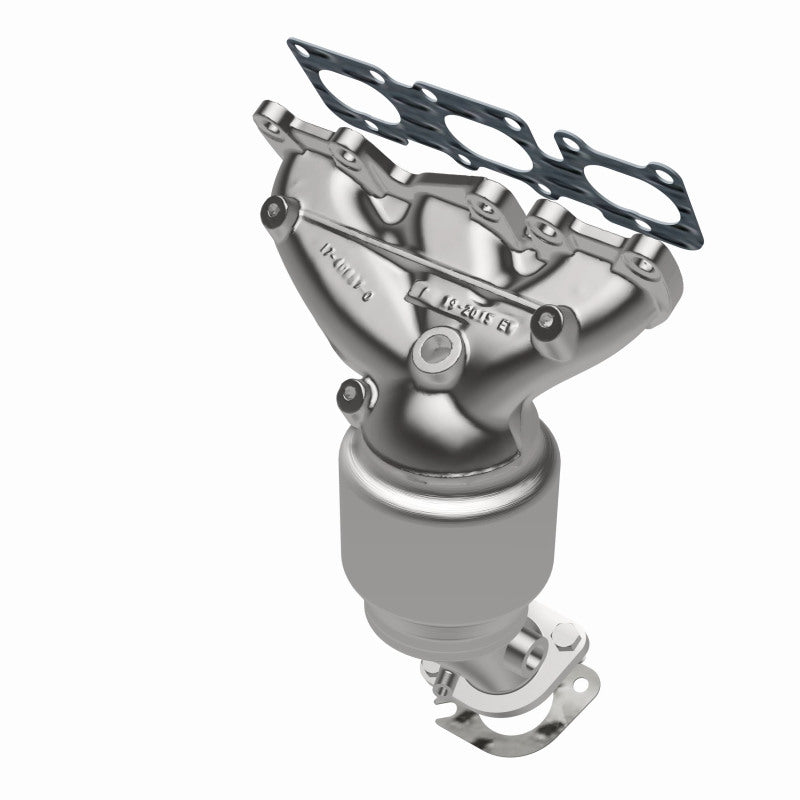

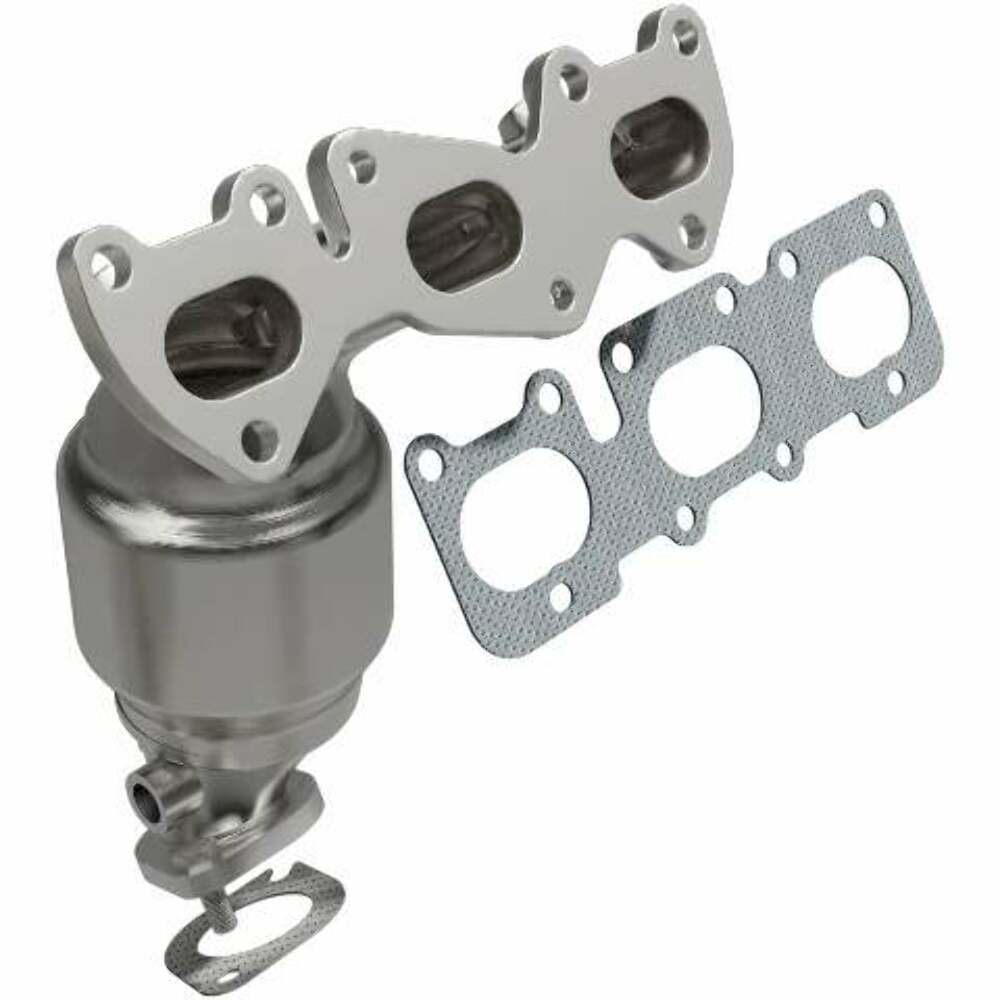

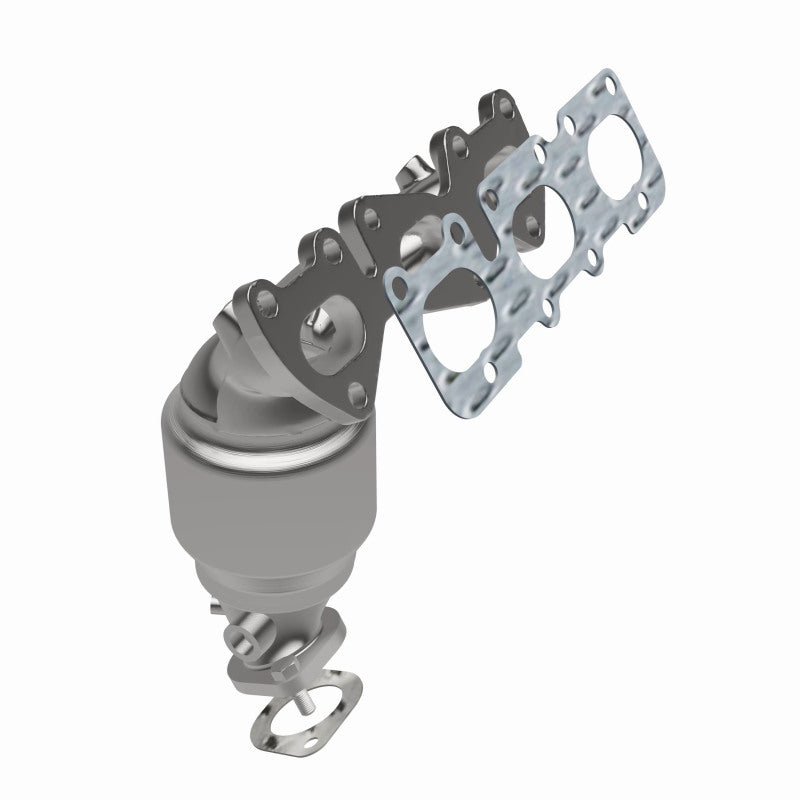

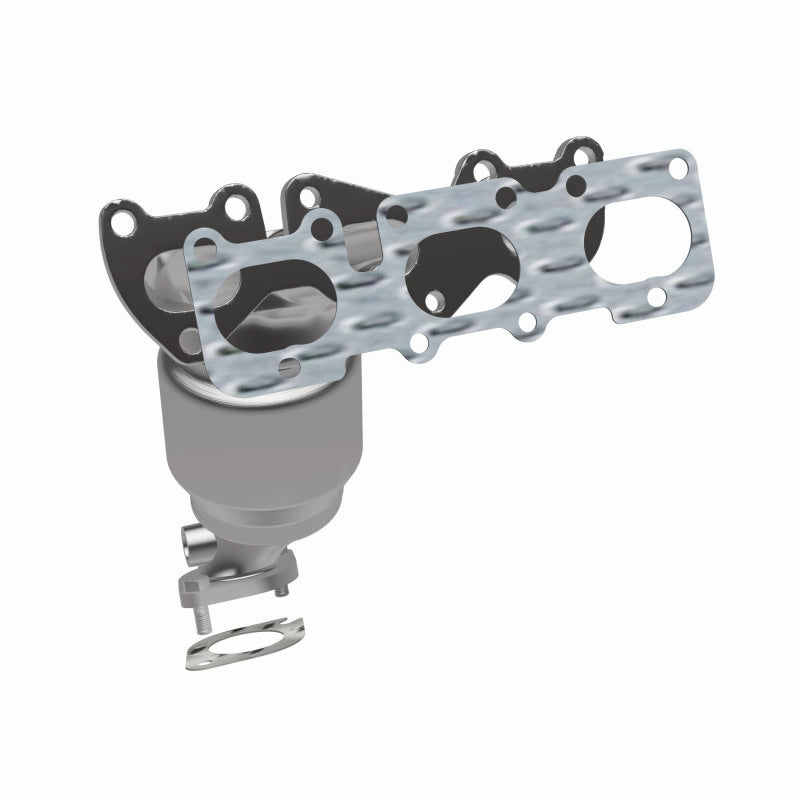

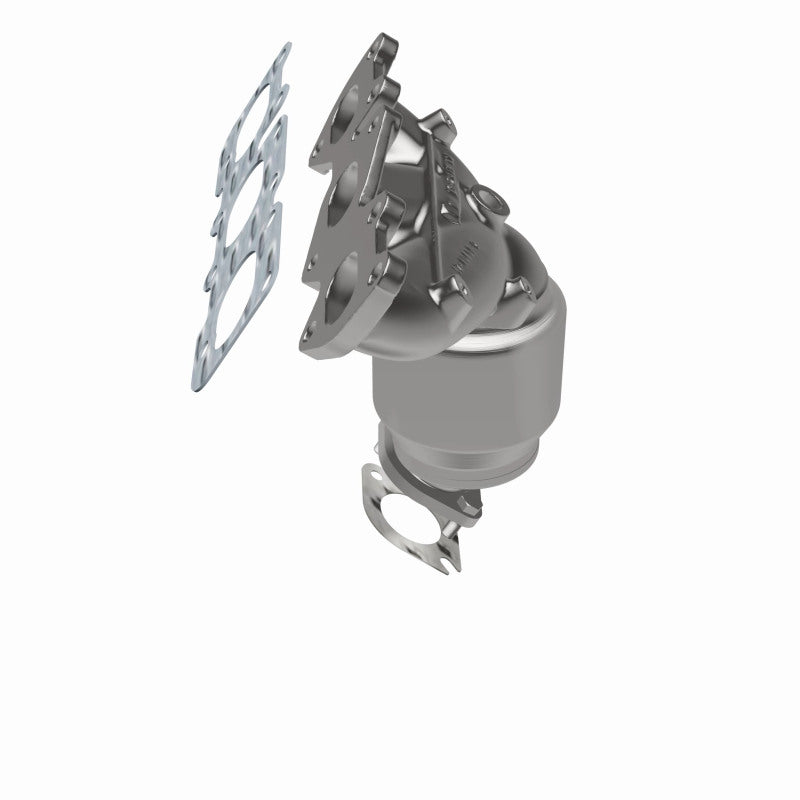

Keep the check engine light off with MagnaFlow OEM Grade Federal/EPA Compliant Direct-Fit Catalytic Converter 52743. With features including free-flowing mandrel-bent tubing and highly corrosion resistant, stainless steel construction, easily install this spun body converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE spun body design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency.
Designed to fit the 2011-2013 Kia Sorento and 2010-2012 Hyundai Santa Fe, this direct-fit catalytic converter also interchanges with OE part 28510-3CBH0. The included gaskets & hardware reduce the possibility of a leaking seal while avoiding the need to reuse corroded factory parts for installation.
Note : Not For Sale in California
Interchange:
| Brand | Interchange Part Number |
|---|---|
| Kia | 28510-3CBH0 |
| Hyundai | 28510-3CBH0 |
| Kia | 285103CBH0 |
| Hyundai | 285103CBH0 |
| Kia | 28510-3CBH0 |
| Hyundai | 28510-3CBH0 |
| Kia | 285103CBH0 |
| Hyundai | 285103CBH0 |
Application:
| Year | Make | Model | Submodel | Engine Size |
|---|---|---|---|---|
| 2011 - 2013 | Kia | Sorento | 3.5L/V6 | |
| 2010 - 2012 | Hyundai | Santa Fe | 3.5L/V6 |
Specs:
| Inlet Quantity | 3 |
|---|---|
| Heat Shield Attached | No |
| Finish | Stainless Steel |
| Mounting Hardware Included | Yes |
| Inlet Diameter (In.) | 2.125 |
| Main Piping Diameter (In.) | 2.125 |
| Gasket Included | Yes |
| Material | Stainless Steel |
| Outlet Diameter (In.) | 1.75 |
| Series | OEM Grade |
| Subtitle | Federal / EPA Compliant |
| Oxygen Sensor Location | Pre and Post Converter |
| Title | OEM Grade Manifold |
| Type | Direct-Fit |
| Body Height (In.) | 5 |
| Outlet Attachment | Bolt-On |
| Converter Quantity | 1 |
| Inlet Attachment | Bolt-On |
| Clamp Included | No |
| Body Width (In.) | 5 |
| Body Type | Spun |
| Body Shape | Round |
| Body Length (In.) | 5 |
| Sensor Port Count | 2 |
| Air Tube Adaptable | No |
| Substrate | Ceramic |
| Overall Length (In.) | 13.25 |
| Outlet Quantity | 1 |
