Master Cylinder 4 Bolt Mopar, Polished Finish, Left Port, 1.125" Bore 6801305LP
Master Cylinder 4 Bolt Mopar, Polished Finish, Left Port, 1.125" Bore 6801305LP is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description

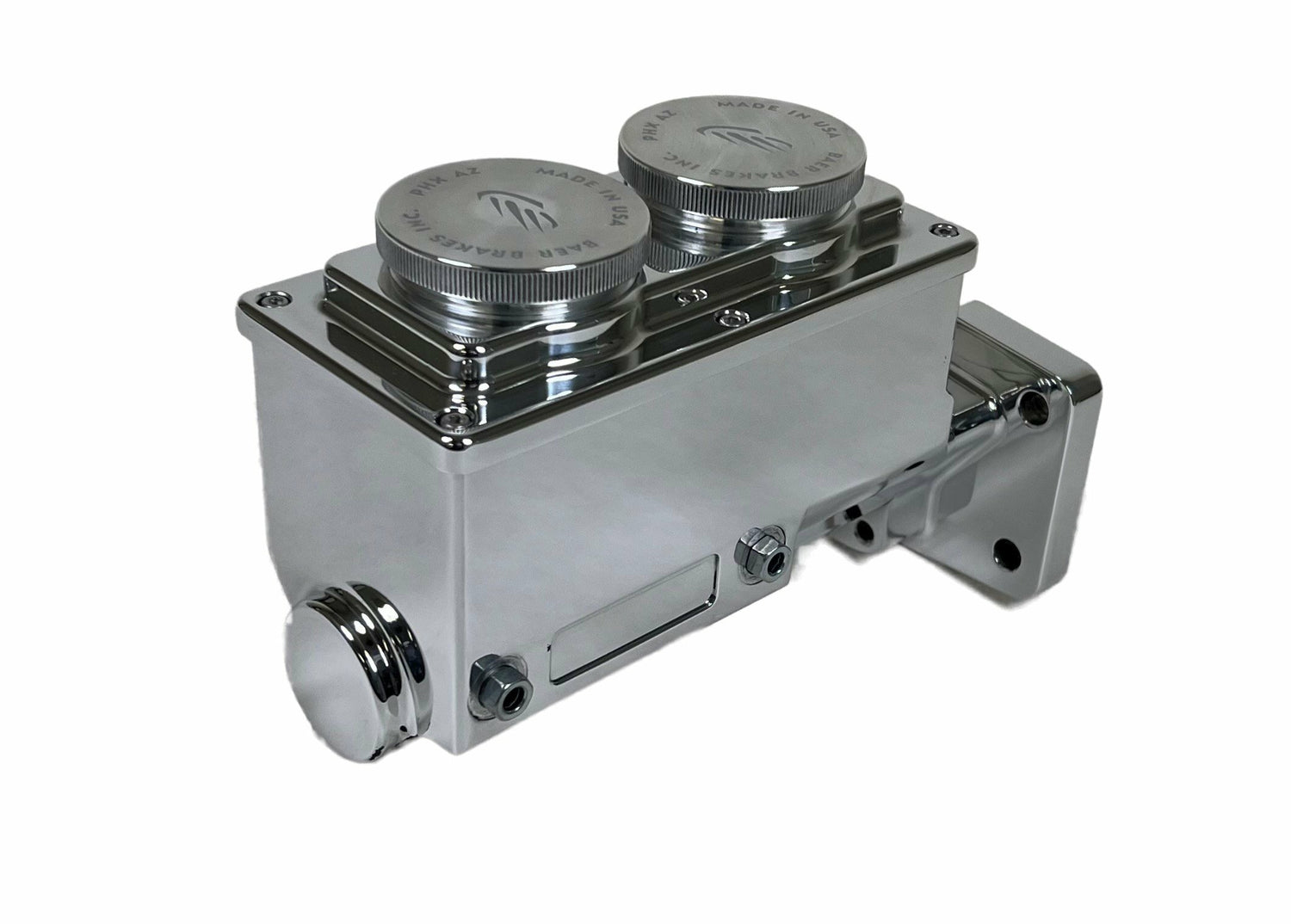

Baer Brakes Remaster Master Cylinder: A small, compact, 1-piece body machined out of 6061 T6 billet aluminum, 1-1/8 in. Bore, Left Side Ports, Polished, with a early Mopar 4-bolt mounting flange.
Features:
- 4-Bolt Mopar Firewall Mounting Bracket
- Fully machined 6061 T6 billet aluminum construction
- Unique 3/8-24 outlet port design allows for either inverted flare (w/included removable seats), banjo style or straight fittings.
- Left Side Ports
- Machined and knurled screw-on caps for easy access to fill without spillage
- Anodized Remasters feature laser-etched logos
Specs:
| Area | 0.97 |
|---|---|
| Bleeder Hoses Included | No |
| Bleeder Screw Included | No |
| Bore Size | 1.125IN |
| Box Count | 1 |
| Brake Booster Included | No |
| Brand | Baer Brakes |
| Connector For Warning Light | No |
| Emission Code | 6 |
| Export Description | Brake Components |
| Fittings Included | Yes |
| Flange Type | 4 Bolt Mopar |
| Grade Type | Premium |
| Includes | 1x Master Cylinder Assembly, 2 Brass Seats, 2 Tube Nuts |
| Master Cylinder Cap Included | Yes |
| Master Cylinder Material | 6061 T6 billet aluminum |
| Master Cylinder Outlet Port Fittings | Banjo w/o Brass Seat |
| Master Cylinder Outlet Port Fittings | 3/16" Inverted Flare and Tube Nuts w/ Brass Seat |
| Master Cylinder Outlet Port Quantity | 2 |
| Master Cylinder Outlet Port Size | 3/8-24 |
| Master Cylinder Port Exit | Left side |
| Mounting Hardware Included | No |
| Product Line | Master Cylinder Assembly |
| Prop 65 - Short Label | WARNING: Cancer Harm - www.p65warnings.ca.gov |
| Quantity | Sold Individually |
| Remaster Body Color | Polished |
| Remaster Body Finish | Polished |
| Remaster Caps Color | Polished |
| Remaster Caps Finish | Polished |
| Remaster lid Color | Polished |
| Remaster lid Finish | Polished |
| Removable Seats | Yes |
| Reservoir Included | Yes |
| Reservoir Material | 6061 T6 billet aluminum |
| Reservoir Size | 7oz per reservoir, Fill to 75% or 5.25oz per reservoir |
| Reservoir Style | Integral |
| Reservoir Type | Dual |
| Sensor Included | No |
| Series | ReMaster |
| Stroke | 1.3IN |
| System Notes | polished,1-1/8IN bore,left port |
| Title | ReMaster Master Cylinder 4 Bolt Mopar, Polished Polished Finish, Left Port, 1.125" (1-1/8") Bore |
| Universal Or Specific Fit | Universal |
| Volume Ratio | 2:1? |
