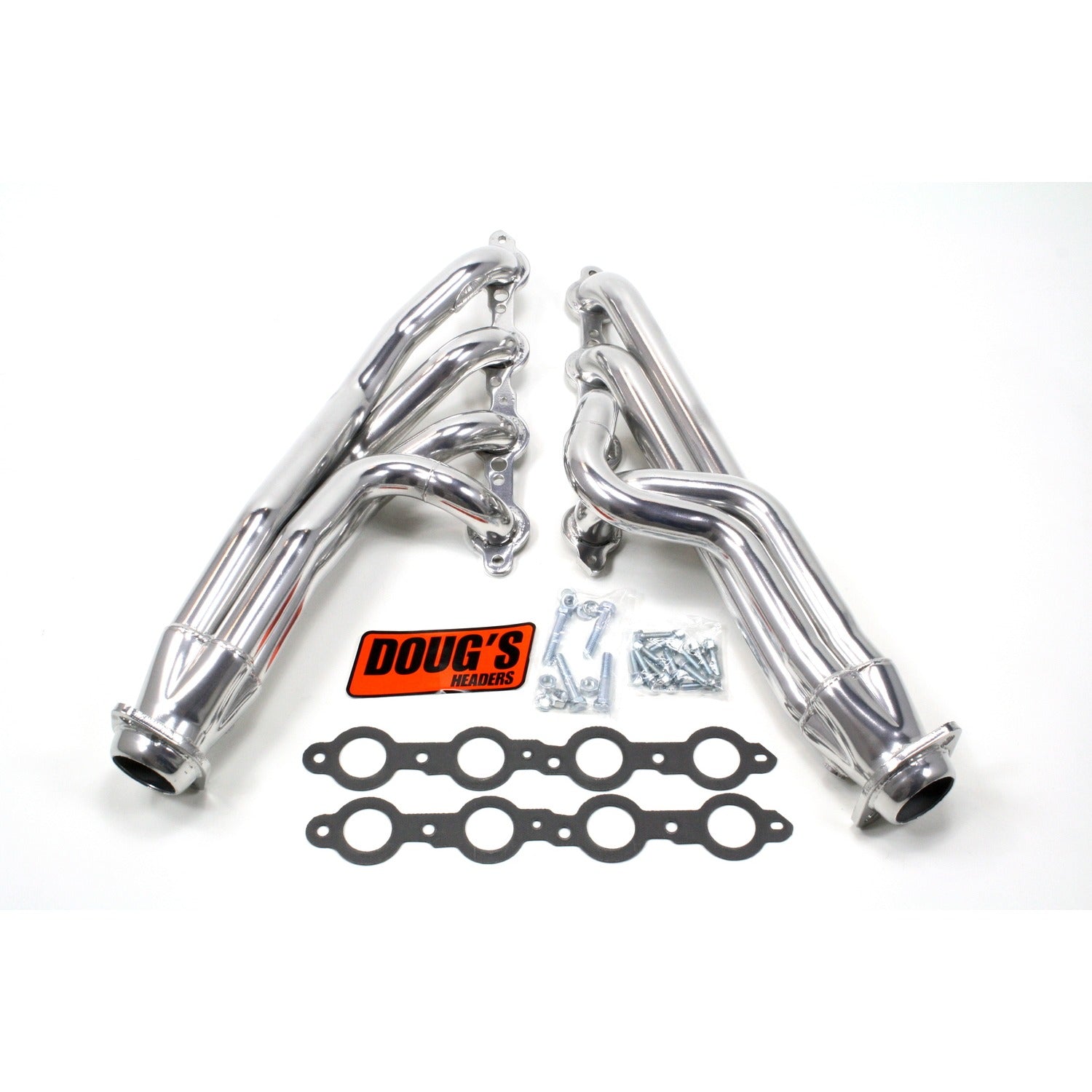

Mid-Length Headers for 70-81 F Body/75-79 X Body 4.8-6.2L LS Engine Swap D335
Mid-Length Headers for 70-81 F Body/75-79 X Body 4.8-6.2L LS Engine Swap D335 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:
70-81 F Body/75-9 X Body LS Mid Slvr Ctd
Mid-Length Headers, often called Clipsters, are engineered to provide superior performance gains over Manifold Replacements or Block Hugger style headers. These headers enhance your vehicles's horsepower and torque while preserving ground clearance for cars with a lowered stance and trucks where long tube headers may hang to low. This fitment is tailored for popular aftermarket engine swap kits. Doug's engine swap headers were developed to solve common fitment issues in tight spaces, making your swap process smoother. No more guesswork or modifications needed - just straightforward installations that save you time and frustration.
Features:
- 3/8" Thick machined flanges to prevent warping
- CNC mandrel bent tubes for ensuring accurate fit and optimal flow
- Heavy duty 16-gauge tubing for long life
- Tubes are pre-polished to removed scratches before applying metallic ceramic or hi-temp black coating
Specs:
- Brand: Doug's Headers
- Collector Attachment: 2-Bolt Flange
- Collector Diameter: 3.0 IN
- Collector Port Diameter: 3.0 IN
- Color: Silver
- Cylinder Head Port Shape: Round
- Design: Full-length
- EGT Port: No
- Finish: Metallic Ceramic Coated
- Flange Thickness: 0.375 IN
- Gasket Or Seal Included: Yes
- Gaskets Included: Yes
- Grade Type: Performance
- Header Material: Steel
- Header Style: Full-length
- Material: Steel
- Mounting Hardware Included: Yes
- Oxygen Sensor Port: Yes
- Port Shape: Round
- Primary Tube Outside Diameter: 1.75 IN
- Primary Tubing Diameter: 1.75 IN
- Prop 65 (C, R or CR): CR
- Prop 65 Yes/No: Yes
- Sheen Level: Semi-Gloss
- Title: Doug's Mid Length Header 70-81 F Body/75-79 X Body 4.8-6.2L LS Engine Swap 1 3/4" Primary 3" Collector Silver Ceramic Coated D335
- Tube Wall Thickness: 16 GU
- Part Number: D335
Emissions:
- This Product is LEGAL for Closed Course Competition use or Pre-Emissions Controlled Vehicles ONLY. It is Not Legal for use on any Emissions Controlled Vehicle for Street or Off Highway use.
Instructions:
Fitment Notes:
- O2 bungs are welded on both collectors.
- Requires Doug's LS1 adapter plate kit P/N SK100 or equivalent.
- OEM Domed collector style.
