Motor Mounts for GM A Body 1964-1967 LS Swap Motor Mount Steel SK103
Motor Mounts for GM A Body 1964-1967 LS Swap Motor Mount Steel SK103 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Fitment
Fitment
Warranty Information
Warranty Information
Customer service is our top priority and because we value your time and energy we ask you to visit our Contact Us page and reach out so that we may assist you in finding the correct warranty for your product. Please include your name, the name on the order, the order number, and the SKU of the product to ensure the quickest and most accurate response to your inquiry.
Description
Description
Overview:

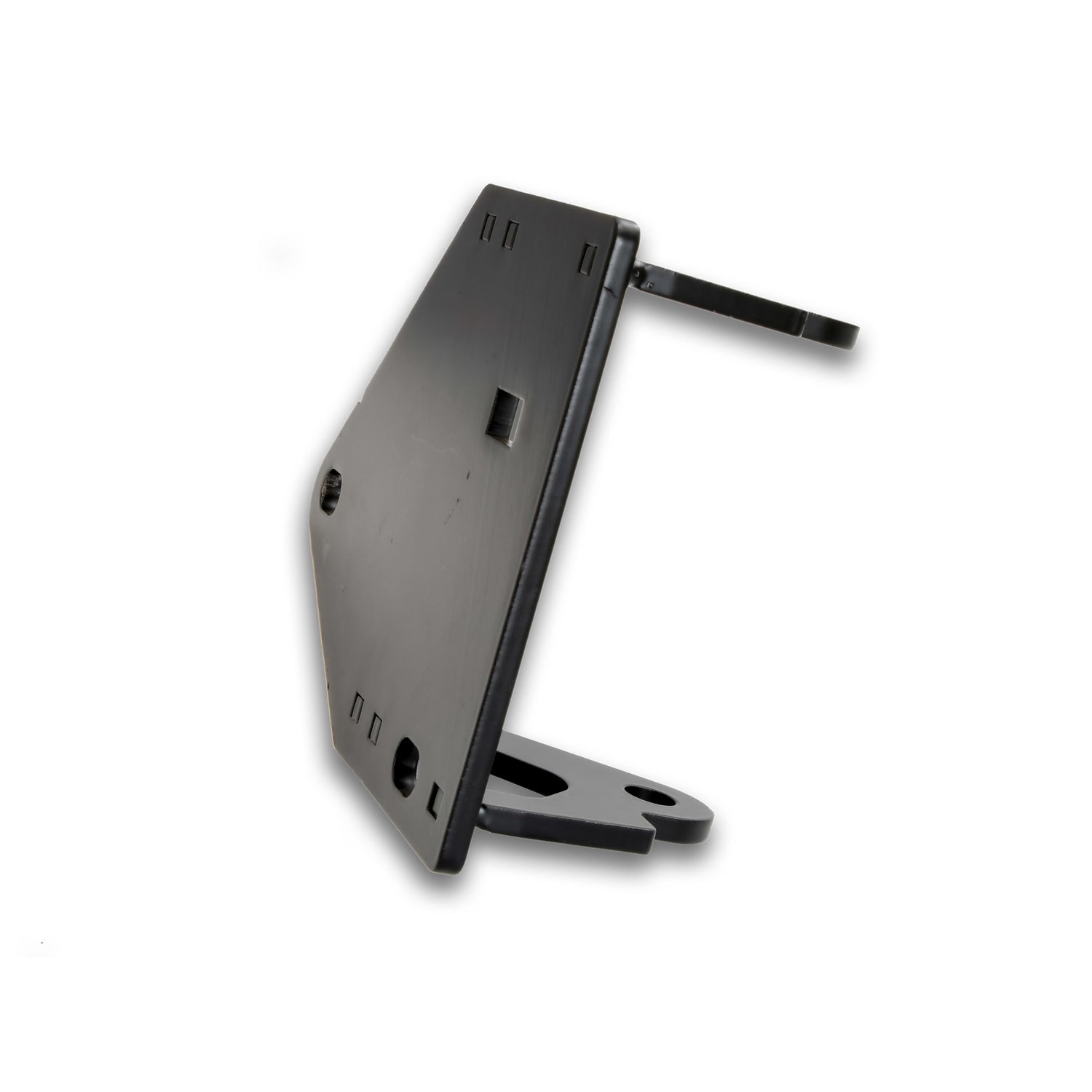

64-67 Chevrolet Chevelle LS Swap Motor Mounts - SK103
Your engine is the heart of your vehicle, giving it its pulse. Doug's line of LS Engine Swap products work together to ensure a proper fit for the LS Engine into specific applications. Engine swap projects often take place over time and careful consideration goes into choosing the right products to suit a range of budgets. That is why we offer our LS engine swap parts a la carte so you can buy each part as needed instead of all at once.
For the enthusiast who demands the best, Doug's Headers are not just components; they're a statement of excellence, a commitment to leading-edge performance, and a nod to the glory days of muscle cars and drag racing. Join the ranks of champions. Experience the unmatched quality and performance of Doug's Headers today.
Features:
- Mild Steel
- Designed for use with Doug's Headers line of LS engine swap products
Applications:
- 1964-1967 Chevrolet Chevelle
- Engine: LS Swap
- Motor Mounts
Fitment Notes:
- Doug’s motor mount kit SK103 is designed to be used exclusively with Doug’s transmission crossmember SKC101. Use of any other brand of crossmember will not necessarily fit and driveline angles will be incorrect causing vibrations.
- Doug’s Oil Pan #SKOP100 is required to clear the frame crossmember.
- 4th Gen Camaro motor mount isolators, GM part #22179266, Anchor #3064 or Energy Suspension #3-1151 are required to mount the motor.
- Use of these mounts will allow LS engines with 4L60/4L65/4L70/4L75/4L80/4L85, TH-400, 200-4R to be installed when using the Doug’s SKC101 without cutting the floor or firewall (other than for shifter location). Some “persuading” with a large hammer may be necessary with various transmissions, see comments in the trans crossmember instructions. T-56 transmissions will require floor modifications.
- Doug’s offers both long and mid length headers (D3349 and D3350) as well as complete exhaust systems (DES103). Alternatively, Patriot Cast Iron manifolds will also work with this swap (H8097).
- Front Engine Accessory Drive (FEAD) systems - Stock Corvette (excluding the A/C compressor/bracket, which must be relocated) or Truck (using the smaller 5” diameter power steering pump pulley and stock Denso A/C compressor without rear pressure sensor) will work, as will some aftermarket systems.
- Motor mounts approximately 1” forward compared to Gen 1 Small Blocks for optimum transmission tunnel clearance and driveline angles.
- Low-mount A/C compressors should clear in most applications
- Compatible with stock Saginaw, CPP500 or Delphi 600 series power steering boxes
- These mounts are compatible with the stock A/C Evaporative unit as well as the standard heater box and hose.
- You MAY want to relocate the #8 ignition coil for more clearance.
Specs:
- Brand: Doug's Headers
- Color: Black

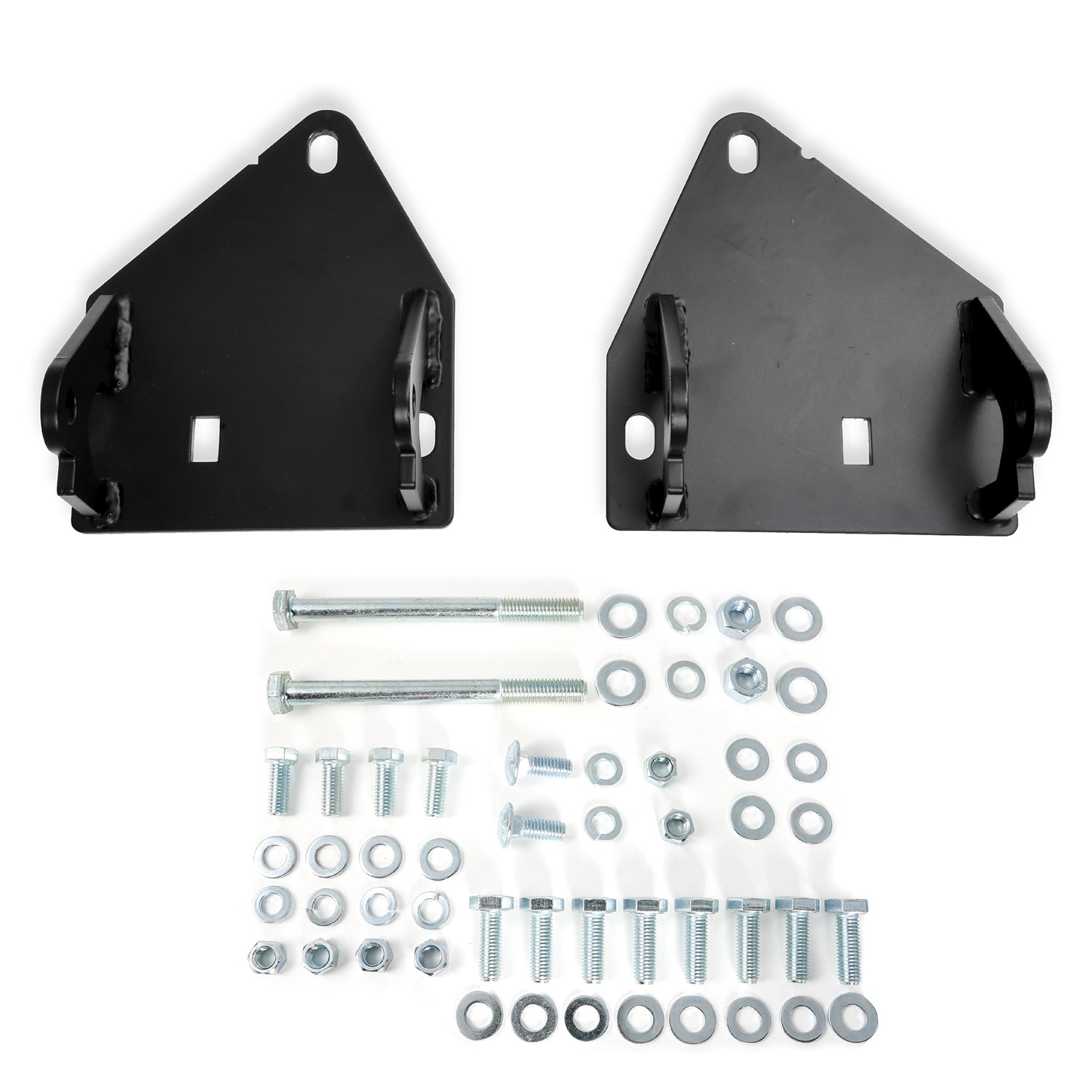

- Mounting Hardware Included: Yes
- Prop 65 (C, R or CR): CR
- Prop 65 Yes/No: Yes
- Title: Doug's Headers SK103 GM A Body LS Swap Motor Mount
- Part Number: SK103
Emissions:
- This Product is Certified by the Manufacturer as being а Non-Emissions Related part per CARB and EPA regulations and therefore does not require emissions certification or CARB EO and is legal in all 50 states.
